OEM Roof Rack Install

Discussion in '2nd Gen. Tacomas' started by YumaTRD, Dec 4, 2010.

  1. Dec 4, 2010 at 10:56 AM
    #1
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    Tools needed will be
    25 Torx
    30 Torx

    The weather strip is cliped on by two clips on each side, the strips pop right off with minimal force.

    [​IMG]

    here are the clips that hold the weather strip. ↓

    [​IMG]

    Once removed, you will see three spots with a thick tape covering the threaded mounting holes. Remove the tape to uncover the holes. There are 5 treaded holes for the bolts per side. Two near the front, one in the middle, two near the back.

    The first item bolted on is the front bracket. It uses the front two holes on the roof. All the bolts are either 25 or 30 torx heads.
    [​IMG]

    Next, you will mount the one side of the rack.
    The rack bolts up to the base with two bolts. Then also bolts up to the remaining 3 bolts on the rack to the roof.

    [​IMG]

    Repeat on the pasenger side and the finished product should look like this ↓
    [​IMG]

    and like this with the racks open ↓
    [​IMG]

    In summary, theres only 14 bolts in total. The weather strips clip back on fairly easily if you decide to go back to stock. I believe there's a 100 lbs. limit for the OEM roof rack.

  2. Dec 4, 2010 at 10:58 AM
    #2
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,804
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
    very nice write-up

  3. Dec 4, 2010 at 11:01 AM
    #3
    503TRD

    503TRD Trucker

    Joined:
    Jul 4, 2010
    Member:
    #39773
    Messages:
    757
    Gender:
    Male
    First Name:
    Chad
    Tualatin, Oregon
    Vehicle:
    '10 4x4 DC TRD Sport
    Front Bilstein 5100's Set @ 2.5", Rear Bilstein 5100's, Rear TSB, Rear 1.5" ToyTec AAL, 1" CB Drop Kit, N-Fab Nerf Steps, WeatherTech All Weather Rubber Floor Mats, Grillcraft Grill(Upper/Lower), Blacked Out AC Condenser/Radiator, Tinted Front Windows, Vision X H4 SuperWhite Headlights, Halo H10 Solaris Yellow 45w 3000k Fog Lights, K&N Air Filter, Removed Front Mud Flaps, 18" MagnaFlow Muffler, Chrome Exhaust Tip, TRD Logo Leather Shift Knob, LED License Plate Lights, LED Interior Lights, LED Reverse Lights, LED Auxiliary Reverse Lights, Chrome TRD Badge on Tailgate, Redline Tuning Elite Hood Struts, Disabled Seatbelt Chime, Foglights Anytime, ScanGauge II, 13" Stubby Antenna, Flyzeye Design LED Light, Cobra 19 CB Radio/Firestik II Antenna, 18x9 Raceline Raptors, LT275/70/18 Hankook Dynapro ATm, 1.25" Sidertrax Wheel Spacers, Heated Front Seats, LED Tailgate Bar, 11" Double Row LED Bar Behind Grill
    Nice write-up! Good Job, got any pics of them on not from above the roof?

  4. Dec 4, 2010 at 11:01 AM
    #4
    06BLUEDBLSPORT

    06BLUEDBLSPORT Well-Known Member

    Joined:
    Apr 22, 2008
    Member:
    #6140
    Messages:
    4,121
    Gender:
    Male
    First Name:
    Colin
    Lubbock Texas
    Vehicle:
    12 Tundra DC SR5 4x4 5.7L
    True Dual Flowmaster 40 Series exhaust, Volant CAI, HIDs, Raptor series Side Steps, Weathertech Floorliners, OME 613 Shocks and Coils with Diff Drop, Rear Bilstein 5100 Shocks, ToyTec AAL, Fearless Fabrication Front Bumper
    you make it look soo easy, hell i installed mine, when i got done it there were gaps between the paint and roof racks, they didnt fit right, and when i was installing them i overtightened the bolts and ruined the seals so when it rained a week later my interrior leaked. had to get it uninstalled and then reinstalled by the dealer, an extra 200 bucks :eek:

  5. Dec 4, 2010 at 11:05 AM
    #5
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    If only there was a DIY!!! you would have avoided the hassle :D

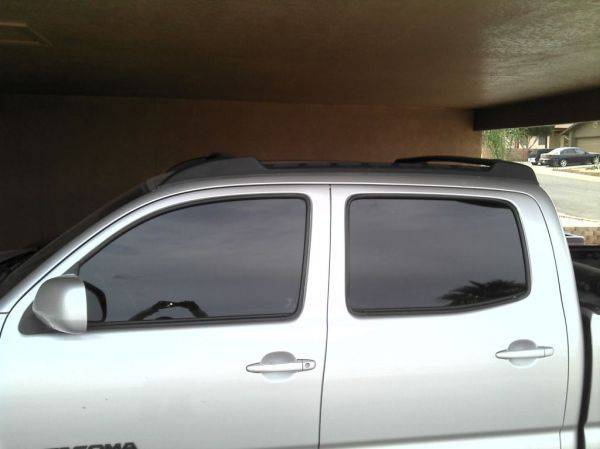

    I'll upload a side shot in a min.

  6. Dec 4, 2010 at 11:06 AM
    #6
    jivewalker

    jivewalker me gusta pechos firmes

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    797
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS
    Looks good! That's also a good lookin chic in the background of the 6th picture ;)

  7. Dec 4, 2010 at 11:19 AM
    #7
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
  8. Dec 4, 2010 at 11:20 AM
    #8
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
  9. Dec 4, 2010 at 11:28 AM
    #9
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,017
    Gender:
    Male
    F.U> GUYZ
    broken mods
  10. Dec 4, 2010 at 2:28 PM
    #10
    Chronism

    Chronism Well-Known Member

    Joined:
    Nov 5, 2010
    Member:
    #45755
    Messages:
    152
    Gender:
    Male
    First Name:
    Michael
    Richmond, Virginia
    Vehicle:
    2011 Tacoma TRD OR/DC
    I had the same issue. On the driver's side it didn't sit completely flush at the front near the windshield. I even tried adjusting/tweaking on the front mounting bracket with no luck. I went as far as exchanging the whole rail and mounting bracket for new ones and it did they same thing. It doesn't even bother me know, hardly even know it's like that and I seem to be the only person who can see it. It doesn't effect any leakage or anything.

    Nice write up OP!

  11. Dec 4, 2010 at 2:39 PM
    #11
    jrobson

    jrobson Well-Known Member

    Joined:
    Jan 4, 2009
    Member:
    #12211
    Messages:
    1,095
    Gender:
    Male
    Mobile, Alabama
    Vehicle:
    09 DC 4x4
    Ultimate lift kit, LR UCA's, Bi-xenon 8000K headlights, Xenon 8000K foglites, (4) KC slimlites on N-Fab light bar, Extang trifecta toneau cover
    I didn't have any problems with mine. It was probably the easiest 30 minute mod I have done. Good write-up by the way.

  12. Dec 4, 2010 at 5:17 PM
    #12
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    Thanks for the Props Guys.

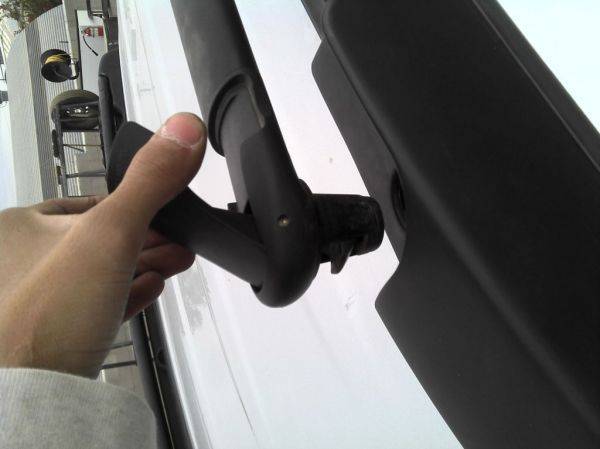

    Here is the pic of how it latches itself to the rack
    [​IMG]

  13. Dec 4, 2010 at 5:27 PM
    #13
    Sideways

    Sideways Well-Known Member

    Joined:
    Sep 7, 2008
    Member:
    #9057
    Messages:
    562
    Maryland
    Vehicle:
    05 TRD dbl cab
    Nice!
    Did you get the rack from the dealer?

  14. Dec 4, 2010 at 5:38 PM
    #14
    KDogg311

    KDogg311 Well-Known Member

    Joined:
    Jun 26, 2010
    Member:
    #39450
    Messages:
    449
    Gender:
    Male
    First Name:
    K H I E M ™
    So Cali 626 ³²³ 818
    Vehicle:
    Gen² Impulse Red Access Cab
    Avid Offroad light bar (Black), Avid Step bar (Black), TRD skid plate (Black), BHLM w/yellow signals, Pioneer Avic-x930bt, OEM fogs w/ yellow H10, Magnaflow muffler, aFe drop in filter, Toyota Neoprene "Tacoma" seat covers, Shorty antenna, Tint, Removed secondary filter, LED interior lights, LED reverse, Bedlinered rear bumper, color match grill, Black emblems, Red rear signals, Bed mat, OEM bike mounts
    never thought i'd say this to another guy ... but nice rack!!! =) wish they made em for access cabs

  15. Dec 13, 2010 at 5:38 PM
    #15
    DTHernandez

    DTHernandez New Member

    Joined:
    Dec 13, 2010
    Member:
    #47650
    Messages:
    2
    Gender:
    Male
    First Name:
    David
    East Texas
    Vehicle:
    2011 DC Taco w/ TRD off road package
    OEM roof Rack... More to come!
    I just installed mine last night and have the same problem. The right side fits tight and really snug, but the left side has a small gap and seems like it wiggles around a little bit. Im gonna try and play with it and see what i can do to make it fit better but its kinda odd that im not the only one with this problem!

    And great write up btw!!! helped out a lot!

  16. Dec 13, 2010 at 5:42 PM
    #16
    himmie

    himmie Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42841
    Messages:
    3,524
    Gender:
    Female
    First Name:
    Sarah
    AZ-WI
    Vehicle:
    08 TRD Off Road 4x4
    Visit the Build.
    Nice write-up, David!

  17. Dec 13, 2010 at 6:27 PM
    #17
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    Just trying to help out guys and gals

  18. Dec 13, 2010 at 8:59 PM
    #18
    booboy

    booboy Well-Known Member

    Joined:
    Aug 13, 2010
    Member:
    #41642
    Messages:
    316
    Gender:
    Male
    PaCiFiC nOrThWeSt
    Vehicle:
    2010 TrD SpOrT 4x4
    Good observation. :eek:

  19. Dec 21, 2010 at 12:51 PM
    #19
    Andrew H

    Andrew H What is this "search" you speak of?

    Joined:
    Nov 6, 2008
    Member:
    #10545
    Messages:
    4,255
    Gender:
    Male
    Dirty Tucson
    Vehicle:
    2010DCSB4X4TRDORMGM
    See build thread.
    Got my OEM rack in yesterday. Noticed it says on the rack thats its a 100lb load limit, not the 75lbs stated earlier. Thanks for the write up, will install mine tomorrow after I pick up some torx drivers.

  20. Dec 21, 2010 at 1:18 PM
    #20
    YumaTRD

    YumaTRD [OP] Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,906
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    thanks for the correction Andrew :thumbsup:
