OEM Roof Rack Install

Discussion in '2nd Gen. Tacomas' started by YumaTRD, Dec 4, 2010.

  1. Dec 9, 2011 at 8:28 AM
    #41
    easyeatlanta

    easyeatlanta Artificial Intelligence beats natural stupidity

    Joined:
    Aug 10, 2010
    Member:
    #41518
    Messages:
    1,239
    Gender:
    Male
    First Name:
    Eric
    Memphis
    Vehicle:
    14 DC Trd Off Road
    some guy did mod one and had a write up for how to make one fit on an access cab

  2. Dec 9, 2011 at 9:10 AM
    #42
    DATZ WEAKSAUCE

    DATZ WEAKSAUCE Well-Known Member

    Joined:
    Jul 29, 2011
    Member:
    #60786
    Messages:
    183
    Gender:
    Male
    Nor cal
    Vehicle:
    2011 MGM TRD SPORT
    im having my co worker ask some guys he knows at toyota about the issue ill let you know. but that yellow clip looks the same as a door panel clip i would try and use that as long as the prong is big enough for the hole to fit snug it will work..

    the fitment issue would never happen with a honda part:p

  3. Dec 9, 2011 at 9:32 AM
    #43
    tarandus

    tarandus Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23502
    Messages:
    199
    Gender:
    Male
    Bozeman, MT
    Vehicle:
    '08 TRD SR5 DCab OR
    ToyTec 2.5" Bilstein/Eibach lift w/rear AAL, WeatherTec mats, Leer topper, Sock Monkey decals; Grillcraft
    I've looked at a bunch of different clips and can't find it. If it is the same as the door clip, let me know!

  4. Jul 9, 2012 at 6:34 PM
    #44
    sonocotaco

    sonocotaco Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32749
    Messages:
    480
    Gender:
    Male
    First Name:
    ken
    Rohnert Park,CA.
    Vehicle:
    11 TRD Sport DCSB 4x4
    Hellwig rear sway bar. Rocky mounts bicycle mount. OEM bed extender, tube steps, roof rack.
    On the front brackets, do you tighten them until the mastic(rubber) washers are flattened?

  5. Jul 31, 2012 at 7:24 PM
    #45
    Mick71

    Mick71 Member

    Joined:
    Jun 29, 2012
    Member:
    #81608
    Messages:
    10
    Gender:
    Male
    First Name:
    Mick
    Slower Delaware
    Vehicle:
    2011 Pyrite 4x4 SR5 DCSB
    Front Mud Flap delete, Extang Trifecta Tonneau, OEM Bed Divider, OEM Roof Rack
    I just got mine installed yesterday and think I managed to avoid the "gap of woe".
    My passenger side went right on with no problems.

    [​IMG]


    I could not initially get my driver's side to engage the yellow clip into the bracket.
    The problem appeared to be the ditch molding clip getting in the way.

    [​IMG]


    The directions clearly state to pop the vertical walls off this sucker, but I did not have to do that on the passenger side.
    Deciding that maybe those directions were there for a reason, I decided to try that. However, mine did not just pop off by whacking them with a trim tool as stated in the instructions. I had to use an X-Acto knife.

    [​IMG]

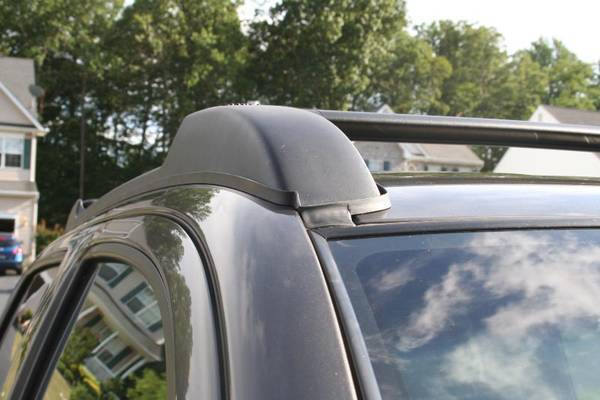

    Voilà! The driver's side yellow clip engaged as easily as the passenger side.

    [​IMG]


    Some additional information that may prove useful....
    1.) My yellow clips were pre-installed in the tracks themselves, not in the bracket as shown in the OP's pics.

    2.) I torqued everything down to the specifications provided in the directions. I used an el-cheapo torque wrench from Harbor Freight.
    The specifications are as follows.

    Bracket screws (2 each, pink thread lock): 117.7 lbf-in (13.3 N-m for our Canadian brethren)
    Also, as stated in the directions I let them sit for 5 minutes and re-torqued.
    The mastic washers clearly "squished" out at this torque.

    Front Rail screws (2 each, blue thread lock): 50 lbf-in (5.6 N-m)

    Long rail screws (3 each, green thread lock):117.7 lbf-in (13.3 N-m)

    [​IMG]


    Overall, I'm happy with the install. I have more pics if needed, but the OP did a great job in the original write-up. I'm just trying to add some additional detail.

    Good luck!

  6. Oct 21, 2012 at 2:46 PM
    #46
    tacomacrazy

    tacomacrazy ExPo Truck

    Joined:
    May 13, 2010
    Member:
    #37066
    Messages:
    529
    Gender:
    Male
    First Name:
    Bryant
    Coral Gables, FL
    Vehicle:
    07 DC 4x4 TRD Offroad
    HIDs 10k & 3k, AFE Intake, LEDs Red Map & dome, Pioneer 4300 Walker Evan 2.5 coilover 2.0 rear with all pro expo leaf pack. SnugTop Campershell Famous Fab rear bumper/ tire carrier
    SO after you install OEM roof Rack have any of you installed a surco basket?

    and with the OEM crossbars is there a way to install the Surco basket?

  7. Nov 18, 2012 at 8:32 AM
    #47
    Midship909

    Midship909 Well-Known Member

    Joined:
    Jan 23, 2008
    Member:
    #4398
    Messages:
    134
    Gender:
    Male
    SocaL
    Vehicle:
    13 MGM 4x4 OR 6speed
    I was cracking my torx bits to get it to torque at 100lbs.

  8. Nov 18, 2012 at 8:35 AM
    #48
    OH-MAN

    OH-MAN Well-Known Member

    Joined:
    Apr 23, 2009
    Member:
    #16324
    Messages:
    2,264
    Gender:
    Male
    First Name:
    Steve
    Sunny Az.
    Vehicle:
    10 4X4 O.R. White
    TRD skid painted black,
    Subbed
    Great write up

  9. Nov 18, 2012 at 8:37 AM
    #49
    nat

    nat Well-Known Member

    Joined:
    Jan 26, 2012
    Member:
    #71506
    Messages:
    624
    Gender:
    Male
    South San Francisco Bay Area
    Vehicle:
    2007 DC SB Tacoma
    Bestop, MP3 Aux Input
    Dude............inch pounds, not foot pounds.

    HUGE difference. Torx bits can handle that easily.

  10. Nov 19, 2012 at 2:25 AM
    #50
    Mendoman

    Mendoman Member

    Joined:
    Apr 11, 2012
    Member:
    #76694
    Messages:
    6
    Gender:
    Male
    Mendocino Ca
    Vehicle:
    08 Base 4x4 DC
    Hey Nat what kind of camper setup is that?

  11. Nov 19, 2012 at 7:40 AM
    #51
    nat

    nat Well-Known Member

    Joined:
    Jan 26, 2012
    Member:
    #71506
    Messages:
    624
    Gender:
    Male
    South San Francisco Bay Area
    Vehicle:
    2007 DC SB Tacoma
    Bestop, MP3 Aux Input
    Bestop soft top plus a rack I fabbed up.

    The Mendocino area is one of my favorite places to visit, I love it there.

  12. Dec 21, 2012 at 5:11 PM
    #52
    WarDamn

    WarDamn Well-Known Member

    Joined:
    Nov 16, 2012
    Member:
    #91253
    Messages:
    122
    Gender:
    Male
    Davenport, IA
    Vehicle:
    07 Tacoma
    I stayed out in the freezing cold to install this tonight and well.. drivers side went on fine. the passengers side did not come with the rail attached. The long bolt they provided has nothing to screw into. Someone mentioned a tab of some sort that can fall out. is this tab on the bracket? Does anyone have a picture of this? I have looked everywhere and cant find any extra parts...

    Thanks.

  13. Dec 21, 2012 at 5:15 PM
    #53
    aphex

    aphex Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    If it is what I am thinking of, it's a square metal plate (maybe 1/2" by 1/2") with a hole in it. The plate should be inserted into a square hole underneath where the long screw goes in. The plate can fall out when you start to mount the rail (this happened to me) but it sounds like you didn't even get that far. Not sure if I can find a picture.

  14. Dec 21, 2012 at 5:22 PM
    #54
    aphex

    aphex Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Couple more things. The small plate is part of the rack. You would see it by flipping over the rack. Also, FYI, per the instructions the passenger side is supposed to come with the rail unattached. This is all by memory, so hopefully it's accurate.

  15. Dec 21, 2012 at 5:27 PM
    #55
    WarDamn

    WarDamn Well-Known Member

    Joined:
    Nov 16, 2012
    Member:
    #91253
    Messages:
    122
    Gender:
    Male
    Davenport, IA
    Vehicle:
    07 Tacoma
    Yes the rail was unattached. I can see in the screw hole and there is a clip shape that could hold some sort of a plate.. maybe it fell out in the bed of the truck. I am not sure.. will have to look in the morning.

    Thanks!

  16. Jan 1, 2013 at 12:41 PM
    #56
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,070
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    picked up a used rack and am wndering what to do about the mastic washers as i have none and cant seem to find any place that knows what they are let alone sells them. any ideas? i was considering maybe plumbers putty??

  17. Jan 1, 2013 at 1:58 PM
    #57
    IluvTEA

    IluvTEA Well-Known Member

    Joined:
    Jan 31, 2010
    Member:
    #30430
    Messages:
    1,137
    Gender:
    Male
    South Dakota
    Vehicle:
    '10 DC LB 4x4 SR5 Super White
    Cooper ST 265/75/16 on Flat Black TRD OR wheels, window tint, blacked-out badges, front mudflap trim, BHLM, Base Black Rear Bumper Swap, Color-matched grille, Custom Relentless Fab plate bumper powdercoated flat wrinkle black and "TACOMA" backlit with Drunknsloth LEDs, Camburg 2.5" coilovers, LR UCAs, Power sliding rear window, Back-up camera anytime, FX-R projectors/Morimoto 3Five Ballasts/D2S bulbs 5000K, Black WeatherTechs, heated TRD seats with Roadwire Graphite Leather, OEM Roof Rack, front mud flap delete, Black Level 8 Guardians, TreadWright 285/75/16 with KG ...
    I just installed a used roof rack last week. I used clear, all weather silicone. It's worked good so far. Roofer's tape would work good too, I've never used plumber's putty, but it sounds like it would do the trick.

  18. Jan 1, 2013 at 2:04 PM
    #58
    robm7

    robm7 Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79863
    Messages:
    400
    Gender:
    Male
    Installed mine last night. More tougher and complicated than installing the OEM Honda element roof rack.

  19. Jan 1, 2013 at 2:18 PM
    #59
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,070
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    clear silicone huh? im sure ive got some clear silicone for windows and doors around. prob gonna have to try that... is that the all weather stuff like you are talking about? thanks for the info too!

  20. Jan 1, 2013 at 2:25 PM
    #60
    IluvTEA

    IluvTEA Well-Known Member

    Joined:
    Jan 31, 2010
    Member:
    #30430
    Messages:
    1,137
    Gender:
    Male
    South Dakota
    Vehicle:
    '10 DC LB 4x4 SR5 Super White
    Cooper ST 265/75/16 on Flat Black TRD OR wheels, window tint, blacked-out badges, front mudflap trim, BHLM, Base Black Rear Bumper Swap, Color-matched grille, Custom Relentless Fab plate bumper powdercoated flat wrinkle black and "TACOMA" backlit with Drunknsloth LEDs, Camburg 2.5" coilovers, LR UCAs, Power sliding rear window, Back-up camera anytime, FX-R projectors/Morimoto 3Five Ballasts/D2S bulbs 5000K, Black WeatherTechs, heated TRD seats with Roadwire Graphite Leather, OEM Roof Rack, front mud flap delete, Black Level 8 Guardians, TreadWright 285/75/16 with KG ...
    Yeah that should work. Check the packaging, it should have a temp range and make sure it matches the climate you live in.

    I'd suggest silicone-ing around the front holes and install the front metal bracket. Then test fit the rack on your roof, take it off, make any adjustments, add the silicone around the remaining bolt holes and then install the rack. If you squirt the silicone before you test fit, you can get silicone everywhere. I had to take the rack off and bend the metal brackets a little bit (they must've got bent up a little while they were off the truck).

    Good luck and let us know how it goes!
