Discussion in '2nd Gen. Tacomas' started by Zombie Runner, Sep 30, 2008.

  1. Dec 17, 2008 at 9:51 AM
    #41
    Teufel Hunden

    Teufel Hunden No Better Friend, No Worse Enemy

    Joined:
    Aug 8, 2008
    Member:
    #8415
    Messages:
    130
    Gender:
    Male
    Northern Virginia
    Vehicle:
    09 MGray DC SB TRD-OR 4x4 V6 Auto SR5
    Undercover tonneau, OEM tow package with hitch, OEM retractable roof rack, Front window tint (legal), WeatherTech FloorLiners, Door sill protectors, Tacoma bed mat, Rear leaf spring TSB, OEM DRL mod, Door edge guards, AFE Pro-Dry S Air Filter, Removed secondary air filter, Smoked LED 3rd brake light, Romik running boards, Go Rhino hitch step, Extra set of D-rings mod, Bed cargo net, TRD wheel locks, OBX sport pedal covers.
    I know this is an old thread, but I just have one quick question: Does the fog light symbol on the switch next to the indicator light illuminate when the dash lights are on at night, with the headlights? Thanks in advance for any help!

  2. Dec 17, 2008 at 10:29 AM
    #42
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Thor

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Mine are constantly on but yeah they illuminate same symbol as the fog light switch

  3. Sep 3, 2009 at 10:06 AM
    #43
    brandob9

    brandob9 Well-Known Member

    Joined:
    Jun 26, 2009
    Member:
    #18937
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Portland, OR
    Vehicle:
    09 DC Long Bed
    Soundproofed cab, beeps purged, bed lights, extra bed tie-downs and TSB springs.
    Does the amber, circular, light only come on when the lights are on?

  4. Sep 3, 2009 at 11:42 AM
    #44
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Thor

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Yeah for my switch its just constant i would have to double check again but im sure the light in the middle stays on

  5. Sep 3, 2009 at 12:04 PM
    #45
    Janster

    Janster Old & Forgetful

    Joined:
    Mar 25, 2007
    Member:
    #1138
    Messages:
    13,610
    Gender:
    Female
    First Name:
    Jandy
    Lancaster, PA
    Vehicle:
    2007 4.0L 4x4 TRD Sport Access Cab A
    Advantage Torza top (tri-fold), Husky floor mats, RuffTuff seat covers, C2C hood struts, Homelink mirror, USA Spec PA15-Toy (120gig Classic & 8gig nano), Garmin Nuvi 660, Protecta Bed mat, Pop-n-lock, TSB Springs, Scangauge II, Heated drivers seat, Fumoto drain valve, Aries pushbar, PIAA 540 fog lights, Hood scoop grahics, Flowmaster 50 series dual catback exhaust, RainX Latitude windshield wipers, Husky rear floor liner (ontop of folded down seats). Console Vault.
    That would depend on how you have it (or fogs) wired......

  6. Sep 3, 2009 at 3:19 PM
    #46
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Thor

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,151
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    She is correct my buddy installed mine.

  7. Sep 3, 2009 at 6:33 PM
    #47
    EricT

    EricT Well-Known Member

    Joined:
    Jun 1, 2009
    Member:
    #17887
    Messages:
    519
    Gender:
    Male
    Arizona
    Vehicle:
    '09 4x4 shortbed TRD Sport
  8. Sep 3, 2009 at 7:55 PM
    #48
    brandob9

    brandob9 Well-Known Member

    Joined:
    Jun 26, 2009
    Member:
    #18937
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Portland, OR
    Vehicle:
    09 DC Long Bed
    Soundproofed cab, beeps purged, bed lights, extra bed tie-downs and TSB springs.
    Got one, and played around with the wiring. If I have the positive in the center stud, the light only comes on when the lights are on. If I have the drain in the center, the light is on constantly.

  9. Sep 8, 2009 at 1:05 PM
    #49
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    792
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    When people have installed this part, have they found that the fit is snug? Like the switch will remain seated in the dash properly?

  10. Sep 8, 2009 at 2:22 PM
    #50
    65tacodude

    65tacodude Well-Known Member

    Joined:
    Jun 4, 2009
    Member:
    #18019
    Messages:
    690
    Gender:
    Male
    First Name:
    Wade
    Manteno, IL
    Vehicle:
    09 Dub Cab TRD Off Road SWB
    Westin Bull w/6" PIAA Fogs, Bilstien 5100 all around w/Wheelers AAL and Eibach Coils, Go-Rhino Steps, Pioneer FH-P8000BT Stereo, Grillcraft, TOYOTA Emblem, 265/75 R16 General Grabber AT2's
    Wish i had blanks to install this. I only have the one next to the A-TRAC and AUX but that is a smaller hole. :(

  11. Sep 8, 2009 at 2:54 PM
    #51
    Plain Jane Taco

    Plain Jane Taco Well-Known Member

    Joined:
    Apr 19, 2009
    Member:
    #16179
    Messages:
    819
    Gender:
    Male
    USA
    Vehicle:
    '13 Base, 2wd, 5-speed
    Here's the way the switch should be wired.

    Terminal #2 - to power (+)
    Terminal #3 - to lights or relay (depending how your lights are wired up)
    Terminal #4 - ground (-)

    Wiring it up this way allows the indicator to light up only when the fogs are on.

  12. Sep 11, 2009 at 11:55 AM
    #52
    Snyperx

    Snyperx Seniore Marcos

    Joined:
    Dec 23, 2008
    Member:
    #11838
    Messages:
    677
    Gender:
    Male
    So glad I found this thread. Just ordered two switch for $12.35 each. Will be at the dealer tomorrow morning.

  13. Sep 11, 2009 at 1:06 PM
    #53
    DellGSG5

    DellGSG5 Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17584
    Messages:
    790
    Gender:
    Male
    First Name:
    Dell
    San Diego, California
    Vehicle:
    2009 PreRunner TRD
    Step rail, Grill guard, bug deflector,bed lights, Window Deflectors.
    Your the man, Ive been looking for switch that fits into the stock slots. dealer charge way to much. Thank You!!!


  14. Sep 11, 2009 at 3:17 PM
    #54
    brandob9

    brandob9 Well-Known Member

    Joined:
    Jun 26, 2009
    Member:
    #18937
    Messages:
    248
    Gender:
    Male
    First Name:
    Brandon
    Portland, OR
    Vehicle:
    09 DC Long Bed
    Soundproofed cab, beeps purged, bed lights, extra bed tie-downs and TSB springs.

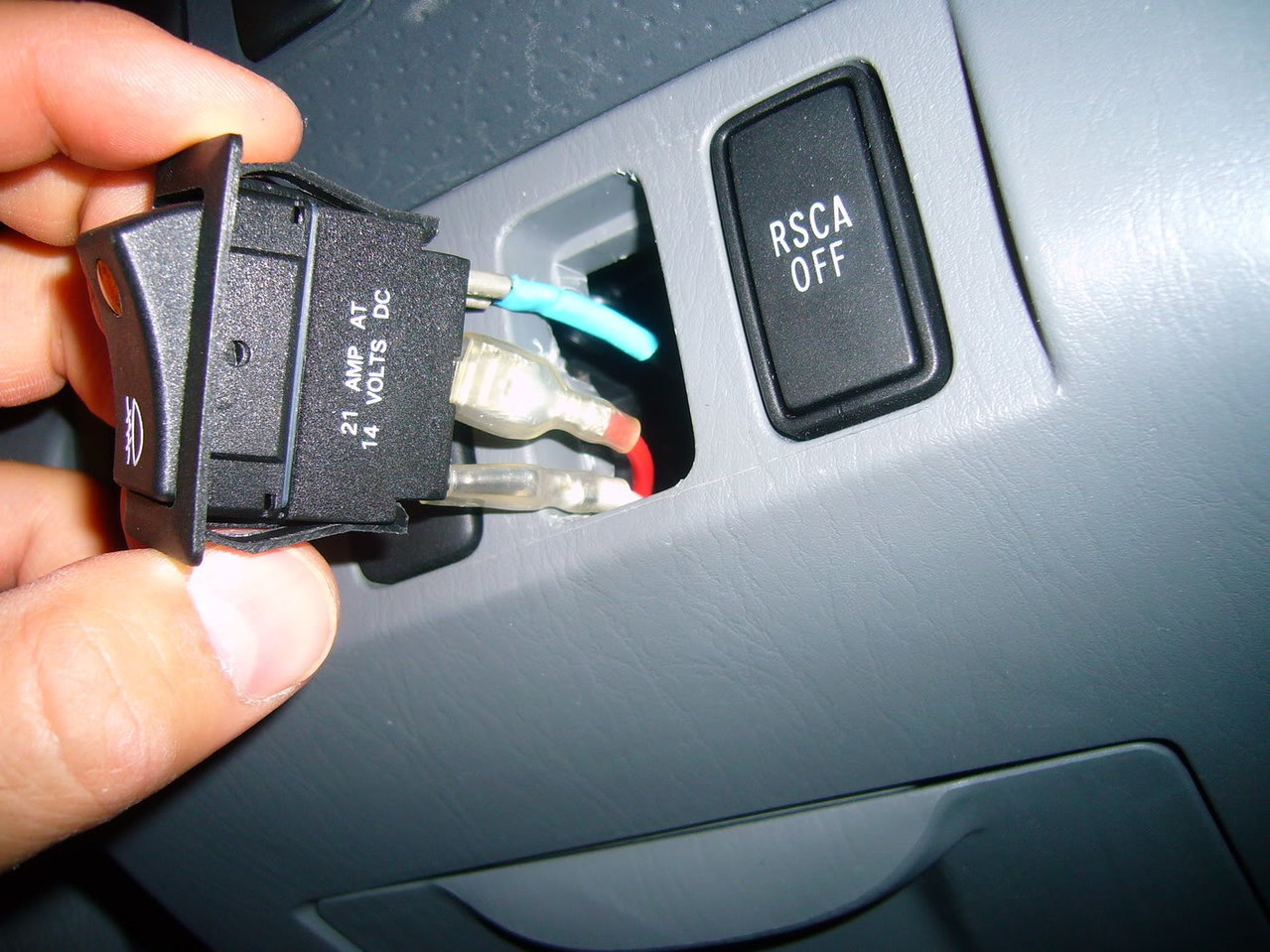

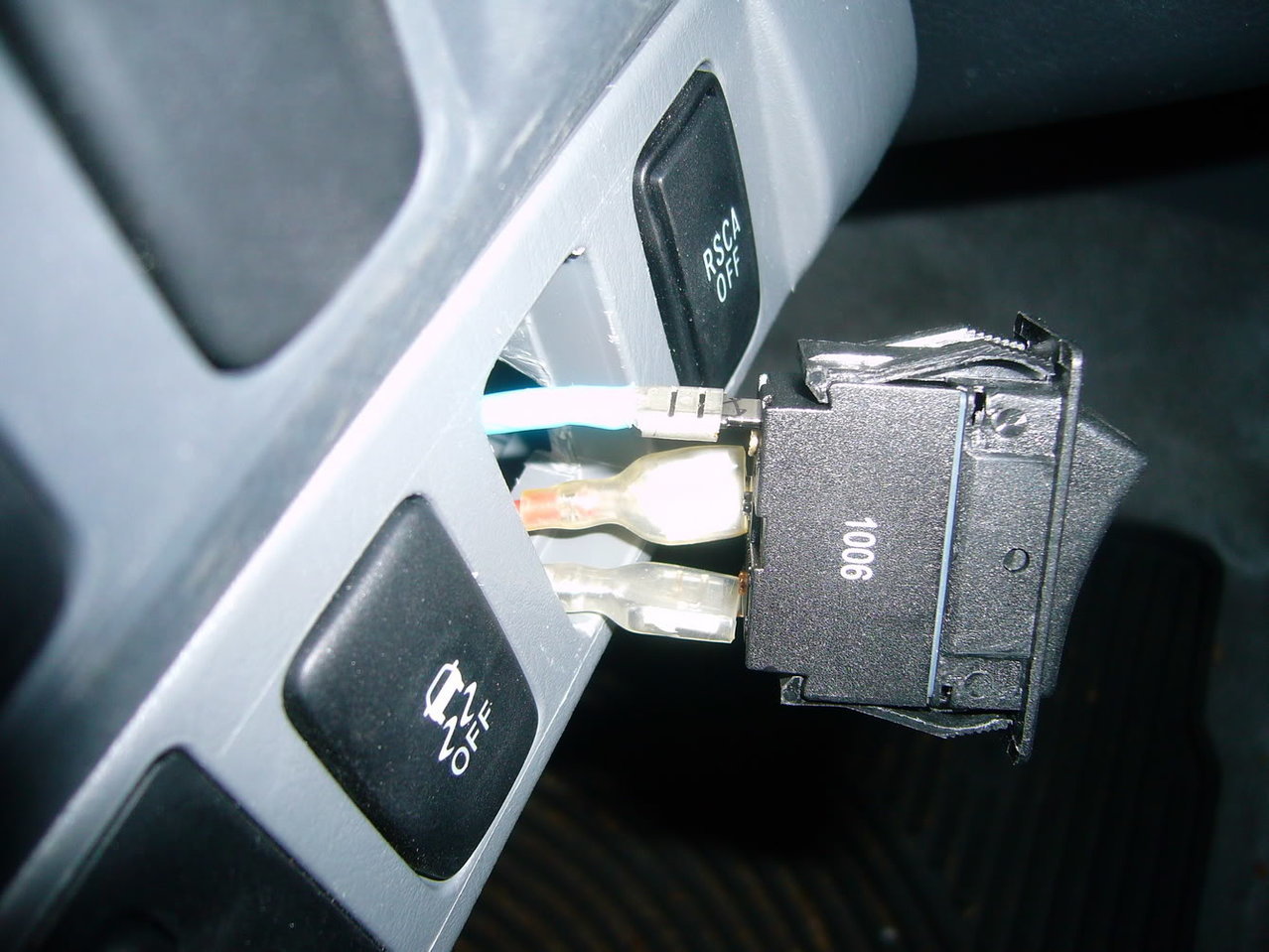

    For those with reading problems like mine, here's what he just said to do:

    [​IMG]

    [​IMG]

  15. Sep 12, 2009 at 4:22 PM
    #55
    Snyperx

    Snyperx Seniore Marcos

    Joined:
    Dec 23, 2008
    Member:
    #11838
    Messages:
    677
    Gender:
    Male
    Ok I just wired up one of the switches according to this method^^ and my lights did not work. The light in the switch is on, but my lights up front did not come on. I have three wires.

    Blue = Power
    White = Relay/Lights
    Green = Ground

    Anyone have an idea as to what is going on?

    UPDATE: Guess I had the wire colors wrong.

    Blue = Ground
    Green = Power
    White = Relay/Lights


    Oops!!:frusty:

  16. Sep 12, 2009 at 5:07 PM
    #56
    BUZZ5

    BUZZ5 Well-Known Member

    Joined:
    Apr 17, 2009
    Member:
    #16074
    Messages:
    294
    Gender:
    Male
    S.Carolina
    Vehicle:
    07 Prerunner DC TRD Sport
    Many
    I bought these.
    [​IMG]

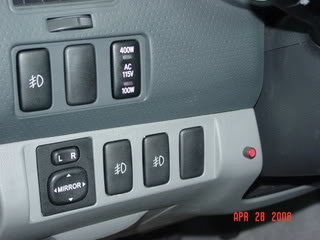

    and put them here.Still had to trim to get them to fit.Plan to move them up with the original fog switch & move the inverter switch down.They are costly,but I prefer to keep them all stock.
    [​IMG]

  17. Dec 4, 2009 at 10:32 AM
    #57
    Fish Head

    Fish Head Active Member

    Joined:
    Nov 17, 2009
    Member:
    #26076
    Messages:
    28
    Gender:
    Male
    You guys south of the 49th thank your lucky stars you live where you do.....your pricing on parts in general kicks our Canadian butts.
    The illuminated switch up here....25 clams(plus taxes), not 7 ( and another 7 for shipping). The non illuminated one that Buzz5 posted.....those set me back almost 90 by the time I'm done with taxes.
    I'm still shakin' my head.

    Welcome to Canada.......................please bend over.

  18. Aug 18, 2010 at 8:44 AM
    #58
    larryde09

    larryde09 Well-Known Member

    Joined:
    Jul 3, 2010
    Member:
    #39759
    Messages:
    561
    Gender:
    Male
    First Name:
    Larry
    Rochester, NY
    Vehicle:
    (Traded-in) 06 2.7L 5-spd SR5 4x4
    K&N Intake, Magnaflow Cat-back Exhaust, Altezza Tail Lights, Pop&Lock Tailgate Lock, Extang Trifecta Tonneau Cover, PIAA foglights with stock switch, DrawTite Hitch, OBX Shift Knob, Hood Protector, Vent Visors, DIY step bars/sliders/running boards, DIY Bed Lights, DIY Running Board/Ground Lights, DIY Tailgate Electrical Box (12V socket, voltage and current gauges), DIY Internal Lighting (coming soon), Aftermarket switches in stock dash blanks, Sony Head Unit, Illuminated 4x4 switch mod
    This is great info! But, I had a hard time stomaching the $9.99 for the SPST and $12.99 SPDT from oznium and the dealer wanted $12.35. So, I decided to hunt down the actual manufacturer of these switches.

    I went to Digikey and found numerous rocker switches from Tyco and Cherry that closely matches the dimension of the switch that oznium uses. The SPST and SPDT are ~$4.15 and ~$7 respectively (depending on what type/features you want). I ordered 1 SPST and 2 SPDT for ~$27 total after shipping & taxes...about 1/2 of what it would have cost me at oznium! I'll let you know how well they fit once they arrive.

    Go to www.digikey.com and search for "rocker switch 36.6 21.2" then click "view page"

  19. Aug 18, 2010 at 9:11 AM
    #59
    Zombie Runner

    Zombie Runner [OP] Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,112
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    thanks for sharing, Larry. let me know how they work out when you get them in and Ill update my first post

  20. Aug 25, 2010 at 8:24 AM
    #60
    larryde09

    larryde09 Well-Known Member

    Joined:
    Jul 3, 2010
    Member:
    #39759
    Messages:
    561
    Gender:
    Male
    First Name:
    Larry
    Rochester, NY
    Vehicle:
    (Traded-in) 06 2.7L 5-spd SR5 4x4
    K&N Intake, Magnaflow Cat-back Exhaust, Altezza Tail Lights, Pop&Lock Tailgate Lock, Extang Trifecta Tonneau Cover, PIAA foglights with stock switch, DrawTite Hitch, OBX Shift Knob, Hood Protector, Vent Visors, DIY step bars/sliders/running boards, DIY Bed Lights, DIY Running Board/Ground Lights, DIY Tailgate Electrical Box (12V socket, voltage and current gauges), DIY Internal Lighting (coming soon), Aftermarket switches in stock dash blanks, Sony Head Unit, Illuminated 4x4 switch mod
    Success! The switches from Digikey have arrived and they fit with the expected trimming of the mounting hole.

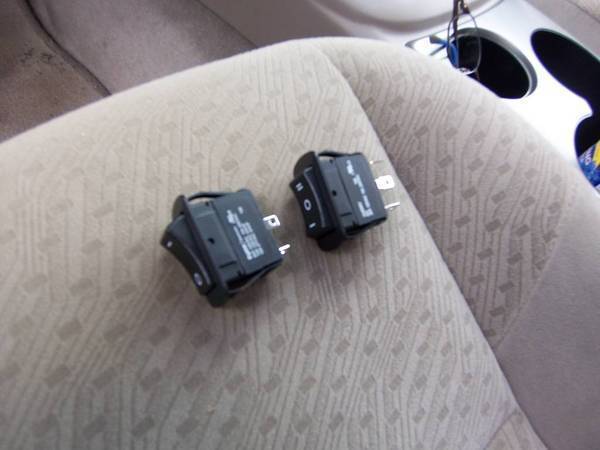

    Here's the SPST and a SPDT switches.
    [​IMG]

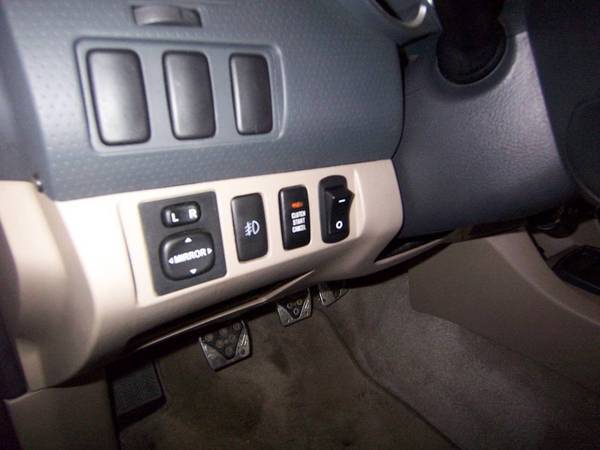

    Here's the SPST mounted. I have 3 switches and I plan to mount them in the 3 blanks in the top, this was just a test fit.
    [​IMG]

    Here's what the SPDT looks like.
    [​IMG]

    As I mentioned in my previous post (#58), there are numerous options including backlighting, indicator lights, flat black, or like the ones I bought. There are also many options for switch types (e.g. SPST, SPDT, etc). Also, most of them are rated at a 12 VDC ampacity, so you don't have to assume a switch will work for 12 VDC when it is rated for 120 VAC.
