Off center shock.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 01Tacomacamburg4win, Aug 18, 2017.

  1. Aug 18, 2017 at 11:53 AM
    #1
    01Tacomacamburg4win

    #1
    01Tacomacamburg4win [OP] Member

    Joined:
    Oct 27, 2015
    Member:
    #167879
    Messages:
    24
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2001 Long Traveled Tacoma Camburg Front End
    intake, headers, Camburg upper and lower control arms, Sway away 2.5 Shocks, Fox 2.0 smooth body's in the rear, Flip Shackled with extended 9in custom made Shackles, custom made leaf pack cus cant afford deavers at the moment, 2 light bars, 2 light pods, sirens, two piece Aluminum Rims, 33 inch tires, 456 gears with LSD, Fiber Glass Front And Rear, Front And Rear bumpers Made with DOM 120 Wall inch and a quarter and Power tower Throttle body Spacer

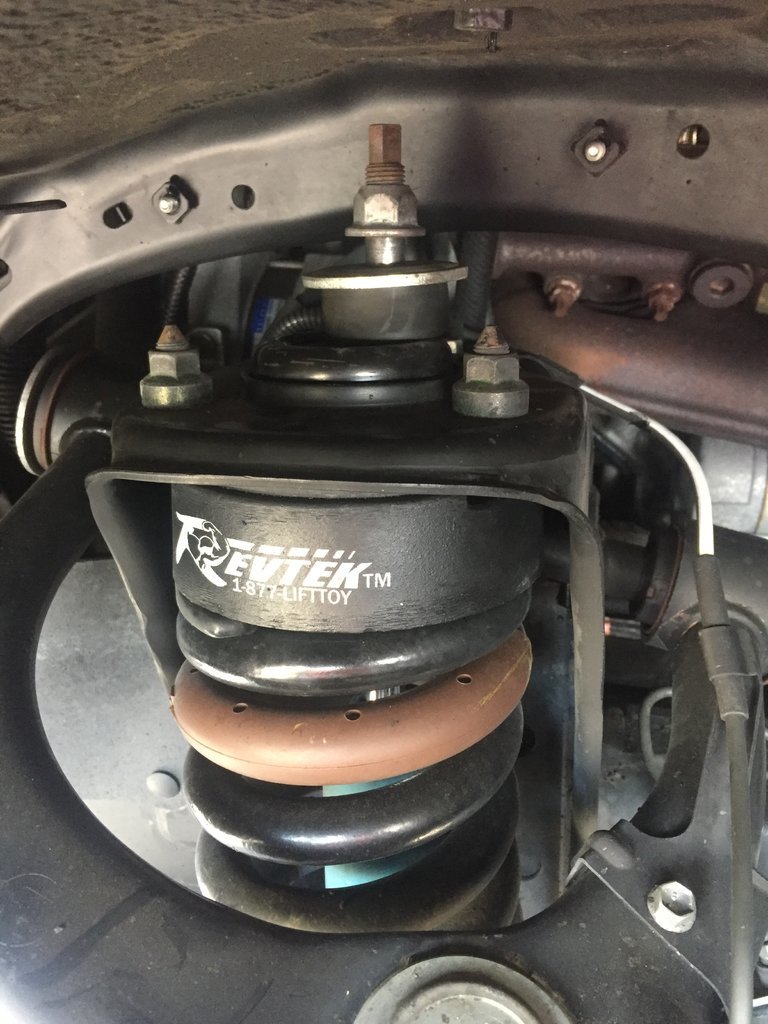

    Alright guys so I just bought this 2014 Tacoma. And today I just notice my drivers side shock is not centered on the shock tower, and is sticking up above the shock tower so it doesn't seem to be tight but there are no more threads to go any tighter. I'm assuming the shock just needs to be replaced but wanted to see if anyone has any Insite on what is going on here. It has a stupid rev tech strut spacer leveling kit in it not sure if that has something to do with it but here is a picture of what's going on. Shock is a bilstein 4600 series part#
    $91 24-188401 Bilstein 24188401 Shock
    24-188401.


    01Tacomacamburg4win, Aug 18, 2017
    #1
  2. Aug 18, 2017 at 12:01 PM
    #2
    Bebop

    #2
    Bebop Old fashion cowboy

    Joined:
    Feb 11, 2016
    Member:
    #177835
    Messages:
    4,407
    Gender:
    Male
    First Name:
    Nick
    Castle rock Colorado
    Vehicle:
    2012 Toyota Tacoma baja
    6inch lift sitting on bilstein coilovers. Lexus is300 studs in front to keep stock wheels, general grabber red letters, nfab front bumper.
    That mount is broken.

    Bebop, Aug 18, 2017
    #2
  3. Aug 18, 2017 at 12:02 PM
    #3
    ChadsPride

    #3
    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    126,681
    Vehicle:
    Sponsored by TacomaWorld.com
    ChadsPride, Aug 18, 2017
    #3
    dirty deeds likes this.
  4. Aug 18, 2017 at 12:05 PM
    #4
    TtPaul

    #4
    TtPaul Well-Known Member

    Joined:
    May 31, 2014
    Member:
    #131018
    Messages:
    77
    Gender:
    Male
    SoCal
    Vehicle:
    DCSB 4x4 6SPD

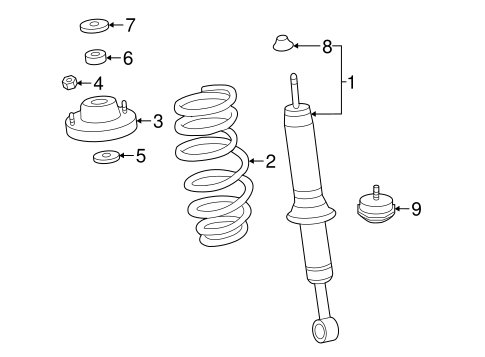

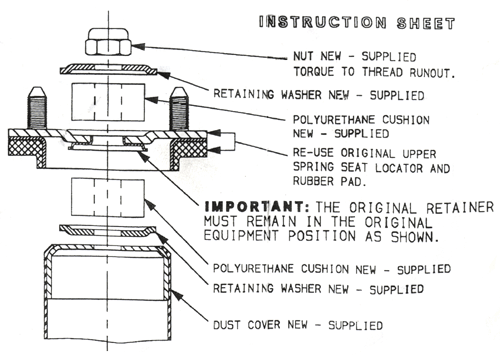

    IMG_2822.GIF IMG_2821.jpg

    TtPaul, Aug 18, 2017
    #4
  5. Aug 18, 2017 at 12:05 PM
    #5
    Jeffs68

    #5
    Jeffs68 Well-Known Member

    Joined:
    Mar 29, 2017
    Member:
    #214741
    Messages:
    299
    Gender:
    Male
    Vehicle:
    2015 PreRunner TRD Sport DC
    Stock
    Found a similar set-up, looks like mis-installation, broken shock rod or the wrong shock was used .
    [​IMG]

    Jeffs68, Aug 18, 2017
    #5
  6. Aug 18, 2017 at 12:11 PM
    #6
    01Tacomacamburg4win

    #6
    01Tacomacamburg4win [OP] Member

    Joined:
    Oct 27, 2015
    Member:
    #167879
    Messages:
    24
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2001 Long Traveled Tacoma Camburg Front End
    intake, headers, Camburg upper and lower control arms, Sway away 2.5 Shocks, Fox 2.0 smooth body's in the rear, Flip Shackled with extended 9in custom made Shackles, custom made leaf pack cus cant afford deavers at the moment, 2 light bars, 2 light pods, sirens, two piece Aluminum Rims, 33 inch tires, 456 gears with LSD, Fiber Glass Front And Rear, Front And Rear bumpers Made with DOM 120 Wall inch and a quarter and Power tower Throttle body Spacer
    You think the shock tower is broken?

    01Tacomacamburg4win, Aug 18, 2017
    #6
  7. Aug 18, 2017 at 12:46 PM
    #7
    Harry

    #7
    Harry Science, Bitches

    Joined:
    Sep 16, 2014
    Member:
    #138415
    Messages:
    1,035
    Gender:
    Male
    Santa Fe NM
    Vehicle:
    15 TRD Off Road DCSB
    Looks like the suspension was over-compressed and due to the spacer, the shock was displaced in the seat since the suspension couldn't fully compress at the spring. I don't think the top hat is broken but you'll have to inspect further - hard to tell from the pic.


    You can maybe buy some time by jacking up the truck, removing tension and carefully loosening the 3 top hat mounts and reseating the shock. Watch your fingers.

    Yet another reason to avoid spacer lifts.

    Last edited: Aug 18, 2017
    Harry, Aug 18, 2017
    #7
    Blockhead and 01Tacomacamburg4win [OP] like this.
  8. Aug 19, 2017 at 9:45 AM
    #8
    dirty deeds

    #8
    dirty deeds Big Blue Nation!

    Joined:
    Oct 13, 2016
    Member:
    #199662
    Messages:
    29,063
    Gender:
    Male
    First Name:
    Nick
    Northeast KY
    Vehicle:
    '14 Wht AC SR, 2.7, MT, Baja wheels
    PlastiDip front emblem, twine, and Scotch tape
    Thanks, but that's not what happened to me.

    Mine was misalignment on the coils. We didn't really double check where the top of the coil was in the top hat and bushing. Fixed now though.
    Truck is tits!

    dirty deeds, Aug 19, 2017
    #8
