Off Road Trailer Build

Discussion in 'South West' started by mreimann, Jun 11, 2011.

  1. Jun 22, 2011 at 11:04 AM
    #41
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    17,878
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    looking good!

  2. Jun 26, 2011 at 10:25 AM
    #42
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    Well, after killing a grinder and wounding my welder everything is up and running again.

    Spent the last few days in the garage with my dad so things are starting to come together.

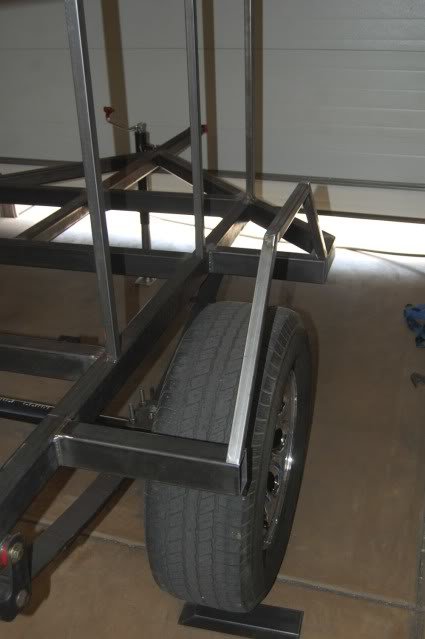

    Got the little side things welded on so I can build the fenders off of those. and we got the shock mounts fabbed up...and One shock in place. I'm picking up the other one tomorrow.

    We also started on the bucket. Got the frame all tacked in place. Now I just need to cut the floor piece and weld it in.

    Things are really starting to pull together :)

    I'll try and get some pictures later today

  3. Jun 26, 2011 at 8:21 PM
    #43
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
  4. Jun 26, 2011 at 8:37 PM
    #44
    nvdeserted

    nvdeserted Well-Known Member

    Joined:
    Nov 27, 2008
    Member:
    #11062
    Messages:
    1,304
    Gender:
    Male
    Reno, NV
    Vehicle:
    2009 Tacoma TRD OR Access Cab
    Electric Dynolock tailgate, TrailGear Slides, , 285/75-16 Yoko Geolanders on Wheelers Type B, SAW 2.0 front and back, Camburg b/j UCA, 1.5" AAL, Ubolt flip, ARB bump.
    I met a Jeeper guy with his O.R. trailer rigged up with a driveline-tongue instead of a standard ball syle tounge. The trailer could twist like 80* or something without putting any stress on the receiver; twist in all directions, might be handy in severe approach/departure angles. Just a thought.

  5. Jun 26, 2011 at 8:57 PM
    #45
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
  6. Jun 27, 2011 at 10:09 AM
    #46
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,143
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Now that looks legit! Makes me want one :D

  7. Jun 27, 2011 at 7:20 PM
    #47
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    :woot:

    got the floor tacked in today and I'm using the triangles that I cut off for the fenders.

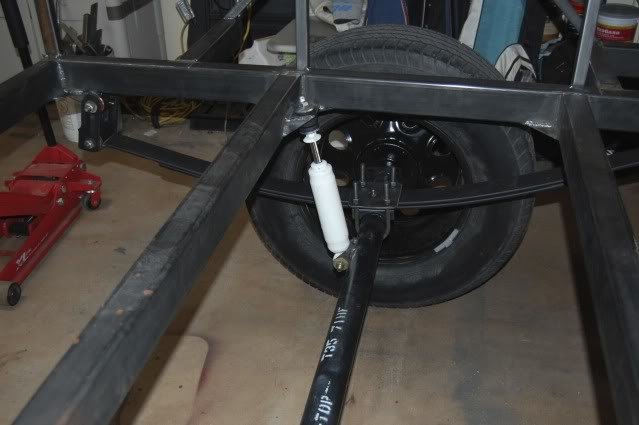

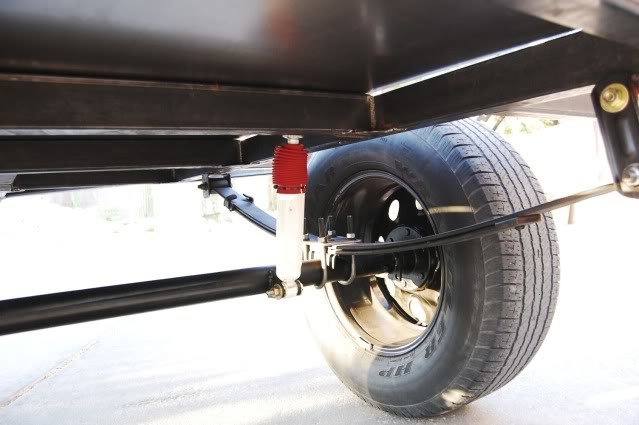

    Also got both shocks mounted.






  8. Jun 28, 2011 at 11:05 AM
    #48
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,143
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Looks solid! :eek:

  9. Jul 1, 2011 at 3:22 PM
    #49
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT

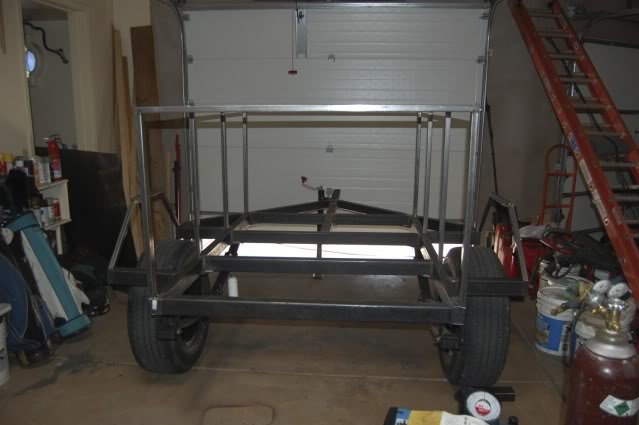

    nothing major since the last update but I've been tidying things up to get it ready for the bucket plating.

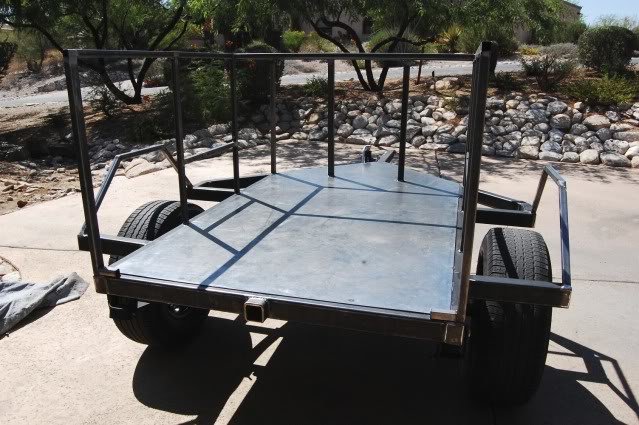

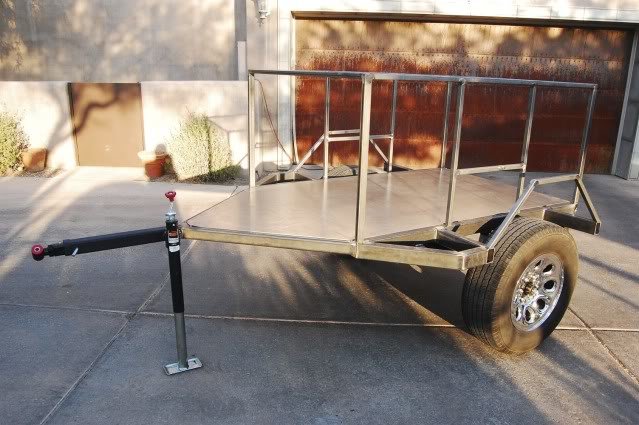

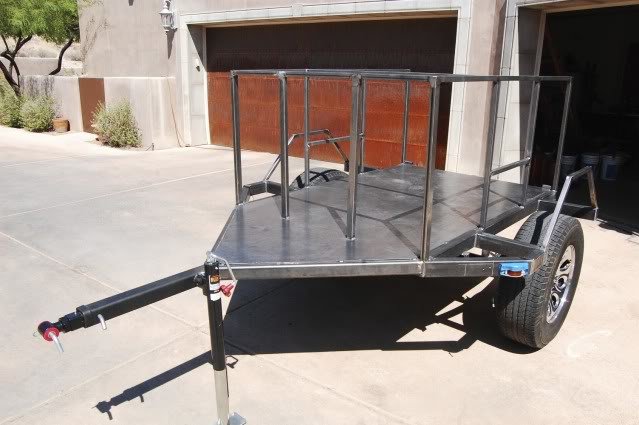

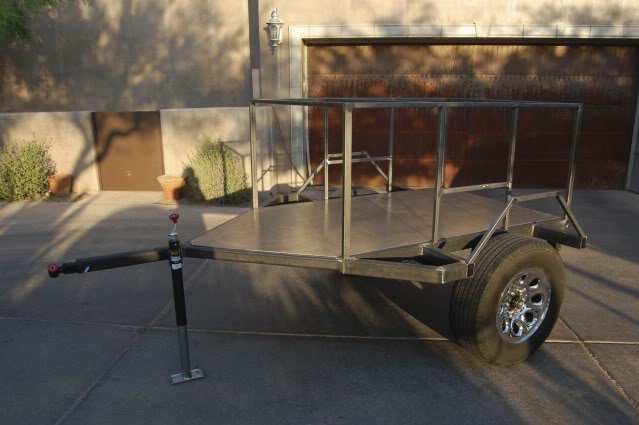

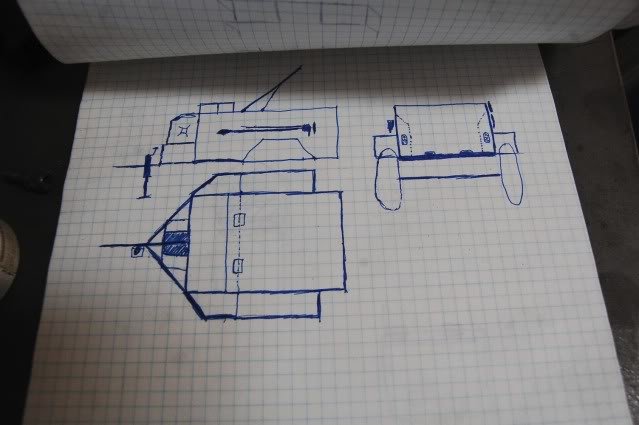

    as you can see by my detailed drawings, it's starting to take shape :rolleyes:

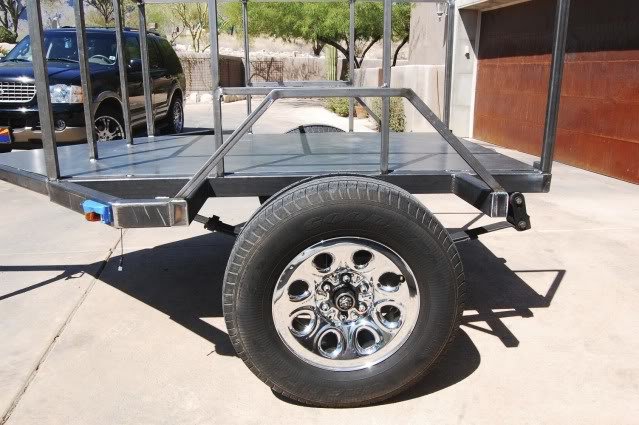

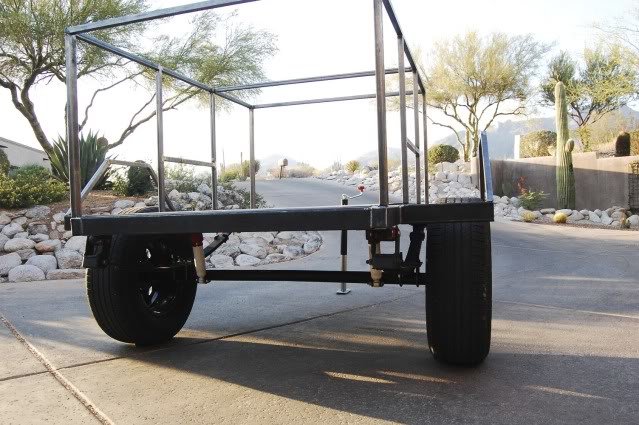

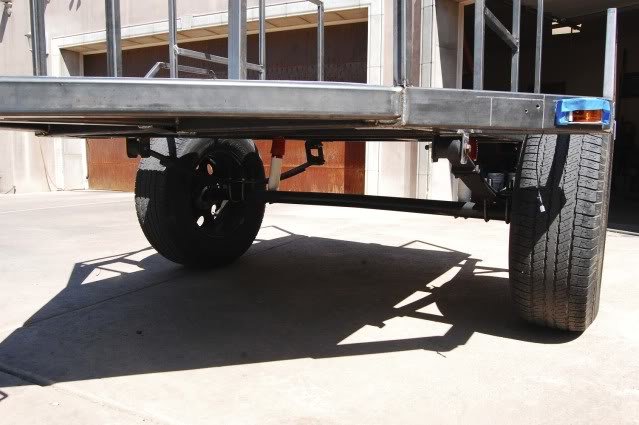

    chrome dubs and ride hight. Bottom of the frame is about 2' 3"

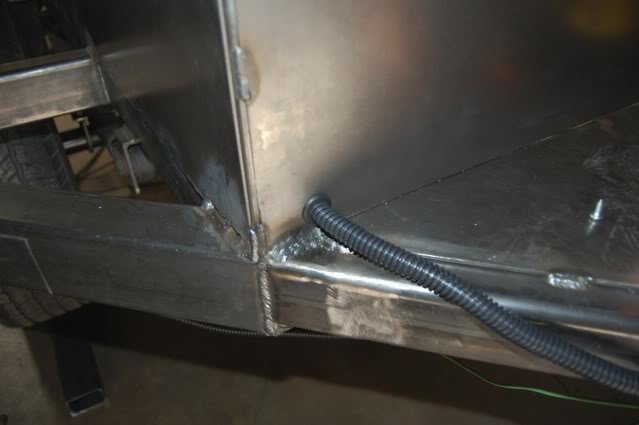

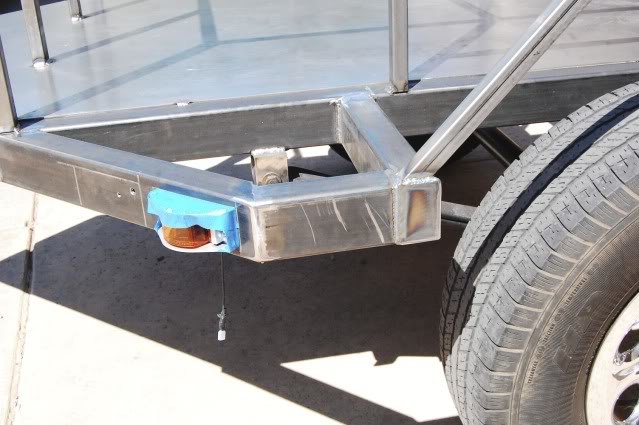

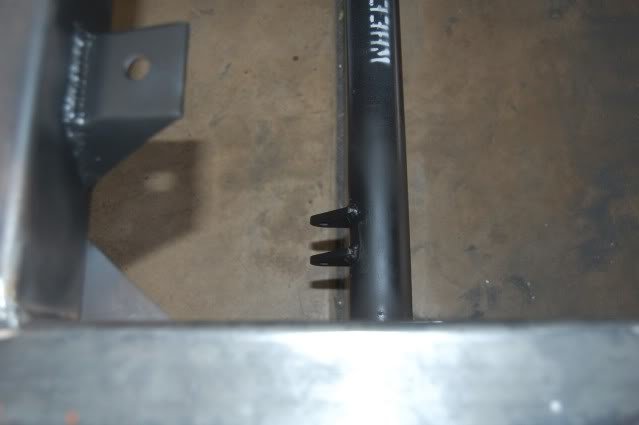

    Got the side markers mounted and I made the wire harness for when I do all the wiring. it'll pretty much just be plug and play.

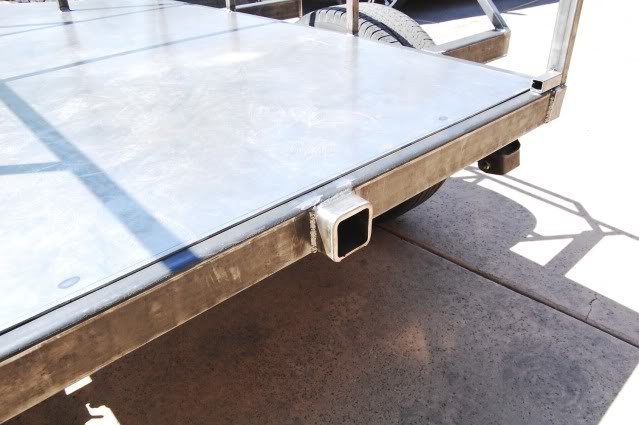

    added the rear hitch (not for towing, but for a bike rack or something)

    It's all boxed and ready for plate.

  10. Jul 1, 2011 at 3:44 PM
    #50
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,402
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    sub'd. love it. Defenetly could use something like this for where i go camping.

  11. Jul 16, 2011 at 9:36 PM
    #51
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    Some updates.

    No pictures yet, but i'll get them tomorrow.

    Got the lid cut out
    mounted mud flaps
    framed out the access door on the side
    got the right side body panel cut out and the front panel
    fabricated the two side pieces for the tailgate
    mounted the brake lights
    framed the tailgate and just need to plate it
    picked up some piano hinges, ordered a bunch of latches and weather stripping as well as the dampeners for the lid. Also got the safety chains, just need to mount them

    Soon to come;
    plate tailgate and mount it
    fully weld floor, front panel and side panel
    cut out the other side panel and weld that
    cut static portion of the lid and weld it on
    then fabricate the lid frame and such

    Long term;
    get the body skinned and fully welded (by that I mean stitch welded)
    Finish fenders
    mount tailgate and lid
    wire the lights
    instal latches
    get this SOB registered
    and painted
    Then go test it!

    Anyhow, sorry for the long post with no pictures :p

  12. Jul 20, 2011 at 11:25 AM
    #52
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT

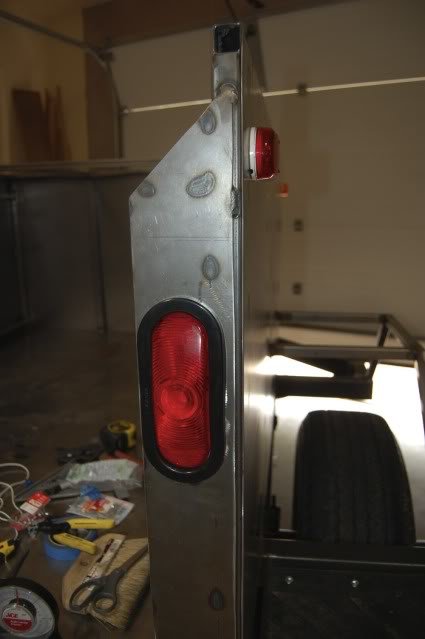

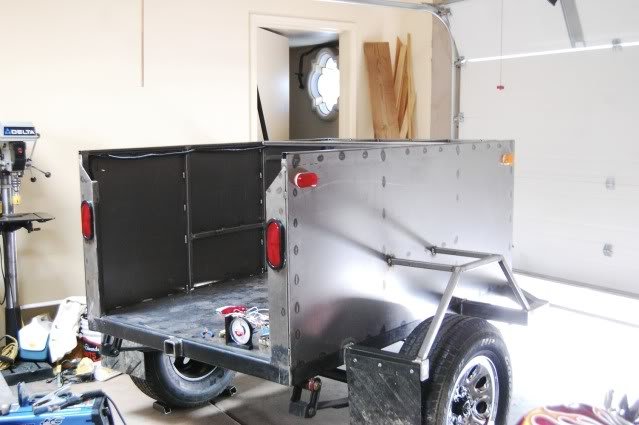

    lights are wired in

    turned out pretty nice

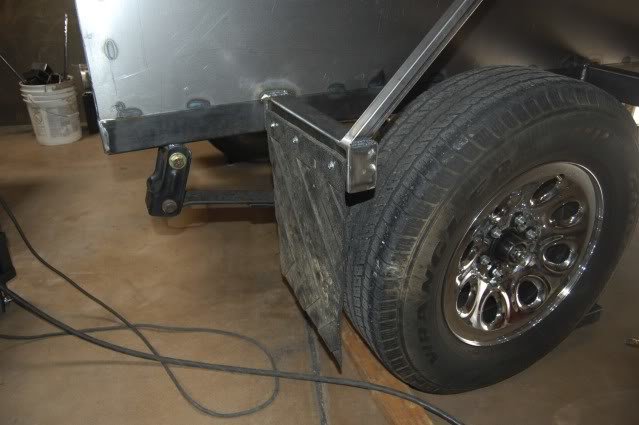

    recycled mud flap


  13. Jul 20, 2011 at 11:30 AM
    #53
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    19,053
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    comeing along very nicely. what guage plate did you use for the sides so far?

    and do you have 0% humidity all day every day where you live or what??? when i built mine, anything not painted within the day would be rust the next

  14. Jul 20, 2011 at 11:38 AM
    #54
    113tac

    113tac Well-Known Member

    Joined:
    Jun 14, 2009
    Member:
    #18439
    Messages:
    4,717
    Gender:
    Male
    First Name:
    Stephen
    Northern Virginia
    Vehicle:
    2017 Magnetic Gray Tacoma
    Stock...for now
    good job man looks good so far

  15. Jul 20, 2011 at 11:47 AM
    #55
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    16 ga. cold rolled. I wanted something little thinner than the floor to save weight.

    and yes, tucson is known for 0% humidity. It has been a little humid recently because of the monsoons tho. But i've got a swamp cooler in the garage that keeps the air moving.

    thanks

  16. Jul 20, 2011 at 11:52 AM
    #56
    amaes

    amaes Cuz Stock Sucks

    Joined:
    May 26, 2009
    Member:
    #17658
    Messages:
    8,191
    Gender:
    Male
    First Name:
    Alex
    Chandler, AZ
    Vehicle:
    2011 FJ Built
    ICON Stage 6, RCI Skids, Blacked out
    Matt are you making interior walls for it also?

  17. Jul 20, 2011 at 11:52 AM
    #57
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    19,053
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    nice. going back to the heavier stuff for the fenders or keeping those light as well?

    i'm jealous of the 0% humidity. it's actually not bad on the coast of florida for it, but then you get salt from the ocean which just loves to turn things orange :rolleyes:

  18. Jul 20, 2011 at 12:02 PM
    #58
    Paul's TRD

    Paul's TRD I'm Not Your F***ing Brother

    Joined:
    Jan 29, 2010
    Member:
    #30306
    Messages:
    616
    Gender:
    Male
    TX
    Vehicle:
    2011 Z71 4x4 5.3L V8
    Oh that is coming along real nice. I might look into building one of these as soon as I finish my other project (bobber build). Can't way to see the finished product.

  19. Jul 20, 2011 at 12:13 PM
    #59
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    12,947
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    just making sure im not confused. your going to sell this once your done building it????

  20. Jul 20, 2011 at 12:46 PM
    #60
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,114
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    No, single ply. I'm going to attach tie downs to the square tubes on the inside

    It'll have thin fenders because the fender frame will hold the structure, the sheet metal just fills it in.

    Yep. First I am loading it with all my stuff and driving up to colorado and then I'll sell it up there. Hopefully :eek:
