Official 05-15 2nd gen 5lug lifted/lowered suspension guide and general info

Discussion in '5 Lug' started by Sperrunner, May 9, 2018.

?

Was this thread helpful?

  1. Yes

    39 vote(s)
    97.5%
  2. No

    1 vote(s)
    2.5%
  1. May 9, 2018 at 4:11 PM
    #1
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    This thread is for 2005-2015 5lug tacomas only
    If you need info for 95.5-04 5lug tacomas the go here:https://www.tacomaworld.com/threads...erd-suspension-guide-and-general-info.545351/

    5lug market place: https://www.tacomaworld.com/threads/5lug-buy-sell-classifieds.547314/

    Will update as i find more options for 05-15 5lug tacomas and threads when more info is found. All second gen 5luggers are welcome to comment with more info if you see something missing, if you have or know of a build thread/write up for any of the info below. Trying to make this as complete as i can for everyone to use.

    Note: with 3” lift recommended tire size is 31x9.5 with minor trimming, but is is possible to go up to 33” tires with proper rims

    Note: lifting the rear requires longer shocks

    What is a 5lug, what makes it different then a 6lug
    Commonly called 5lug or “mini truck”, A 5lug tacoma is a 2wd model tacoma designed for a more economical market that the bigger 6lug versions weren’t designed to target. They are a lowerd version of a tacoma utilizeing a spring under axel (sua) set up in the rear and up front uses Struts but are different then the 6lug. They were designed to have a softer/smoother ride then 6lug tacomas which tend to be more stiff. 6lugs tacomas use a spring over axel (soa) and use struts up front, for this reason 6lug suspension parts WILL NOT FIT on 5 lug tacomas. 5 lug tacomas also have a lower pay load rating and tow rating compared to 6lug tacomas.

    Lifted front suspension

    Fatbob 2.75” spacer #42275-5L
    http://4x4.fatbobsgarage.com/mobile/toyota-tacoma-2wd-5-lug-275-front-lift-kit-2005-2017-p7630.aspx
    Build thread showing install:

    Maxtrac 2.5” spacer #836225
    https://maxtracstore.com/2005-2018-toyota-tacoma-2wd-5-lug-2-5-lift-strut-spacers-maxtrac-836225/
    Build thread showing install:

    Lift option 3” spacer #
    https://www.ebay.com/ulk/itm/332296074485
    Build thread showing install:

    American motorsports LT#
    http://www.american-motorsports.net/?page=suspension&suspensionId=1
    Build thread showing install:https://www.tacomaworld.com/threads/stupid-hurts-s-5-lugger-build.50387/

    Lifted rear suspension

    Fat bob aal 2” #
    http://4x4.fatbobsgarage.com/mobile...-add-a-leaf-lift-kit-2wd-1995-2017-p7921.aspx
    Build thread showing install:

    Ready lift aal #
    https://www.readylift.com/universal-add-a-leaf-for-compact-and-mid-size-trucks.html
    Build thread showing install:

    Armor tech off-road shakle flip kit #ATO5005
    http://www.armortechoffroad.com/2005--2015-Tacoma-Universal-Shackle-Flip-Kit_p_334.html
    Build thread showing install:https://www.tacomaworld.com/threads...ma-universal-shackle-flip-kit-install.521459/

    Armor tech offroad lifted shakles #ATO5009ATO5013
    http://www.armortechoffroad.com/05-15-Tacoma-HD-Replacement-Shackle_p_402.html
    Build thread showing install:

    Ican 3 leaf aal #
    https://downsouthmotorsports.com/i-...oma-6-lug-05-current-rear-add-a-leaf-kit.html
    Build thread showing install:https://www.tacomaworld.com/threads/my-build-big-pimpin.548571/#post-17808456
    Instructions:https://downsouthmotorsports.com/attachment/26217-Instructions.pdf

    Fatbob lifted shocks #82451-425Lx2
    http://4x4.fatbobsgarage.com/mobile/toyota-tacoma-2wd-5-lug-rear-shocks-2wd-2005-2017-p7609.aspx
    Build thread showing install:

    Lift kits

    Ready lift #RDY69-5510
    https://www.readylift.com/2-75-sst-lift-kit-toyota-tacoma-5-lug-2wd-2005-2018.html
    Build thread showing install;

    Fatbob #42275-5L-AAL-8KS-UB
    http://4x4.fatbobsgarage.com/mobile...suspension-275-lift-kit--2005-2017-p7611.aspx
    Build thread showing install:

    Lowerd suspension


    Lots of good info here: https://www.tacomaworld.com/threads/comprehensive-5-lug-2nd-gen-lowering-info.247184/

    Djm 3/3 #2816-33
    http://djmsuspension.com/product/djm2816-33/
    Build thread showing install:

    Djm 3/4 #2816-3
    http://djmsuspension.com/product/djm2816-3/
    Build thread showing install

    Xii drop kit #
    http://xiiperformance.com/street-drop-kit-tacoma-2wd-05-2015/
    Build thread showing install:

    Xii coil over kit #
    http://xiiperformance.com/coilover-kit-front-plus/
    Build thread showing install:

    Mods

    Black box
    https://www.tacomaworld.com/threads/how-to-black-box-removal.357919/page-2#post-17480459

    Oem replacement

    Bilstein shocks #
    https://www.amazon.com/BILSTEIN-SHOCKS-TOYOTA-TACOMA-ABSORBERS/dp/B01BOODZSE

    Bilstein HD4600 L #24-85042 R #24-85066
    http://www.shockwarehouse.com/index.cfm?mode=results&selected_model=4504&selected_year=2010
    Build thread showing install:

    Ubolts
    http://stores.streetacos.com/u-bolts-1-2-diameter-high-quality-5-lug/

    Other

    Carrier bearings bracket for 5”+ lifted rear end #
    http://stores.streetacos.com/carrier-bearing-bracket-2-1-4-2005-2018-tacoma-5-higher-rear-lift/
    Carrier bearings braket for 4”- lifted rear end #
    http://stores.streetacos.com/carrier-bearing-bracket-1-1-2-2005-2018-tacoma-4-lower-rear-lift/
    Build thread showing install:

    Power stop preformace rotors and pads #K5431
    https://www.amazon.com/Power-Stop-K5431-Evolution-Drilled/dp/B008WH45ZE
    Build thread showing install:

    Website and other info

    http://fatbobsgarage.com/


    https://www.readylift.com/

    http://xiiperformance.com/

    http://stores.streetacos.com/

    https://downsouthmotorsports.com/

    http://djmsuspension.com/applications/toyota/2005-2011-toyota-tacoma/

    Oem wheel size
    http://www.customtacos.com/forum/16-2wd-wheels-tires/74917-2wd-5-lug-info-wheels.html#/topics/74917
    Oem steel wheels 15x6, 60.1 bore, 35mm off set, 20.1 pounds

    Oem tire size
    http://www.customtacos.com/forum/16-2wd-wheels-tires/75023-2wd-5-lug-info-tires.html#/topics/75023

    Build threads

    https://www.tacomaworld.com/threads/my-lift-progress-with-photos.446409/


    https://www.tacomaworld.com/threads/kaviks-rollar-coaster-of-a-build-thread.540355/

    https://www.tacomaworld.com/threads/my-build-big-pimpin.548571/#post-17807506

    https://www.tacomaworld.com/threads/hackds-ongoing-5-lug-armored-slug-build.368928/

    https://www.tacomaworld.com/threads/stupid-hurts-s-5-lugger-build.50387/

    Last edited: Jul 26, 2018
  2. Jun 4, 2018 at 9:40 AM
    #2
    5 Lug Fury

    5 Lug Fury Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    2,668
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    1uz v8 Locked 5 lug :D
    Got a lot of stuff lol
    As someone with technically around 4" of lift in the rear with a single driveshaft I should note that I needed a driveshaft spacer. I'm currently waiting for it to come in and will update my lift progress once it's all worked out.

  3. Jun 4, 2018 at 9:45 AM
    #3
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    Think you are the first person i heard of actually getting one, when I finally order alcans I’ll probably have to get one too

  4. Aug 29, 2018 at 10:32 AM
    #4
    jliketoparty

    jliketoparty New Member

    Joined:
    May 16, 2018
    Member:
    #253644
    Messages:
    3
    Gender:
    Male
    First Name:
    Jacob
    Vehicle:
    2011 Tacoma 5 lug
    None

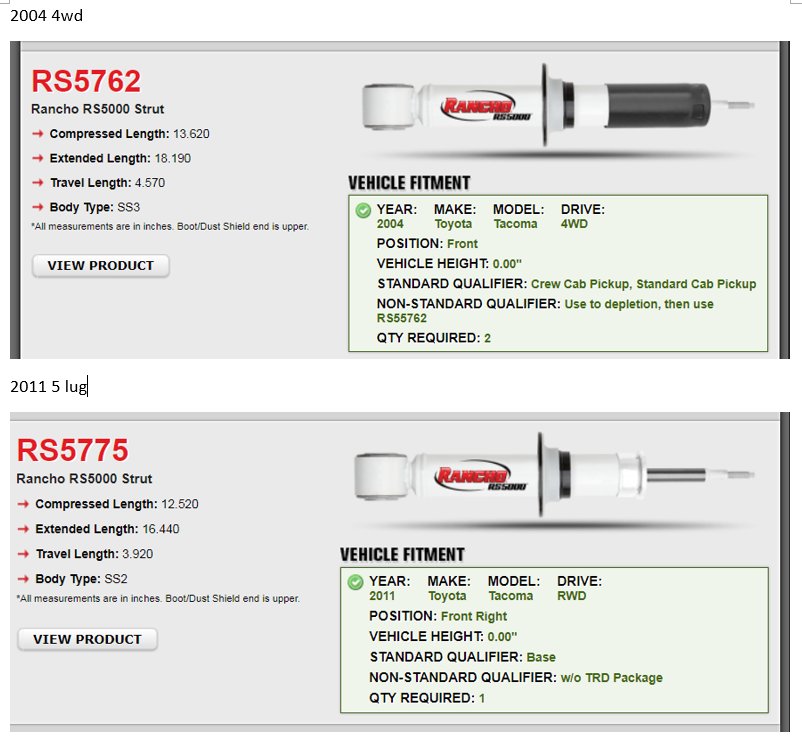

    This may be a long shot. I was looking around at different strut options and notice that the 1st get 4x4 Tacoma AC front struts are only about 2in longer than the stock 2nd gen 5 lug. Theoretically, this would give a 2in or more lift. the 2 limitations I can foresee is the strut interfering with the upper arm, and or the strut pattern is off. My question is, Has anyone tried this? upload_2018-8-29_13-31-43.jpg

  5. Aug 29, 2018 at 10:48 AM
    #5
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    You have to double it so its 4” of lift if its 2” taller

    Also idk if the top plates will watch up

  6. Nov 1, 2018 at 8:45 AM
    #6
    iqbal624

    iqbal624 Member

    Joined:
    Oct 26, 2018
    Member:
    #270694
    Messages:
    14
    Gender:
    Male
    First Name:
    iqbal
    Vehicle:
    2006 5-Lug Taco
    30" tires bak tonneau lifting soon?
    Do you NEED new u bolts when you do the AAL in the rear? (2nd Gen)

  7. Nov 1, 2018 at 4:39 PM
    #7
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    Its recommended you replace them. But not required, unless you have some rusty ones you had to cut off

  8. Dec 15, 2018 at 11:46 AM
    #8
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport

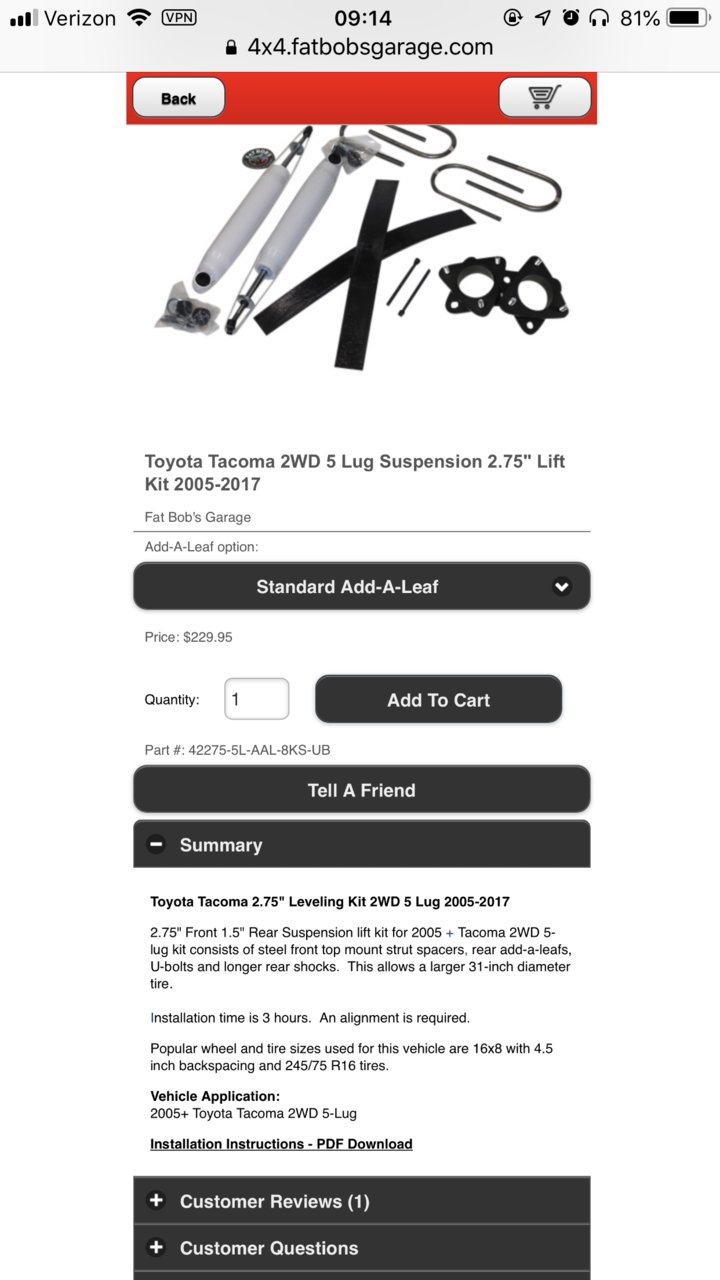

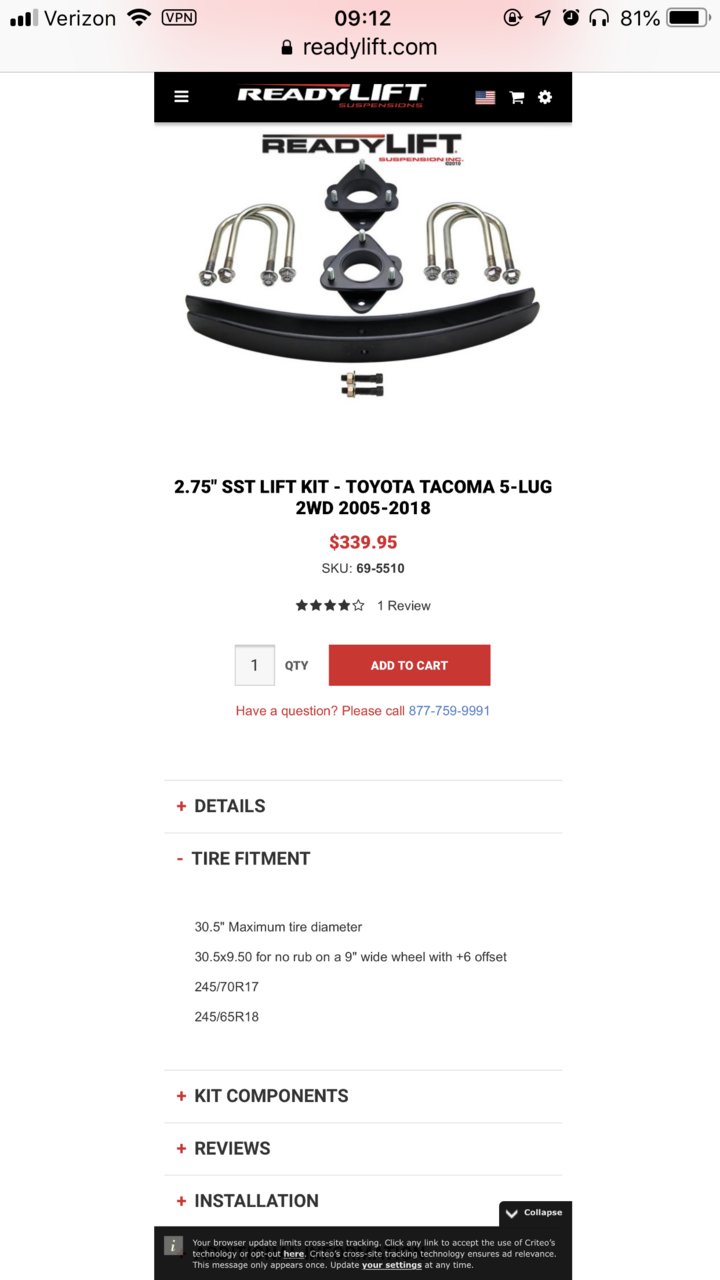

    Any thoughts on Fat Bobs lift kit subbed out the rear shocks for the bilsteins 4600. im wondering if the bilsteins would lift the same amount as the fat bob's would have? Fat Bob rear looks questionable to me and would rather have the bils if possible. Thanks for any knowledge.

  9. Dec 15, 2018 at 12:15 PM
    #9
    5 Lug Fury

    5 Lug Fury Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    2,668
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    1uz v8 Locked 5 lug :D
    Got a lot of stuff lol
    It would be the Bilstein 5100 with the add a leaf added. (The lift comes from the add a leaf not the shock) You could also go with almost any shock meant for a 6 lug with 0-1" lift. Like fox shocks. The front unfortunately is still a 4600 no matter what unless you find an upper control arm and go mid travel

    TacomaFitz likes this.
  10. Dec 15, 2018 at 12:19 PM
    #10
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    Shocks dont give lift

  11. Dec 15, 2018 at 1:18 PM
    #11
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport
    Word. Much appreciated and thank you clearing that up.

  12. Dec 15, 2018 at 1:22 PM
    #12
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport
    Gotcha and thanks a lot! So can you explain how lift kits that give 2.75 up front and ~1.75 in the back create an equal lift? Cuz I was mistakenly thinking the longer shocks helped with the variance...

  13. Dec 15, 2018 at 1:44 PM
    #13
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    Front ride hight is lower on a stock truck. All trucks have this rack. Its to help with carrying heavy loads

    Now a levling kit adds more lift in The front then rear to give a level hight. This is achieved through the spacer and AAL. The shocks are just there to smooth out the ride. But you need longer ones if the rear is lifted or else the shocks will top out before you achieve full travel. Up front remains the same. Hense why you need 5lug 4600 up front and can run 6 lug shocks in the rear

    TacomaFitz likes this.
  14. Dec 15, 2018 at 1:54 PM
    #14
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport
    Ahh! It all makes sense now! Thanks

    Sperrunner [OP] likes this.
  15. Dec 15, 2018 at 1:56 PM
    #15
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    No problem

  16. Dec 15, 2018 at 2:06 PM
    #16
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport
    Ok so I wanted to roughly maintain that stock ratio, just add another AAL to achieve that added height? If so will 5100's not top out and are the u bolts in those kits long enough? Thanks for all the help!!

  17. Dec 15, 2018 at 2:08 PM
    #17
    Sperrunner

    Sperrunner [OP] Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    41,923
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2016 ford transit
    Wd40, zipties, duck tape, and my hopes and dreams
    Theu bolts typically supplied are way to long so it will work. But a AAl will stiffen the ride. 2 will be stiffer. You can look into doing a shackle flip and aal if you would like to keep the stock rake

    TacomaFitz likes this.
  18. Dec 15, 2018 at 2:12 PM
    #18
    TacomaFitz

    TacomaFitz 2nd Gen 5 Lug

    Joined:
    Apr 21, 2018
    Member:
    #251232
    Messages:
    30
    Gender:
    Male
    First Name:
    Rion
    North Bay CA
    Vehicle:
    2013 2.7 Manual Tacoma base model
    Shackle flip Add a leaf Spacer lift 3/4" bora wheel spacers 265 75 16 Mickey Thompson A/T LCE Header LCE Clutch Power Inverter Yellow Top Battery Air compressor install Hood struts Plasti dip Skid plate Bull Bar Waterport
    Right on! I read your write up on that and was thinking that could be a solution! Wonder what one would charge for that shackle flip?

  19. Dec 15, 2018 at 2:14 PM
    #19
    5 Lug Fury

    5 Lug Fury Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    2,668
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    1uz v8 Locked 5 lug :D
    Got a lot of stuff lol
    If your savy with trucks a shackle flip adds roughly 1" extra to the rear as well as make the ride more plush

    TacomaFitz likes this.
  20. Jan 28, 2019 at 6:18 AM
    #20
    SilverThunderBo

    SilverThunderBo Member

    Joined:
    Jan 27, 2019
    Member:
    #280872
    Messages:
    22
    Gender:
    Female
    First Name:
    Abbey
    Vehicle:
    2006 Access Cab Silver Tacoma 2WD 5 lug
    CB98BDB0-8A20-4135-B8BD-B8C0897C4C9B.jpg Hey guys so I want to do a 3” lift on my stock 5 lug, this thread has been super helpful. Would one of these kits give me all I needed for the front AND back lifts?AD8BCB62-7CC7-411E-8D81-CDB6AEE27293.jpg


Products Discussed in

To Top
