***Official 2nd gen scangauge/ultra-gauge/torque readings***

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Justus, Jul 17, 2014.

  1. Jul 17, 2014 at 5:30 PM
    #1
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    Just for the 2nd gen guys/gals (there is a 1st gen thread too)

    Post your method....... scangauge, ultra-gauge, torque app, or other (specify).


    let us know your mods (if they may change things up) like a trans cooler, tow package, non tow package, supercharger, aftermarket exhaust, no cats, aftermarket cats, valve body upgrades, toolboxes, trailers, campers.

    If this trip was up a lot of grades, a hot day, a cold day, hauling a load (of), a long trip, etc.

    outdoor temps

    this way we can compare and get an average reading for those of us who use OBD2 and or other gauges.

    Ths way we have numbers to compare to instead of just running blind.

    I want to thank Ricks2013 for this idea!

    Last edited: Jul 17, 2014
  2. Jul 17, 2014 at 5:33 PM
    #2
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    hopefully this becomes stick worthy............ may help MANY future questions, especially when someone gets a new OBD2 gauge and wants to know if his/her readings are acceptable

  3. Jul 17, 2014 at 5:37 PM
    #3
    yota243

    yota243 Well-Known Member

    Joined:
    Aug 22, 2012
    Member:
    #85267
    Messages:
    20,689
    Gender:
    Male
    First Name:
    E.J.
    north Alabama
    Vehicle:
    turbo 05 prerunner trd off road DC
    Bw s256 turbo with 3 in glass pack dumped pre axle raptor liner bed and top rails and fenderflares and rocker panels. Hunter side steps. Plasti-dipped upper fenders and emblems. satin black spray paint here and there inside and out. 5100's set to 1.75" up front . C channel front bumper. Maxxis bighorn 255/85/16
    I like it, but what numbers u looking for? Mpg temps? Loads?

  4. Jul 17, 2014 at 5:40 PM
    #4
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    its not just me.......... lets get whatever u watch regularly.

    trans, water, voltage, trims, cat temps, just your usual.

    No telling what a FUTURE user may be looking for.......... Lets not go nuts here, but just use the general numbers you look at personally, unless someone asks specifically for another parameter you dont usually look at, but wouldnt mind sharing?

  5. Jul 17, 2014 at 5:44 PM
    #5
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    I just got my UG a few days ago and love it.
    My intake temp is usually about the same as ambient temp, maybe 1-2 degrees more at times. I do have URD CAI. My engine temp has gotten to about 192* I think so far. Thats driving to and from work on highway (75-80mph) for 25 miles. i'll have to pay attention to some other gauges and post/compare the readings.

  6. Jul 17, 2014 at 5:54 PM
    #6
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    with the URD, I usually read ambient (at idle) to 2 degress below ambient at 40MPH plus... dont ask how, but it read 2 degrees lower I swear.

    stock, and afe stage 2 SI intake temps can vary at idle, but BOTH can get to ambient temps at about the same speed (40mph).

    Ive not seen engine temps above 200 yet, even while carrying 600lbs of gym equipment up a large grade at 75... I am supercharged tho.

  7. Jul 17, 2014 at 6:02 PM
    #7
    nd4spdbh

    nd4spdbh Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    11,236
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    on my 700mi trip this past weekend via torque pro, with PID's for torque converter out and trans pan.

    90-112*F ambients, intake usually 5-8* above ambient at cruising speed.... coolant at 186-190 cruising, and pan / tq at 175ish

    I think i saw coolant top out at 203 going up a grade bed loaded with gear in 112 ambients.... top temp i saw for tq out was 203 as well but pan never got above 190.

  8. Jul 17, 2014 at 6:05 PM
    #8
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    pay no mind to the HPR reading, its GOT TO BE WRONG.



    Intake temp 58F
    trans temp 150F
    water temp 191F
    Horsepower (yeah right) 397


    this was with me (280) a 270lb passenger with about 30lbs of luggage, 58 ambient weather, up a LARGE grade....

    Supercharged,
    AFE stage 2 Si,
    full mesh grille.
    Full toolbox in back (150lbs),
    75mph,
    3hr drive,
    head wind.



  9. Jul 17, 2014 at 6:07 PM
    #9
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish

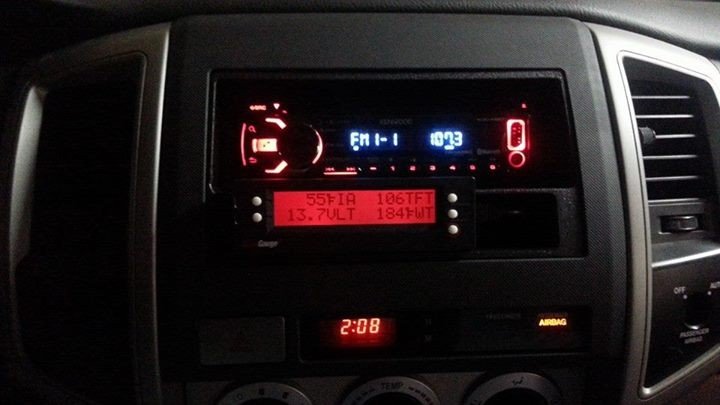

    idle in garage after a drive around the block

    intake 55
    vlt 13.7
    trans 106 (pan)
    water 184


  10. Jul 17, 2014 at 6:53 PM
    #10
    Hartford

    Hartford Well-Known Member

    Joined:
    May 11, 2012
    Member:
    #78609
    Messages:
    612
    Gender:
    Male
    Maine
    Vehicle:
    2011 Acc Cab 5spd
    I have an ultragauge from a group buy back around january. I have 2.7l 5spd SR5. Only mods currently are an AFE air filter and skid plates for the IFS, transmission and t-case. I monitor my instant fuel mileage, short trip mileage, oil mileage, intake temp, coolant temp and run time.

    Instantaneous: Varies too much to be of any use.

    Short trip mileage: Was 15mi at 10mpg tonight, but most of that was in 4low first gear.

    Intake temp: got up to 150f but that was parked with the motor running tonight. Typically is 5 to 8 degrees above ambient summer/winter, when I can check it against an outside thermometer.

    Oil mileage: Useful to nobody but me, 2200 miles.

    Coolant temp: Runs anywhere from 194 cruising at 45 to 204 stopped after a fast or uphill push. Think it may run a little hot and need coolant change.

    Run time: Since mid january 206 hours.

  11. Jul 17, 2014 at 7:20 PM
    #11
    smd3

    smd3 Well-Known Member

    Joined:
    Jun 11, 2013
    Member:
    #106086
    Messages:
    372
    Gender:
    Male
    I've seen coolant temps of 210 and transmission pan temps of 230 while towing. Ambient was probably mid 80's.

    2013, TRD/OR, Tow Pkg, 4x4, V6, stock tires/size.

    Trailer weight was listed at 4800lbs. Traveling between Salt Lake and Grand Junction.

    Last edited: Jul 18, 2014
  12. Jul 17, 2014 at 7:25 PM
    #12
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    tow package, non tow, v6, I4?

  13. Jul 17, 2014 at 7:25 PM
    #13
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    good info, thank you :)

  14. Jul 17, 2014 at 7:26 PM
    #14
    Justus

    Justus [OP] fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    9,230
    Gender:
    Male
    First Name:
    Nabisco the kid
    In ur toolbox
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    good info!

  15. Jul 17, 2014 at 8:22 PM
    #15
    Blacktaco2042

    Blacktaco2042 Well-Known Member

    Joined:
    Jun 11, 2014
    Member:
    #131732
    Messages:
    875
    Gender:
    Male
    wisconsin
    supercharger/trd cat back 3inch lift 265/75/16 duratracs bumper guard led bar
    i wanna get a scan gauge or a ultra but i cant make up my mind
    can you guys help me

  16. Jul 17, 2014 at 8:54 PM
    #16
    samiam

    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,137
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    Scangauge II here.
    This is what I normally monitor:

    Current MPG
    AVG MPG - 15-20 MPG city
    Air Intake Temp - about 130 summer
    Coolant Temp - I've never seen above 190 even in summer with A/C on

    I don't think trans temp is available for manual...am I correct?

  17. Jul 18, 2014 at 3:30 AM
    #17
    Ricks2013

    Ricks2013 Well-Known Member

    Joined:
    Nov 22, 2012
    Member:
    #91635
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Rick
    Orlando, FL
    Vehicle:
    13' TRD Sport DCSB
    A few things
    Well the UG is at least half the price ($60!) of SG and from what i can tell the main difference is that UG doesnt tell Trans temp yet. Justus is actually working with them get something going. I believe he might already have the trans temps for the MX model.

  18. Jul 18, 2014 at 3:45 AM
    #18
    Blacktaco2042

    Blacktaco2042 Well-Known Member

    Joined:
    Jun 11, 2014
    Member:
    #131732
    Messages:
    875
    Gender:
    Male
    wisconsin
    supercharger/trd cat back 3inch lift 265/75/16 duratracs bumper guard led bar
    what do you recommend

  19. Jul 18, 2014 at 6:31 AM
    #19
    oldstick

    oldstick Middle Age Member

    Joined:
    Feb 17, 2011
    Member:
    #51331
    Messages:
    1,022
    Gender:
    Male
    GA
    Have used the bluetooth dongle and the Tourque app to monitor both transmission pan and converter outlet temps on one trip thus far. 07 Pre-runner double cab with factory tow package, TRD Sport. No towing this trip.

    Both temps read pretty close to the ambient temps (around 92 F or so) on cold startup. Then about 150 miles of interstate driving where they both equalized and stayed pretty constant at around 160 the whole trip.

    Oh yeah... and no other mods at all, not even wheels, Jack! :D:D

    Last edited: Jul 18, 2014
  20. Jul 18, 2014 at 7:06 AM
    #20
    dYL0n

    dYL0n أنا لست الإسلامي

    Joined:
    Jan 14, 2011
    Member:
    #49250
    Messages:
    4,600
    Gender:
    Male
    First Name:
    Dyl0n
    New Orleans, LA
    Vehicle:
    17TRDORDCSBQSJBLKBRO2SPECU1.04
    1.04. Kbro2s. ICONS.
    Live in louisiana, its been a mild to hot summer (86-94 degrees).

    Air Intake: Always ambient unless I'm idling (URD TCAI). If I'm idle at a light or such and its hot out, it'll scream up to 110 real quick

    Coolant: 184-186 in the morning. 186-188 Driving around town. 190 steady driving 75 on the interstate with it very hot outside.

    Mods are in my signature
