Official Crawlbox BS thread!

Discussion in 'Technical Chat' started by HomerTaco, Mar 16, 2016.

  1. Mar 16, 2016 at 6:28 AM
    #1
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    There has been much discussion in multiple threads on this topic so why not make a reference thread?

    Crawlbox: aka "dual cases". An additional gear reduction case that installs between the transmission and transfer case to allow for a lower gear ratio than the stock transfer case low.

    Hints, tricks, and generally just some good info for those interested.

    I'll post up some pics,links, and additional descriptions soon.

    :turtleride:

    Links to vendor sources:

    1.Marlin https://www.marlincrawler.com/transfer-case/line-ups/tacobox
    2.RST http://rststore.rocksolidtoys.com/shopping/pgm-more_information.php?id=2&=SID
    3. Inchworm http://www.lowrangeoffroad.com/toyo...sfer-case/built-tacoma-double-case-setup.html

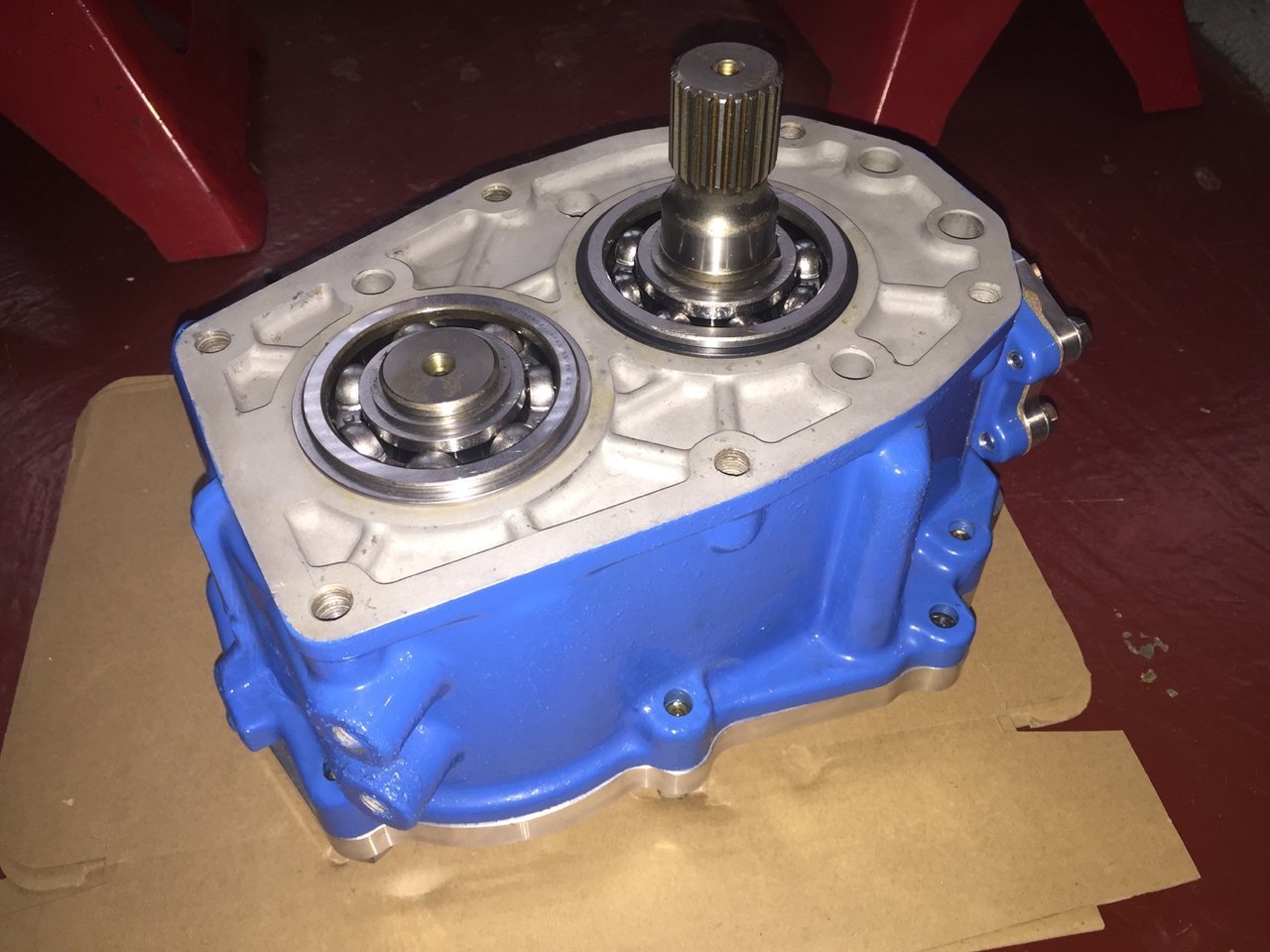

    glam shot just because:

    Last edited: Mar 16, 2016
  2. Mar 16, 2016 at 6:28 AM
    #2
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Reserved.

    hoverlover and mcharfauros like this.
  3. Mar 16, 2016 at 6:32 AM
    #3
    DustStorm4x4

    DustStorm4x4 Well-Known Member

    Joined:
    Jul 2, 2015
    Member:
    #158634
    Messages:
    8,963
    Gender:
    Male
    TN
    Vehicle:
    04 Jeep LJ
    Sub'd for the info. I might learn a thing or two.

  4. Mar 16, 2016 at 6:44 AM
    #4
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
  5. Mar 16, 2016 at 6:45 AM
    #5
    G.T.

    G.T. Official TW Burrito Inspector

    Joined:
    Jul 14, 2010
    Member:
    #40169
    Messages:
    15,412
    Gender:
    Male
    First Name:
    G.T.
    CONUS
    Vehicle:
    2011 Pyrite Mica 4WD DCLB TRDSport w/ FlipPac
    Some stick on chrome from pep boys
  6. Mar 16, 2016 at 6:48 AM
    #6
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    18,997
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Good idea

    I have something there is a clunk when shifting gears or a hard start with mine at least it sounds like the crawl box I'm thinking it might be the collar to the trans output it's almost like there is slop from forward to reverse. Other then that my T case itself could have a stretched chain. I've been trying to pinpoint it for a wile now I just haven't pulled the cases because i don't have the time.

    mcharfauros likes this.
  7. Mar 16, 2016 at 6:48 AM
    #7
    Haws

    Haws Well-Known Member

    Joined:
    Apr 5, 2010
    Member:
    #34667
    Messages:
    582
    Gender:
    Male
    First Name:
    Shawn
    Washington
    Vehicle:
    TRD Off Road
    Lot's of stuff (-;
    Ok you've got my attention...

    Cocolocobean likes this.
  8. Mar 16, 2016 at 6:59 AM
    #8
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Haven't had mine long enough to know what is "normal" and what isn't. :oops:

  9. Mar 16, 2016 at 7:30 AM
    #9
    sander1036

    sander1036 Well-Known Member

    Joined:
    Mar 28, 2011
    Member:
    #53870
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Steve
    Snack Food Capital of the World
    Vehicle:
    02 SR5 TRD Double Cab 4x4
    THULE Roof Rack, Color matched grille w/ GrilleCraft, Toytec Ultimate, 33 x 12.5 Duratracs, Bushwacker Cut Out Flares, Cvt Mt Shasta, Cvt Awning, LEER Cap
    Subbed because :turtleride:

  10. Mar 16, 2016 at 7:33 AM
    #10
    SGTCap

    SGTCap Well-Known Member

    Joined:
    Oct 30, 2013
    Member:
    #115529
    Messages:
    3,825
    Gender:
    Male
    First Name:
    Cap
    Summerville, SC
    Vehicle:
    4x4 6-spd,
    37s, 4x4 6-spd, OME 886s, Allpro Expos, SOS sliders and front/rear bumpers,Rack,Skids, 4.56s, Lockers,Recon Winch, TJM RTT, Lots of tools, boxes and gear. Shaggy mutt behind the seat
    I've got the Inchworm crawlbox on order, hope to see it in the next month or so. I just got an FJ TCase minus the shifter
    I Have a 6-speed truck
    So here are my questions:

    If I can't find a factory FJ shifter cheaply and easily what are my options for twin sticks?
    What other parts should I be accumulating while waiting for the box?
    How does "Clocking" the tranfer case work?
    Does anyone have the drivesaft measurements so I can have my spare front (and rear if I can find one) modded before the install?

    hoverlover and Bfox like this.
  11. Mar 16, 2016 at 7:37 AM
    #11
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    I should have a shifter for you, but I opted for the Front Range Offroad twin stick.

    I did not receive a crawl box shifter from lowrange when I ordered my inchworm box, but I'm hoping that was an oversight.

    Craig will have to explain the clocking as I haven't done mine yet.

    You'll need the mount for the transfer case, a DPDT momentary switch for the front ADD, and I'm sure there's something else that I'll figure out we need in the next couple weeks.

    hoverlover likes this.
  12. Mar 16, 2016 at 7:42 AM
    #12
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,427
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    balls, another thread to sub

    Chipskip, SMKYTXN and HomerTaco [OP] like this.
  13. Mar 16, 2016 at 7:42 AM
    #13
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Here's a link to one source for a twin stick:

    http://www.davezoffroadperformance.com/store/twin-stick-shifter.html

    You'll need to fabricate a new crossmember to support the crawlbox so you need the mount:

    https://www.marlincrawler.com/armor/crossmember/crossmember-mount-hd

    Switch for the front actuator & prerunner blank to replace the 4x4 dash dial.

    Clocking raises the t-case up higher & allows for additional clearance.

    Ant's got the measurements for the driveshafts but I'd honestly wait until you get the cases in to do the shafts if possible. Every truck's got it's own variables...

    Glueman and Ugly Betty like this.
  14. Mar 16, 2016 at 9:26 AM
    #14
    PSU Taco85

    PSU Taco85 Señor Member

    Joined:
    Jun 21, 2014
    Member:
    #132394
    Messages:
    2,011
    Gender:
    Male
    First Name:
    optional
    Vehicle:
    '10 TRD OR mostly stock
    Plasti dipped hootus
    Shubbed

    SMKYTXN likes this.
  15. Mar 16, 2016 at 9:56 AM
    #15
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,427
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    More stick pron:

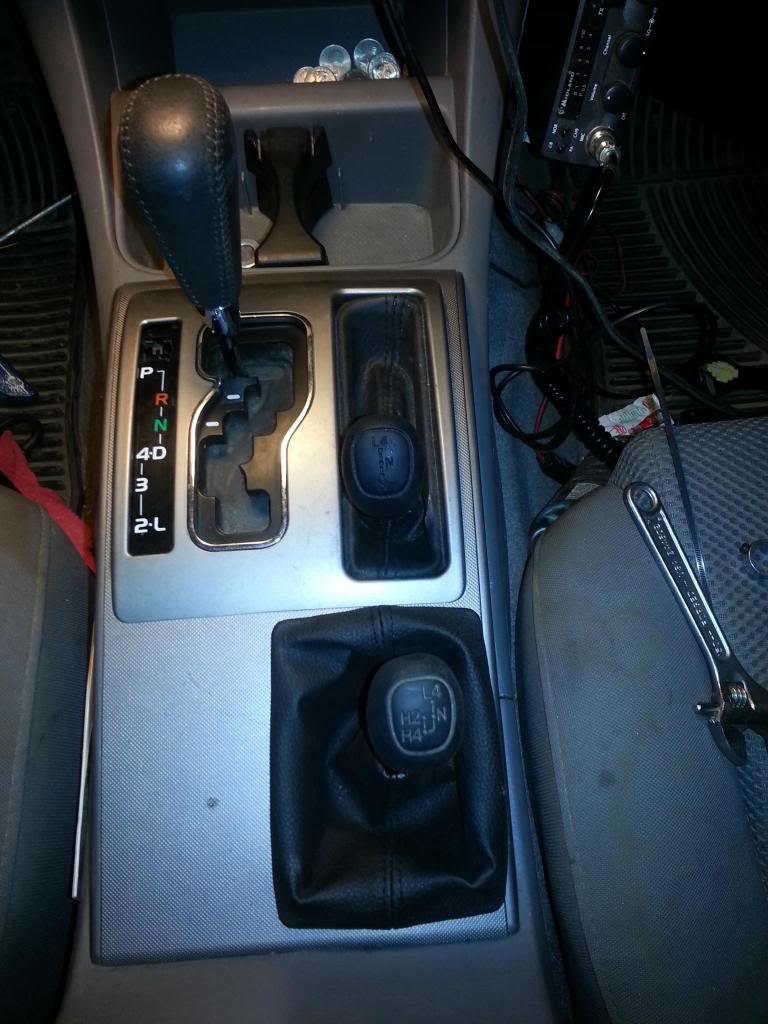

    Crawlbox and single stick FJ case

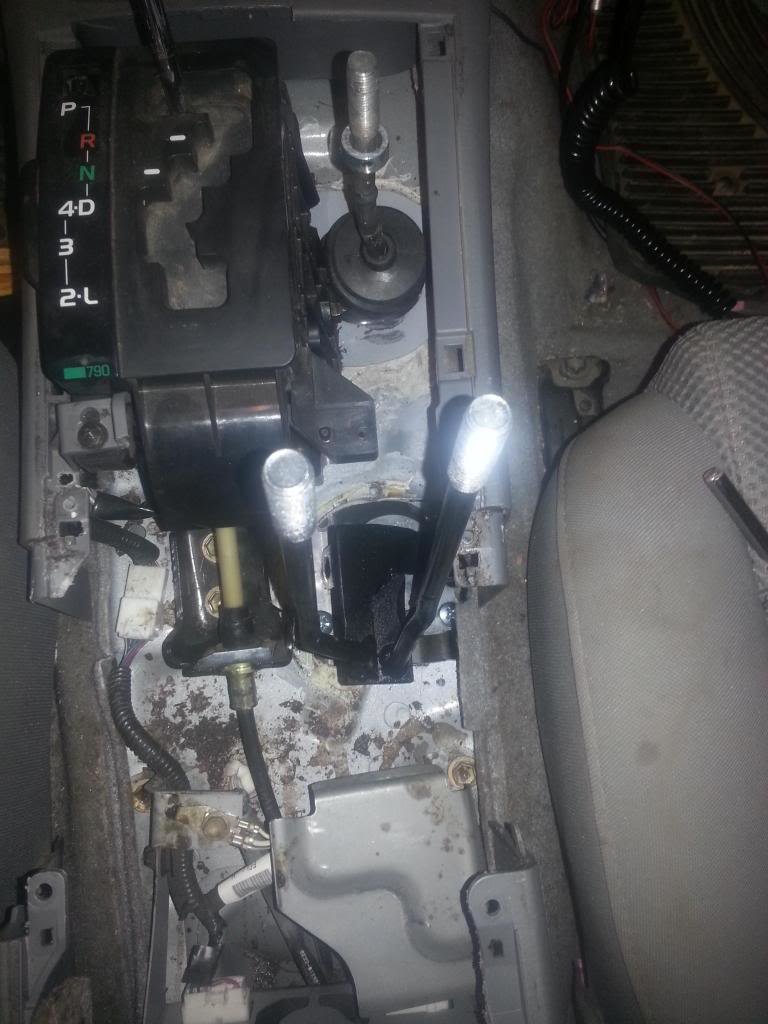

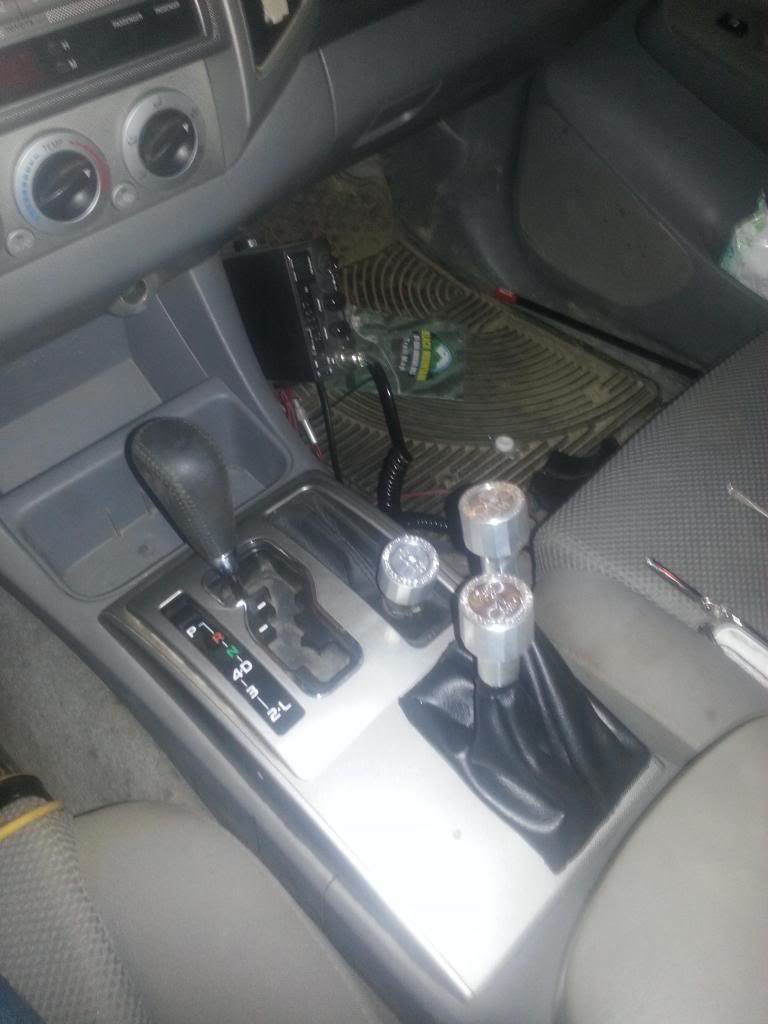

    Crawlbox and twin stick FJ case

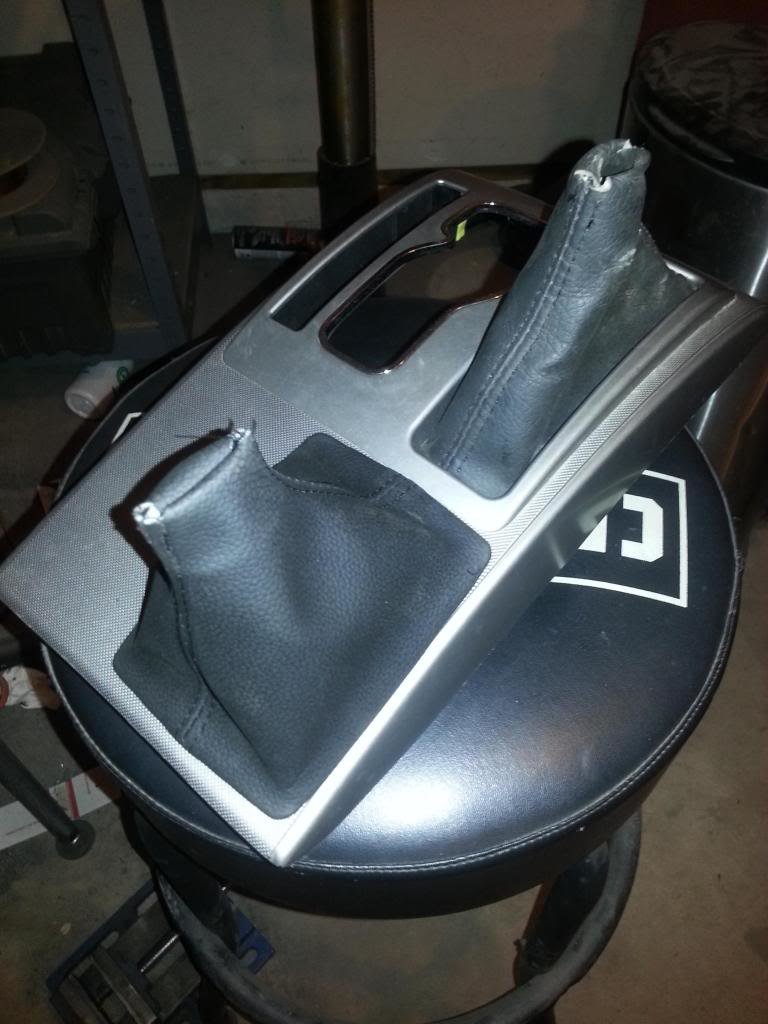

    Oh and there's this too...my slight OCD had to have both H-L shifters in line so I made the twin sticks crossover-twins :D

  16. Mar 16, 2016 at 9:57 AM
    #16
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Skillz... :cool:


    Manfred likes this.
  17. Mar 16, 2016 at 10:08 AM
    #17
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    4,427
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Alot of it is still scraps from the shifter's on the twin stick I got from you

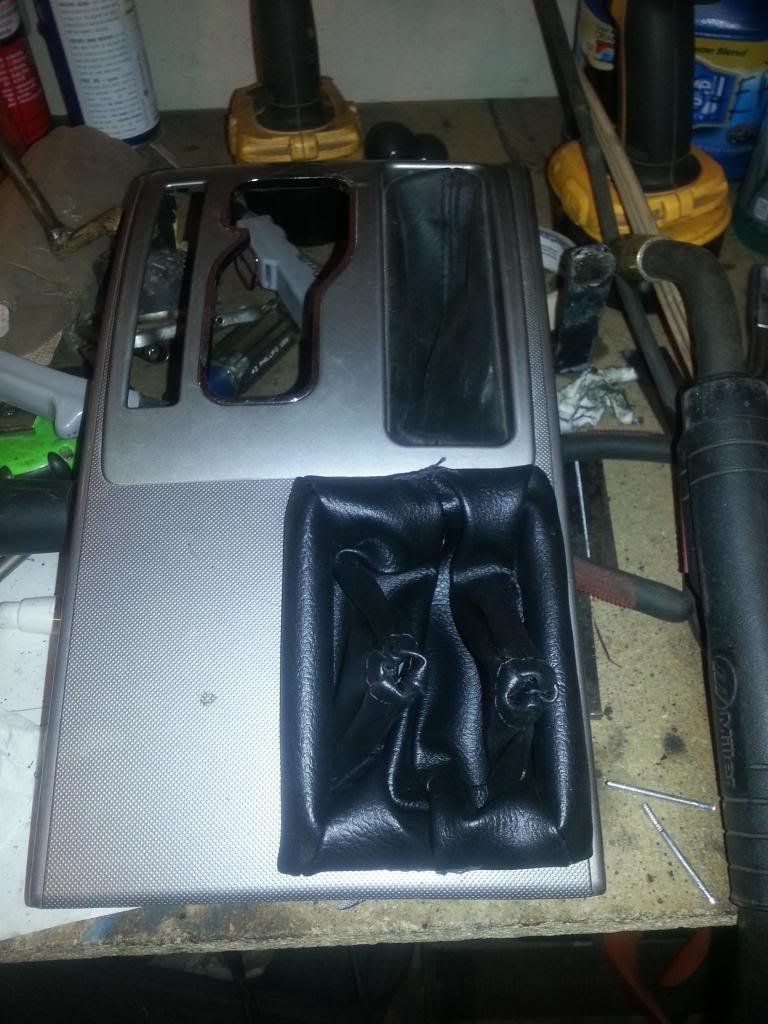

    Reminds me I need to take a pic of my "boot" for the twin stick to seal the tunnel up a touch

    HomerTaco [OP] likes this.
  18. Mar 16, 2016 at 10:19 AM
    #18
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
  19. Mar 16, 2016 at 11:59 AM
    #19
    SMKYTXN

    SMKYTXN If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,001
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Everyone feel free to post up your skid plates and support mounts for the crawl box. I need some ideas!

    hoverlover, TacoTRD78 and SGTCap like this.
  20. Mar 16, 2016 at 1:41 PM
    #20
    SGTCap

    SGTCap Well-Known Member

    Joined:
    Oct 30, 2013
    Member:
    #115529
    Messages:
    3,825
    Gender:
    Male
    First Name:
    Cap
    Summerville, SC
    Vehicle:
    4x4 6-spd,
    37s, 4x4 6-spd, OME 886s, Allpro Expos, SOS sliders and front/rear bumpers,Rack,Skids, 4.56s, Lockers,Recon Winch, TJM RTT, Lots of tools, boxes and gear. Shaggy mutt behind the seat

    I have a spare transmission and mount so I'm hoping to find a spare crossmember I can modify and have prefabbed for my install. I readlly want the install to go quickly and easily by doing as much beforehand as possible.

    Is there a wiring kit or any advice/instructions availible for the front diff wiring?
