I knew Threebond did Honda but didn’t know where the Toyota stuff came from. Makes sense though since Honda FIPG also works extremely well.



Gang gang!



Now the hard work starts!

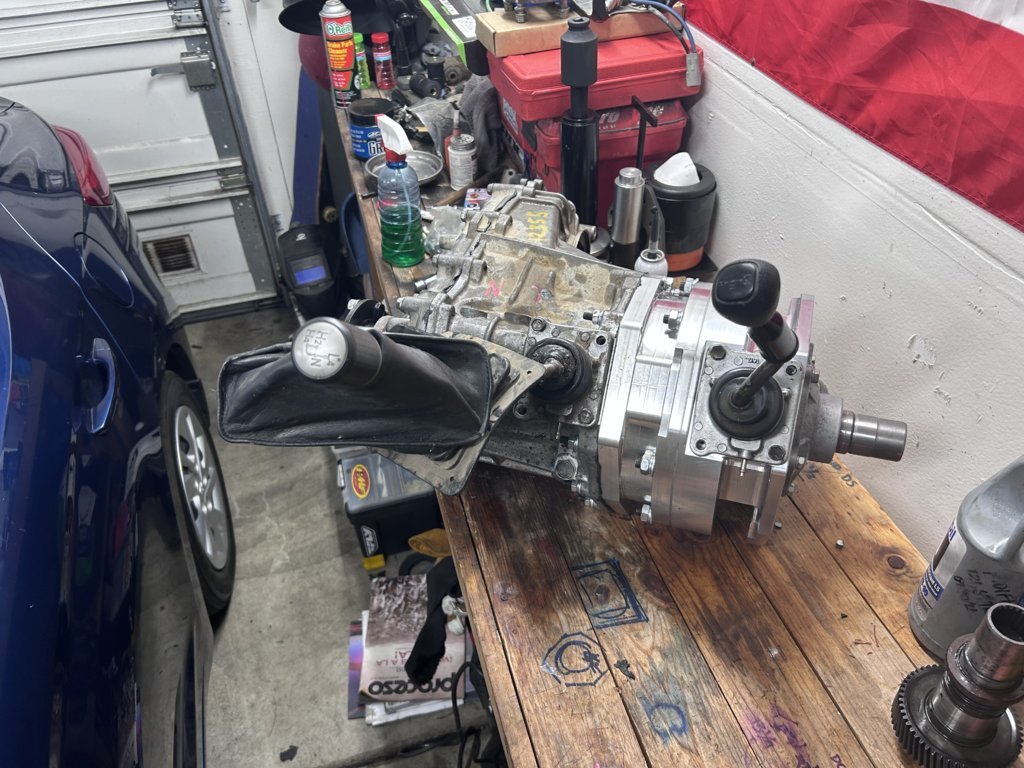

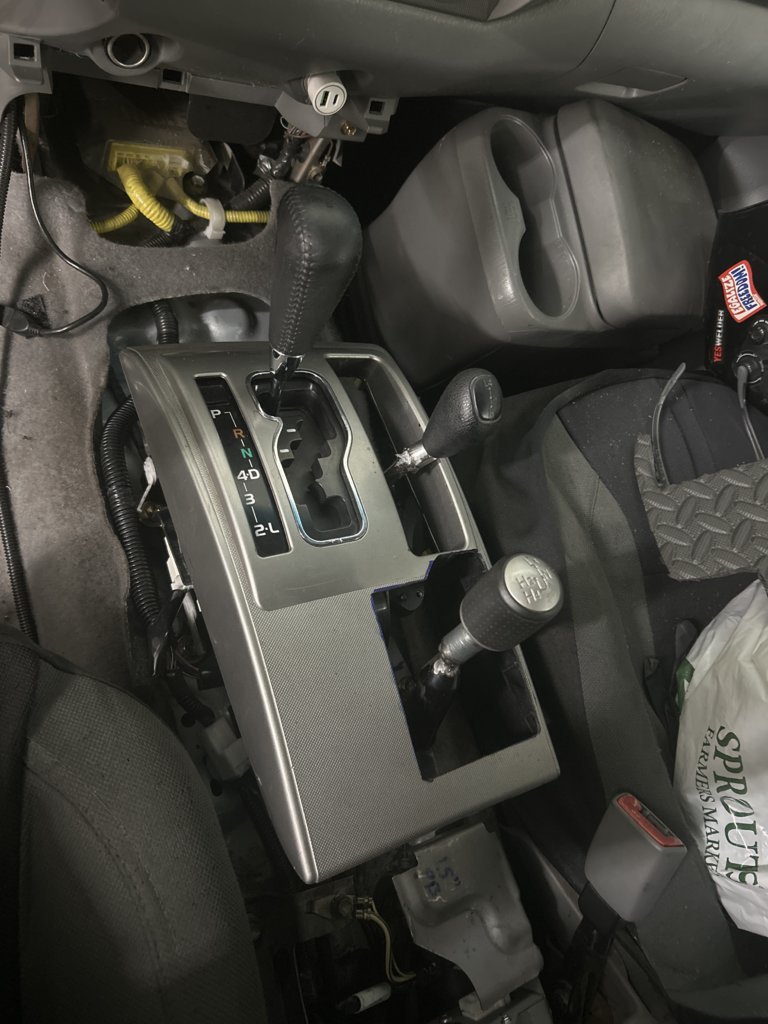

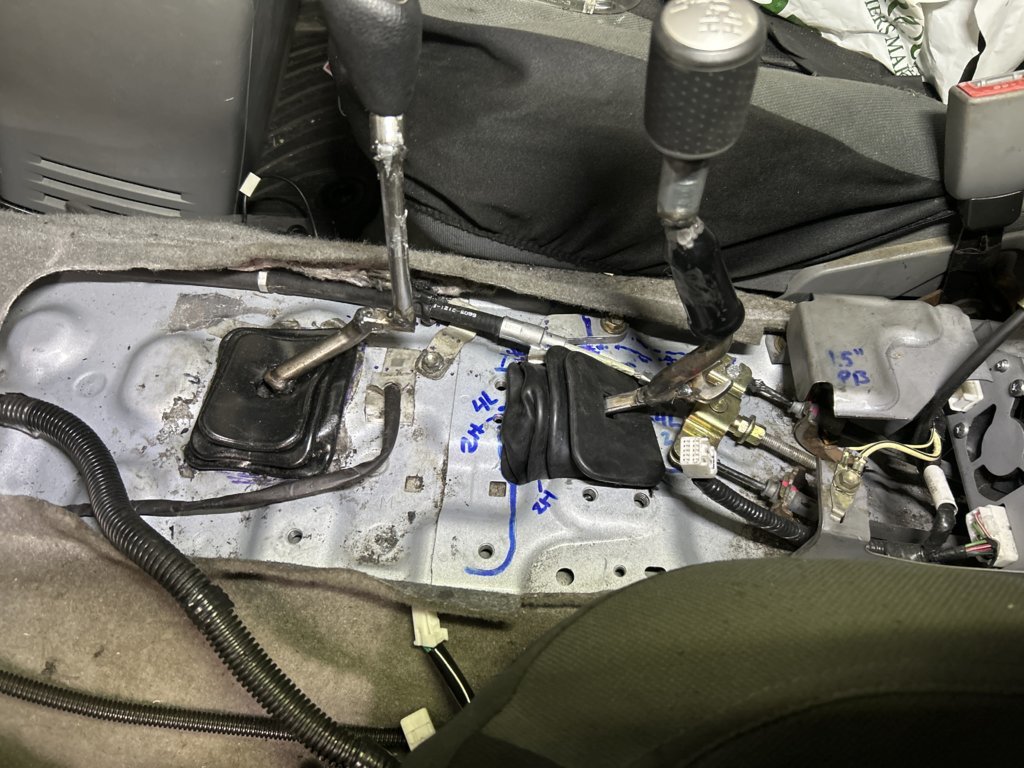

It’s already in place. Dropped off the shafts for mod and will be picking them up tomorrow morning. NWF shaft leve complete and working on the J pattern one.

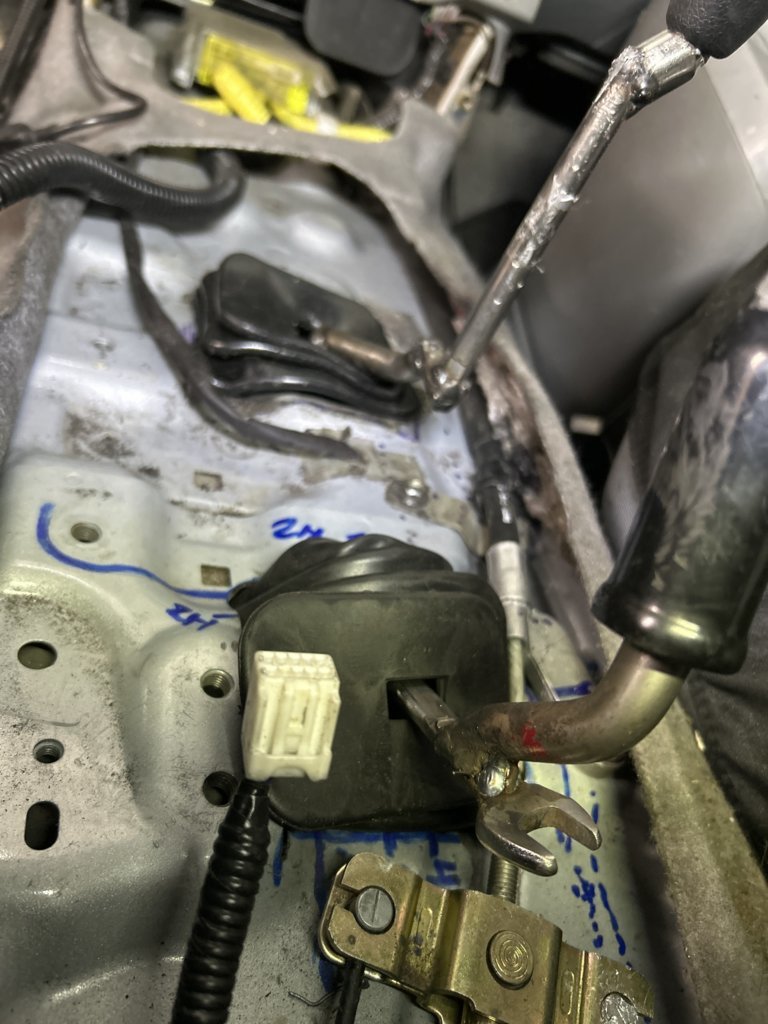

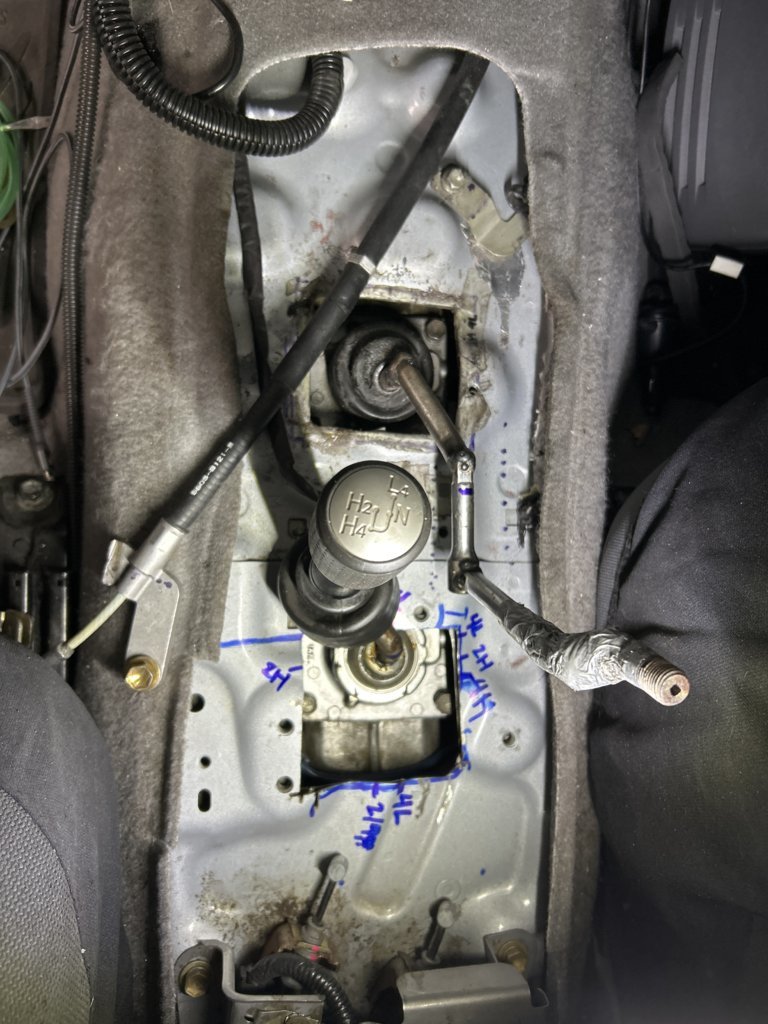

Bout to modify the position of NWF lever and cut and configure the j patter lever.



Love the 3/8 extension in there.



Learned how to make lemonade with apples



Whatcha guys think



what’s next on your list….



Vehicle wise or this NWF EC install?



Will be picking up / installing driveshafts tomorrow morning. Test drive and the if all it’s good(knock on wood) will be sealing the tunnel and then covers for the cosmetic touch.



Shafts installed, test drive went perfect! No vibrations or shit sounds. shout out California Driveline in Rancho Cucamonga! Contact them for any of your driveline mods! Old school Crawler guys!



Damn. Nice! Slowly gaining more and more interest, want to throw a crawl box in my 3rd Gen.



Get rid of all the unnecessary stuff laying around and convert it into a NWF EcoCrawler. Definitely a DIY project or a shop familiar with all this BS

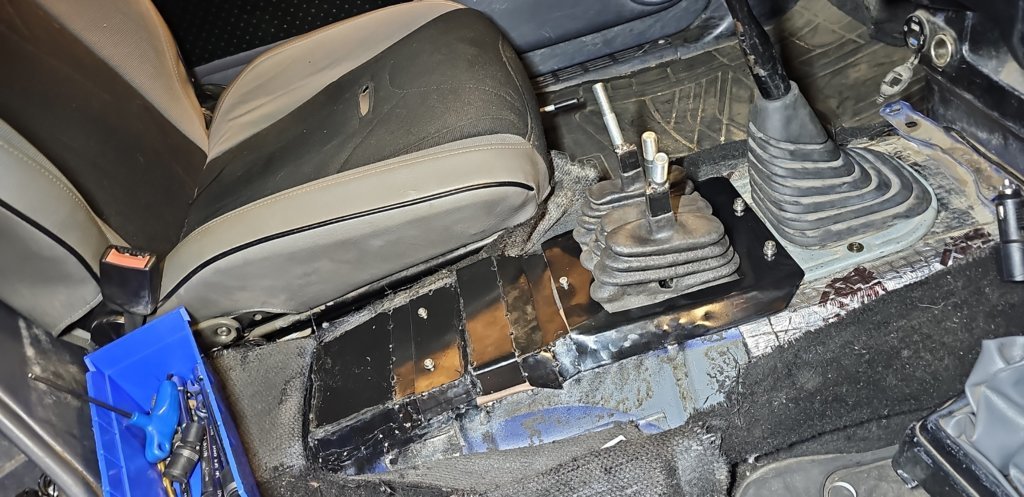

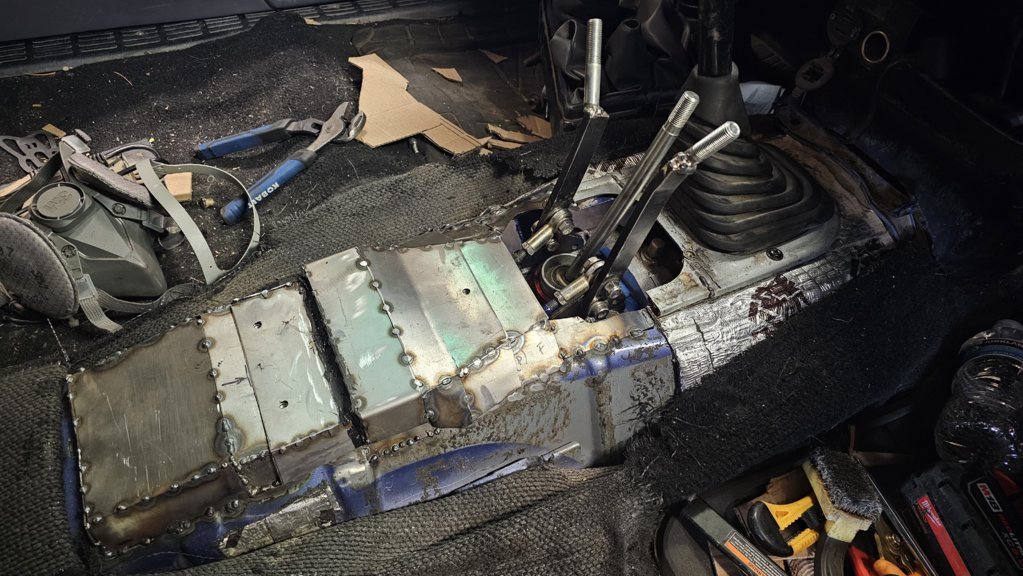

Respect to people who are good at sheet metal fab. This shit sucks

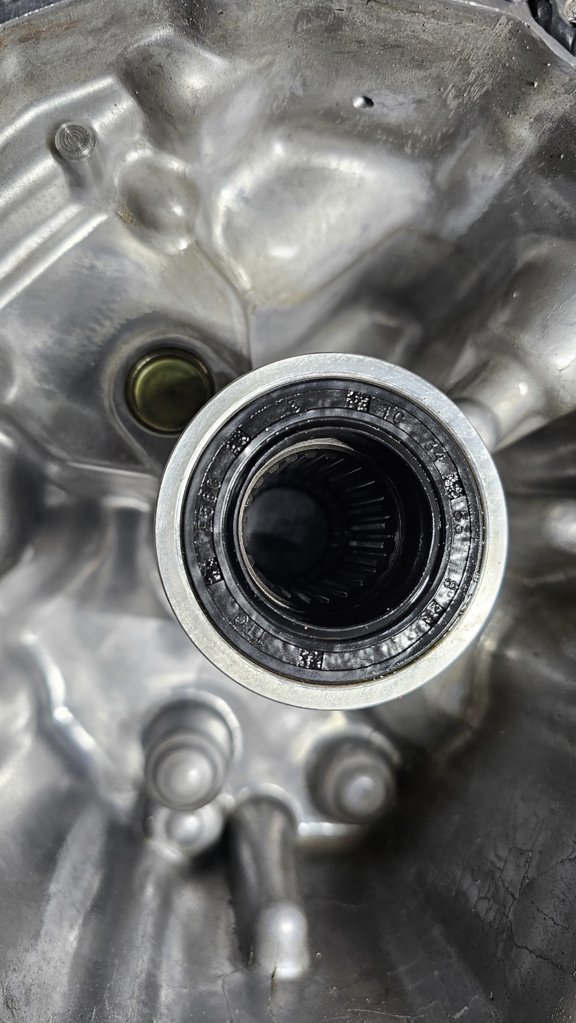

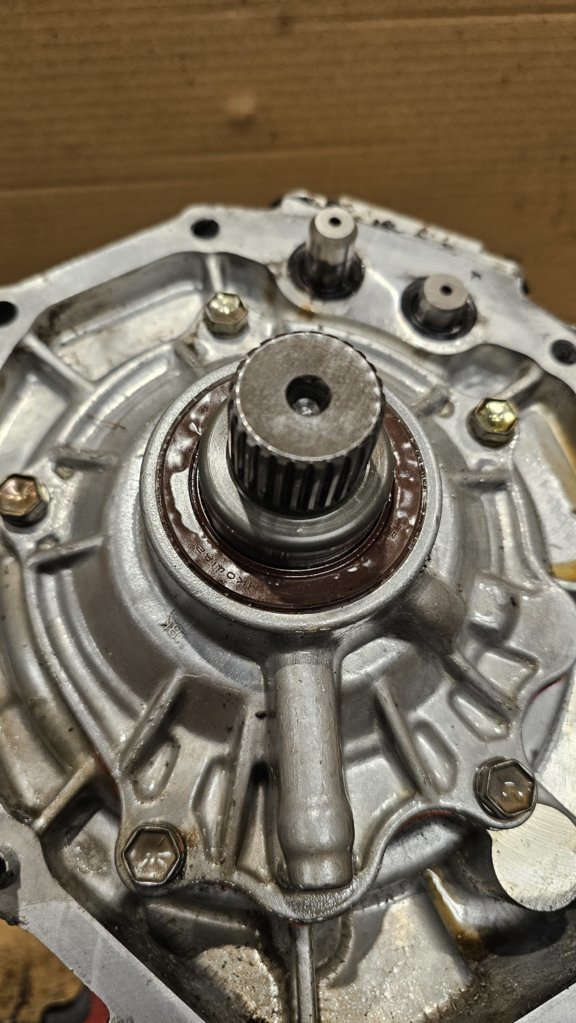

On another note, anyone got any input on these seals? They still seal for now, but I haven't seem one sort of swell like that before.



there’s no part number on the seal?



I have 2 extra holes from my triple case. Didn’t have to modify the tunnel at all beside the hammer love. First gen too



How the fuck were you able to fit 3 cases and not have to do any sheet metal work.
Part of it must be yours being a double cab? but still....

All my tranny, motor, tcase mounts are rubber so they move around more than if I had poly. So I also need a bit more clearance so they don't hit under load. That rear hole on your rear case looks wicked tight up against the arms. Is yours hard mounted?

Just curious on if other have seen seals "swell" like that before.

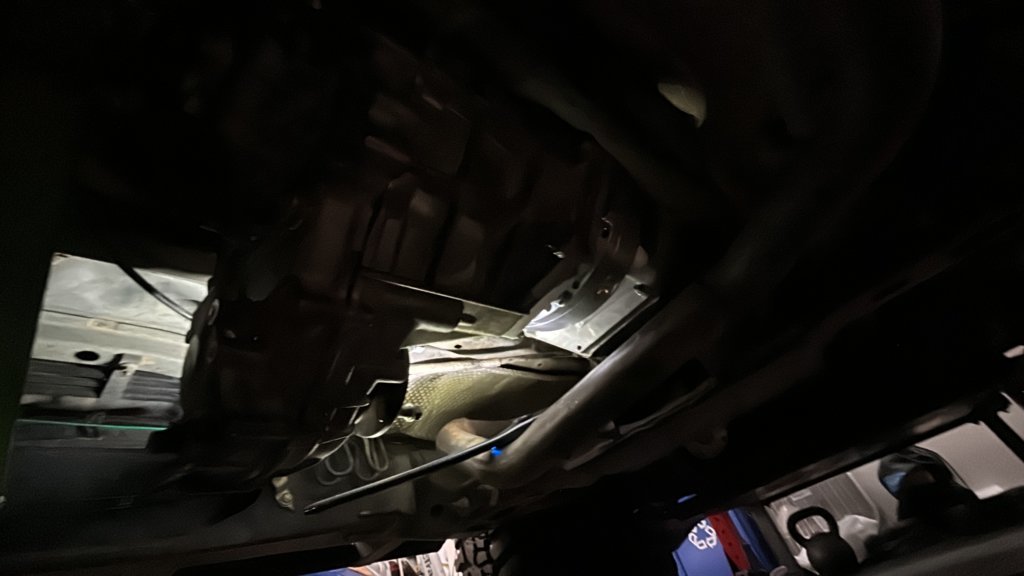

Yea, it’s a DC with a longer tunnel clearance vs xtra and all my mounts are factory too, up until like 4 years ago when I went SA. I got rid of the factory transmission crossmember and relied on the FROR tcase mount for the extended support. I will eventually tie in the front lower frame link mount and rear lower frame link mount and add a skid/support to the mid section of the tcase. There’s minimal clearance but everything clear and nothing hit or bind under load as of now. I had noticed more vibration after removing the factory transmission crossmember but that’s only when the vehicle idles, under load, no new noises.

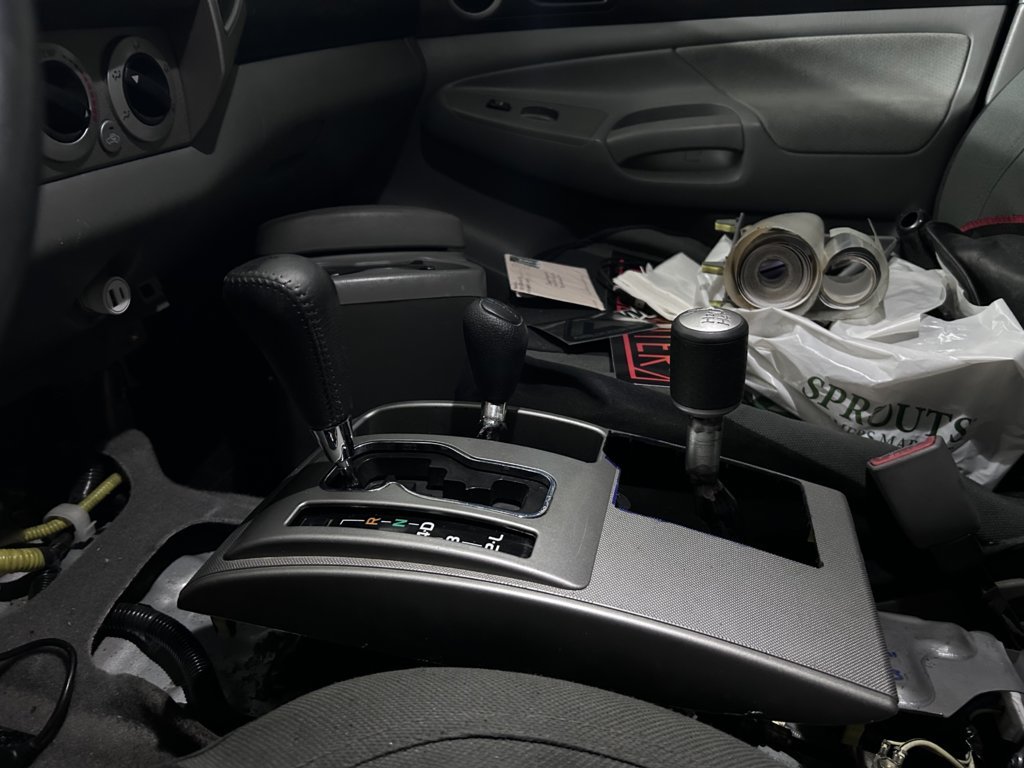

I kept everything inside the cab looking factory and original. Went from ADD H/L push button case to the j-pattern case and the 4wd light on the dash still turns on when 4wd is engaged without the push button like original. I tied the push button to a reverse switch and placed it on the factory 4wd rail to activate the push button. Kept both actuator as stand alone units to keep the 4wd light working because I couldn’t find a solution to bypassed the actuator.

Crawl ratio is wicked stupid: 408:1 not considering the torque converter but love it when the truck drives down a steep AF slab where my butt cheeks are compressed together
