Official Crawlbox BS thread!

Discussion in 'Technical Chat' started by HomerTaco, Mar 16, 2016.

  1. Mar 22, 2020 at 5:35 PM
    #1541
    hoverlover

    hoverlover Warfin three nineteen

    Joined:
    Apr 4, 2016
    Member:
    #183342
    Messages:
    9,368
    Gender:
    Male
    C-137, Earth, USA, Texas
    Vehicle:
    2013 TRD O/R 6spd
    Mostly Zip-Ties

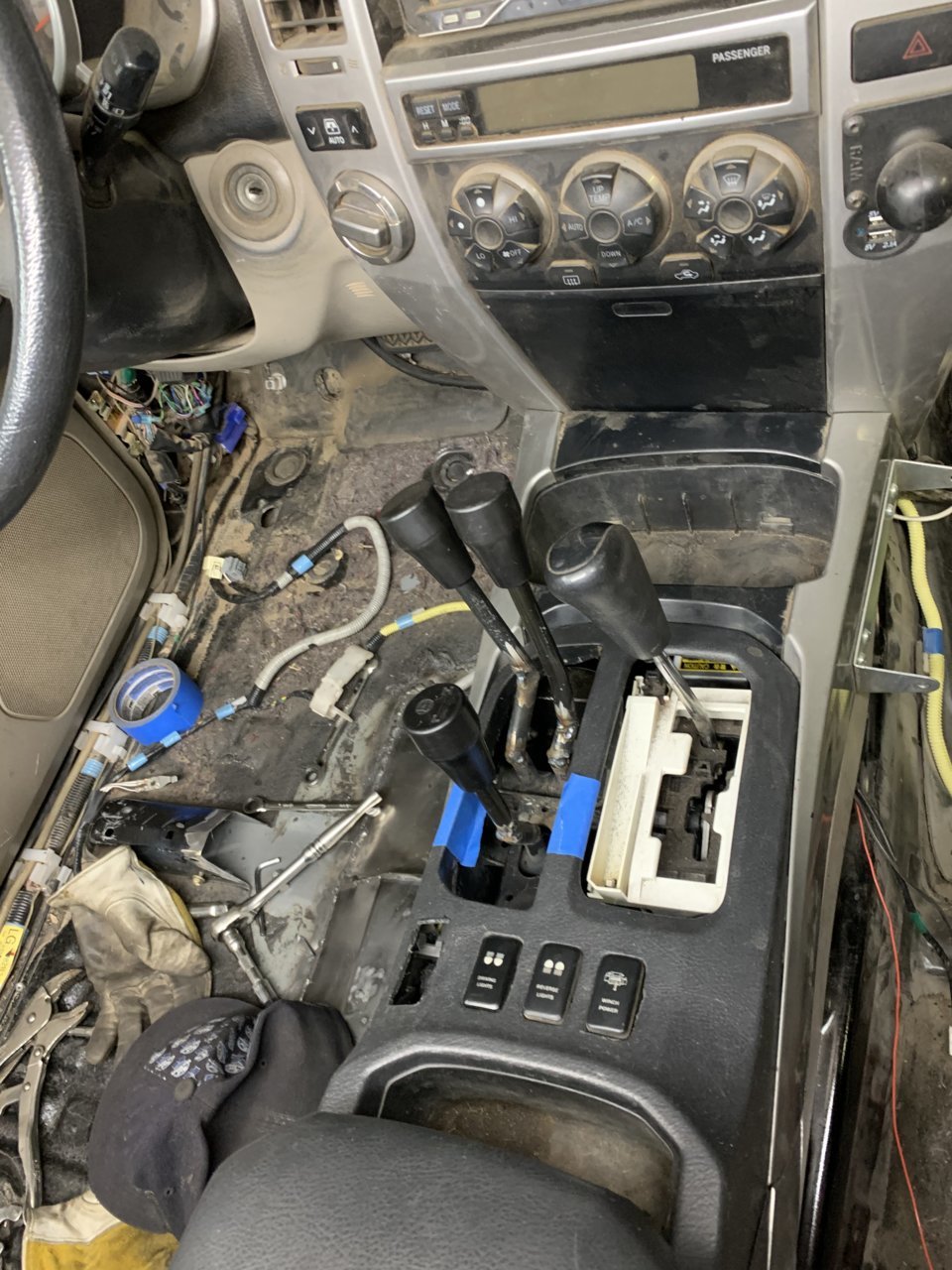

    Test fit was good


    Now let's make it permanent






  2. Mar 22, 2020 at 7:49 PM
    #1542
    hoverlover

    hoverlover Warfin three nineteen

    Joined:
    Apr 4, 2016
    Member:
    #183342
    Messages:
    9,368
    Gender:
    Male
    C-137, Earth, USA, Texas
    Vehicle:
    2013 TRD O/R 6spd
    Mostly Zip-Ties
    Ready to rock


  3. Mar 22, 2020 at 9:34 PM
    #1543
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    9,638
    Gender:
    Male
    First Name:
    Jamie
    Alberta
    Vehicle:
    2003 TRD
  4. Mar 25, 2020 at 10:54 AM
    #1544
    feesquivel

    feesquivel Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9727
    Messages:
    83
    West Texas
    Hey TW members, new to this thread but I keep having issues with my setup. Long story short my output and input splines keep stripping on me, everyone under a different situation (travelling, around my block, hwy and climbing a rock wall). 2007 doublecab tacoma with fj twin stick case built by rocksolidtoys.

    Has anybody ran into this issue as well? Does this look like sufficient spline engagement? At the moment I am thinking its spline engagement or lack of lubrication.

    [​IMG]

    [​IMG]

    [​IMG]

    For more detailed information, I created this post.

    https://www.tacomaworld.com/threads/crawler-box-splines-keep-stripping.638372/

    Marlin's reasoning is the coupler on the transmission side is too long and its preloading the gearbox causing the damage.

    Just got the case rebuilt by marlin and I am about to throw it back on the truck, if anybody could share some insight would be helpful.

    Thanks

    Fed

  5. Mar 25, 2020 at 11:16 AM
    #1545
    Littles

    Littles Stupid is as stupid does

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    1,928
    Gender:
    Male
    First Name:
    Bryan
    Castle rock, co
    Vehicle:
    3 tons of fun
    Are you using a coupler supplied by Marlin on the transmission side?

    I would think that your spline engagement is about the same as everyone else on here running a marlin.

  6. Mar 25, 2020 at 11:28 AM
    #1546
    feesquivel

    feesquivel Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9727
    Messages:
    83
    West Texas
    Yes sir, Marlin provided coupler. This would be the third coupler I am changing.

    First one measured ~3.793", 2nd one measured 3.623" and the one I have installed right now (latest from marlin) is 3.514".

    Took some measurements and if my math is correct I should have 3.521" available in between output/input shafts, so barely under.

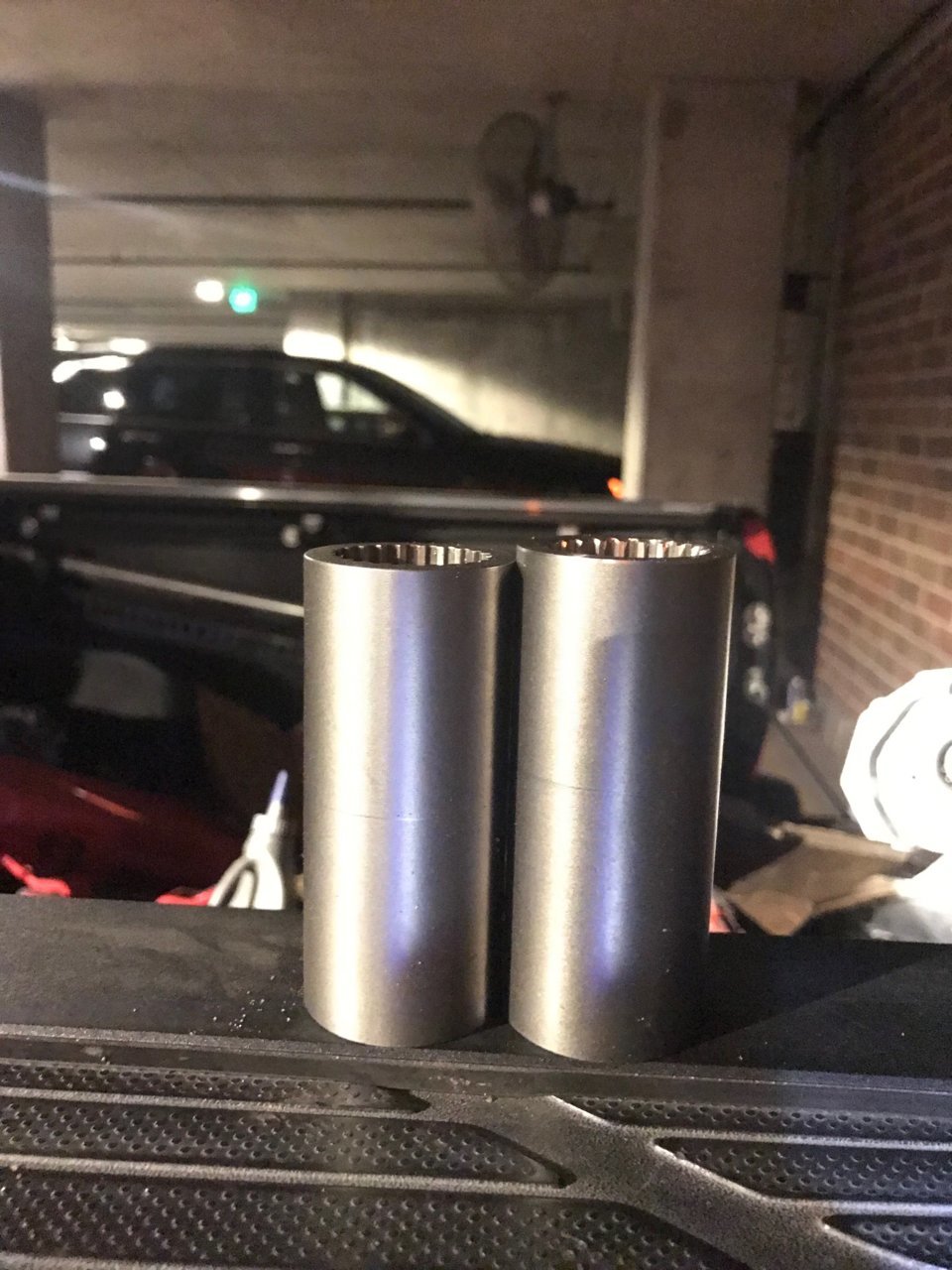

    2nd and 3rd coupler comparison.jpg
    2nd and 3rd transmission side coupler.

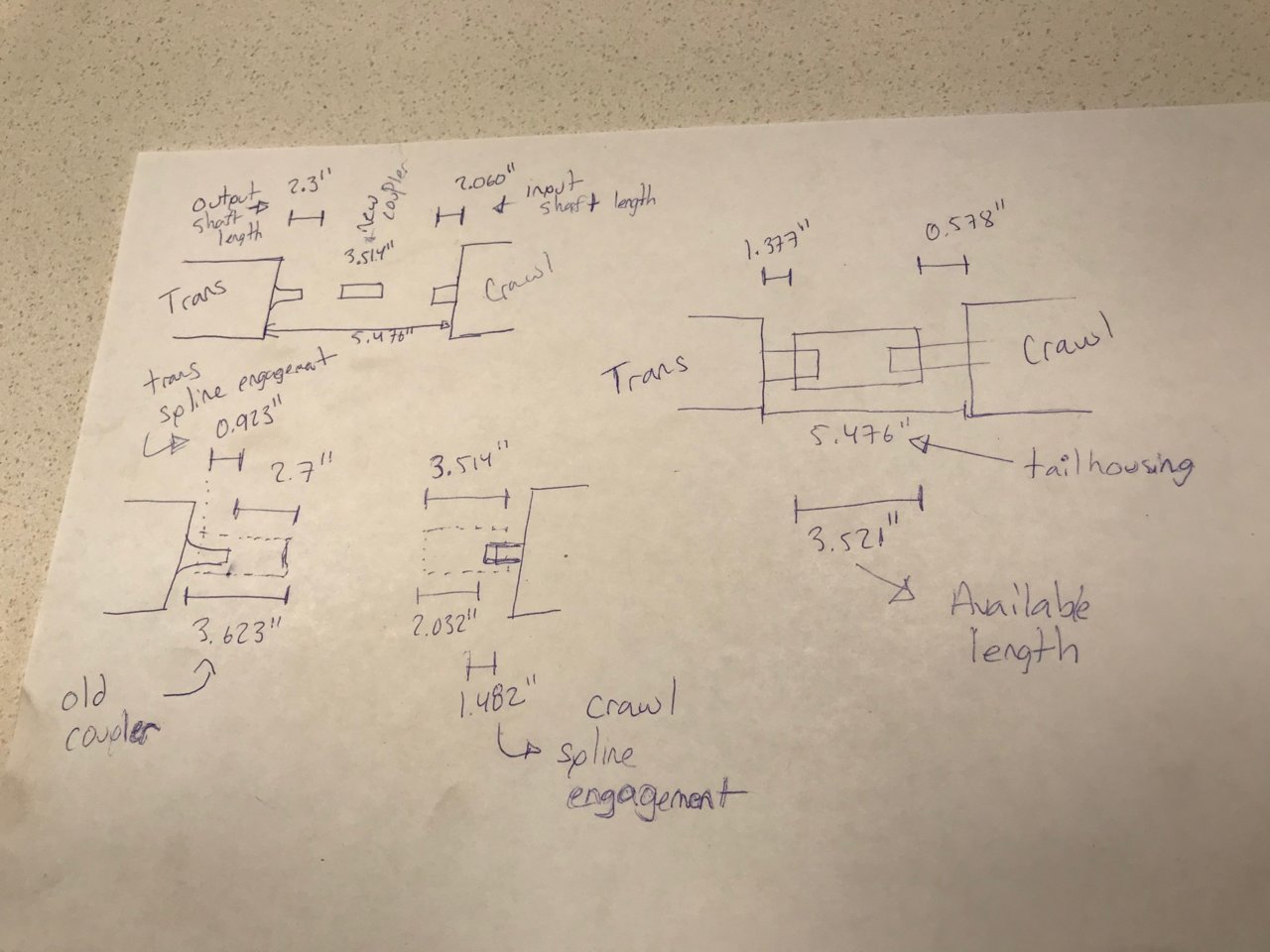

    length calculations.jpg

    Please note, once the coupler was fully in. The final inner measurement is 2.675", marlin measured theirs to be 2.7". So there shouldn't be any preloading anymore.

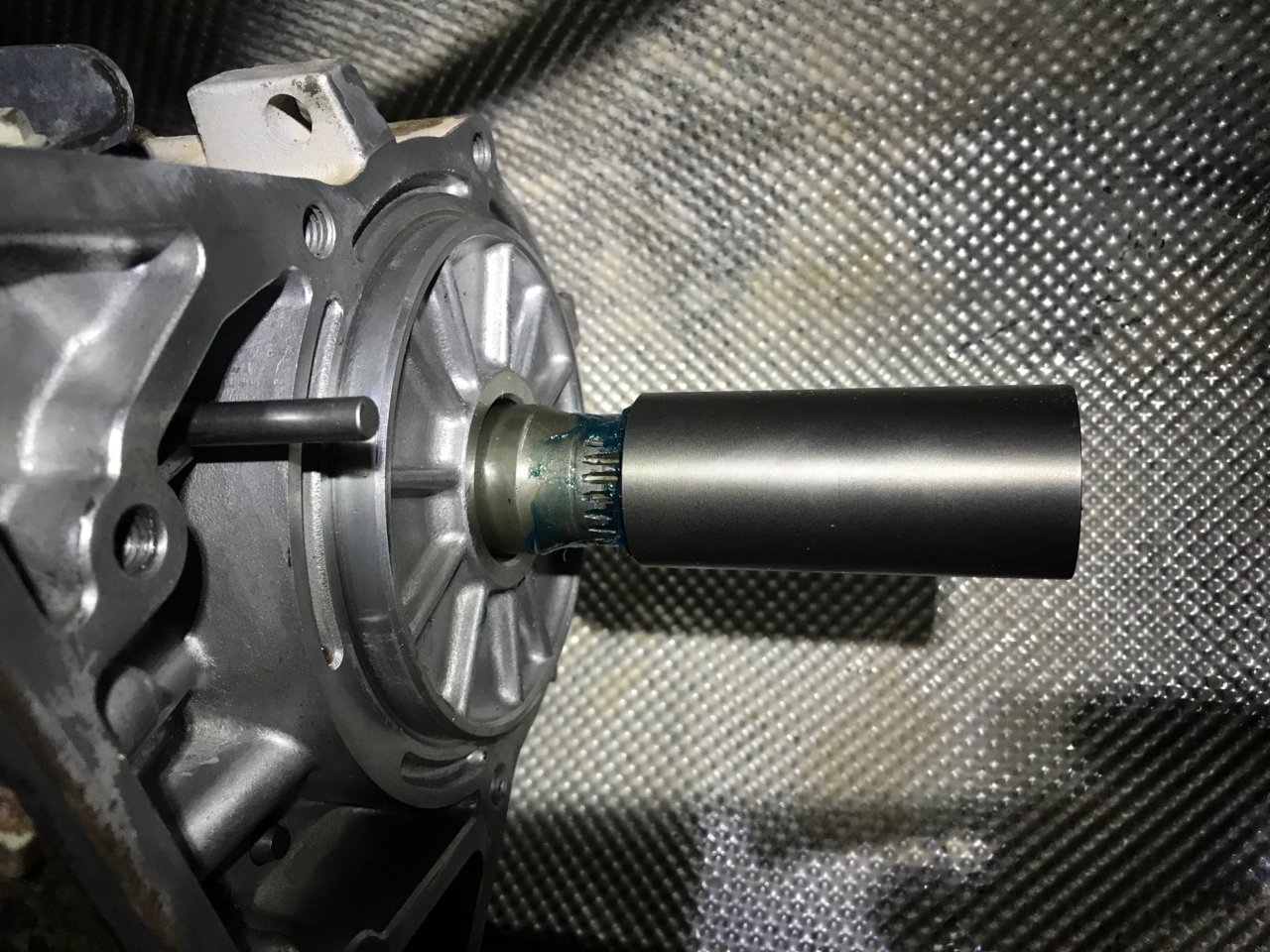

    coupler installed on transmission.jpg

    Still don't know how this is causing my splines to strip :confused:.

  7. Mar 25, 2020 at 11:38 AM
    #1547
    Littles

    Littles Stupid is as stupid does

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    1,928
    Gender:
    Male
    First Name:
    Bryan
    Castle rock, co
    Vehicle:
    3 tons of fun
    I have one sitting at home I'll measure for you tonight. If it's shorter, you're welcome to it. I am skeptical of Marlin's explanation and also curious to know how that would cause stripping on the output side of the crawlbox/input of the tcase. I would think it would create an issue with you even being able to bolt the crawl box to the trans to begin with, and that it would create the higher forces between the trans and the crawlbox, not the crawlbox and the tcase.

    hoverlover and feesquivel like this.
  8. Mar 25, 2020 at 11:40 AM
    #1548
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,895
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff

    the pics of the crawl box looking bone dry would give me alot of cause for concern.

    how much gear oil is being put into the crawl box?

    tetten and hoverlover like this.
  9. Mar 25, 2020 at 12:36 PM
    #1549
    feesquivel

    feesquivel Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9727
    Messages:
    83
    West Texas
    I wouldn't know a specific amount, I fill it up till it start dripping out of the fill hole. Then drive it around and repeat. As instructed by marlin.

    Once I fill it up this time will take note of how much it took. Also I have been using half a qt of lucas heavy duty oil stabilizer, recommended by wyatt.

  10. Mar 25, 2020 at 1:24 PM
    #1550
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    7,895
    Gender:
    Male
    First Name:
    Ryan
    Lives: Yelm WA/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    pretty sure i use 1.5-2 qts. but yeah, how u explained it is how i normally add fluid.

  11. Mar 25, 2020 at 9:28 PM
    #1551
    Littles

    Littles Stupid is as stupid does

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    1,928
    Gender:
    Male
    First Name:
    Bryan
    Castle rock, co
    Vehicle:
    3 tons of fun
    Mine measures 3.77in. They are all over the map with these things.

  12. Mar 25, 2020 at 10:26 PM
    #1552
    feesquivel

    feesquivel Well-Known Member

    Joined:
    Oct 5, 2008
    Member:
    #9727
    Messages:
    83
    West Texas
    I guess is kind of close to the first one, every coupler I have received after the first one has been cut down to prevent “preloading”.

    Don’t know why my transmission is different from any other tacoma’s transmission that will cause preloading.

  13. Mar 26, 2020 at 2:44 AM
    #1553
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Sorry to hear that. :rimshot:

    G.T. and hoverlover like this.
  14. Mar 26, 2020 at 6:35 AM
    #1554
    Littles

    Littles Stupid is as stupid does

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    1,928
    Gender:
    Male
    First Name:
    Bryan
    Castle rock, co
    Vehicle:
    3 tons of fun
    Savage.

    hoverlover likes this.
  15. Mar 26, 2020 at 6:56 AM
    #1555
    Whitebutler

    Whitebutler No need to compensate!

    Joined:
    Jun 3, 2017
    Member:
    #220636
    Messages:
    4,147
    Gender:
    Male
    First Name:
    John
    Relative to what I feel like at the time.
    Vehicle:
    06 black sand Perl access cab. 99 T4R
    33s and stryker440 10 meter conversion to 11 radio
    So I do Hydraulic motors and pumps using jack shafts or splines couplers all the time. Seems to me the coupler should have a bit of slack when everything is bolted up tight. Maybe a few thousandths or so. I also have a tendency to use anti seize inside the coupler incase any non lubrication issues arise. just my .02

    G.T. likes this.
  16. Mar 26, 2020 at 8:53 AM
    #1556
    HomerTaco

    HomerTaco [OP] Official TW Grill Guy Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    42,570
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Happy Birthday! :D

    Littles likes this.
  17. Mar 26, 2020 at 1:39 PM
    #1557
    Littles

    Littles Stupid is as stupid does

    Joined:
    May 14, 2014
    Member:
    #129837
    Messages:
    1,928
    Gender:
    Male
    First Name:
    Bryan
    Castle rock, co
    Vehicle:
    3 tons of fun
    Thanks buddy :playball:


  18. Mar 26, 2020 at 1:44 PM
    #1558
    hoverlover

    hoverlover Warfin three nineteen

    Joined:
    Apr 4, 2016
    Member:
    #183342
    Messages:
    9,368
    Gender:
    Male
    C-137, Earth, USA, Texas
    Vehicle:
    2013 TRD O/R 6spd
    Mostly Zip-Ties
    Happy birthday, @Littles
    Drinking one for ya now :cheers:


    TacoFMS, HomerTaco [OP] and Littles like this.
  19. Mar 26, 2020 at 8:01 PM
    #1559
    6 gearT444E

    6 gearT444E CEO & CFO @BPF

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    1,171
    Deep South
    Herculiner Hootus
    damn we gotta meet, quarantine and chill?

  20. Mar 26, 2020 at 8:05 PM
    #1560
    hoverlover

    hoverlover Warfin three nineteen

    Joined:
    Apr 4, 2016
    Member:
    #183342
    Messages:
    9,368
    Gender:
    Male
    C-137, Earth, USA, Texas
    Vehicle:
    2013 TRD O/R 6spd
    Mostly Zip-Ties
    :rofl:
