Official Ride Height Thread

Discussion in 'Suspension' started by Sandman614, Feb 3, 2011.

  1. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I know a lot of members and newly inquisitive members want to know what Stock ride height is of each truck, ride heights with certain combinations of lifts and accessories so this will be the place to post your info. Let's get this rolling so people can use the search tool (a lot of us are so fond of) and find what they are looking for.

    Just post up your,

    • Year:
    • SR5/TRD(Off-Road/Sport):
    • Stock (Yes/No):
    • Lift type:
    • Wheels:
    • Tires:
    • Front Springs+adjustment:
    • Rear Springs+adjustment:
    • Front Shocks:
    • Rear Shocks:
    • Front Driver height*:
    • Front passenger height*:
    • Rear Driver height*:
    • Rear Passenger height*:
    • Off-Road accessories (Bumpers/Winch/Armor/etc):

    * As measured from Fender to Center of wheel hub, to be unaffected by tire size

  2. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Year: 2006
    SR5/TRD(Off-Road/Sport): SR5 shortbed
    Stock (Yes/No): Yes
    Lift type: n/a
    Front Springs+adjustment: n/a
    Rear Springs+adjustment: Non-TSB
    Front Shocks: n/a
    Rear Shocks: n/a
    Front Driver height: 19" 3/4
    Front passenger height: 20" 3/8
    Rear Driver height: 21" 3/4
    Rear Passenger height: 21" 3/8
    Off-Road accessories (Bumpers/Winch/Armor/etc): ARB deluxe w/o winch

    * Height from center of hub to fender

  3. Gabex35

    Gabex35 Shinty Killer

    Joined:
    Jul 24, 2010
    Member:
    #40673
    Messages:
    1,175
    Gender:
    Male
    First Name:
    Gabe
    San Diego
    Vehicle:
    2014 4 Runner Trail Premium
    King OEM Performance Series with compression adjusters, Custom rear coils drom CSS, 22% Tint, Method Race NV's 17x8.5, 285/70-17 MTR's, AllPro welded Sliders, Cobra CB, Gobi stealth roof rack, Rigid 40" e series & duallys out back
    Year:2010
    SR5/TRD(Off-Road/Sport):TRD OFFROAD 4X4 Access Cab
    Stock (Yes/No):No
    Lift type: 3"
    Front Springs+adjustment: OME 885 with 1/2" spacer
    Rear Springs+adjustment: TSB and 1.5" Toytec AAL
    Front Shocks:Bilstein 5100's @ zero
    Rear Shocks:Bilstein 5100's
    Front Driver height:37.50"
    Front passenger height:38.25"
    Rear Driver height:39.50"
    Rear PAssenger height:39.25
    Off-Road accessories (Bumpers/Winch/Armor/etc):None

    *Height from ground to fender with stock 265/70-17 Rugged Trails on OR wheels

  4. Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    832
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    Year:2006
    SR5/TRD(Off-Road/Sport):TRD Sport, double cab short box 4X4
    Stock (Yes/No):No
    Lift type: 5100's/ Eibach springs, Toytec 2" AAL
    Front Springs+adjustment: Eibach springs, Toytec taco lean spacer
    Rear Springs+adjustment: 2" non TSB Toytec AAL
    Front Shocks:Bilstein 5100's @ 0.85
    Rear Shocks:Bilstein 5100's
    Front Driver height:37.50"
    Front passenger height:37.50"
    Rear Driver height:39"
    Rear PAssenger height:39"
    Off-Road accessories (Bumpers/Winch/Armor/etc):None

    *Height from ground to fender with 265/70-17 Bridgestone REVO tires.

  5. kite

    kite Well-Known Member

    Joined:
    Oct 12, 2010
    Member:
    #44587
    Messages:
    264
    Gender:
    Male
    Squamish, BC
    Vehicle:
    Red Truck
    It would be more useful to measure from hub center to fender as that measurement is unaffected by tire size. Or, at least include tire size with the ground to fender measurement.

  6. Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,094
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    X10

  7. BryWi

    BryWi Psalm 109:8

    Joined:
    Dec 5, 2010
    Member:
    #47177
    Messages:
    1,777
    Gender:
    Male
    Earth
    Vehicle:
    2011 TRD off-road DC SB w/JBL
    5100s, black valance
    • Year: 2011
    • SR5/TRD(Off-Road/Sport): off-road short bed with stock 16" wheels 265/70/16 BFGs
    • Stock Yes/No: No

    • Lift type: 5100s/TSB
    • Front Springs+adjustment: Stock
    • Rear Springs+adjustment: TSB
    • Front Shocks: 5100s (1.75)
    • Rear Shocks: 5100s
    • Front Driver height*: 36" (center hub: 21 3/4")
    • Front passenger height*: 36 1/4" (center hub: 22")
    • Rear Driver height*: 36 3/4" (center hub: 22 1/4")
    • Rear Passenger height*: 37" (center hub: 22 1/2")
    • Off-Road accessories (Bumpers/Winch/Armor/etc):



    Sandman, not messing with your thread, but as I read some members mentioned center hub so I included that too.

  8. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Good thinking, Kudos! I was just thinking something uniform.

    Also a picture is a good addition, thanks BryWi.

  9. kramer2k

    kramer2k Well-Known Member

    Joined:
    Jun 3, 2010
    Member:
    #38292
    Messages:
    293
    Gender:
    Male
    Jacksonville, FL
    Vehicle:
    08 DC PreRunner TRD OR
    • Year: 2008
    • SR5/TRD(Off-Road/Sport): TRD OR w/ stock 16" wheels 265/70/16 Nitto Terra Grapplers
    • Stock Yes/No: No

    • Lift type: Front 5100s / Stock rear shocks w/ TSB
    • Front Springs+adjustment: Stock
    • Rear Springs+adjustment: TSB
    • Front Shocks: 5100s (1.75)
    • Rear Shocks: Stock
    • Front Driver height: 22"
    • Front passenger height: 22"
    • Rear Driver height: 22 1/2"
    • Rear Passenger height: 22 1/2"
    • Off-Road accessories (Bumpers/Winch/Armor/etc): None
    Note: My measurements are from fender to center hub.

  10. Skunkman

    Skunkman Well-Known Member

    Joined:
    Sep 29, 2010
    Member:
    #44012
    Messages:
    533
    Gender:
    Male
    Syracuse - Tug Hill
    Vehicle:
    2007 Tacoma Access Cab ,
    Bilstein 5100's with OME 885 X,top plate spacers,taco lean spacer,All Pro Expo's in the rear,installed fog lights,installed intermitent wipers,IPF off road lights,ARE topper with 5 ft. Hi-Lift Jack,first aid kit, fire extinguisher installed inside,Sway a Way front sway bar,Westin Brush Guard,air box mod,Mag Lite Mod,Relentless CB ant. Mount, DX 959 Galaxy CB,Go Rhino nerf bars,Duratrac 235-85-16's on TRD OR wheels,
    • Year: 2007
    • SR5/TRD(Off-Road/Sport):Base Access Cab
    • Stock (Yes/No): NO
    • Lift type:5100's and ToyTec AAL 2" Wheels: TRD OR
    • Tires: 265-75-16 Front Springs+adjustment: TRD OR Coils
    • Rear Springs+adjustment: AAL 2"
    • Front Shocks: 5100' on 2.5
    • Rear Shocks: 5100's
    • Front Driver height*: 36.5
    • Front passenger height*: 36.5
    • Rear Driver height*: 38
    • Rear Passenger height*: 38
    • Off-Road accessories (Bumpers/Winch/Armor/etc): Westin Brush Guard

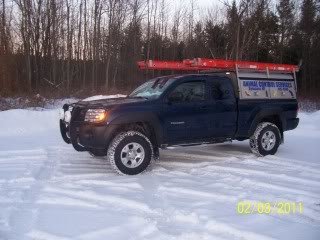

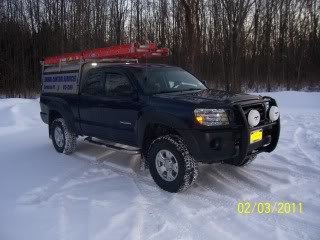

    I have a real problem with my rear AAL. I started with 34.5 inches from the ground to the fender well. After the AAL I now have 38 inches on both sides,a gain of 3.5 inches. I measured again today and it is not settling at all,this is with my Topper, all ladders and equipment, PLUS 200 pounds of sand over the rear axle. Without the sand it rides like a darn buckboard, any suggestions as to what happened that gave us the extra lift ? Thanks.
    [​IMG]
    [​IMG]

  11. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Good morning, I just worked all freaking night, and ended it with a bloody nose.

    Bump, I'm going to re-measure

  12. Matic

    Matic Locked and Lifted "02" DC TRD.

    Joined:
    Sep 8, 2009
    Member:
    #22436
    Messages:
    9,094
    Gender:
    Male
    First Name:
    Rich
    Greenville,sc
    Vehicle:
    2002 TRD prerunner,SR5, doublecab
    OME 881 coils with OME nitrochargers shocks up front. OME aal with OME nitrochargers out back. Warn 8000 winch with 80ft custom braided synth line. Custom 60ft synth extension. All pro tube bumper, Hi-lift jack, Safari Snorkel, Wilco tiregate.
    So is it hub center to fender for official purposes?

  13. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yessir, Hub Center to Bottom of Fender

  14. BryWi

    BryWi Psalm 109:8

    Joined:
    Dec 5, 2010
    Member:
    #47177
    Messages:
    1,777
    Gender:
    Male
    Earth
    Vehicle:
    2011 TRD off-road DC SB w/JBL
    5100s, black valance
    WTF?

    Am I the only "lucky" one with the good 'ole Taco lean? :notsure:

  15. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Im guessing everyone else is using a spacer to correct theirs?

  16. kramer2k

    kramer2k Well-Known Member

    Joined:
    Jun 3, 2010
    Member:
    #38292
    Messages:
    293
    Gender:
    Male
    Jacksonville, FL
    Vehicle:
    08 DC PreRunner TRD OR
    Mine has been corrected with the ToyTec 1/4" top plate spacer.

  17. Sandman614

    Sandman614 [OP] LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    7,881
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    We are able to run free again!
    Bump.

  18. BryWi

    BryWi Psalm 109:8

    Joined:
    Dec 5, 2010
    Member:
    #47177
    Messages:
    1,777
    Gender:
    Male
    Earth
    Vehicle:
    2011 TRD off-road DC SB w/JBL
    5100s, black valance
    The Toytec spacer is only applicable if you have their lift, right?

    I have read that some members have handmade spacers to correct their problem.

    If there is a manufactured fix for this with my set up (5100s only) please let me know...

  19. kramer2k

    kramer2k Well-Known Member

    Joined:
    Jun 3, 2010
    Member:
    #38292
    Messages:
    293
    Gender:
    Male
    Jacksonville, FL
    Vehicle:
    08 DC PreRunner TRD OR
    No, you don't have to have a ToyTec lift to use the spacer. I only have 5100s in the front. I haven't heard of anything handmade. If you already have the 5100s installed, all you have to do is drop the driver side coilover down just enough to drop this spacer on top of the coilover assembly. Viola!

  20. chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,571
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, lots of buttons, and yellow flashing lights on the dash.
    I made a handfull of spacers to counter the lean on some trucks (mine included). They arent hard to make if you have the tools.
