Oil Pan Heater Mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by sweater914, Sep 18, 2009.

  1. Sep 18, 2009 at 2:29 PM
    #1
    sweater914

    sweater914 [OP] Well-Known Member

    Joined:
    Jan 15, 2009
    Member:
    #12597
    Messages:
    228
    Gender:
    Male
    North Dakota
    Vehicle:
    '09 I4 5spd Access Cab Timberland Mica SR5
    Hi Fellas,

    This write up is for the install of Wolverine oil pan heater Model 9.1 on the 2.7L 4 banger. For the folks south of the Ohio this mod isn’t necessary. For the folks who live in the Great White North this mod in conjunction with an engine block heater will get your engine up to operating temperature within a block or two at sub zero temperatures.

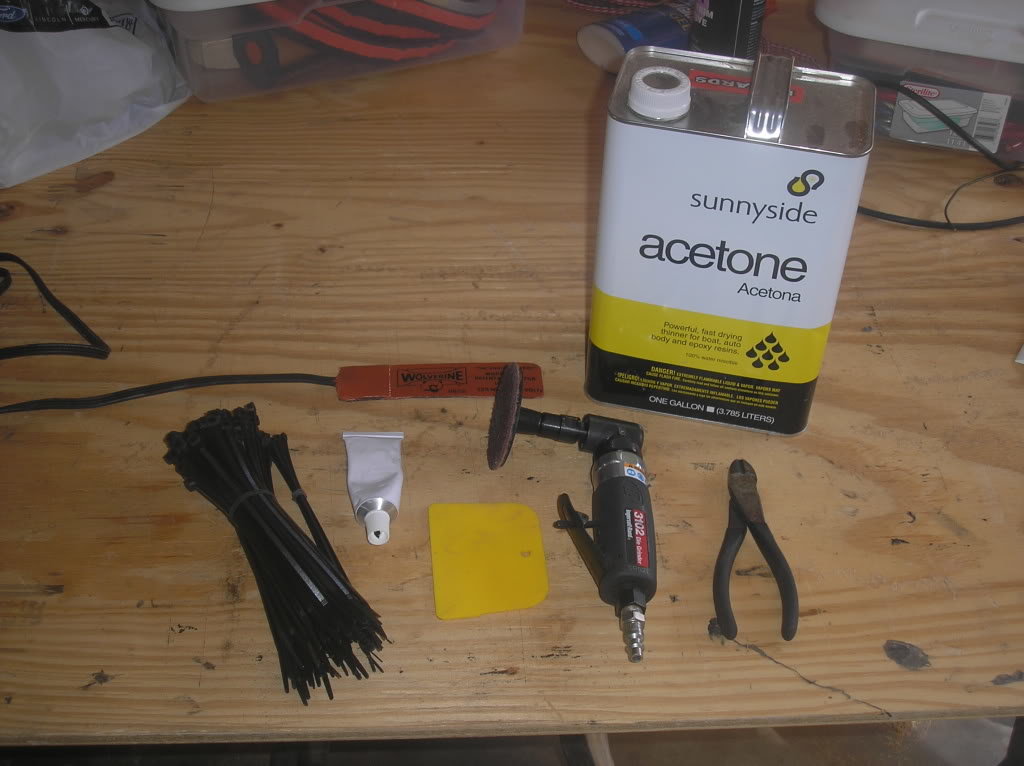

    Some required tools:
    Sand paper, better would be a die grinder or dremel with sanding drum
    Acetone for adhesive prep
    Tie wraps
    Wire cutters for the tie wraps
    3/8” Conduit insulation (not necessary but gives factory appearance)
    Marking tool (Sharpee works)

    Items included in the kit:
    Instructions (well written)
    Heater pad
    Sealant (hi temp RTV)
    Plastic putty knife
    One tie wrap (lame)

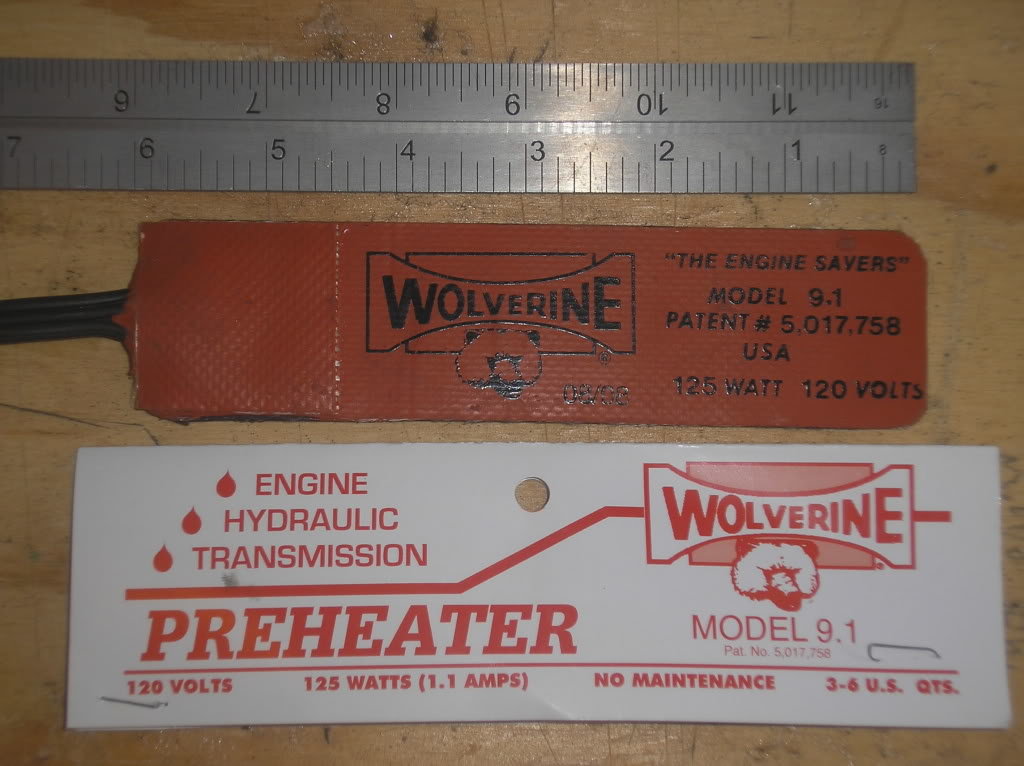

    [​IMG]

    [​IMG]

    After opening the package take your heater pad and find a suitable location on the oil pan, absolutely flat is best. As you can see in the photos the 4 banger oil pan doesn’t have a straight line anywhere. I settled for the rear of the oil pan about mid way up. Before you get started have a general idea where you want the cord to be routed, once the heating element is on the pan it’s not coming off without a putty knife.

    [​IMG]

    Outline the pan with your marking tool(wipe the pan clean beforehand), doesn’t have to be exact. Striping the paint can be a real chore with sand paper, my die grinder was hard to maneuver in the tight space, the dremel worked great. The paint has to be COMPLETELY stripped, the finish is better coarse than fine for the adhesive on the heater pad.

    [​IMG]

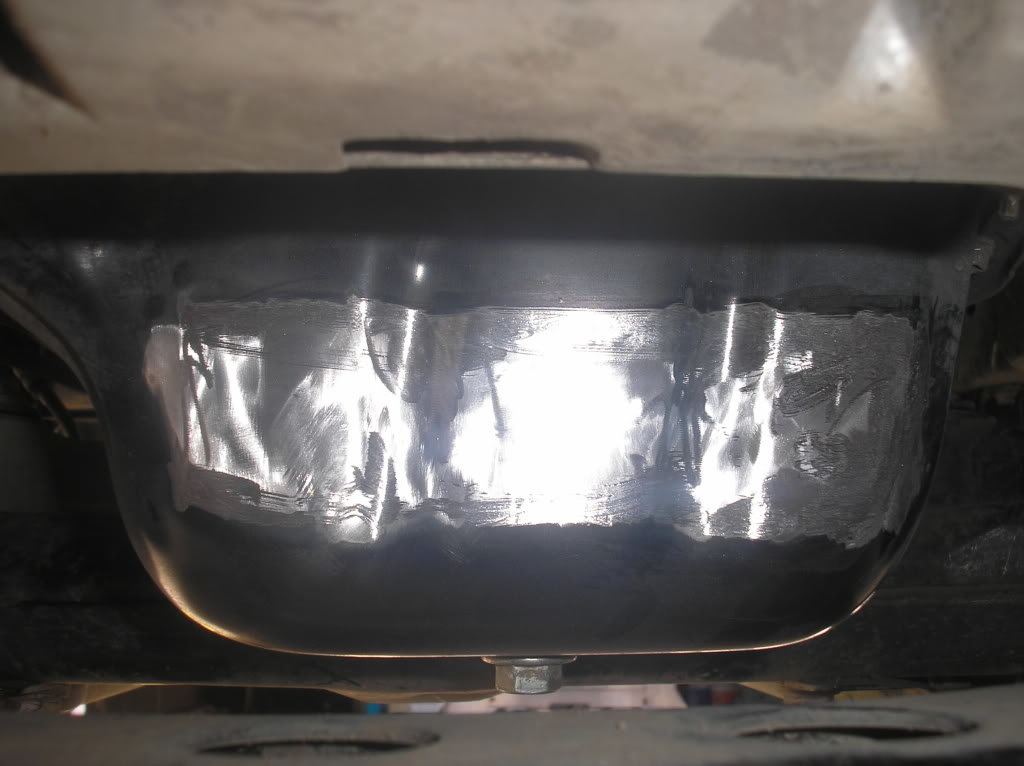

    Once striped clean area with Acetone to remove the paint residue you just stripped and clean off any oily residue.

    When you’re ready to attach the pad, plug in the element for 5-10 seconds to warm the adhesive. Remove the backing, and CAREFULLY press the pad to the pan slowly, paying special attention to the curves of the pan. You don’t want a gap between the curve and flat of the pan. Luckily the creases are shallow enough for adhesion.

    [​IMG]

    Now take the putty knife supplied the kit to press out any air pockets. This particular model pad is small enough that this shouldn’t be a huge concern.

    Plug the pad back in for 10-15 seconds and use the putty knife to press on the pad.

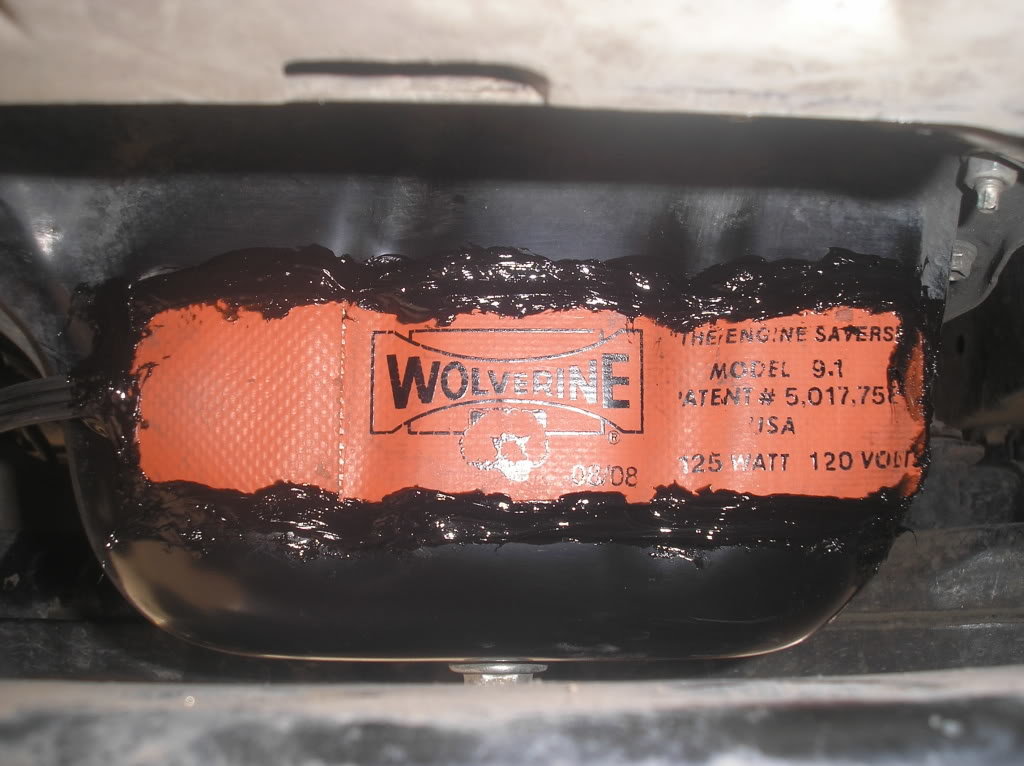

    It’s time for the sealant, put a good bead around the entire pad, especially under the power wires where they come out of the pad. Cover any exposed metal from your stripping. This should dry to the touch in about 30 minutes.

    [​IMG]

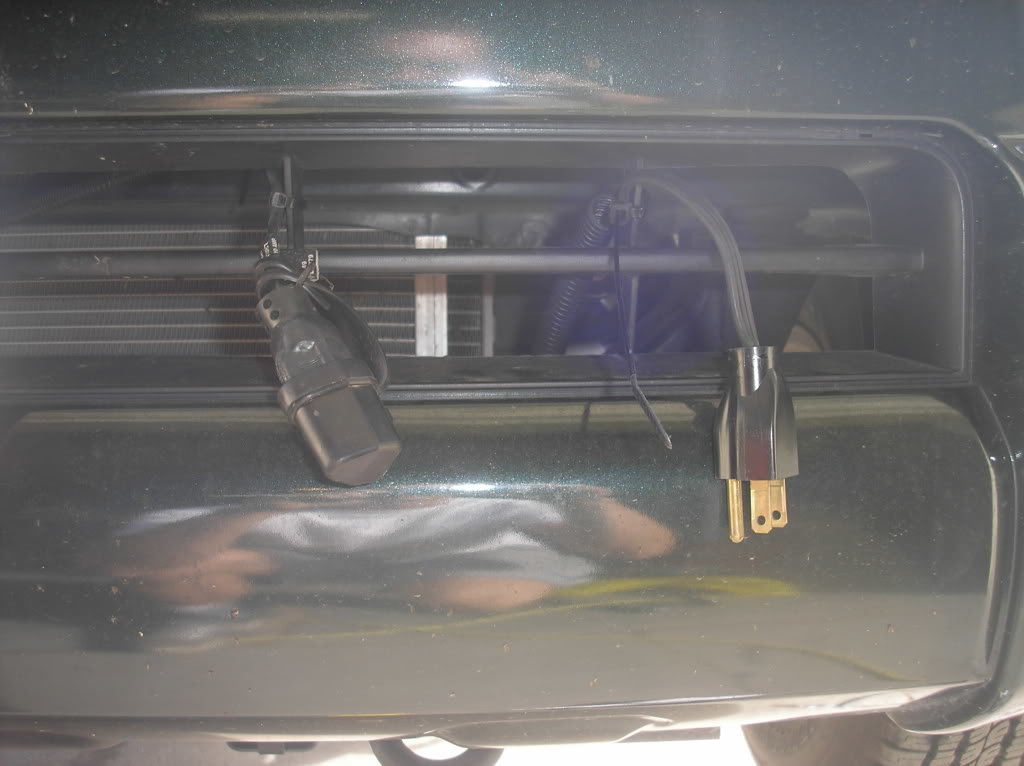

    All that remains is securing the power wire/plug. Completely up to the installer. I used the metal brace which comes off the front crossmember. I ran the line above the crossmember just below the steering rack. I also covered the cord in plastic conduit insulation which you can pick up at your local auto parts store. Tie wraps were used to secure the cord to the frame/body.

    [​IMG]

    [​IMG]

    I screwed up a little with mine, the lower right corner isn’t attached to the oil pan because I needed to good about another ¼” to the left. I put a bead of sealant behind to pad.

    If I had to do it over again, due the shape of the oil pan I would purchase Model 4.5. It’s shorter doesn’t provide quite the output but even warm oil is better than -30F oil.

    Enjoy
