Oil Pressure Gauge, Sending Unit, etc.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Drunknsloth, Jul 2, 2012.

  1. Jul 2, 2012 at 1:10 AM
    #1
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
  2. Jul 2, 2012 at 1:26 PM
    #2
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    I just installed an oil temp and oil pressure gauge in my truck. I picked up an adapter plate like what you posted for the sending units and I had two gauges laying around. 3/4" UNF 16 is the adapter type that you want to use.

  3. Jul 2, 2012 at 11:17 PM
    #3
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Was there any problem screwing in the adapter plate with the shield around the oil filter? And is the sending unit in the way of anything? Was it pretty easy to run the cables? And where did you mount the gauges?

    Sorry for all the questions. Haha :eek:

  4. Jul 3, 2012 at 11:33 PM
    #4
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
  5. Jul 5, 2012 at 11:49 AM
    #5
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Any ideas?

  6. Jul 5, 2012 at 1:46 PM
    #6
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    Sorry for the long response time. The adapter plate rotates freely of the bolt until you tighten it fully. I put the two sensors in the plate and then positioned and bolted the plate down. No problems clearing the shield around the filter.

    I picked up the a-pillar pod from Lotek and installed my gauges there. It took a little bit of trimming to get the panel to fit correctly but it looks great.

    Cabling was where it got fun. The best way to run the cables is through one of the grommets going through the firewall. I tried running the cables through one of the holes near an existing wiring harness but after many attempts I just stabbed a screwdriver through one of the grommets and ran the wiring through there and up through the dash. You will need a couple of add-a-circuits for the gauges as they require a constant power and switched power source as well as a ground and an optional dimming connection.

  7. Jul 6, 2012 at 12:37 AM
    #7
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Awesome this helps a lot. I'll be doing this when I have the money

  8. Jul 10, 2012 at 6:49 PM
    #8
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Any chance you would be able to get me some pictures of your oil filter location with this installed?

  9. Jul 11, 2012 at 5:42 AM
    #9
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    I'll put some pictures up this afternoon when I finish my shift

  10. Jul 11, 2012 at 2:16 PM
    #10
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Awesome. Thanks man!

  11. Jul 12, 2012 at 12:46 PM
    #11
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers

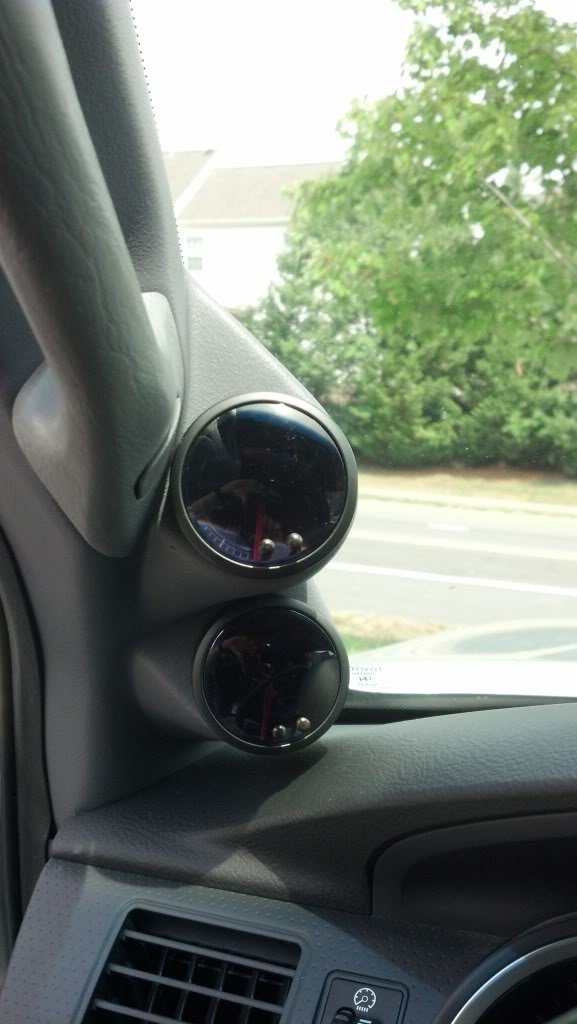

    Here are the gauges installed

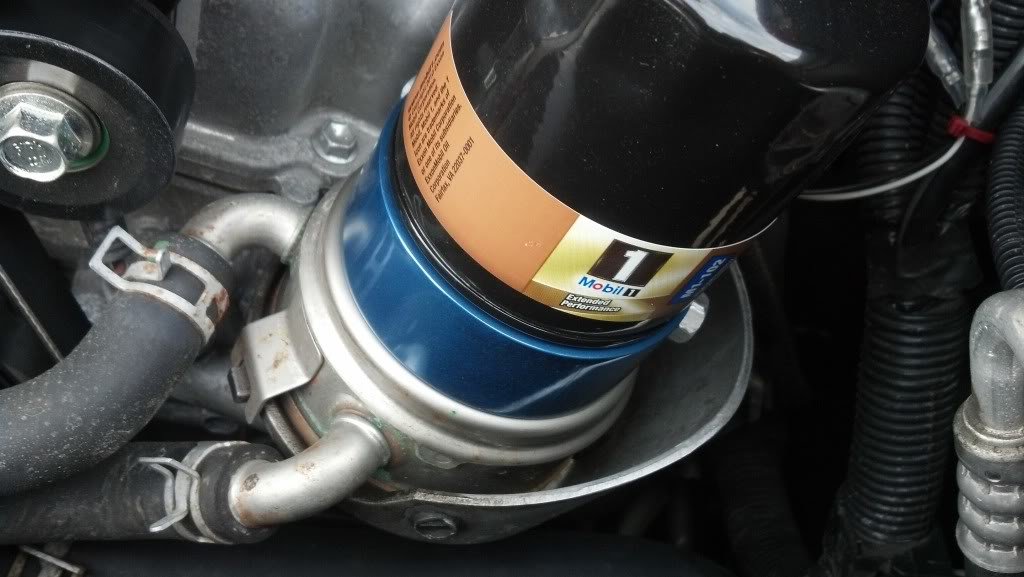

    I used a Prosport adapter plate but you get the idea.

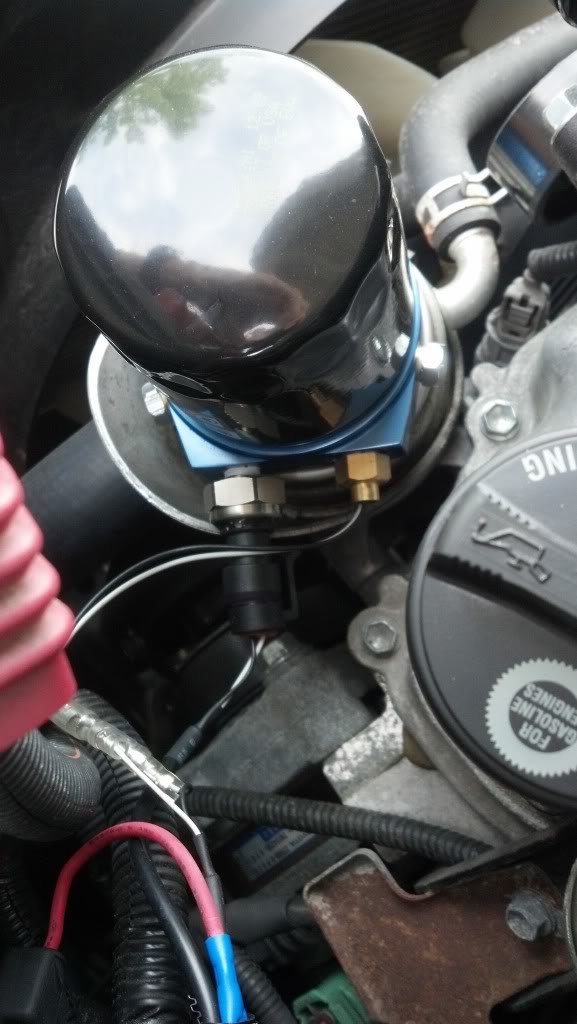

    Another angle with the temp and pressure sensors attached. The little bolts in the side plug the two extra sensor ports on the adapter.

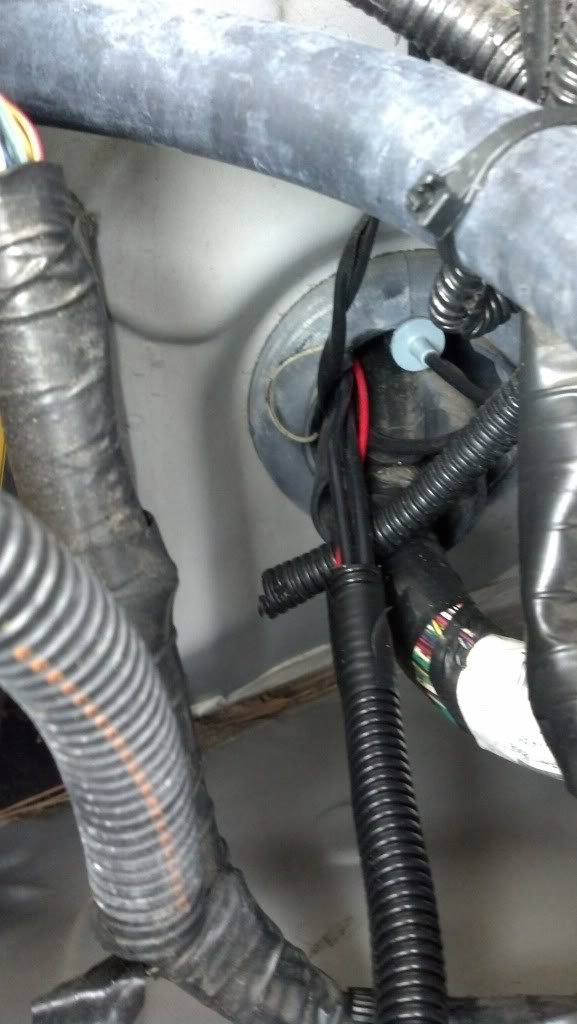

    A picture of the wiring going through the firewall. Not the prettiest but I haven't declared it done yet because I still plan to add a boost and AFR gauge to my steering column

  12. Jul 12, 2012 at 2:07 PM
    #12
    vbibi

    vbibi Well-Known Member

    Joined:
    Jul 23, 2009
    Member:
    #20060
    Messages:
    551
    Gender:
    Male
    san fransisco bay area
    Vehicle:
    2009 4door long bed
    I understand an oil temp. gage, but why the pressure one? What I meant to say is
    our trucks are relatively new. Maybe a transmission temp. gage will do you much better.

  13. Jul 12, 2012 at 3:51 PM
    #13
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    Those gauges pair well together and I already had an easy way to put it in. It's also a good monitor on the health/viscosity of your oil because pressures will change as oil sludge's up or if there is a blockage or failure of the oil pump.

    A trans temp gauge is also a bit of work to install because you would have to splice a T-junction into one of the transmission cooler lines for the sensor.

  14. Jul 12, 2012 at 9:39 PM
    #14
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    I'm not too worried about my tranny temp given that I drive a stick shift. Or am I wrong for thinking this way? :confused:

    The adapter plate is for an oil cooler right? I don't need to get one if I just need the gauges?

  15. Jul 13, 2012 at 4:06 PM
    #15
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    ^ You got it right on the manual transmission. Automatic transmission failures are often caused by heat so it is a major concern. I'm not too concerned considering the 5-Speed Auto is designed to work with a V8 engine so how much damage can the V6 really do?

    You need the adapter plate as that is where the sensors for the gauges plug into. Otherwise, you would have to tap into oil lines and tap in a sensor. Not worth it to me considering the plate is just a screw on piece.

  16. Jul 15, 2012 at 6:55 PM
    #16
    Drunknsloth

    Drunknsloth [OP] Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,138
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    What I meant was do I need that silver plate that you have with the lines coming out of it for the plate that the sensors go into (the blue one in your picture) to fit?

  17. Jul 16, 2012 at 1:11 PM
    #17
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    1,056
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, ICON 2.5VS w/ CDC, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Smittybilt X20 Comp Gen 2, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, URD 2.85 stealth pulley, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    No, that is the oil cooler that comes with the tow package. That is not necessary in order to install the sensor plate (blue)
