ok.. need to figure out tweeter wiring WTF?

Discussion in 'Audio & Video' started by 06TXED, Nov 1, 2010.

  1. Nov 1, 2010 at 7:41 PM
    #1
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
    Well I am upgrading just the tweeters with polk db1001 1" tweeters in my 06 DC. I have the mounts but what I am unsure about is the wiring. On the L/F door (where I started) the tweeter plug on the door skin has 2 pink wires the + and two purple wires the -. Then from the plug up to the tweeter its self is 2 red and 2 black wires. I peeled back the black wiring cover over the tweeter wires and found that the 2 red and 2 black wires turn into a single red and black wire to the tweeter. So where should I splice my new + and - tweeter wires to the factory wiring?

  2. Nov 5, 2010 at 3:22 PM
    #2
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,035
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    The factory tweeters have two wires connected. One is red and the other is black. The red is positive and the black is negative. Don't get confused by the wiring harness, I know there are 4 wires connected at the harness connector, but the two you need are connected directly to the factory tweeter. I can only assume the extra wiring at the harness connector is necessary for some upgraded Toyota sound system that you do not have, maybe the JBL system.

  3. Nov 5, 2010 at 3:29 PM
    #3
    n315on

    n315on Well-Known Member

    Joined:
    Feb 8, 2010
    Member:
    #30984
    Messages:
    158
    Gender:
    Male
    First Name:
    Mike
    MA
    Vehicle:
    02 4x4 SR5
    3'' toytec lift springs wrapped around 5100's. Deck plate mod. TRD seat belt pads. JL audio amps /subs and Alpine speakers. Diff breather mod. Working on a custom rear bumper
    Not all tweeters can be wired in like the stock ones are. Some have to be hooked up to your woofer through a ________(forgot the name of this part but it looks like a black tube).

  4. Nov 5, 2010 at 4:05 PM
    #4
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,035
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    I looked up the tweeters he mentioned in his post. They have an inline passive crossover so he will be fine. My only concern is the crossover point is different than his factory ones. I looked at my old ones and that thing is more like a 2" midrange speaker than a tweeter.

  5. Nov 5, 2010 at 8:39 PM
    #5
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
    something does not add up to me what I saw was 2 pink and 2 purple wires from the wiring harness in the door going into 2 black and 2 red wires going to the tweeter on the left front door. Now if you take a look at a speaker wiring diagram the pink color wire indicates the "+" and the purple color "-". So what I did was match the 2 pins in the conector that were pink (+) to the black wires and matched the other 2 purple (-) wires to the red on the other side of the connector. However when you look at the factory tweeter its self the mark on the tweeter next to the red wire sodder connection indicates + and the black -. I thought that the mating pins on the connector (pink+ & purple-) would determine what it would match on the other side. It almost seems like it switches positive and negative from the harness to the tweeter some place. Should I hook up the after market tweeter positive to the red wire and negative to the black wire????? odd that pink wire = black wire and purple wire = red wire ????? tell me what I am doing wrong?

  6. Nov 7, 2010 at 10:43 AM
    #6
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
    Answers? Please

  7. Nov 7, 2010 at 10:47 AM
    #7
    mrp192

    mrp192 REALLY!!

    Joined:
    Feb 21, 2009
    Member:
    #13911
    Messages:
    738
    Gender:
    Male
    First Name:
    Brent
    Cheney WA
    Vehicle:
    98 V6 4x4 limited
    Stereo, boobies
    crossover

  8. Nov 7, 2010 at 1:26 PM
    #8
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,035
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road
    I gave you an answer a few posts ago. Leave the harness and factory connector, disconnect the two wires going to the factory tweeter and use them.

    The part n315on described is a capacitor.

  9. Nov 7, 2010 at 3:04 PM
    #9
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
    so use the red wire and connect it to the + connection on the new tweeter and the black wire to the - connection.... right? just wanted to check. sorry for being a pain just got all ass backwards about matching up the different wire colors.

  10. Nov 7, 2010 at 3:35 PM
    #10
    mrp192

    mrp192 REALLY!!

    Joined:
    Feb 21, 2009
    Member:
    #13911
    Messages:
    738
    Gender:
    Male
    First Name:
    Brent
    Cheney WA
    Vehicle:
    98 V6 4x4 limited
    Stereo, boobies
    No the part he is talking about the a Crossover. A capacitor goes between the batter and the amp. you dont hook up tweeters to a capacitor. a capacitor is pretty much a small battery to get rid of dimming headlights every time the sub hits.

  11. Nov 7, 2010 at 4:29 PM
    #11
    dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    1,035
    Gender:
    Male
    South Carolina
    Vehicle:
    09 TRD Off Road

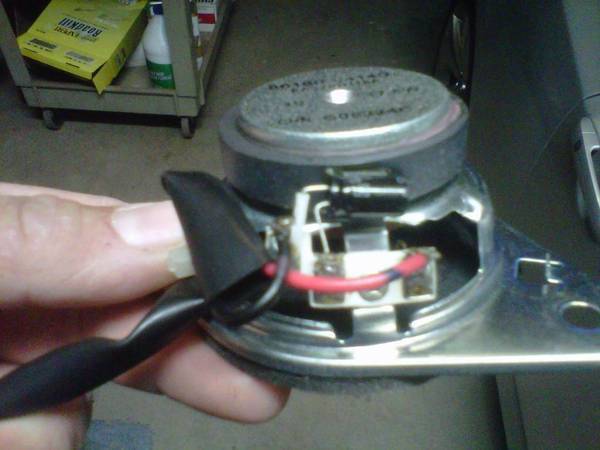

    You are mistaken. I was not talking about that application for a capacitor. I am talking about the one that is commonly wired in line with a speaker that acts as a HP filter. A crossover commonly uses capacitors and resistors in a circuit that the speakers are wired to externally. I've never seen one that looks like a small black tube like he was describing, but I have often seen a capacitor wired to a speaker acting as a HP filter.

    [​IMG]

  12. Nov 8, 2010 at 9:37 AM
    #12
    mrp192

    mrp192 REALLY!!

    Joined:
    Feb 21, 2009
    Member:
    #13911
    Messages:
    738
    Gender:
    Male
    First Name:
    Brent
    Cheney WA
    Vehicle:
    98 V6 4x4 limited
    Stereo, boobies
    I have been corrected..

  13. Nov 10, 2010 at 8:11 AM
    #13
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
  14. Nov 10, 2010 at 12:37 PM
    #14
    81shark

    81shark Well-Known Member

    Joined:
    Nov 7, 2008
    Member:
    #10567
    Messages:
    3,626
    Gender:
    Male
    Vehicle:
    2006 Base Access CP1
    just send them back and get yourself a full set of speakers

  15. Nov 10, 2010 at 3:36 PM
    #15
    06TXED

    06TXED [OP] Well-Known Member

    Joined:
    Aug 11, 2009
    Member:
    #21031
    Messages:
    646
    First Name:
    Tony
    Kirkland WA
    Vehicle:
    2013 DCSB MGM TRD OR 4x4
    ADS RR 2.5 c/o, Camburg UCA, OME Dakar, ADS 2.5. LED interior light kit, Baja Designs LED fogs, LED headlights, Baja designs ditch lights w/ rago fab brackets, 20” armored LED light bar, Falken AT tires, KMC wheels, diff breather mod, All AMSOIL syn fluids, ARE shell linexed’ w/ FSR RTT, full debagged, shortened OEM antenna mod, Wet okle seatcovers, bird dog ind. mirror riser W/ RAM mount phone holder, and fog light any time mod.
    I am also running kicker 6x9's in the front doors

  16. Nov 10, 2010 at 3:54 PM
    #16
    BradleyScottETC

    BradleyScottETC Class IV Category 8 Elite VIP Member (Only)

    Joined:
    Aug 2, 2009
    Member:
    #20521
    Messages:
    1,751
    Gender:
    Male
    First Name:
    Bradley
    Lake County, FL
    Vehicle:
    10 4.0 AC 4x4
    Dude, it makes absolutely NO difference which way you wire the speakers. Just make sure that you wire the one in the passenger door exactly the same way, otherwise they'll seem extremely quiet (phase cancelation), other than that it doesn't matter, they'll work both ways.

  17. Dec 12, 2010 at 3:41 PM
    #17
    n315on

    n315on Well-Known Member

    Joined:
    Feb 8, 2010
    Member:
    #30984
    Messages:
    158
    Gender:
    Male
    First Name:
    Mike
    MA
    Vehicle:
    02 4x4 SR5
    3'' toytec lift springs wrapped around 5100's. Deck plate mod. TRD seat belt pads. JL audio amps /subs and Alpine speakers. Diff breather mod. Working on a custom rear bumper
    Actually I was talking about a crossover. Maybe I didn't do the best description of it, my bad.

  18. Jul 7, 2020 at 3:26 PM
    #18
    ItsAPrerunner

    ItsAPrerunner Member

    Joined:
    Dec 29, 2019
    Member:
    #314534
    Messages:
    6
    Vehicle:
    2007 Prerunner SR5 V6
    06TXED, how did you end up doing this? Did you go red wire to positive, or red to negative on the tweeter? I never saw a definite answer on here and now I’m in the same boat as you.

  19. Jul 13, 2020 at 2:37 PM
    #19
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,527
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    From what I understand, the connection to the tweeter is the junction for the other speaker. You want to splice each pair together to get the bottom speaker working.

    Now take a non polarized electrolytic capacitor and connect one end to the positive wire. The other end goes to the NEGATIVE terminal on the tweeter. The capacitor by it's nature inverts the signal + in - out. Connecting the tweeter backwards keeps in in phase with the other speaker. Meaning they both move in the same direction.
