Old man emu leaf spring concerns

Discussion in '1st Gen. Tacomas (1995-2004)' started by TacoMac156, Sep 4, 2020.

  1. Sep 4, 2020 at 2:13 PM
    #1
    TacoMac156

    TacoMac156 [OP] New Member

    Joined:
    Aug 22, 2020
    Member:
    #338449
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2002 IMPULSE red tacoma 3.4 4x4 5spd
    Bilstein 5100 Deck plate mod URD short shift Magna flow cat back exhaust
    Hey all!

    Finally getting around to installing my OME Dakar leafs and we are having some concerns with the alignment.

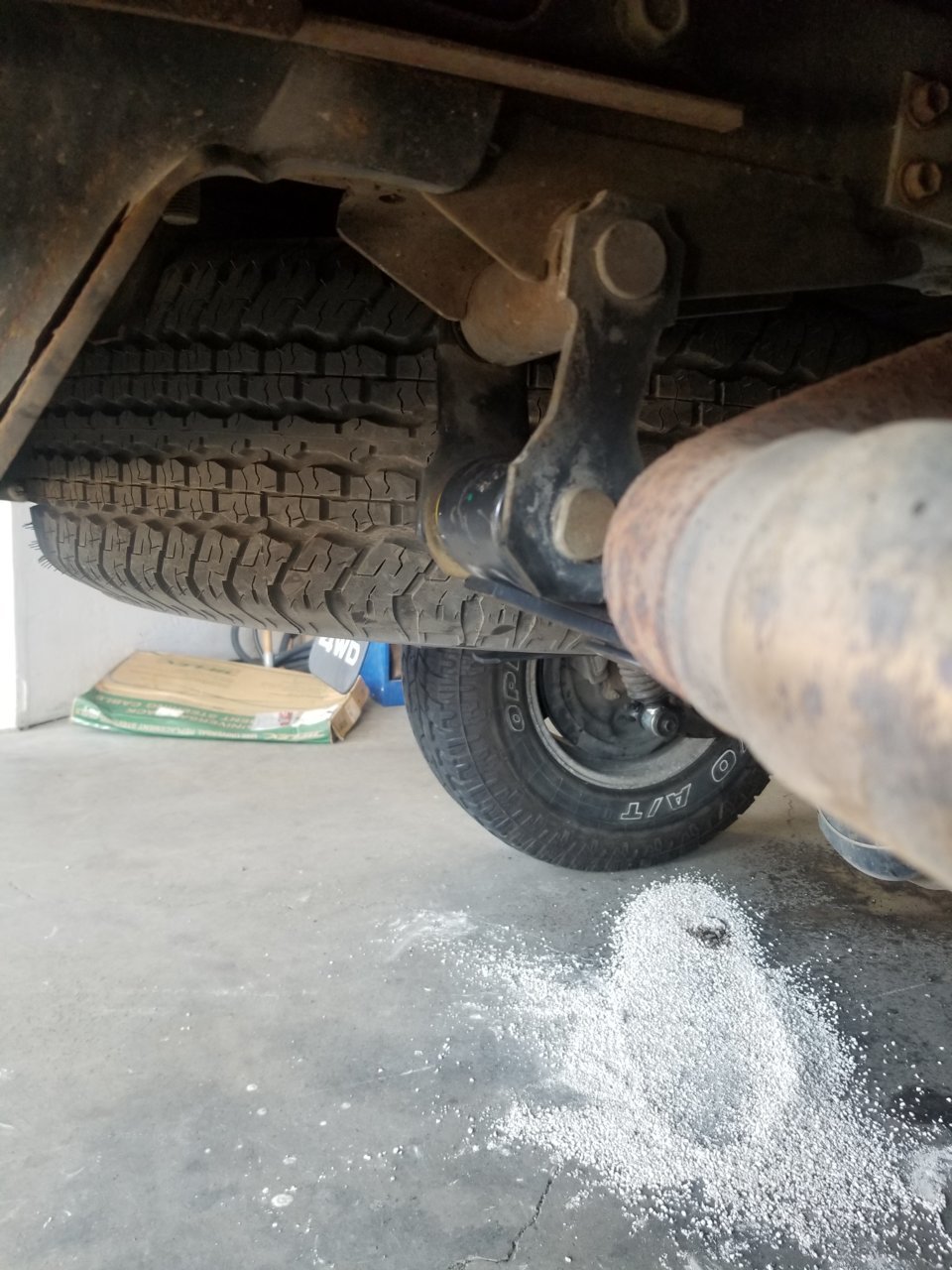

    I ordered the CS046RA and RB, basically with everything together my shackles are almost straight up and down.

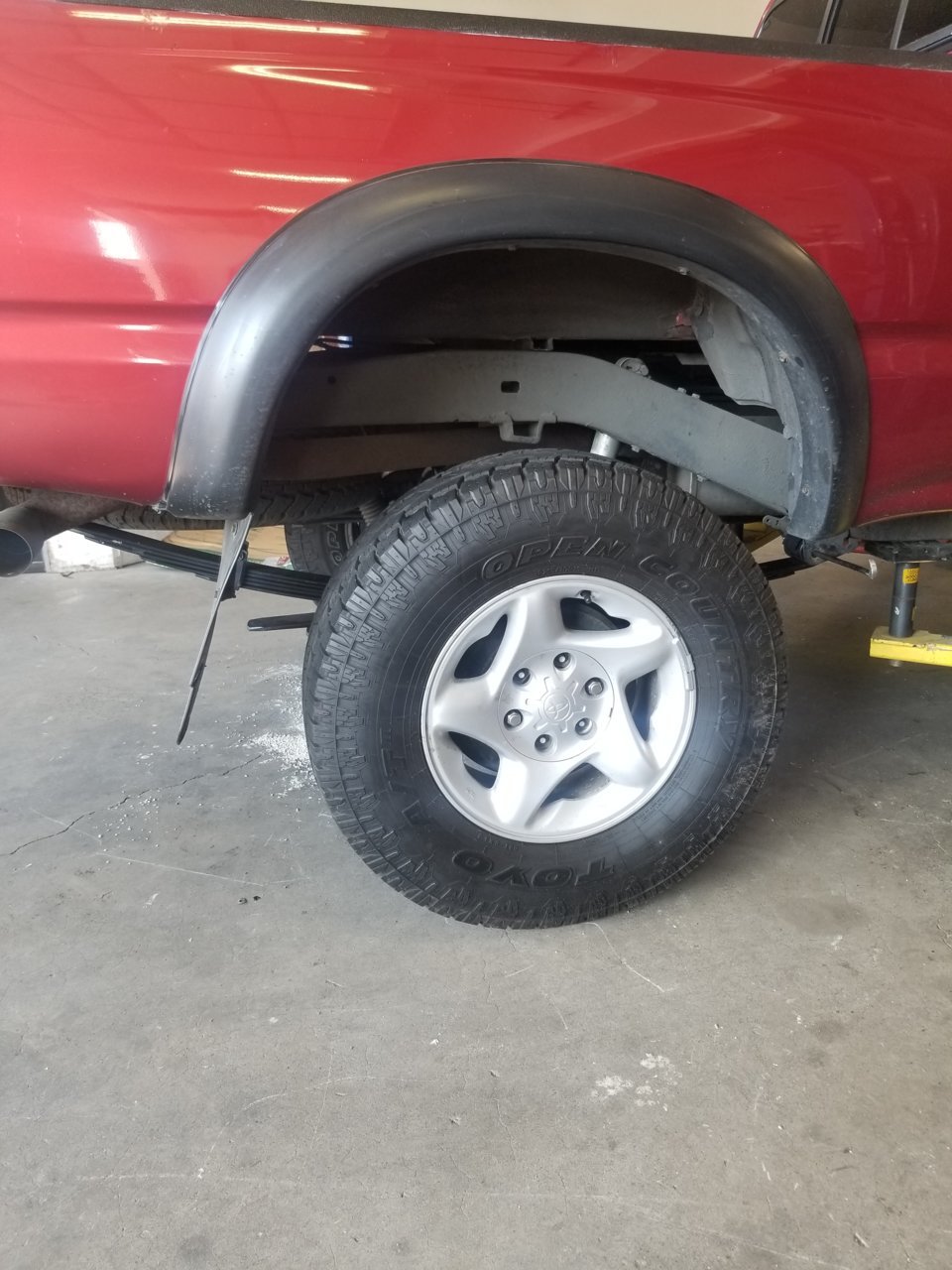

    It also looks like the axle is forward an inch or so...

    Eye to eye measurements on the new leafs were 52" 1/4, the stock's were roughly 54.5"

    Anyone encounter issues when installing these? Truck is a 2002 4x4 extended cab


  2. Sep 4, 2020 at 2:20 PM
    #2
    Poncate

    Poncate Well-Known Member

    Joined:
    May 4, 2013
    Member:
    #103479
    Messages:
    454
    Gender:
    Male
    PNW
    Vehicle:
    04 DCSB 4x4

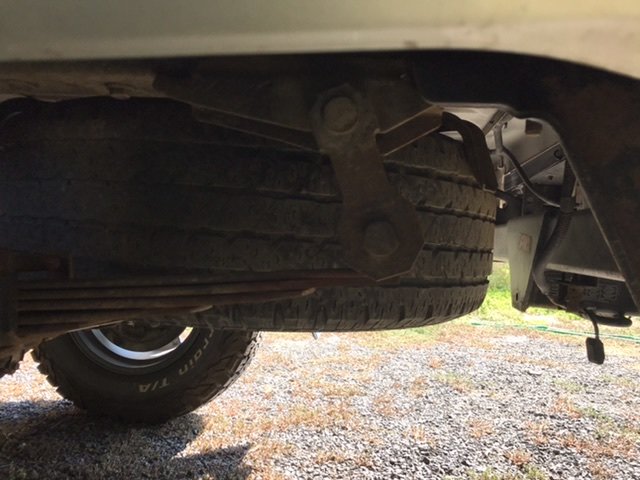

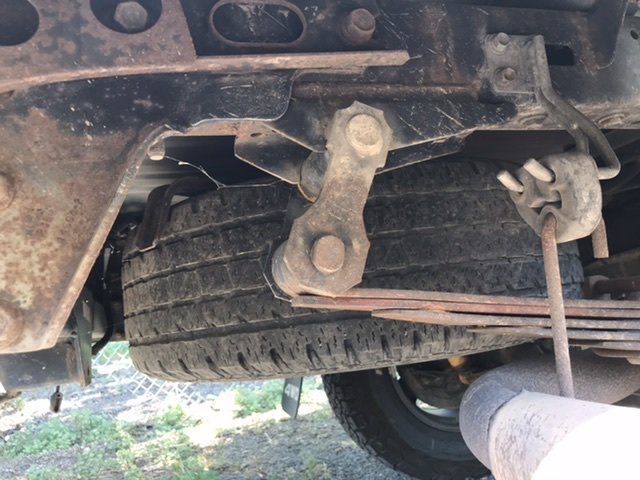

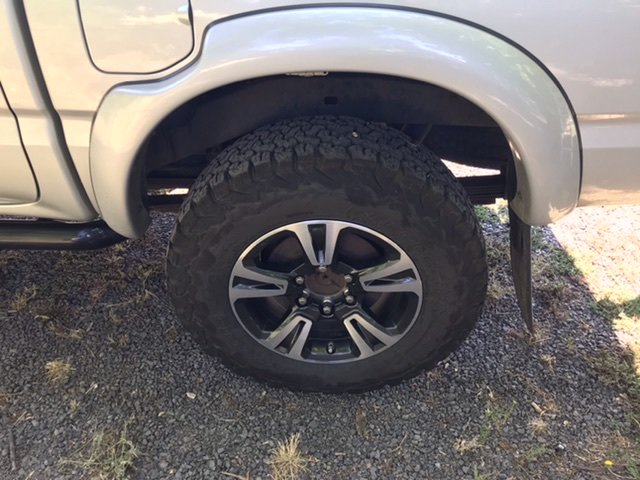

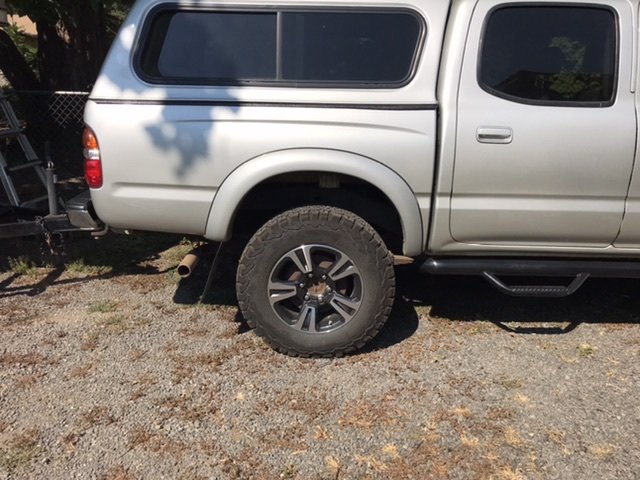

    Here’s my OME alignment and shackles on the 04

    Shows both left and right. They’ve been on the truck for 3years and about 50k miles2F62B81D-1D50-45C3-A8C9-CC0C5D2A78CA.jpg27549651-CC63-4A28-B292-22411175A183.jpg7F138466-2E26-48BF-9AB2-86D9A6143386.jpgD7F1CABF-1CE7-4C24-BD18-7BD24096A1E0.jpg

  3. Sep 4, 2020 at 2:24 PM
    #3
    Kwikvette

    Kwikvette Woke up and chose violence

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    28,857
    Gender:
    Male
    Salinas, CA
    Vehicle:
    1998 4Runner Limited 4x4
    King 2.5 Front/Rear, OME 890, 33s, Locked +
    There are shims available to help fix this to an extent.

    Also, the leaf pack will take a month or so to settle so give it time. As it settles, the angle won't be as severe.

  4. Sep 4, 2020 at 2:24 PM
    #4
    eon_blue

    eon_blue Unknown Member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    48,201
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    This is common with aftermarket leaf springs on Tacomas. My custom Alcan springs moved my axle forward quite a bit, too. More than yours by the looks of it. As long as it's even side to side (one side isn't more forward than the other) then you're OK.

    You don't want to rub the wheel well when it stuffs either but it doesn't look like you're close to that. Mine are further forward and don't rub.

  5. Sep 4, 2020 at 2:26 PM
    #5
    eon_blue

    eon_blue Unknown Member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    48,201
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    And yeah if you really want to move them back you can install relocation shim plates under the springs (on top of the axle) that will move the axle back an inch or so.

  6. Sep 4, 2020 at 2:31 PM
    #6
    JasonLee

    JasonLee Hello? I'm a truck.

    Joined:
    May 9, 2014
    Member:
    #129454
    Messages:
    6,545
    First Name:
    Jason
    2F23+34 Lake George, Colorado
    Vehicle:
    15 TRD Blown OffRoad
    TRD Supercharger
    Known issue. Look at my signature below for the combination of things that got it centered (All Pro relocation...)

  7. Sep 4, 2020 at 9:34 PM
    #7
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,804
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 2.5,Tundra 17s,Falken Wildpeak AT3W hitch w/ 7-pin, ARE cap, JVC HU w/BT, HID/LED lights
    remember the front of the leaf is a "fixed" point. when the spring "compresses" so-to-speak it will move the shackle towards the back and thus so will the axle (not inches but some) so no worries

    also, your exhaust goes UNDER the leaf, not over. you will constantly hear metal-on-metal contact as it bangs against the leaf pack

    Akkording likes this.
