Old Man Emu: Questions, Answers & Pictures

Discussion in 'Suspension' started by 4Wheelin4Banger, Jan 15, 2013.

  1. Feb 4, 2013 at 8:25 PM
    #621
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,721
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    Only if you put a heavy plate bumper & winch on it.
    886s will give you more than 3" and you don't want that.
    885s will probably give you around 2.75"

  2. Feb 4, 2013 at 8:30 PM
    #622
    Gabassman

    Gabassman Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,206
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    Go back to post 619. I just posted it I have an access cab im running 885 with no top spacers except the 1/4 on the driver side for exactly 3 inches.

  3. Feb 4, 2013 at 9:22 PM
    #623
    urrutiadan32

    urrutiadan32 weather changes moods

    Joined:
    Sep 5, 2012
    Member:
    #86292
    Messages:
    517
    Gender:
    Male
    First Name:
    Dan
    California
    Vehicle:
    07 PreRunner TRD Off Road
    bilstein 5100 struts, eibach 600# 13'' coils, TC UCA's, 4' MaxTrac spindles, Dakar leaf springs, u-bolt flip kit, Bilstein 5100 RCD extended rear shocks, AP standard rock sliders, bestop supertop
    Thanks guys, I'm just trying to avoid the top plate spacers of possible for that 3"

  4. Feb 4, 2013 at 9:26 PM
    #624
    urrutiadan32

    urrutiadan32 weather changes moods

    Joined:
    Sep 5, 2012
    Member:
    #86292
    Messages:
    517
    Gender:
    Male
    First Name:
    Dan
    California
    Vehicle:
    07 PreRunner TRD Off Road
    bilstein 5100 struts, eibach 600# 13'' coils, TC UCA's, 4' MaxTrac spindles, Dakar leaf springs, u-bolt flip kit, Bilstein 5100 RCD extended rear shocks, AP standard rock sliders, bestop supertop
    What size tires do u have gabassman?

  5. Feb 5, 2013 at 12:59 AM
    #625
    DoorDing

    DoorDing Thank you, Nancy Roman

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    23,625
    Gender:
    Male
    Vehicle:
    2012 DCSB Off-Road 4WD
    I ordered a set of standard CS047 Dakar springs and I'll need bushings for them. I might be able to press the bushings out of the OEM springs, but I'm going to try to sell them with the rest of the suspension I'm changing out. Downsouth Motorsports doesn't sell the required bushings, but Wheeler's Offroad has a Greasable Main Spring Eye Bushing Set. Is there a better bushing option?

    Any extended brake line (hose) recommendations? I believe that my OR requires two for the rear, and I see that Wheeler's has some.

  6. Feb 5, 2013 at 1:15 AM
    #626
    SR5808

    SR5808 Well-Known Member

    Joined:
    Jan 31, 2013
    Member:
    #96579
    Messages:
    380
    Gender:
    Male
    First Name:
    J10
    Honolulu,Hi
    Vehicle:
    Black Prerunner SR5
    Tint/ weathertech visors/ truxedo tonneau cover/ plasti-dipped front emblem and door emblems/ debaged tail gate/depo tail lights..
  7. Feb 5, 2013 at 4:14 AM
    #627
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    3,880
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    05 Access cab

    What did you put up front & what did you get?

    885's & Nitro Charger struts
    Before
    LF 20.0" RF 20.5"
    After
    LF 23.25 RF 23.5"

    What did you put in back & what did you get?

    Before
    LR 21.5" RR 21.5"
    After
    LR 25.5" RR 25.5"

    Are you running trail armor & how much lift did you loose or what did you do to regain/maintain lift?
    No trail armor.. yet. planning on adding a rear bumper with swing out tire carrier.

    Tire & wheel specs & rub or what you did to eliminate rub.
    Are you still running a sway bar?

    standard 265/70/16's on stock rims as of now. 285/70/17 on SCS Stealth 6's will be on in the next few weeks so I will edit this post when that happens.
    No sway bar, truck drives great on road

  8. Feb 5, 2013 at 5:12 AM
    #628
    Gabassman

    Gabassman Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,206
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    265/75r16

  9. Feb 5, 2013 at 7:08 AM
    #629
    BigHeadTaco

    BigHeadTaco GFY

    Joined:
    Jan 2, 2013
    Member:
    #94237
    Messages:
    460
    Gender:
    Male
    First Name:
    Big Head
    Full OME lift 885's with Dakar leaf springs. LR UCA's. ImMrYo relocation bracket.
    I just did my OME and had the dakars installed. I purchased my lift and had it installed by Cruiser Outfitters ([FONT=Arial,Helvetica][SIZE=-1](801) 518-3937[/SIZE][/FONT]). They put in the new bushings, I am pretty sure he has them in stock.

  10. Feb 5, 2013 at 7:13 AM
    #630
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    3,880
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    I used the poly bushings from wheelers and was able to put them in by hand.

    All Pro steel braided brake line front and rear, 2 front 2 rear.

  11. Feb 5, 2013 at 7:14 AM
    #631
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,269
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    I left the shackle bushings in and got OEM bushings from toyota for the dakars, you will need 4

  12. Feb 5, 2013 at 7:17 AM
    #632
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    21,974
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Those aren't for 2nd Gens

  13. Feb 5, 2013 at 7:18 AM
    #633
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    21,974
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I did this

  14. Feb 5, 2013 at 7:30 AM
    #634
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,269
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    Oem part number if you need it 90389-A0003

  15. Feb 5, 2013 at 8:36 AM
    #635
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,721
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .

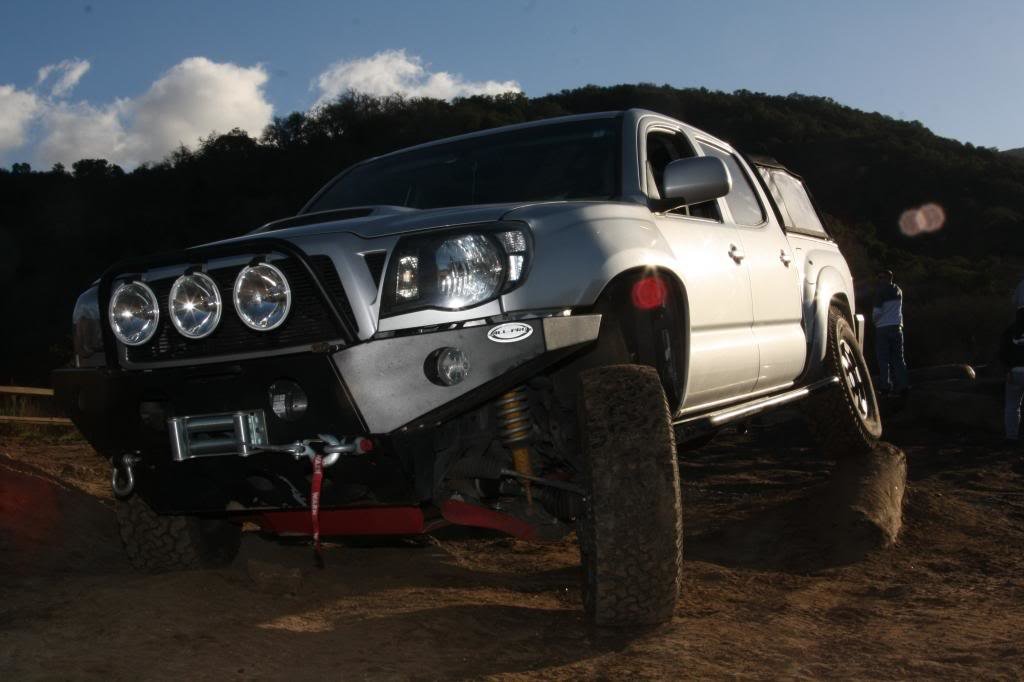

    I added some Relentless sliders and it looks like it lowered front & rear 1/8"

    [​IMG]

    [​IMG]

  16. Feb 5, 2013 at 9:13 AM
    #636
    DoorDing

    DoorDing Thank you, Nancy Roman

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    23,625
    Gender:
    Male
    Vehicle:
    2012 DCSB Off-Road 4WD
    Thanks for the responses. It was late and when I searched Wheeler's, I didn't realize that greasable bushing set was for 1st gens. I'll look around some more for a 2nd gen set that'll take grease.

  17. Feb 5, 2013 at 9:16 AM
    #637
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,269
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    Nice! Looks good. My bamf sliders should be going on next week.

  18. Feb 5, 2013 at 9:20 AM
    #638
    teneighty

    teneighty I'd rather be skiing...

    Joined:
    Oct 5, 2012
    Member:
    #88357
    Messages:
    5,741
    Gender:
    Male
    Right behind you. NY
    Vehicle:
    2013 DCLB SR5 4X4 Nautical Blue
    Check out my Build
    So was thinking again... If I go with 886's will that put my DCLB over 3". I plan on doing a hidden winch up front (and really like the added shackle posts!). That won't be for a little while so would I be ok until I put that on? I know they would be stiff but that doesn't bother me.

  19. Feb 5, 2013 at 11:11 AM
    #639
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,721
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    Thanks, BAMF sliders look good too. Did you get the kick outs?
    886s will probably put you over 3" before the winch, you might be OK after the winch. Do the CV boot slide if you put the 886s on before the winch.

  20. Feb 5, 2013 at 11:43 AM
    #640
    teneighty

    teneighty I'd rather be skiing...

    Joined:
    Oct 5, 2012
    Member:
    #88357
    Messages:
    5,741
    Gender:
    Male
    Right behind you. NY
    Vehicle:
    2013 DCLB SR5 4X4 Nautical Blue
    Check out my Build
    886s will probably put you over 3" before the winch, you might be OK after the winch. Do the CV boot slide if you put the 886s on before the winch.[/QUOTE]

    Thanks

    after the winch, would I need top plate spacers to stay at 3"? I want 3" full inches to be able to run 285/70/17's...
