Old Man Emu: Questions, Answers & Pictures

Discussion in 'Suspension' started by 4Wheelin4Banger, Jan 15, 2013.

  1. Jan 15, 2013 at 9:05 AM
    #1
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,719
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    [​IMG]

    Well since Dan doesn't want questions asked on his OME Gallery thread I thought I would start a Q & A thread.
    If you have a question ask away and the TW Emu Gurus will answer it.
    If you have OME post a pic or two & tell us what you got.
    What did you put up front & what did you get?
    What did you put in back & what did you get?
    If you got Dakars on a 2nd Gen share your measurements with OZ [​IMG] 2nd Gen OME Dakar hub to fender measurements ([​IMG] 1 2 3 ... Last Page)
    Are you running trail armor & how much lift did you loose or what did you do to regain/maintain lift?
    Tire & wheel specs & rub or what you did to eliminate rub.
    Are you still running a sway bar?

    Thanks Mike for the info.
    From the OME Bible JohnBb 1:31
    This thread is for everyone but if you want to go to a 1st Gen only thread it's here OLD MAN EMU SETUPS ON 1st gen

    [​IMG]

  2. Jan 15, 2013 at 9:05 AM
    #2
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,719
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    What did you put up front & what did you get?
    885s on 90000 Sport Nitros gave me 3".
    What did you put in back & what did you get?
    Dakars gave me 3" with shell.
    If you got Dakars on a 2nd Gen share your measurements with OZ 2nd Gen OME Dakar hub to fender measurements ([​IMG] 1 2 3 ... Last Page)
    Been there done that.
    Are you running trail armor & how much lift did you loose or what did you do to regain/maintain lift?

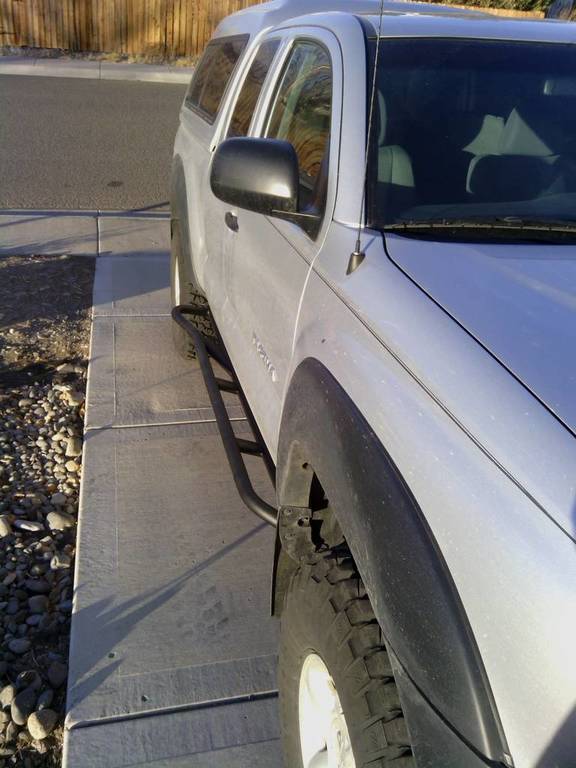

    I just finnished adding 1/4" top plate spacers & I'm almost where I was before adding the sliders & skids.
    I was 23 3/8" DS I'm now 23 1/8".
    It rides just like it did before adding the spacer, just 1/2" higher & better than it did before adding the sliders & skids.
    Tire & wheel specs & rub or what you did to eliminate rub.
    255/85/16 BFG KM2s on 1st Gen TRDs 16"x7" with 4.5" BS. No rub & no trim.
    Are you still running a sway bar?
    No & it ride even better on & off road.

    Last edited: Mar 4, 2013
  3. Jan 15, 2013 at 9:24 AM
    #3
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,980
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  4. Jan 15, 2013 at 10:00 AM
    #4
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    5,141
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    I'm just here for the emu pic :popcorn:

    Ninj likes this.
  5. Jan 15, 2013 at 10:06 AM
    #5
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,719
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    It does get your attention doesn't it.
    Come on Matt you've got some OME post it.

  6. Jan 15, 2013 at 10:08 AM
    #6
    Deadcrowm

    Deadcrowm Well-Known Member

    Joined:
    Oct 31, 2012
    Member:
    #90178
    Messages:
    128
    Gender:
    Male
    First Name:
    Mike
    Ventura County
    Vehicle:
    07 4x4 TRD
    Camper shell, bed kit, tires
  7. Jan 15, 2013 at 10:20 AM
    #7
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    5,141
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    OK I'll play :D

    [​IMG]

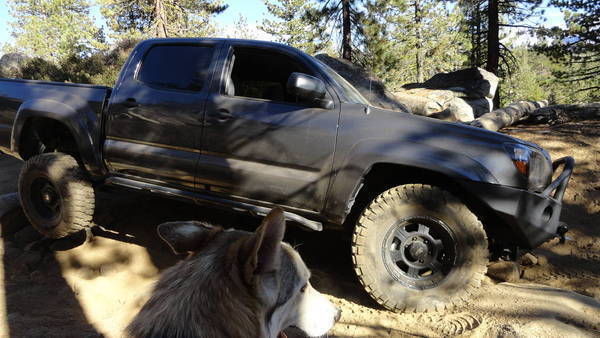

    My rig and an oblig shot of Pyro

    What did you put up front & what did you get?
    884s and 5100s
    What did you put in back & what did you get?
    TSB and 5100s
    If you got Dakars on a 2nd Gen share your measurements with OZ [​IMG] 2nd Gen OME Dakar hub to fender measurements ([​IMG] 1 2 3 ... Last Page)
    Not yet but soon, very soon
    Are you running trail armor & how much lift did you loose or what did you do to regain/maintain lift?
    Front relentless alum bumper with winch, IFS skid, mid skid, sliders, and relentless rear steal bumper. I have a t-case skid sitting in my garage, no comments Eric :p Not sure what I lost in lift and I didn't do anything to regain lift. Soon I'm just redoing it.
    Tire & wheel specs & rub or what you did to eliminate rub.
    265/75/16 KM2s on 16x8 w/ 4.5 BS. No rubbing.
    Are you still running a sway bar?
    Yep, too scurred to take it off ;)

    Here are the specs center hub to bottom of fender:

    DF 21.5"
    DR 22.25"
    PF 21.75"
    PR 22.5"

  8. Jan 15, 2013 at 10:22 AM
    #8
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,980
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I'm not moving people's measurements from this thread to the Dakar Measurement thread

    Just sayin

  9. Jan 15, 2013 at 10:24 AM
    #9
    MJM777

    MJM777 Well-Known Member

    Joined:
    Jan 31, 2012
    Member:
    #71819
    Messages:
    358
    Gender:
    Male
    N.E. Ohio
    Vehicle:
    2012 DCSB 4x4 Sport
    Sub'd

  10. Jan 15, 2013 at 1:16 PM
    #10
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,270
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    09 trd offroad access cab

    If you have OME post a pic or two & tell us what you got.
    pic coming later
    What did you put up front & what did you get?
    885s no top plate spacer, 2 1/2" on drivers side, 2 3/4"+ on passanger side (yes i used the trim packer) hub to fender is about 23" and 23 1/4
    What did you put in back & what did you get?
    dakars with 3rd leaf removed. Hub to fender i am half inch higher in the rear compared to the front. Based on OZ's dakars thread, removing the 3rd leaf reduced the amount of lift by 1-1.5 inches (OME says 3/4)
    Are you running trail armor & how much lift did you loose or what did you do to regain/maintain lift?
    Nope but i will have sliders very soon! I might add top plate spacers and reinstall the third leaf in the future EDIT: bamf sliders added and no change in measurements
    EDIT AGAIN: CBI front bumper and 8500lb superwich added ~200lbs, lost about 1" of lift up front and the coilovers ride a lot softer now
    Tire & wheel specs & rub or what you did to eliminate rub.
    SCS stealth 6 wheels- 17x8.5, 4.3" backspacing, -10mm offset with 285/70/17 duratracs. Lots of rubbing, cab mount chop, flattened pinch weld, trimed bottom of fenders front and back and removed alot of plastic. I still rub a little at full lock when the suspension is flexed hard
    Are you still running a sway bar?
    yes, no plans to remove it yet, i hate body roll!

    only other detail about my setup is SPC light racing UCAs. Caster numbers are 2.5 and 2.7

    Great idea for a thread! And thanks randy for answering my OME questions months ago before i did my lift, thanks to OZ also

    Last edited: Feb 3, 2014
  11. Jan 15, 2013 at 2:50 PM
    #11
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,199
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    can't wait to see the pics of the stealth 6 wheels :popcorn:

  12. Jan 15, 2013 at 2:54 PM
    #12
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,270
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    All i have right now is crappy cell picks
    And a little driveway flexing :cool:

  13. Jan 15, 2013 at 3:19 PM
    #13
    la0d0g

    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    5,141
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    Looks great.

    Question - what do you still rub at full lock?

  14. Jan 15, 2013 at 3:30 PM
    #14
    nj636

    nj636 Hub Master General

    Joined:
    Feb 14, 2012
    Member:
    #72804
    Messages:
    4,199
    Gender:
    Male
    First Name:
    Kev
    Jersey
    OME lift 4x sliders 4x skids
    looks great

  15. Jan 15, 2013 at 3:33 PM
    #15
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,270
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    Thanks! During normal driving no. If i try to make them rub by stuffing the front tires at full lock they do lol. I just need to cut more plastic and a little more off of the bottom of the fender in the back of the wheel well. the trimming is not very noticable unless you know what your looking for. When the front wheel is stuffed in the wheel well i have ~ 1/4" of room between the tire and the chopped cab mount


    Thank you! Im very happy with my setup.

    JAL4 likes this.
  16. Jan 16, 2013 at 9:28 AM
    #16
    4Wheelin4Banger

    4Wheelin4Banger [OP] Longtime Toyman

    Joined:
    Jun 15, 2011
    Member:
    #58306
    Messages:
    6,719
    Gender:
    Male
    First Name:
    Randy
    Ferntucky, NV Halfway between Reno & Falabama
    Vehicle:
    2011 4x4 Access Cab Silver State Edition
    3" OME lift 885s & Dakars riding on 33" KM2s Click the sig pic to see the build thread .
    Thanks & you're welcome.
    Taco looks good Evan.

  17. Jan 16, 2013 at 10:00 AM
    #17
    MadToy

    MadToy Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger

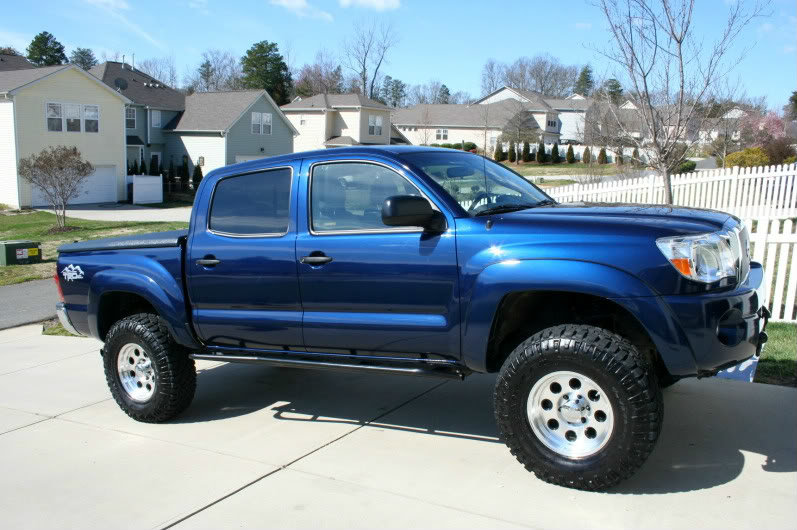

    886 with Nitro 90000 up front, Dakars with N182 in the rear with this pic (changed to Fox 2.0 recently).

    [​IMG]

    Dogg23 likes this.
  18. Jan 16, 2013 at 11:27 AM
    #18
    evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,270
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    Nice truck^ that hidden winch is awesome

  19. Jan 16, 2013 at 11:32 AM
    #19
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,353
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :rant: there's too many pics here, there is a thread for that :rant:
    jk, jk

  20. Jan 16, 2013 at 11:34 AM
    #20
    MadToy

    MadToy Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Ha! I'm getting confused with all the different threads, and what is expected in each :confused:
