OME D29XL with the CS047

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Icepuck72, May 8, 2014.

  1. May 8, 2014 at 6:00 AM
    #1
    Icepuck72

    Icepuck72 [OP] Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,795
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    I have the Dakars CS047 for my rear lift....Thinking I should add these (D29XL) to them...seeing as I tow my landscaping trailer filled with equipment every day that I'm off from the firehouse....

    I should have had them pre-loaded. Damnit!!!!

    Is it a PITA to add?

  2. May 8, 2014 at 7:07 AM
    #2
    CrunchyTaco99

    CrunchyTaco99 Well-Known Member

    Joined:
    Apr 1, 2010
    Member:
    #34396
    Messages:
    360
    Gender:
    Male
    First Name:
    Joe
    North Georgia
    Vehicle:
    99 TRD Tacoma
    33x12.50 Pro Comp M/T's All-Pro Coils, UCA and 3" leafs.
    I took mine off the other day in two hrs.

    Put truck on jack stands, remove wheels, remove lower shock mounts, remove u bolts, use jack to lower axle a couple of inches. Put C clamps on leaf packs to keep it from coming apart. I used vice grips on the bottom leaf spring pin to hold it while loosening the top 14mm nut. Then add the overloaded leaf to the bottom of the pack and reverse the process. I undid U bolts one side at a time to keep the axle somewhat located. Still had to use a ratchet strap attached to the axle and frame to pull it forward a tad to line up the leafs with the axle.


    Edit: I did this on a first gen. Can't imagine a 2nd gen would be too different.

    Last edited: May 8, 2014
  3. May 8, 2014 at 7:27 AM
    #3
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,301
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

    The d29xl leaf installs in the regular part of the pack , not at the bottom , it becomes the 4th down from the top IIRC

  4. May 8, 2014 at 7:38 AM
    #4
    geekhouse23

    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    13,482
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius

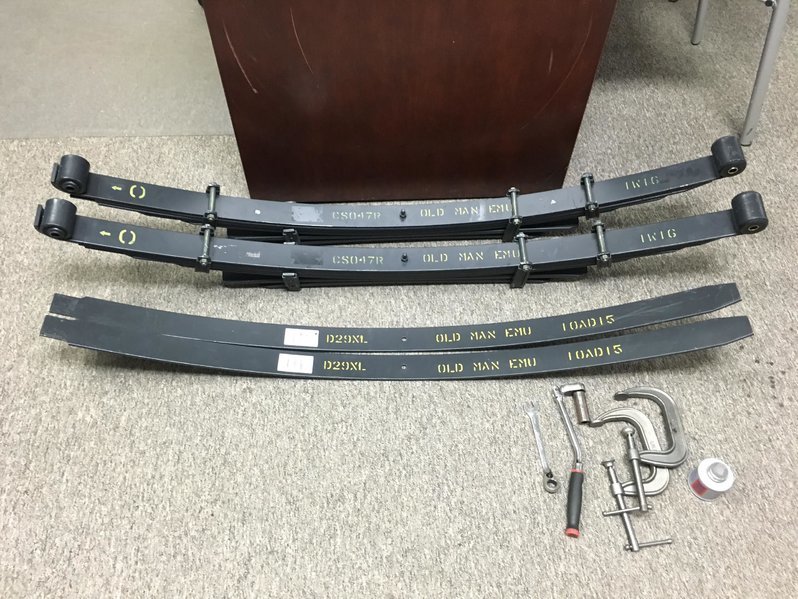

    I decided to order mine at the same time and just add it while off the truck. Good excuse to work on the truck though :thumbsup:

    Here is a good vid sort of walking people through the process:
    https://www.youtube.com/watch?v=nz989l8D9Uc

    I think he is a TW member too..

    He mentions needing a longer bolt, but I reused the ones that came with the CS047R pack and I had no issues.

    DrFunker likes this.
  5. May 8, 2014 at 7:39 AM
    #5
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,301
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    add centre pin collars

    DrFunker likes this.
  6. May 8, 2014 at 7:42 AM
    #6
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,301
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Good vid

  7. May 8, 2014 at 7:43 AM
    #7
    CrunchyTaco99

    CrunchyTaco99 Well-Known Member

    Joined:
    Apr 1, 2010
    Member:
    #34396
    Messages:
    360
    Gender:
    Male
    First Name:
    Joe
    North Georgia
    Vehicle:
    99 TRD Tacoma
    33x12.50 Pro Comp M/T's All-Pro Coils, UCA and 3" leafs.
    Apologies. Should have known something would have been different between the two generations. Sorry for the confusion!

  8. May 8, 2014 at 7:45 AM
    #8
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,839
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    I have seen that video a couple of times. That guy cracks me up. If you look at his Center pin it looks like it is cut. Geekhouse23 did you use a center pin collar?

  9. May 8, 2014 at 8:14 AM
    #9
    geekhouse23

    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    13,482
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    He is pretty entertaining! Love his vids. And no I did not.

  10. May 8, 2014 at 8:18 AM
    #10
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,301
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You guys that are taking apart your leaf packs should add a collar in case you need to use axle shims at a later date , it has nothing to do with the length of the centre pin

  11. Aug 10, 2016 at 6:55 PM
    #11
    uurx

    uurx Well-Known Member

    Joined:
    Mar 12, 2015
    Member:
    #150723
    Messages:
    6,429
    Gender:
    Male
    long island, new york
    Vehicle:
    '12 t|x pro
    I put mine in today before this weekends install on the truck.

    In the video he puts them in #3 down from top. I put mine in #4 down from top, seemed like it lined up better....


  12. Aug 10, 2016 at 7:35 PM
    #12
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    47,301
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    It goes in below the 3rd down IIRC

    uurx and Skyway like this.
  13. Aug 10, 2016 at 7:58 PM
    #13
    uurx

    uurx Well-Known Member

    Joined:
    Mar 12, 2015
    Member:
    #150723
    Messages:
    6,429
    Gender:
    Male
    long island, new york
    Vehicle:
    '12 t|x pro
    Yea that is where I have it, I went by your original post in the thread. The guy in the video went on top of that one instead. The #3 leaf and the d29xl seemed very very similar if not identical, could it be?

  14. Sep 5, 2019 at 2:36 AM
    #14
    DrFunker

    DrFunker Funkified!

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,439
    The far side.
    Going to revive this thread with a question.
    For anyone that has done this install...did it create a "pop" after installing?
    I have a modified (top OL leaf removed) with the AAL.
    There are anti-squeak pucks installed in the AALs as well.
    Just wondering if others have the "pop" as well.
    :hattip:

  15. Sep 5, 2019 at 5:14 AM
    #15
    geekhouse23

    geekhouse23 The "Liftman" - @DrFunker

    Joined:
    Jul 14, 2013
    Member:
    #108251
    Messages:
    13,482
    Gender:
    Male
    Vehicle:
    2GMGMDCSB4WDTRDFTMFW!! TL;DR
    mostly stock, grocery gettin' Prius
    Is the pop frequent? Does it happen while daily driving or just when cycling the suspension? Pics or video?

    DrFunker likes this.
  16. Sep 5, 2019 at 7:25 AM
    #16
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    20,327
    Gender:
    Male
    First Name:
    GHOST
    The pop is symptomatic of sudden movement somewhere in the rear suspension, meaning there's binding somewhere. That also means that there would be witness marks to that effect (paint rubbing off, metal gouged or scraped). I would personally check two places:
    First double check the torque on your u-bolts. U-bolt flips need copious torque way above factory specs, but even stock, I'd go güdentite (I forget what you have, Doc). It's common for the u-bolts to shift after initial install and that causes a pop, but it shouldn't be constant unless something is really loose so it's unlikely, but I'd still check.
    Second, check to make sure each individual leaf isn't shifting or rotating in the stack. They could be moving enough to bind or catch on the leaf spring on the rebound clip (had to look up what it's called, but this is the band or bracket that wraps around the leaf springs- picture below) or in the rear shackle and/or hanger. Look for worn or distorted rubber isolators in the rebound clips on the Dakar pack. This could also be a symptom of the center pin not properly torqued down (güdentite). Even if any of those components are close enough where you think they might make contact with each other, I'd look extremely close for indicators of such. It might be something as simple as tightening a random fastener or grinding down a sharp edge. Hope this helps.



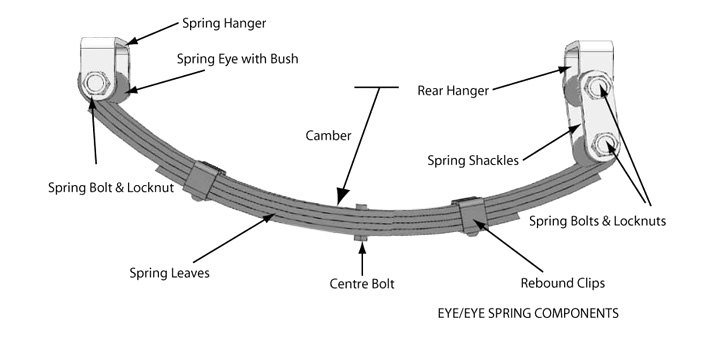

    DrFunker and geekhouse23 like this.
  17. Sep 5, 2019 at 1:32 PM
    #17
    DrFunker

    DrFunker Funkified!

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,439
    The far side.
    It does. I believe the pack is twisting in some way to create the pop. It is always happening when it is turning L/R on uneven surfaces.
    Thanks Liftman. :hattip:

    Yes. Exactly. I am attacking the rear this weekend to see what I can see.
    I did the front last weekend, as I thought that was the source of the issue.
    There was nothing up front that I could feel or see.
    I did retorque the U bolts (flip kit) after the initial install but haven't done them since.
    Will double check the center pins as well.
    Also going to check to front shackle bolts to be sure those are where they need to be.
    Thanks Ghost.:hattip:

    @Superman910 Check out the posts. I think this is where things may get solved for us.

    GHOST SHIP and Superman910 like this.
  18. Sep 5, 2019 at 2:52 PM
    #18
    Superman910

    Superman910 Epic Dirty

    Joined:
    Jan 28, 2017
    Member:
    #208888
    Messages:
    5,825
    Gender:
    Male
    First Name:
    Eric
    Northern Virginia
    Vehicle:
    2009 Tacoma TRD Sport DCLB 4x4
    Stock as Fuck or Not Fucking Stock
    You the man.

    DrFunker likes this.
  19. Sep 5, 2019 at 3:07 PM
    #19
    GHOST SHIP

    GHOST SHIP hates you.

    Joined:
    Mar 9, 2015
    Member:
    #150537
    Messages:
    20,327
    Gender:
    Male
    First Name:
    GHOST
    I'd take a real good look at the rebound clips. The rubber isolators on mine are all chewed up on the outer forward-most tab. Both sides are the same. Leads me to think that there's something "normal" about how they move under articulation. I actually don't have an AAL on mine but recently got a Wheelers AAL that I'll try and see if it's compatible with my setup.
    You may have to take the leafs (leaves?) out for this next part, but you can also looks at the bushing shoulders and make sure they're all intact. Even a small portion that is worn through could cause a clunk (from shifting in the shackle/forward hanger. When I did my refresh earlier this year, I used the Dobinson's bushings and they have a much thicker shoulder than the OME and Wheelers bushings. Might be an option for you is that's the case. Finger's crossed you figure it out.

    DrFunker likes this.
  20. Sep 5, 2019 at 3:19 PM
    #20
    DrFunker

    DrFunker Funkified!

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,439
    The far side.
    Will check the isolators. Wonder if they are replaceable. :rolleyes:
    I did the front bushings last year, after reading your posts about changing them. I think the ones that I put in were Energy Suspension.
    Will torque things to spec and then if there are still issues, I will have to pull the packs back out and go hunting.
    Thanks man. Really appreciate you taking the time.

    GHOST SHIP likes this.
