On Board Air install (lots o' pics)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by tooblutacoma06, Apr 6, 2011.

  1. Apr 6, 2011 at 8:15 PM
    #1
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Finally getting around to doing a write-up on this. It's been completed for a few months now. Atleast this way I can give a little feedback on the functionality:D

    Compressor: From seller SafeVehicleProducts on eBay. Evidently he's not selling compressors anymore but its identical (specs and looks) to the VIAIR 350C. 100% duty cycle with ~1.2cfm. Although it states it's 200psi capable, I won't ever need to drive it that high.

    Tank: VIAIR 2.5 gallon 200 psi tank. VIAIR 2.5gal tank The perfect size to fit in the spare tire cavity

    Wiring: 10 AWG since wiring long runs

    Hose: 3/8" ID hose (from Lowe's)

    Fittings: All types. These things suck to find and plan for. They are never as cheap as you would want them to be either. I did find some quick connect couplers that I like though. They are made by Legacy: Legacy ColorConnex couplers

    And lots of other miscellaneous stuff.

    On to some pictures:

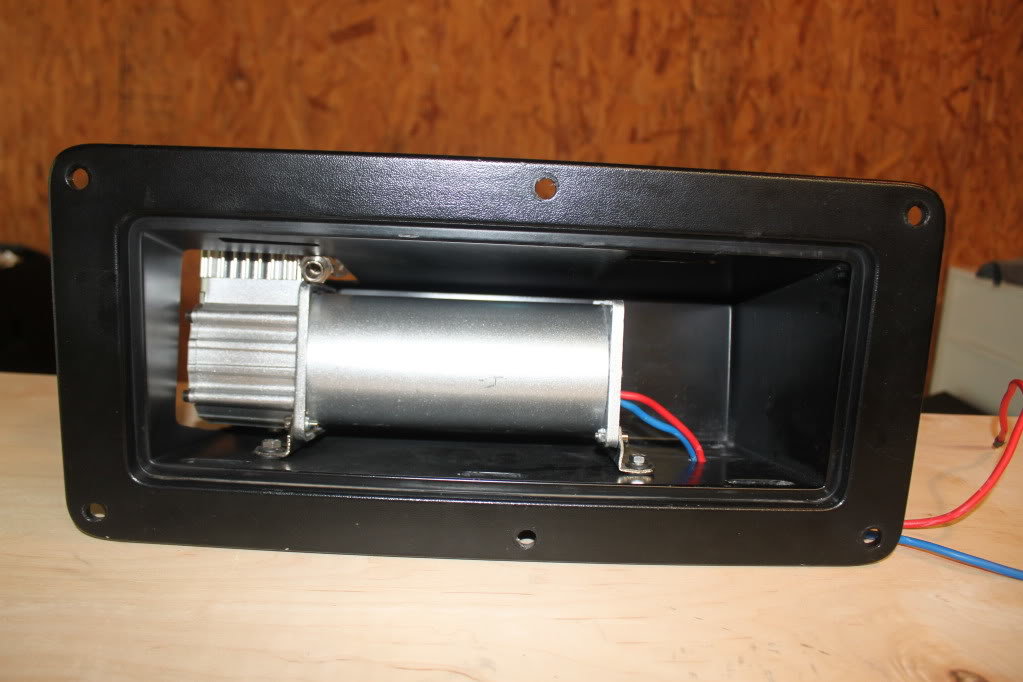

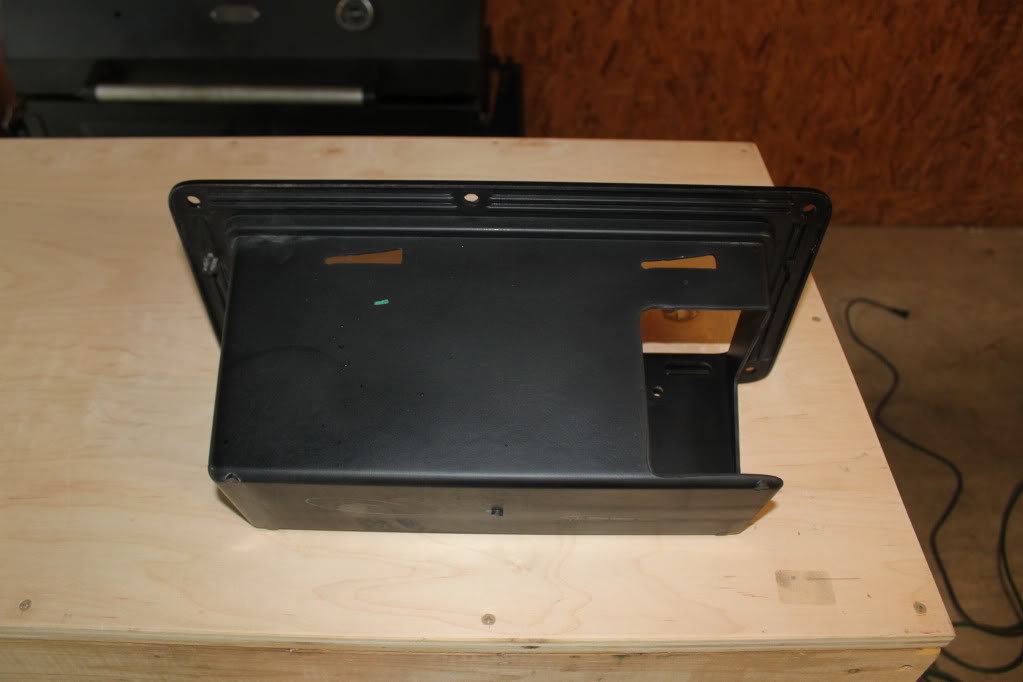

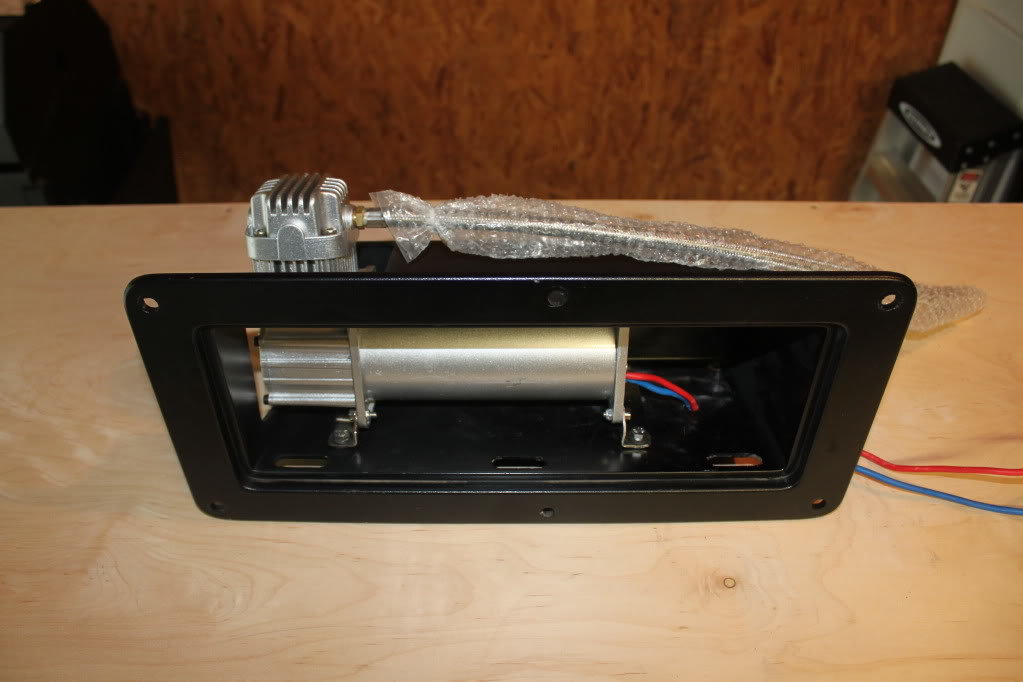

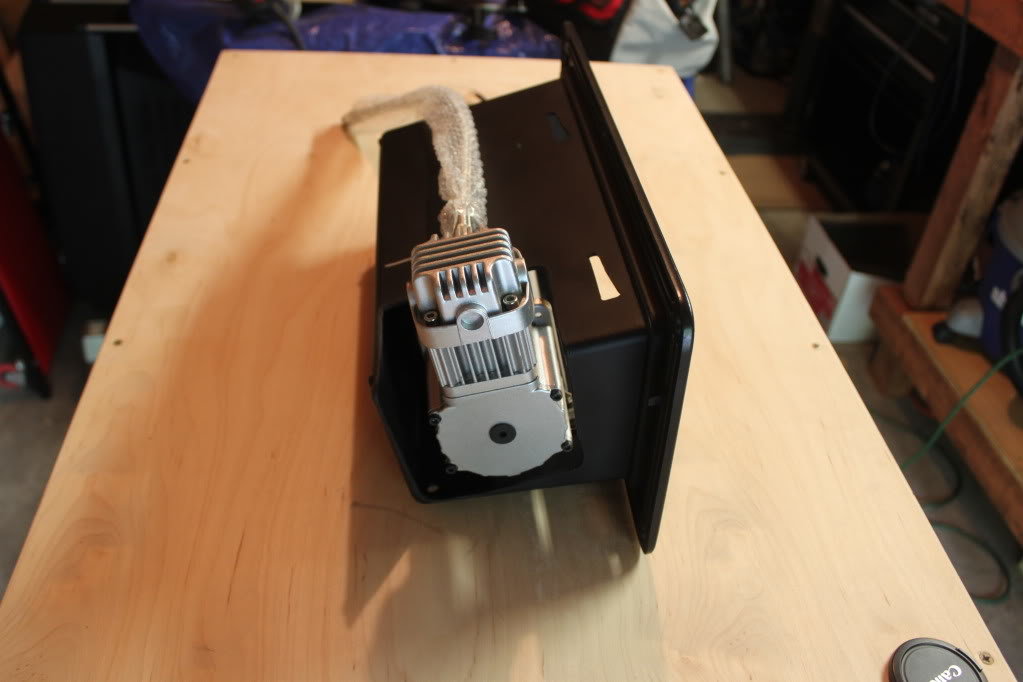

    Started by finding a place to mount the compressor. I've seen this done before and it was the best place I could find to put it. Where it would be mostly protected and would be in my way under the hood.

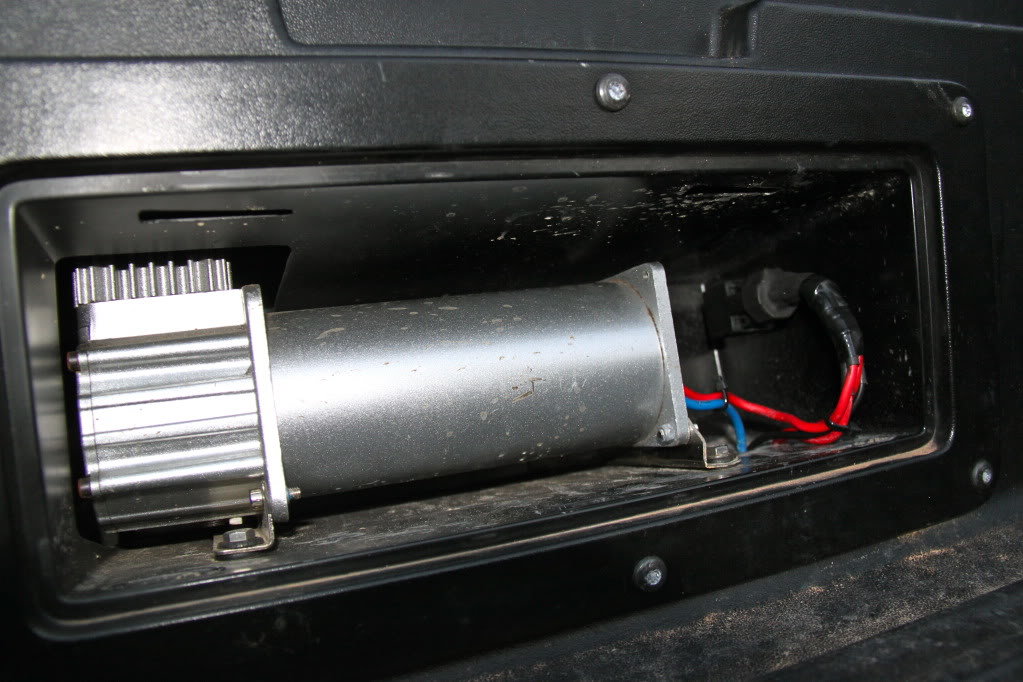

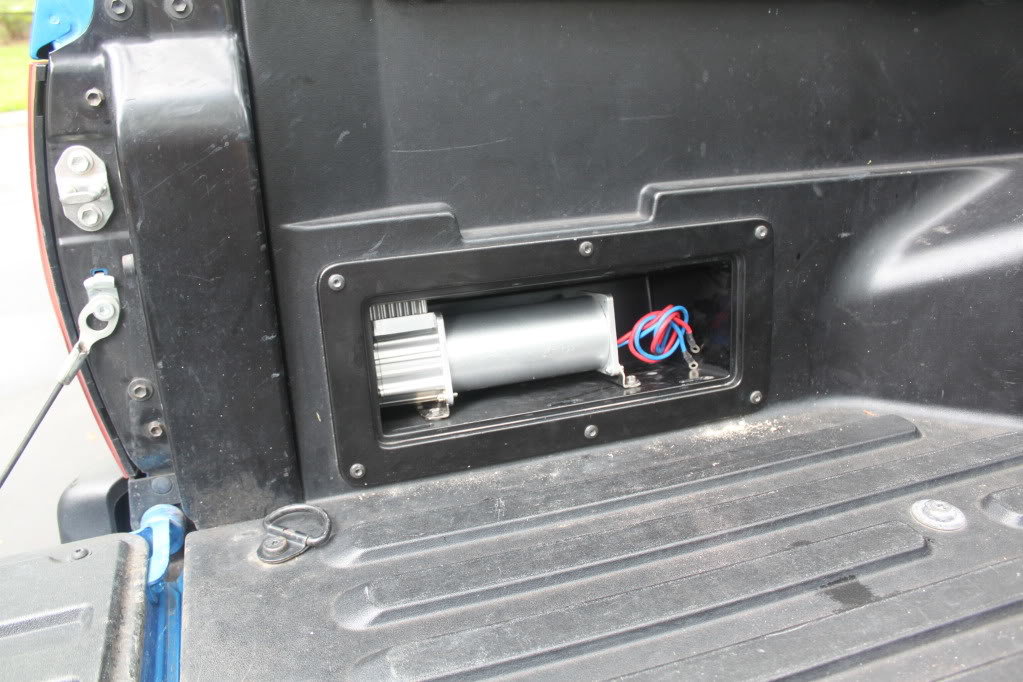

    And back in the truck:

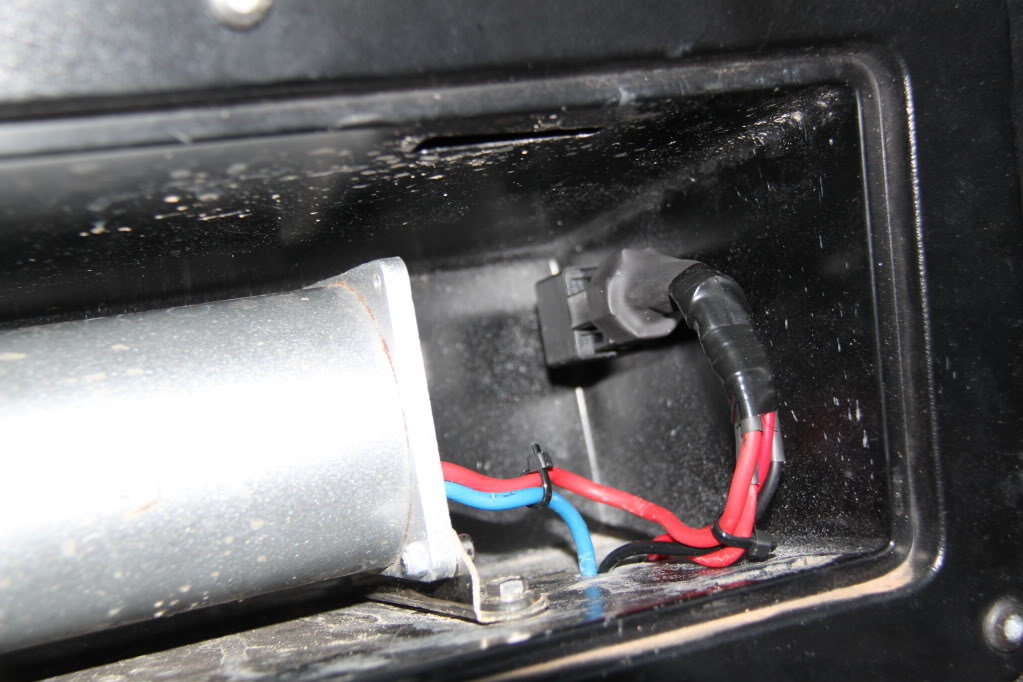

    Wired in the relay:

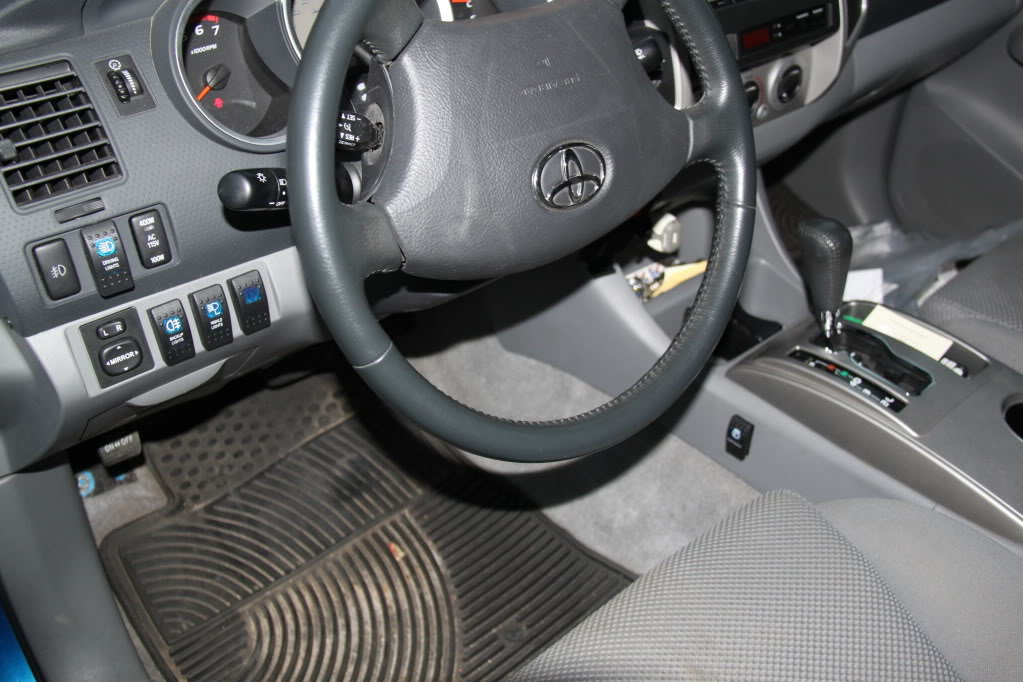

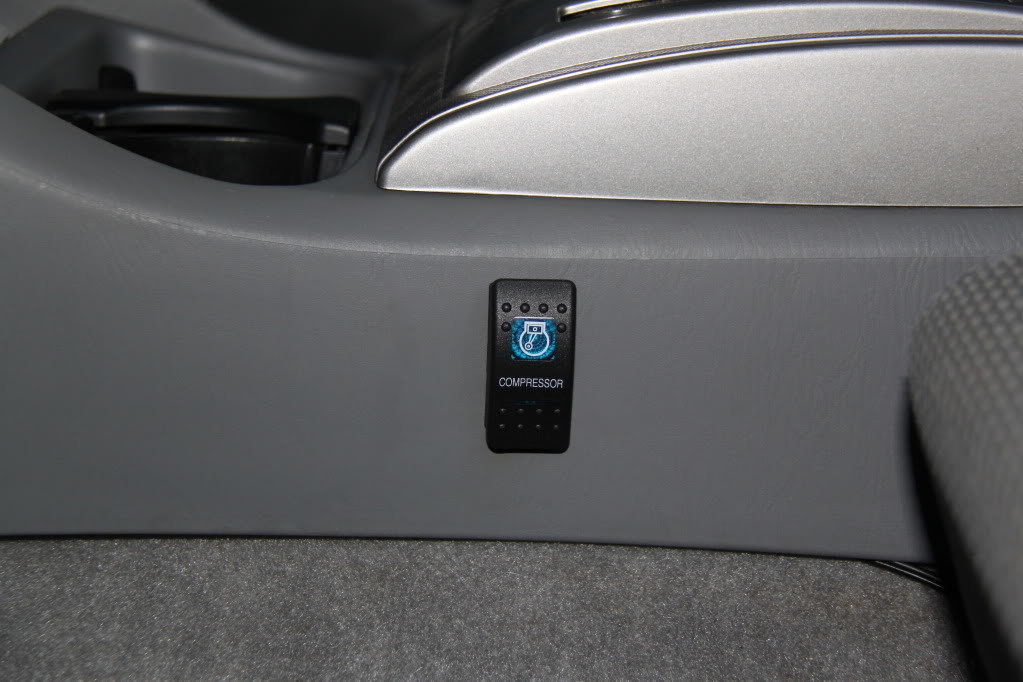

    Needed to find a place to put the switch, so I came up with this location. I actually like the location alot. Can't be seen from the rest of the vehicle's seats so it's kinda stealthy, atleast until you open the driver's door.

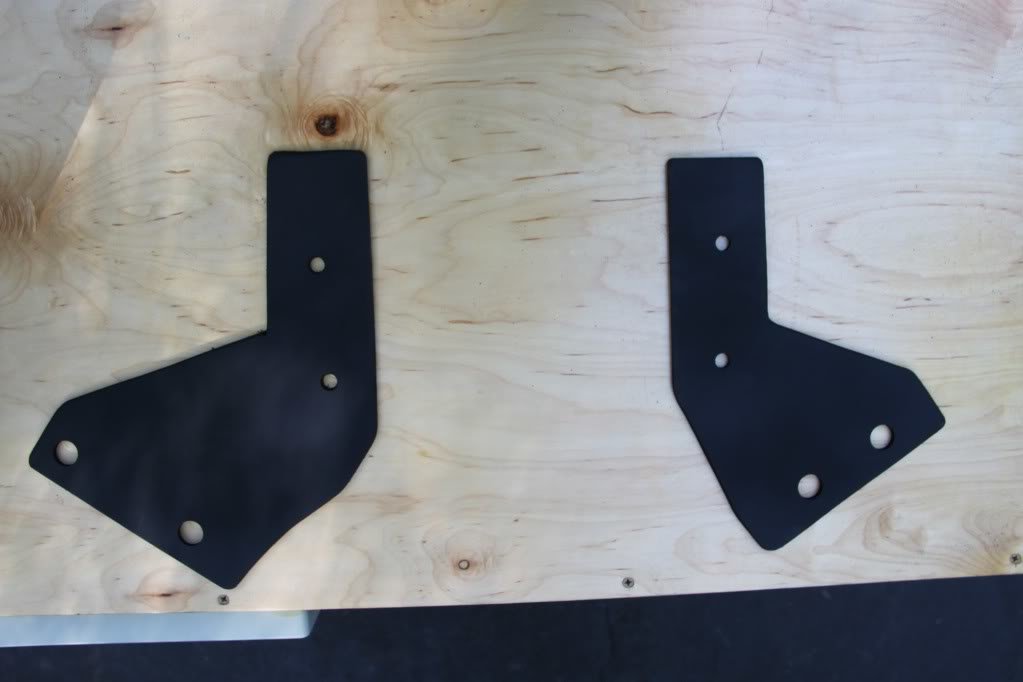

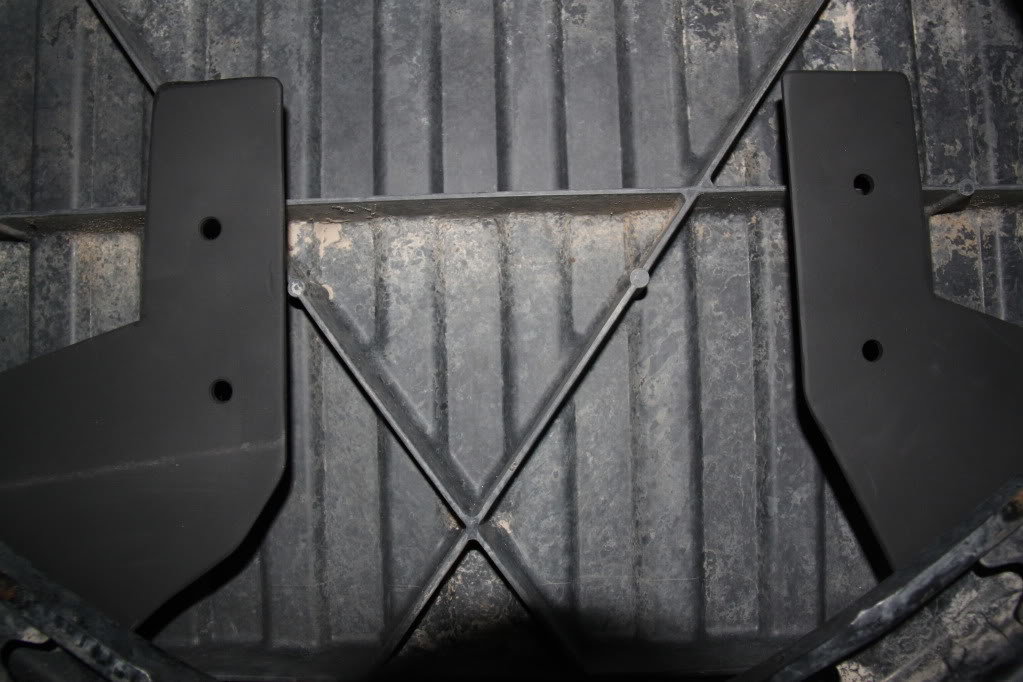

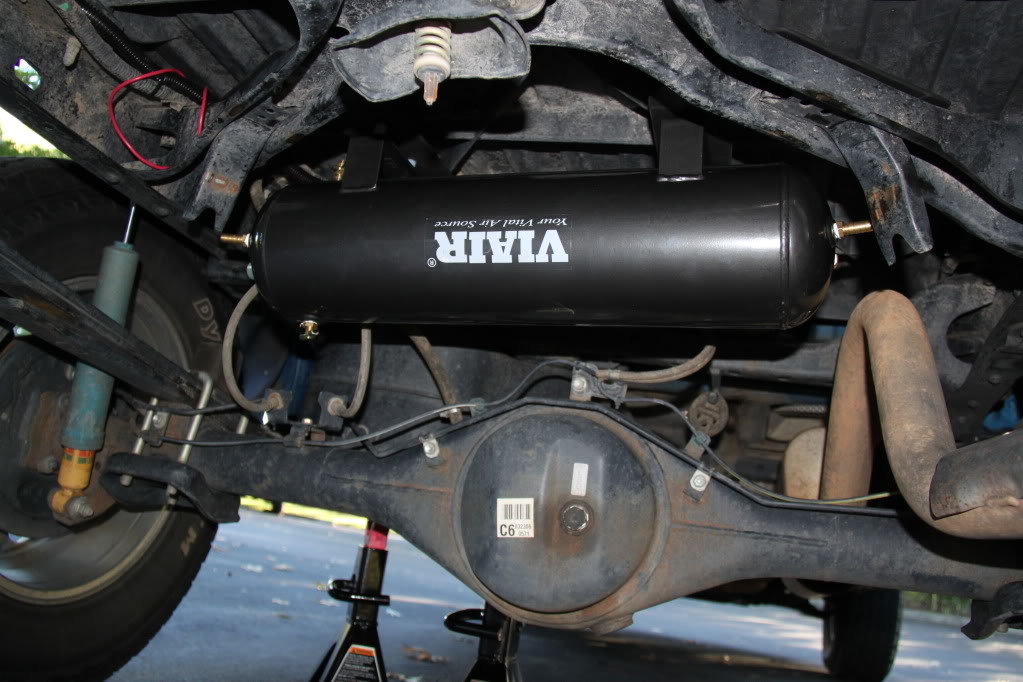

    Now I needed to mount the tank. Removed the spare since that is really the only place, besides the bed, that can handle a tank of useful size. Fabbed up some brackets of 3/16" steel, and it mounted up easily. It's tucked up out of the way but still easy to get to for draining.

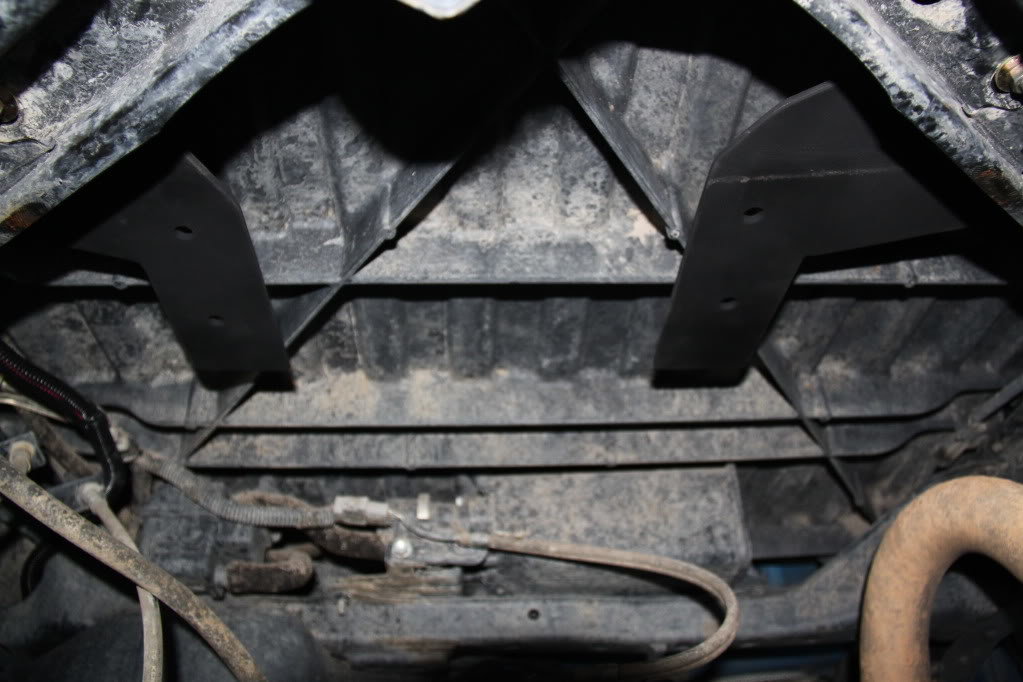

    Can barely seem them in the picture, but I cut some spacers (white in the picture) that mount between the tank and the bracket on the drain side. This is so that the moisture will make it to the drain. It's a very slight angle. The spacers might be 1/4".

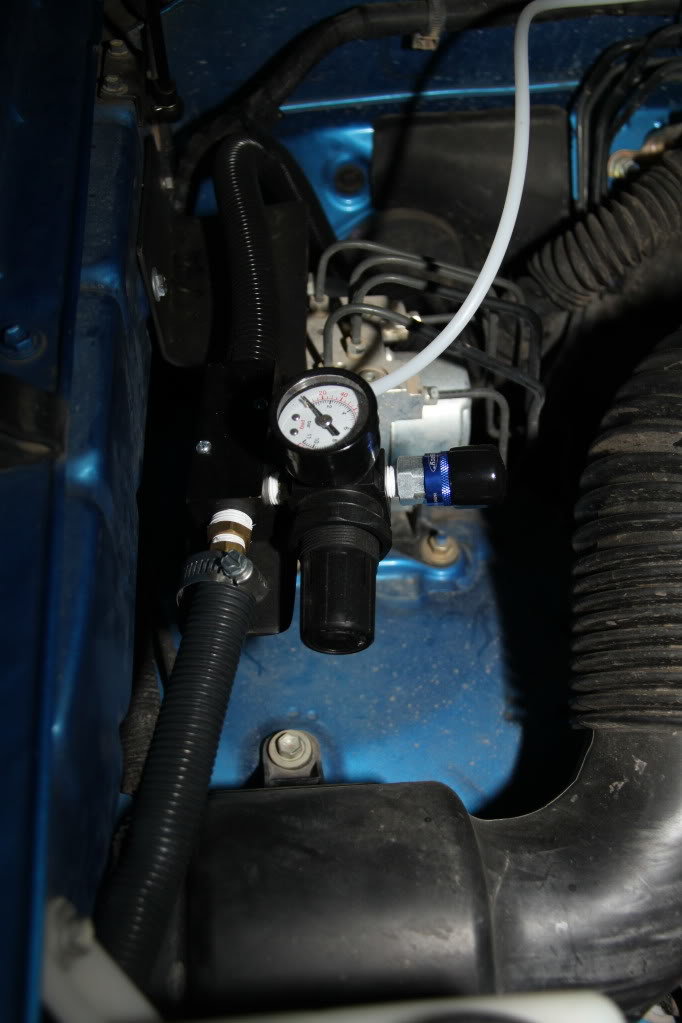

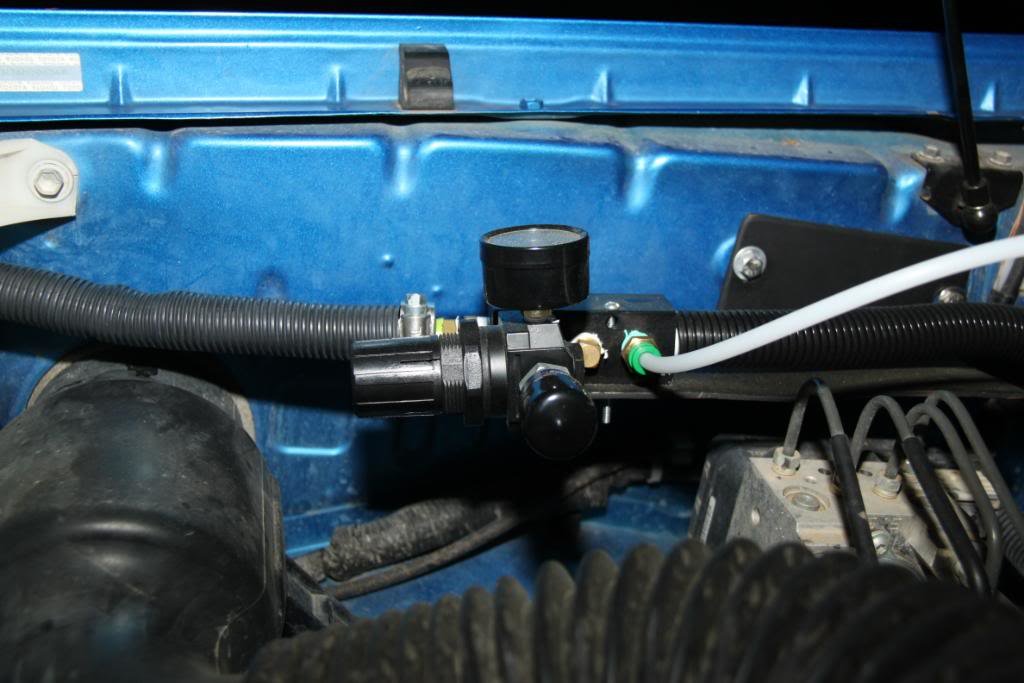

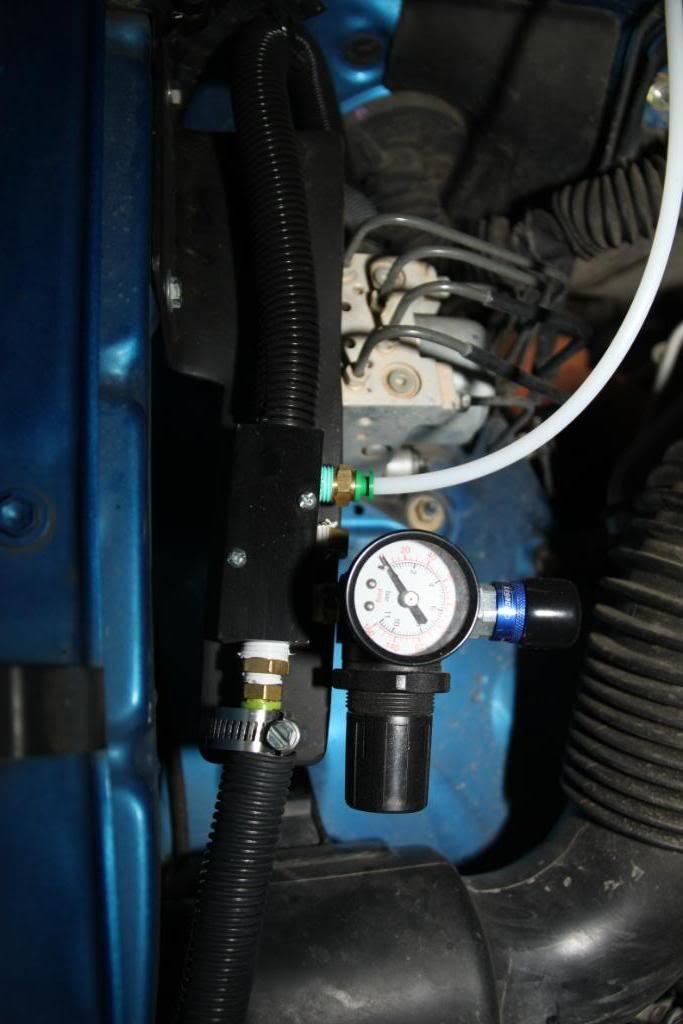

    Now the business end of the system. I fabbed up yet another bracket to hold a manifold in the engine bay. It mounts to the pre-tapped holes in the fender. Manifold is 2x 3/8", 3x 1/4"NPT. The 3/8" in comes from the tank in the back, the 3/8" out goes to my horns, 1 1/4" goes to the regulator, 1 1/4" goes to gauge, and the last one is capped for now. This setup has worked awesome so far. Oh, the black thing on the end of the coupler is just a little rubber cap to keep dirt out.

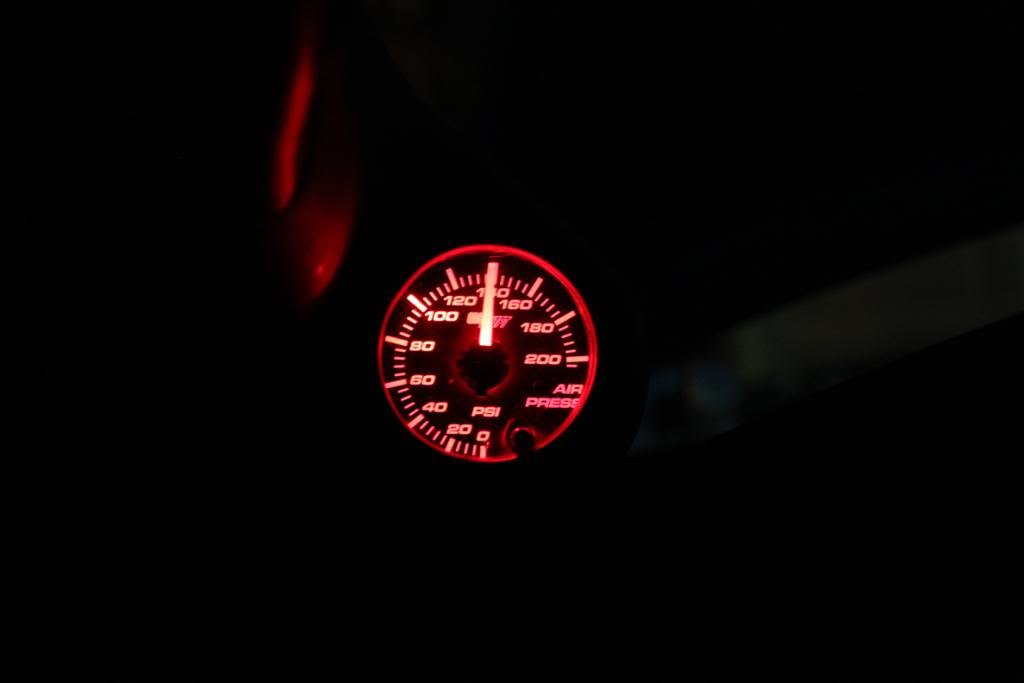

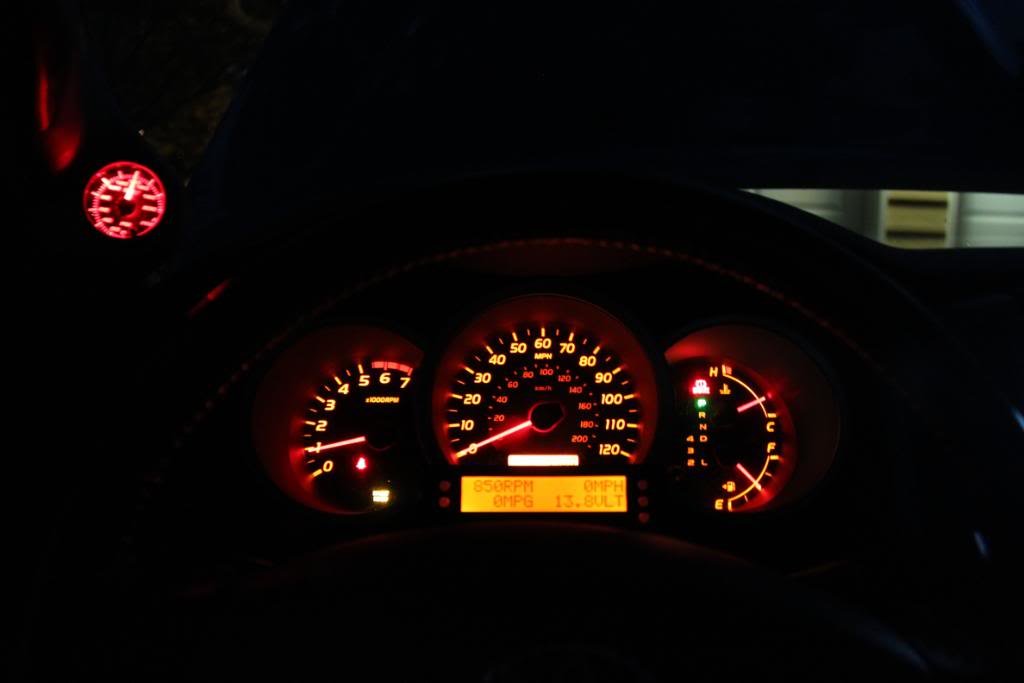

    The air pressure gauge inside the cab is from GlowShift: GlowShift gauge Honestly, the gauge is cheap. The bezel is flimsy and easily dented, the wiring is silly, and overall feel is a 6-7/10. Haven't tested its accuracy though. It's an OK buy for an inexpensive gauge, but if I were doing multiple gauges, I would probably invest in a little more well built unit. The color adaptability is a nice feature though.

    So you'll notice that the gauge is tilted here. That's because I'm still working on my pillar pod and the fit is really tight with the gauge. I'm living with it for now.


    That's it for now. The system has been used several times. I've aired up several tires and used the blowgun with it several times and it has performed well. Don't have times though. I haven't run any air tools with it, mainly because I don't own any, but I plan to test some out on it.

    That's it for now. Let me know what you think!

    fla_sun likes this.
  2. Apr 6, 2011 at 8:18 PM
    #2
    REVHARD25

    REVHARD25 Well-Known Member

    Joined:
    Mar 5, 2008
    Member:
    #5113
    Messages:
    852
    Gender:
    Male
    so cal
    Vehicle:
    RUGGED TRAIL PACKAGE
    Tint on front windows. Dnx7120 kenwood. Rear tsb springs. Wet okoles seat covers UWS truck box Weathertech floor mats TSB floor mat hook grommets Satoshi grill AFE drop in filter Fumoto drain valve Bed mat
    Great job..looks nice

  3. Apr 6, 2011 at 8:19 PM
    #3
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,615
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    nice job man!

  4. Apr 6, 2011 at 8:21 PM
    #4
    ttran

    ttran Expert Mallcrawler

    Joined:
    Jan 9, 2011
    Member:
    #48975
    Messages:
    893
    Gender:
    Male
    First Name:
    Tim
    Charlotte, NC
    Vehicle:
    06 DCLB Prerunner Sport
    TRD Sport Prerunner
    Looks pretty good! I'm planning on getting on board air on my tacoma soon, just building up the funds now :D

  5. Apr 6, 2011 at 8:21 PM
    #5
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    6,005
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Lockers, CBI/Relentless/Pelfrey armor, HAM radio
    Looks nice. Good writeup.

    Where is your spare going to go? Does it end up taking more space than the air tank would have?

  6. Apr 6, 2011 at 8:24 PM
    #6
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,313
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    Nice man! As always a well detailed write up!

  7. Apr 6, 2011 at 8:25 PM
    #7
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    330
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Nice write-up, thanks for taking your time. Onboard air system is on my list of things to do, but will have to wait for now. There are a lot of things I would like to do first

  8. Apr 6, 2011 at 8:39 PM
    #8
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Thanks guys! Hopefully it will be of use to someone in the future. That's why I take so many pictures! I always need more info than I can find it seems.

    Since you asked...Custom tiregate build :D

    So nope, doesn't take up any of my bed space. Before the gate, I had the spare in the basket on top.

  9. Apr 6, 2011 at 8:55 PM
    #9
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Nice! very clean!

  10. Apr 6, 2011 at 8:55 PM
    #10
    kinkrider101

    kinkrider101 Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,676
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    Were did you run the compressor wires? Did you go under the drivers seat?

  11. Apr 6, 2011 at 9:05 PM
    #11
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Yep, through one of the rubber grommets. Sealed it with some RTV. Then along the frame bundled up in some loom.

  12. Apr 6, 2011 at 9:11 PM
    #12
    kinkrider101

    kinkrider101 Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,676
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    Did you run the power wire for the switch and the compressor through firewall that leads to the engine bay? I ask because I can't find a way to wire something from the bed and have the wires directly lead to the engine bay

  13. Apr 6, 2011 at 9:37 PM
    #13
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    The switch in the cab only activates the relay. I'm pretty sure I ran the power wire up the inside of the fender, keeping it away from any hot surfaces, and loomed it ofcourse. It's been a little while since I did it! Haha, I'll have to check and make sure, but I'm about 98% sure that's what I did.

  14. Apr 6, 2011 at 10:27 PM
    #14
    toku58

    toku58 Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,022
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    From the picture it looks like when you rear squats it might hit the tank? Or is it just the angle of the picture?



  15. Apr 7, 2011 at 7:32 AM
    #15
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    289
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Just the angle. It's away from the axle enough to where it wont hit. I'll try and get some more pictures of the clearance.

  16. Apr 7, 2011 at 12:36 PM
    #16
    THExBUSxDRIVER

    THExBUSxDRIVER Victory is reserved...

    Joined:
    Mar 19, 2010
    Member:
    #33508
    Messages:
    4,135
    First Name:
    GOO5E
    Vehicle:
    Old Man Tan!
    Not enough.
    I NEED on board air...sometimes

    thepolarbear likes this.
  17. Aug 20, 2011 at 12:28 AM
    #17
    Hayes

    Hayes Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60946
    Messages:
    638
    Gender:
    Male
    First Name:
    Brandon
    Denver, CO
    Vehicle:
    2011 Regular Cab Tacoma 4x4
    Any updates on how well this works? I have a different mounting idea, but this is the system that I would like to run.

  18. Aug 20, 2011 at 5:06 AM
    #18
    Hanz

    Hanz Well-Known Member

    Joined:
    Feb 22, 2008
    Member:
    #4883
    Messages:
    139
    Gender:
    Male
    First Name:
    Doug
    Long Island, NY
    Vehicle:
    2003 Tacoma DC 4X4 TRD
    LED Instrument lights
    I haven't seen this thread before. Really nice job with the write up and install. Very well thought out project.

  19. Aug 20, 2011 at 5:50 AM
    #19
    HomerTaco

    HomerTaco TOYWERX Grill Sergeant Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    35,646
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    This thread is WIN!

    I just read through your other write-ups as well.:cool:

    You have some excellent fab skills buddy. :bowdown:

    Here are some more green squares for ya...;)

    +1 for mad skills.:D

  20. Aug 20, 2011 at 12:22 PM
    #20
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    5,241
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Can't you just run a pressure regulator relay? That way the pump just comes on when the air pressure gets low to a certain point? I would think that would be better than running a dedicated switch no?
