On board air install

Discussion in 'Florida' started by GuyHuey, Feb 17, 2012.

  1. Feb 17, 2012 at 7:34 PM
    #1
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    Amazon prime got me today! You got to love or hate it.

    In preparation for my ARB rear locker I ordered a Viair constant air supply from Amazon.

    Got a free day from the wife and kids so hopefully I can get it all hooked up.

    Toward the end of the month I'll pull the trigger on a complete 3rd with the locker installed, it seems the best way to go. This way I'll have a spare 3rd with 5.29 gears when I do the SAS.

    Always open to some wheelin,

    Guy Huey

  2. Feb 17, 2012 at 7:39 PM
    #2
    Maverick904

    Maverick904 Resident Fishing Expert

    Joined:
    Sep 21, 2009
    Member:
    #23084
    Messages:
    4,938
    Gender:
    Male
    First Name:
    Kameron
    Northeast Florida
    Vehicle:
    08 TRD Rugged Trail 4x4
    3" Procomp Lift, BDF Light Bar, Borla Stainless Cat-Back System, 2 10" Polk MM Subs, LED Interior Lighting, Pioneer Touch Screen, Kicker Speakers up front, Sonys in the back, Grillcraft grill, 20% tint, Weathertechs, Projector Retrofit Headlights. BHLM
  3. Feb 18, 2012 at 5:54 PM
    #3
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    Fed Ex got here a little later than I hoped. So I only got the mounting bracket built and the gauge/ on off switch done.

    The kit is pretty complete, it has everything for a basic install. I debated installing the compressor under the truck, but have decided to place it where my stock bottle jack was.

    The first picture shows most of the kit.

    [​IMG]

    This shows where the tank will go, using the old spare tire mount holes.

    [​IMG]

    This shows the mounting bracket as I was welding it up. Still new to welding, some good, some okay.

    [​IMG]

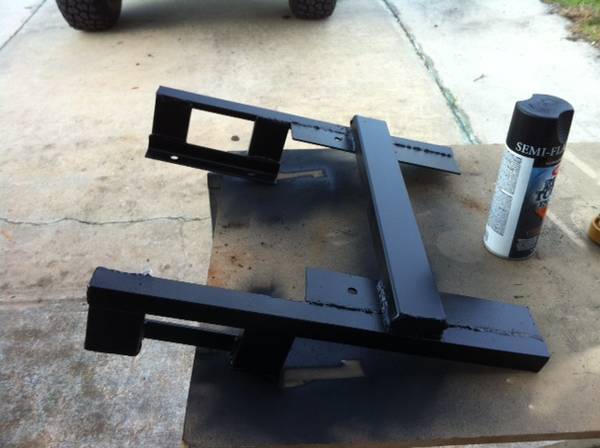

    Last is the bracket painted, it's upside down.

    [​IMG]

    Here's a recent picture of my truck. Had just finished installing the 4XInnovations rock sliders my wonderful wife got me for Christmas.

    [​IMG]

  4. Feb 19, 2012 at 4:21 PM
    #4
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    Still have to finish the plumbing and the wiring. The wiring should be easy, I have a 4 gauge run to a distribution block already in the back.

    This is the mount mocked into position.

    [​IMG]

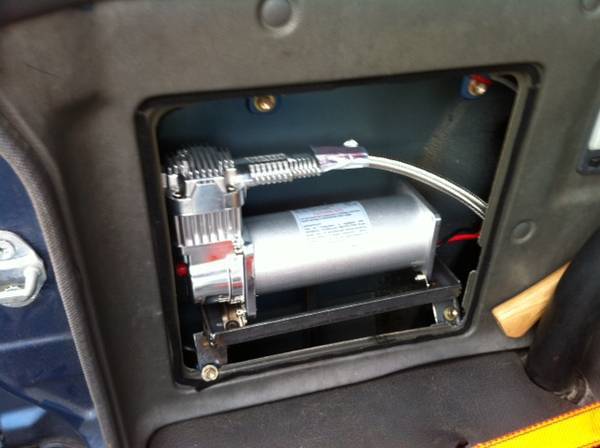

    The compressor on the mount, all painted

    [​IMG]

    On/off switch and gauge mounted in the dash

    [​IMG]

    Guy,

  5. Feb 19, 2012 at 4:44 PM
    #5
    RV7Garage

    RV7Garage R.O.U.S.

    Joined:
    Sep 6, 2009
    Member:
    #22358
    Messages:
    630
    Gender:
    Male
    First Name:
    Paul
    Ill Annoy
    Vehicle:
    2012 DCSB Offroad, Nautical Blue
    Disable DRL, Jailbreak Fog Lights, ARE topper
    Good looking install

  6. Feb 19, 2012 at 8:11 PM
    #6
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    Thanks, hopefully I can finish it up soon.

    Guy,

  7. Feb 19, 2012 at 8:15 PM
    #7
    luk8272

    luk8272 Poodoo

    Joined:
    Feb 24, 2008
    Member:
    #4929
    Messages:
    5,842
    Gender:
    Male
    First Name:
    Lucas
    Kaplan, Louisiana
    Vehicle:
    07 Silver4dr. 4x4, V6 Shortbed
    5% Tint, Bug flector, vent Visors, Removed secondary air filter, Rear Spring TSB w/ Wheeler's Add A Leaf HD Pack, Icon 2.0 rear shocks, Toytec 3" lift up front with Total Chaos UCA's, Debadged, Billet Grille,TRD Offroad rims/17x9 Pro comp 6001 rims, Duratracs 265/75/16 or 285/70/17, Fog light anytime mod, Tailgate hose clamp mod, Pro-dry AFE filter. Extended Differential Breather, ABS on/off, 6000k LEDs from CSJumper, heads/fogs, ScanguageII, Devil horns, Devil horns on third brake light, Mounted 60" Highlift, Mounted Tool Box, Wet Okole Front/Rear Seat Covers, TW sticker, Midland Handheld CB,Painted engine cover, Revenge Fab Sliders, ARE Topper, Weather tech Floorliners.
    Looking Nice and Clean.

  8. Mar 11, 2012 at 9:12 AM
    #8
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    Finished up the install. The tank is mounted and all the lines have been run.

    Next up will be an ARB locker. I ordered a complete 3RD from Frontier, great price and free shipping. It should be here this Wednesday and i'm taking a day off on Friday to plug it all in.

    [​IMG]

    EDIT: just noticed you can see a bent leaf in the passenger side pack. Had to be from Citrus, I was getting a bunch of wheel hop on some of the climbs.

  9. Apr 29, 2012 at 2:22 PM
    #9
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    I added a regulator so I can lower the air pressure to 95lbs for the ARB. I need to drill and tap the manifold, then I can use the factory bolt to attach it. That will be a lot nicer than the super cool purple zip ties! I'll also clean up the wiring a bit, then put the trim panels back in.

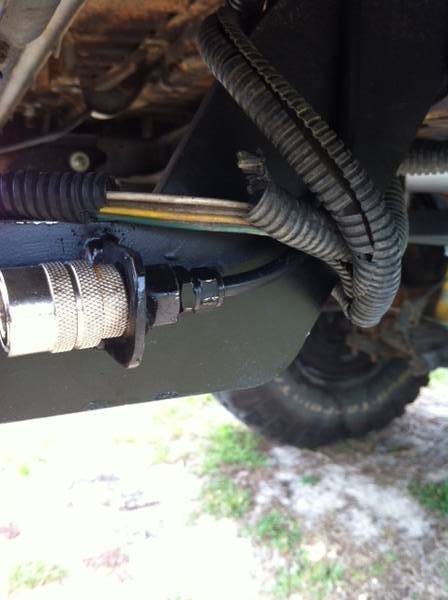

    I also welded a little tab under my bumper for an air chuck.

    [​IMG]


    [​IMG]

  10. Apr 30, 2012 at 3:37 PM
    #10
    Jon4x4

    Jon4x4 I said MEOW!!!

    Joined:
    Nov 2, 2009
    Member:
    #25293
    Messages:
    1,918
    Gender:
    Male
    First Name:
    Jonathan (Jon)
    Daytona bruh
    Vehicle:
    2005 pink taco
    Billies, toy tec springs and camburg UCAs, and of course the heavy right foot mod
    the air chuck is the best part. great for airing down and what not

  11. May 10, 2012 at 5:25 PM
    #11
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    When I first installed the on-board air system I used Teflon tape to seal it. It would leak down from 150psi to 125psi in only 20 minutes. Well that wasn't going to work, I didn't want the compressor coming on that often when I was just using the rear locker.

    Did some research and found out that Loctite makes an air and hydro sealant, Loctite 545. I took apart the air manifold and sealed all the connections along with the connections to the tank. Well It hasn't lost 1 psi in the last 1:45!:)

    Make sure if you use Loctite 545 you let it cure for 24hrs.

    Guy,

  12. May 10, 2012 at 5:49 PM
    #12
    GuyHuey

    GuyHuey [OP] Up is difficult. Down is dangerous.

    Joined:
    Mar 28, 2011
    Member:
    #53917
    Messages:
    717
    Gender:
    Male
    First Name:
    Guy
    Holiday, Florida
    Vehicle:
    89 4Runner
    Ball joint spacers and lift blocks, am I doing it right?
    The 545 can be pricey, cheapest place I could find online was MRO Center. Came to 14 bucks shipped, some wanted 30.

    Guy,
