"Onboard Air system"

Discussion in '2nd Gen. Tacomas (2005-2015)' started by toku58, Jul 5, 2009.

  1. Jul 5, 2009 at 12:15 PM
    #1
    toku58

    toku58 [OP] Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,026
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    Here my onboard air system project.

    I purchased a MasterFlow 50 compressor from CostCo $49.

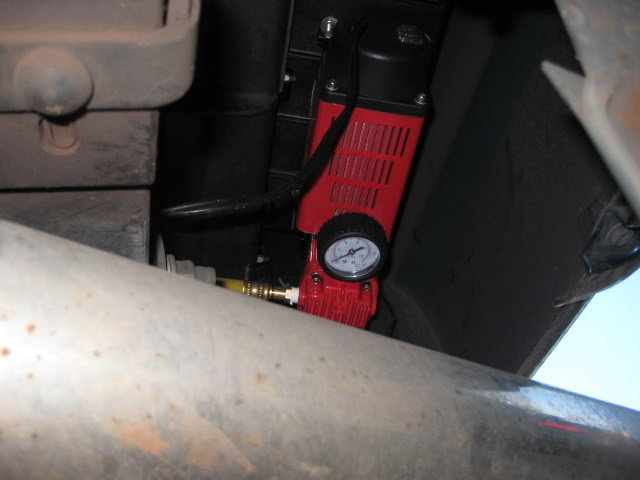

    Mounted it under the side compartment of the bed:
    [​IMG]

    Picked up a 9 gal air off Ebay, made custom brackets to bolt it up to my tow hitch. (I didn't want to drill anything)

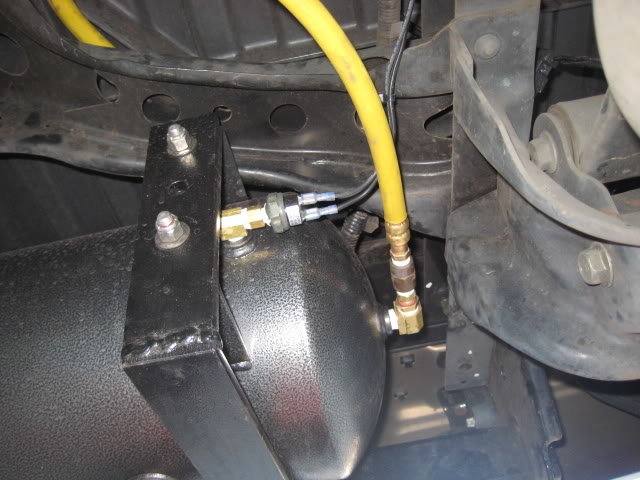

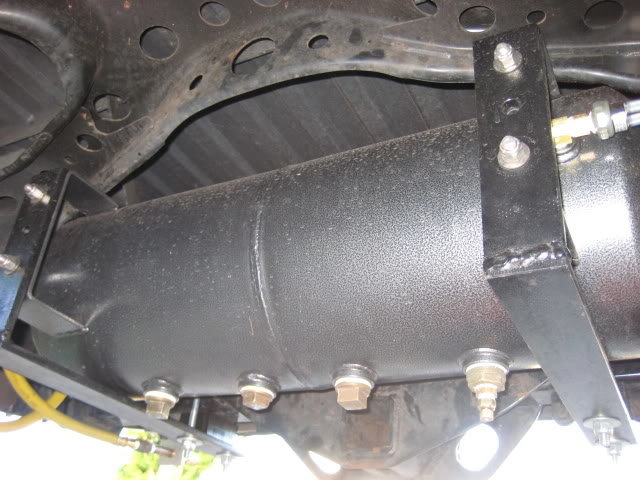

    [​IMG]

    [​IMG]

    [​IMG]

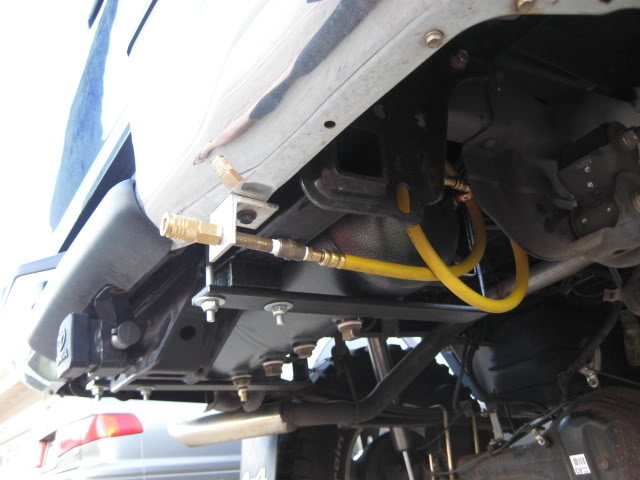

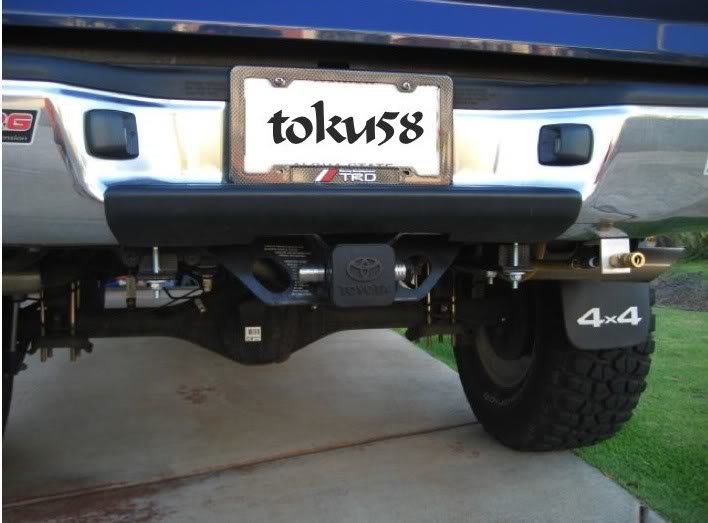

    Wired it up and Mounted the fitting to the bumper and called it a day.
    [​IMG]


    Oh? I don't carry a spare so I had the room under there.:D

  2. Jul 5, 2009 at 12:20 PM
    #2
    Chad

    Chad Rand Paul 2016

    Joined:
    Oct 2, 2008
    Member:
    #9636
    Messages:
    2,365
    Gender:
    Male
    First Name:
    Chad
    Raleigh, NC
    Vehicle:
    09 V6 Access Cab TRD Sport
    Pioneer AVIC-X920BT Headunit -- BHLM -- Pioneer TS-A1685R 4-way Coax Speakers in Front -- Suntek CXP 40 Front Tint -- Access Vanish Roll-up Tonneau -- Wet Okole Seat Covers -- Fog Lights on Anytime -- PnL Powered Tailgate Lock -- DTRL "Stealth Mode" -- LED Footwell and Cup Holder Lights -- Map Lights ON with Dome Light -- Shorty Antenna -- AC Line Extension Mod -- 09+ Access Cab Rear Headrest Removal
    this is pretty sweet dude!

  3. Jul 5, 2009 at 12:34 PM
    #3
    aces2

    aces2 Senior Arshole

    Joined:
    Jun 5, 2008
    Member:
    #7120
    Messages:
    846
    Gender:
    Male
    First Name:
    Cody
    Hampton, VA
    Vehicle:
    08 SR5 RR AC 4x4
    Flowmaster 40, K&N CAI, RED brake light bulbs, BHLM, Rear dif breather line, Factory Skidplate painted BLACK, DRL's, YELLOW bulbs in Fogs Turn Signals and Marker lights, Custom "Toy Machine" center emblem, Sockmonkey "Nor-Cal" decals all BLACK, Redline tailgate damper and hood sruts, Painted steering wheel emblem BLACK, 12V always on, Foglight mod, 16" Pro-Comp 7089 rims BLACK powdercoated acorn lugnuts, BFG KM2's 285-75-16, Painted exhaust pipe BLACK, BLACK emblems all the way around, Rear BLACK bumper from base model, Radical RED "sport" grille-surround, Factory Toyota Bed extender, RED maglight mounted on each seat's side, TRD ball-type shift knob, Custom mounted Scangauge II under stereo, Aftermarket HU, Hardwired Garmin GPS 260W, TSB w/AAL and 2.5" 5100's, Weathertech floor liners, Removed front mud flaps, 95-04 "4WD" rear mudflaps, 3rd Brake light "TACO", BLACK front lip
    Didn't you do that a couple months ago? I remember seeing those exact same pictures...

  4. Jul 5, 2009 at 12:37 PM
    #4
    toku58

    toku58 [OP] Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,026
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    Yeah I did all these mods a while ago. It was posted on another forum. I just figured people here might be interested.

    I sort of ran out of ideas for my truck? Haven't done any new mods lately.:(

  5. Jul 5, 2009 at 12:37 PM
    #5
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,560
    SoCal- SGV
    ^.....regardless if it was...still a very clean install with a good deal of attention to detail...has me thinking..

  6. Jul 5, 2009 at 12:40 PM
    #6
    aces2

    aces2 Senior Arshole

    Joined:
    Jun 5, 2008
    Member:
    #7120
    Messages:
    846
    Gender:
    Male
    First Name:
    Cody
    Hampton, VA
    Vehicle:
    08 SR5 RR AC 4x4
    Flowmaster 40, K&N CAI, RED brake light bulbs, BHLM, Rear dif breather line, Factory Skidplate painted BLACK, DRL's, YELLOW bulbs in Fogs Turn Signals and Marker lights, Custom "Toy Machine" center emblem, Sockmonkey "Nor-Cal" decals all BLACK, Redline tailgate damper and hood sruts, Painted steering wheel emblem BLACK, 12V always on, Foglight mod, 16" Pro-Comp 7089 rims BLACK powdercoated acorn lugnuts, BFG KM2's 285-75-16, Painted exhaust pipe BLACK, BLACK emblems all the way around, Rear BLACK bumper from base model, Radical RED "sport" grille-surround, Factory Toyota Bed extender, RED maglight mounted on each seat's side, TRD ball-type shift knob, Custom mounted Scangauge II under stereo, Aftermarket HU, Hardwired Garmin GPS 260W, TSB w/AAL and 2.5" 5100's, Weathertech floor liners, Removed front mud flaps, 95-04 "4WD" rear mudflaps, 3rd Brake light "TACO", BLACK front lip
    Yeah, I just didn't notice he was transferring his mods from TN to TW, but now I see... it was a brief moment of Deja Vu...

  7. Jul 5, 2009 at 12:42 PM
    #7
    JimBeam

    JimBeam BECAUSE INTERNETS!! Moderator

    Joined:
    Apr 14, 2008
    Member:
    #5966
    Messages:
    41,923
    Gender:
    Male
    First Name:
    JB
    Vehicle:
    2014 DCSB TRD 4x4
    id be worried about smashing the tank or the bracket on a rock

  8. Jul 5, 2009 at 12:43 PM
    #8
    DanGer

    DanGer Avatar approved by 98tacomav6

    Joined:
    Jun 7, 2008
    Member:
    #7155
    Messages:
    5,494
    Gender:
    Male
    Northern Virginia & Blacksburg
    Vehicle:
    07 Base 4Cyl 4x4 Manual
    White Head Light mod, White shorty antennae, Doug Thorley Long Tube headers, AFE Drop in air filter, Secondary Air Filter Removed,
    Those must be some vicious malls you crawl!

  9. Jul 5, 2009 at 12:51 PM
    #9
    toku58

    toku58 [OP] Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,026
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    yeah! Running over those soccer moms to fight for a parking is brutal!:D

    But as you can see the hitch is the lowest point of the rear, so that would drag before the tank hits.

  10. Jul 5, 2009 at 4:50 PM
    #10
    BeachBoy

    BeachBoy Well-Known Member

    Joined:
    Apr 10, 2009
    Member:
    #15819
    Messages:
    657
    Gender:
    Male
    VT & QC
    Vehicle:
    '09 DC LB Sport+Leather
    Icon Extended COs / Camburg UCA / ATX Predator Teflon / Mickey Thompson MTZ / Color-Matched emblems / All-Pro Bumper & skids / Stubbs HD-SKO / Alcans custom leafs / U-Bolt flip / Icon rear resi shocks / Rear Bumper
    how long to fill your tire from 10psi? This compressor seems very slow, as soon as your tank is empty it must take forever to fill up.

    and this rear bracket would not hold for 10 minutes off roading!

  11. Jul 5, 2009 at 4:54 PM
    #11
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Do you have a check valve between the compressor and tank.

    I have had problems finding a check valve that works well with this compressor.

  12. Jul 5, 2009 at 8:37 PM
    #12
    toku58

    toku58 [OP] Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,026
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    I'm not sure? Still never had to use it. But I'm sure since I mostly go fishing with my truck, and not looking for "BgiFoot" the brackets will last a very long time.
    I picked up the check valve from "Grainger" it's mounted next to the tank. Seems to work good so far?

  13. Jul 5, 2009 at 10:43 PM
    #13
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Interesting, I picked up this check valve from Grainger but I have been having problems with it. It holds pressure, but when I turn on the compressor the ball inside gets stuck in the open poisition allowing the air to excape through the compressor.

    It seams to me that this check valve is not rated correctly for the CFM that this compressor puts out. The ball is pressed too hard and gets stuck. I have been looking for a higher quality check valve that is the same size.

  14. Jul 5, 2009 at 11:35 PM
    #14
    toku58

    toku58 [OP] Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,026
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    Wow! That the same valve I used. I haven't had any issue yet. I'll keep an eye on it.

  15. Jul 6, 2009 at 6:35 AM
    #15
    Padilla1880

    Padilla1880 "Let's Ride!"

    Joined:
    May 18, 2009
    Member:
    #17365
    Messages:
    1,167
    Gender:
    Male
    First Name:
    Daniel
    Temecula, CA
    Vehicle:
    05 TRD OffRoad V6 SR5 PreRunner
    That has to be one of the best mods ever! Great work!

  16. Jul 6, 2009 at 6:37 AM
    #16
    Dark Knight

    Dark Knight Well-Known Member

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,594
    Gender:
    Male
    First Name:
    Jeff
    NC/SC
    Vehicle:
    4Runner Trail
    Nice job. OBA is one of the best mods I've done. it's useful a lot more ways then just for tires.

  17. Jul 6, 2009 at 7:14 AM
    #17
    jla888

    jla888 Well-Known Member

    Joined:
    Mar 8, 2009
    Member:
    #14472
    Messages:
    47
    Gender:
    Male
    interesting thread here on that compressor.

  18. Jan 10, 2012 at 11:47 AM
    #18
    silver taco

    silver taco Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34079
    Messages:
    715
    Gender:
    Male
    First Name:
    Chris
    Los Angeles
    Vehicle:
    07 4X access cab
    Icon 2.5 ext travel, Camburg 1.25" uca's, All-pro leafs, Icon 2.5" rear shocks, LR jounce front and back, breather mod, KR Fab rear bumper, Kenwood 2m radio, All-Pro sliders, Front bumper by Surfinferno (Dylan), Glassworks fenders, 4:56 gears, gusseted spindles and coil buckets
  19. Jan 10, 2012 at 11:49 AM
    #19
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    Don't expect many updates- This is 2+ years old...

  20. Jan 10, 2012 at 1:36 PM
    #20
    RedTaco2134

    RedTaco2134 Well-Known Member

    Joined:
    Jun 15, 2008
    Member:
    #7324
    Messages:
    774
    Gender:
    Male
    First Name:
    Scott
    Portland, Or
    Vehicle:
    08 Long Bed TRD Sport
    285/70/17 Goodyear BFG KM2's, Revtek 3" lift. TSB rear and Blistein 5100's http://www.cardomain.com/ride/3097063
    Nice! are there any more OBA set-ups around the forum? I searched, but came up with nothing.
