ORI-Struts Available from BAMF

Discussion in 'Bay Area Metal Fabrication' started by JLee, Jan 7, 2013.

  1. Jan 7, 2013 at 3:45 PM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    BAMF has become one of the newest ORI distributors if your doing a SAS or have a jeep or buggy then ORI-Struts are for you :D

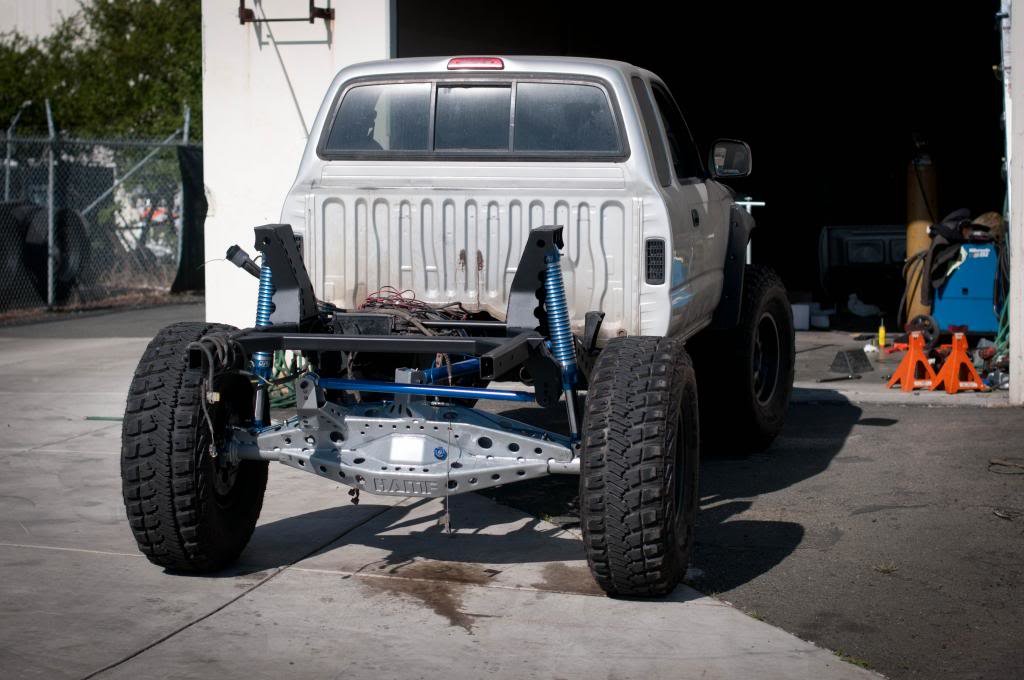

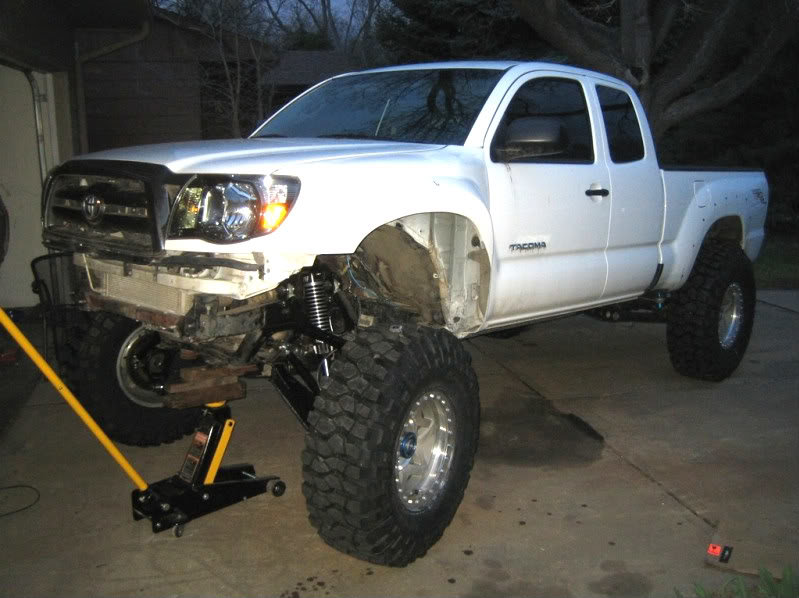

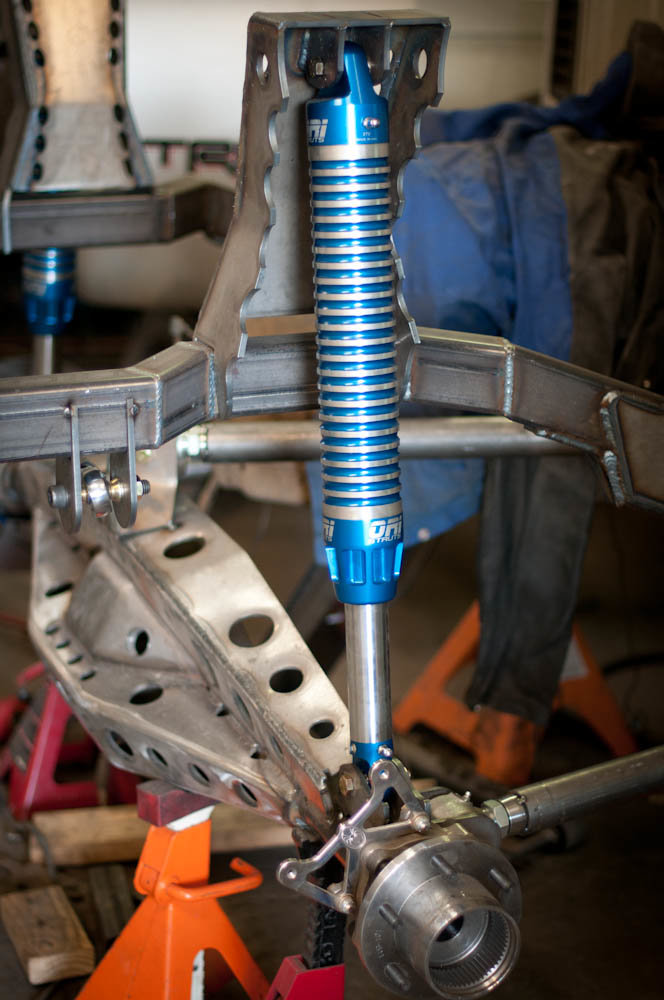

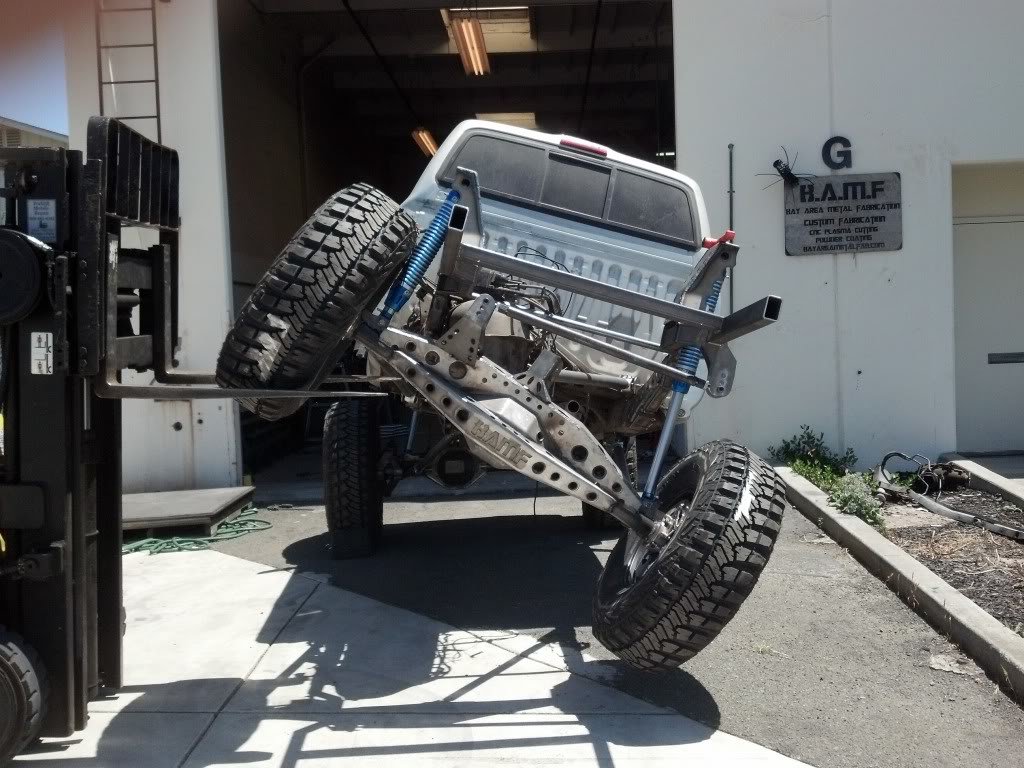

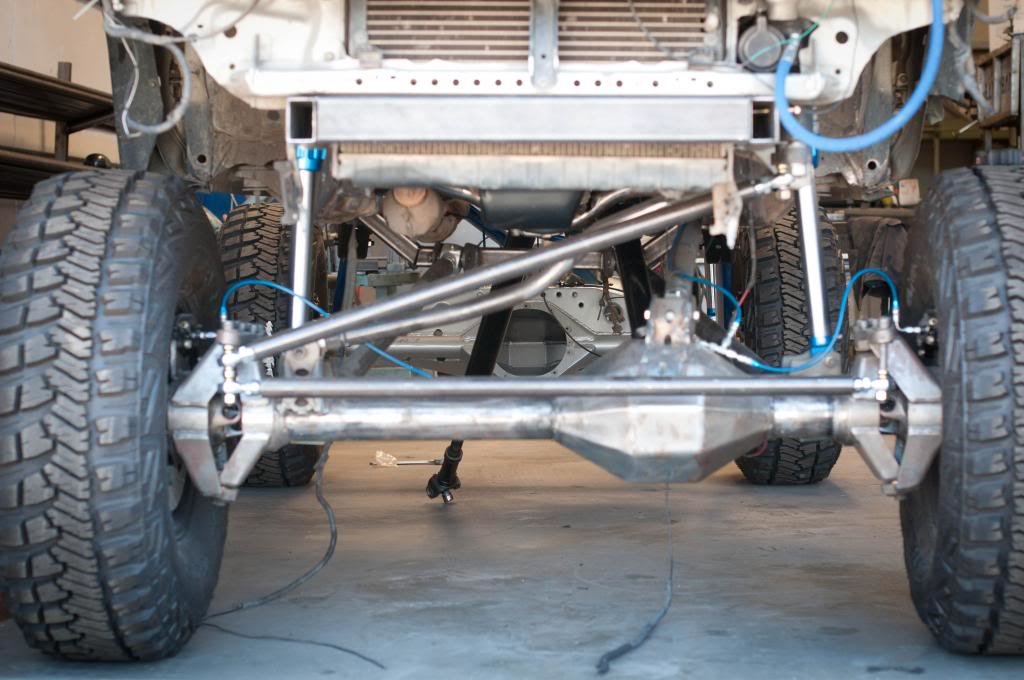

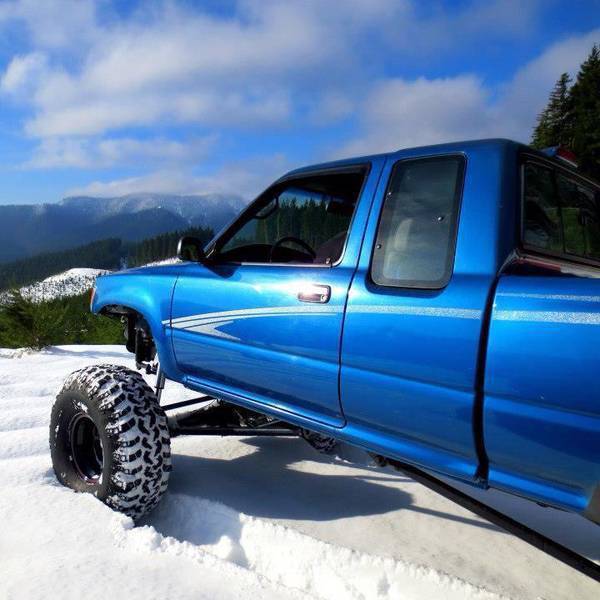

    I run these struts on my rig and they are awesome! The 1st few 2nd Gen Tacoma IFS sets will be installed soon we are testing fitment on 1st Gens as well.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Specifications:
    Dual pressurized chamber design for unmatched body roll stability in fast turns, and on off-camber side hills. Can be set to mid-stroke ride height and still control body roll, and not push off. Most users dump the sway bar.
    With ORI’s internal features, most users also dump the external bump stops and limit straps.

    3-stage velocity-sensitive compression damping Soft ride changes to firm compression damping as piston shaft speed increases.Conventional air shocks are typically set to low ride height to prevent push-off, but bottom quickly over bumps as a result. ORIs set at mid-stroke, will both suck up the bumps, and will drop out quickly over the whoops. No trade-offs in performance.Coil-Overs are set close to full extension to help reduce body roll. ORIs set at mid-stroke, are ready to react, whether to compress when hitting a bump, or to drop out in an instant over a rut, maintaining a more level, comfortable ride at speed.

    Tunable anywhere from firm ride to loose articulation by simply adjusting nitrogen gas pressures.

    Higher load capacity than conventional air shocks. Nitrogen gas charge over 2” piston can support up to 1900 lbs/strut.
    Compact, simple installation fits tight spaces, and replaces a lot of unnecessary hardware.

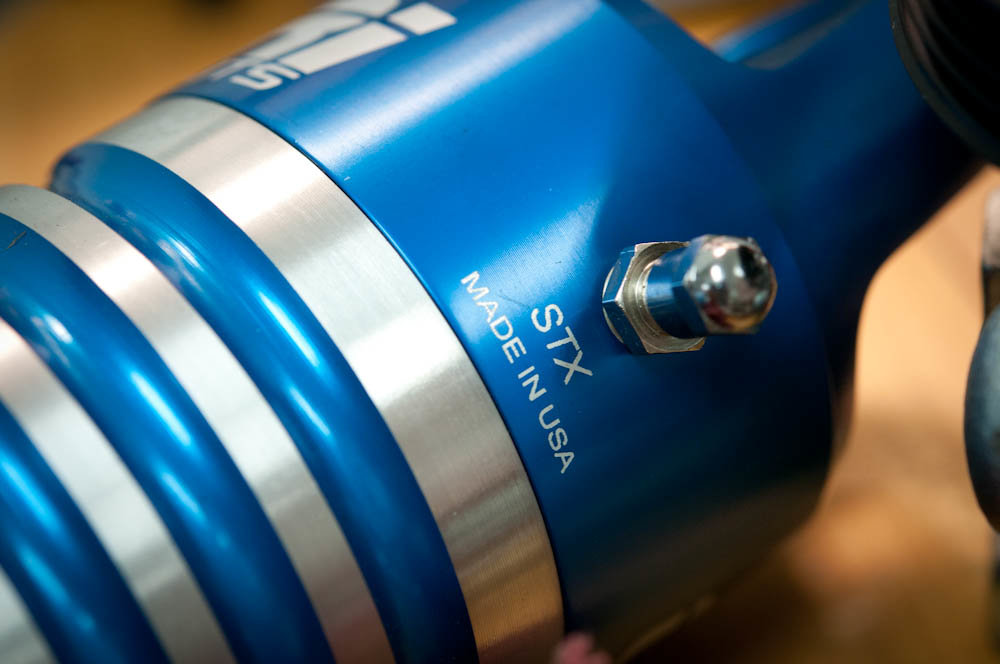

    Velocity-sensitive, 7-position externally-adjustable rebound damping
    Internal hydraulic bump stop on compression stroke
    Hydraulic end-of-stroke cushioning at full extension

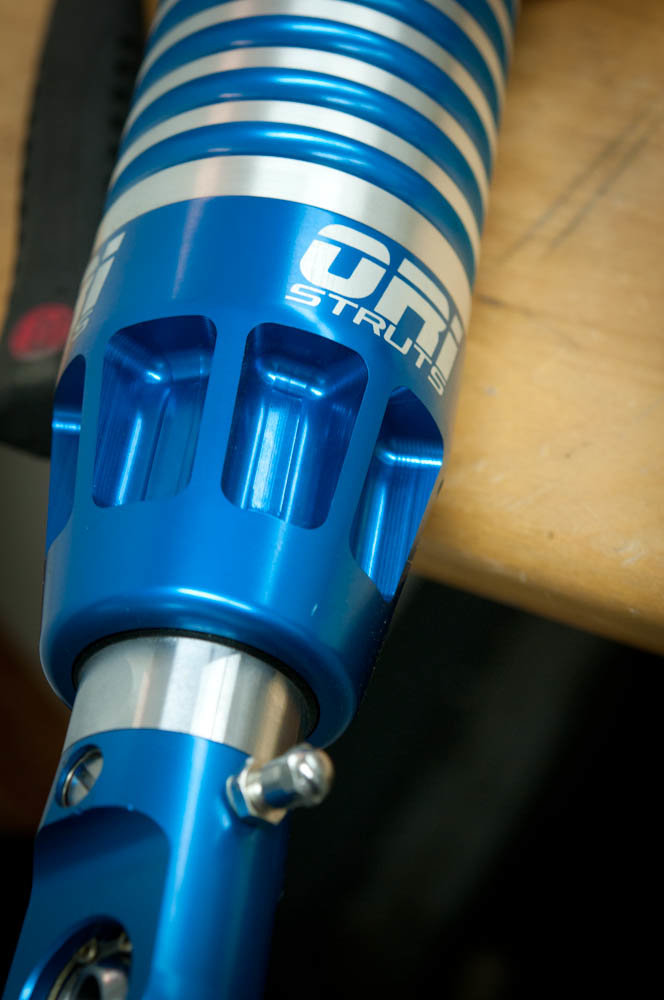

    Cooling fins dissipate heat

    Lightweight construction
    Billet 6061 aluminum, stainless and high-strength carbon steel
    Hard chrome steel cylinder and tough 1 ¾” piston shaft
    Teflon-lined spherical bearings for 1/2” & 5/8” mounting bolts
    High pressure 5000 psi seals for extreme off-road abuse
    Corrosion resistant anodize outer coating

    ORI Struts do not Unload, or Push Off
    Piston shafts can be set to extend to a park position, then wheel and axle weight can still pull the struts to full extension.

    Last edited: Aug 5, 2013
  2. Feb 2, 2013 at 11:03 AM
    #2
    Rucas

    Rucas 1st gen > 2nd gen

    Joined:
    Dec 5, 2009
    Member:
    #27040
    Messages:
    4,032
    Gender:
    Male
    First Name:
    Lucas
    Northern Colorado
    Vehicle:
    1st gen. 4x4 MANual
    sparkles, fairys, and happy things.
  3. Feb 2, 2013 at 12:01 PM
    #3
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    21,195
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, CBI Sliders, Icon ET Coilovers, aFe Intake, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, All-Pro UCAs, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    So this is a gas spring and hydraulic damper in one? What is the effective spring rate?

  4. Feb 2, 2013 at 7:18 PM
    #4
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    16,322
    Gender:
    Male
    First Name:
    bOb
    Colorado/Vermont
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
  5. Feb 5, 2013 at 12:19 PM
    #5
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    The spring rate depends on the gas pressure in the lower chamber.

  6. Jun 24, 2013 at 11:07 AM
    #6
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Fitment has been checked ORI's will be available as a bolt on replacement for 2nd Gen IFS. :cool:

  7. Jun 24, 2013 at 11:09 AM
    #7
    IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    20,040
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    THAT is awesome!

  8. Jun 24, 2013 at 11:10 AM
    #8
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,502
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    Interesting :popcorn:

  9. Jun 24, 2013 at 11:12 AM
    #9
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    I'm sure they will fit the 1st Gens as well I just need to check it first.

  10. Jun 24, 2013 at 11:16 AM
    #10
    IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    20,040
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    im assuming you would have to measure for the oris the same way you do for a coil over?

  11. Jun 24, 2013 at 11:52 AM
    #11
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Kinda

  12. Jun 24, 2013 at 12:07 PM
    #12
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    14,127
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Are you building a top plate for them? I can kinda see the 8" working if there's a really low profile top plate.
    Anyway...subbing just to see!

  13. Jun 24, 2013 at 1:25 PM
    #13
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Yes I am and the 8's will fit just fine the suspension will have to be strapped. Just from the measurements I took these will provide more travel then any mid travel set up out. With the CV joint being the limiting factor.

  14. Jun 24, 2013 at 1:30 PM
    #14
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,618
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    Aw man....you figured it out lol, might be giving you a call man, depending on how much fabrication there is I might have to do this

  15. Jun 24, 2013 at 1:33 PM
    #15
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    You were too slow :eek: and I'm going to try my hardest to make them a direct bolt on. It's the limit straps that will be tricky.

  16. Jun 24, 2013 at 1:37 PM
    #16
    benbacher

    benbacher Purveyor of Fun Vendor

    Joined:
    Jun 29, 2011
    Member:
    #59032
    Messages:
    8,618
    Gender:
    Male
    First Name:
    ^
    Anchorage, AK
    Vehicle:
    '10 Tacoma 4x4 LBDC SR5 TRD Sport
    Too many to list now.
    Lol, yeah, any idea of cost? I'm just a week or so out before pulling the trigger on front suspension. Uca's already found and purchased. And how would these handle winch, dual battery, abd heavy bumper? I was planning on the 14" 700# spring from icon so I'd need it to outperform that. Just so you know what i'm workin towards :)

  17. Jun 24, 2013 at 1:40 PM
    #17
    DHwreckage

    DHwreckage Well-Known Member

    Joined:
    Oct 12, 2012
    Member:
    #88868
    Messages:
    412
    Gender:
    Male
    Boulder, CO
    Vehicle:
    Moby Dick (FZJ-80)
    hmm a first gen LT with these would be sweet, what are the struts running ($)?

  18. Jun 24, 2013 at 2:05 PM
    #18
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    I'm going to try and keep it under $1200.00 a set. And they can handle 1900lbs per corner so unless your front end is 3800lbs I think you will be good :D Just note ORI's have a long wait time if there is a lot of interest I'll stock them in the future but the first few orders will have at least a 8 week wait time.

  19. Jun 24, 2013 at 2:16 PM
    #19
    IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    20,040
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    dam, 1200 is a pretty good deal for something that seems to be a one shock does everything set up.

    and these clear the cvs alright too?

  20. Jun 24, 2013 at 2:26 PM
    #20
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Yes they are thinner then CO's at 3.25" there is plenty of room for the CV's and you guys wont be hitting them like some do on coils at full droop due to them being thinner.
