OTRATTW Switch

Discussion in 'Lighting' started by sportzman0, Jan 12, 2013.

  1. Jan 18, 2013 at 11:53 AM
    #21
    Lazylegs

    Lazylegs Well-Known Member

    Joined:
    Oct 6, 2011
    Member:
    #64723
    Messages:
    2,730
    Gender:
    Male
    First Name:
    Craig
    Southern Maryland, USA
    Vehicle:
    2011 Red Toyota AC Sold
    Tint (35%), a must. Step bars, Bull bar, Bull lights,4x4 light mod, Flip down 10" DVD player, De badged, Color match front emblem, color matched bumpers., black out tails, Cobra cb, Flashlight mod,bed-light mod,

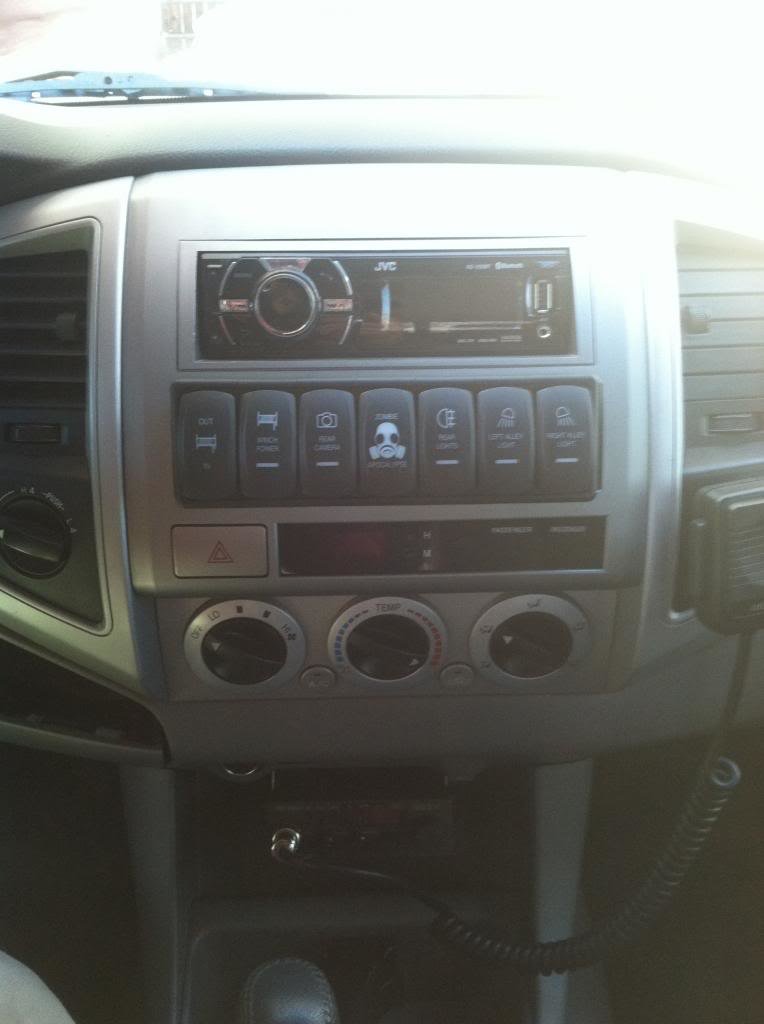

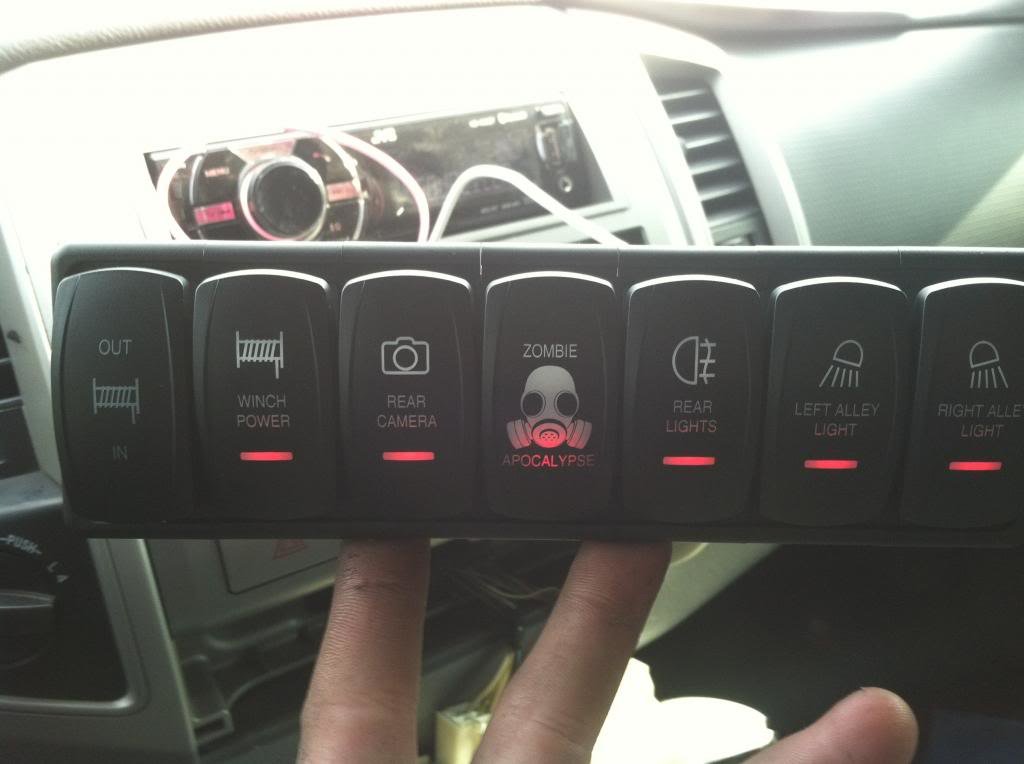

    Bad ass bro. Bad ass. What is up with the rear camera switch?

  2. Jan 18, 2013 at 5:44 PM
    #22
    OTRATTW

    OTRATTW Active Member Vendor

    Joined:
    Jan 5, 2013
    Member:
    #94489
    Messages:
    26
    Gender:
    Male
    First Name:
    Jim
    Cupertino

    The switch body you are currently using is a V1D1J. Does it have a blue lens rocker attached, with the raised bumps or is the surface smooth with the symbol and text only showing through the rocker when lit up?

  3. Jan 18, 2013 at 8:34 PM
    #23
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
  4. Jan 18, 2013 at 8:35 PM
    #24
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
    ive tried to jump the negs together and then have 6 for dash but that only has the bottom light on. I guess i can leave it how it comes if its too much work. Makes more sense to have like that.

  5. Jan 18, 2013 at 9:08 PM
    #25
    OTRATTW

    OTRATTW Active Member Vendor

    Joined:
    Jan 5, 2013
    Member:
    #94489
    Messages:
    26
    Gender:
    Male
    First Name:
    Jim
    Cupertino
    The switch is designed only to have the lower light independent.

    With the rocker you have installed on the switch, you would need either of these:

    V1D1K66B-00000-000

    or

    V1D2U66B-00000-000

    Both of these have both incandesent lights independently wired.

    I would consider only having the one incandescent light connected with your dash lights due to the brightness and the heat the incandescent lights produce. The other option if you want both lights, use a Carling Tech V-series switch with either 18 volt lights installed or LEDs.

  6. Jan 18, 2013 at 9:35 PM
    #26
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
    ok then ill just leave the way i have it. Was hoping the other way but i think im agreeing with everyone about leaving the lower light then when on the upper like come on which is probably better. Now just wondering if i could file down sides to do so :p lol so indicisive. lol oh well i guess. dont plan on getting rid of truck anytime soon

  7. Jan 18, 2013 at 10:07 PM
    #27
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
    Question about wiring to dash lights, can I just tap into the dash light wire on a plug close to the fog light switch that isn't being used? Such as the clutch cancel switch even tho I don't have a clutch. That would be the switch the plug would be for?

  8. Jan 18, 2013 at 10:27 PM
    #28
    JWaldz

    JWaldz Gone Crawlin'

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    1,414
    Gender:
    Male
    First Name:
    Waldo
    Colo Springs
    Vehicle:
    99 4Runner LTD
    Are you wondering how to get the light to stay on with the switch off? If so, just tap into your interior fuse box. Something like ign or acc should would. There are a whole bunch of different types of fuse taps.

  9. Jan 18, 2013 at 10:54 PM
    #29
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
    Just don't want to tap into ign because already have amp to it. Don't want to blow it. Just tapped into unused plug. Thank you everyone for help considering I'm a retard being difficult :)

  10. Jan 18, 2013 at 11:48 PM
    #30
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out

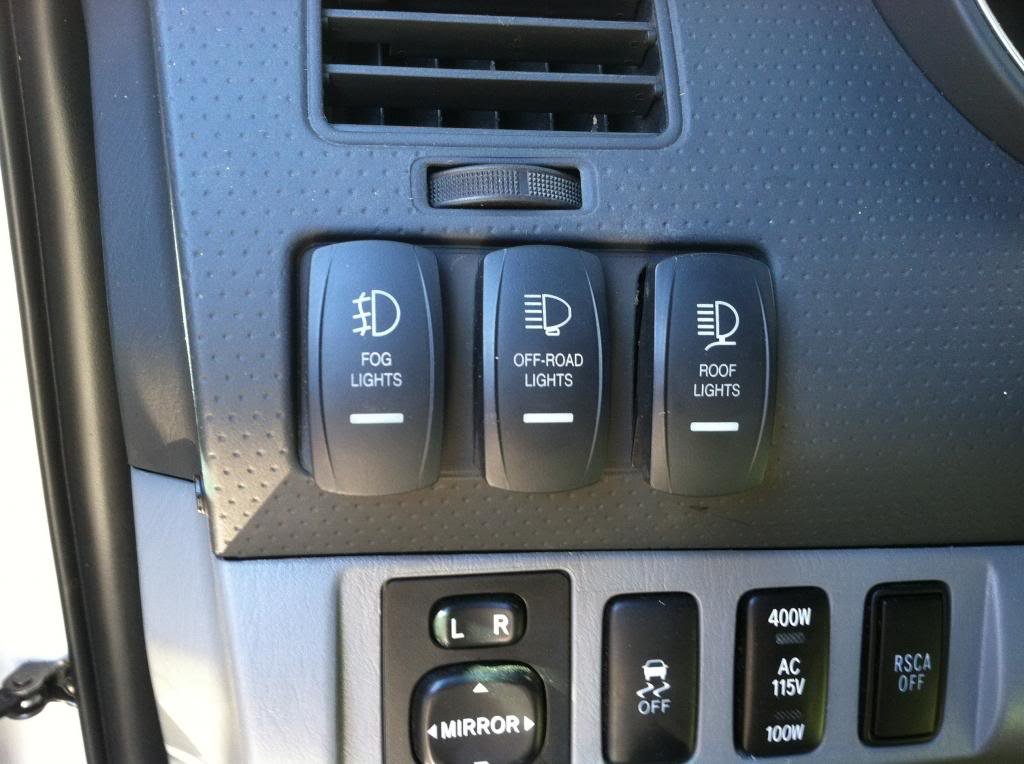

  11. Jan 18, 2013 at 11:57 PM
    #31
    sportzman0

    sportzman0 [OP] Well-Known Member

    Joined:
    May 13, 2010
    Member:
    #37105
    Messages:
    169
    Gender:
    Male
    First Name:
    Tim
    Las Vegas
    Black emblems Tinted Windows Aftermarket Audio System LED Dome Lights Headlights Blacked Out
    thinking about ordering some more bodies for it :p

  12. Jun 15, 2013 at 5:06 PM
    #32
    IOPiece Chicken

    IOPiece Chicken Member

    Joined:
    Apr 9, 2013
    Member:
    #101763
    Messages:
    19
    Gender:
    Male
    First Name:
    jesse
    Louisiana
    Vehicle:
    2013 TSS 4x4
    license plate so far
    Do these switches fit in the factory hole or do they require a lot of modifying was wanting to get some

  13. Jun 17, 2013 at 11:28 AM
    #33
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    You need to file down the factory hole a little bit. Not very hard.

  14. Sep 1, 2013 at 5:21 PM
    #34
    tacodane

    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    so I got my first switch from otrattw got the lights to work but not the way I want it to be. both lights come one no matter the switch position. fog lights don't come on with switch and with the red light its suppose to only come one when I flip it to turn the fog lights on. any ideas. ive tried all the wires and I attempted to follow the otrattw instructions as well. Any help would be great

    light switch.jpg
    back of switch.jpg

  15. Sep 2, 2013 at 5:56 AM
    #35
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    What wires do you have connected to what terminals?

  16. Sep 2, 2013 at 8:10 AM
    #36
    tacodane

    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    ran the wires again. well the blue when touching green/white and black/white activate fog lights
    ok so here we go. green #2 blue #6 white/black # 8 or #7 and green/white #7 or #8 - light switch works as should but fog lights don't come on

    blue #2, green #6, green/white #3, white/black #7 blue light comes on but when switch is flipped no red light but fogs come on

  17. Sep 2, 2013 at 4:27 PM
    #37
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Okay do
    green/white #7
    green #6
    blue #2
    black/white #3

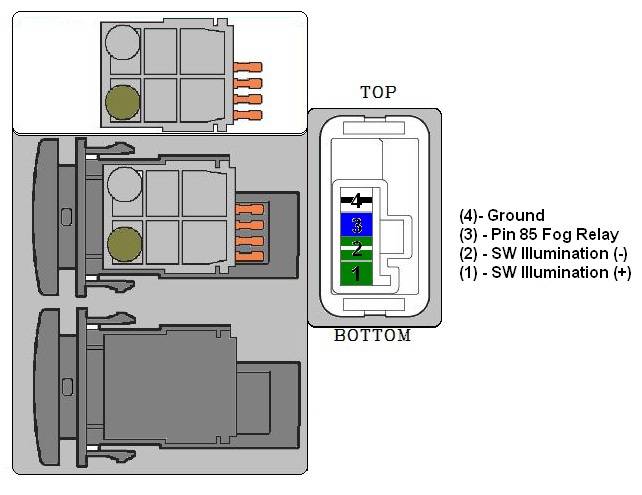

    Going off this picture:
    [​IMG]

    If the red light still doesn't come on, leave everything as I said and also connect 8 to 7.
    This is all assuming you got the dependent upper light and independent lower light one

    Last edited: Sep 2, 2013
  18. Sep 2, 2013 at 7:05 PM
    #38
    tacodane

    tacodane The Slow But Getting Somewhere Build

    Joined:
    May 25, 2013
    Member:
    #104898
    Messages:
    4,364
    Gender:
    Male
    First Name:
    Dane
    Vehicle:
    2013 Tacoma Prerunner SR5
    Led Interior Lights AFE CAI Stage II, Aero Turbine 2525 Muffler Snugtop Cab-Hi shell TRS Retrofitted Headlights
    well my switch has two lights in it. sure this would work

  19. Sep 3, 2013 at 1:19 AM
    #39
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    The diagram I got from OTRATTW for a switch with two lights where the upper light is on when the switch is turned on and the lower light is independently wired. If this is how your switch is and this diagram is correct:
    [​IMG]
    (From http://www.tacomaworld.com/forum/2nd-gen-tacomas/262156-carling-switch-oem-fog-lights.html)

    Then this should work if you have no other problems in the system.

    Edit: Actually now that I think of it, there's a good chance this won't work since the stock switch is a grounding switch. You're going to have to do a whole different wiring set up, or a new switch. I would recommend their DPDT On/On switch with both independently wired LEDs (unfortunately I'm not seeing it on the site, I would email or call them and ask). That's probably the only switch type that will work how you want it to with this wiring set up. The only chance I can think of it working is if you do the same as I said before but put white/black to #8 so:
    green/white #7
    green #6
    blue #2
    black/white #8

    But if I read the other thread correctly the LED will light but the fogs won't come on.

    Last edited: Sep 3, 2013
  20. Oct 5, 2014 at 8:31 PM
    #40
    zatarra

    zatarra Member

    Joined:
    Aug 21, 2014
    Member:
    #136652
    Messages:
    8
    Gender:
    Male
    Texas
    Vehicle:
    03 V6 4x4 Tacoma
    Anyone have advice on how to wire a carling/otrattw switch for dvd bypass?
    Do I need a relay for this?

    It works fine if I ground #8 and connect #3 to the headunit's parking brake wire, but the switch itself doesn't light up.

    So wondering which wires i need to connect to leave bottom light on and make top come on when switched to on.

    Also dvd is playing whether switch is off/on. (this is obviously fine but I want the lights to work as well.)


    Sorry if that was too easy to read..

    Included my switch's wire diagram and link to exact switch i purchased:
    http://www.otrattw.net/CONTURA-X-SEA...1ED00-000.html

    wire diagram.jpg
