OVTune 3.5L Tacoma Supercharger and Twin Turbo Systems

Discussion in '3rd Gen. Tacomas (2016+)' started by OVTune, Sep 2, 2018.

  1. Sep 2, 2018 at 1:55 PM
    #1
    OVTune

    OVTune [OP] Well-Known Member

    Joined:
    Mar 27, 2017
    Member:
    #214557
    Messages:
    6,169
    OVTune
    Kit:
    https://www.ovtuned.com/collections/forced-induction/products/ovtune-tacoma-3-5-twin-turbo-kit
    complete patch notes
    - ovtune proprietary torque based control, overboost protection


    - Kit components
    - Twin OVTune 2GRFKS Turbo Manifolds
    - Twin Garrett turbochargers (OE or powermax version)
    - twin Downpipes that bolt to OEM Y Pipe
    - nylon braided oil return lines
    - stainless steel hard line coolant hoses
    - coolant hose relocation kit
    - intercooler

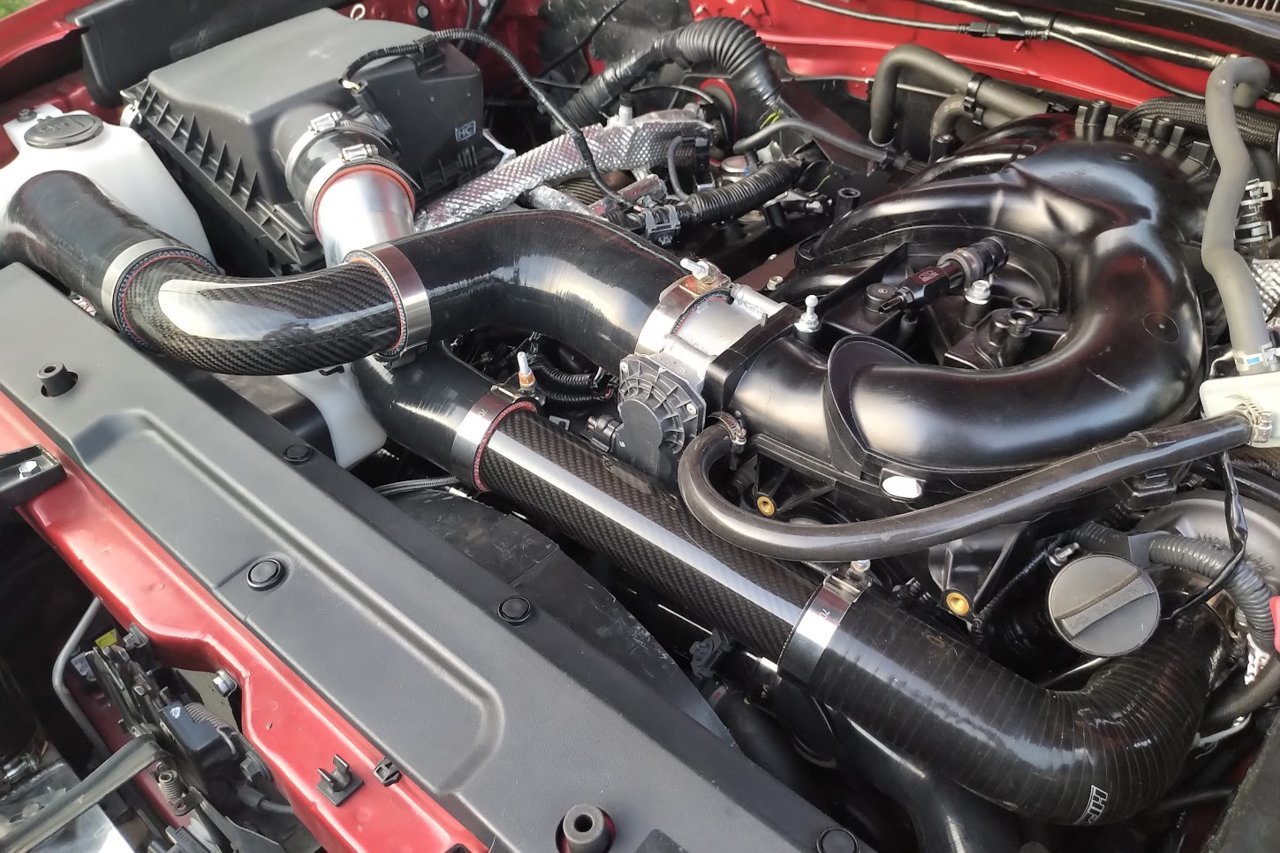

    - intercooler piping
    -intake system

    -Fuel components
    -Upgraded Direct injectors (Powermax required)
    -Upgraded Port Injectors (Powermax high boost required)
    -Upgraded In tank Fuel pump (required)



    3.5L Tacoma Base Kit performance :
    Torque increase over stock: 145-150%% (340~350 ft lbs)
    Horsepower increase over stock: 120-125% (320-325HP)
    Peak boost psi : 6.5 psi

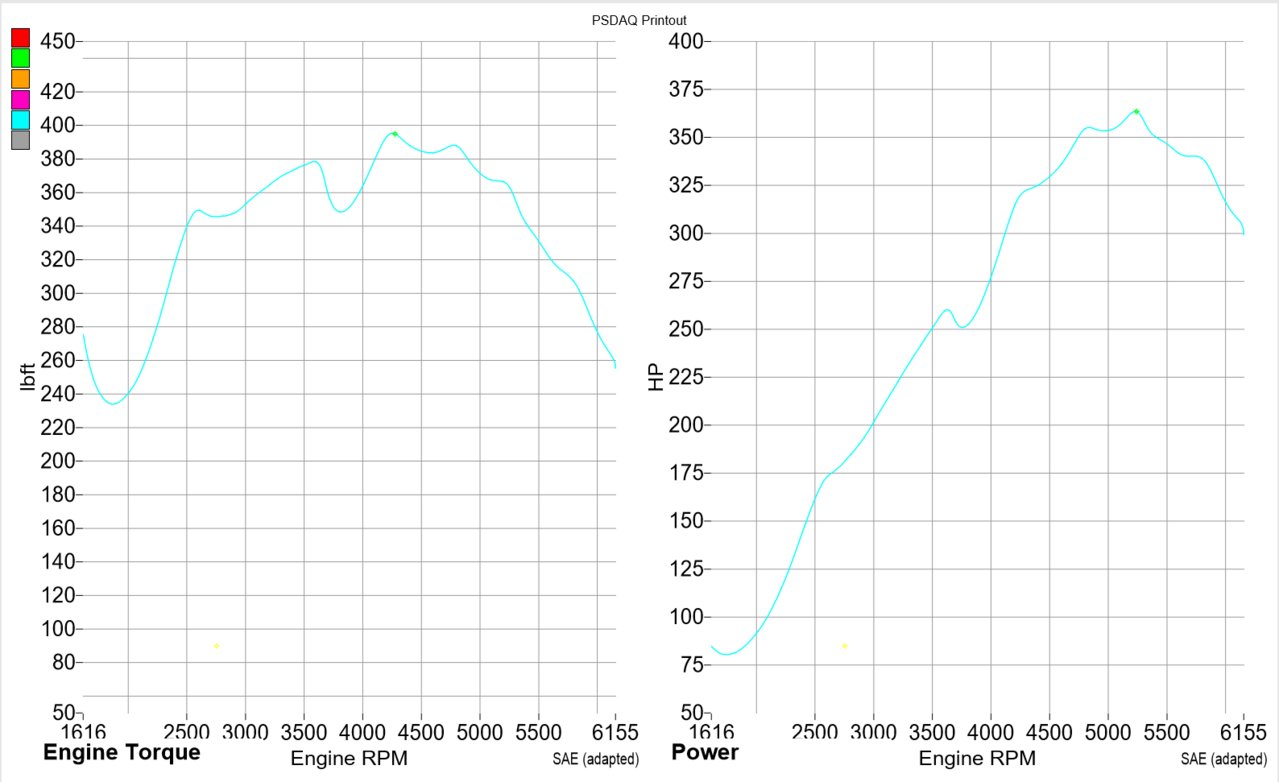

    3.5L PowerMax Twin Turbo kit Low boost:
    Torque increase over stock (160-180%) As Tested ~ 400 ft lbs 2300 rpm
    Horsepower increase over stock (150 - 160%) As Tested ~ 375 HP at 5200 rpm
    Peak boost pressure 9.5 psi (stable, 2000 to 6000 rpm)


    3.5L PowerMax Twin Turbo High Boost :
    As tested : 520 ft lbs @ 2500 rpm
    As tested : 464HP @ 5600 RPM
    Peak boost pressure 21.5 psi ~ 17.5 @ 6000




    5psi Base kit price with investment cast manifolds $4249.00
    5psi PowerMax Kit with investment cast manifolds $5209.00
    Tune included if you have our Flash kit or vF Tuner.
    PowerMax kit comes with upgraded wastegate springs for optional boost increase

    DI Upgrade option $1849.00 - includes plug and play upgraded DI injectors
    - Required for Powermax kits running more than 5-6psi
    - Required for Base kits running more than 6psi
    Maximum pressure with DI upgrade only:
    Base kits: 14-15psi
    Powermax kits: 15psi

    Full fuel upgrade option: $2788.00
    Includes: upgraded plug and play DI Injectors
    upgraded in-tank Fuel Pump with PWM Controller
    upgraded port injectors (750cc)
    Maximum pressure with Full Fuel upgrade Option:
    Base kits: 14-15psi (turbo limited, not fuel limited)
    Powermax kits: 24-26psi

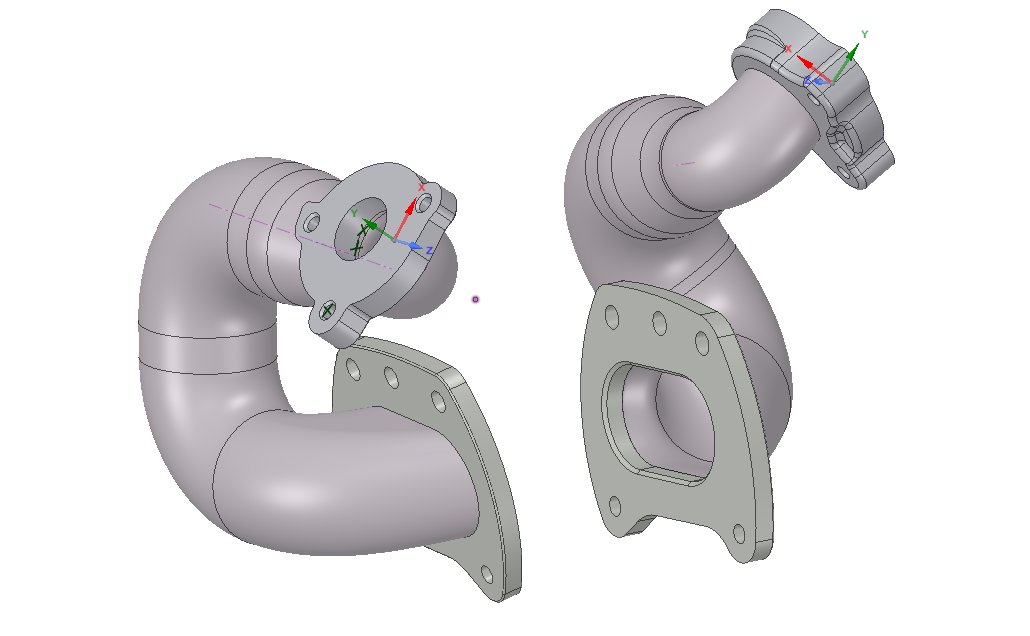

    Turbo manifolds.jpg

    Last edited: Jun 15, 2020
  2. Sep 2, 2018 at 2:08 PM
    #2
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,329
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    If you decided yet can I ask what size are the turbos and what boost are you aiming for?

    And thanks for the post and new thread.

    Istan and 05Taco4x4 like this.
  3. Sep 2, 2018 at 2:11 PM
    #3
    hiPSI

    hiPSI Laminar Flow

    Joined:
    May 21, 2017
    Member:
    #219544
    Messages:
    5,877
    Gender:
    Male
    South Carolina
    Vehicle:
    2019 Toyota Tundra 4WD Crew Cab 5.7L Limited with TRD Off Road Package and Cement
    Very nice Mat! Have you ran this setup on the dyno yet?

  4. Sep 2, 2018 at 2:17 PM
    #4
    dagsamp

    dagsamp Unknown Member

    Joined:
    Apr 18, 2018
    Member:
    #250978
    Messages:
    208
    Gender:
    Male
    First Name:
    Marla
    Vehicle:
    16' TRDOR DCSB OV Tune
    OV Tune
    I think in the OVTune thread he mentioned they were going to be GT2560r.

    mZiggy likes this.
  5. Sep 2, 2018 at 2:18 PM
    #5
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,329
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    Must have missed it. Thanks

  6. Sep 2, 2018 at 2:22 PM
    #6
    TelosHedge

    TelosHedge tiny moron

    Joined:
    Jun 21, 2018
    Member:
    #257026
    Messages:
    121
    Gender:
    Male
    Central NC
    Vehicle:
    18 Inferno Sport DCSB 4x2
    IIRC he is using twin GT2560Rs, internally gated. As for a specific boost number, I haven't read anything, but he has hinted based on a few things he's said that we should be expecting easily over 75whp gains, though how much more hasn't been said.

    mZiggy likes this.
  7. Sep 2, 2018 at 2:25 PM
    #7
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,329
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    Well that's what I posted awhile back on the other thread but he said he would be embarrassed to build a twin system with only 75HP. :yes::yay:

    Satchmo, Epic3rdgen, kgilly and 3 others like this.
  8. Sep 2, 2018 at 2:26 PM
    #8
    TRACKER54

    TRACKER54 2017 TACO 4X4 OFF ROAD ACCESS CAB BARCELONA RED

    Joined:
    Aug 20, 2017
    Member:
    #227447
    Messages:
    252
    Gender:
    Male
    First Name:
    MIKE
    Santa Clarita, California.
    Vehicle:
    2017 TACO 4X4 OFF ROAD ACCESS CAB BARCELONA RED
    3inch suspension lift kit "TUFF Country", TRD PRO Front grille,Bug deflector/vent shades, Trailer controller, Snug top shell SS (COLOR MATCHED) FRONT WINDOW FOLD DOWN, BLACK OAK 20 inch LED CREE light bar (front bumper), WeatherTech floor mats, MOTO METAL "LINKS" CUSTOM 17 INCH WHEELS, BFGOODRICH 17 INCH KO2 TIRES, HI/LOW/FOG "LUMEN" H11XHL C-G7S CONVERSION KIT LED LIGHTS. FOX 2.5 FS RESERVOIR REAR SHOCKS-DSC, HYPERTECH SPEEDODOMETER CALIBRATOR, WHITE KNUCKLE SEMI-GLOSS BLACK POWDER COAT/DOM TUBE ROCK SLIDERS 15 DEGREE ANGLED UP. PIAA BACK-UP LIGHTS.TMJ FRONT ROCK CRAWLER BUMPER, 10,000 LBS SMITTYBILT SYNTHETIC ROPE WINCH, WITH WIRELESS REMOTE CONTROL,MOUNTED INSIDE (UNDER THE LICENSE PLATE). SIDE BUMPER ROCK LED LIGHTS. ANYTIME REVIEW CAMERA - SWITCHED TO INSTRUMENT PANEL.
    What kind of front end mods are going to be needed?

  9. Sep 2, 2018 at 2:35 PM
    #9
    OVTune

    OVTune [OP] Well-Known Member

    Joined:
    Mar 27, 2017
    Member:
    #214557
    Messages:
    6,169
    OVTune
    What do you mean front end mods

  10. Sep 2, 2018 at 2:40 PM
    #10
    TRACKER54

    TRACKER54 2017 TACO 4X4 OFF ROAD ACCESS CAB BARCELONA RED

    Joined:
    Aug 20, 2017
    Member:
    #227447
    Messages:
    252
    Gender:
    Male
    First Name:
    MIKE
    Santa Clarita, California.
    Vehicle:
    2017 TACO 4X4 OFF ROAD ACCESS CAB BARCELONA RED
    3inch suspension lift kit "TUFF Country", TRD PRO Front grille,Bug deflector/vent shades, Trailer controller, Snug top shell SS (COLOR MATCHED) FRONT WINDOW FOLD DOWN, BLACK OAK 20 inch LED CREE light bar (front bumper), WeatherTech floor mats, MOTO METAL "LINKS" CUSTOM 17 INCH WHEELS, BFGOODRICH 17 INCH KO2 TIRES, HI/LOW/FOG "LUMEN" H11XHL C-G7S CONVERSION KIT LED LIGHTS. FOX 2.5 FS RESERVOIR REAR SHOCKS-DSC, HYPERTECH SPEEDODOMETER CALIBRATOR, WHITE KNUCKLE SEMI-GLOSS BLACK POWDER COAT/DOM TUBE ROCK SLIDERS 15 DEGREE ANGLED UP. PIAA BACK-UP LIGHTS.TMJ FRONT ROCK CRAWLER BUMPER, 10,000 LBS SMITTYBILT SYNTHETIC ROPE WINCH, WITH WIRELESS REMOTE CONTROL,MOUNTED INSIDE (UNDER THE LICENSE PLATE). SIDE BUMPER ROCK LED LIGHTS. ANYTIME REVIEW CAMERA - SWITCHED TO INSTRUMENT PANEL.
    Well, I have a TJM steel bumper with a Smittybuilt winch installed and am wondering if the Turbo install will interfere with all of this?

    Chipi3s likes this.
  11. Sep 2, 2018 at 2:42 PM
    #11
    Chipi3s

    Chipi3s Does it rub?

    Joined:
    Sep 30, 2017
    Member:
    #231631
    Messages:
    1,817
    Gender:
    Male
    San Diego
    Maybe. Intercoolers are usually large . He mentioned in the past Full details will be released sep 15th

    TRACKER54 likes this.
  12. Sep 2, 2018 at 2:45 PM
    #12
    Chipi3s

    Chipi3s Does it rub?

    Joined:
    Sep 30, 2017
    Member:
    #231631
    Messages:
    1,817
    Gender:
    Male
    San Diego
    I have faith Matts twins will blow magnuson away

  13. Sep 2, 2018 at 2:49 PM
    #13
    Whitetail Assassin

    Whitetail Assassin Well-Known Member

    Joined:
    Nov 19, 2017
    Member:
    #236398
    Messages:
    3,023
    Gender:
    Male
    First Name:
    Tedric
    Virginia
    Vehicle:
    2019 Magnetic Gray TRD Off-Road 6 Speed MT
    I agree, but they were supposedly “the pioneers” of force induction for the Tacoma. Haven’t shown me any motivation to help us. They are too busy with the Tundra and 4Runners. F that.

    TRACKER54 likes this.
  14. Sep 2, 2018 at 2:58 PM
    #14
    OVTune

    OVTune [OP] Well-Known Member

    Joined:
    Mar 27, 2017
    Member:
    #214557
    Messages:
    6,169
    OVTune
    The intercooler is a TR1235
    There will be 3 different turbos that can be selected, because the GT2560Rs are awesome but people may still want boost / spool faster.

  15. Sep 2, 2018 at 3:01 PM
    #15
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,329
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    Nice!! So I'm guessing we are looking at a 400HP Tacoma.

  16. Sep 2, 2018 at 3:03 PM
    #16
    Burro09

    Burro09 Well-Known Member

    Joined:
    Nov 6, 2017
    Member:
    #235217
    Messages:
    308
    Gender:
    Male
    Miami, FL
    Vehicle:
    2017 Tacoma TRD Pro Cement MT
    This sounds like a clean solution. I wish these trucks had 4 link rear suspension like the 4runners. No issue with wrap at these higher power levels, just all around superior (even stock lol). I cant imagine this truck with 400 ponies. what a sleeper! Everyone knows tacos are slow, until now...:burnrubber:

    hbaade, Lord Helmet and Chipi3s like this.
  17. Sep 2, 2018 at 3:20 PM
    #17
    dagsamp

    dagsamp Unknown Member

    Joined:
    Apr 18, 2018
    Member:
    #250978
    Messages:
    208
    Gender:
    Male
    First Name:
    Marla
    Vehicle:
    16' TRDOR DCSB OV Tune
    OV Tune

  18. Sep 2, 2018 at 3:26 PM
    #18
    Sean73T

    Sean73T Well-Known Member

    Joined:
    May 15, 2012
    Member:
    #78907
    Messages:
    295
    Gender:
    Male
    First Name:
    Sean
    SoCal
    Vehicle:
    17 Pro
    Can we run behind the grille light bars with the intercooler?

  19. Sep 2, 2018 at 3:41 PM
    #19
    Sean73T

    Sean73T Well-Known Member

    Joined:
    May 15, 2012
    Member:
    #78907
    Messages:
    295
    Gender:
    Male
    First Name:
    Sean
    SoCal
    Vehicle:
    17 Pro
    And for those of us who bought a tune, do we get any discount for buying a turbo kit as well?

    BankrupTaco likes this.
  20. Sep 2, 2018 at 3:44 PM
    #20
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,329
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    I
    I think it will be close depending on where it's mounted up front. It's about 3.5-4 inches thick.
