Painting the grille

Discussion in '2nd Gen. Tacomas' started by Chris(NJ), Oct 7, 2010.

  1. Oct 7, 2010 at 4:44 PM
    #1
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I'm editing this initial post a little to make it more DIY friendly.

    Background; I ordered a Grillcraft mesh piece a few days ago, which will be here on Monday. In the meantime, I wanted to get a head start on the grille so that it'll be done in plenty of time. Once the GC piece gets here, I'll be able to just install it and enjoy it, w/ a little less chrome surrounding it :D And that was my main goal. To rid the grille of the chrome. I just didnt think it fit real well.

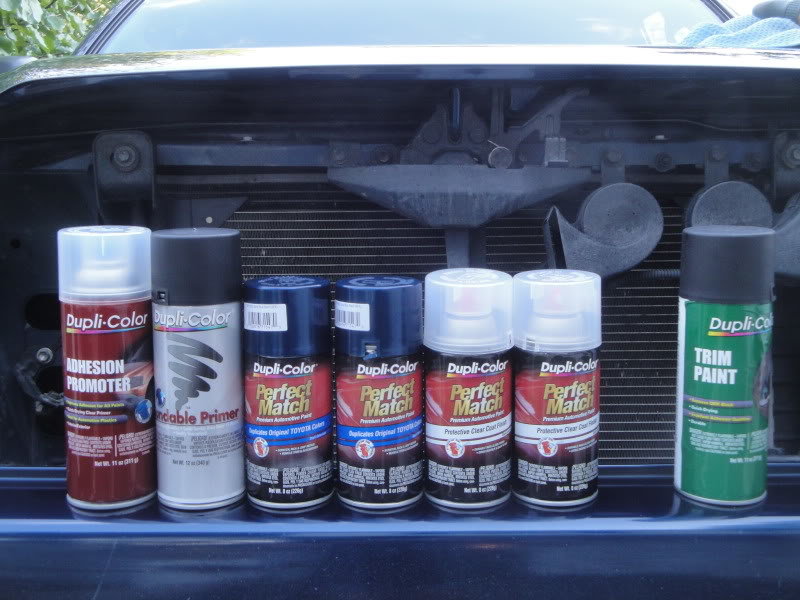

    Heres the products that I used:
    All DupliColor products. The Color code I used for Indigo Ink was 8P4. The trim paint is only for the center section if you're doing the satoshi step.

    [​IMG]

    If you're doing a flushmount grillcraft, the "satoshi" step is optional. I didnt want to be able to see the oem center section behind the grillcraft, so I cut this part out. I used a fellow members writeup on this section. His thread is located here: http://www.tacomaworld.com/forum/2n...-how-w-pics.html?highlight=satoshi+grillcraft

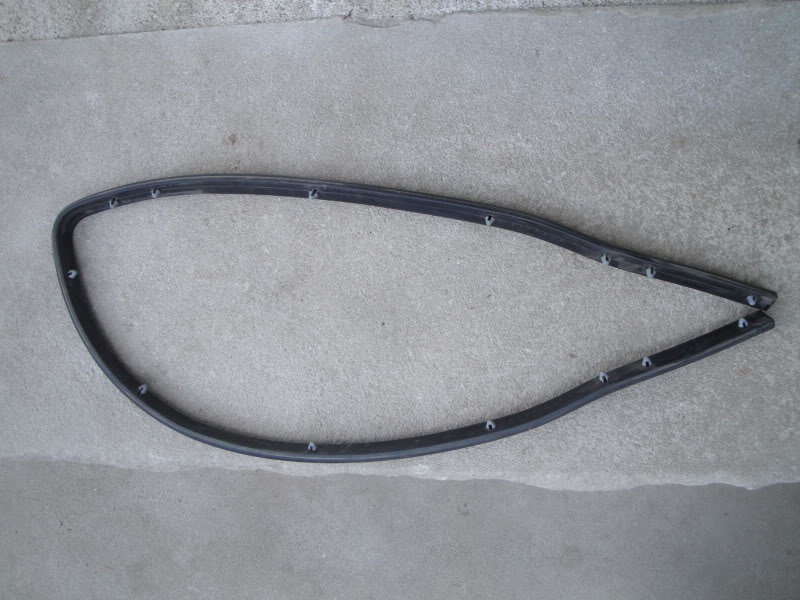

    Before I did anything, I removed the top weather stripping. Very easy step that only takes a minute to do. Once the grill is out, just squeeze the uderside of the clips and press them through. This is it, removed.
    [​IMG]

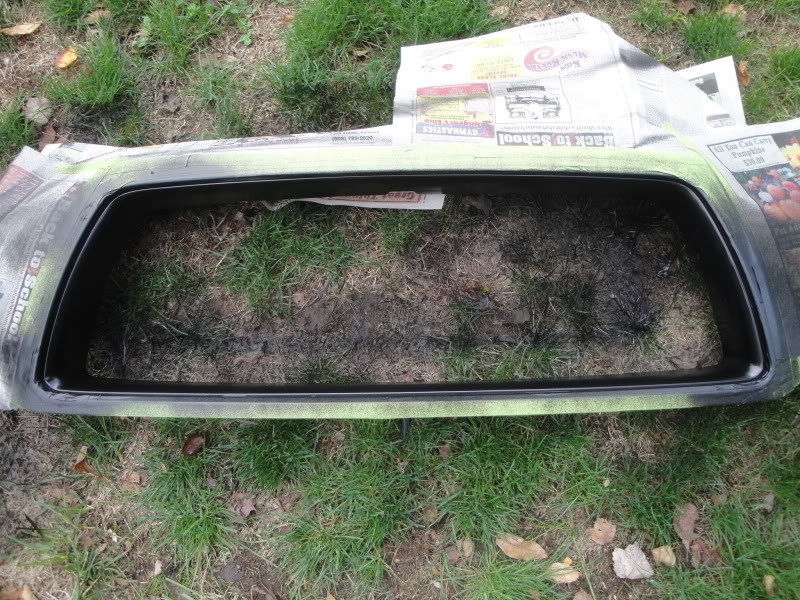

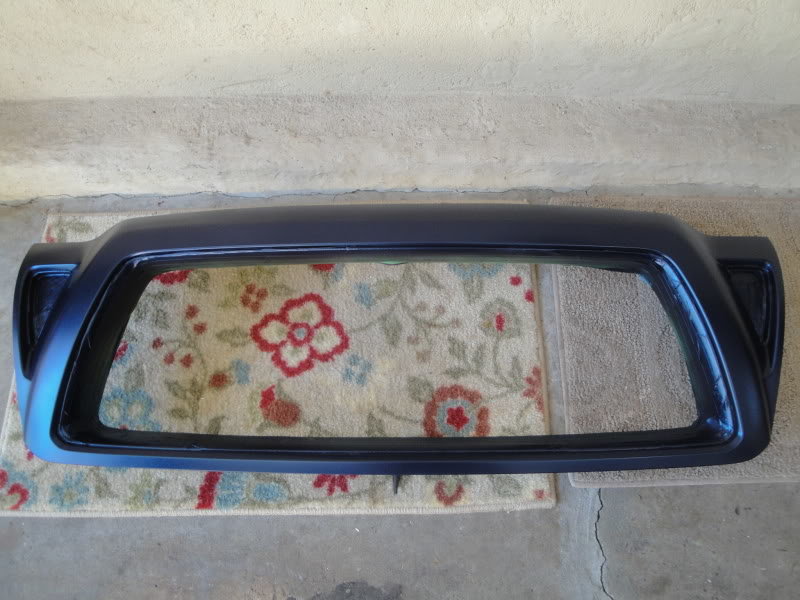

    I started out by cutting out the center section of the grille. From there, I went ahead and sanded the chrome finish down. After trying a few different grits, I wound up using 150 grit paper since it made quick work of the chrome and didnt leave deep gouges. Fwiw, I also think it looks pretty damn cool, b/c after sanding, it gave the appearance of a brushed alum. piece, which I thought looked pretty trick :)

    [​IMG]

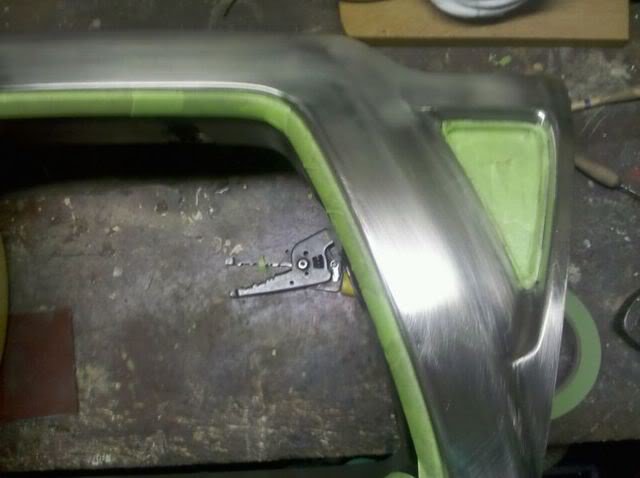

    At this point, I did the "satoshi'ing" of the center section. Totally optional for the purposes of this writeup.[​IMG]

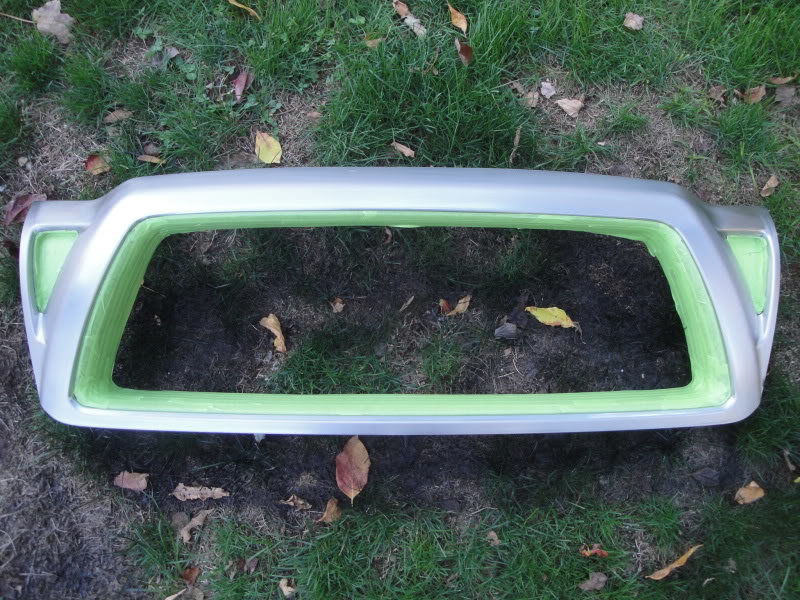

    After that was all done, I was ready to get back to the project at hand. I used some lime green, 3M painters tape and taped up the inner section, corner faux mesh and around the outside of the area being painted. Take your time w/ this step, especially around the corner faux mesh, so you dont get overspray in there. After it was all taped up real good, I wiped the sanded chrome down w/ prepsol (not pictured in the first pic, but it should be available at your local pepboys, etc) and proceeded to spray 2 coats of DupliColor Adhesion Promoter. I did relatively thin coats. A heavy coat isnt necessary.
    This only gave it a duller finish, as the AP goes on relatively clear.
    [​IMG]

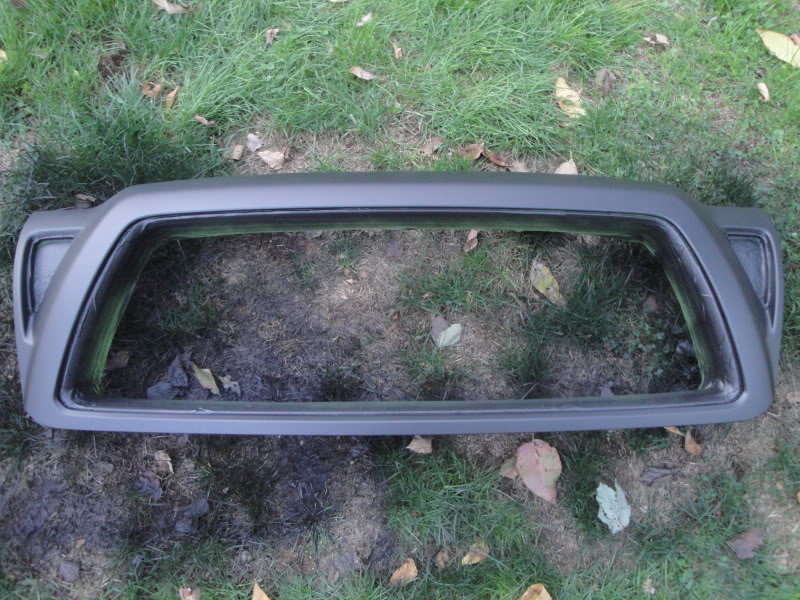

    At this point, I was ready for some primer. 3 Coats of DupliColor Sand-able primer, all about 10 minutes apart.
    This pic was halfway through applying the coats of primer.
    [​IMG]

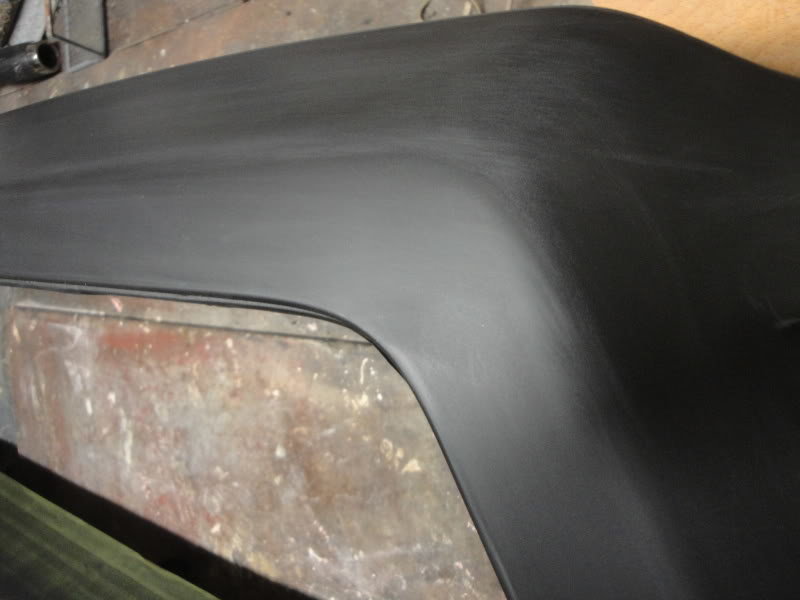

    I gave the piece about 50 minutes to dry (can of primer suggests a min of 30 mins) and went ahead and wetsanded the piece w/ 1000 grit ws paper.
    [​IMG]


    The piece is now super smooth and ready for the paint. I sprayed 4 initial coats, allowing 10-12 minutes between coats, then, let the 4th coat dry for about 1 hour. I wetsanded w/ 1500 grit paper, and then after it was all dry, went ahead w/ one last coat, a little heavier than the initial coats, but obviously not nearly enough to cause drips/runs/etc. Heres the last pic before clearing it.

    [​IMG]

    I let the base paint dry for a few days. Not necessary, but I had a lot going on. You should be able to spray the clear after a few hours of letting the base paint cure.

    For the clearcoat, I sprayed 3 light coats to start, all 10 minutes apart. I sprayed a 4th coat, heavier than the previous ones. This really helps to give a much glossier appearance. Also, try to avoid letting the clearcoat dry in the sun. Shade, or indoors would be ideal. Sun can cause premature curing, resulting in some hazing of the finish.

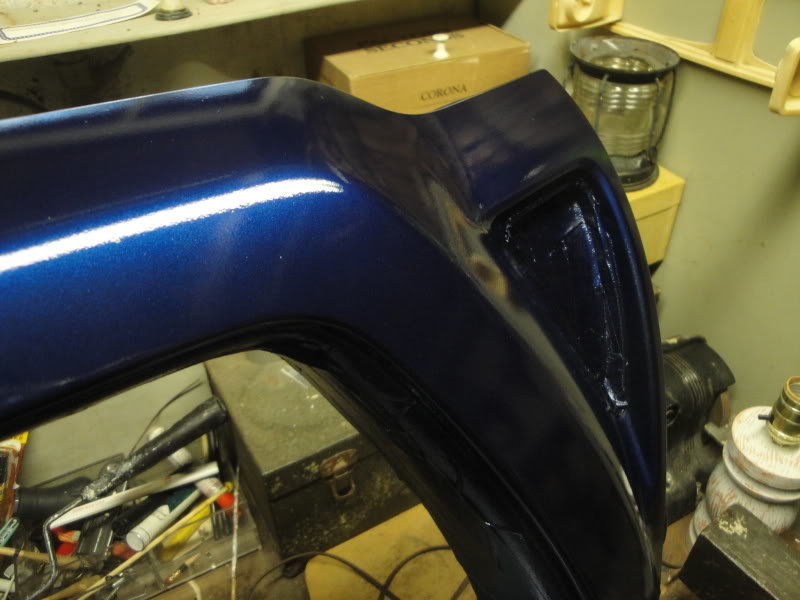

    Heres a shot after the clear has dried.
    [​IMG]

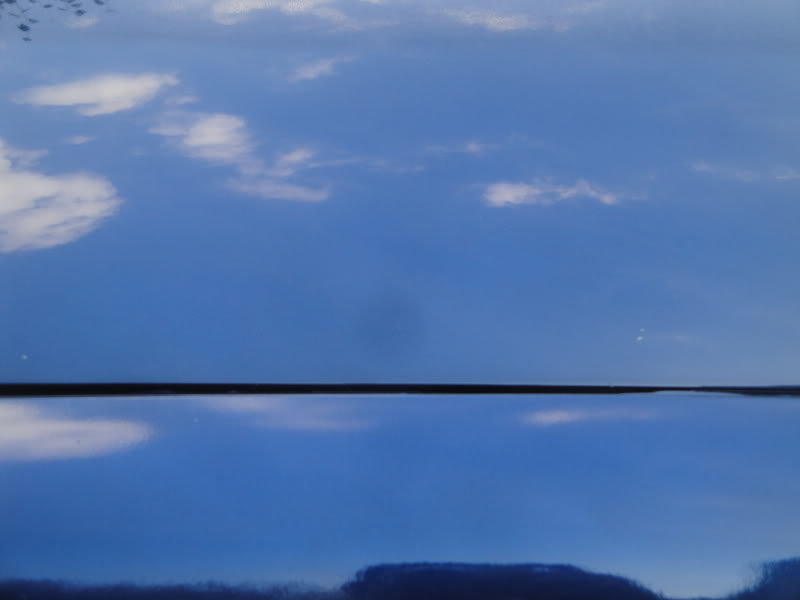

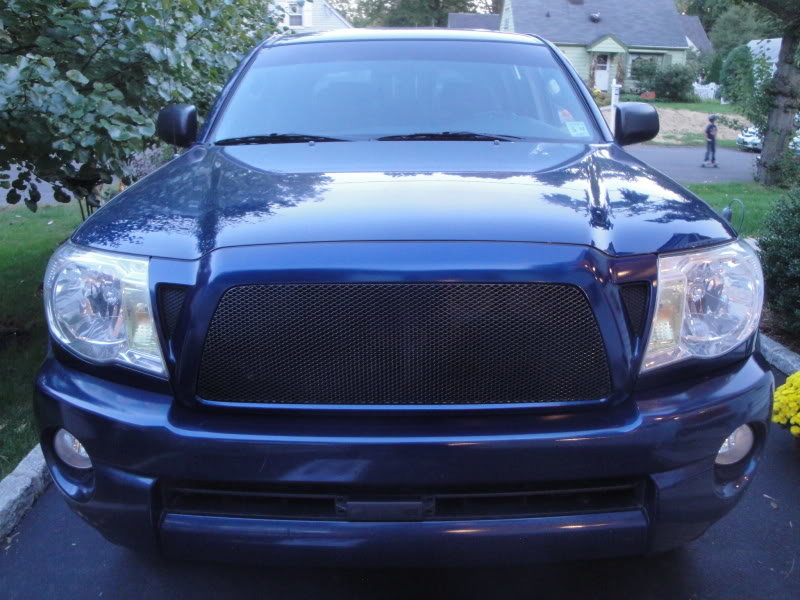

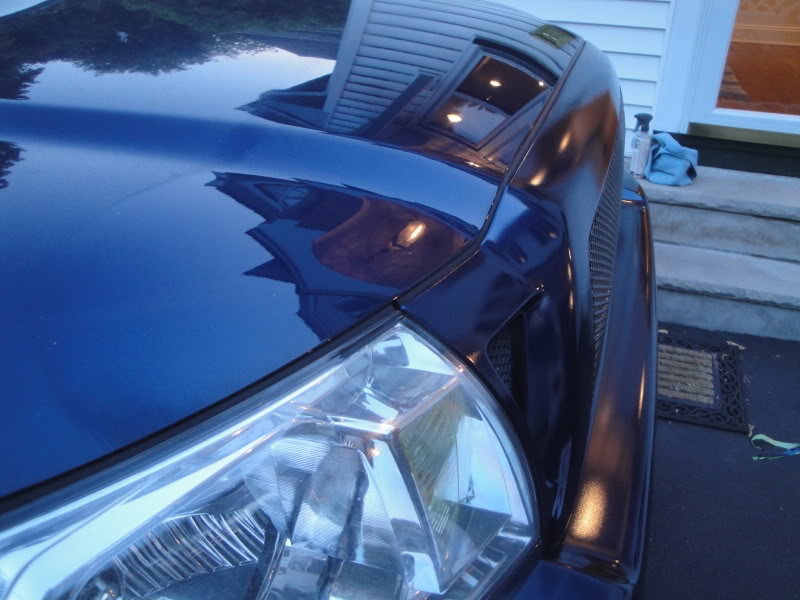

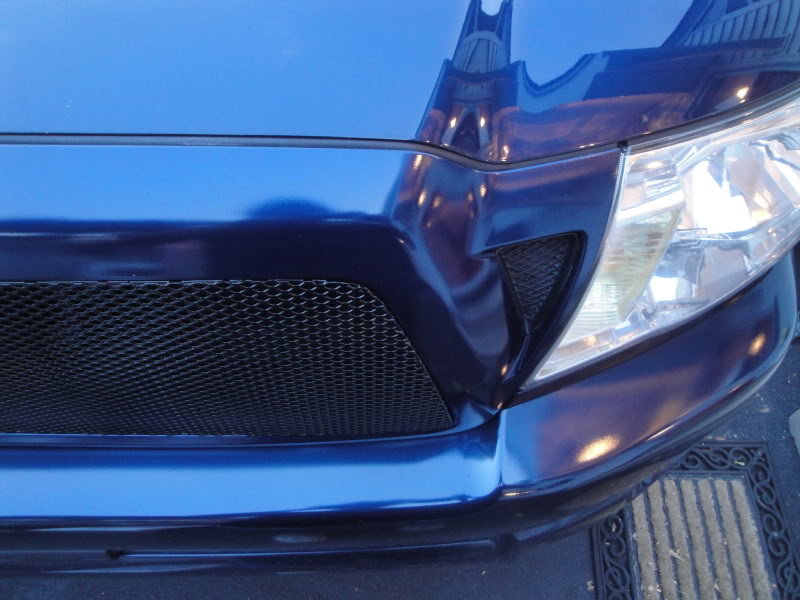

    Now, heres a few pics of it installed and how it matched up to the oem paint.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    imo, I think it turned out great. It matches the front bumper Very well, and as expected, the hood has more gloss and clarity, but paint color is right on. I'll try to get more pics once the sun shows its face again, but I finished this evening about 6:15 and we have some weather rolling in, so I didnt get much sun to snap pics w/.

    Let me know if you guys have any questions!!

  2. Oct 7, 2010 at 5:05 PM
    #2
    DTFtacoma

    DTFtacoma Dezert Toy Fabrication

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,679
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    sub'd!

  3. Oct 7, 2010 at 6:28 PM
    #3
    Priddle

    Priddle And now for something completely different....

    Joined:
    Aug 20, 2010
    Member:
    #41982
    Messages:
    358
    Gender:
    Male
    St. John's, NL Canada
    Vehicle:
    2007 Tacoma 4x4 SR5
    Current: Vent Visors, Running Borads, tint, Ride Rite airbags, front 5100's @ 2.5, Toytec Front diff drop
    Looks great so far. Keep us posted! I may follow your steps when I do mine.

  4. Oct 7, 2010 at 6:34 PM
    #4
    REVHARD25

    REVHARD25 Well-Known Member

    Joined:
    Mar 5, 2008
    Member:
    #5113
    Messages:
    842
    Gender:
    Male
    so cal
    Vehicle:
    RUGGED TRAIL PACKAGE
    Tint on front windows. Dnx7120 kenwood. Rear tsb springs. Wet okoles seat covers UWS truck box Weathertech floor mats TSB floor mat hook grommets Satoshi grill AFE drop in filter Fumoto drain valve Bed mat
    Its a pain in the butt..but well worth it if it works out :D

    picture new grill.jpg

  5. Oct 8, 2010 at 8:33 AM
    #5
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I moved the info from this post to the first one.

  6. Oct 8, 2010 at 8:43 AM
    #6
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,112
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    looking good!

    here's how I did mine. I didnt wanna mess with sanding and waxing and all that. I used rustoleum spray on bed liner

    [​IMG]

  7. Oct 8, 2010 at 8:49 AM
    #7
    blackhawke88

    blackhawke88 wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,864
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    where are you getting your colormatched paint? assuming you are colormatching

  8. Oct 8, 2010 at 2:56 PM
    #8
    TucsonMike

    TucsonMike Blank

    Joined:
    Oct 29, 2009
    Member:
    #25090
    Messages:
    650
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    2005 SR5 prerunner
    Yellow fogs,Stock 16" in black, 30" LED bar lower grill
  9. Oct 8, 2010 at 3:05 PM
    #9
    silverback

    silverback Well-Known Member

    Joined:
    Oct 23, 2009
    Member:
    #24802
    Messages:
    447
    Gender:
    Male
    First Name:
    Jason
    central CA
    Vehicle:
    2006 Prerunner SR5
    painted door handles, bilstein 5100's front and back, K&N air filter. Precision power component speakers and Kenwood deck.
    I see what your talking about with the brushed aluminum look. I like it!

  10. Oct 8, 2010 at 4:21 PM
    #10
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    Thanks guys!

    Blackhawke88, I'm using an off the shelf duplicolor paint. ANother member told me it was a VERY close match. I'll also be sure to post plenty of pics once I install it, so everyone can see how close (or not) it matches. Iirc, it was paint code 8P4. I'll post the actual paint code when I see the can again. I'm sure it'll be slightly off (compared to the hood), b/c even professional resprays can differ in color tone when sprayed on plastics vs metals, for whatever reason. (at least thats my experience from my last couple of trucks)

  11. Oct 8, 2010 at 4:39 PM
    #11
    Nightstr

    Nightstr Well-Known Member

    Joined:
    Dec 24, 2009
    Member:
    #28125
    Messages:
    5,173
    Gender:
    Male
    First Name:
    Felipe
    Sacramento CA
    Vehicle:
    05 prerunner sr5
    BLHM BLWM 3" TOUGH COUNTRY LIFT TRD SEAT COVERS THULE RACK M/T KM2 265/65/16
  12. Oct 8, 2010 at 4:40 PM
    #12
    OffroadToy

    OffroadToy The dog did it...I swear!

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    5,058
    Gender:
    Male
    High Desert... land of junipers, sage brush, and l
    Vehicle:
    07 TRD OFFROAD 4x4 VSC/TRAC/DAC/HAC
    snugtop supersport canopy, black westin bullbar/tube steps, piaa offroad lights, weathertech floor mats, oem bed mat, trd seat covers, avs inchannel vent visors, 2" suspension lift, front diff drop, rear differential breather extension, oil filter drain hose, a/c drain hose extention & reroute, front window tint, cat theft protection plate, tailgate clamp mod, xpel headlight/foglight protecters, oem block heater, bfg 265/75R/16 a/t k/o's, cabin air rodent protection screen, rcbs illuminated 4X4 switch mod
    Great job so far...looking forward to seeing the final product.:cheers:

  13. Oct 8, 2010 at 8:09 PM
    #13
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,814
    Gender:
    Male
  14. Oct 8, 2010 at 8:12 PM
    #14
    charles

    charles Active Member

    Joined:
    Aug 11, 2010
    Member:
    #41539
    Messages:
    38
    Gender:
    Male
    First Name:
    Charles
    AK
    Vehicle:
    2010 Tacoma TRD Off-Road
    Lookin pretty good!

  15. Oct 8, 2010 at 8:33 PM
    #15
    stunt man hans

    stunt man hans displaced viking living in New Hampshire

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,648
    Gender:
    Male
    First Name:
    hans
    THE LIVE FREE OR DIE STATE
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    i sanded my grill and sprayed it with rustoleum bed liner it matches the bumpers on my reg cab.

  16. Oct 9, 2010 at 7:00 AM
    #16
    samhain

    samhain Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40385
    Messages:
    124
    Gender:
    Male
    First Name:
    Brandon
    Hilton Head, SC
    Vehicle:
    05 Tacoma SR5
    Looks great. I'm going to be doing this soon myself. Thanks for the write up and keep us posted up to the finished project!

  17. Oct 10, 2010 at 2:25 PM
    #17
    ycart1201

    ycart1201 Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25666
    Messages:
    435
    Gender:
    Male
    First Name:
    Nathan
    Oregon
    Vehicle:
    2012 DC TRD Sport 4x4 - Modified...
    12 TRD Sport 4x4|3" Revtek w/ AAL|18" FN BFD Wheels|285/65-18 Nitto Trail Grapplers|AVID Off Road Step Rails| Bakflip Bed Cover| More to come...
    sub'd...

    Nathan
    ycart1201

  18. Oct 10, 2010 at 3:21 PM
    #18
    Priddle

    Priddle And now for something completely different....

    Joined:
    Aug 20, 2010
    Member:
    #41982
    Messages:
    358
    Gender:
    Male
    St. John's, NL Canada
    Vehicle:
    2007 Tacoma 4x4 SR5
    Current: Vent Visors, Running Borads, tint, Ride Rite airbags, front 5100's @ 2.5, Toytec Front diff drop
    If one wanted to leave it as a brushed aluminum look, what finishing steps would one have to do? ie, fine sand it? Clear coat it?

  19. Oct 10, 2010 at 3:24 PM
    #19
    KEG'sTACO

    KEG'sTACO FJ Cruiser

    Joined:
    May 2, 2010
    Member:
    #36405
    Messages:
    1,412
    Gender:
    Male
    First Name:
    Kurt
    Auburn, AL
    Vehicle:
    '08 FJ Cruiser
    Leveled, 33" BFG A/Ts, Demello Offroad front flat-top bumper, Demello Offroad rear 3-piece bumper, 17" Liquid Metal Gatlins, Pioneer audio upgrade, custom mounted 10" subwoofer, offroad interior
    So, you just sprayed it directly onto the grille? If so, how is it holding up?
