Part number for rear bumper caps

Does anyone know the part numbers for left and right (both) rear bumper caps

No sensors and paintable (come unpainted. I will be painting them myself at a body shop)

this will be for my 2023 TRD off-road. I can find them with and without sensors but can’t figure out which to get to be able to paint them.

Any help would be appreciated!



Check out Post #5 on this thread. However, looks like these caps have holes for the sensors.

https://www.tacomaworld.com/threads/16-tacoma-bumper-cap-removal.404082/

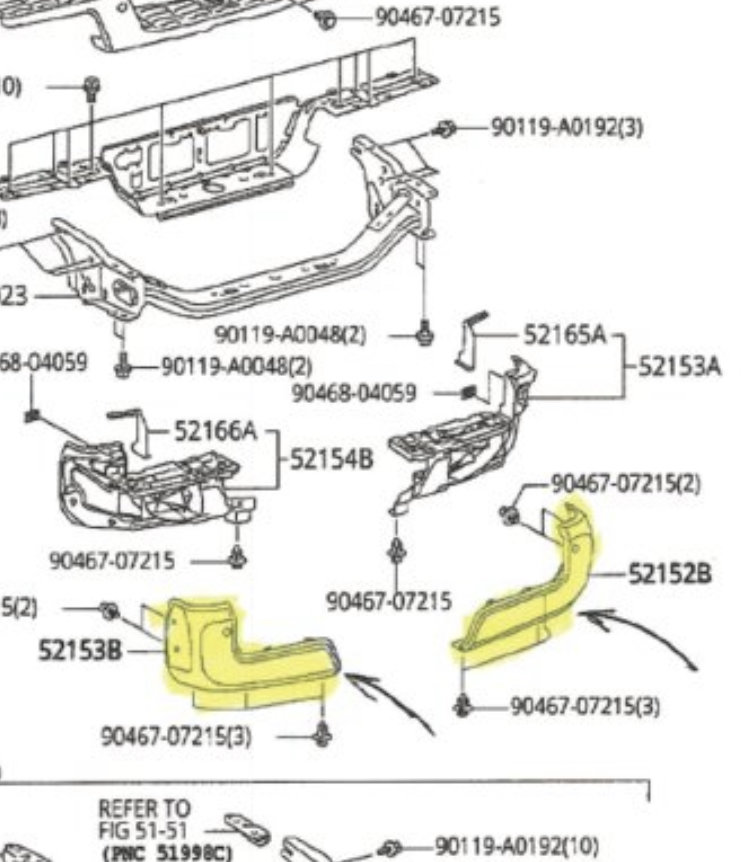

I dug that up in the search before posting. It gets a bit confusing. After further search I found these part numbers for NO SENSOR caps

I pulled these part numbers from this site

https://www.paintedoemparts.com/sto...ta_Tacoma_Rear_Bumper_Caps_|_Genuine_OEM.html



I just went through this, it gets confusing with all the non-oem options out there.

I think if you order through a dealer you only have the option of chrome or unpainted (black matte ready for the body shop), so that might be easiest. The dealer cannot order you painted ones.

I’ve seen so many numbers for these parts. Try 52155-04010/52156-04010 and 52155-4900/52156-4900 as well.



Looks like

52155-04900/52156-04900 are for sensors

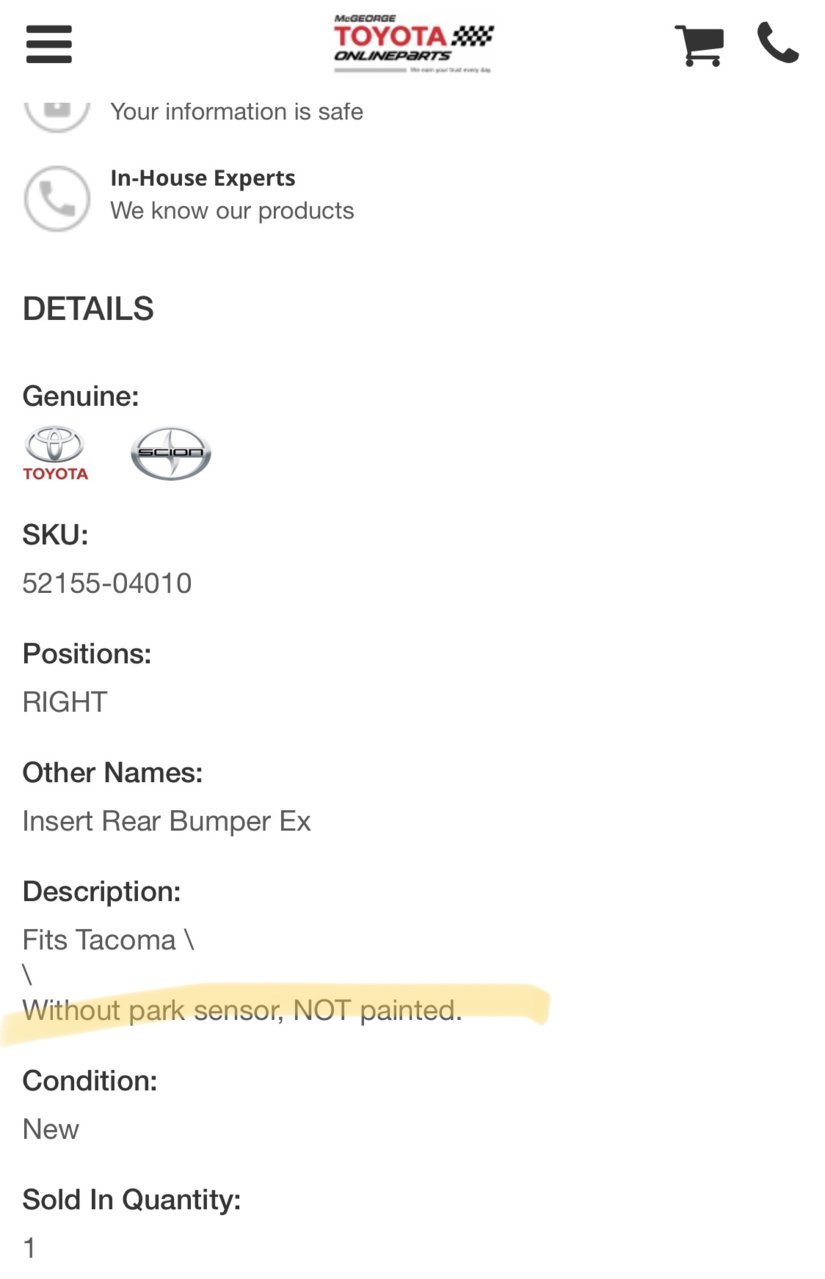

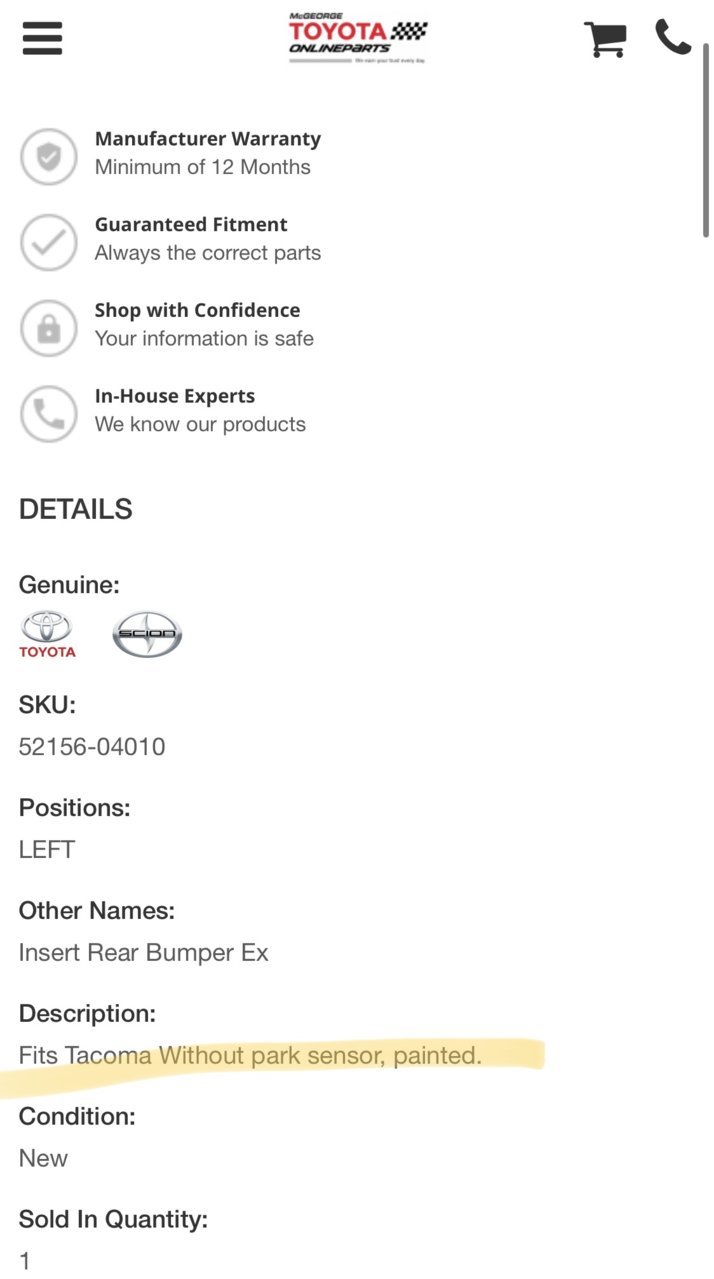

the 52155-04010/52156-04010 is what I have screen shots of above and one says “painted” the other says “NOT painted”. The only difference is the 5 and 6 in the first group of numbers so I would assume they are the same just for a left and right?

if it’s “painted” what color is it painted?



Bump? I need to get these ordered. If no one can confirm I’ll have to call and give them those part numbers i sent screen shots of above. Those are my best guess so far.



Rock Auto has them cheap! Ask me how I know.
The aftermarket ones are a perfect fit.



would you happen to have a link? Did you have them painted to match?



https://www.rockauto.com/en/catalog/toyota,2016,tacoma,3.5l+v6,3354143,body+&+lamp+assembly
Look at "Bumper end"
Mine were chrome.



Wayne0 - Part number Rock Auto for these ? Painted or not, new OR Lunar Rock be here next month.
Thanks



You'll have to go to RockAuto.com, Enter year and mo. In the pull down menu go to body and lamp then bumper end. You'll find it.



I bought left rear after market painted bumper cap on ebay. It was perfect match and cost me $99.00. Do a search for Painted Rear Bumper 040 White End Corner Cover Lh 2pcs For Tacoma 16-22 W/ Hole and put your color in instead of 040 white. They sell them with or without parking sensor holes.



My chrome one was around $59. Getting a black one then having it painted would bump that price up, so buying one already painted seems a lot easier.
