Passenger Door Smart Key System

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Victory, Apr 22, 2018.

  1. May 1, 2018 at 8:35 PM
    #141
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?

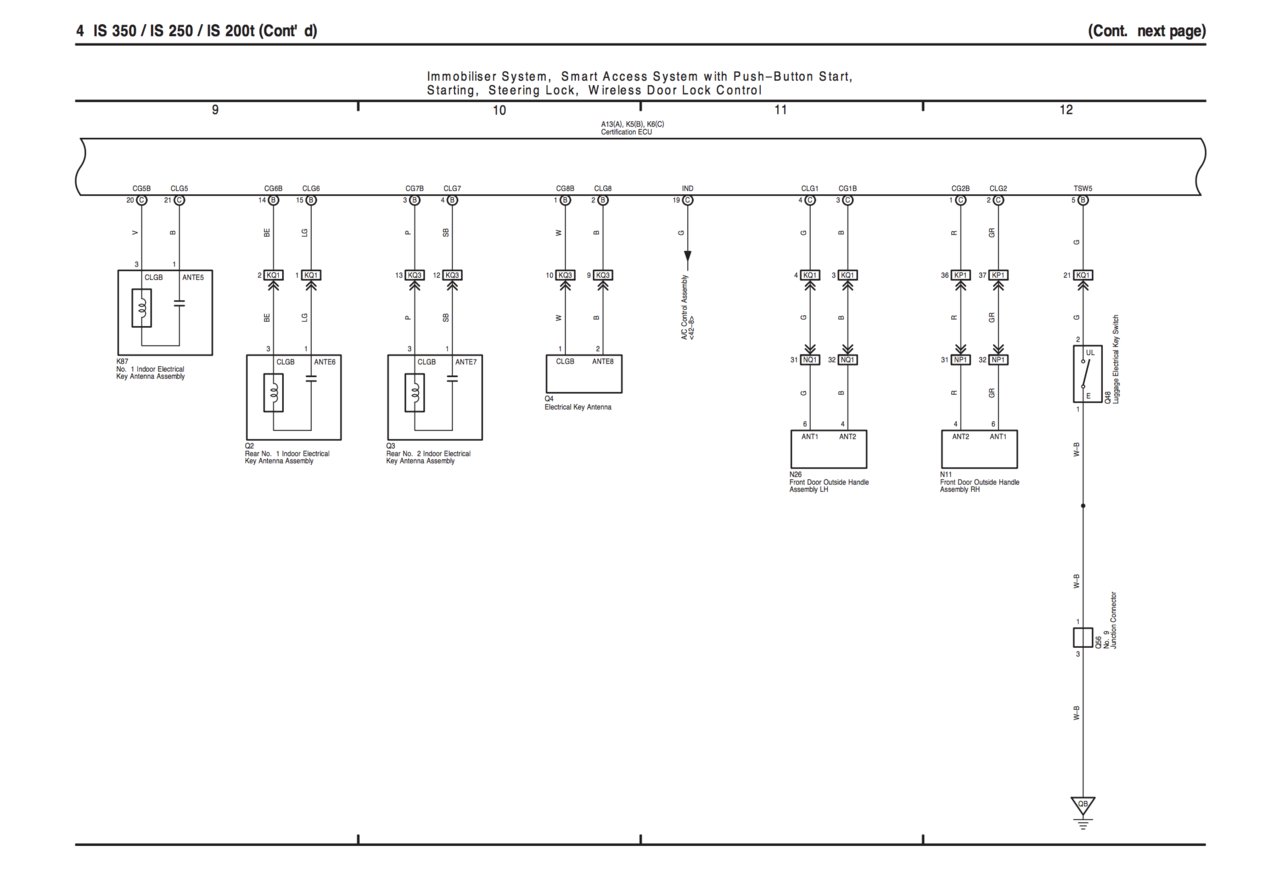

    Anyone have the same schematics for the Tacoma? I’d be curious to see how similar to the ones posted above, I know they won’t be there but I want to compare everything else being the same. @Victory how did you deduce which wires to tap into in the first place?

  2. May 1, 2018 at 8:42 PM
    #142
    pembol

    pembol Member

    Joined:
    Nov 15, 2016
    Member:
    #202462
    Messages:
    23
    Seems that someone already tried using these pins in the other thread, and it didn't work. I am a bit surprised, but who knows what the firmware looks like.

  3. May 1, 2018 at 8:47 PM
    #143
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    True, if the firmware isn't written to look for it, it will never matter, nor work. Good point. By the way welcome to TW!

  4. May 1, 2018 at 8:52 PM
    #144
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,044
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    You may notice if you look close at the pic of my Smart Key ECU in the first post that pins 1&2 aren’t empty and do have pins and black wires coming out. This is something I have tried and unfortunately this still doesn’t work.
    I have wiring diagrams for the Tacoma and Highlander on my laptop, (I can send them tomorrow if you want them) they both use the same ECU, and everything is the same except those two pins. I believe there is programming involved the the main ecu which keeps the taco from having this feature. The smart key ecu is actually referee to as a certification ecu, and is tied to the main vehicle ecu.
    The handle isn’t a simple switch either, closing the circuit of those two wires isn’t going to do anything, there is a lot more going on in there than that.

    I recommend you read the other thread on this, should be the first link in my first post.

    Marcus6867 likes this.
  5. May 2, 2018 at 11:42 AM
    #145
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    I just placed my order, no back order so far, fingers crossed. And if I got lucky, then call a Lexus dealership if you don’t want to wait, I confirmed it to be the exact same part number.

  6. May 4, 2018 at 5:39 PM
    #146
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?

    how hard was it getting the door panel off?

  7. May 4, 2018 at 6:13 PM
    #147
    EagleUSMCRet

    EagleUSMCRet Well-Known Member

    Joined:
    Dec 6, 2015
    Member:
    #171597
    Messages:
    574
    Gender:
    Male
    Alexandria, VA
    Vehicle:
    2017 MGM 4x4 Tacoma DC Limited
    ESR Magnetic Mount MAGSafe charger for iPhone; AVS Vent Visors; Replaced Entune system with Kenwood Excelon Head unit, The Taco Garage DMM for Qi charger, Owl Dash Cam and Motorola GMRS; LED interior light upgrades, ARE Z Cap w/ Yakima Rack, Front Bed Rail, Bed Rug, Tuffy Bed Lock Box, Add a leaf, Pop and Lock, Blendmount and mirror tap for radar detector, AVS Hoodflector, Redline Hood Gas Spring mod. A/C drain mod, X2 Power Premium 27M battery, Debadged the tailgate, Compustar remote start, USB charger for the rear seats, Husky Mats, Lexus Credit Card Transponder Fob, MAG Light mount, twin Hella Sharptone horns, Bedslide, Gasshole, Meso Fuze cover, TRD Gas cap cover, Passenger side locking door handle, Mr. Produxn license place mount, Total Chaos Bed Stiffeners, Valley Runner Tune....help me I can't stop!!!
    not that difficult. there is a couple of youtube videos that informs. did the mod last weekend..

  8. May 4, 2018 at 9:31 PM
    #148
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Thanks. So far so good? Any hiccups or lagginess now that it's tapping off the drivers side? Does the driver side lag or same amount of time when touching for it to register and open?

  9. May 4, 2018 at 10:23 PM
    #149
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    It seems the same as before.

    N2DesignsInc likes this.
  10. May 5, 2018 at 1:13 AM
    #150
    EagleUSMCRet

    EagleUSMCRet Well-Known Member

    Joined:
    Dec 6, 2015
    Member:
    #171597
    Messages:
    574
    Gender:
    Male
    Alexandria, VA
    Vehicle:
    2017 MGM 4x4 Tacoma DC Limited
    ESR Magnetic Mount MAGSafe charger for iPhone; AVS Vent Visors; Replaced Entune system with Kenwood Excelon Head unit, The Taco Garage DMM for Qi charger, Owl Dash Cam and Motorola GMRS; LED interior light upgrades, ARE Z Cap w/ Yakima Rack, Front Bed Rail, Bed Rug, Tuffy Bed Lock Box, Add a leaf, Pop and Lock, Blendmount and mirror tap for radar detector, AVS Hoodflector, Redline Hood Gas Spring mod. A/C drain mod, X2 Power Premium 27M battery, Debadged the tailgate, Compustar remote start, USB charger for the rear seats, Husky Mats, Lexus Credit Card Transponder Fob, MAG Light mount, twin Hella Sharptone horns, Bedslide, Gasshole, Meso Fuze cover, TRD Gas cap cover, Passenger side locking door handle, Mr. Produxn license place mount, Total Chaos Bed Stiffeners, Valley Runner Tune....help me I can't stop!!!
    it’s identical

    N2DesignsInc likes this.
  11. May 7, 2018 at 8:59 AM
    #151
    Col4bin

    Col4bin Well-Known Member

    Joined:
    Apr 6, 2018
    Member:
    #249606
    Messages:
    1,037
    Gender:
    Male
    Maine
    Vehicle:
    2018 TRD OR Double Cab
    Im stoked for this....cant tell you HOW many times (daily?) in the past few weeks I have tried to open passenger side to get the kids in....and then have to fumble for the remote someplace deep in a pocket. This is a game changer!

    DSRamsey13 and EagleUSMCRet like this.
  12. May 7, 2018 at 9:05 AM
    #152
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,103
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    Oh Yeah! I am loving my passenger door smart handle! I use to always have to pull my keys out of my back pack just to unlock the pass door, now just grab the handle. This by far has been the BEST and most useful mod i have done to my truck to date, along with the tailgate pop n lock and hood struts!

  13. May 7, 2018 at 8:23 PM
    #153
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    5,473
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Parts on order again.... if they tell me they are on back order, I'm going to just say hold my money until I get the parts or call you back.

    N2DesignsInc likes this.
  14. May 7, 2018 at 11:05 PM
    #154
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Where/who did you order it from?

  15. May 9, 2018 at 8:08 PM
    #155
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    5,473
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    Conicelli Toyota Parts Center,
    1580 Alan Wood Road
    Conshohocken, Pennsylvania, 19428
    USA
    800-825-7128 ext.5

    $190.37 with shipping to Texas. Currently one part on backorder until 5/23/18. I can wait.

  16. May 9, 2018 at 10:13 PM
    #156
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    Were they the same place that initially refunded your order because of the back ordered connector?

  17. May 9, 2018 at 10:18 PM
    #157
    N2DesignsInc

    N2DesignsInc --------------------------- N2 Designs, Inc. Vendor

    Joined:
    Jan 26, 2018
    Member:
    #242487
    Messages:
    2,344
    Los Angeles, CA
    Vehicle:
    2018 that identifies itself as a 2021
    Mods: Is this still a Tacoma?
    @Victory @TacoTruck808 @EagleUSMCRet

    Gentlemen, what gauge are the ECU wires in your opinion, last time I saw them I thought about 18..I’m trying to match my wire extension so the taps I use are the correct size and make good contact...any suggestions on taps? I've heard Positaps being thrown around..any specific ones? Thanks!

  18. May 9, 2018 at 10:49 PM
    #158
    RushT

    RushT Amateur Everythingist

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    5,473
    Gender:
    Male
    North Texas
    Vehicle:
    '18 DCSB TRDOR Inferno
    A penny cheaper, but who's counting. Different vendor though.

  19. May 9, 2018 at 10:50 PM
    #159
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    278
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    Just FYI I got ship notification today from Mcgeorge toyota online parts for all 4 parts. 180.53$ shipped. Ordered a couple of weeks ago.

    Since I hadn't chimed in yet on the thread but was lurking silently, I must say great thread and great job by @Victory, I'm excited to try this - like others have said, it's far too often that I'm on the passenger side wishing it was openable.

  20. May 10, 2018 at 5:19 AM
    #160
    Victory

    Victory [OP] Well-Known Member

    Joined:
    Mar 13, 2016
    Member:
    #181167
    Messages:
    1,044
    Gender:
    Male
    St. Pete, FL
    Vehicle:
    2016 White Tacoma TRD Off Road
    I believe the factory wires are probably 22 gauge. The OD was about the same in both my 24 gauge speaker wire and the factory wires, but my speaker wire seemed a little thinner inside with thicker rubber insulation outside which makes me think the factory wires are 22 gauge.
    Red positaps are probably the best thing to go with. You can’t buy them in any stores I’ve seen, you would have to order them online.

    EagleUSMCRet likes this.
