Patrick's Samurai Build

Discussion in 'Trail Toys' started by SMKYTXN, Jan 7, 2019.

  1. Jan 7, 2019 at 9:30 PM
    #1
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Here's the latest build going on over here at Trail Toys.

    [​IMG]

    Patrick has tasked me with building his Samurai. She wheeled pretty well as she sat, but 9.5” axles and links can’t hurt. I’ll be taking her to the roller stage and then handing her off to Patrick to finish up.

    Here’s the breakdown:

    Some year Suzuki Samurai
    Dual triangulated 4 link front and rear
    Custom subframe
    Flat belly
    New front tube clip
    New frame from the firewall forward and the tub back
    Fabricated 9.5” front
    FZJ80 full float rear
    Two piece front driveshaft

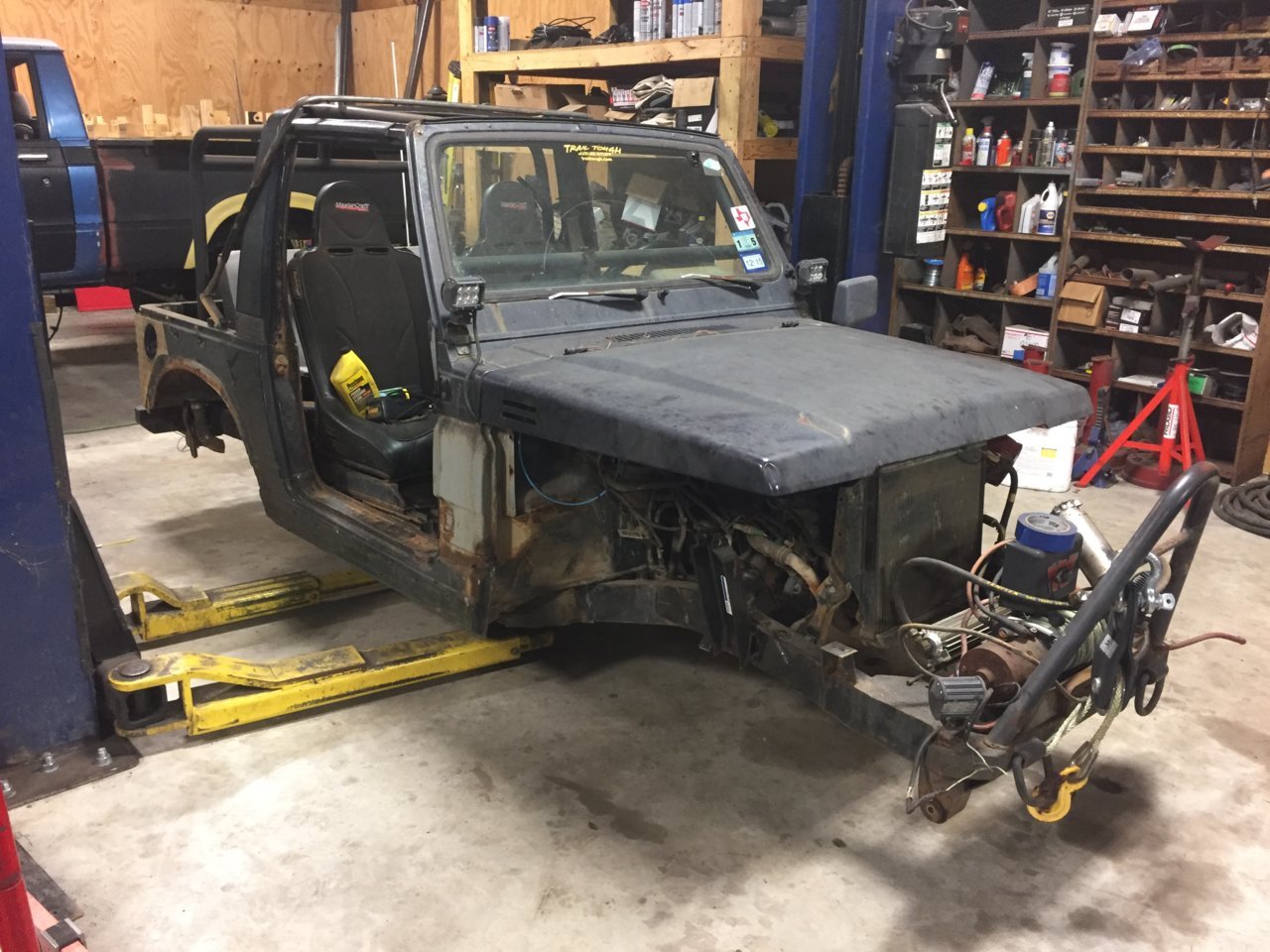

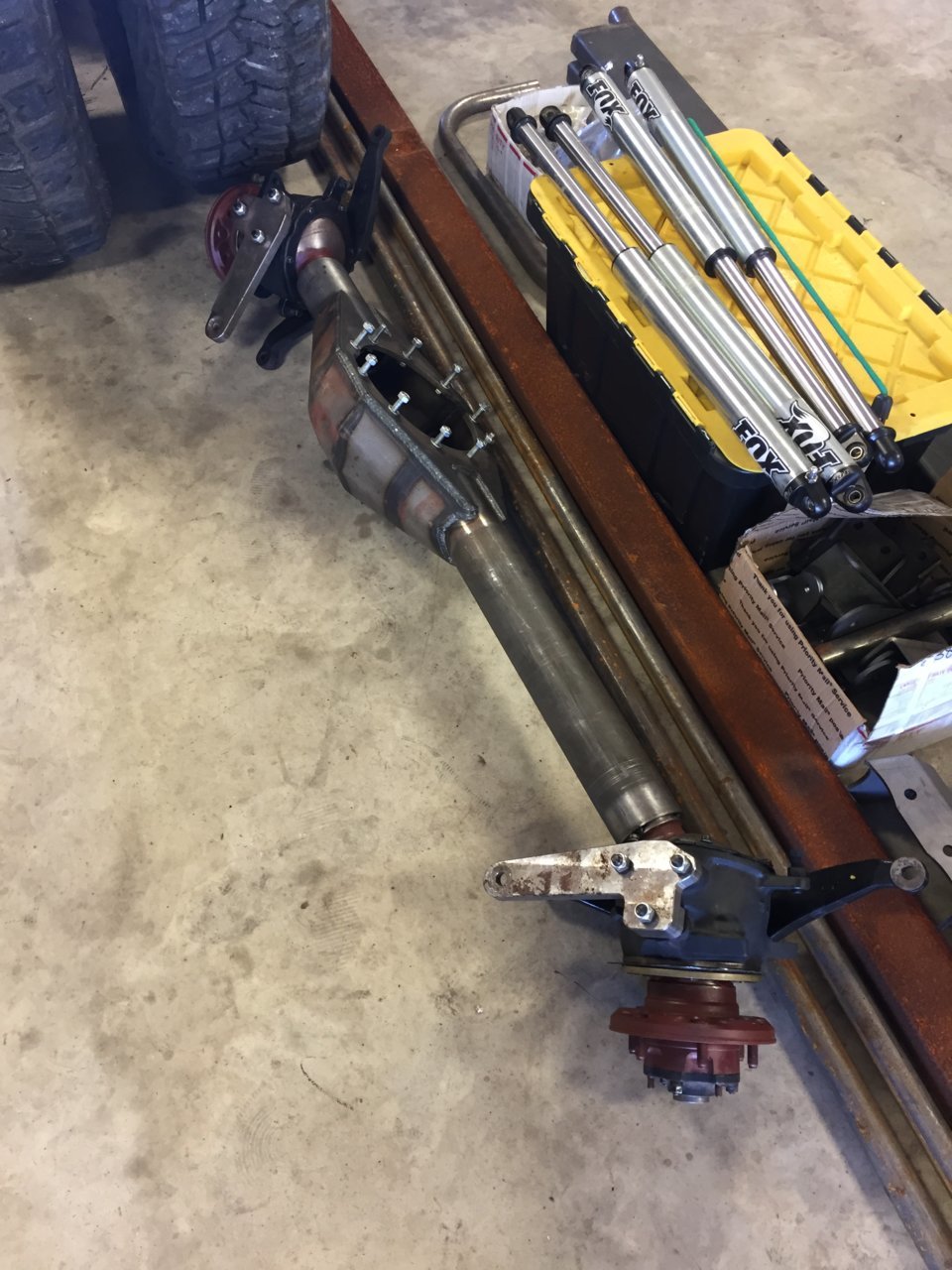

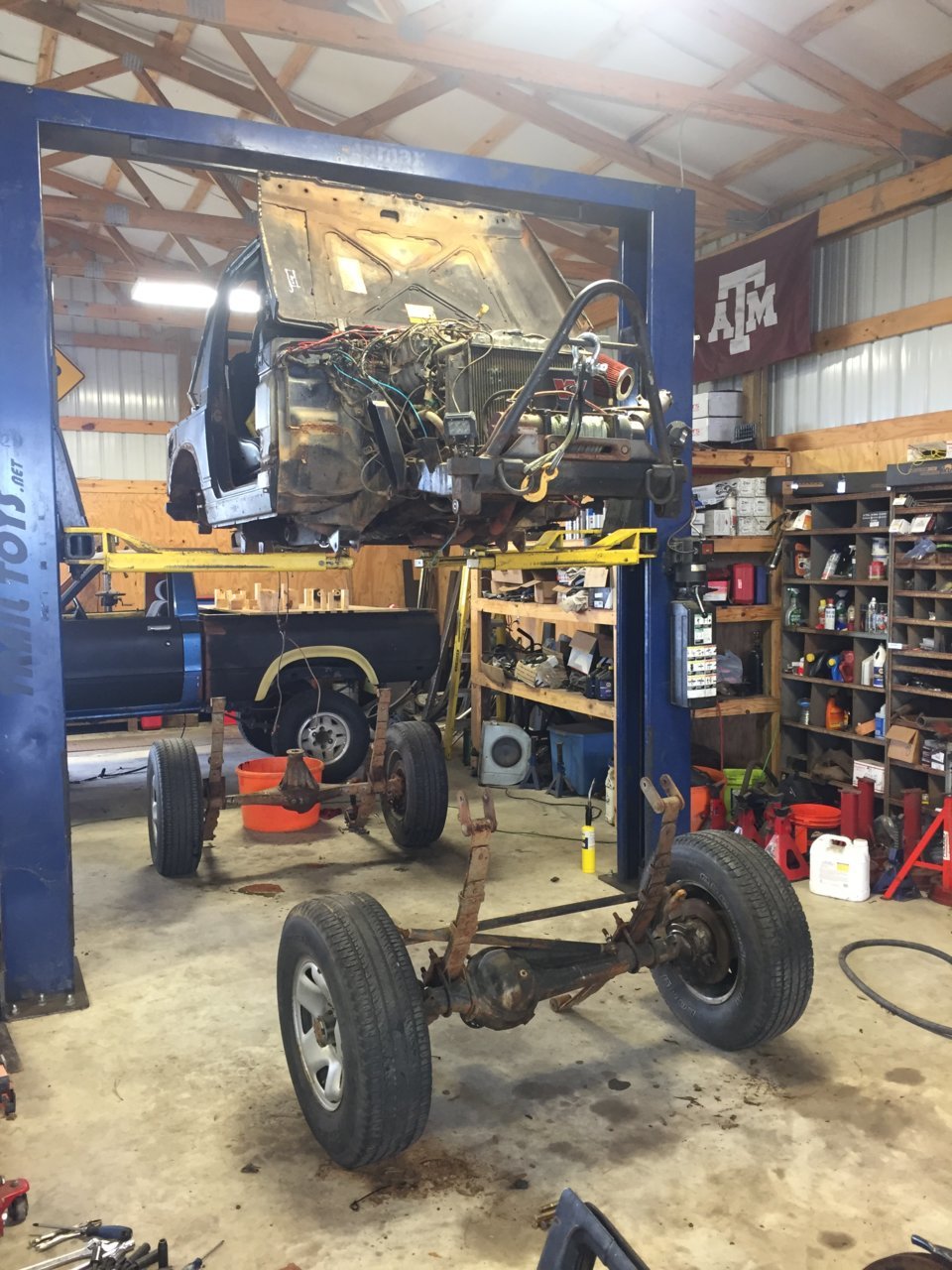

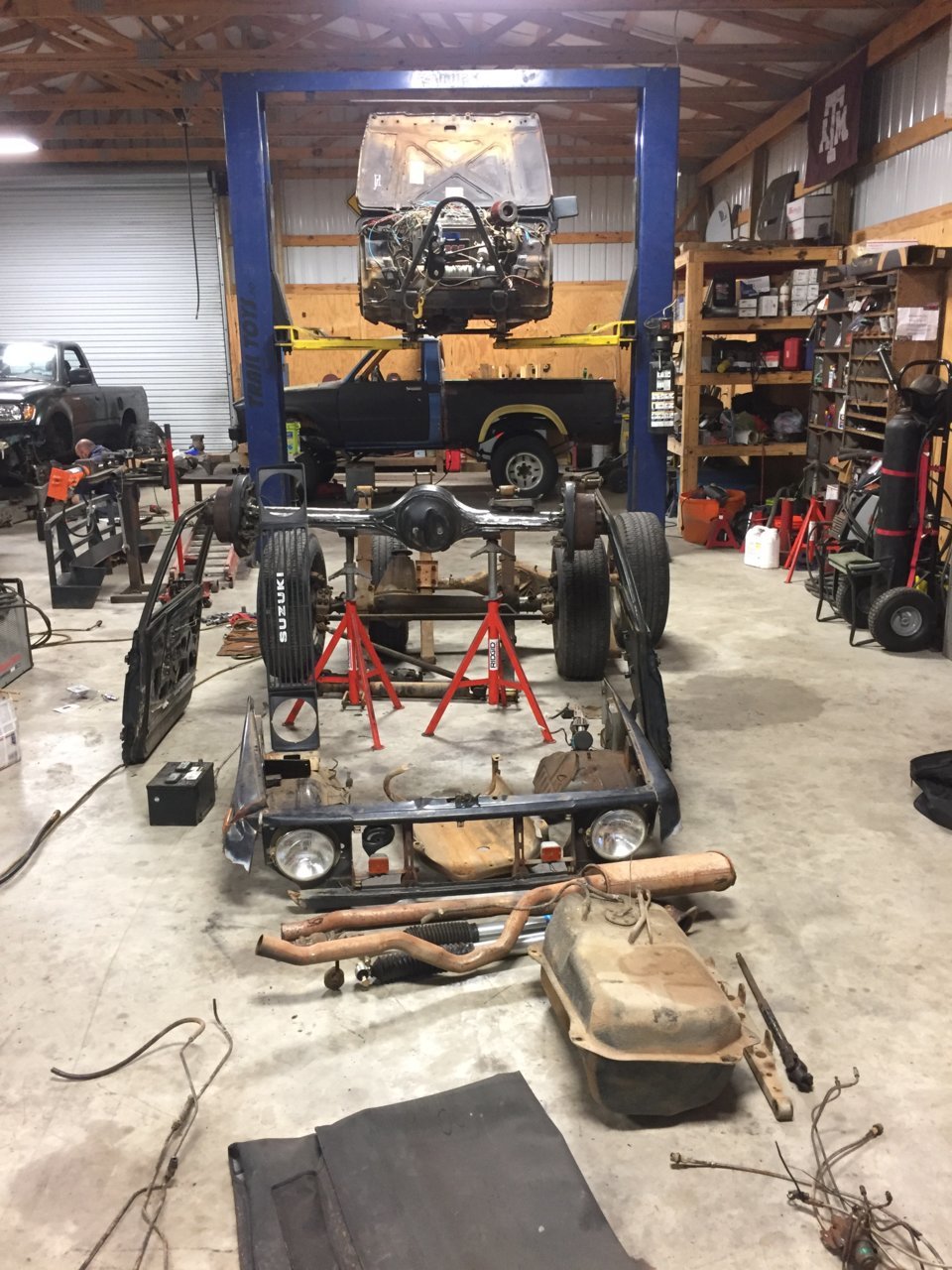

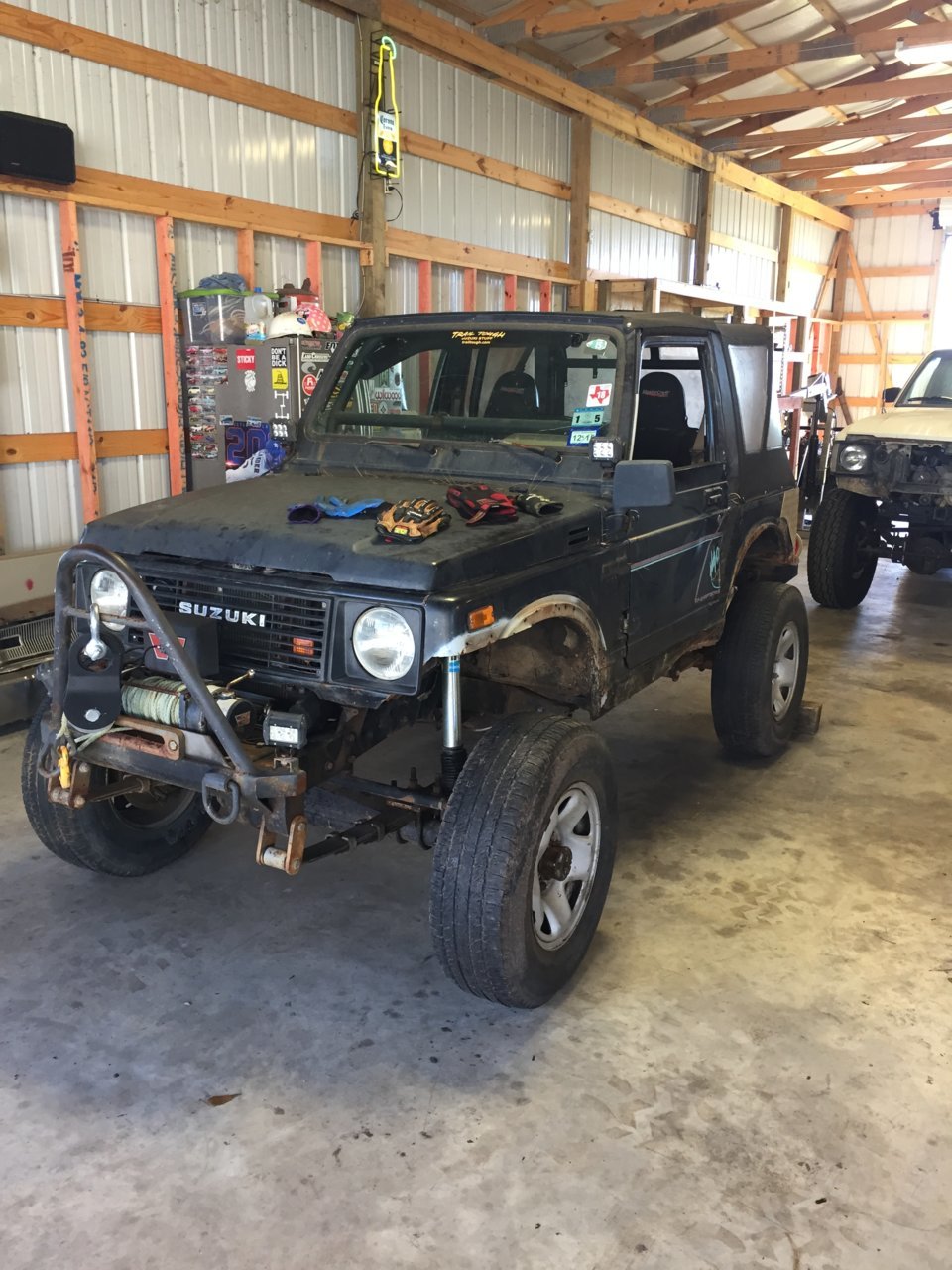

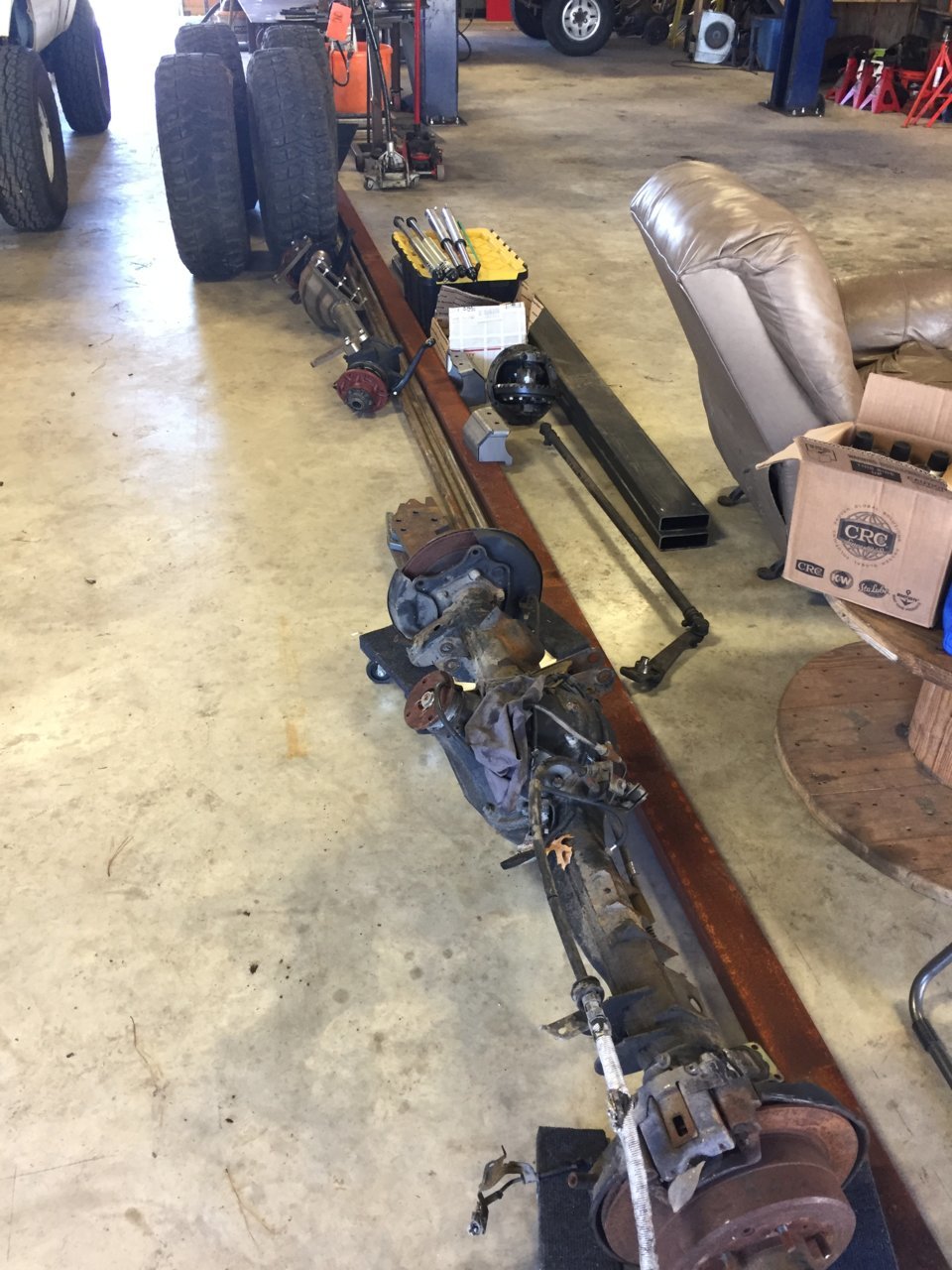

    Here’s how she looked when dropped off. She’s gonna look a fair bit different when I’m done with her.

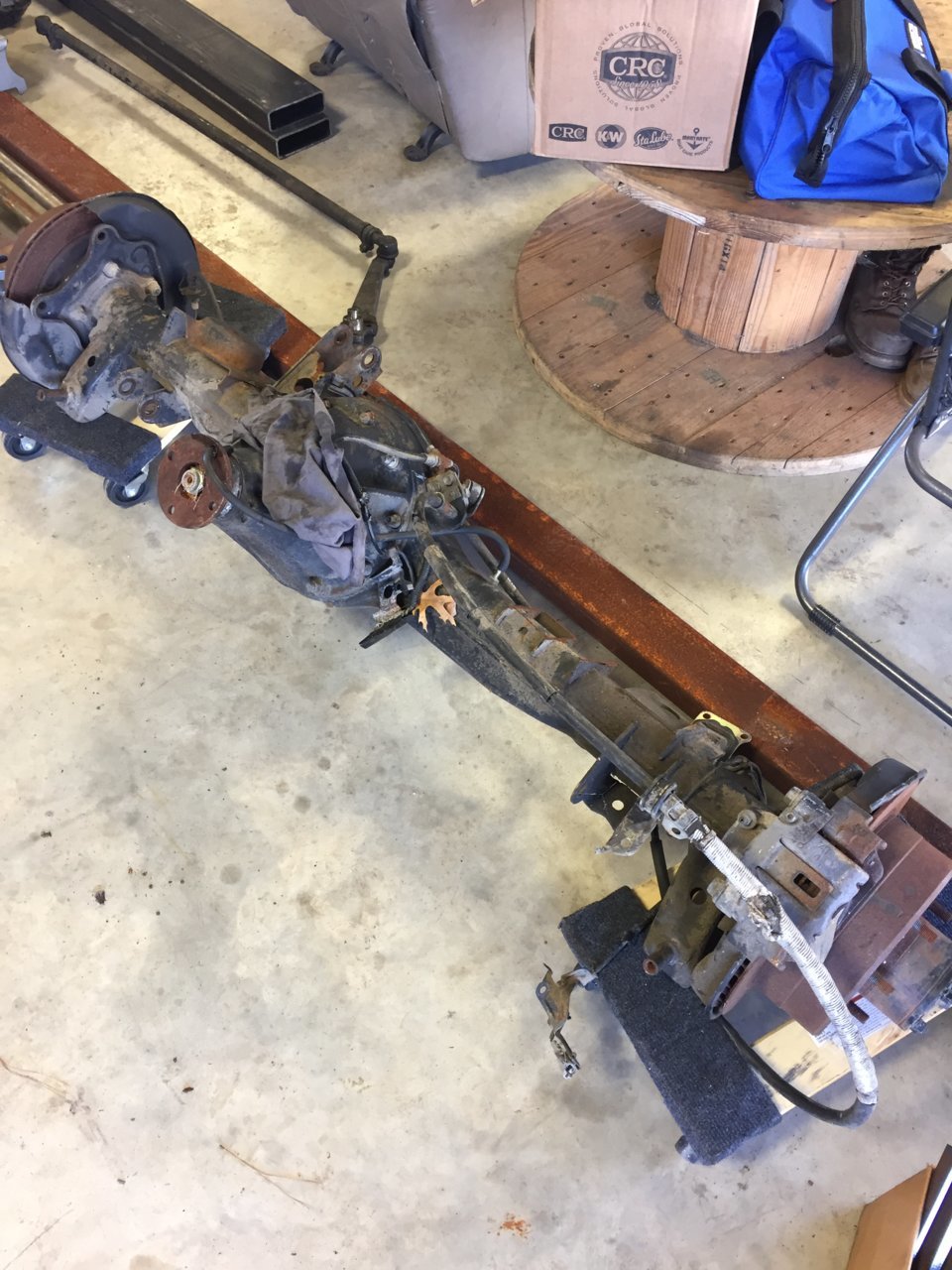

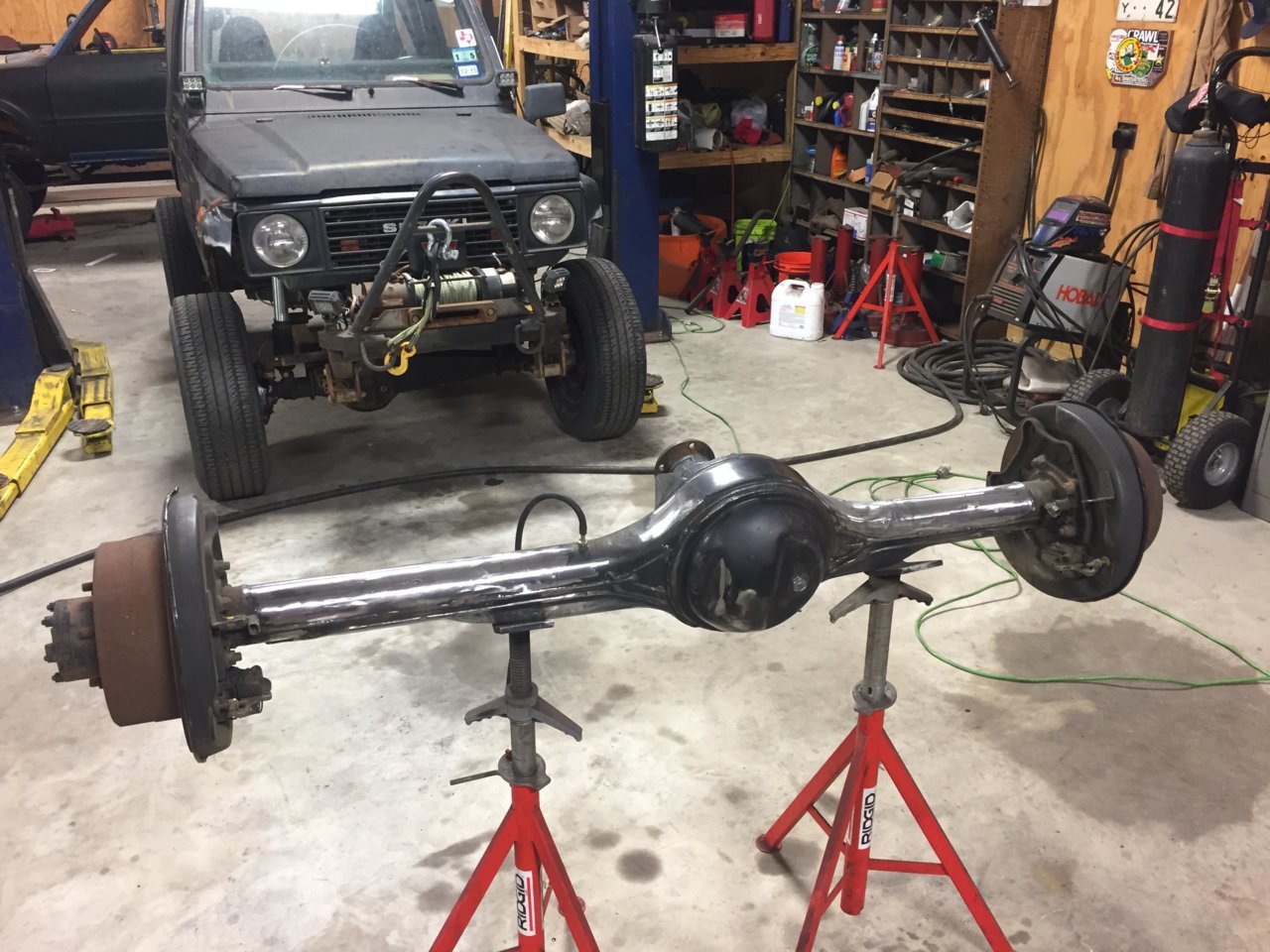

    I stripped the rear axle in preparation for a full truss. Man that axle had a bunch of crap on it, and the factory welds look like crap.

    The front clip is going away, but the hood will be staying. It sure was nice to have the entire front clip unbolt in one piece.

    I tore all of the brake and fuel lines out as a fuel cell and all new lines will be added.

    The lift sure does help. This is the first rig that’s had both axles removed by the lift in one smooth motion.

    Photo Dec 01, 1 15 46 PM.jpg Photo Dec 01, 1 15 36 PM.jpg Photo Dec 01, 1 15 51 PM.jpg Photo Dec 01, 1 15 56 PM.jpg Photo Dec 18, 7 18 00 PM.jpg Photo Dec 19, 1 17 42 PM.jpg Photo Dec 19, 8 32 42 PM.jpg Photo Dec 19, 8 35 42 PM.jpg

    Last edited: Feb 16, 2019
    bigmw likes this.
  2. Jan 7, 2019 at 9:32 PM
    #2
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

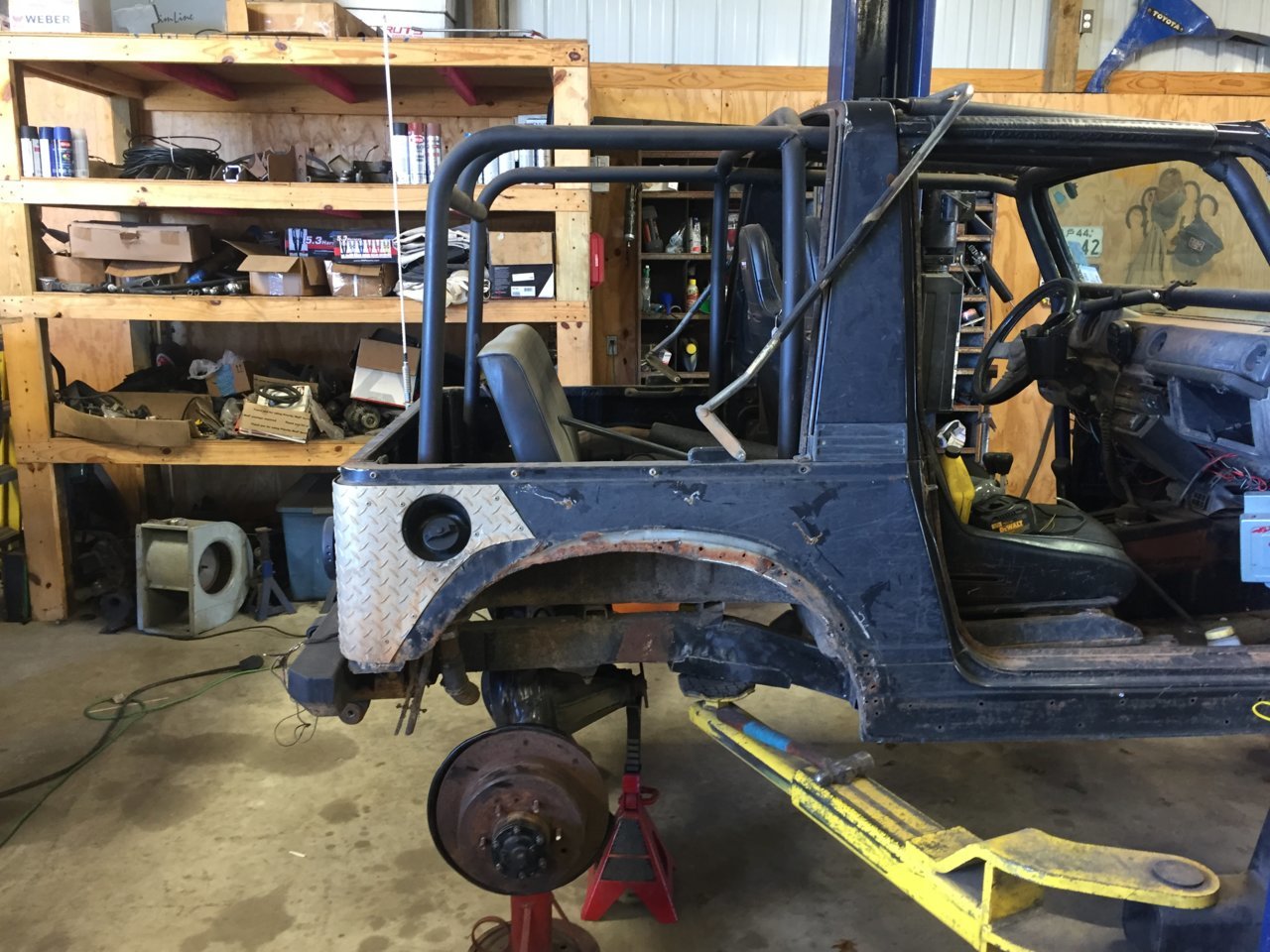

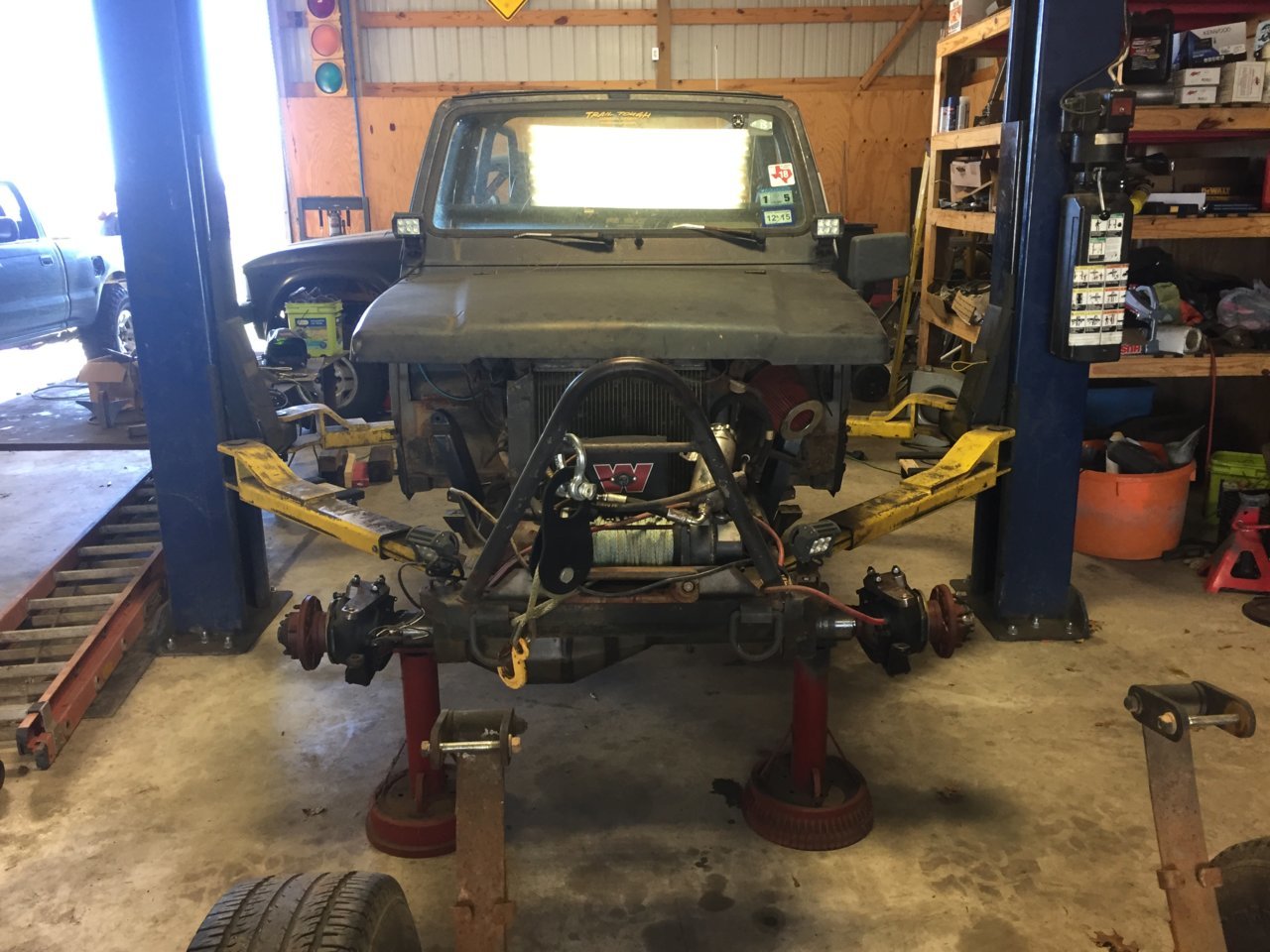

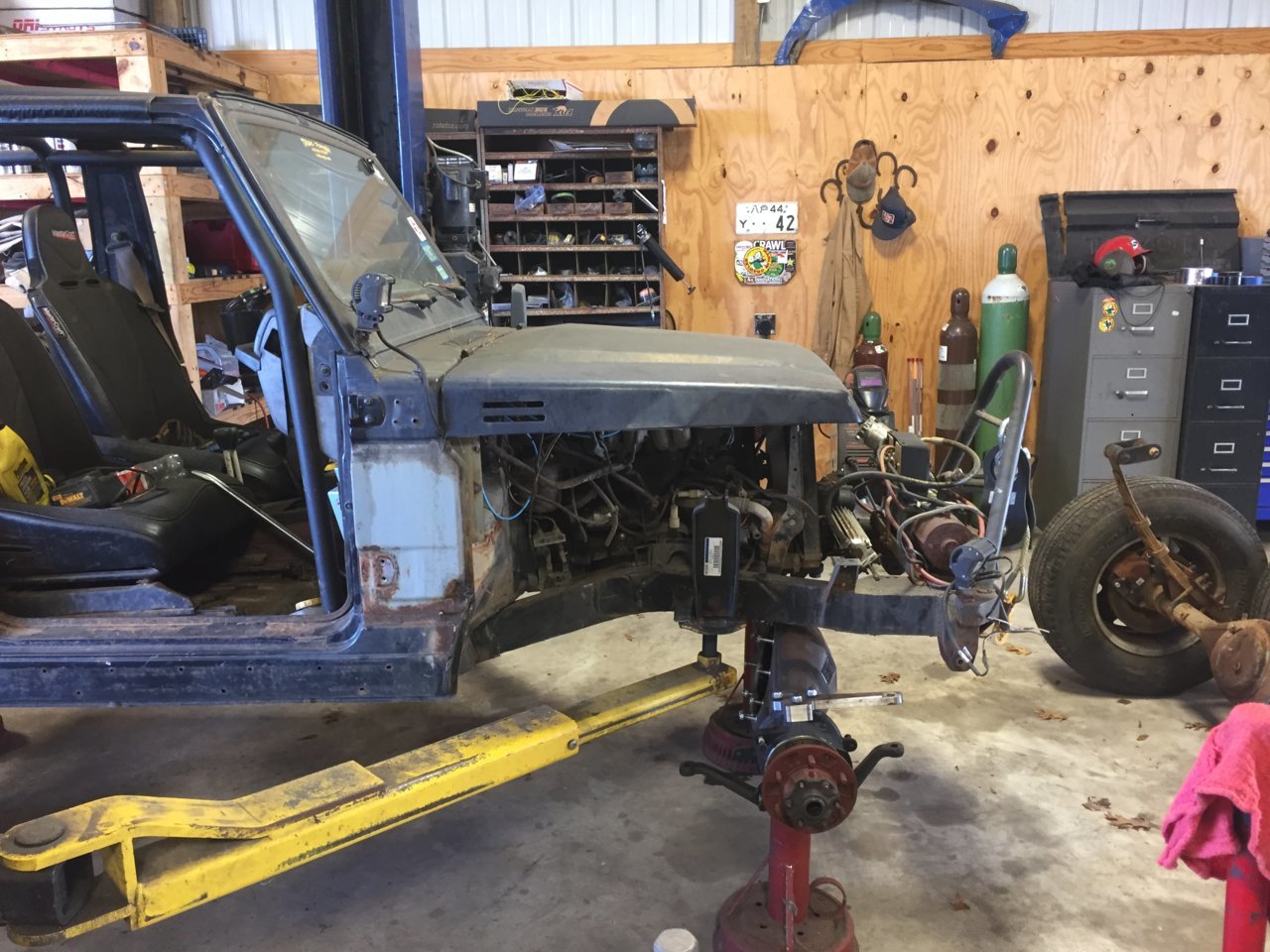

    Here's the new axle placement. I'm stretching the wheelbase to 102". The stretch is symmetric back to front.

    Photo Dec 20, 1 02 58 PM.jpg Photo Dec 20, 1 03 14 PM.jpg Photo Dec 20, 1 03 22 PM.jpg

    bigmw likes this.
  3. Jan 7, 2019 at 9:35 PM
    #3
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

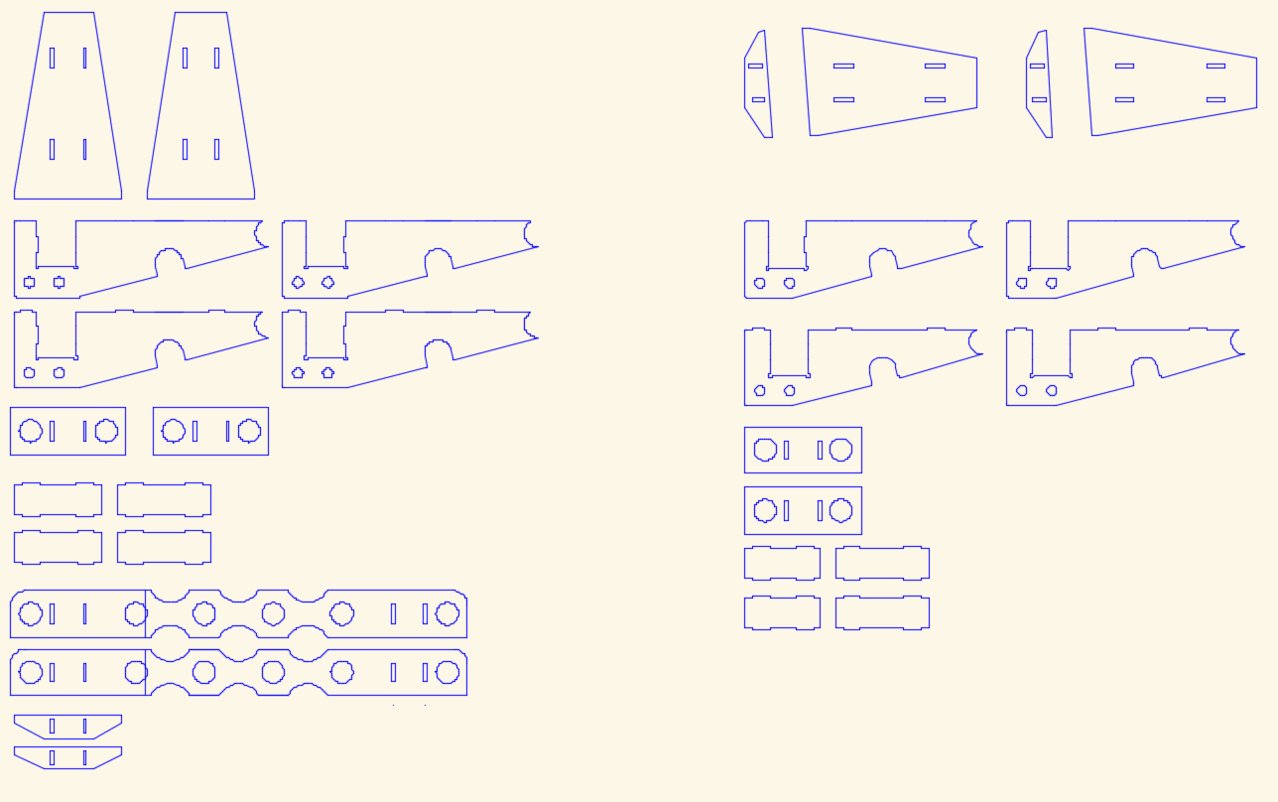

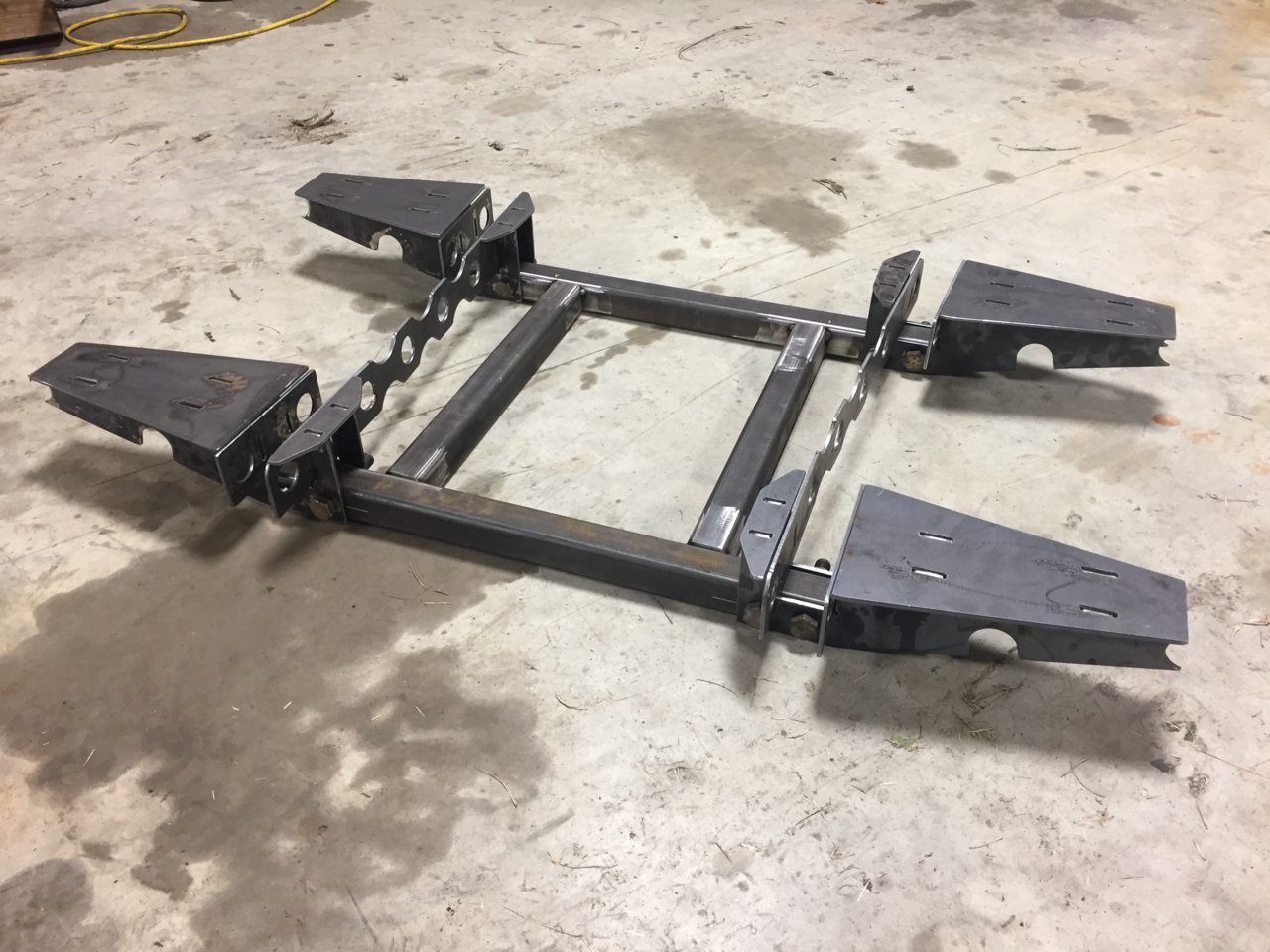

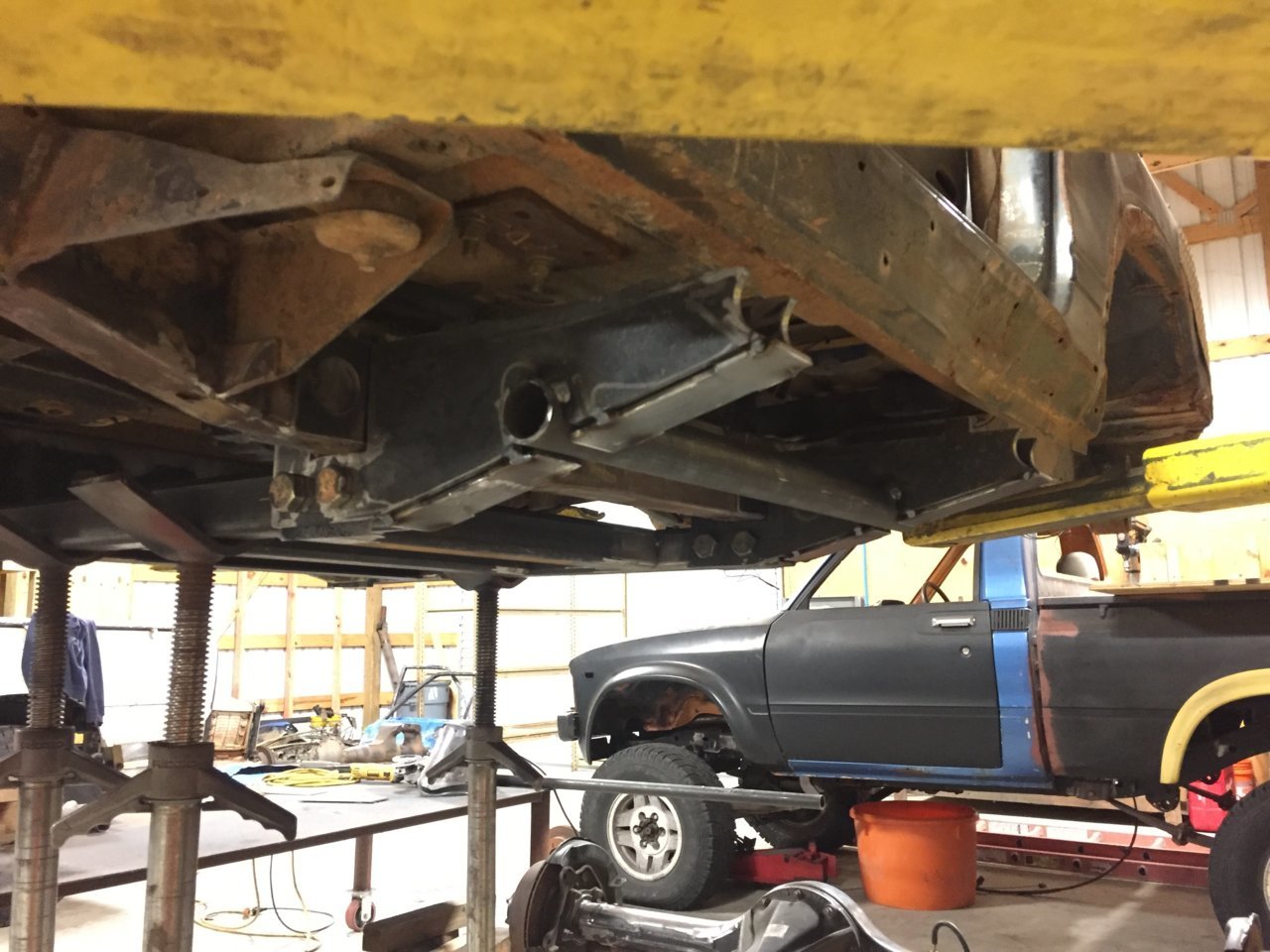

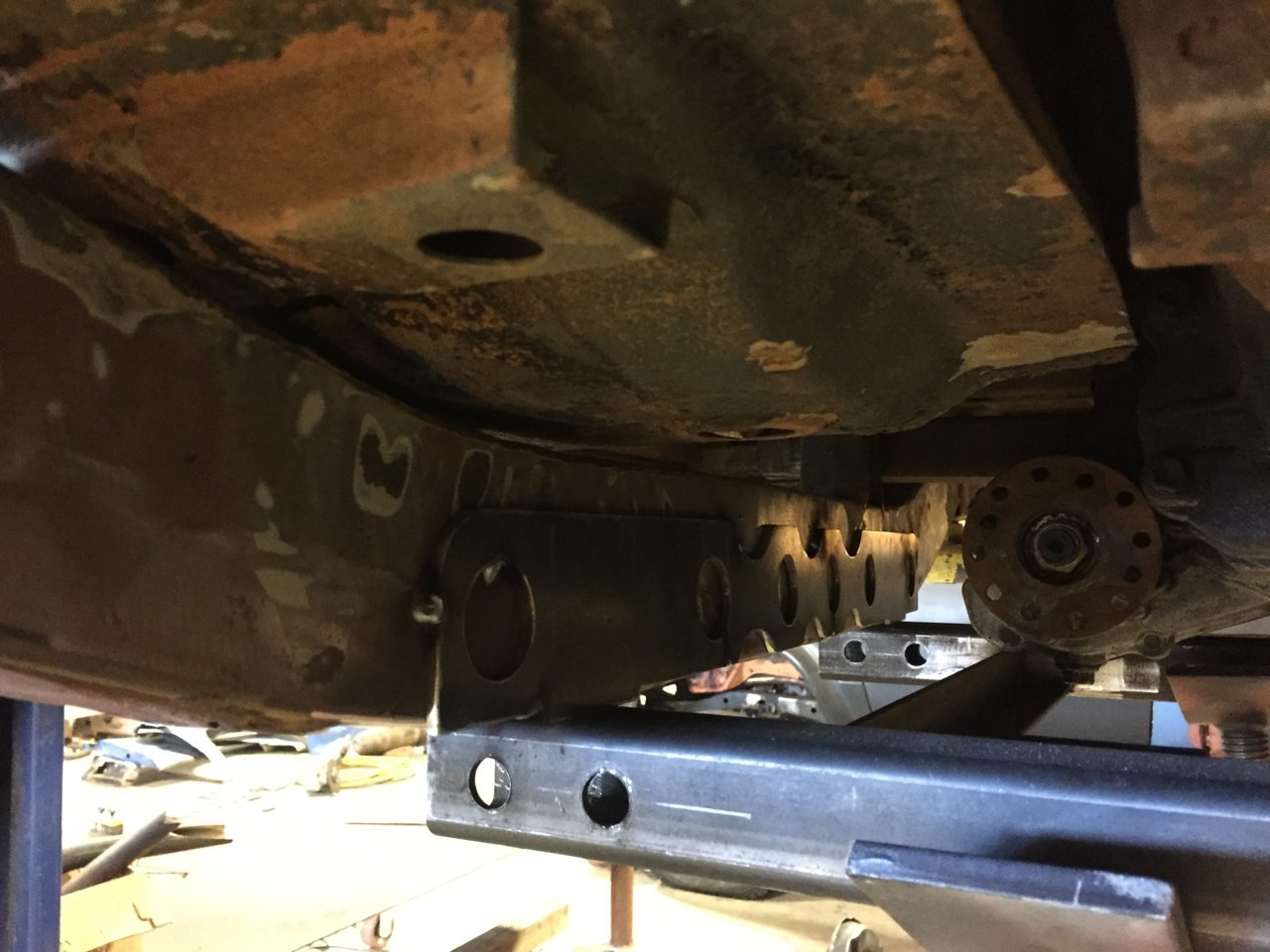

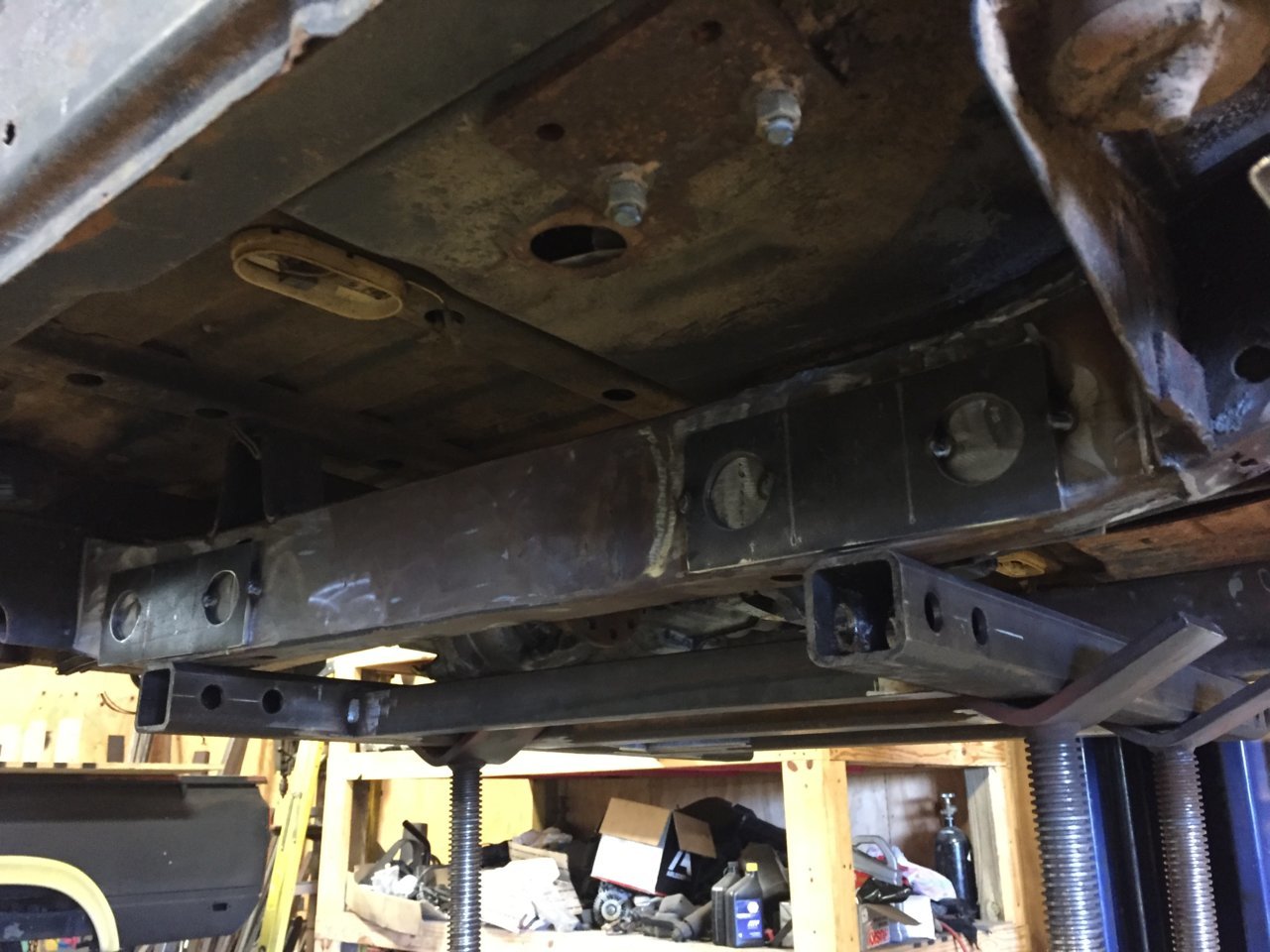

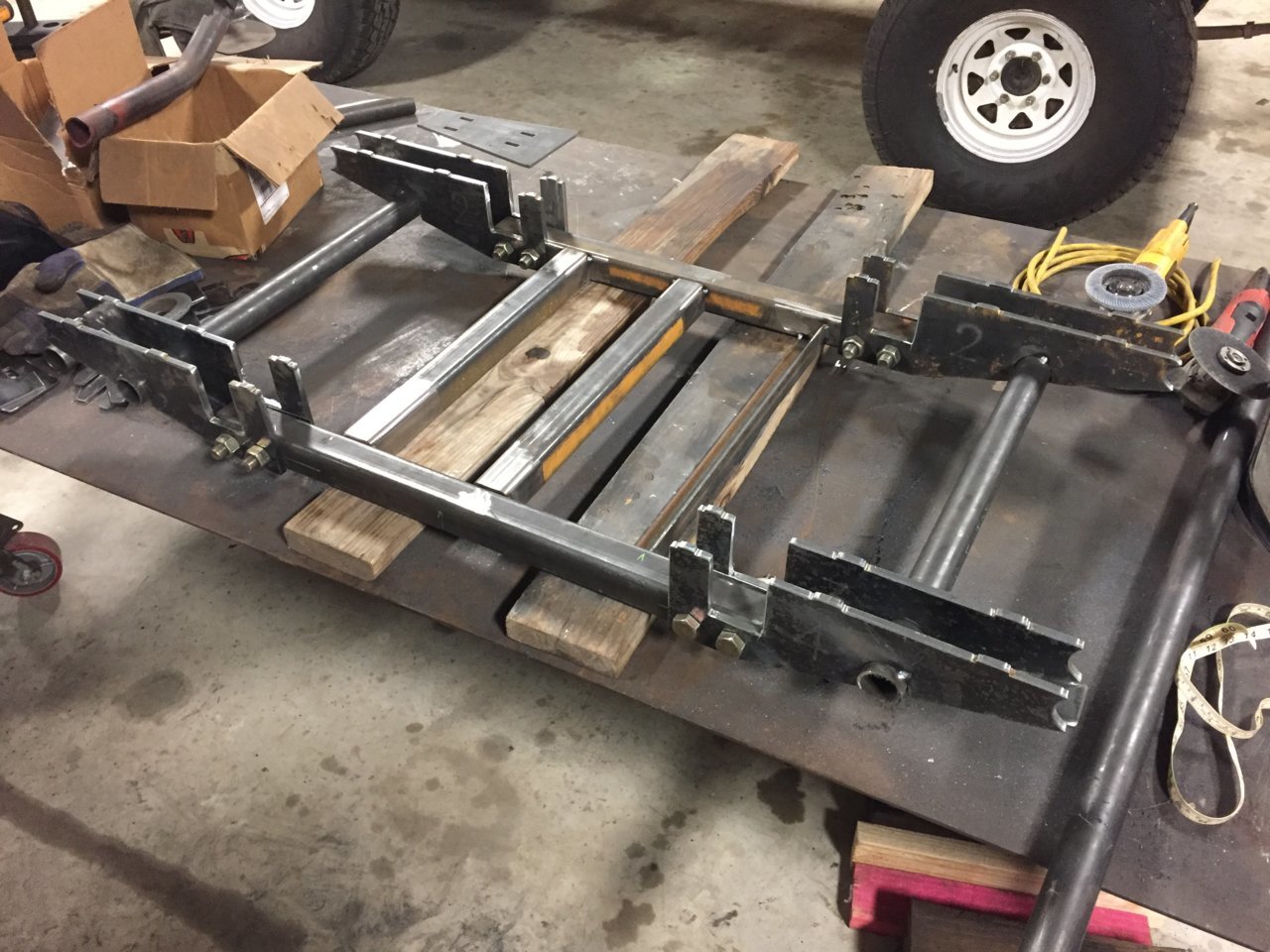

    I designed a custom subframe/flat belly for the Sami. With the lower links and carrier bearing being attached to the belly it'll be a job to get it out, but the belly will come out if needed.

    Photo Dec 27, 2 49 08 PM.jpg Photo Dec 29, 1 38 27 PM.jpg Photo Jan 05, 6 02 42 PM.jpg Photo Jan 05, 7 33 00 PM.jpg Photo Jan 05, 12 43 12 PM.jpg Photo Jan 05, 12 43 29 PM.jpg Photo Jan 06, 2 00 07 PM.jpg

    bigmw and tacoma16 like this.
  4. Jan 7, 2019 at 9:35 PM
    #4
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

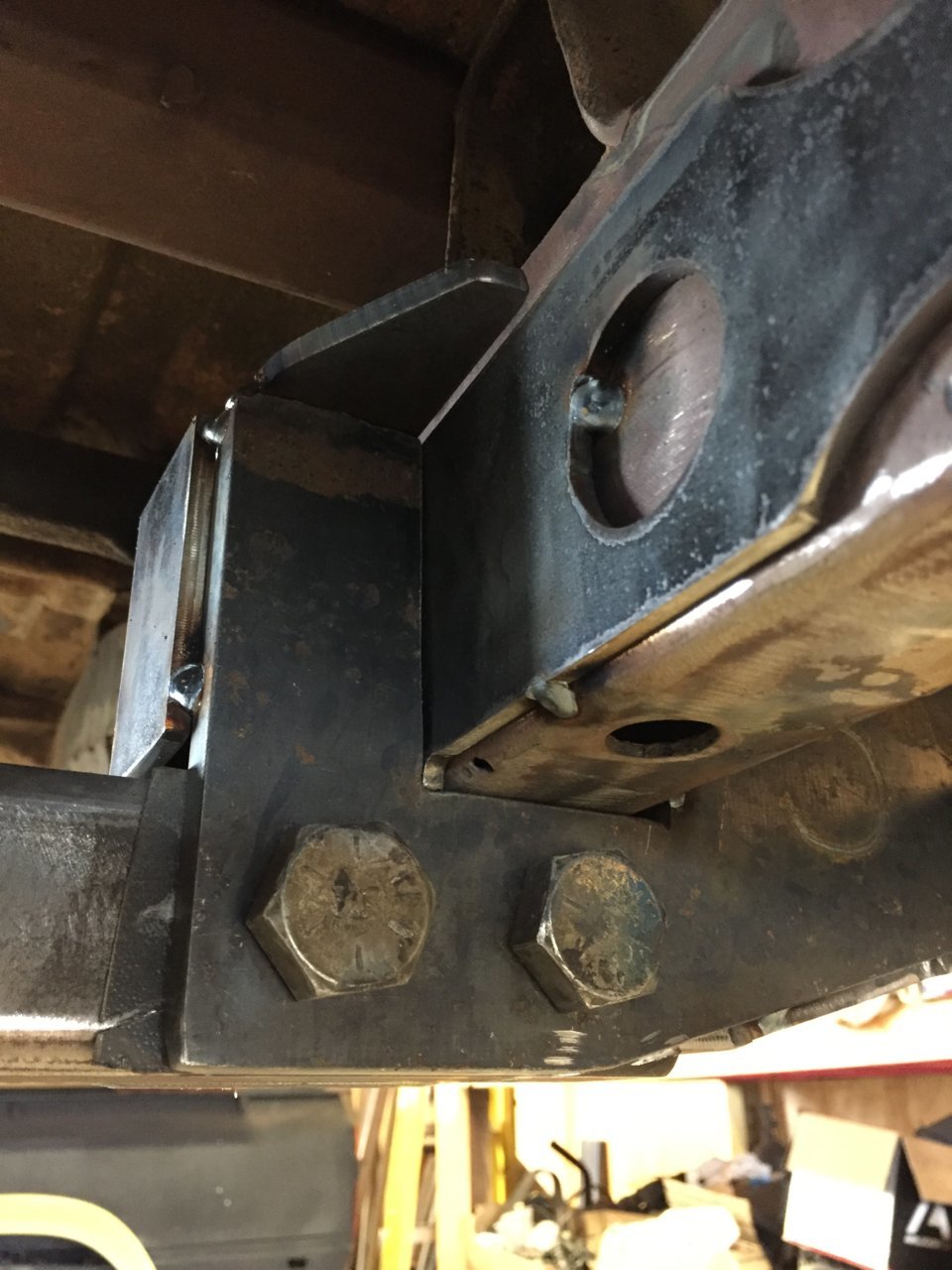

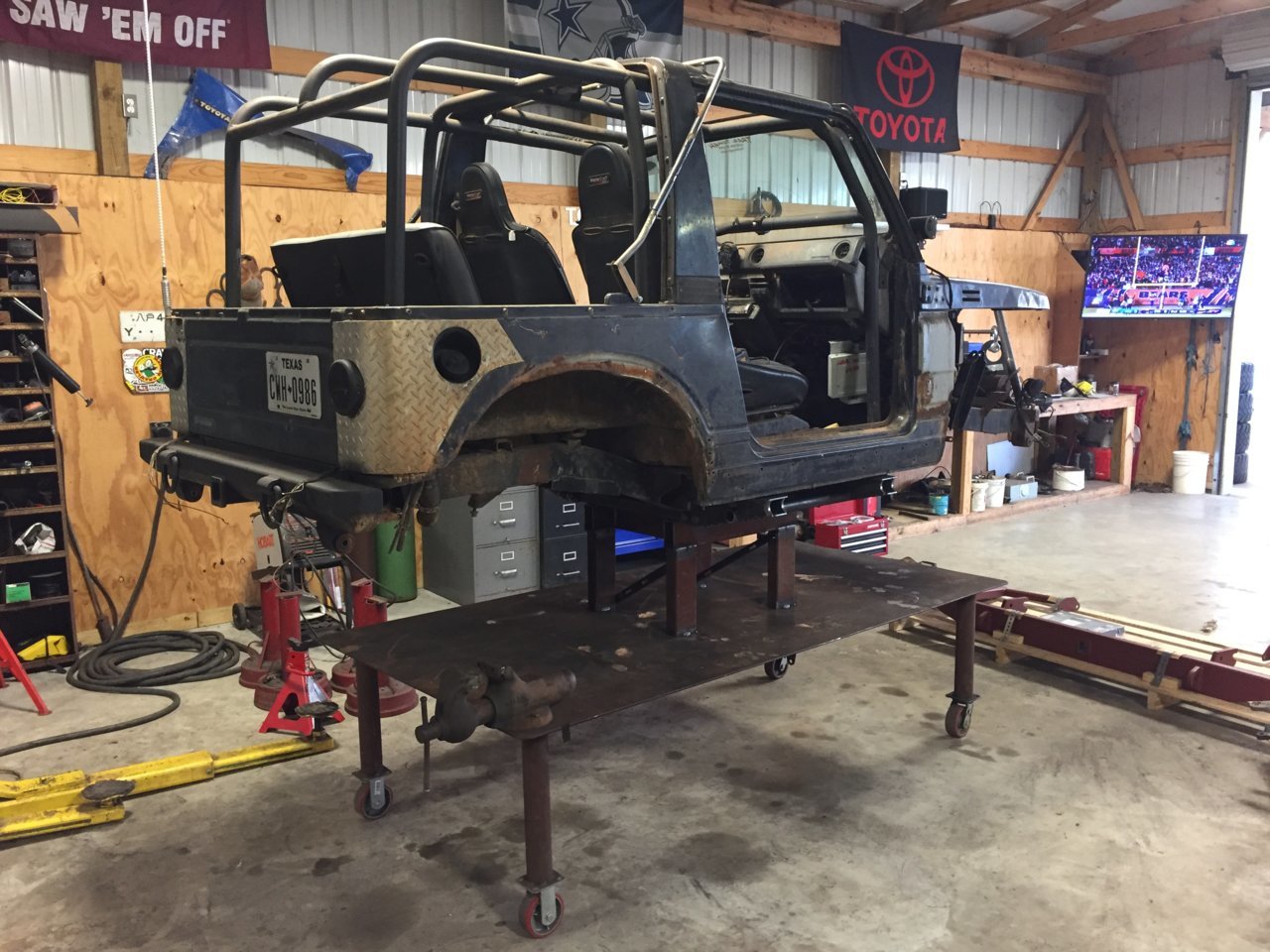

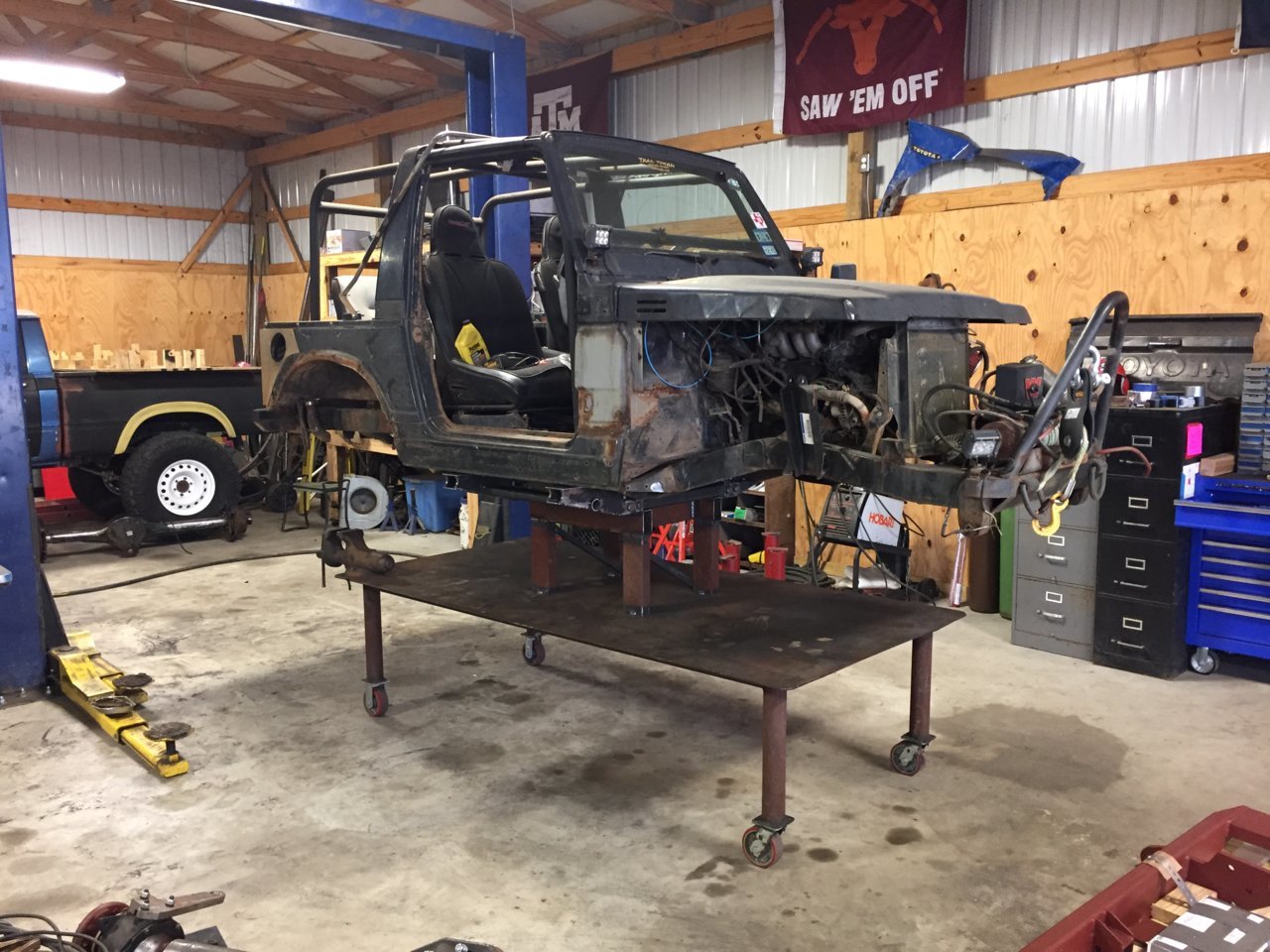

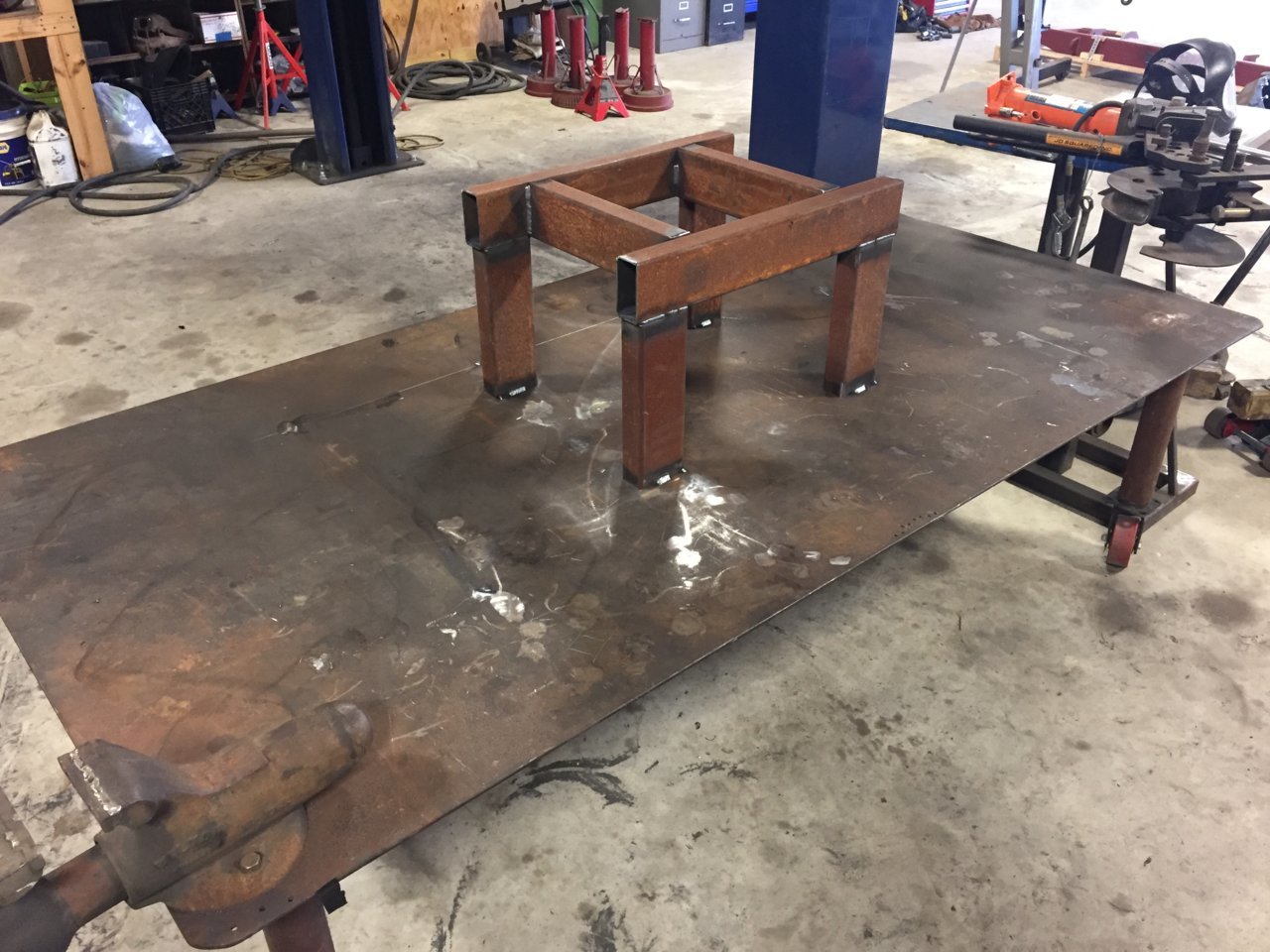

    Now that the subframe is tacked in it's time to move her to the frame table and get to work on the axles and frame. I built a nice little table on top of the frame table to hold the belly. Funny enough the Sami balanced nicely on the table.

    I wanted her up high so I had worm to work. Hopefully that doesn't come back to bite me in the ass.

    Photo Jan 06, 4 28 34 PM.jpg Photo Jan 06, 5 07 29 PM.jpg Photo Jan 06, 5 07 39 PM.jpg

    bigmw likes this.
  5. Jan 11, 2019 at 8:45 PM
    #5
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

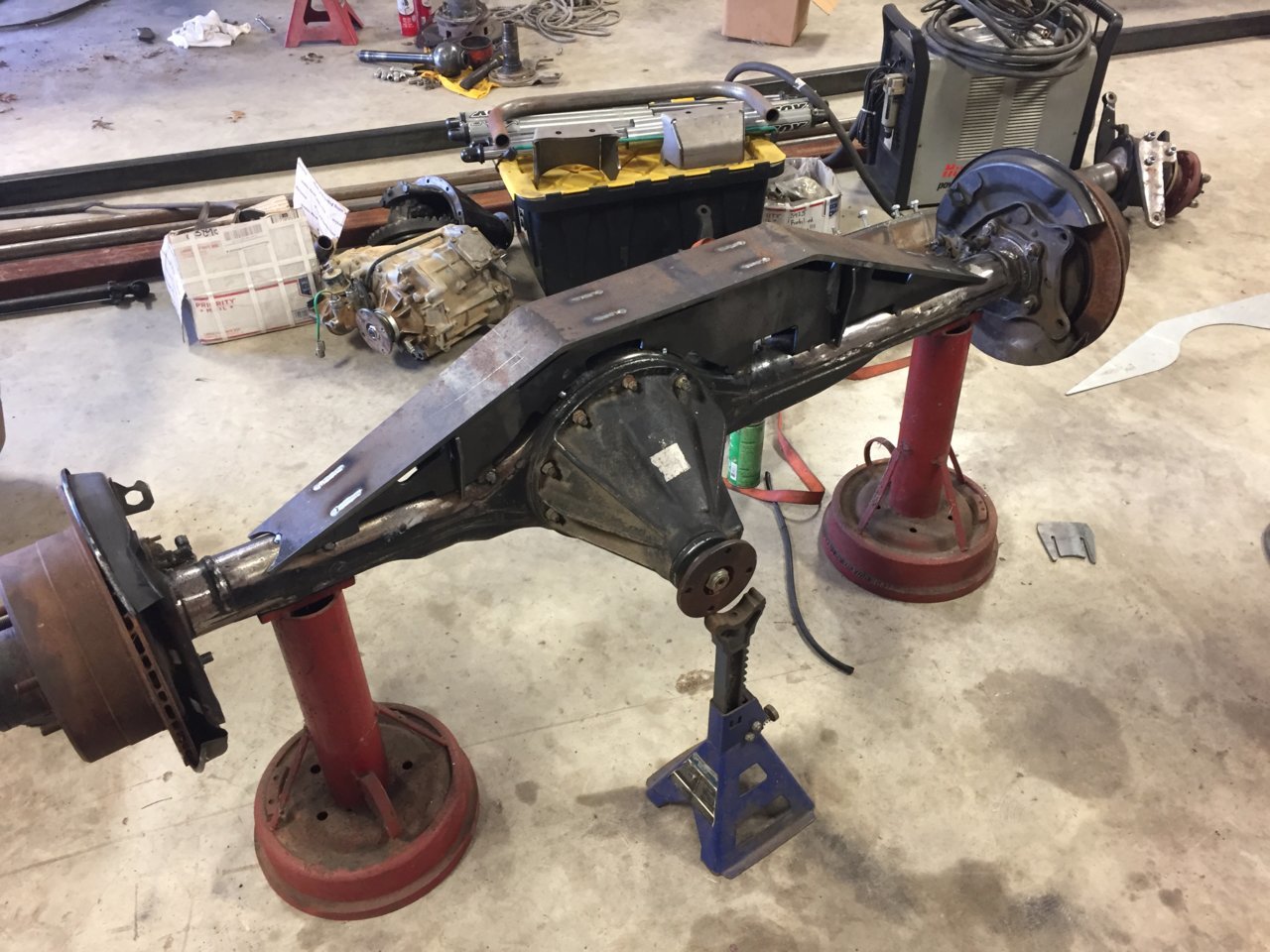

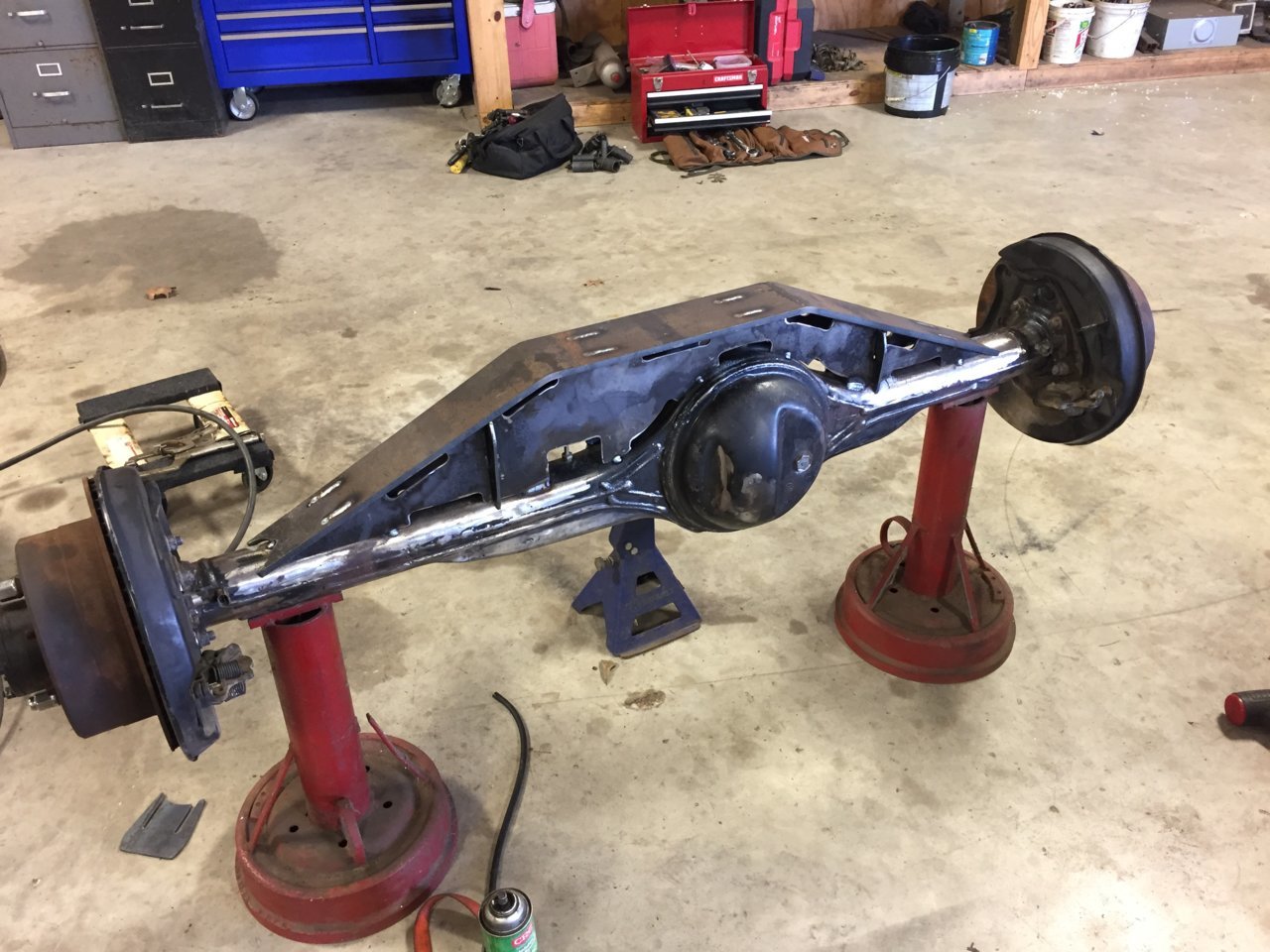

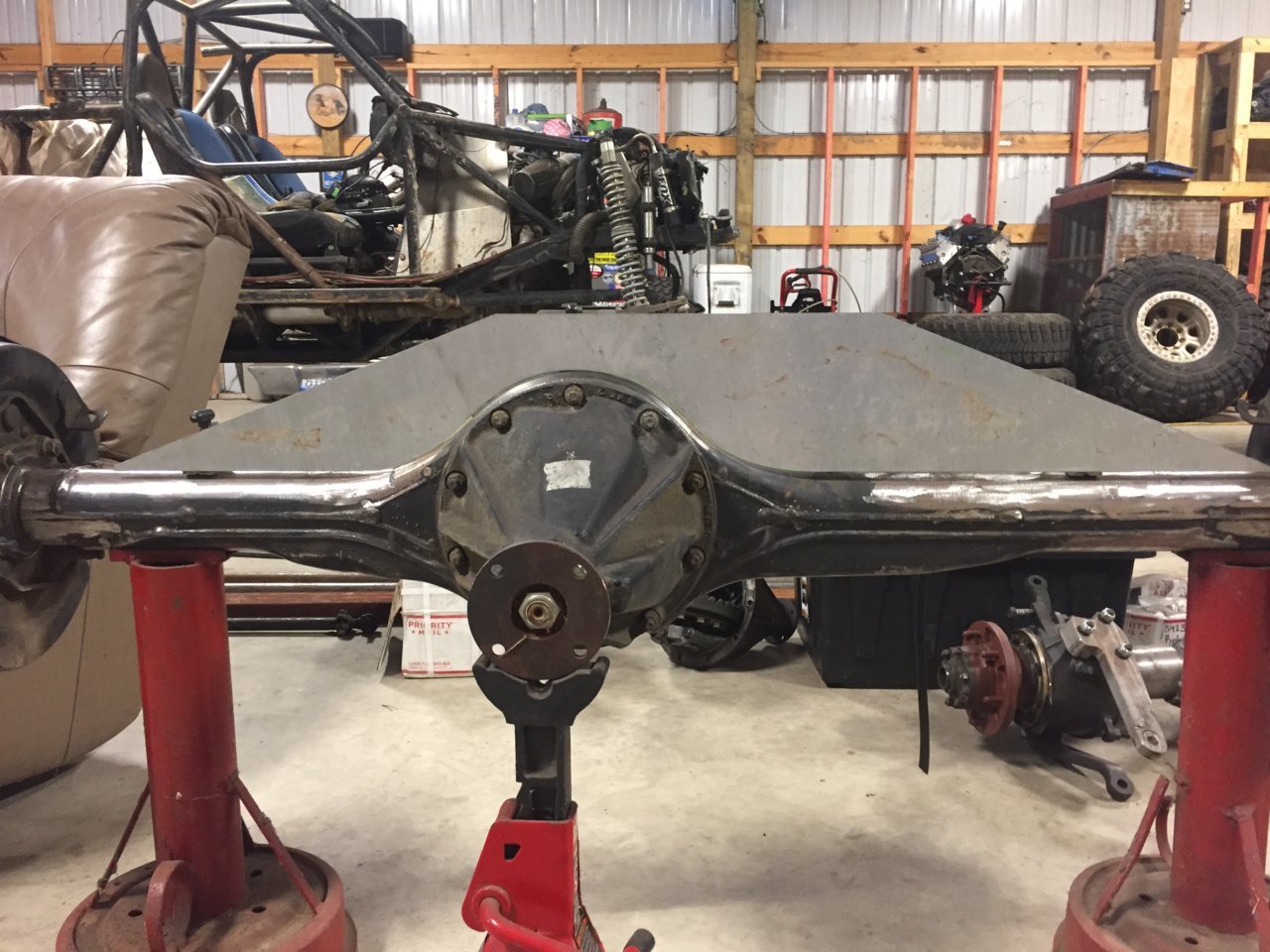

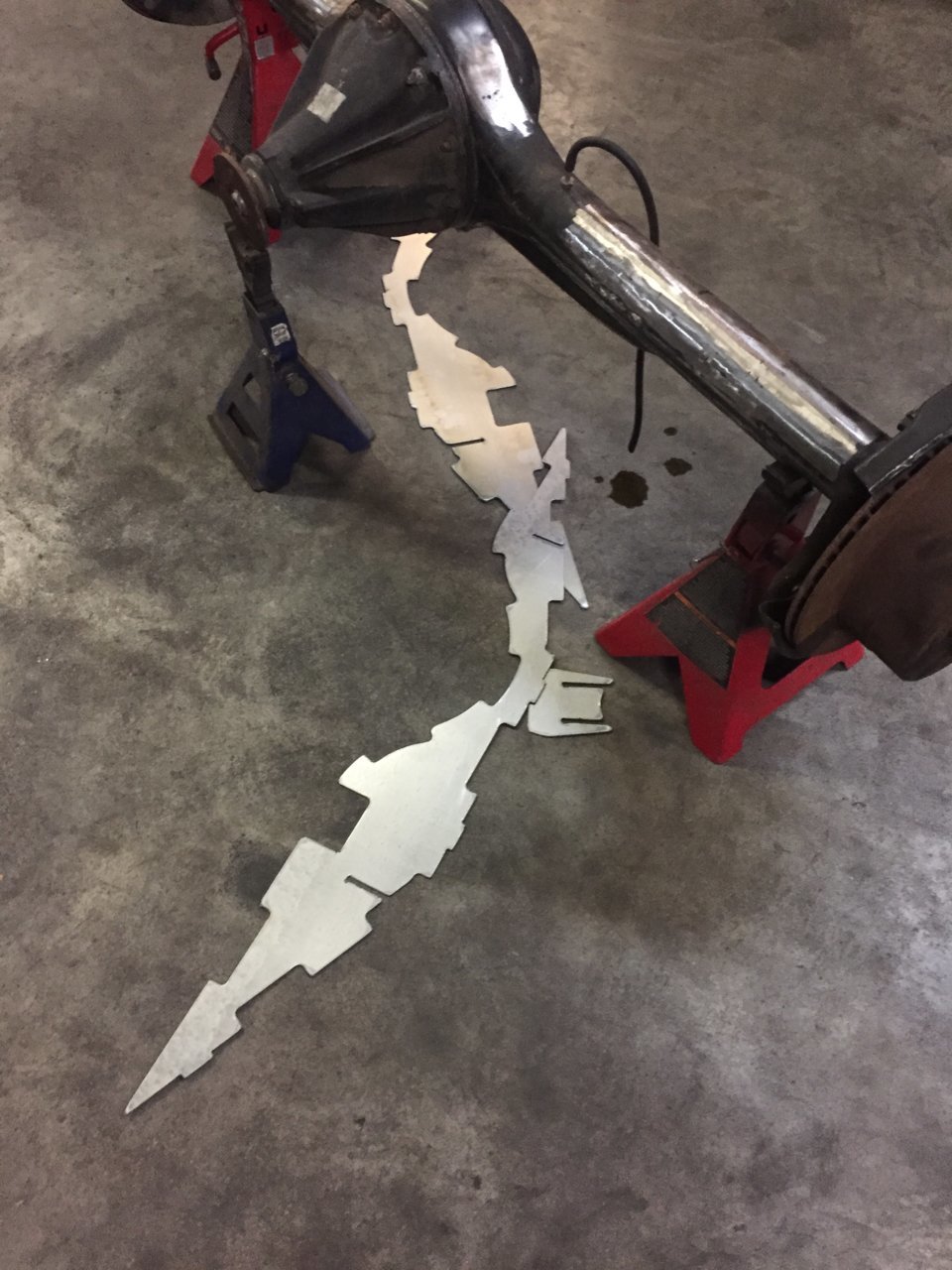

    Ok, so it's time to start putting the axles under this thing. It was clear from the start that the frame was going to have to move up if I was going to achieve negative lower links at bump. I couldn't adjust the frame until the axle was prepped, so it was time to build the truss. Of course no one makes a full width truss for the 80 series axle, so I had to design one myself. Here's the result.

    Photo Jan 08, 9 12 37 PM.jpg Photo Jan 09, 6 06 18 PM.jpg Photo Jan 11, 1 03 33 PM.jpg Photo Jan 11, 1 03 43 PM.jpg
    I'll be tweaking the drawing a bit and will then add these trusses to the lineup.

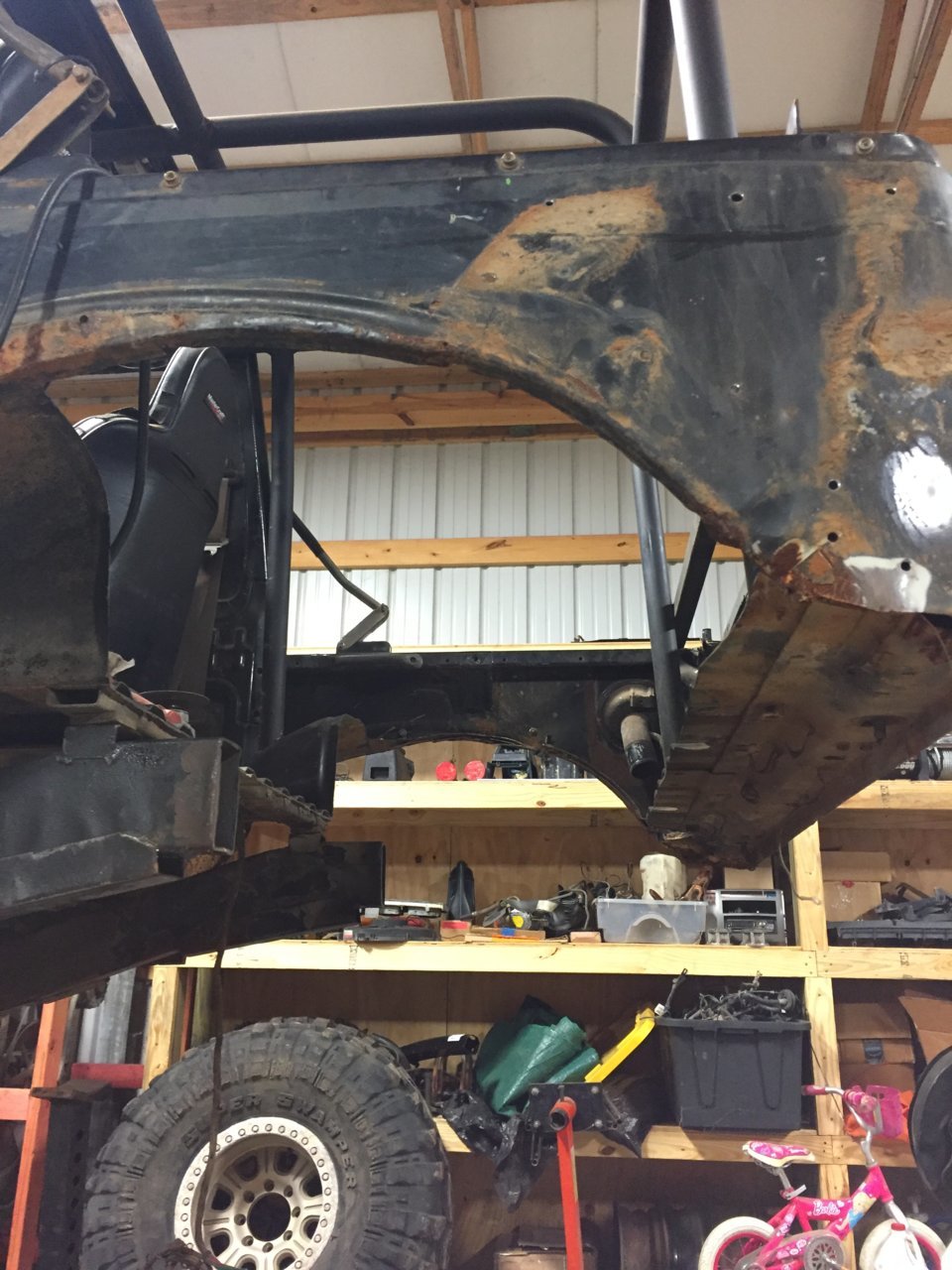

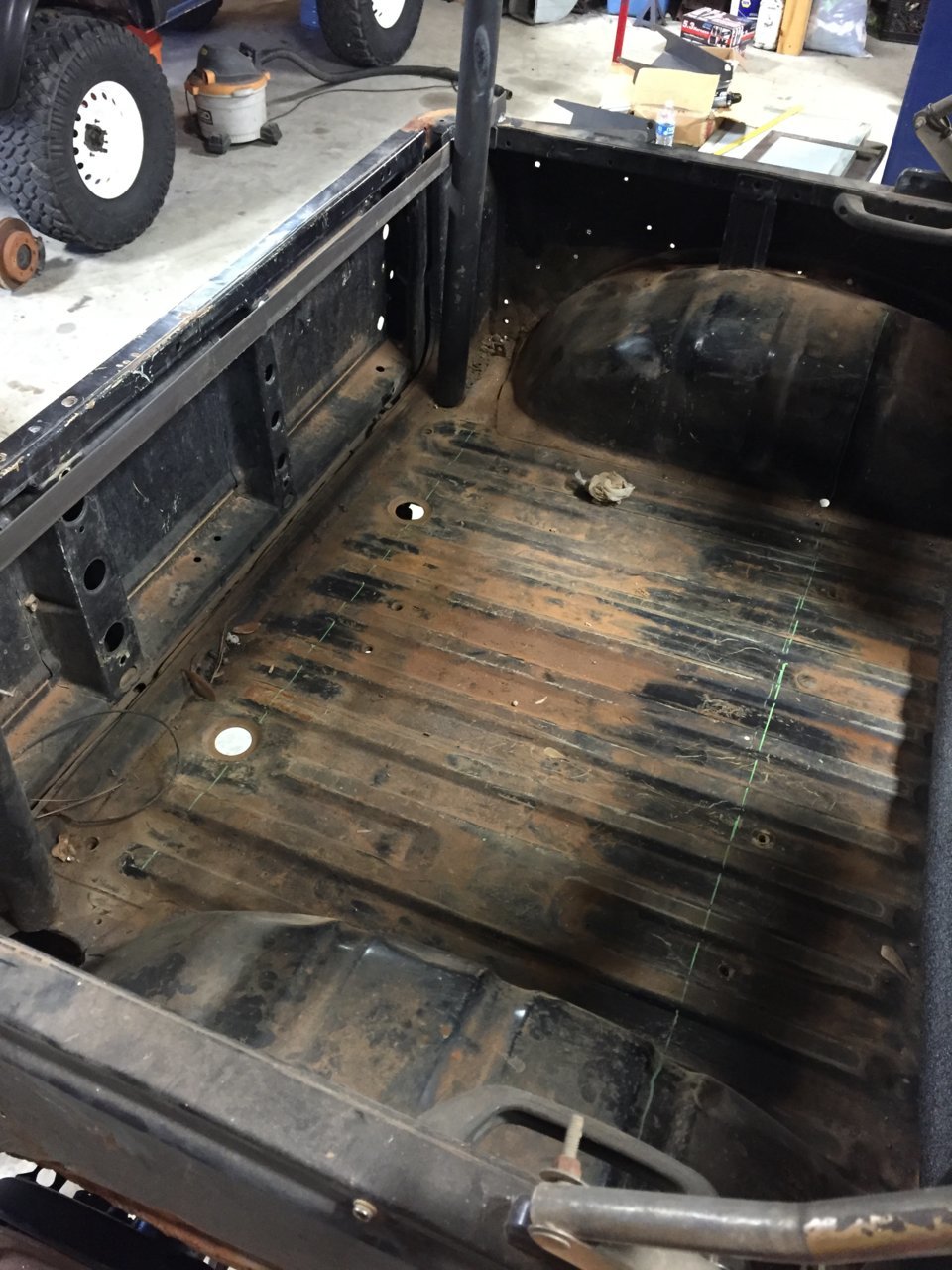

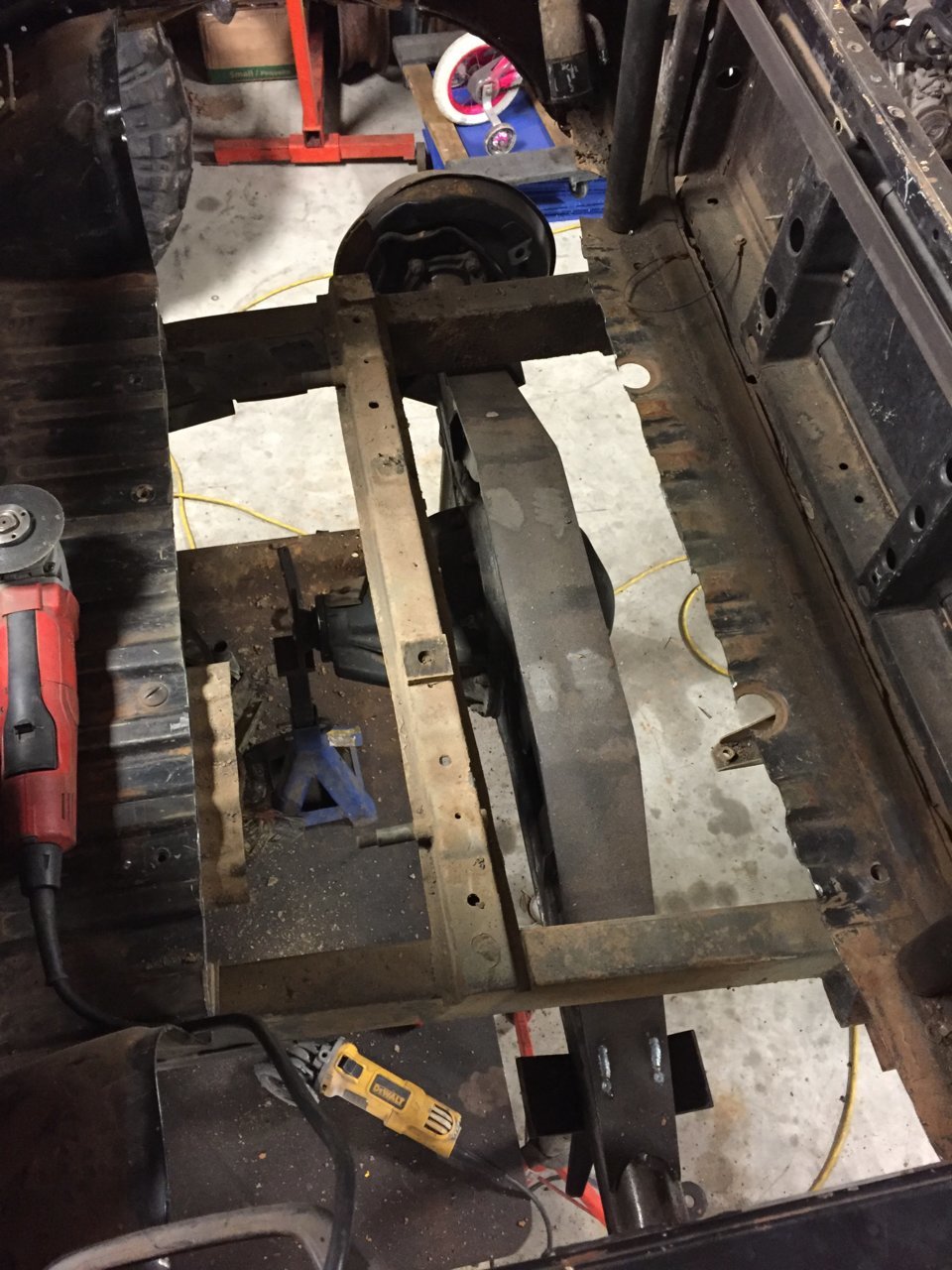

    Say goodbye to the rear floor and frame!

    Photo Jan 11, 5 18 16 PM.jpg Photo Jan 11, 5 52 25 PM.jpg Photo Jan 11, 7 27 44 PM.jpg

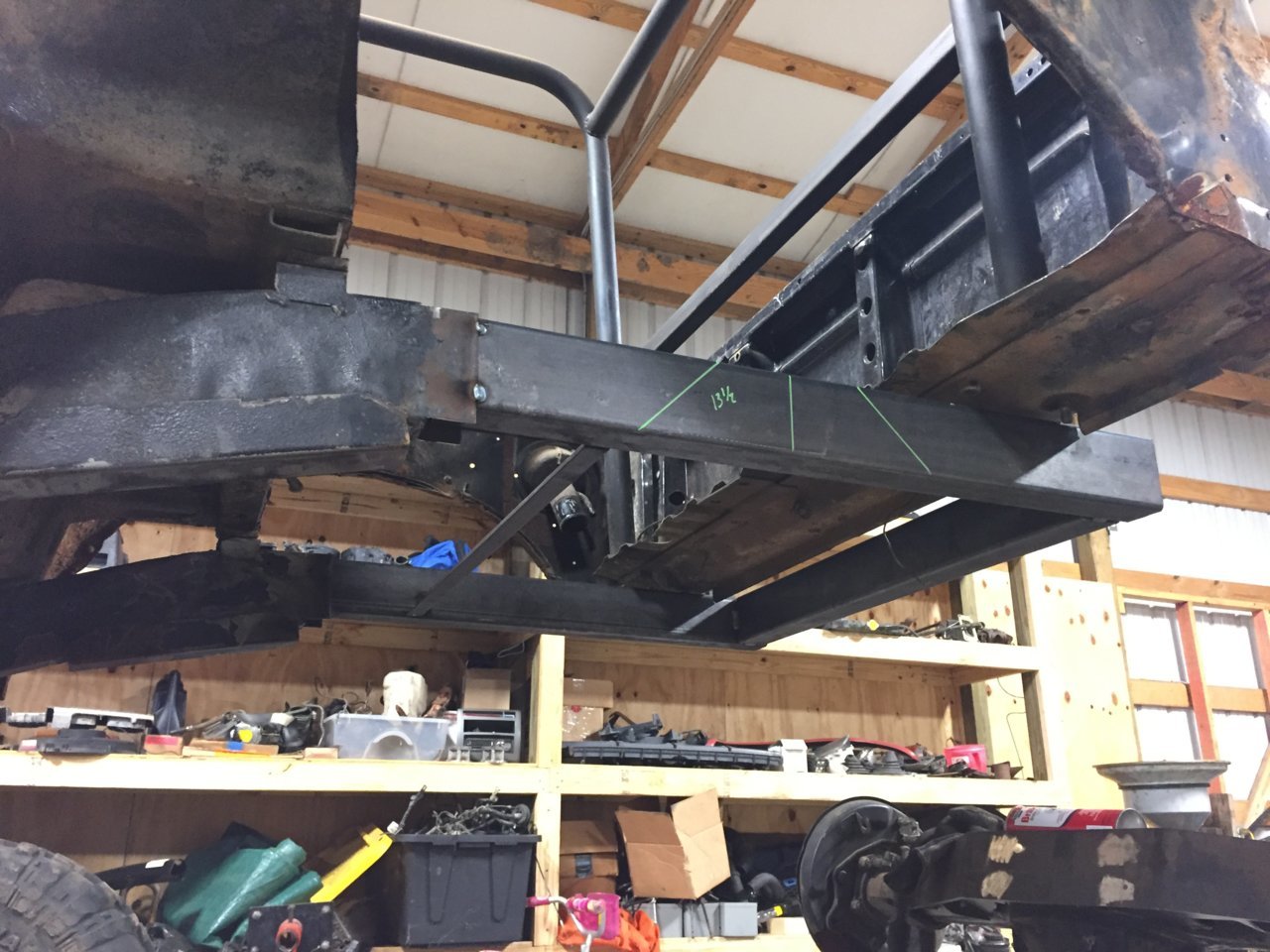

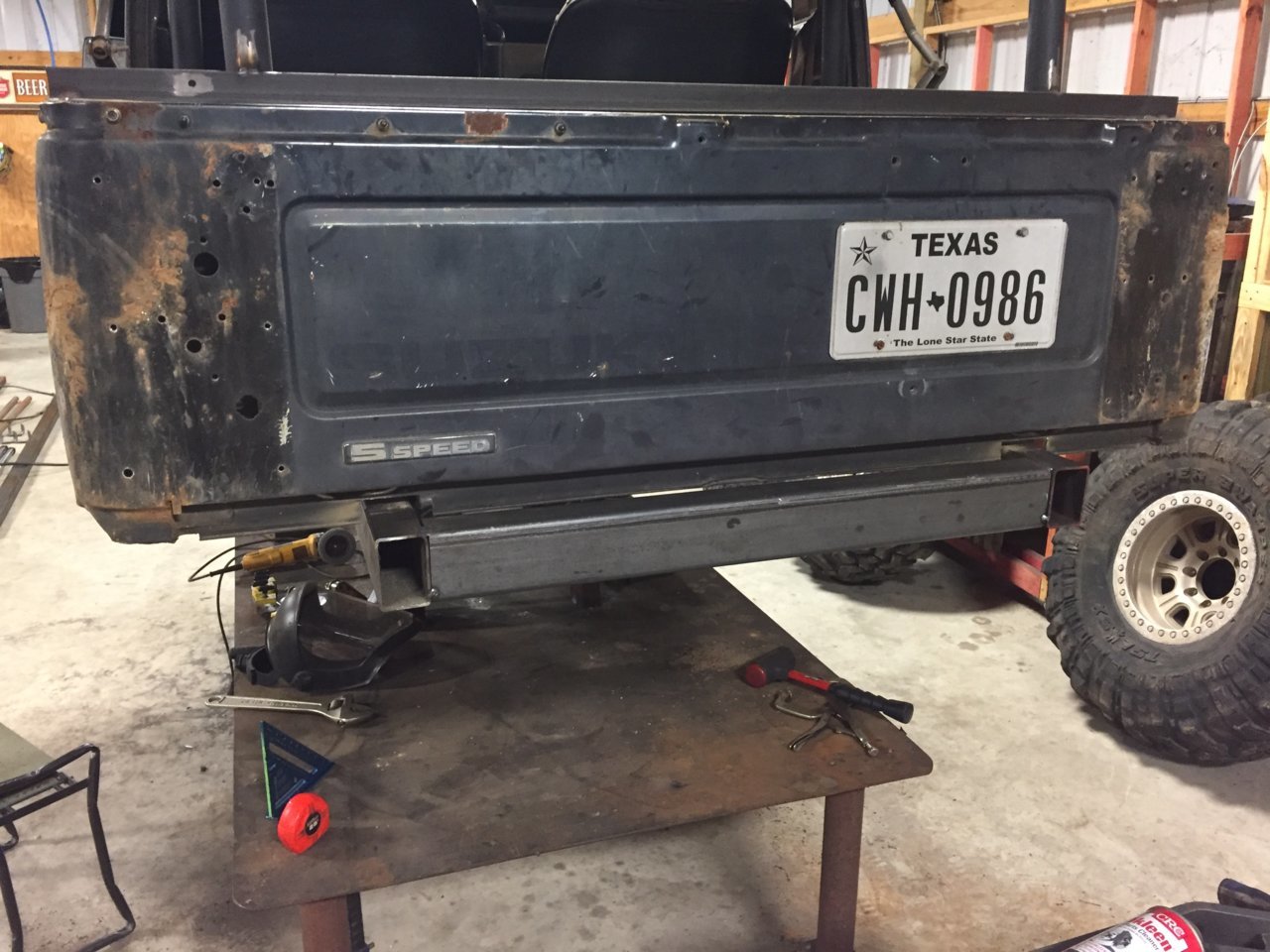

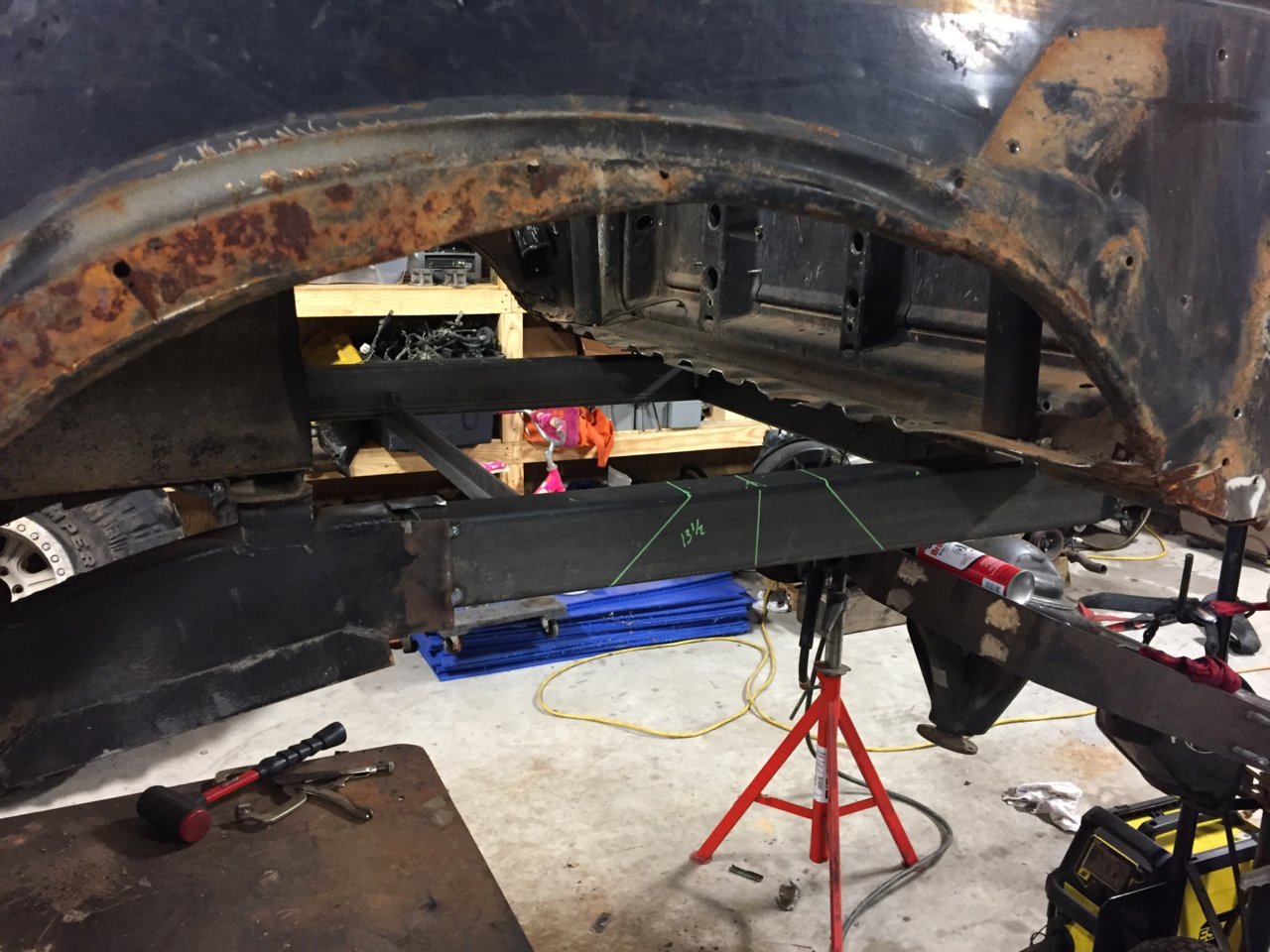

    I started on the new rear frame tonight and will get it knocked out tomorrow. The Sami frame flares out towards the back so the new frame comes back straight which gives more room for the axle at bump. The frame will have a cnotch as well.

    Photo Jan 11, 9 56 48 PM.jpg Photo Jan 11, 9 56 53 PM.jpg Photo Jan 11, 9 57 03 PM.jpg

    bigmw likes this.
  6. Jan 15, 2019 at 7:03 PM
    #6
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

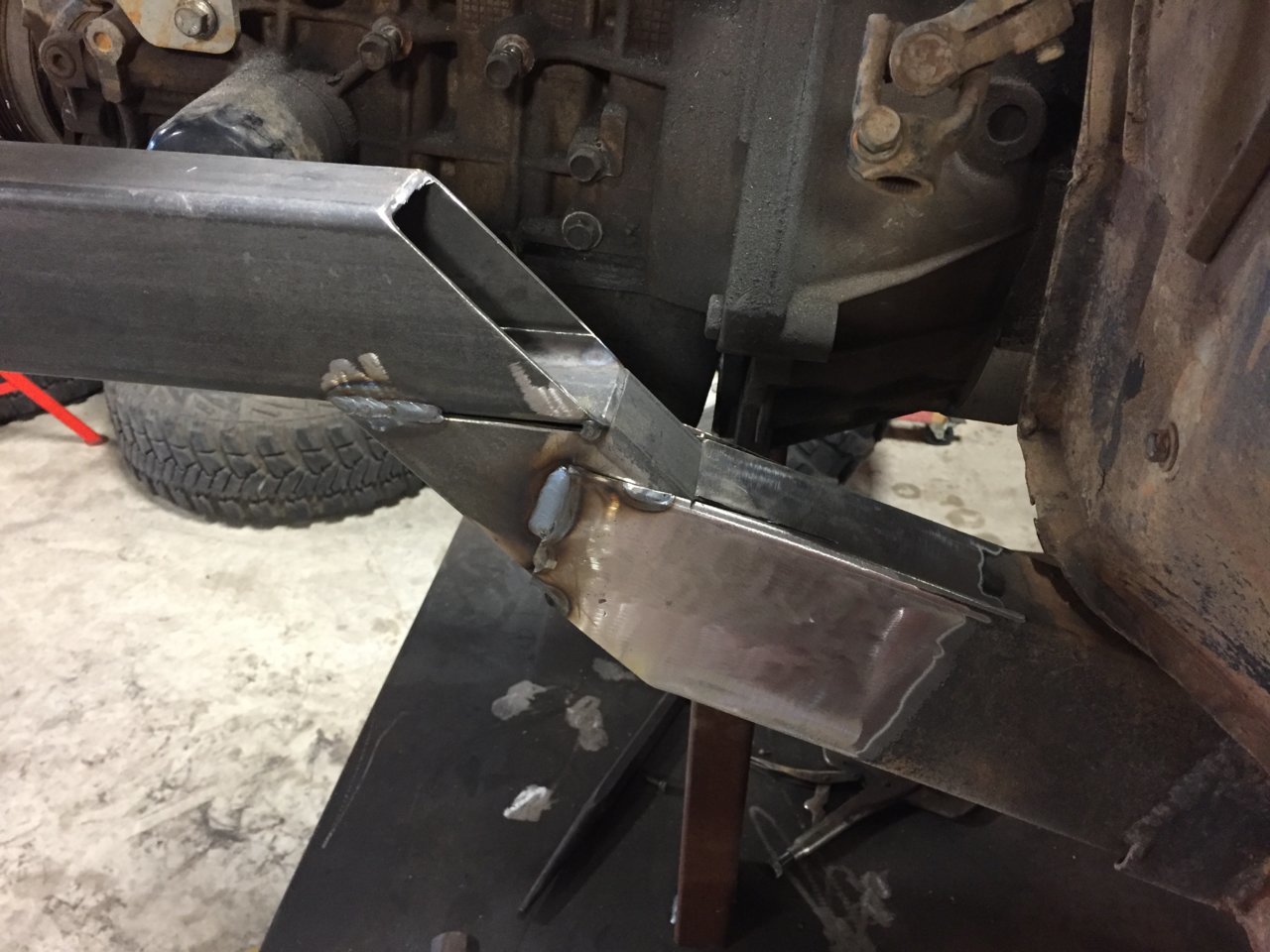

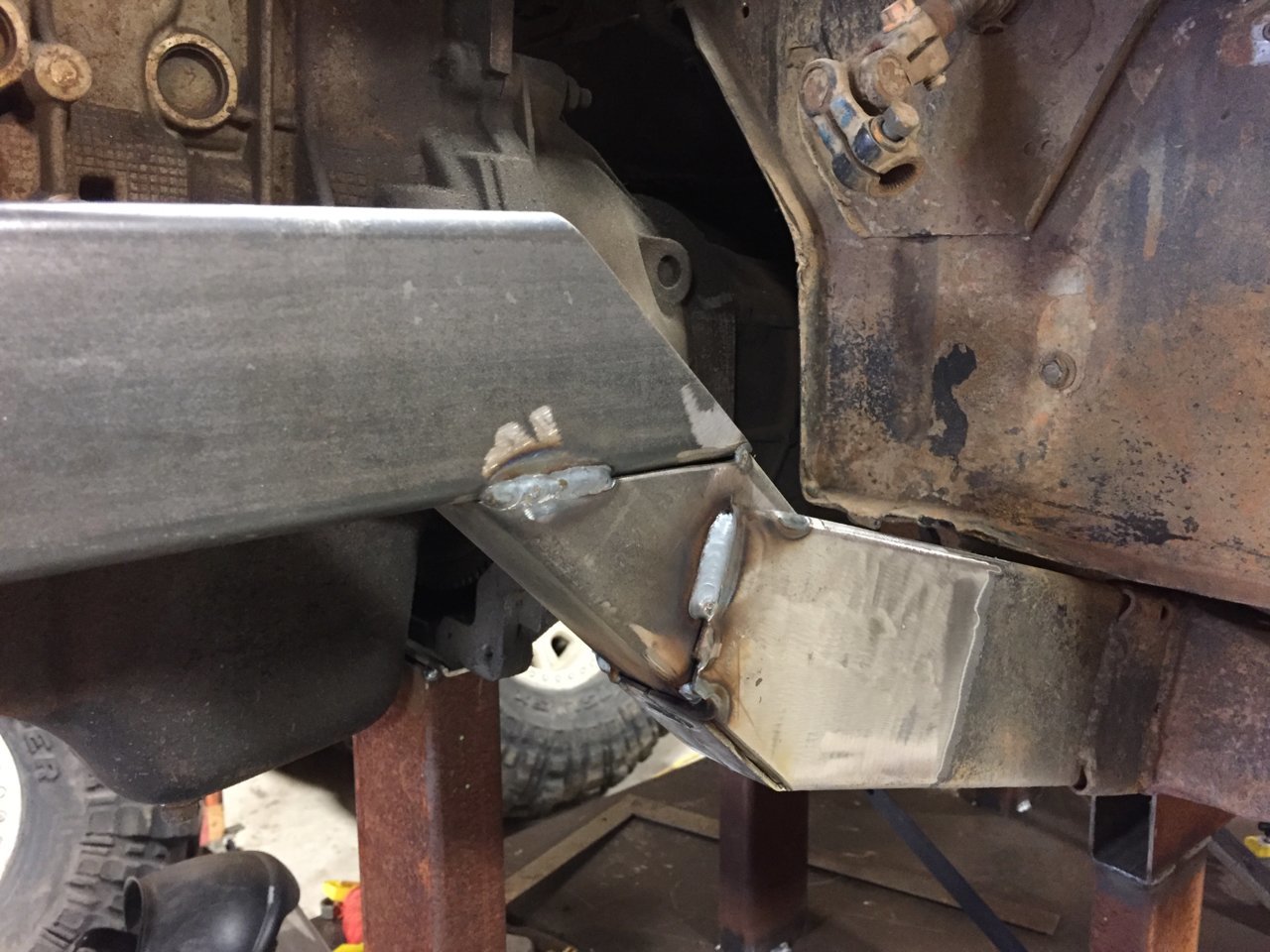

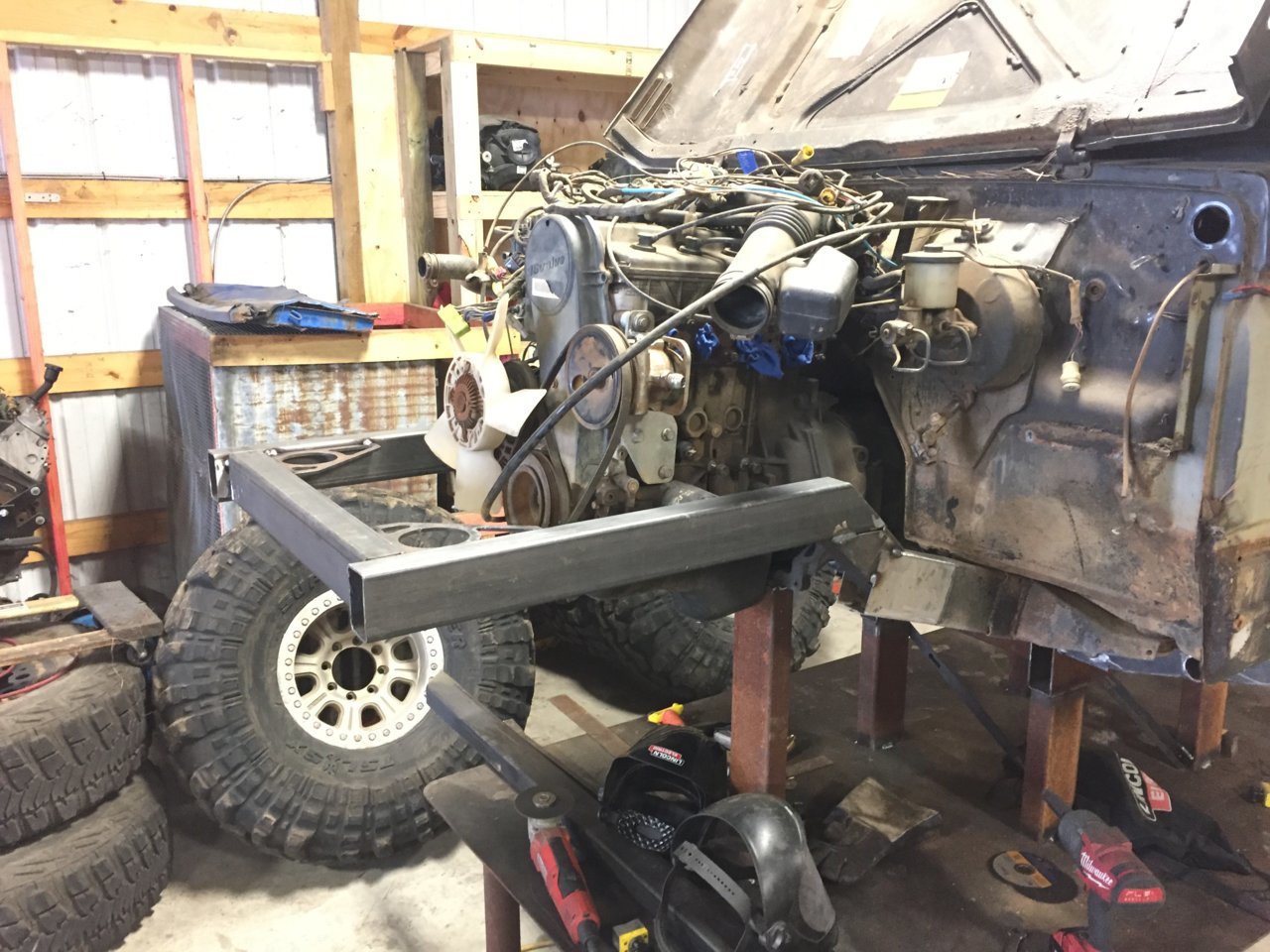

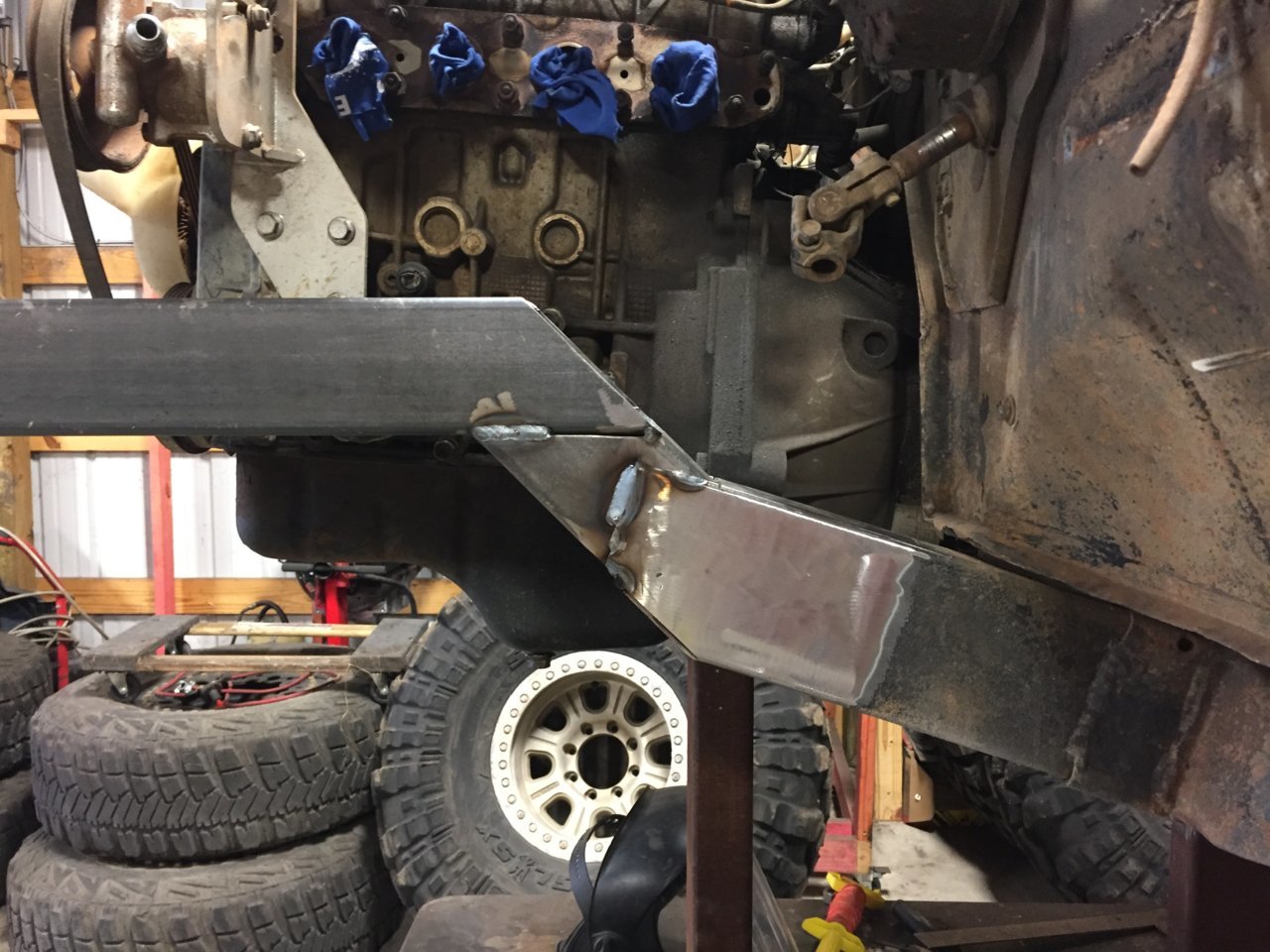

    The new front frame is tacked in as of tonight.

    Photo Jan 15, 2 19 43 PM.jpg Photo Jan 15, 3 59 11 PM.jpg Photo Jan 15, 3 59 01 PM.jpg Photo Jan 15, 3 59 06 PM.jpg

    bigmw likes this.
  7. Jan 18, 2019 at 9:24 AM
    #7
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

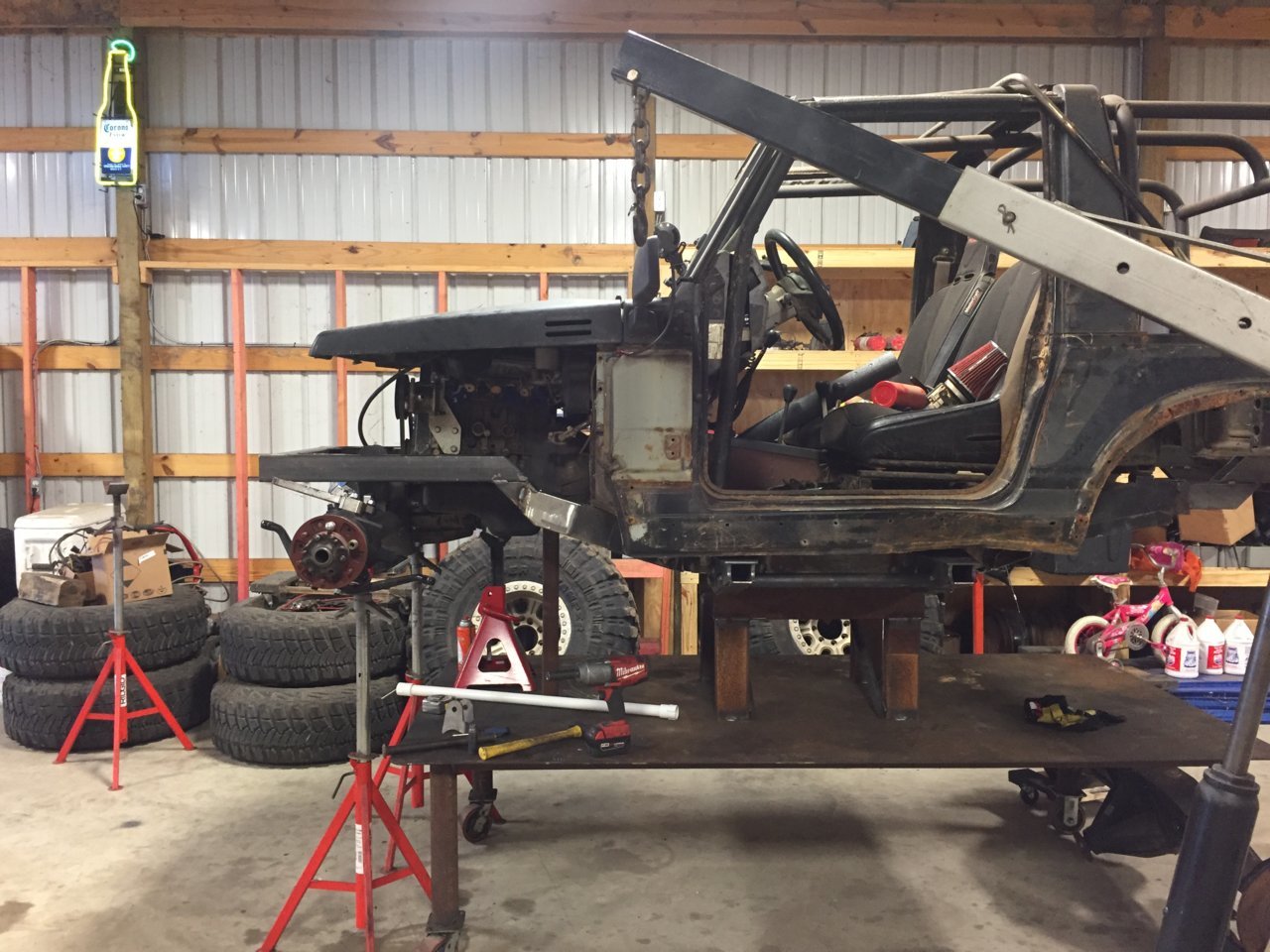

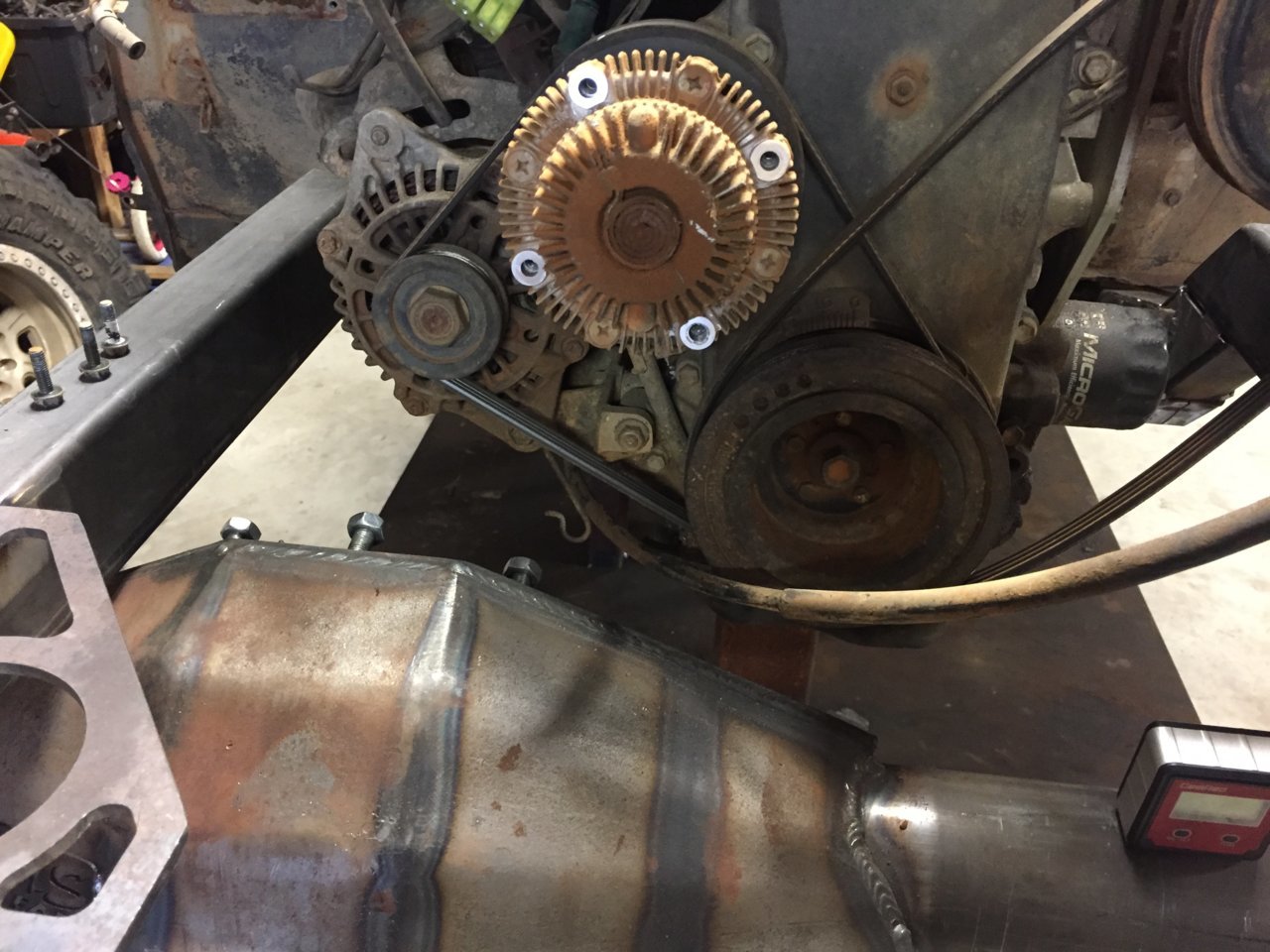

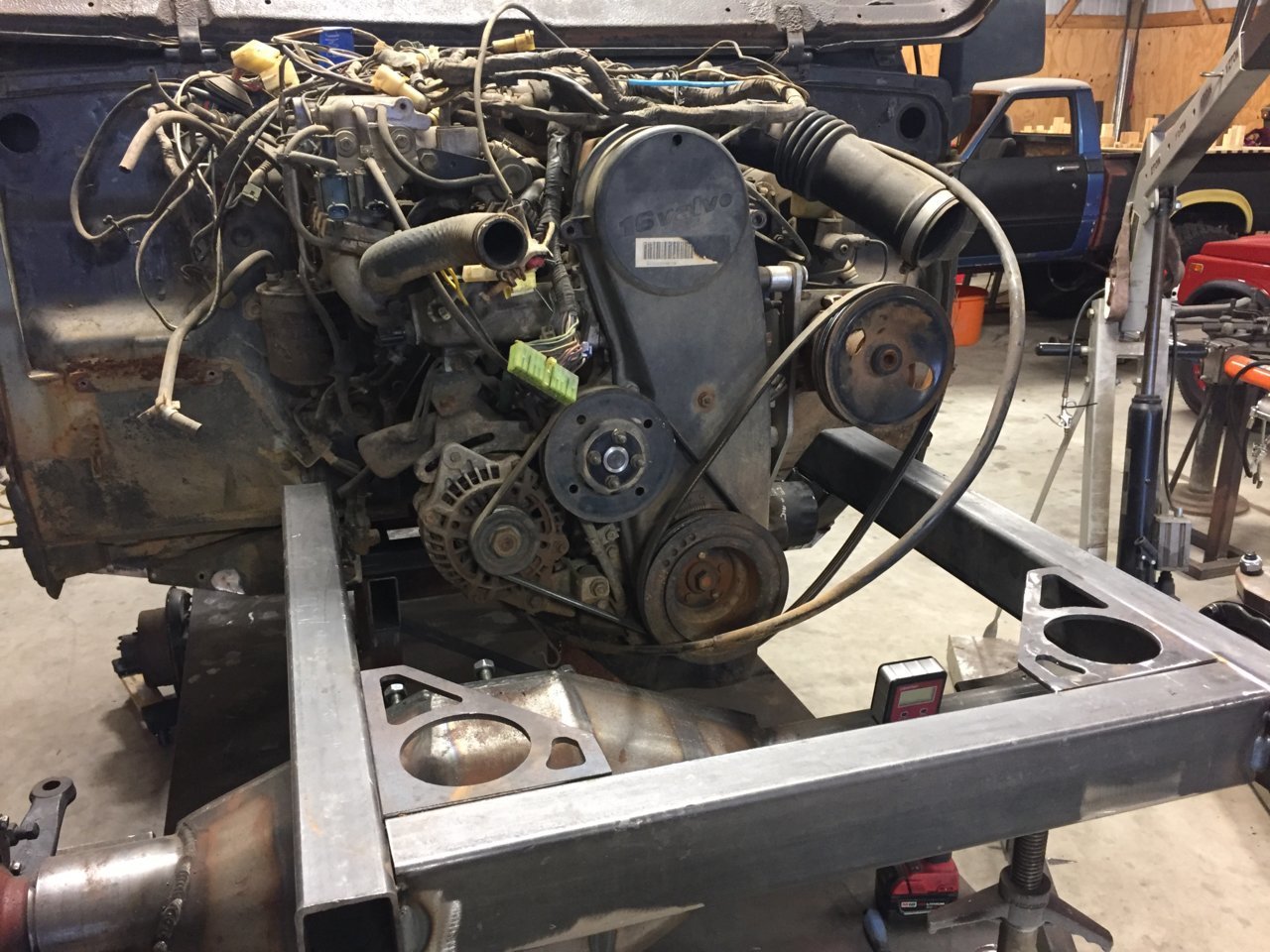

    The motor looks to be the next hurdle towards getting the front axle in place. I'm trying not to push her too far forward as I'm already looking at 40" lowers. The radiator and fan are gone for now, but will be relocated later.

    Photo Jan 16, 1 26 22 PM.jpg Photo Jan 16, 1 36 26 PM.jpg

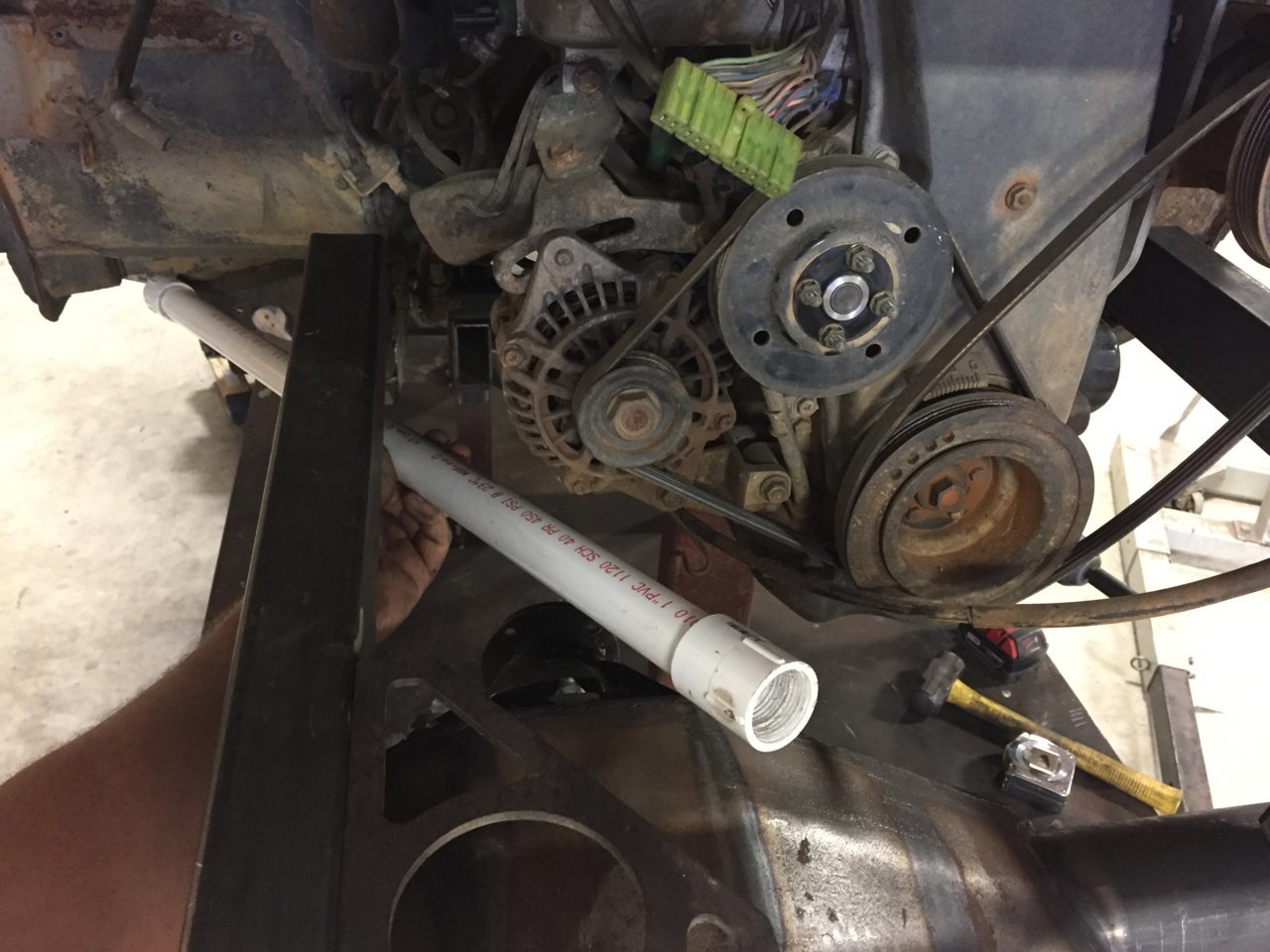

    The uppers are going to be a tight fit. The plan is to run some DOM sliders and mount the uppers to them outside the frame rail.
    Photo Jan 16, 1 58 42 PM.jpg
    And she's gonna be stuffed. We're looking at at least 5" of up travel in the front with horizontal lowers at ride height.Photo Jan 16, 2 27 34 PM.jpg

    bigmw likes this.
  8. Jan 23, 2019 at 9:03 AM
    #8
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

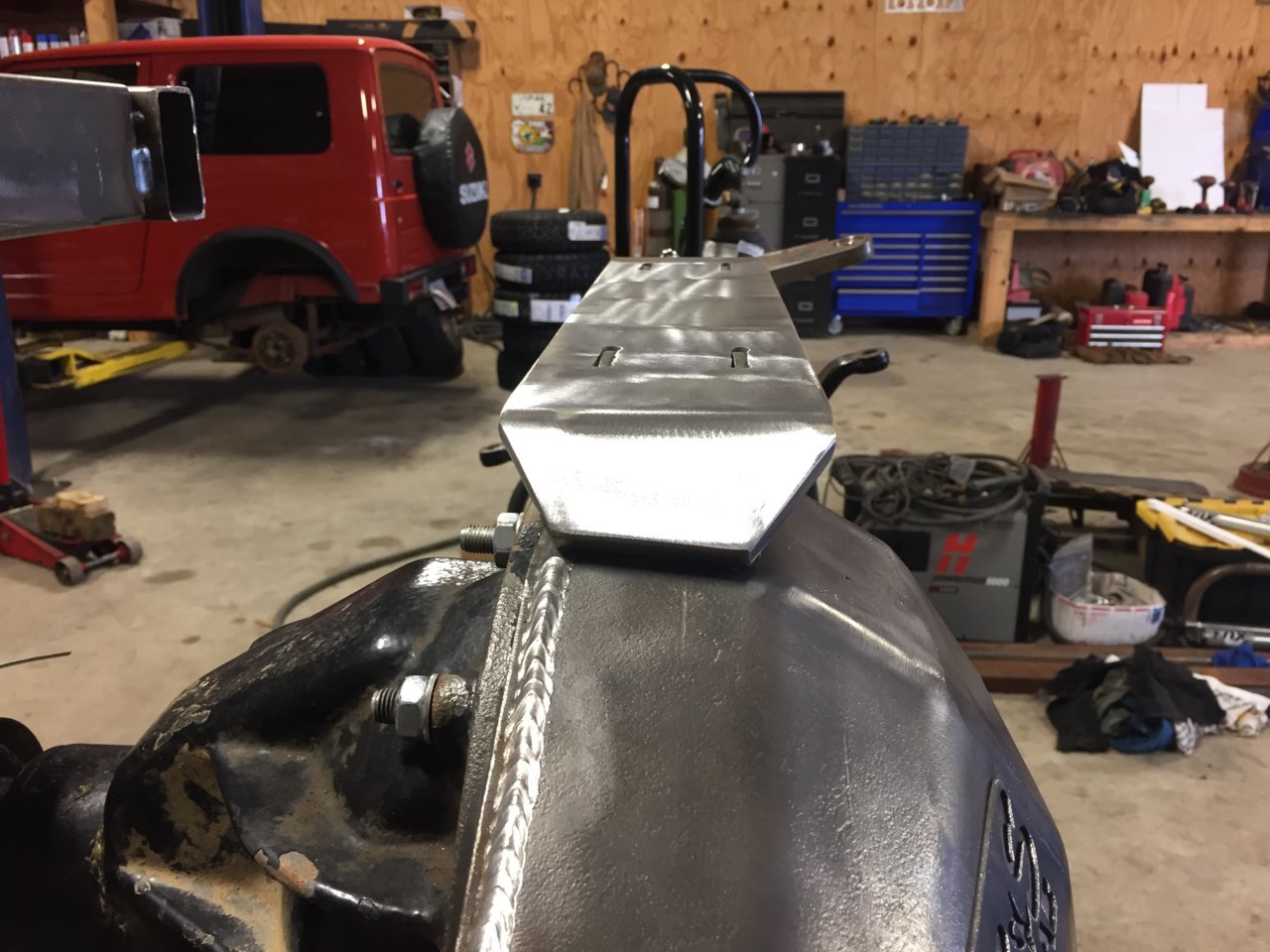

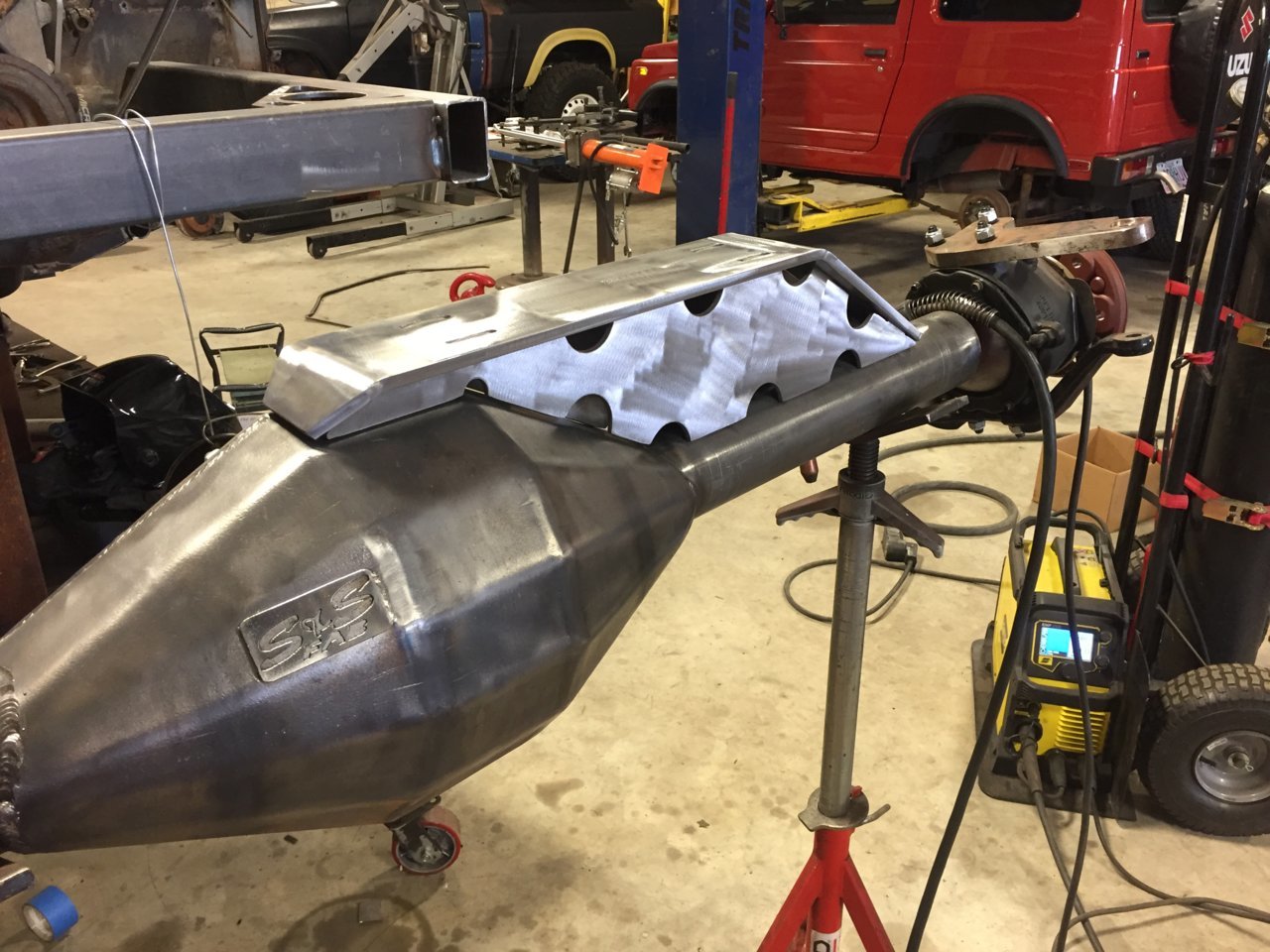

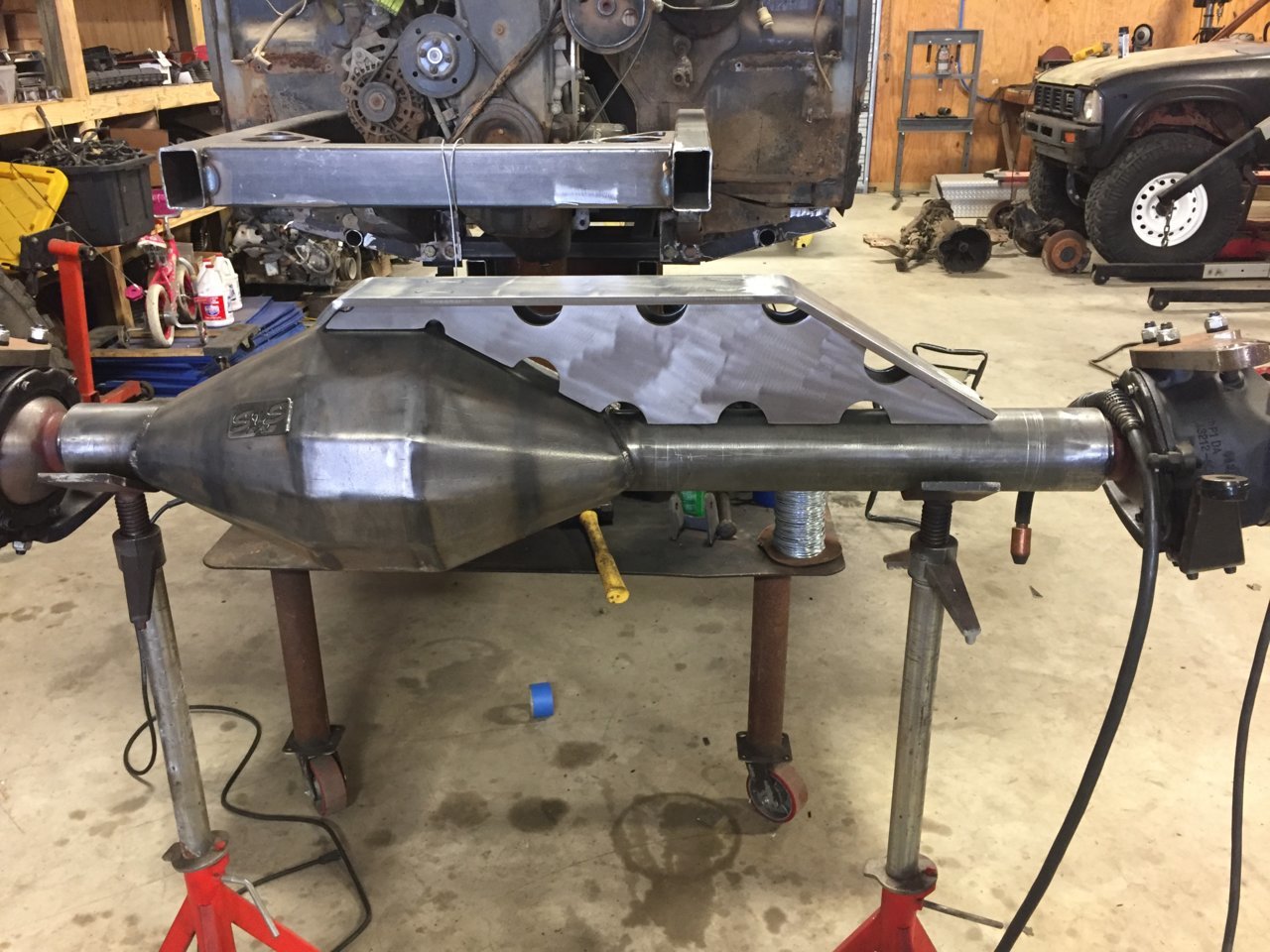

    The next step in the process is to get the front S&S fab axle housing kitted out. That means a truss and hydraulic ram mount. Here's the one off truss.

    Photo Jan 22, 12 33 27 PM.jpg Photo Jan 22, 12 33 32 PM.jpg Photo Jan 22, 12 33 37 PM.jpg

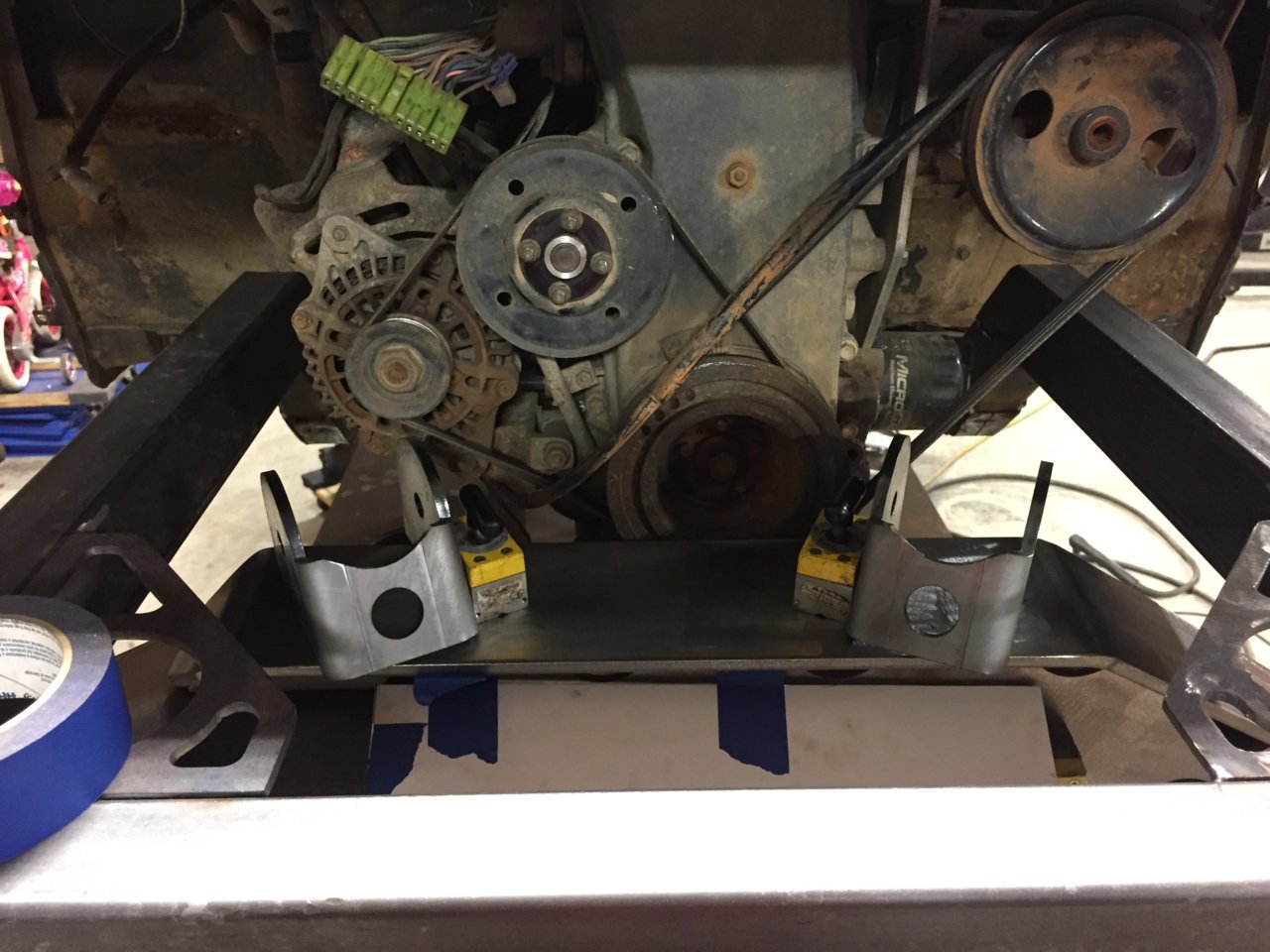

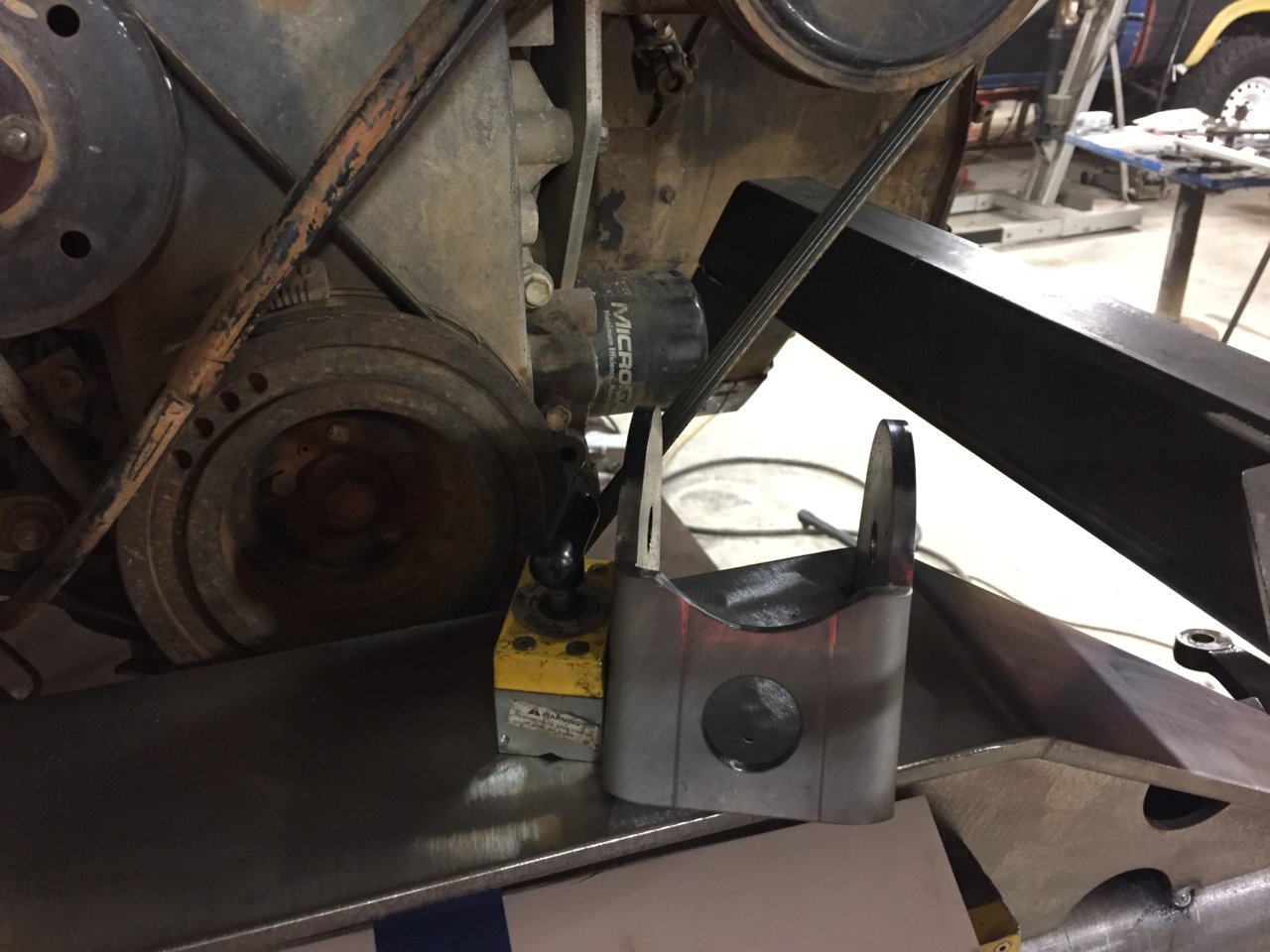

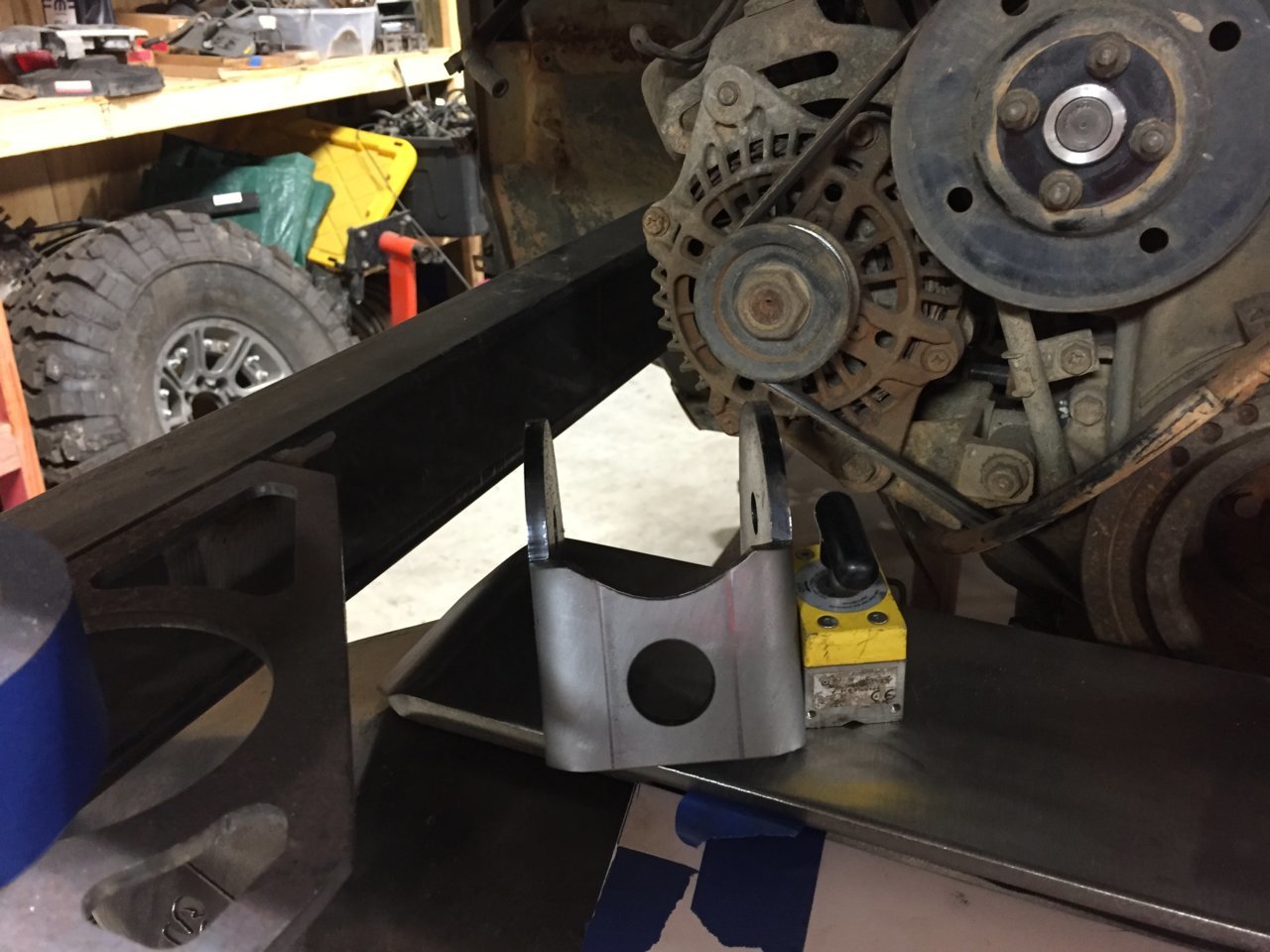

    The upper links are going to live on top of the truss and make for a nice 4 link.

    Photo Jan 22, 6 59 52 PM.jpg Photo Jan 22, 6 59 56 PM.jpg Photo Jan 22, 6 59 59 PM.jpg

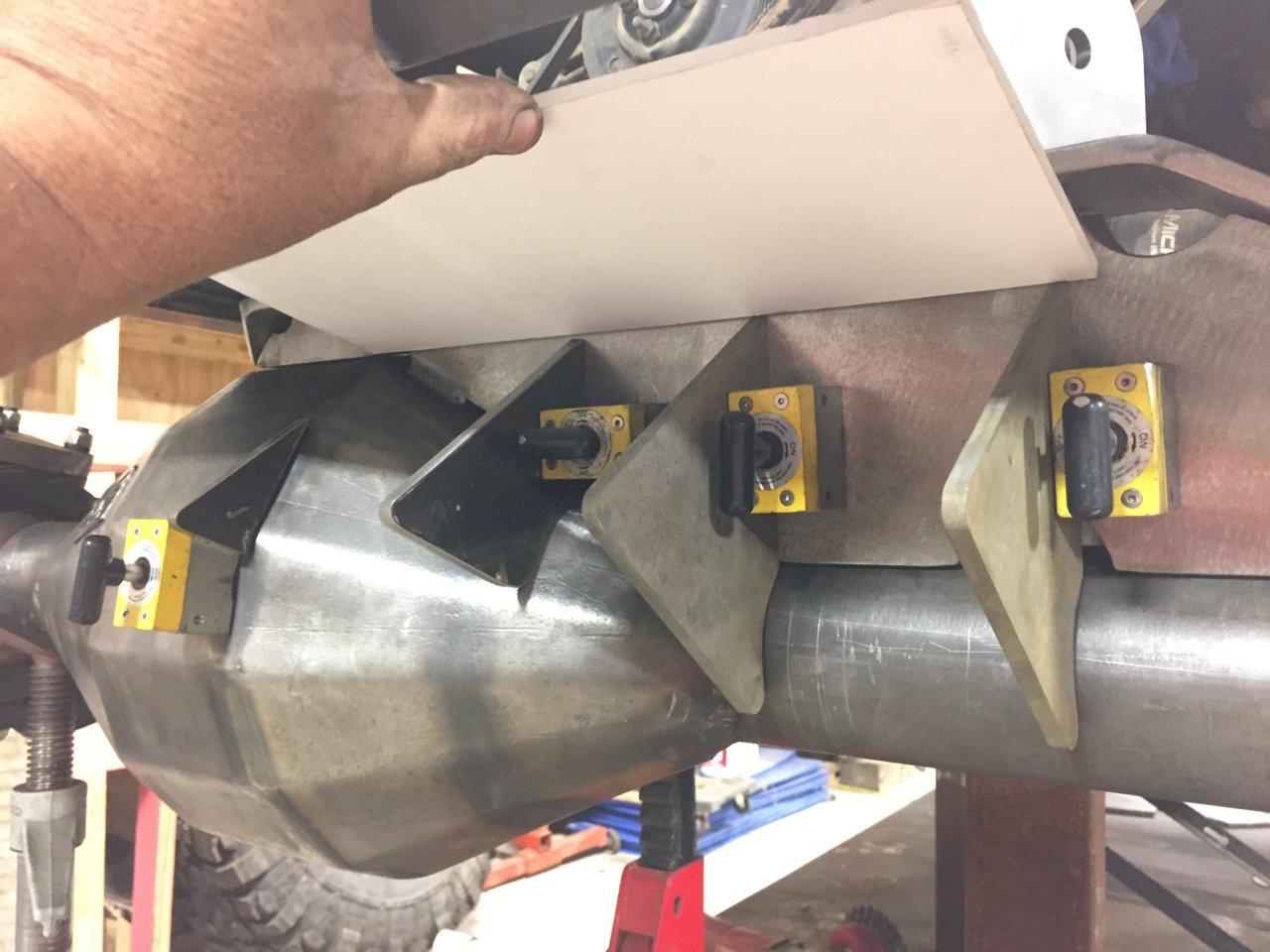

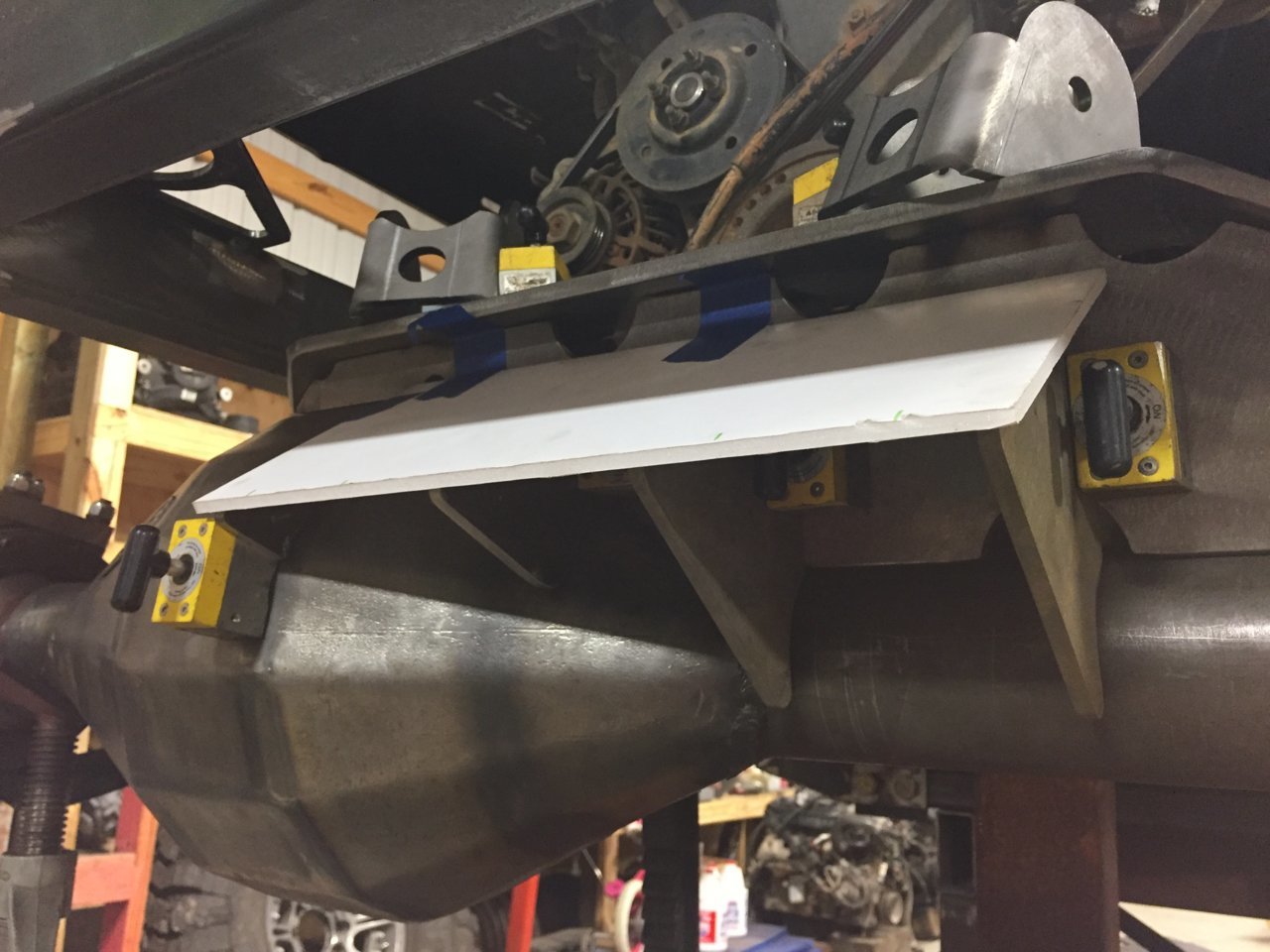

    Here's the start of the ram mount. She should sit up nice and high to avoid those pesky rocks on the trail.

    Photo Jan 22, 6 42 31 PM.jpg Photo Jan 22, 6 42 44 PM.jpg

    bigmw likes this.
  9. Jan 23, 2019 at 9:05 AM
    #9
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    5,529
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
  10. Jan 24, 2019 at 7:49 AM
    #10
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

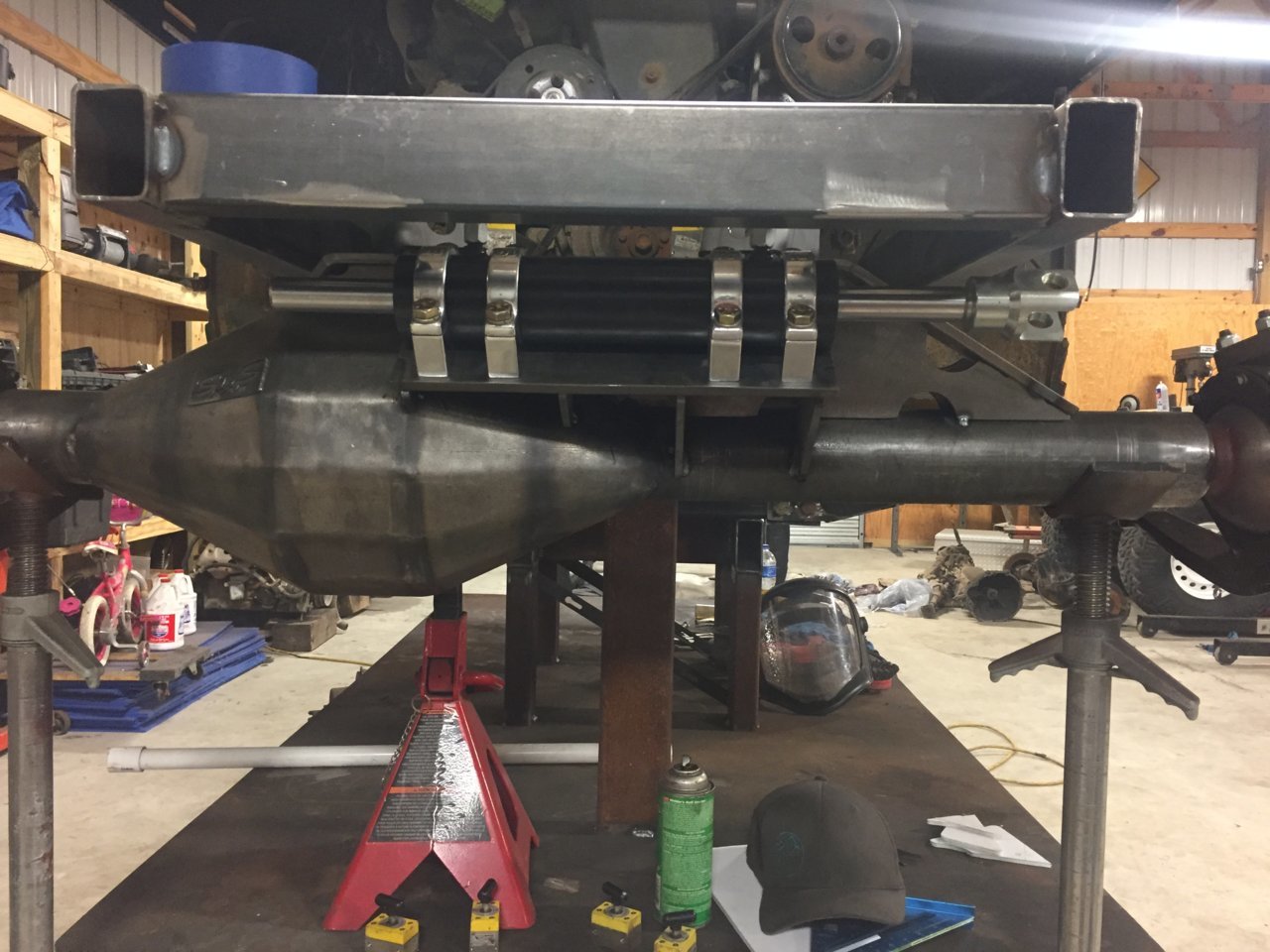

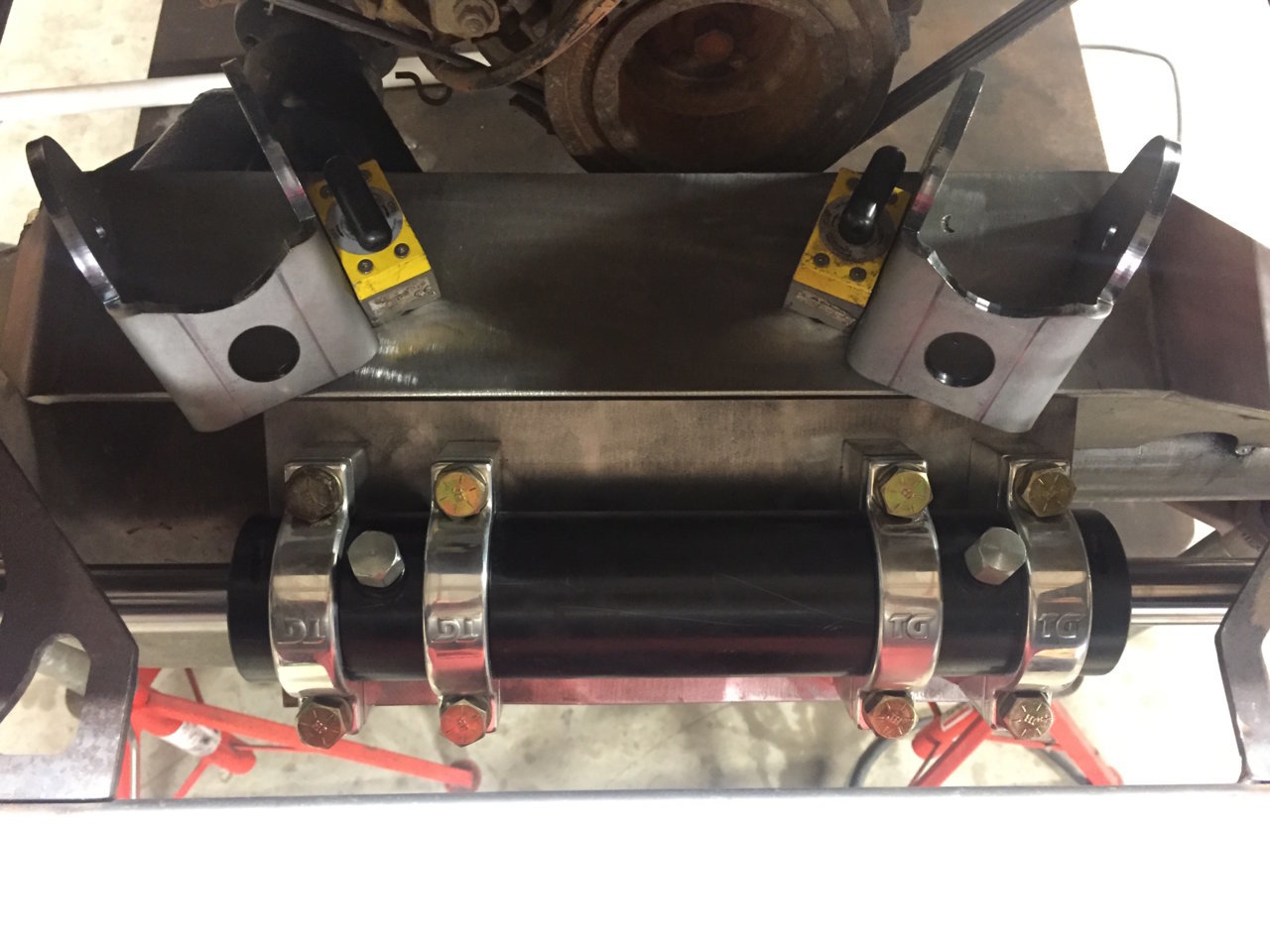

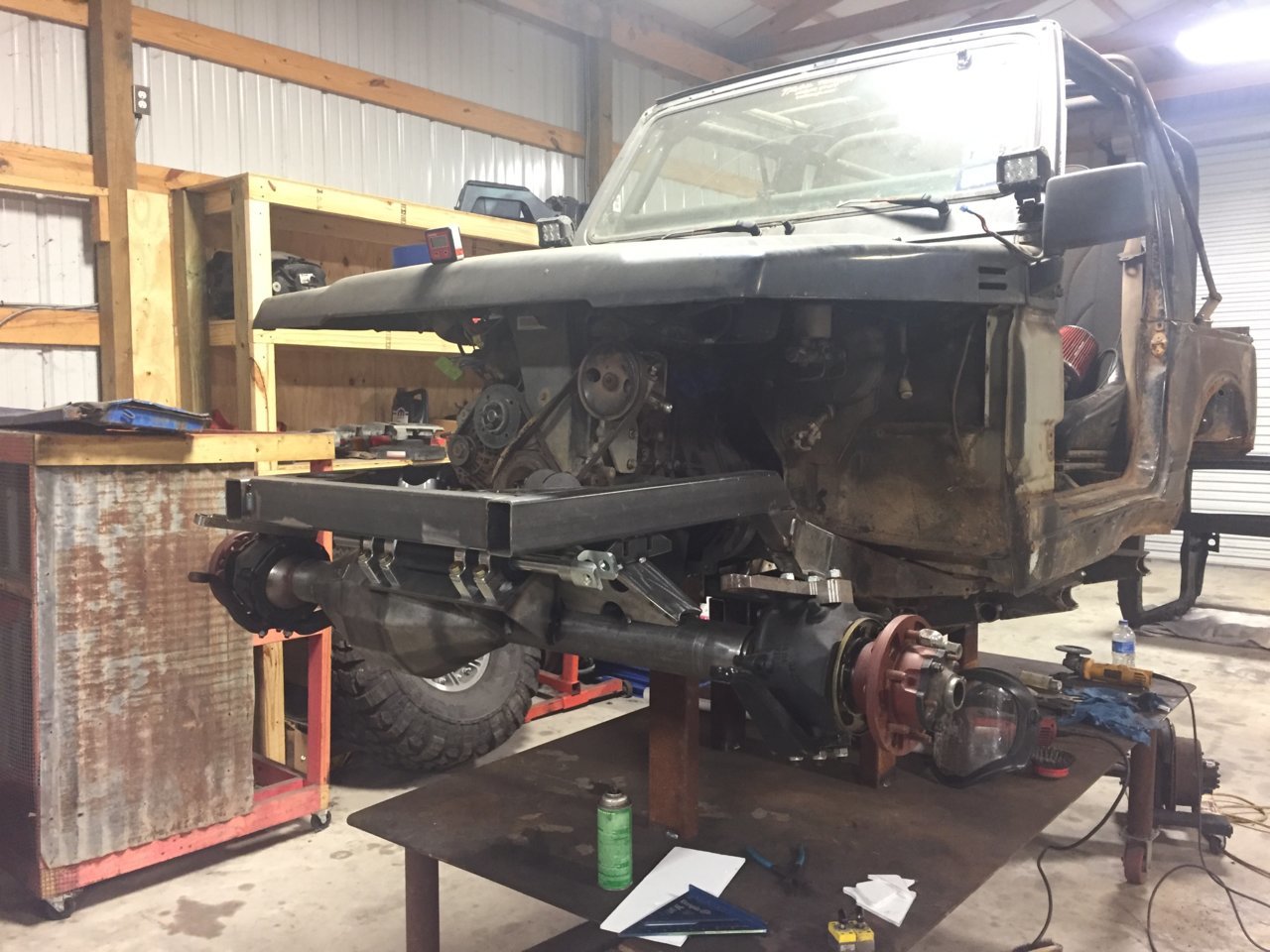

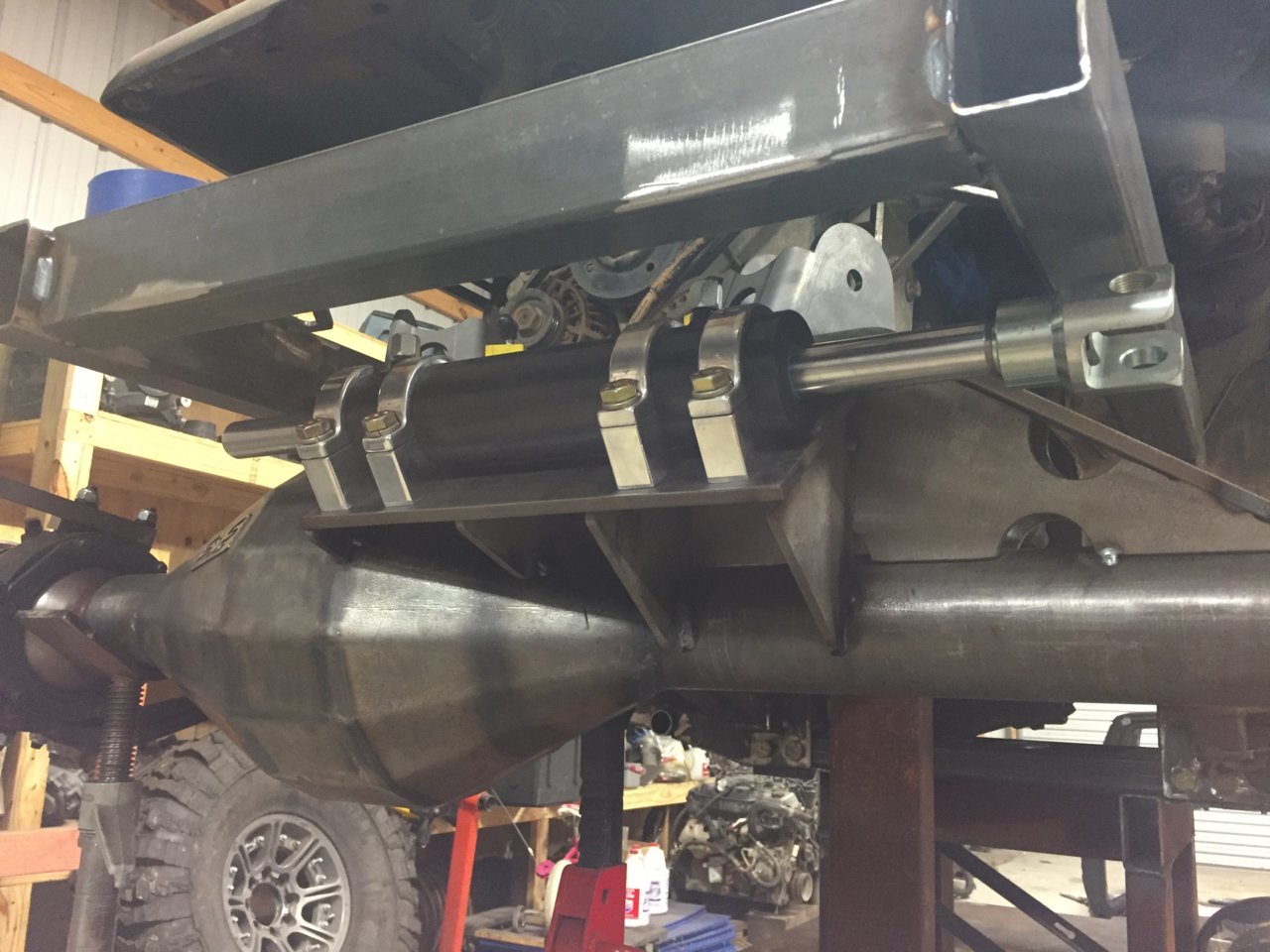

    The hydraulic ram is safe and sound in it's new home. It's time to get started on the links. I'll start off by squaring the front axle and tacking it to the frame. That will get the jackstands out of the way allowing for more room to mock everything up.

    Photo Jan 23, 6 16 34 PM.jpg Photo Jan 23, 6 17 08 PM.jpg Photo Jan 23, 6 17 26 PM.jpg Photo Jan 23, 8 01 02 PM.jpg

    bigmw, Nimble9 and tacoma16 like this.
  11. Jan 24, 2019 at 7:54 AM
    #11
    Thunder Fist

    Thunder Fist Well-Known Member

    Joined:
    Feb 11, 2017
    Member:
    #210312
    Messages:
    2,301
    Gender:
    Male
    First Name:
    David
    Birmingham, AL
    Vehicle:
    2017 MGM TRD OR DCSB
    Like, so many.
    What's advantage of stretching the wheel base?

  12. Jan 24, 2019 at 7:58 AM
    #12
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Stretching the wheelbase improves the stability of the rig and allows the axle to clear the motor for more up travel. It also has to do with how much firewall and tub you want to cut out. If I had kept the wheelbase at the stock length the tires would eat the firewall.

  13. Jan 24, 2019 at 8:01 AM
    #13
    Thunder Fist

    Thunder Fist Well-Known Member

    Joined:
    Feb 11, 2017
    Member:
    #210312
    Messages:
    2,301
    Gender:
    Male
    First Name:
    David
    Birmingham, AL
    Vehicle:
    2017 MGM TRD OR DCSB
    Like, so many.
    Thanks man. All I was really considering was break over angle. You are obviously dealing with a lot more factors lol

  14. Jan 24, 2019 at 8:03 AM
    #14
    Mully

    Mully Well-Known Member

    Joined:
    Feb 12, 2014
    Member:
    #122907
    Messages:
    2,226
    Gender:
    Male
    First Name:
    Chris
    CA
    Vehicle:
    12 DC 4x4 Lifted Sport
    Lifted, Fox Shocks, LR UCA, HD Sway Bar links, Full set of Skids, Pirrelli's, Air-bags, ARB locker, and more +++.

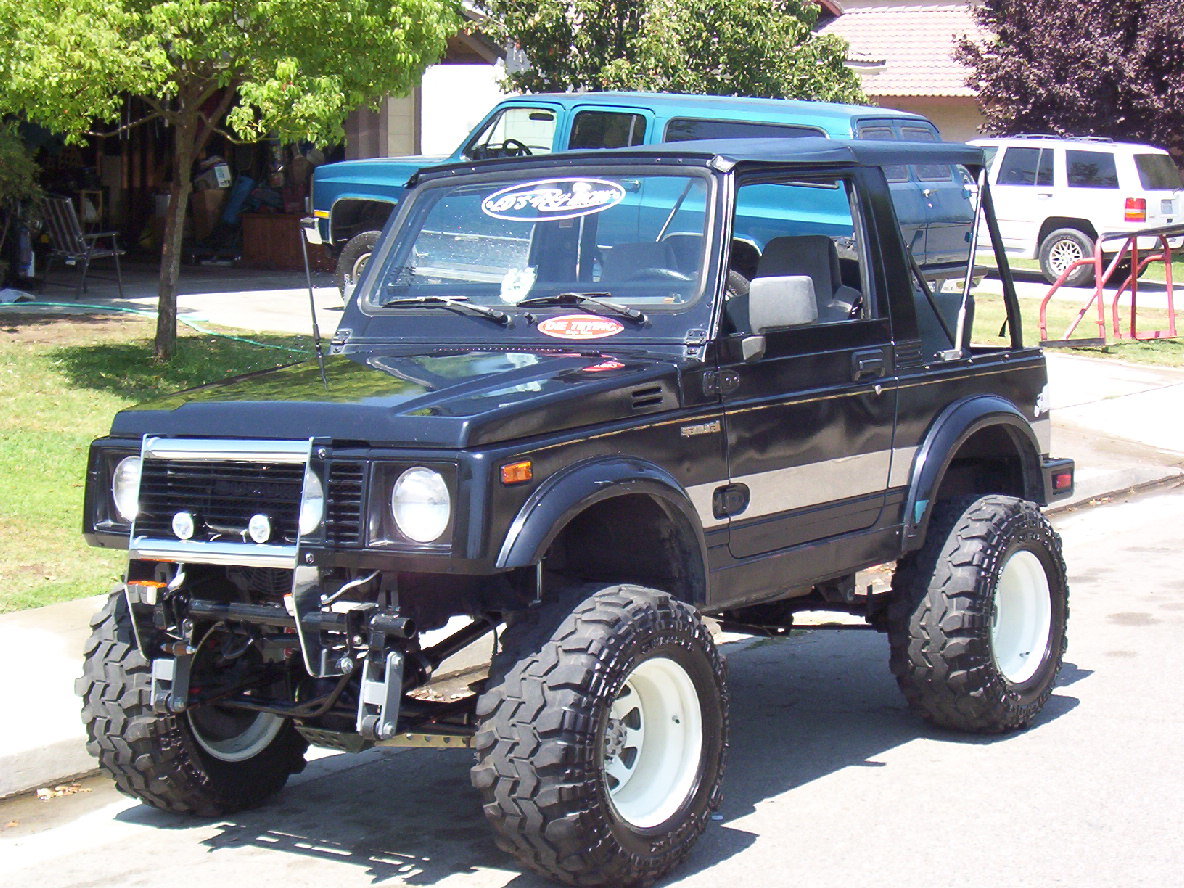

    Nice, these little 4x4s were like go karts on steroids. This was my wife's and it never broke. 1.6L, geared, locked, and loads of fun.


    SMKYTXN [OP] likes this.
  15. Jan 24, 2019 at 8:04 AM
    #15
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    Oh yeah, that as well. The axles are placed so that a 37" tire will hit first, both front and rear.

    tacoma16 and Thunder Fist like this.
  16. Jan 30, 2019 at 7:10 AM
    #16
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

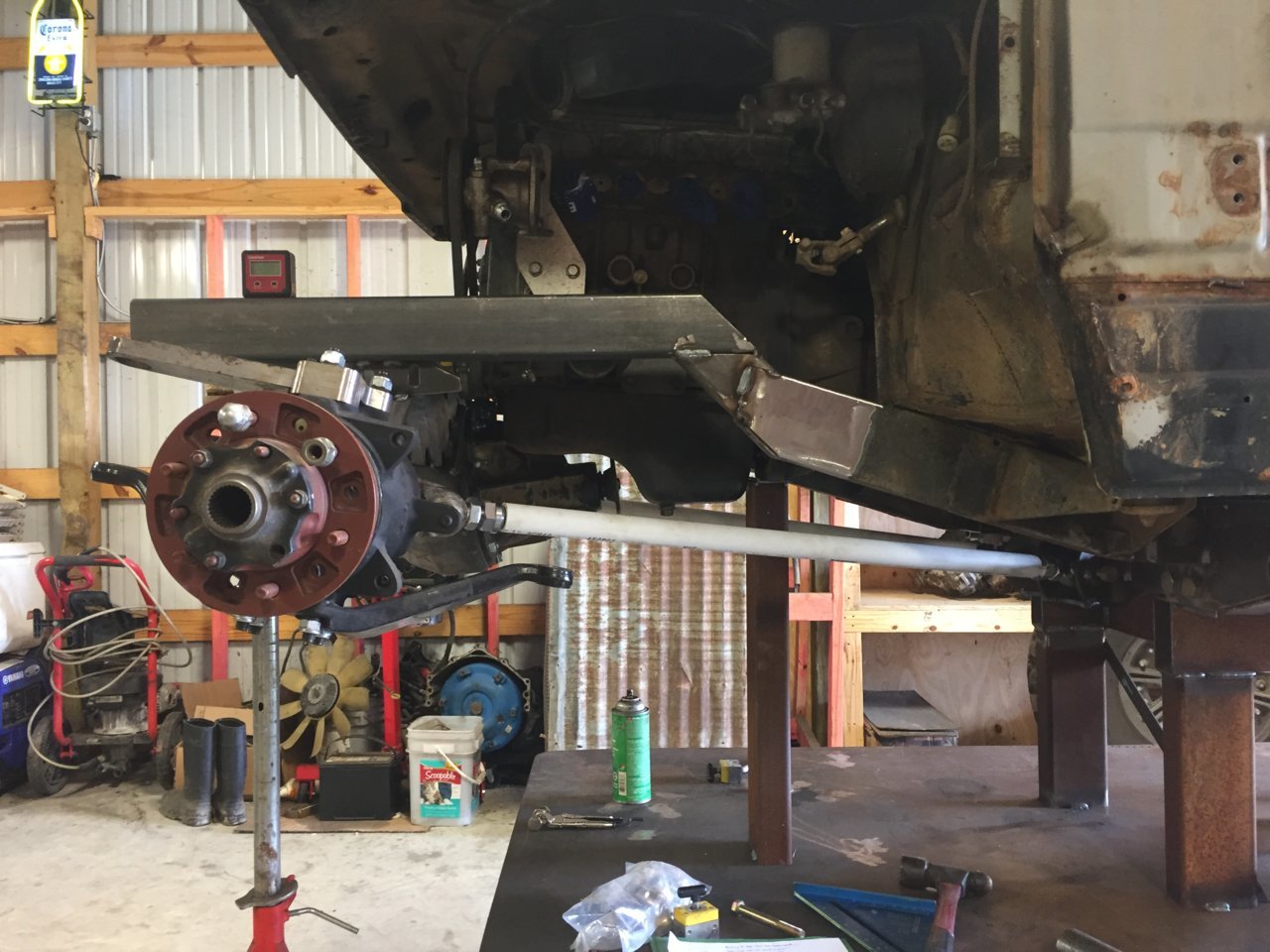

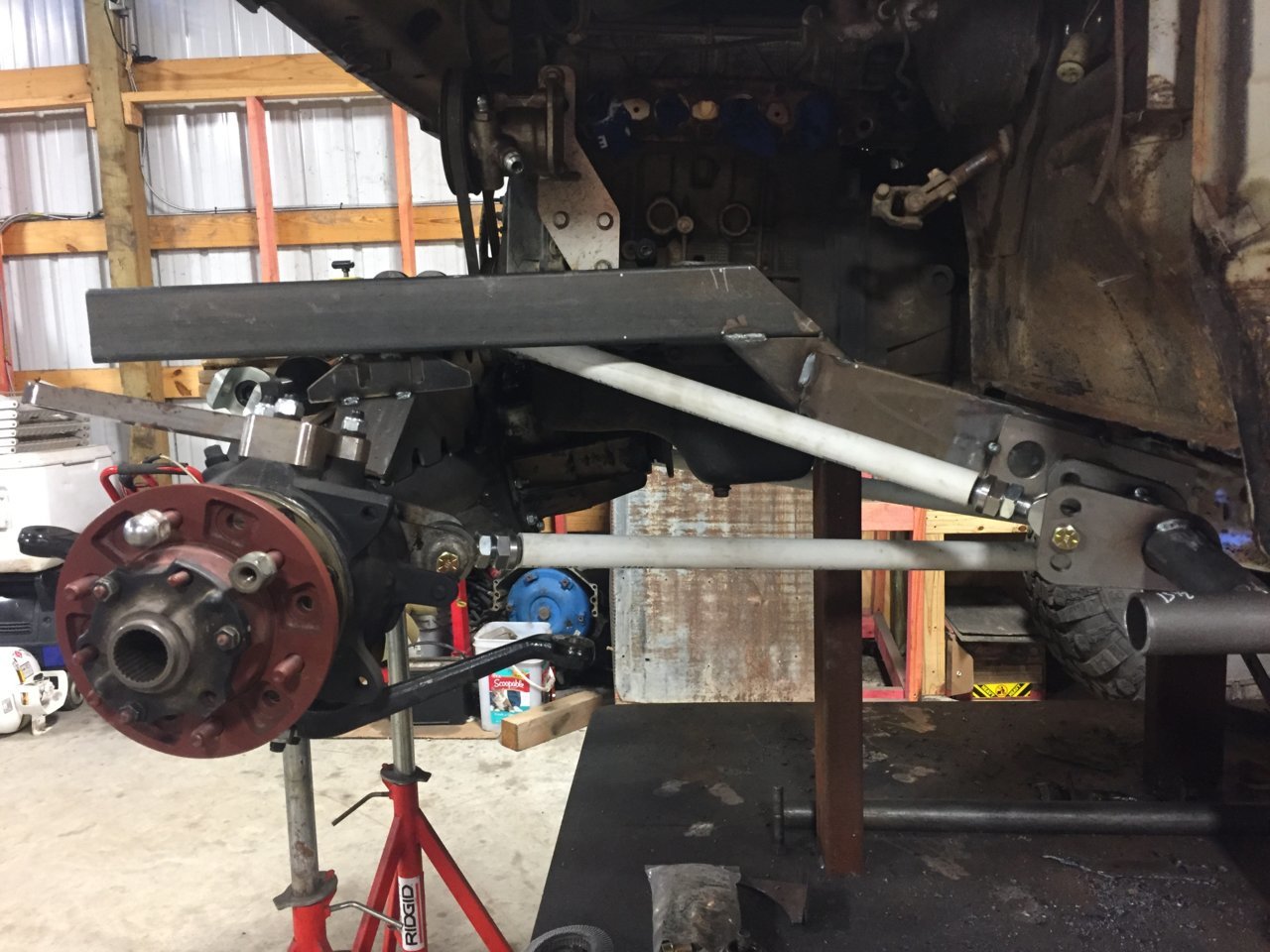

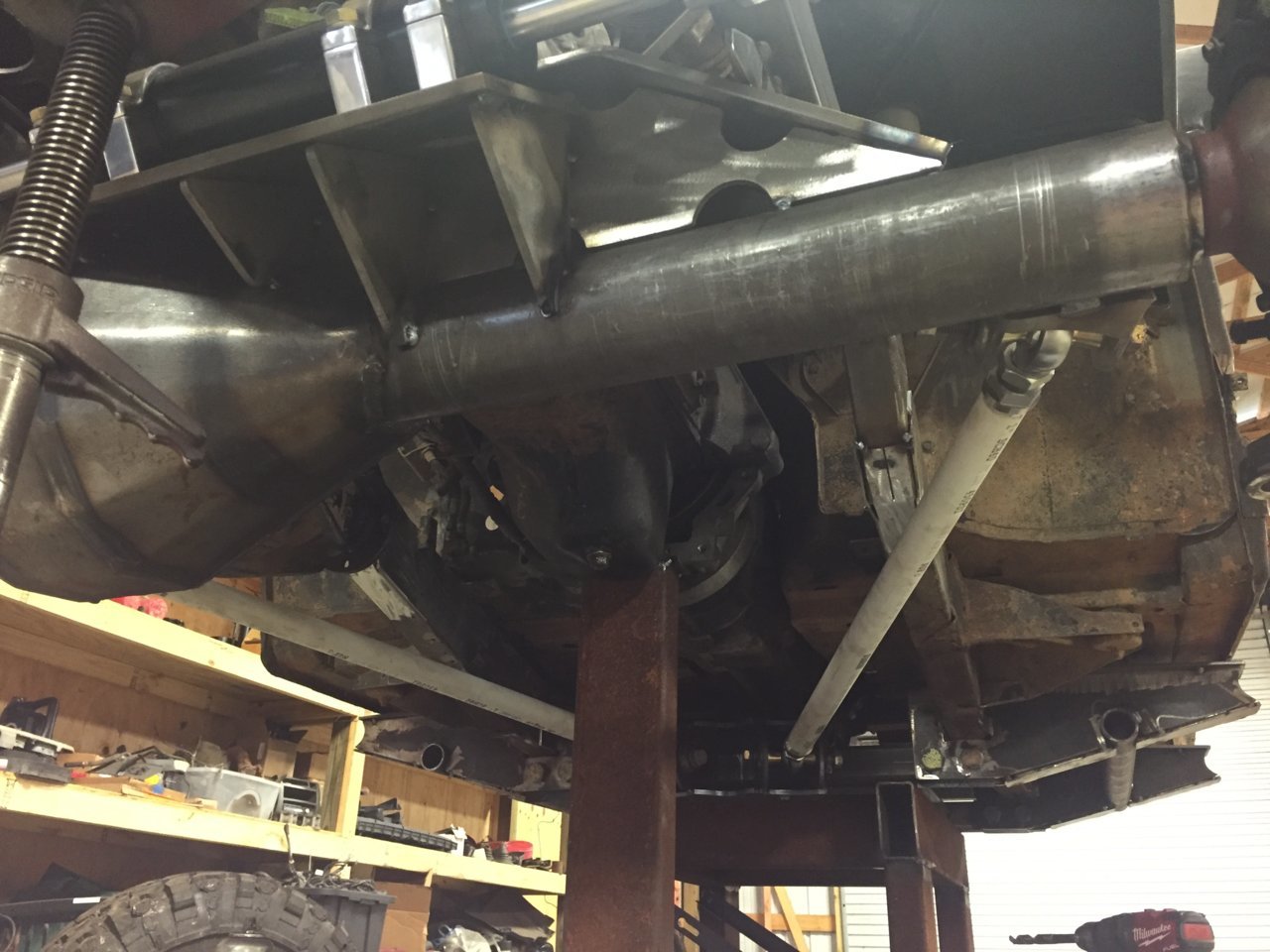

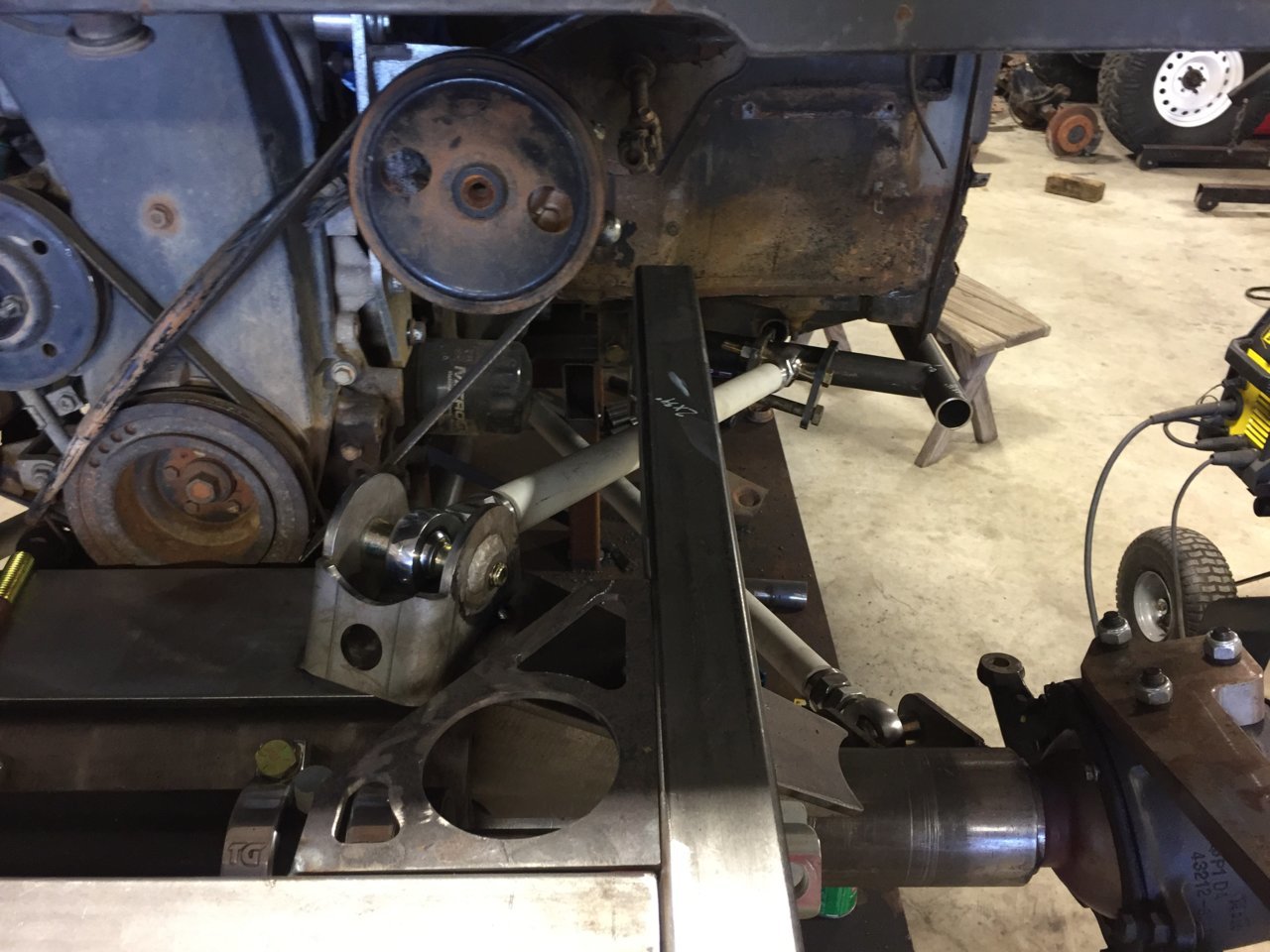

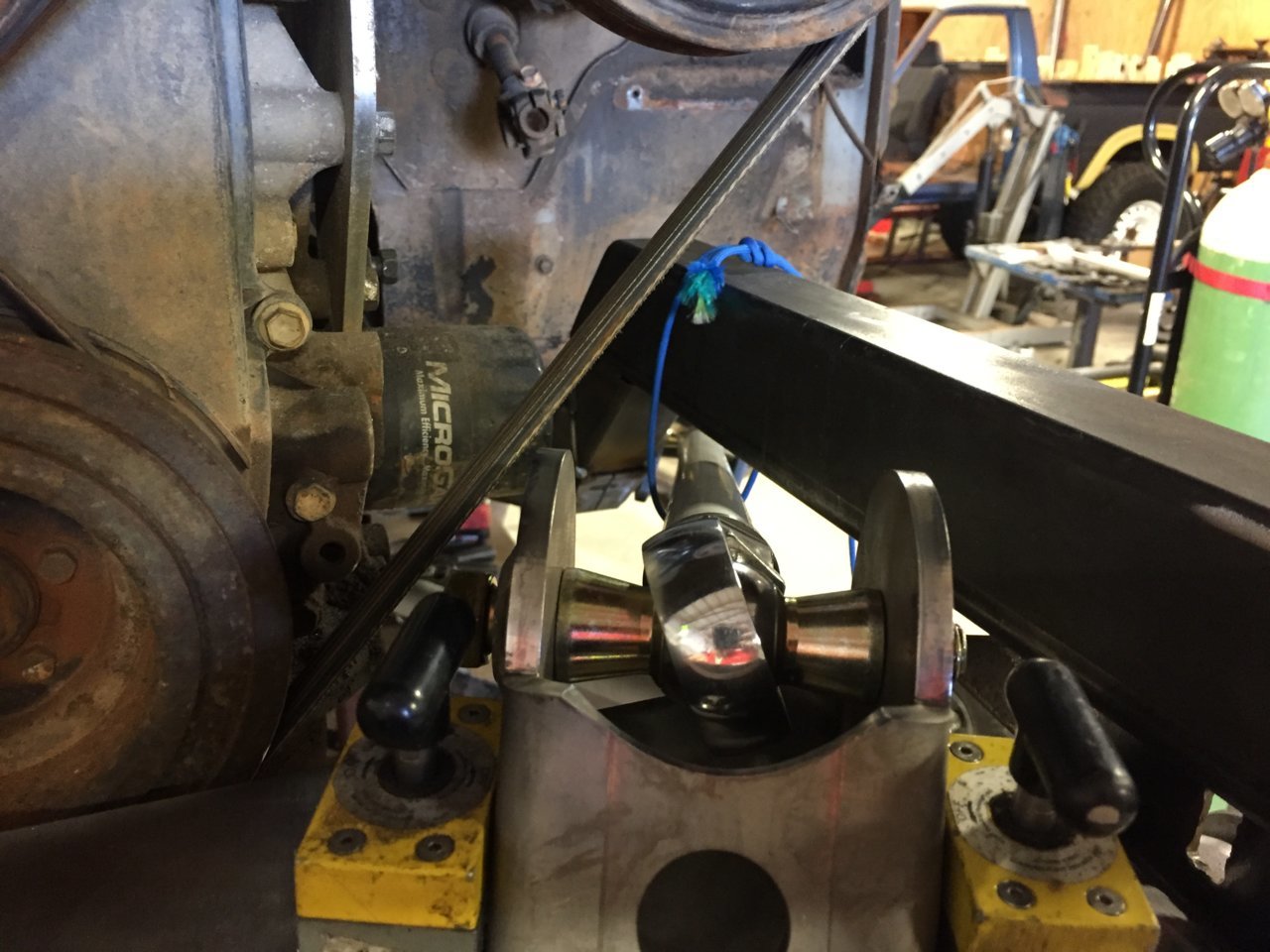

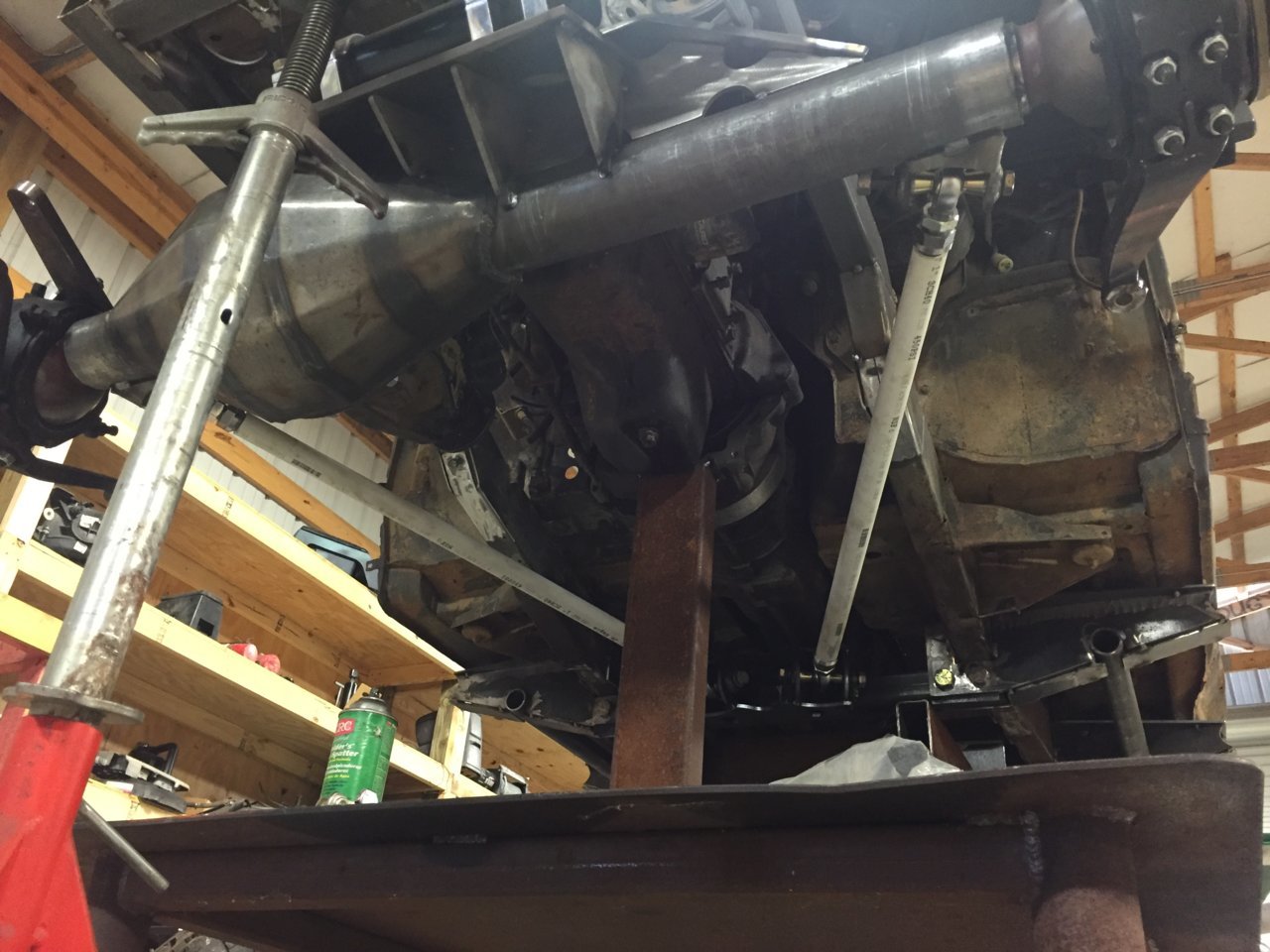

    The lower and upper links on the front end are now tacked in. I'm shooting to have both the front and rear links be the same length. That will allow Patrick to carry only two spares, if he wants.

    Photo Jan 25, 12 40 42 PM.jpg Photo Jan 25, 12 46 30 PM.jpg Photo Jan 25, 12 46 37 PM.jpg Photo Jan 28, 4 08 09 PM.jpg Photo Jan 28, 4 48 28 PM.jpg Photo Jan 28, 7 22 03 PM.jpg Photo Jan 28, 7 22 07 PM.jpg

    bigmw and Nimble9 like this.
  17. Jan 30, 2019 at 7:12 AM
    #17
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

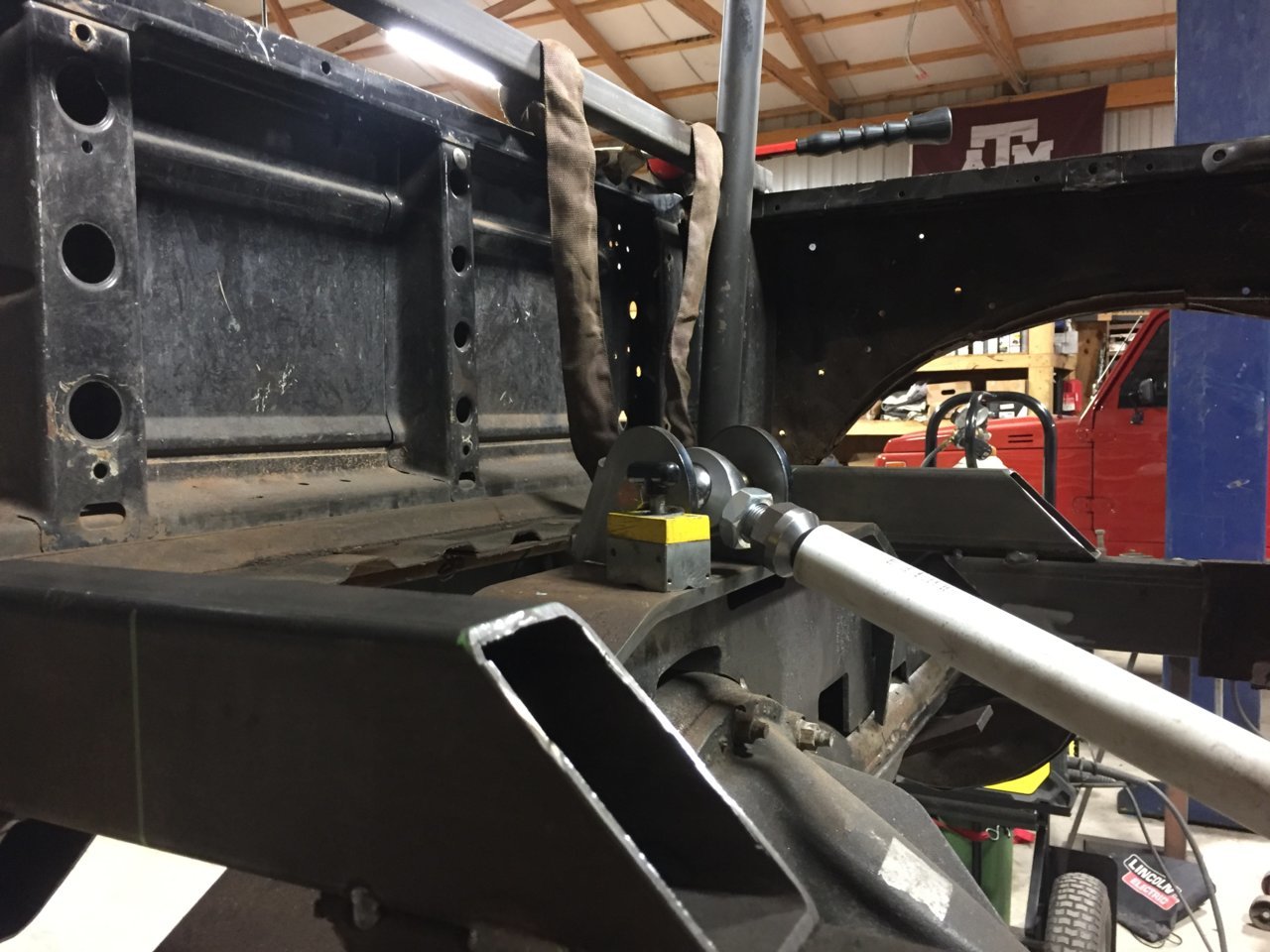

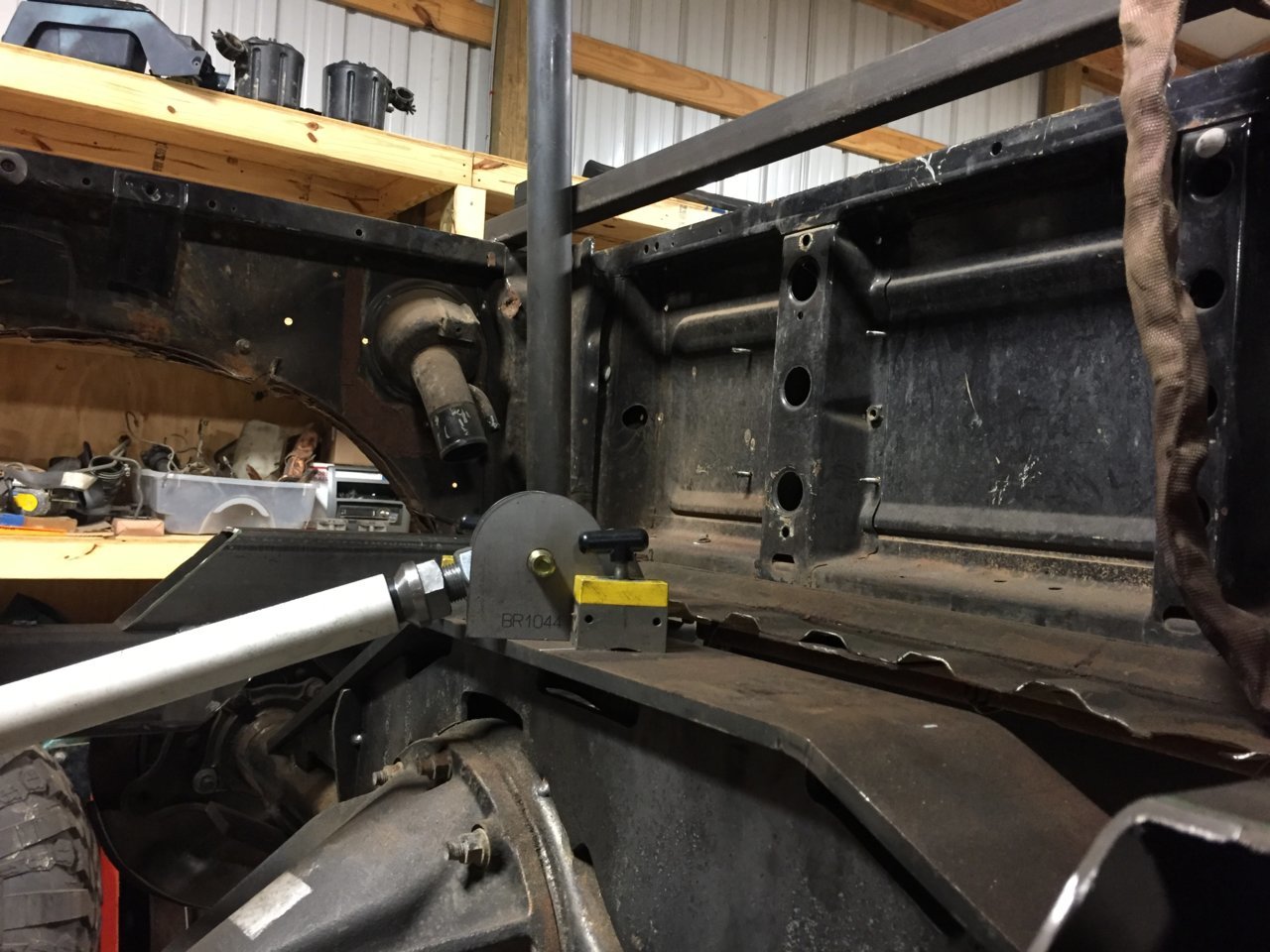

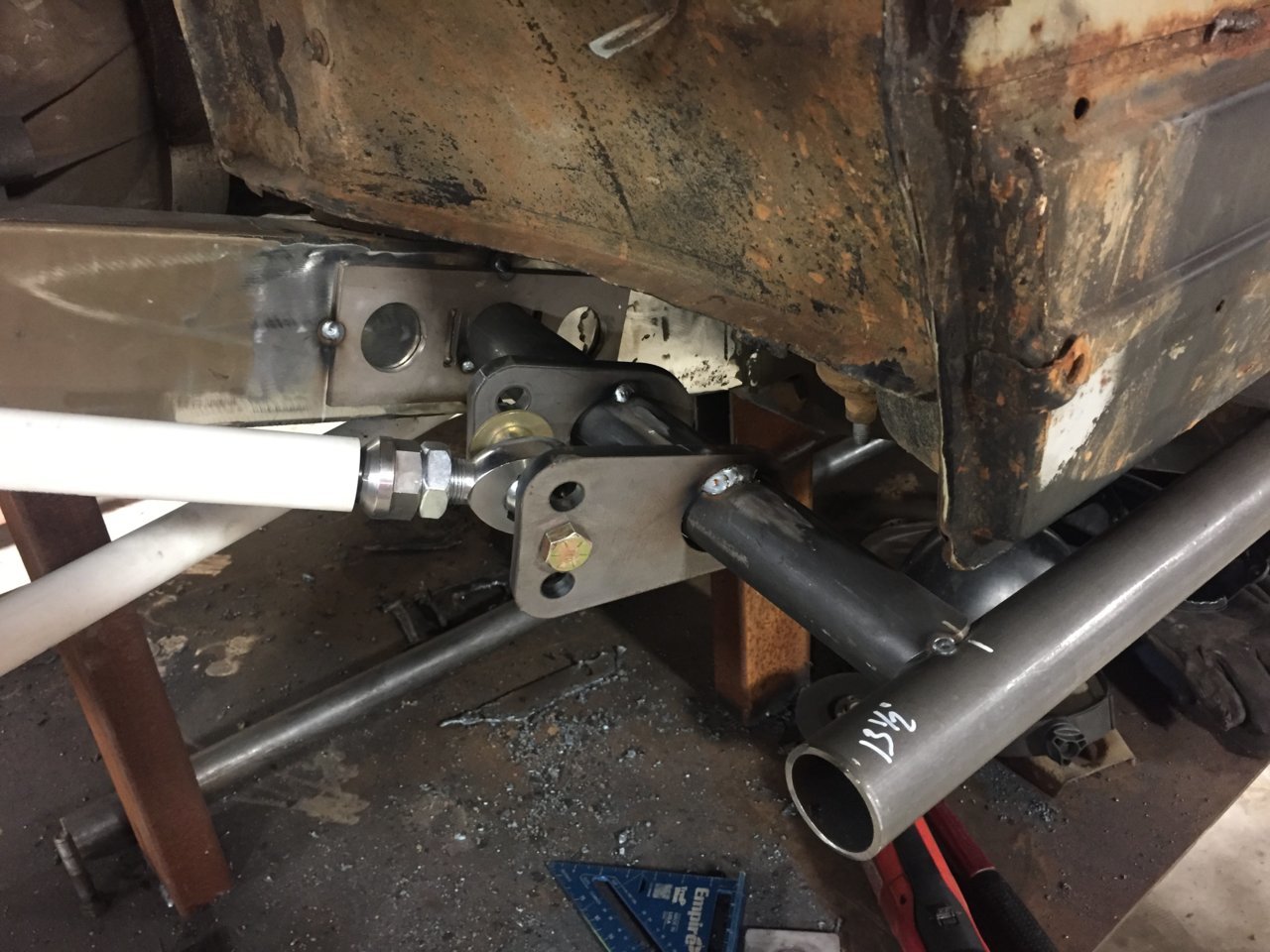

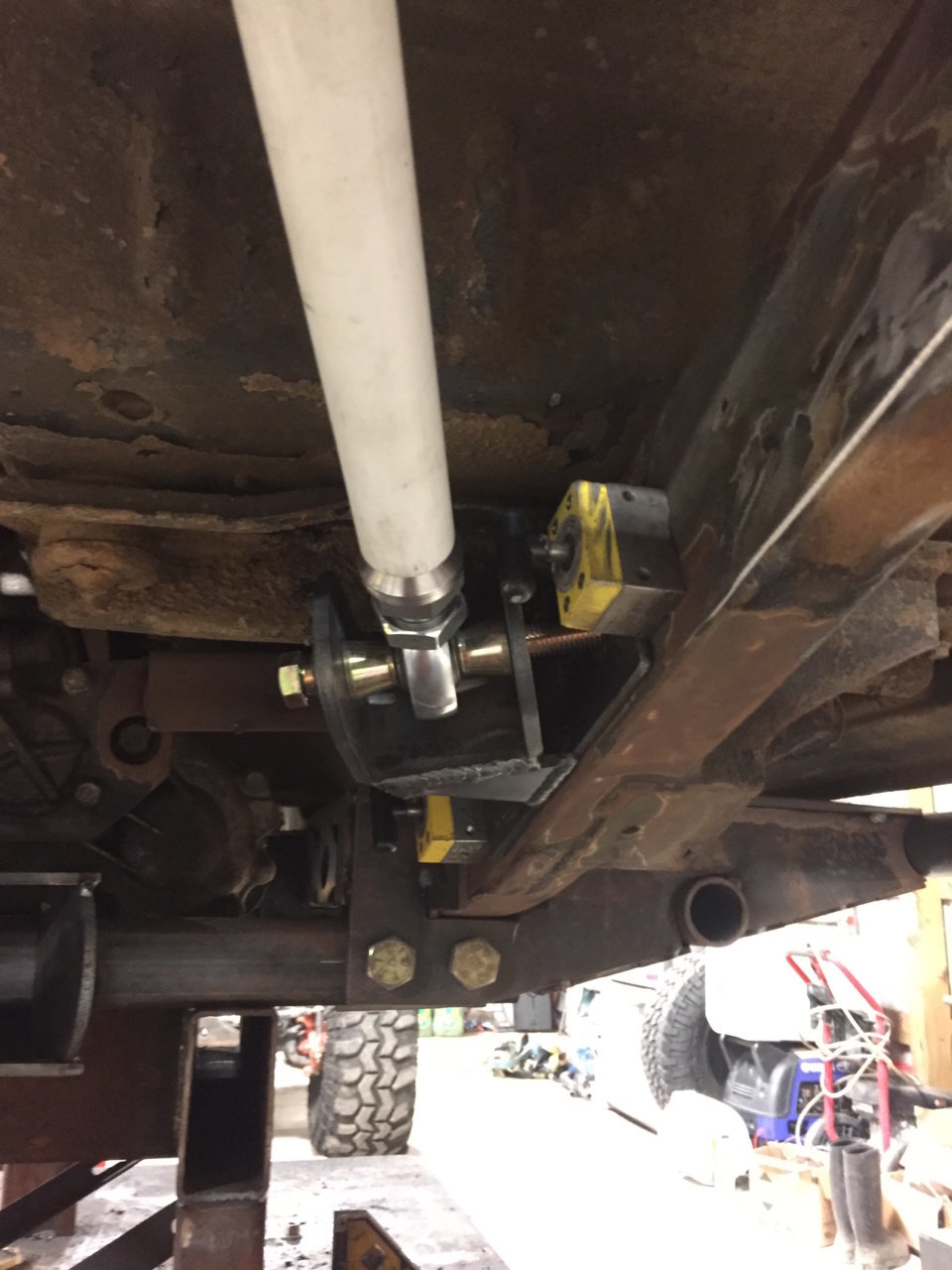

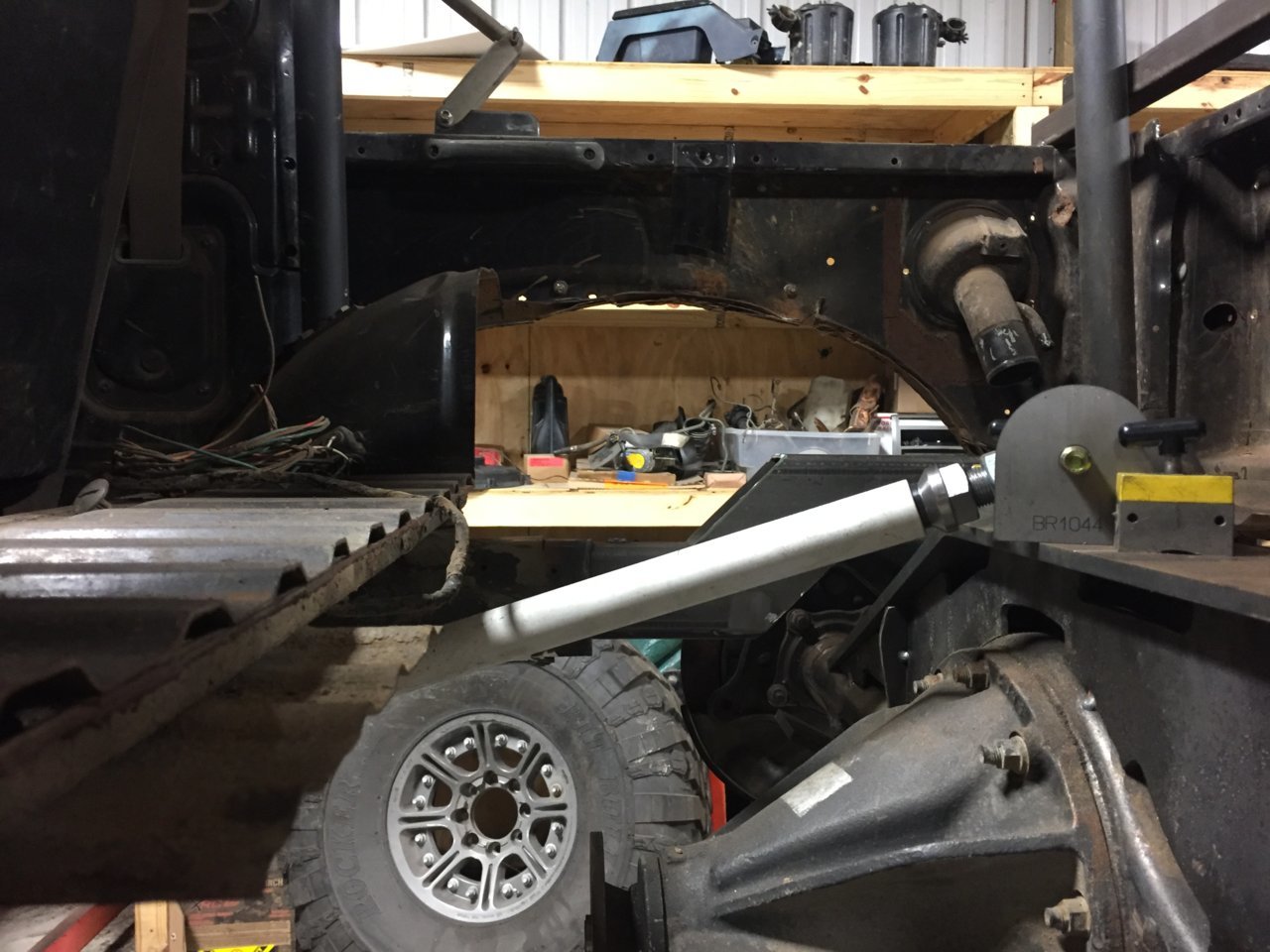

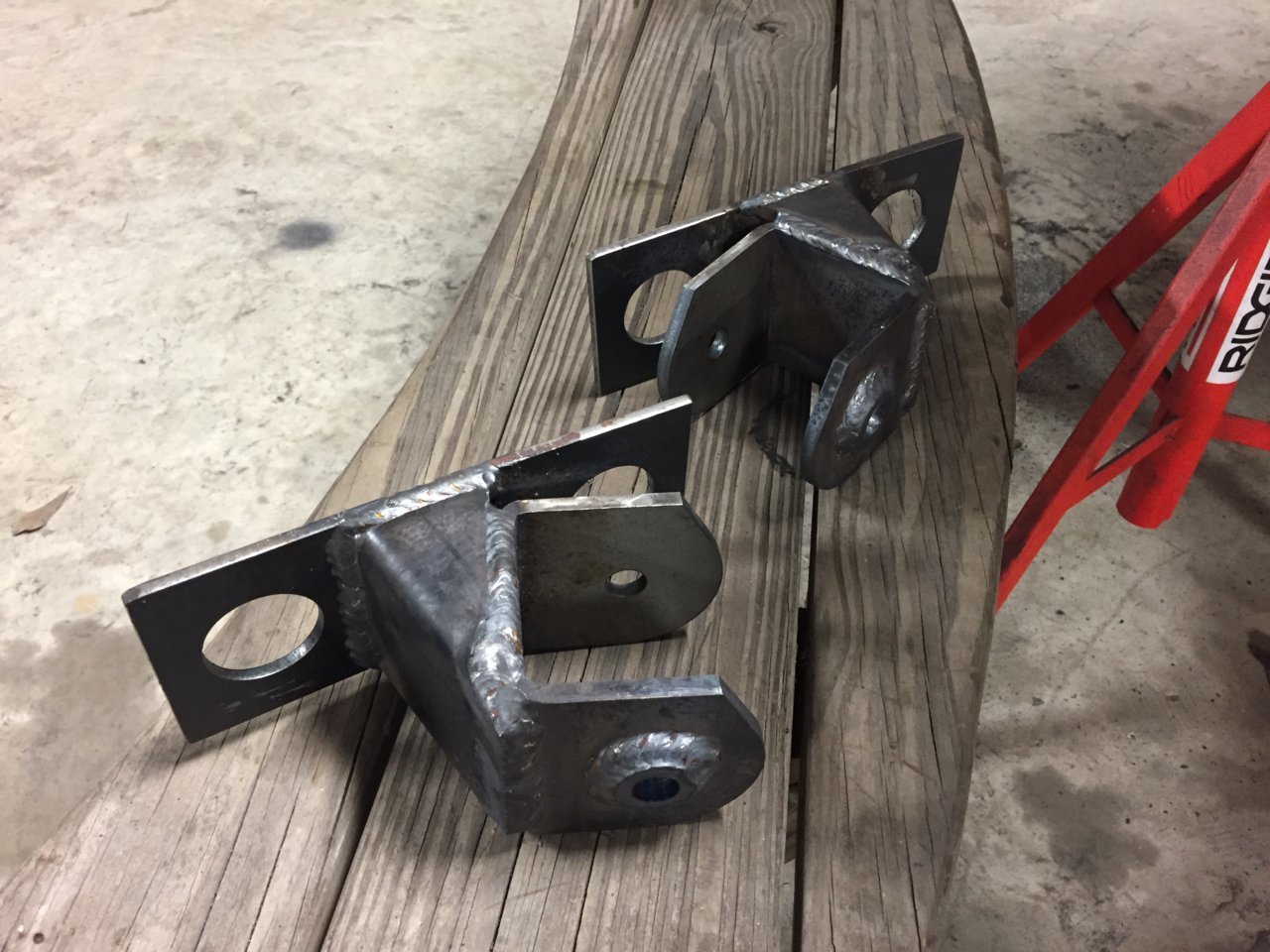

    While the front uppers are outside of the frame rails the rear uppers will be inside. That's due to the frame sweeping outwards as it goes towards the back of the rig.

    Photo Jan 29, 7 03 39 PM.jpg Photo Jan 29, 7 42 02 PM.jpg Photo Jan 29, 7 42 35 PM.jpg Photo Jan 29, 7 42 40 PM.jpg Photo Jan 29, 7 44 43 PM.jpg

    bigmw likes this.
  18. Jan 30, 2019 at 7:14 AM
    #18
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

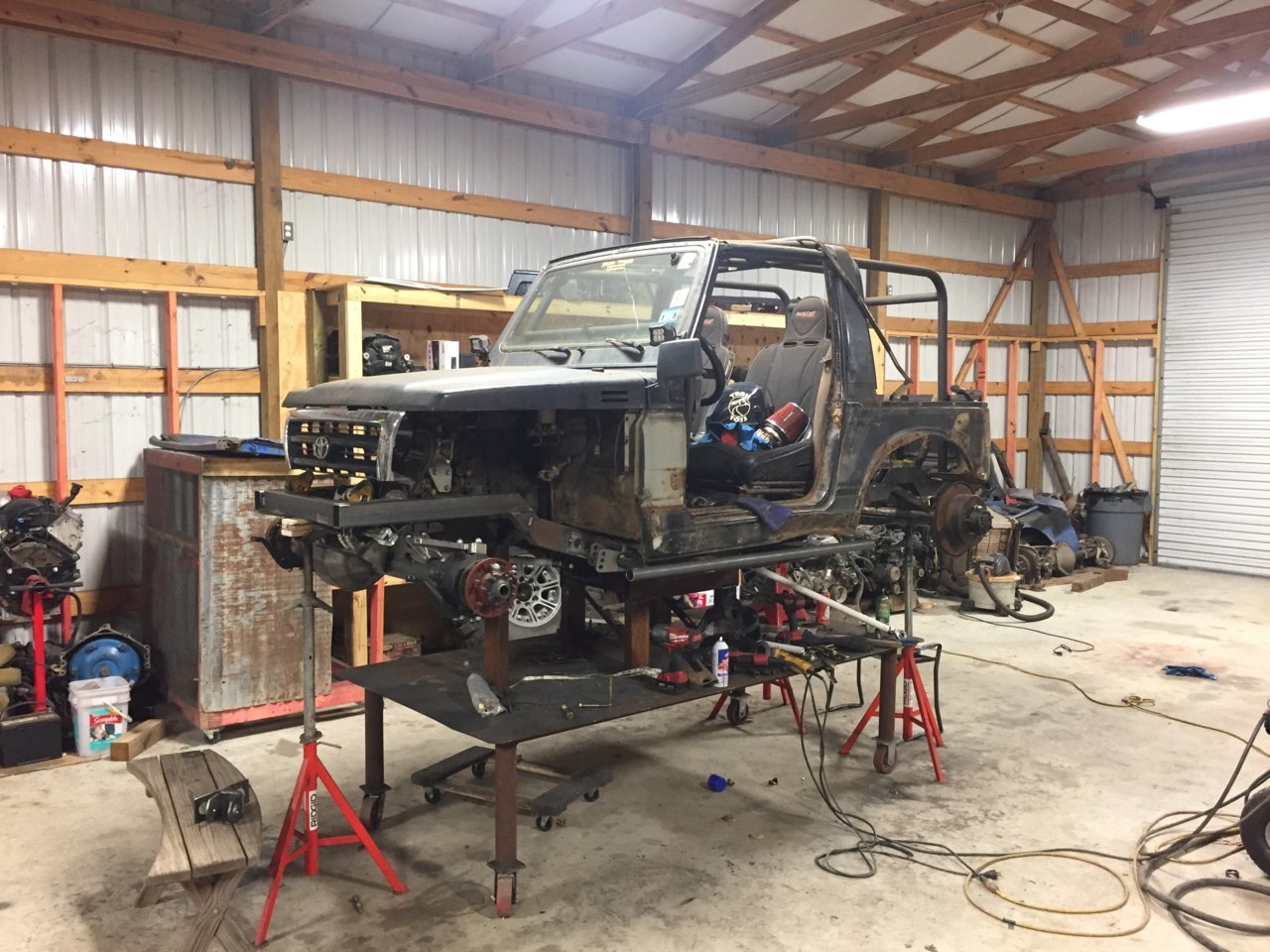

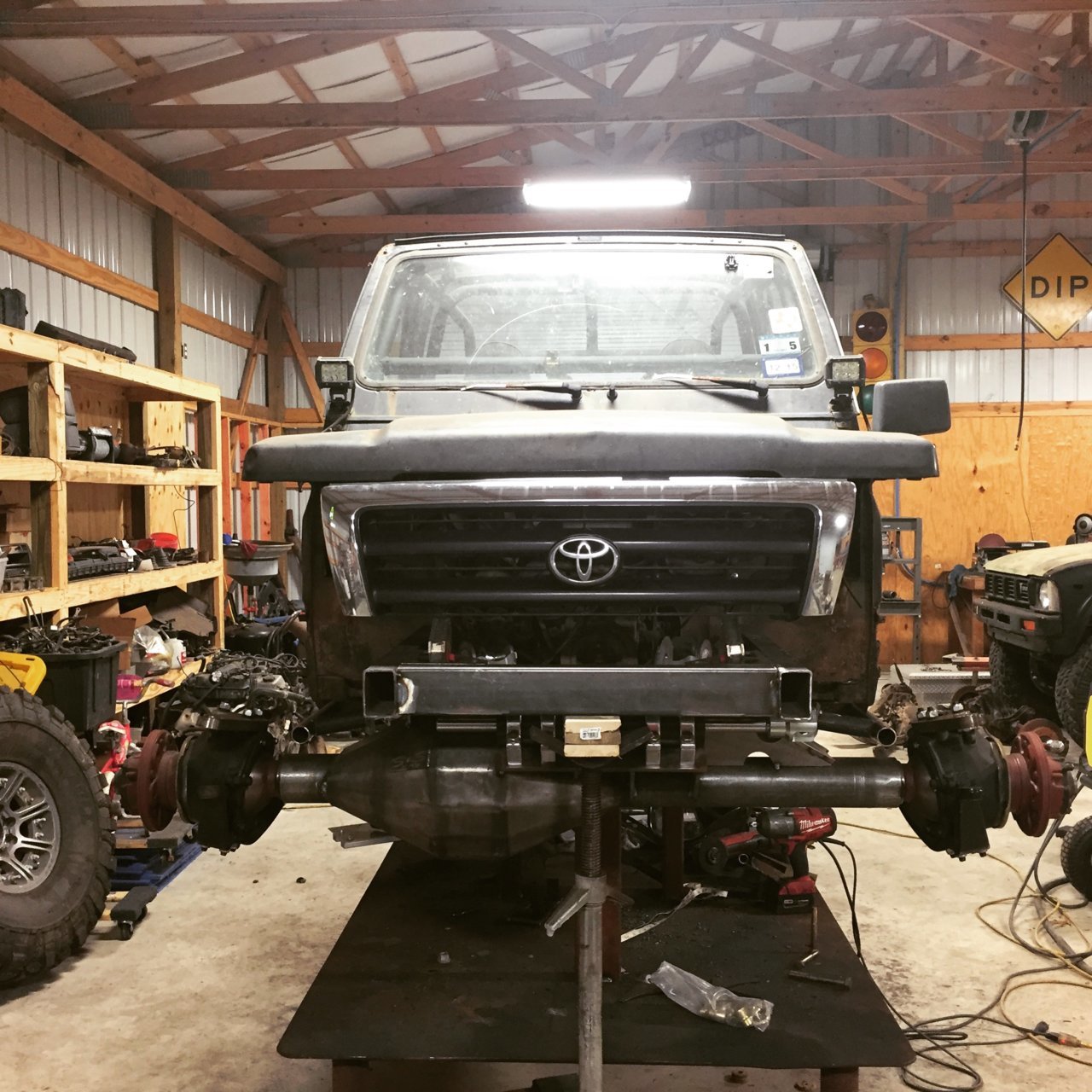

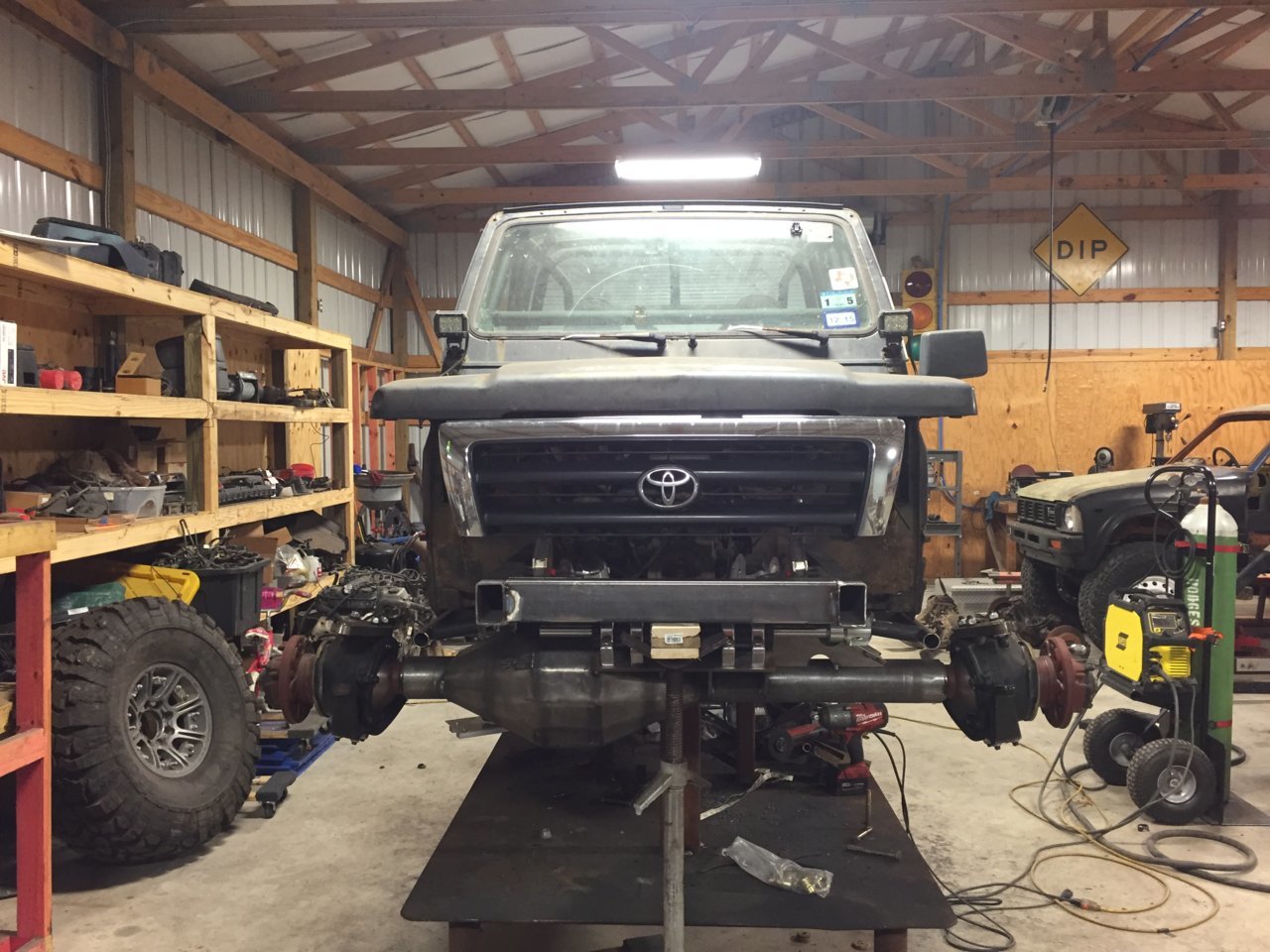

    A pair of 2000 Tacos came into the shop, one of which was rolled, so it's grill is going to be donated to the build. I think it fits pretty darn nicely. :D

    Photo Jan 29, 7 53 24 PM.jpg Photo Jan 29, 7 53 25 PM.jpg Photo Jan 29, 7 58 21 PM.jpg

    bigmw and Nimble9 like this.
  19. Jan 30, 2019 at 7:20 AM
    #19
    Nimble9

    Nimble9 Keystone State Adventures

    Joined:
    Oct 20, 2015
    Member:
    #167184
    Messages:
    4,546
    Gender:
    Male
    Lebanon, PA
    Vehicle:
    2006 4x4 DCSB
    enough to have fun
    this is literally art.

    :bowdown:

    SMKYTXN [OP] likes this.
  20. Feb 16, 2019 at 1:24 PM
    #20
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    13,897
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

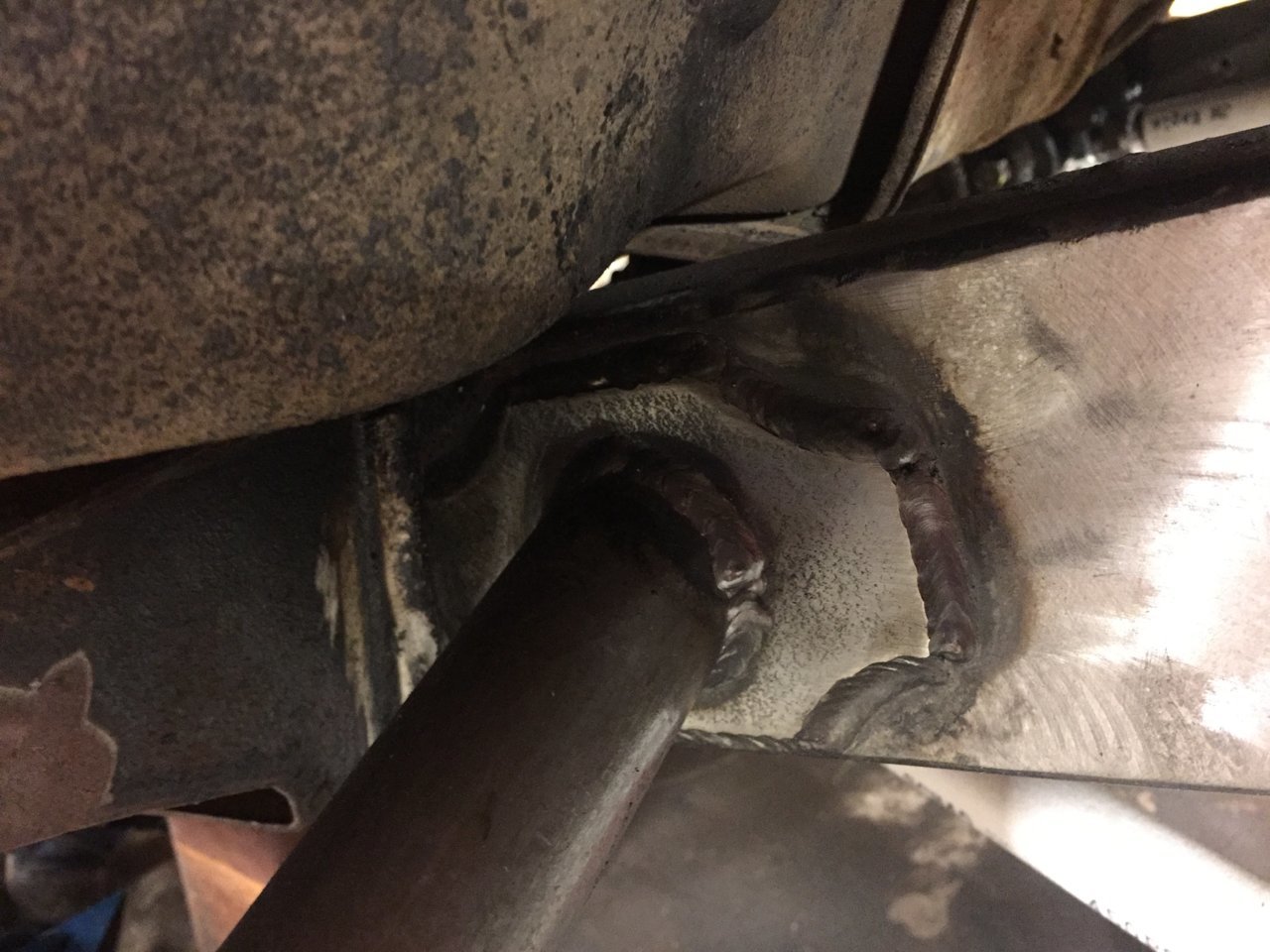

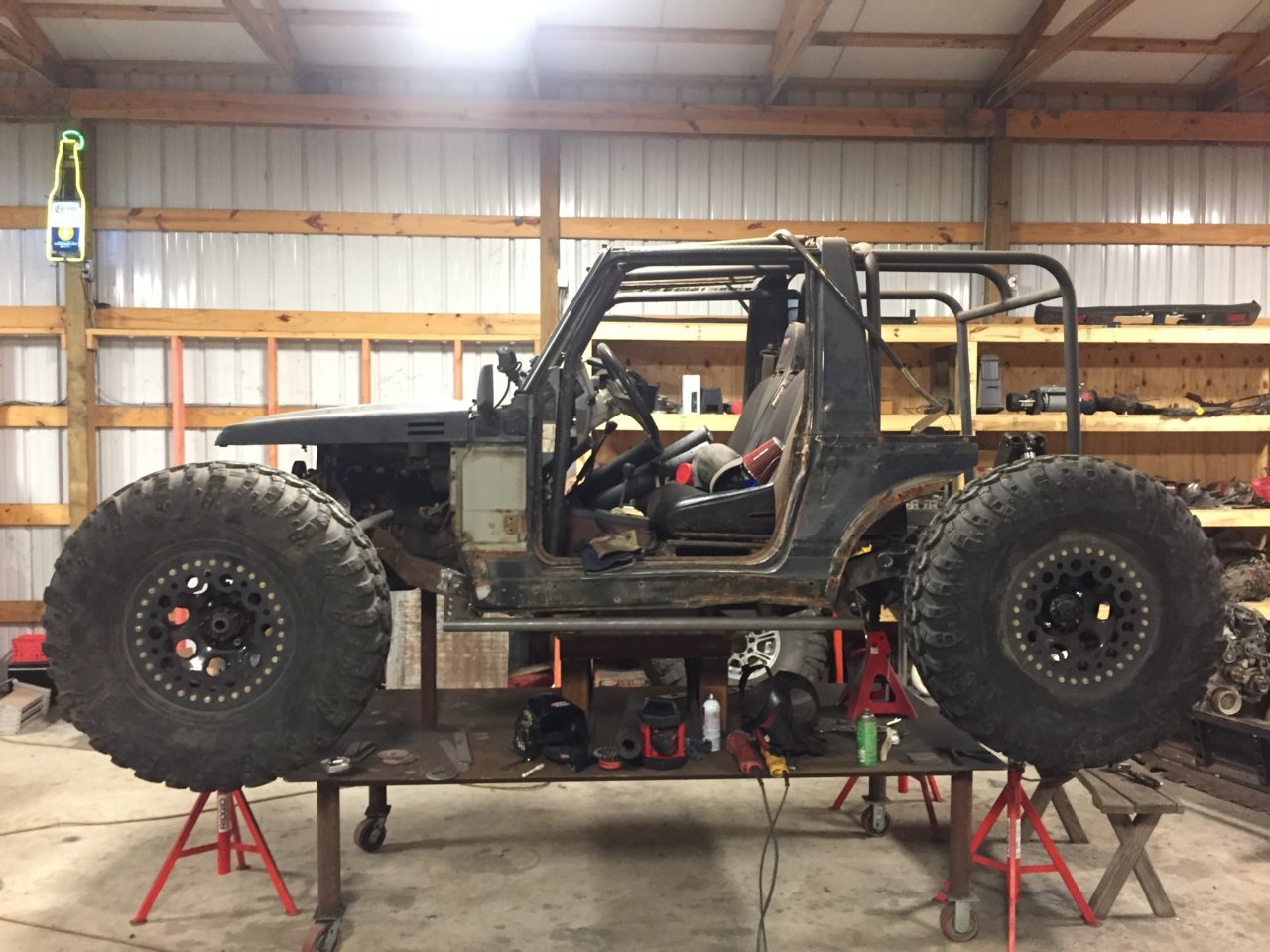

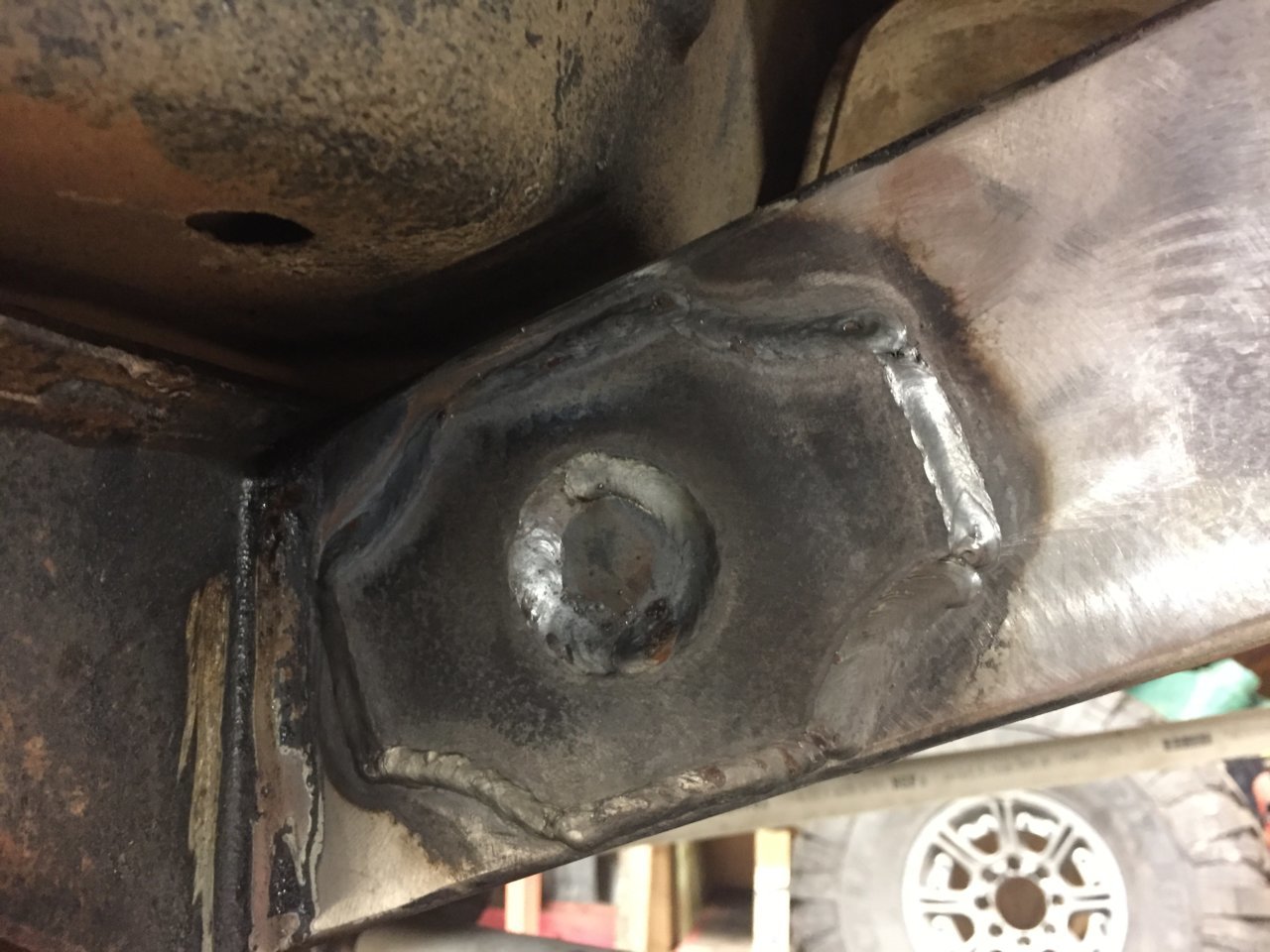

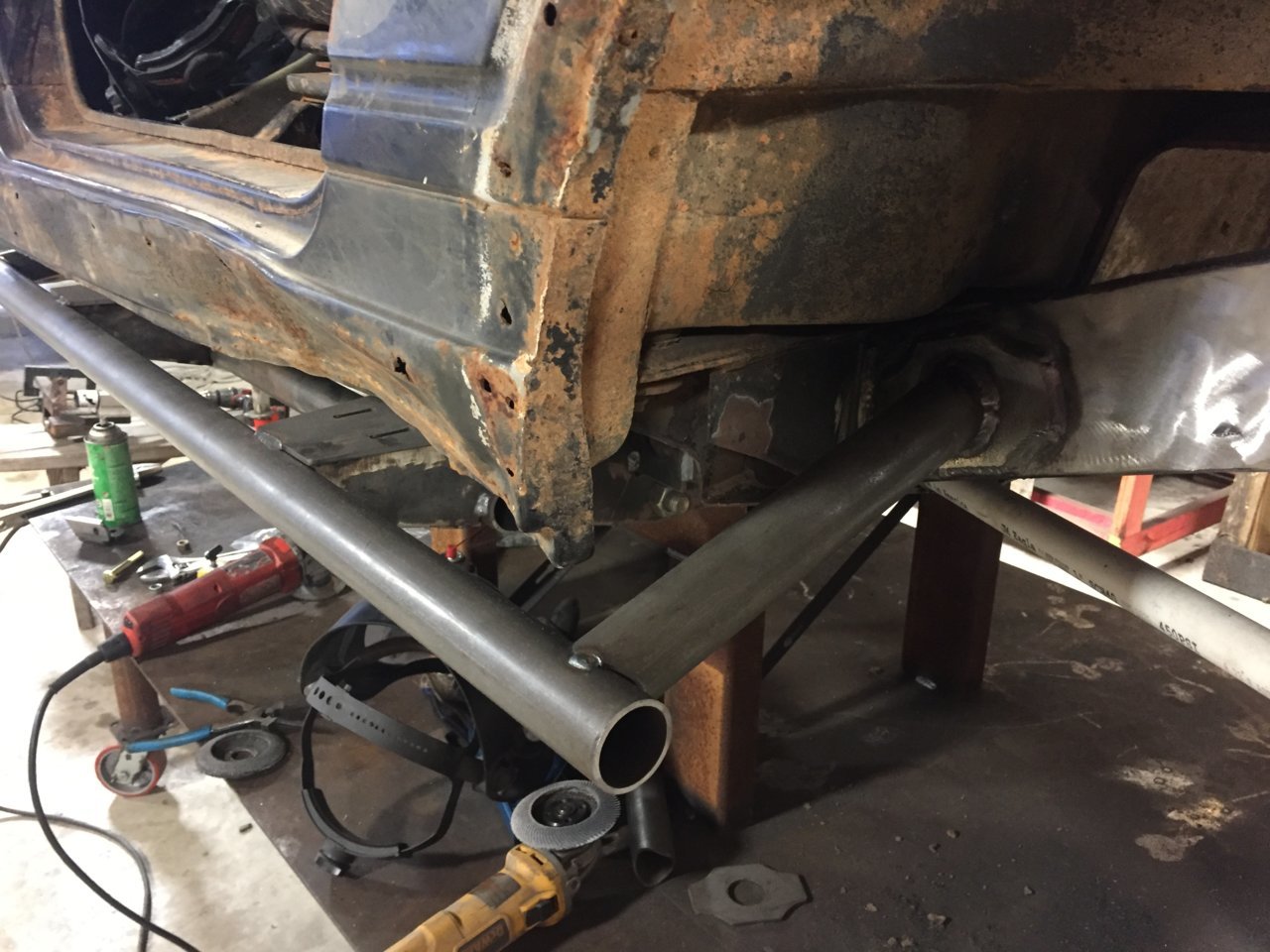

    The rear of the slider is now tied into the frame. The b-pillar of the cage will be tied into this tube as well.

    I'm going to sleeve the sliders with 1.5"x0.25" tube as well. Can't have them caving in on the first hit.

    Photo Jan 31, 2 32 05 PM.jpg Photo Jan 31, 4 50 52 PM.jpg Photo Jan 31, 5 14 17 PM (1).jpg

    bigmw likes this.
