Patrick's Samurai Build

Discussion in 'Trail Toys' started by SMKYTXN, Jan 7, 2019.

  1. Feb 16, 2019 at 1:27 PM
    #21
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    With the uptravel in the rear it's become obvious that the rear is going to have to be doved. The back half of the cage will be reworked as well. So, to make life a little easier the back half of the tub got the chop.

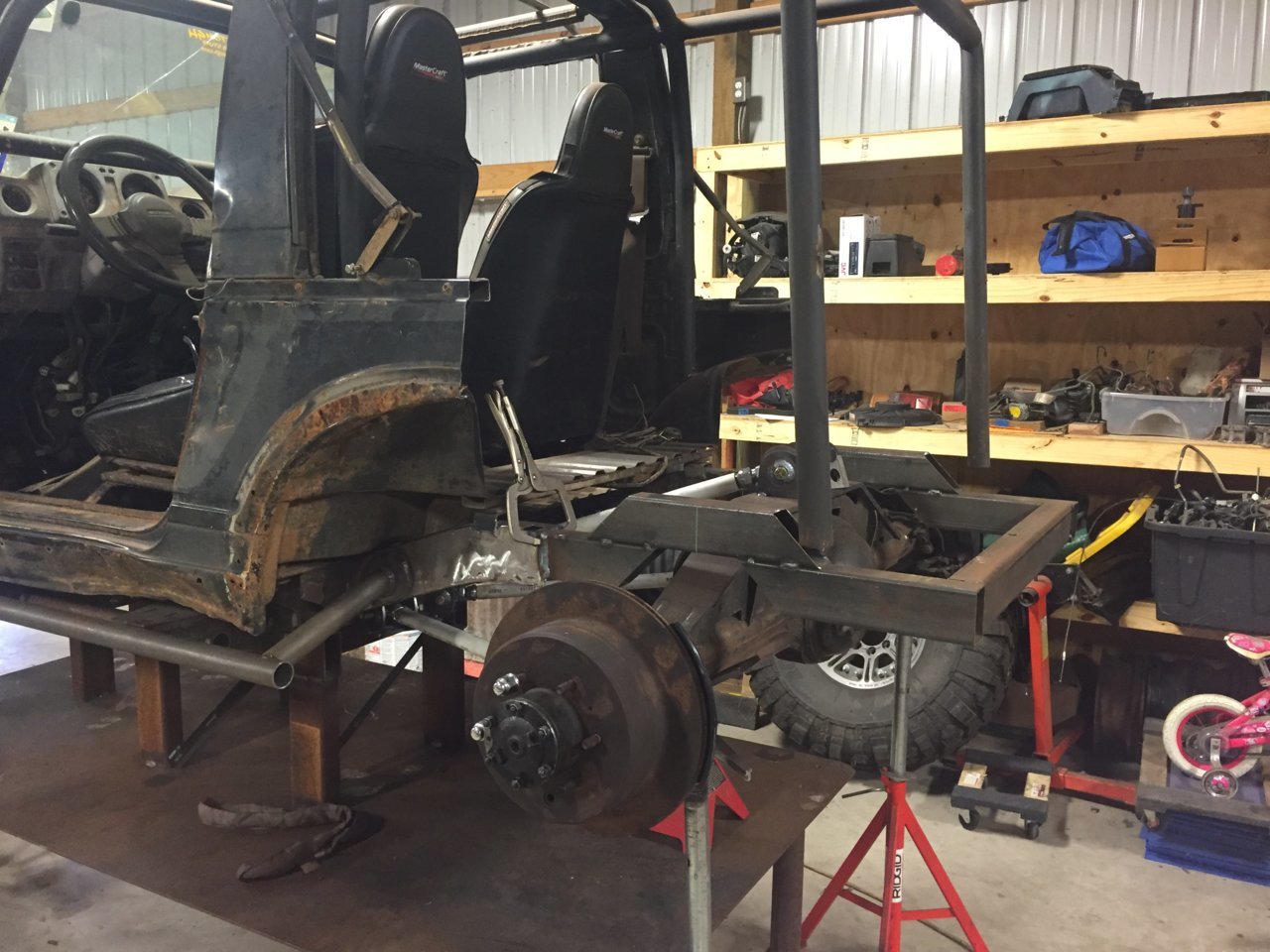

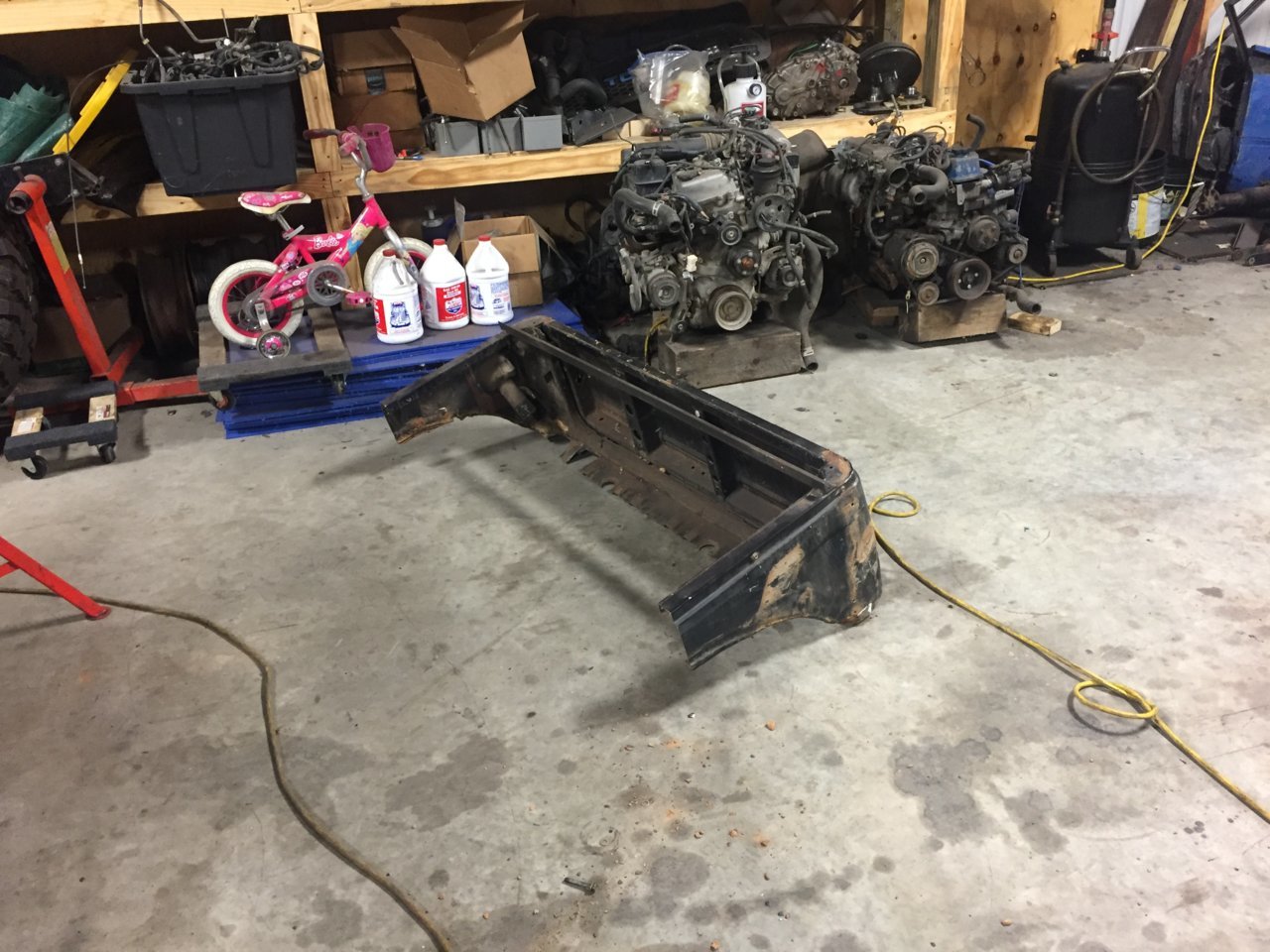

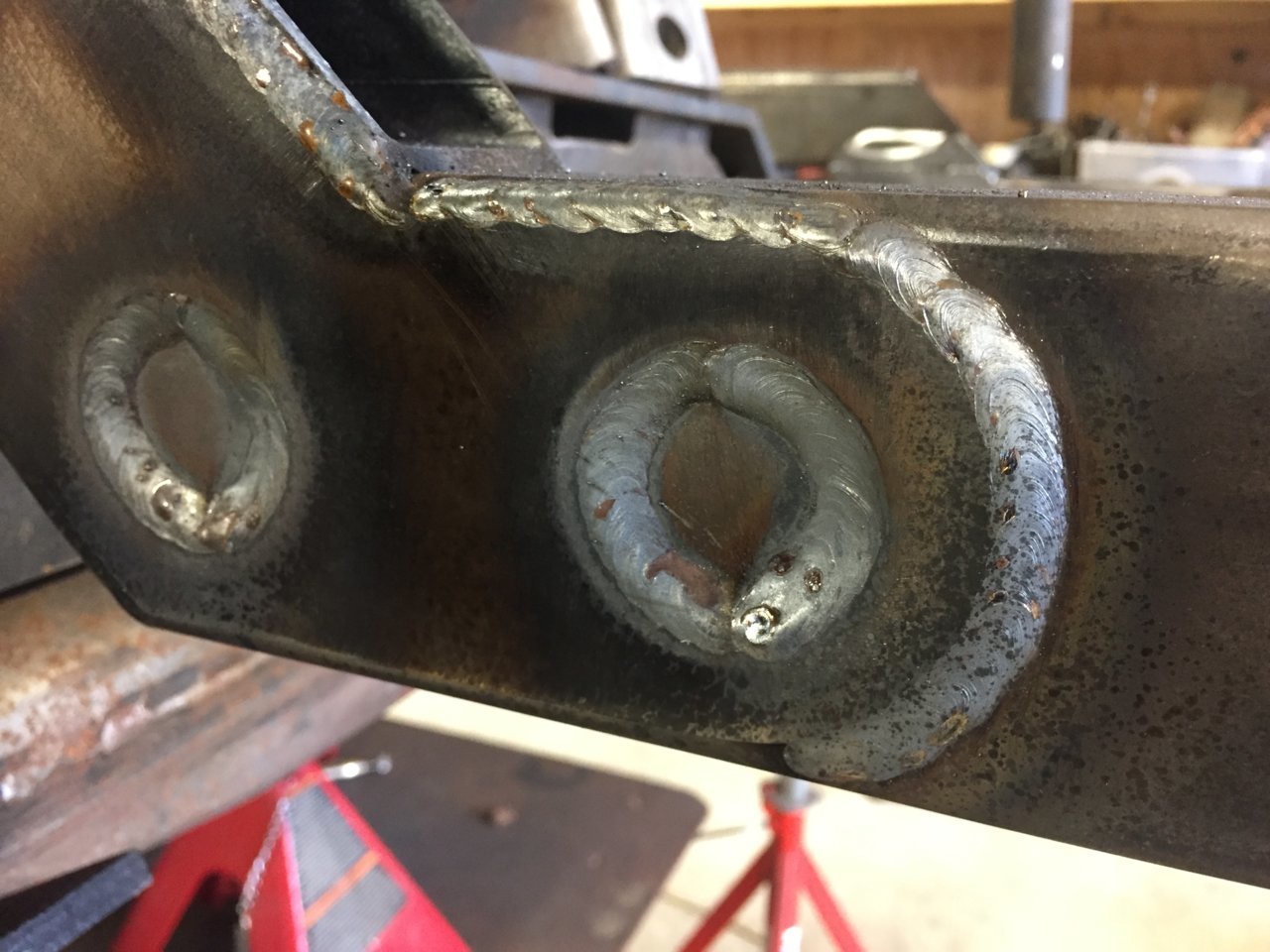

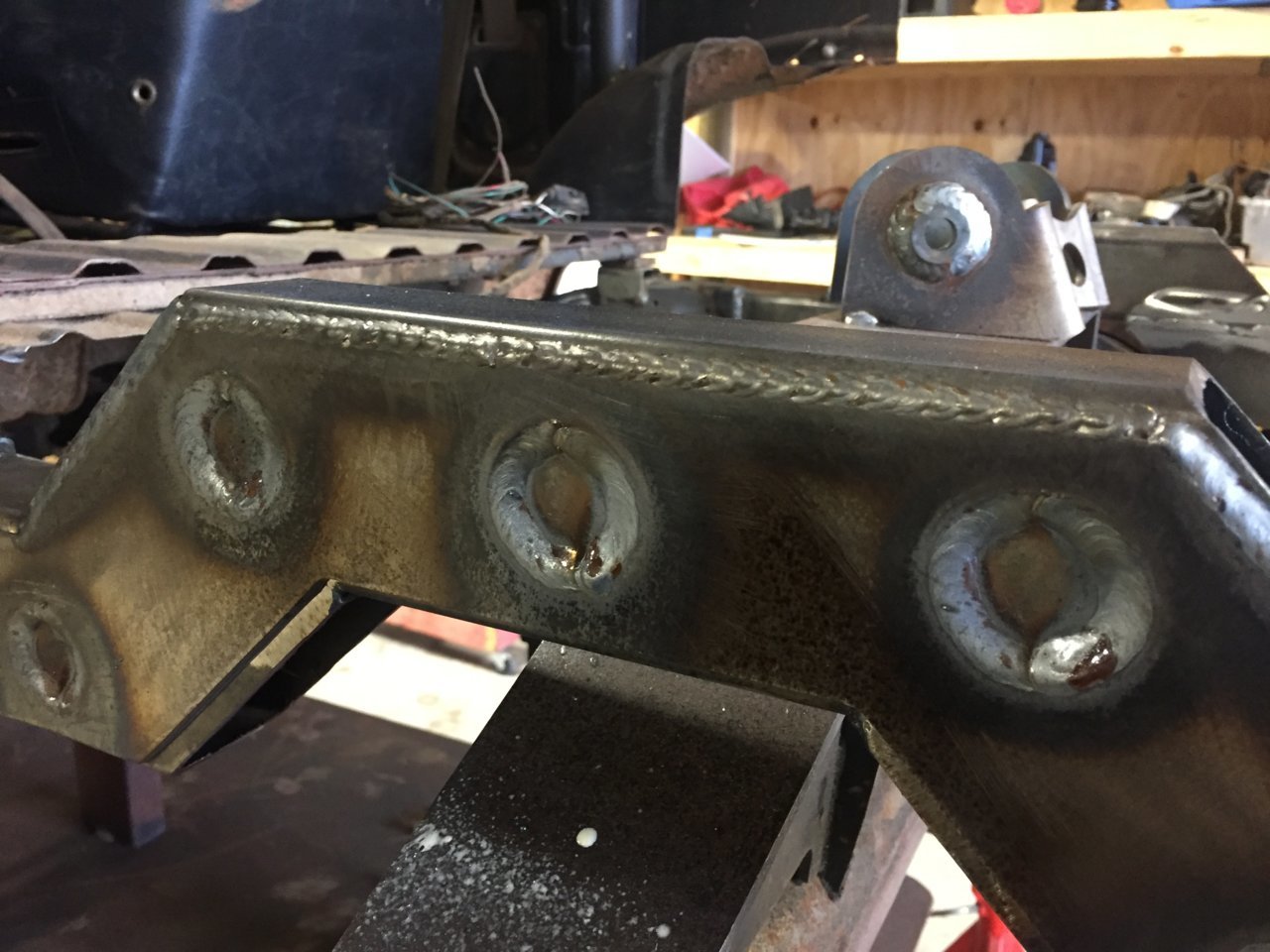

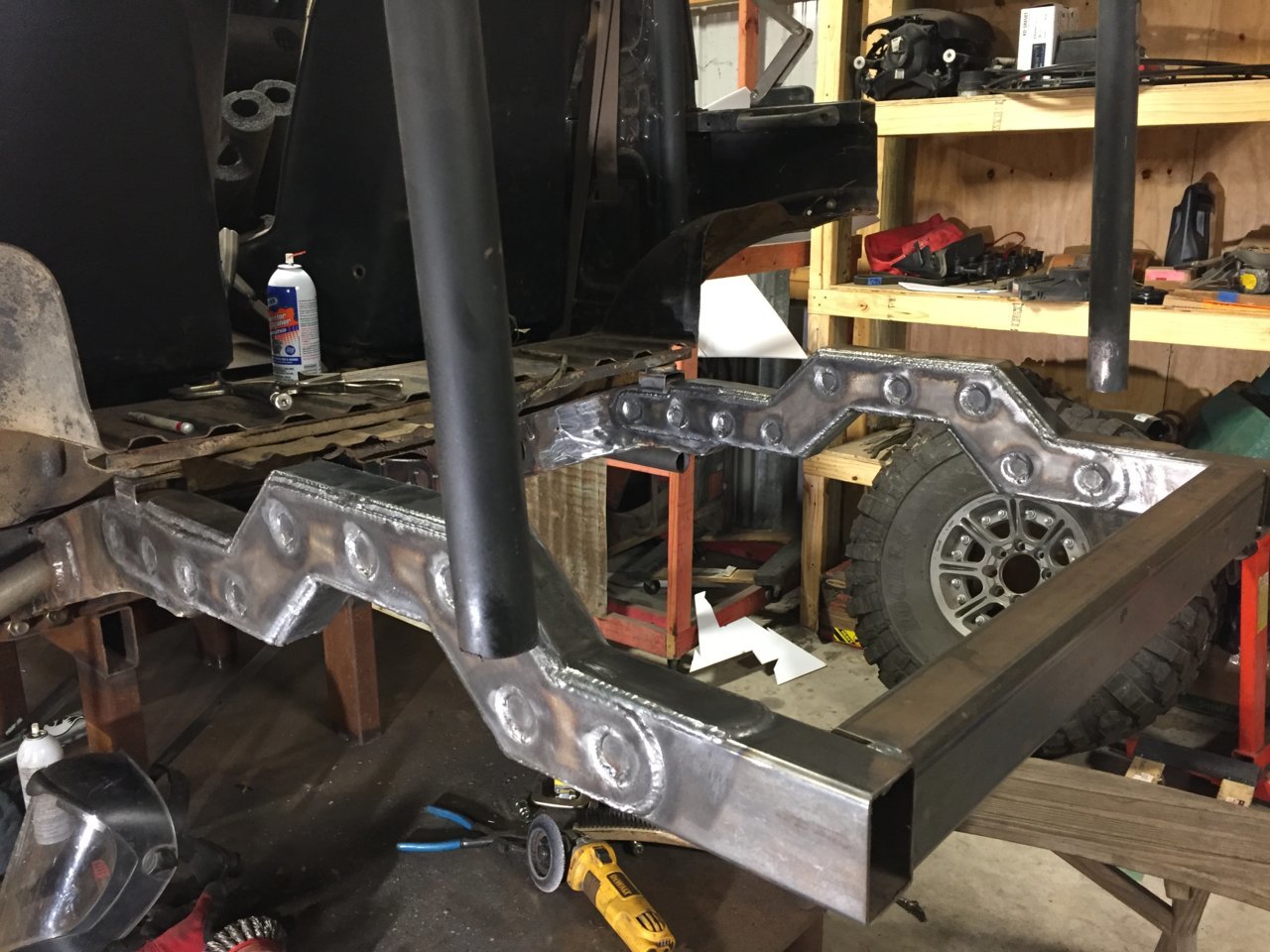

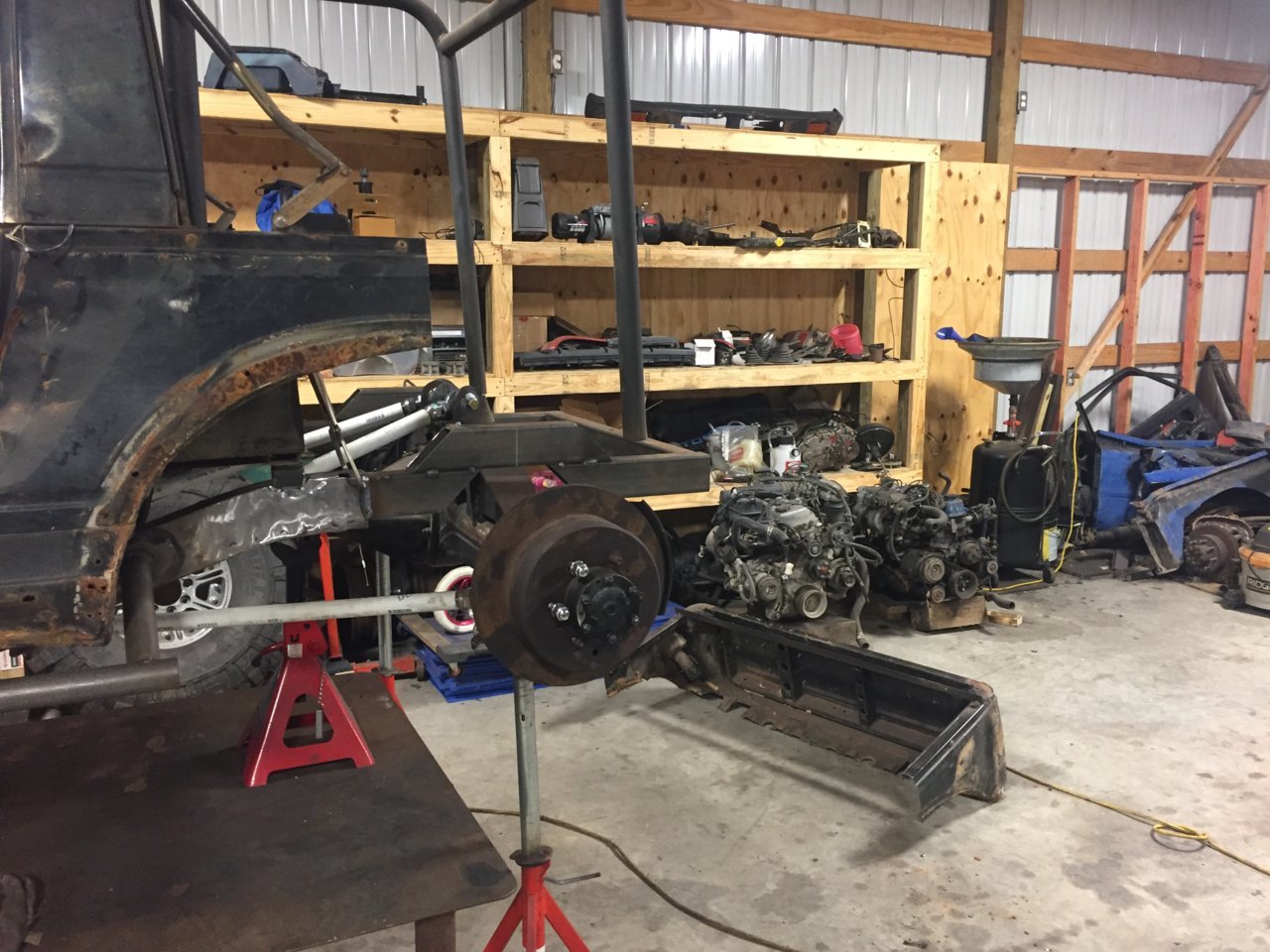

    With the rear tub gone it was time to knock out the rear frame.

    Photo Feb 07, 1 26 48 PM.jpg Photo Feb 07, 1 26 52 PM.jpg Photo Feb 07, 1 26 55 PM.jpg Photo Feb 07, 3 41 31 PM.jpg Photo Feb 07, 4 13 03 PM.jpg Photo Feb 07, 4 13 10 PM.jpg Photo Feb 07, 4 13 16 PM.jpg Photo Feb 08, 8 48 38 PM.jpg

    Slashaar and bigmw like this.
  2. Feb 16, 2019 at 1:28 PM
    #22
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

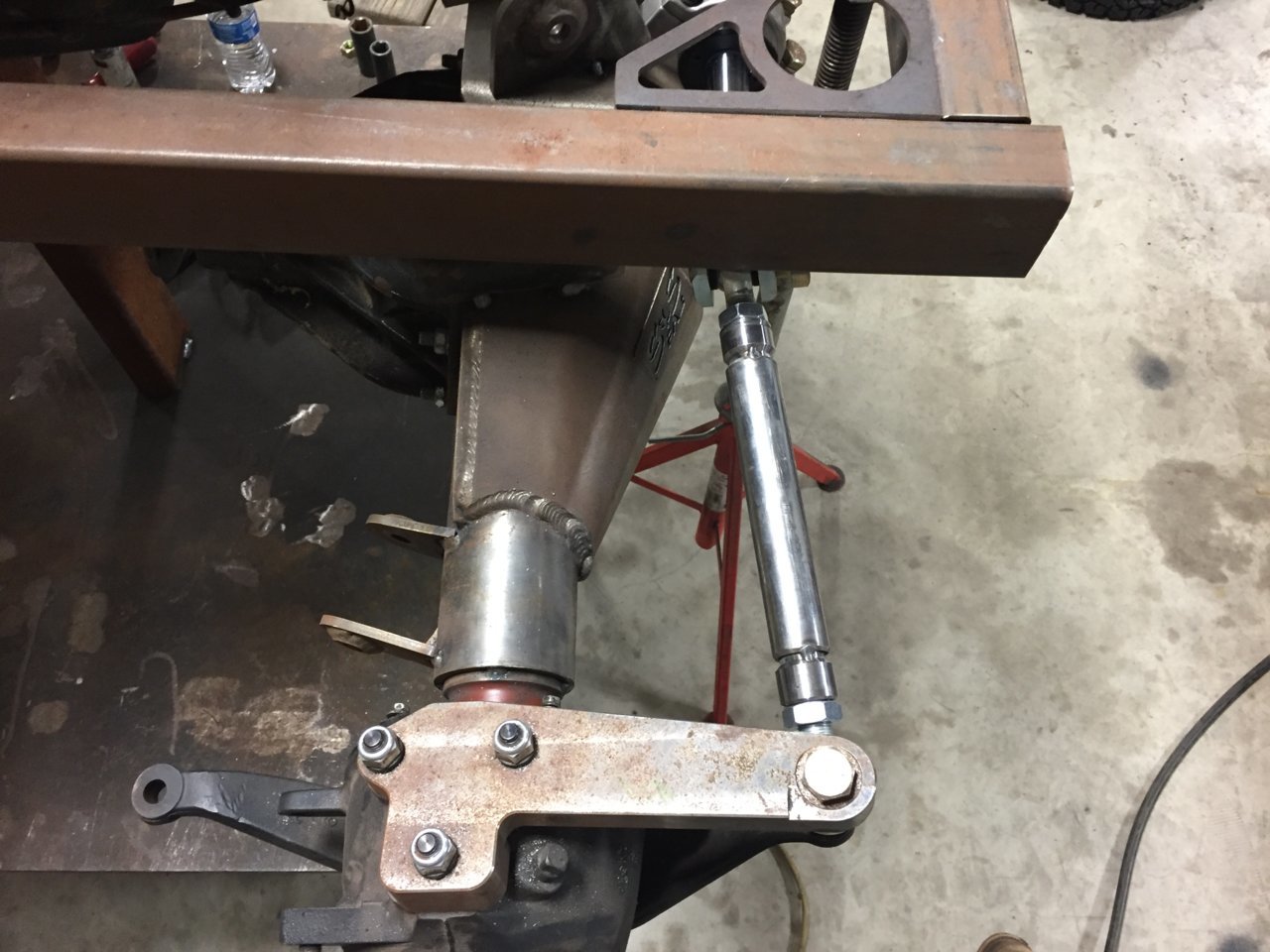

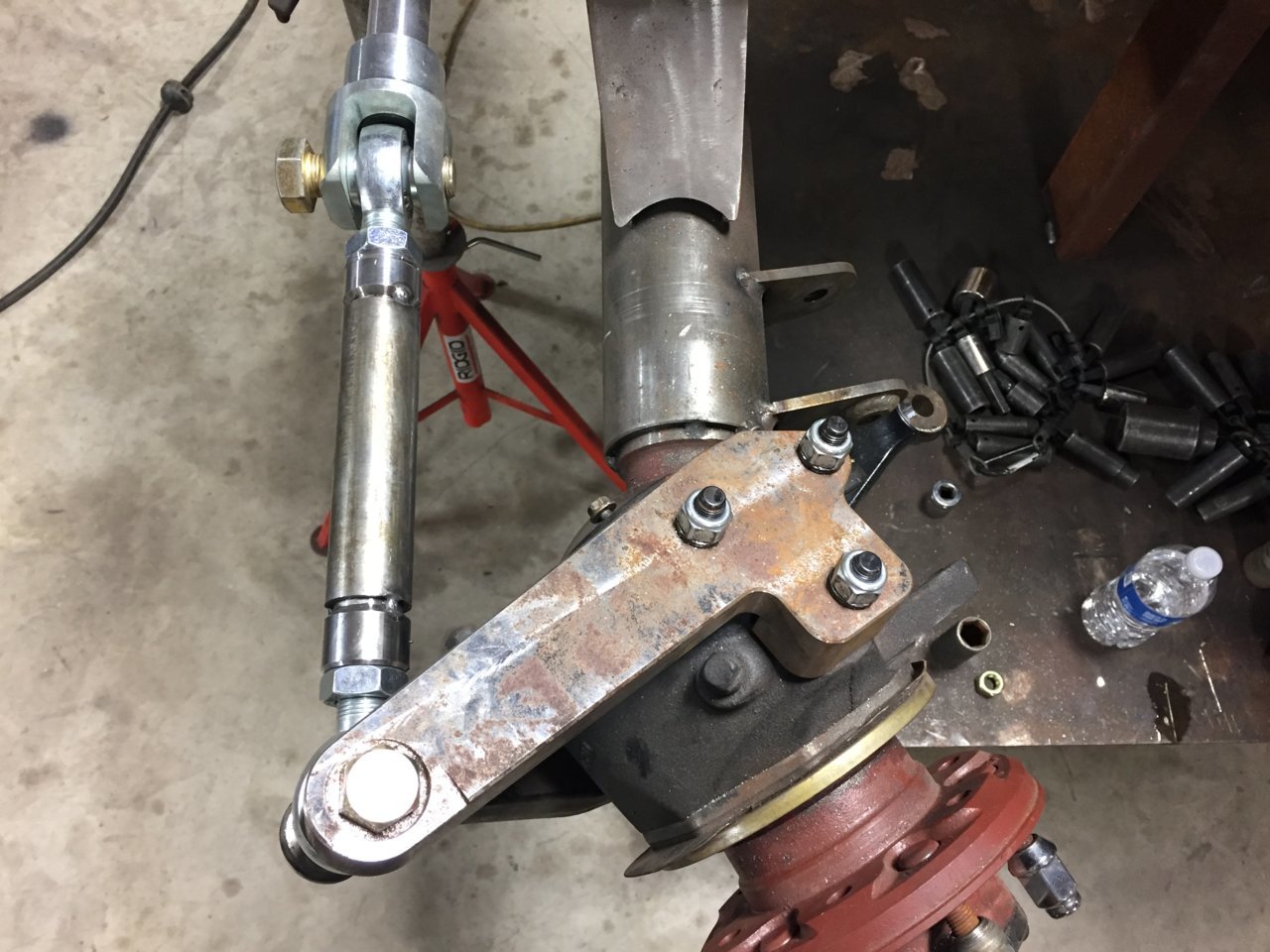

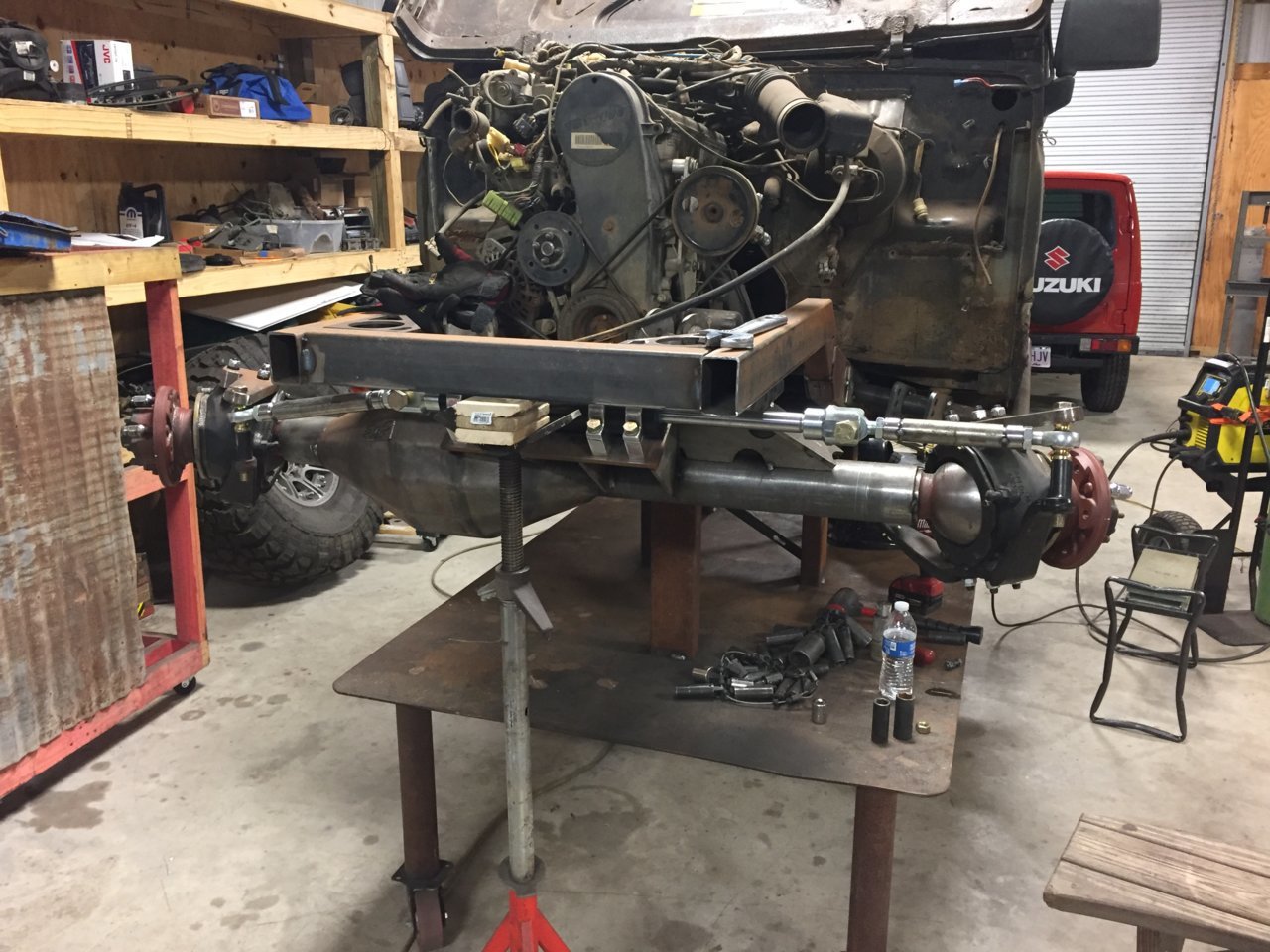

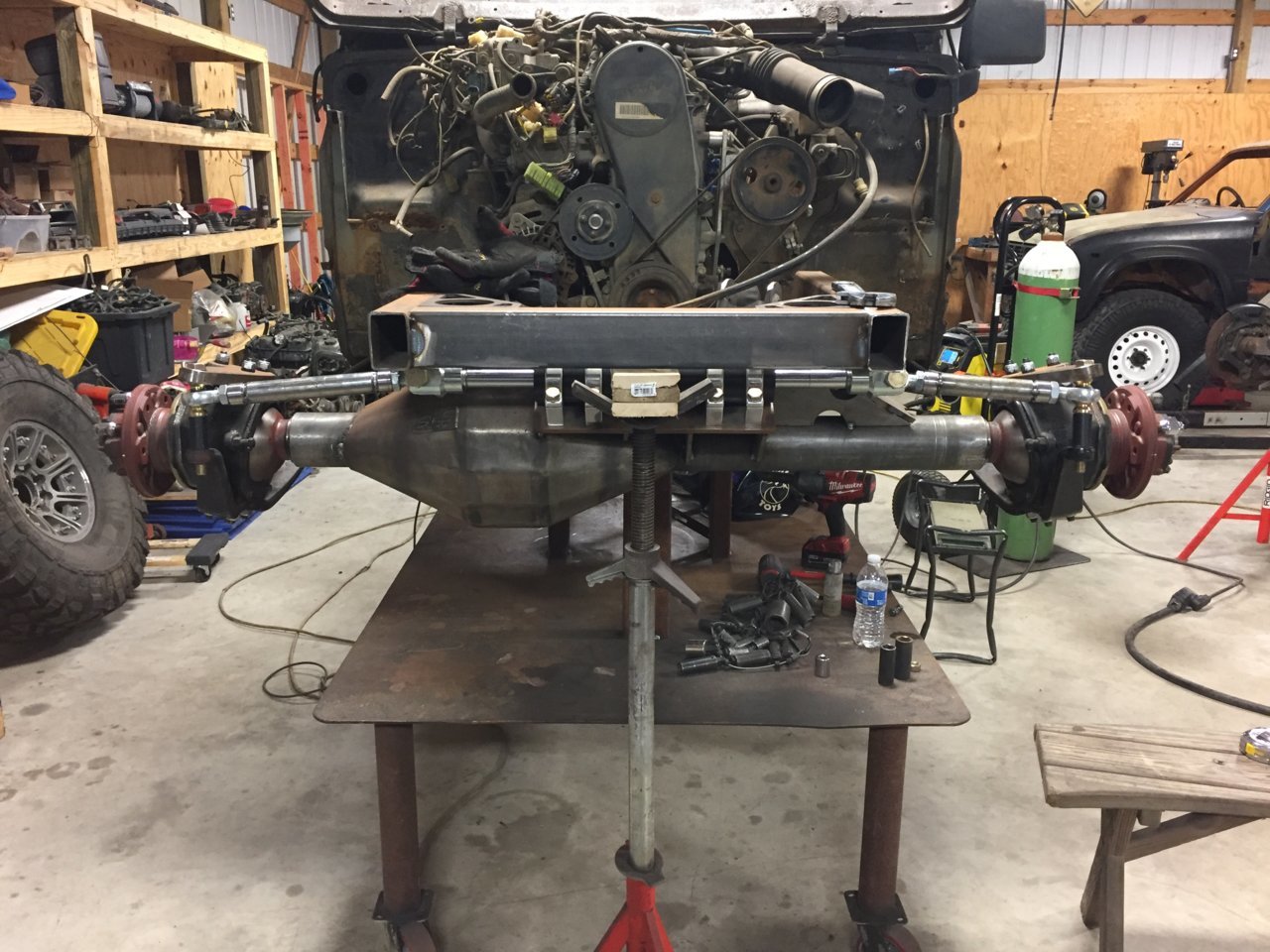

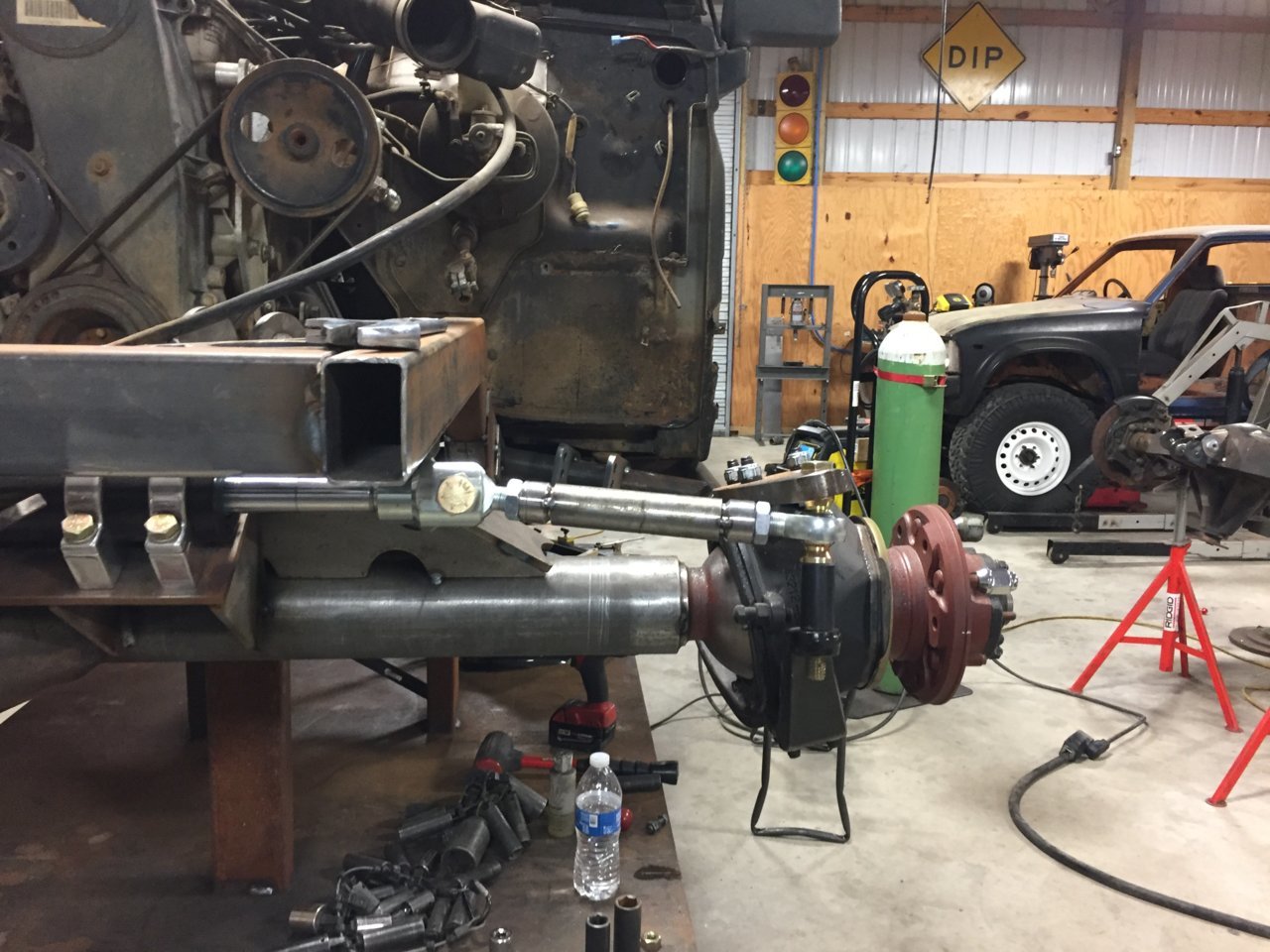

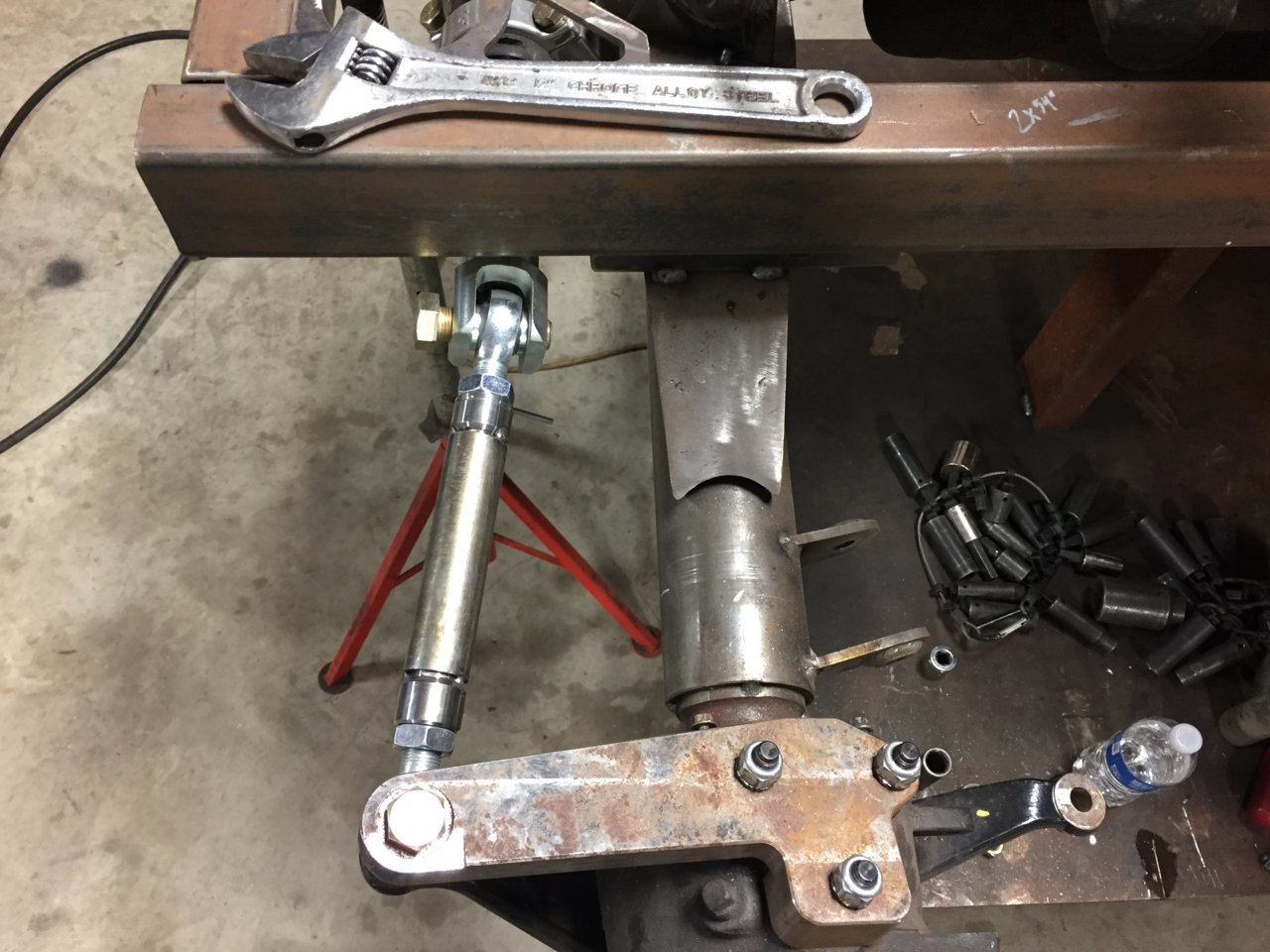

    I knocked out the tierods today. The ram is behind the steering arm mount which gave me a nearly perpendicular tierod at full lock. I haven't had any issues with the tierod going negative on my previous build, but this should result in less stress on the steering arm.

    Photo Feb 09, 1 21 10 PM.jpg Photo Feb 09, 1 21 16 PM.jpg Photo Feb 09, 1 21 20 PM.jpg Photo Feb 09, 1 22 07 PM.jpg Photo Feb 09, 1 22 10 PM.jpg Photo Feb 09, 1 22 15 PM.jpg Photo Feb 09, 1 22 23 PM.jpg

    Slashaar and bigmw like this.
  3. Feb 16, 2019 at 1:29 PM
    #23
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    With the tub out of the way and the new tires mounted it was high time to see what she was going to look like. biggrin_127035e842e5dd48052fb9139f75c20526cfff9a.gif

    Photo Feb 07, 7 41 59 PM.jpg

    Skyway, Slashaar and bigmw like this.
  4. Feb 16, 2019 at 1:30 PM
    #24
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

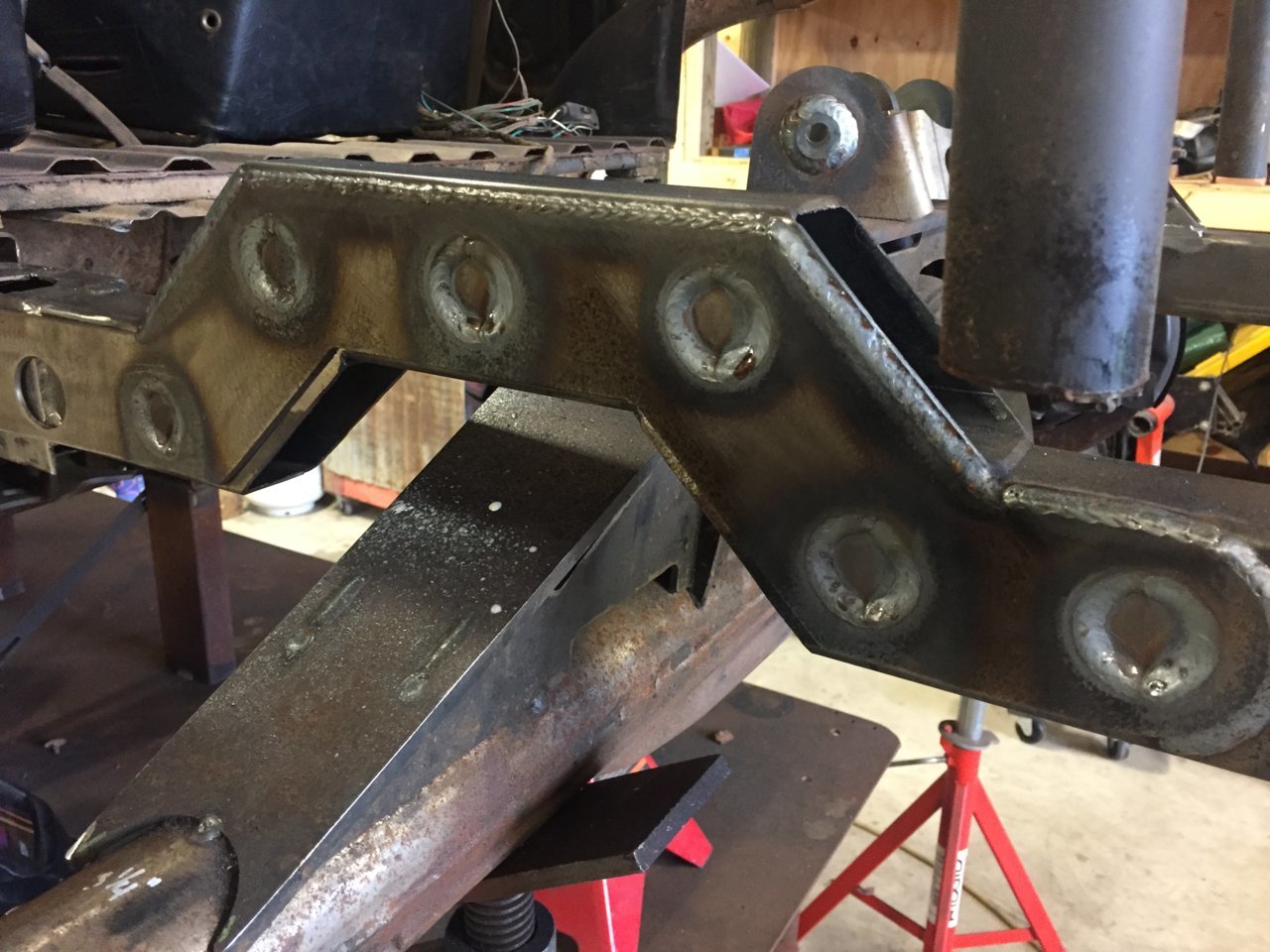

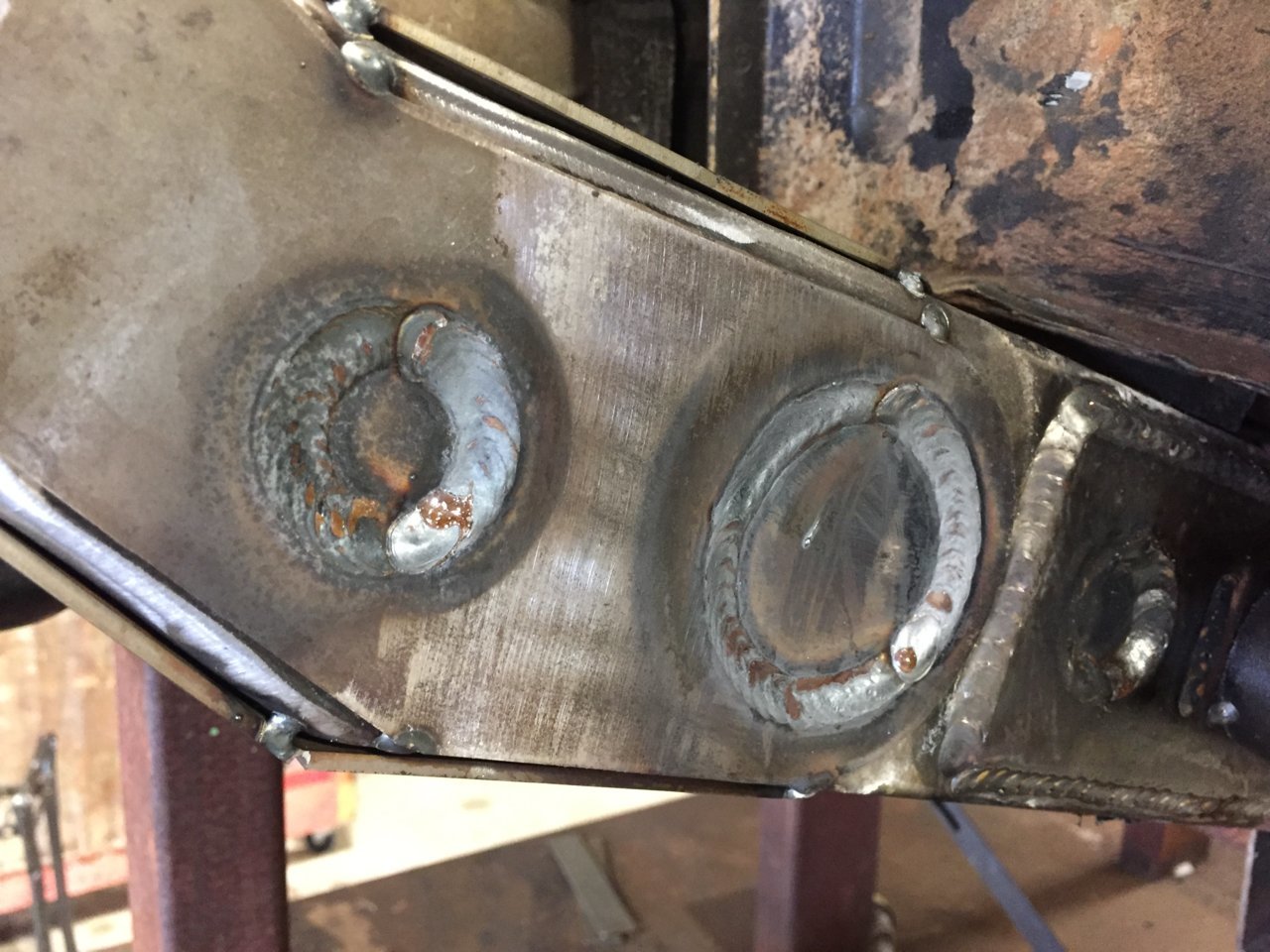

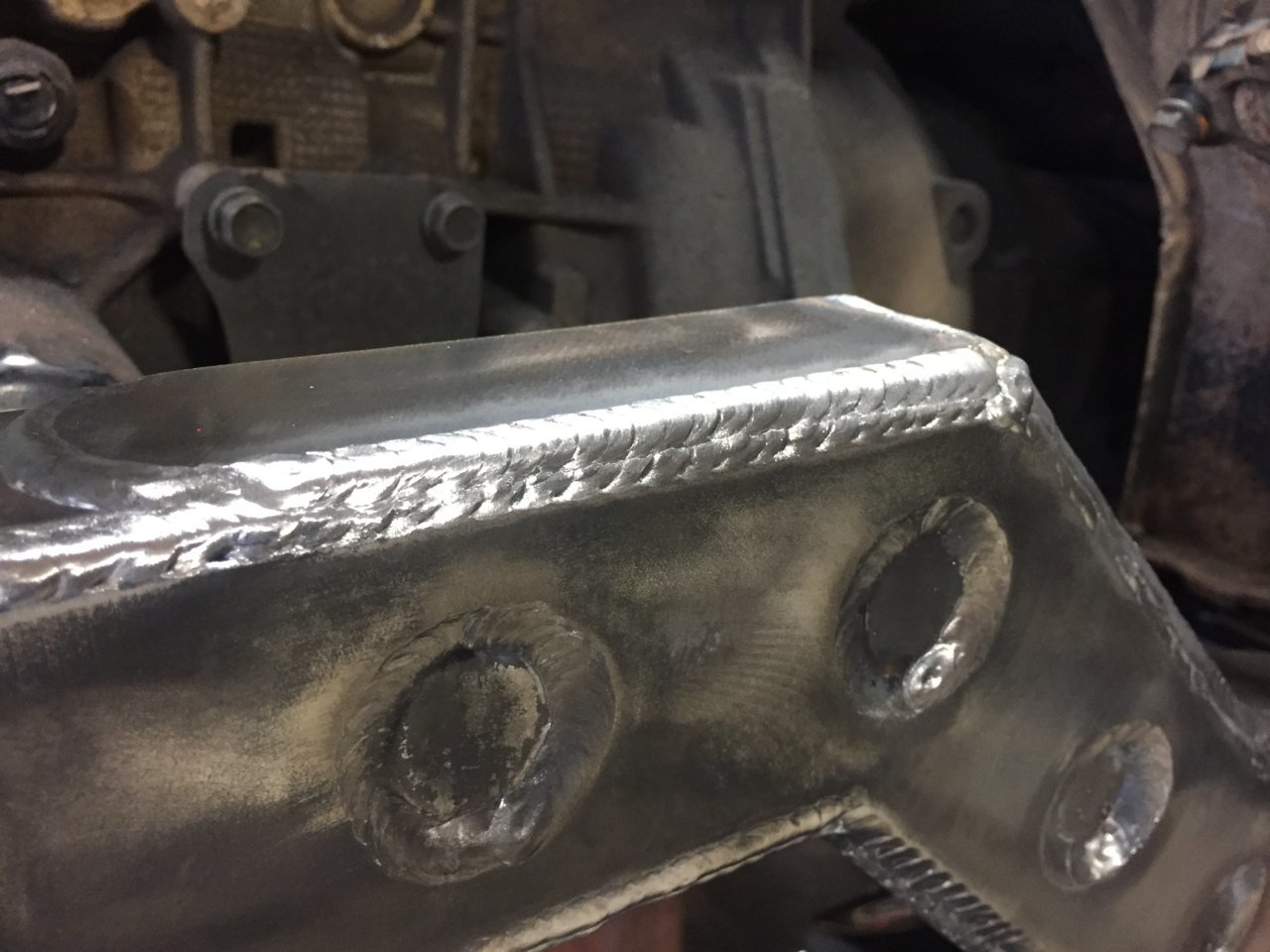

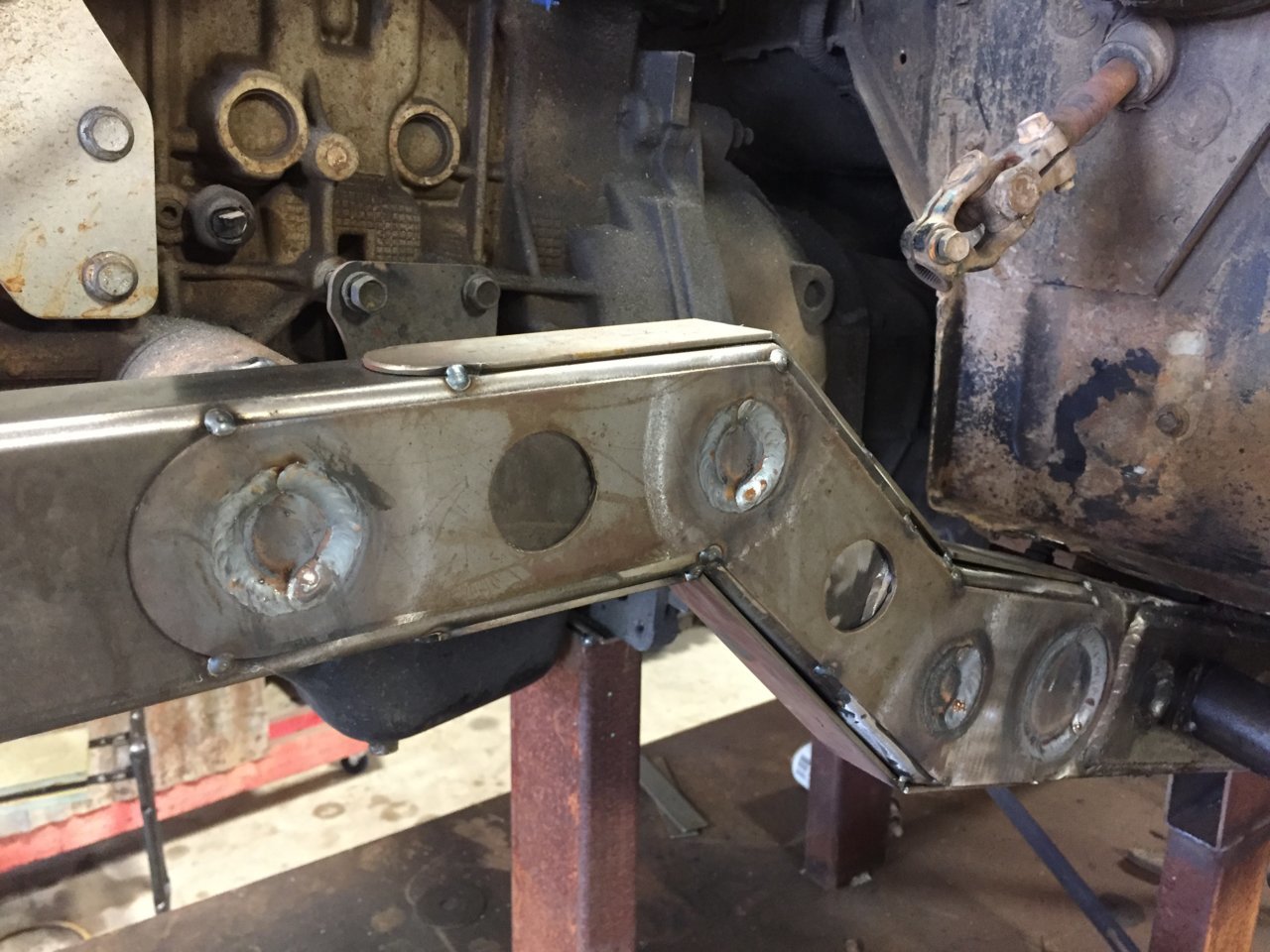

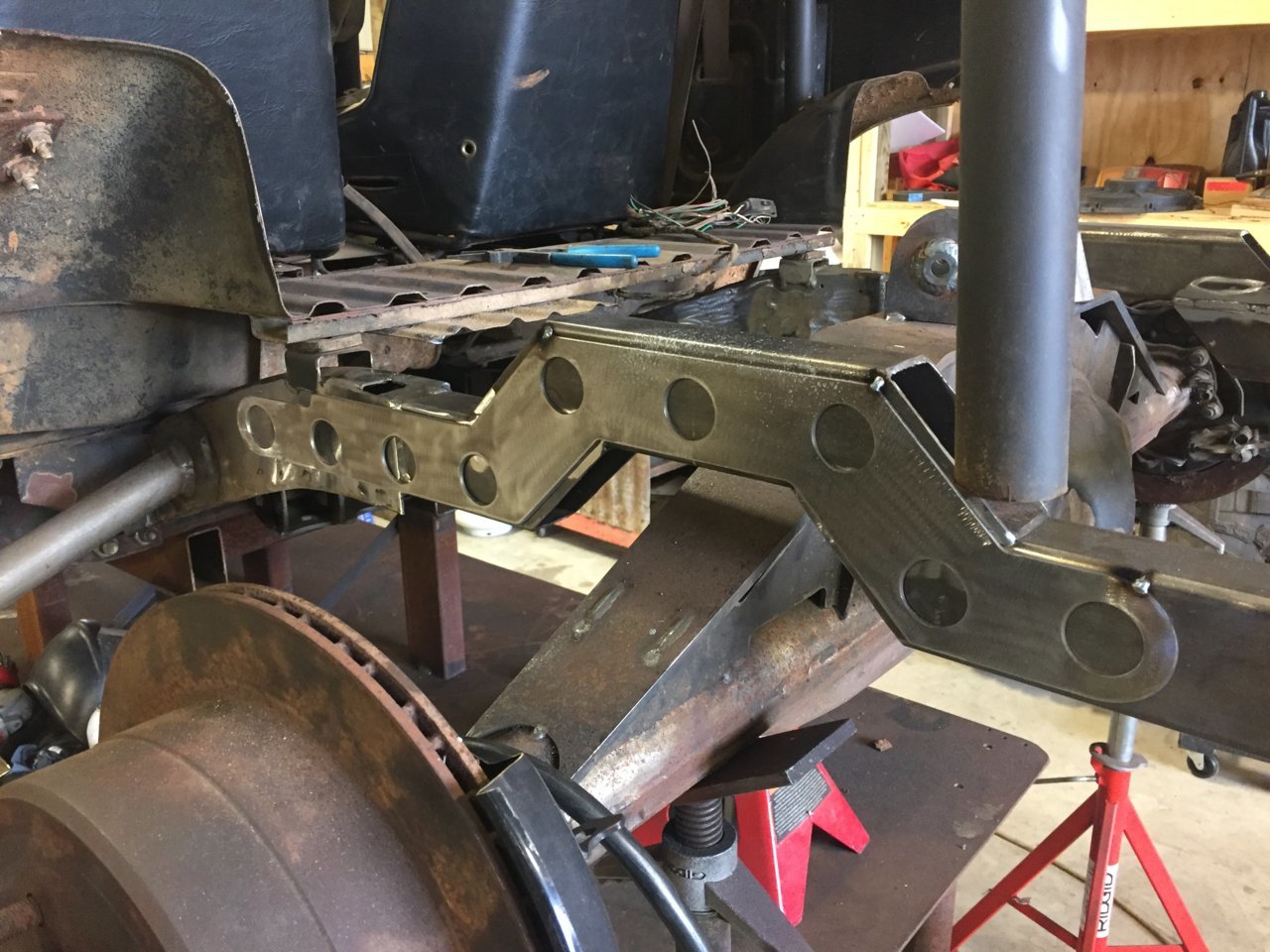

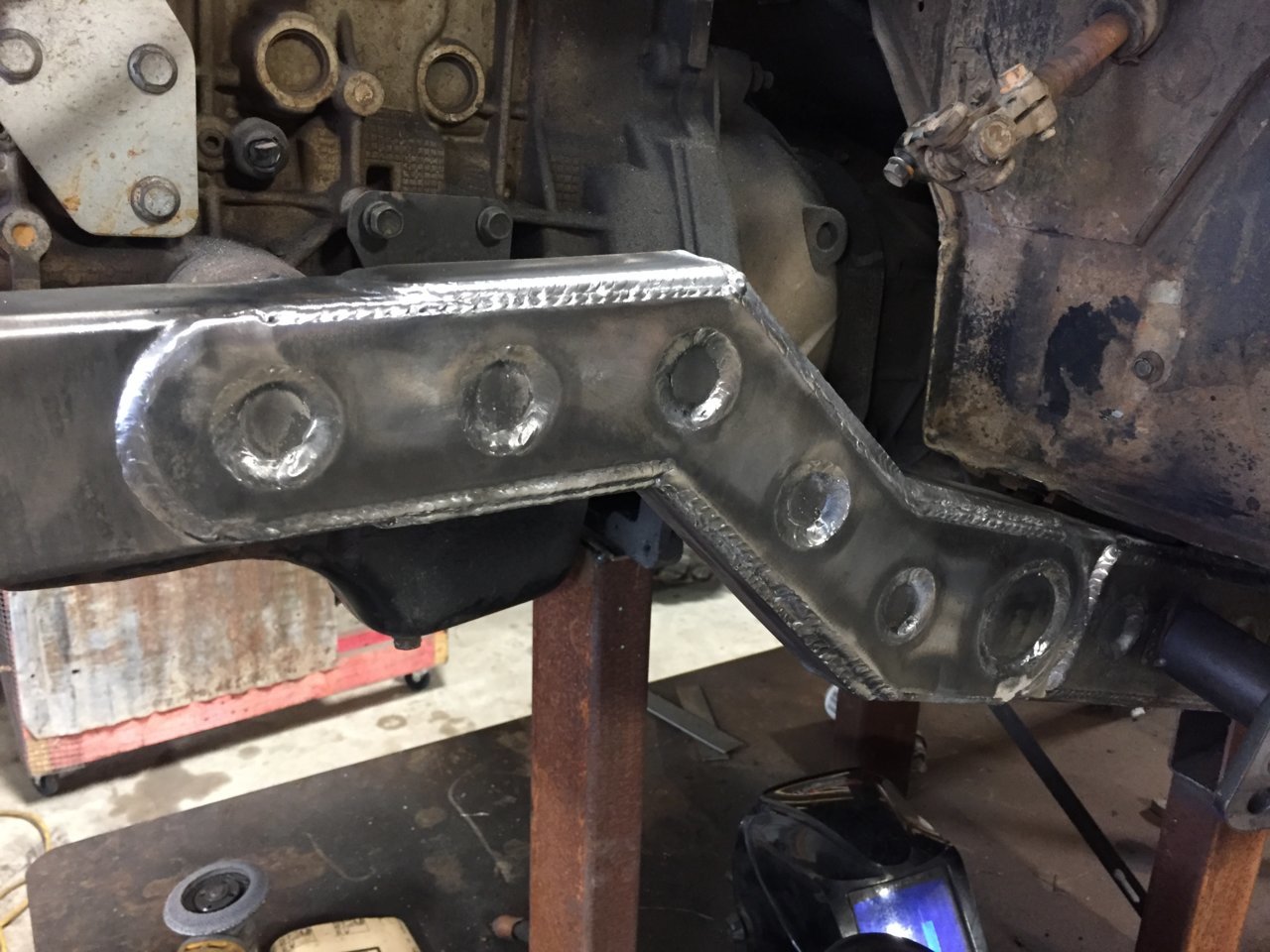

    The front frame plates are in. With the added stiffness from the front clip that's coming the frame isn't going to go anywhere.

    Photo Feb 11, 2 12 32 PM.jpg Photo Feb 11, 2 12 37 PM.jpg Photo Feb 11, 4 06 18 PM.jpg Photo Feb 11, 4 06 24 PM.jpg

    Slashaar and bigmw like this.
  5. Feb 16, 2019 at 1:32 PM
    #25
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

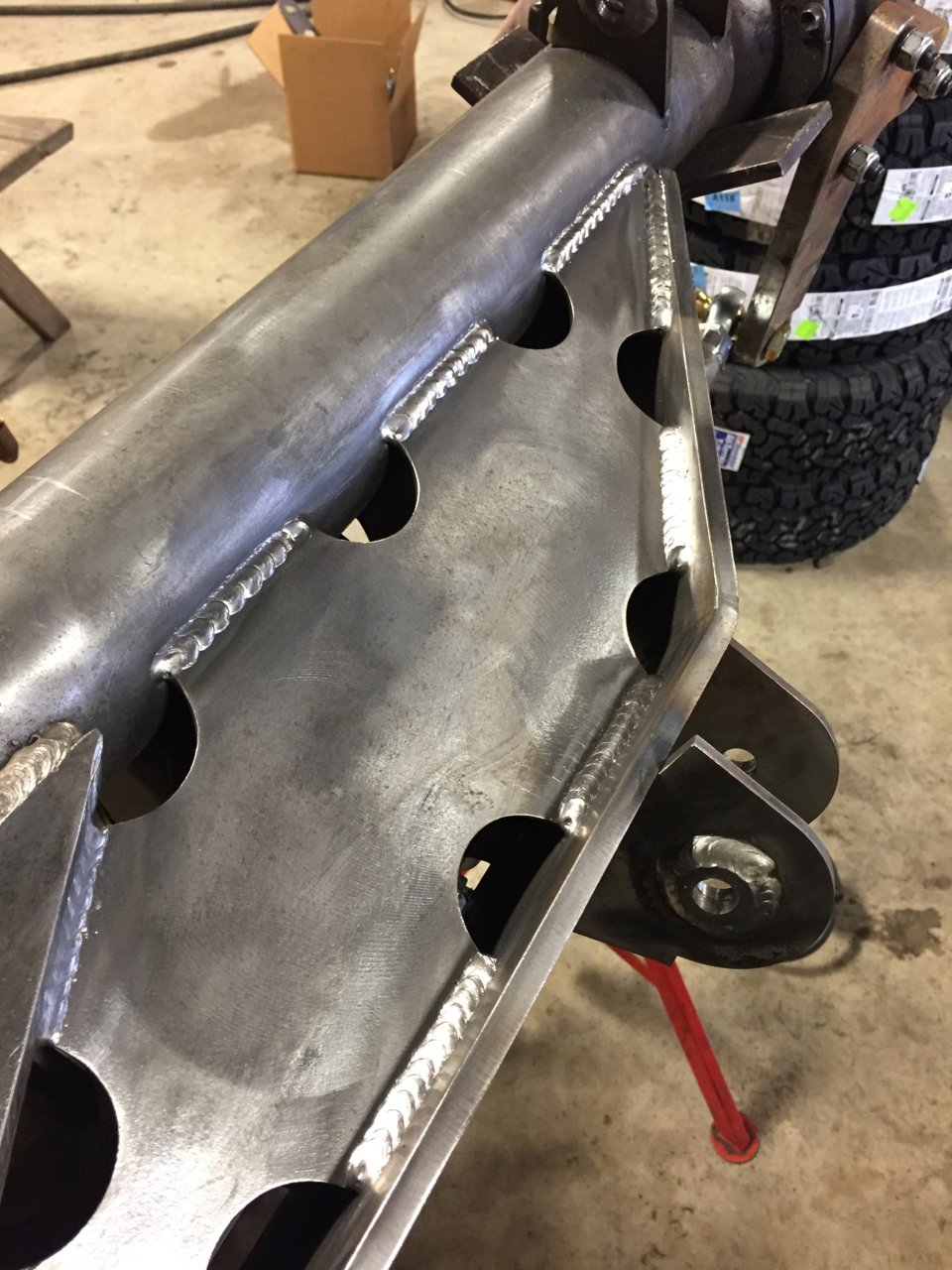

    I dropped the front axle while I worked on the frame plates so I started welding out the truss. In order not to warp anything I had three different areas to weld on through the day. Both sides of the frame and the truss.

    Photo Feb 11, 3 30 31 PM.jpg

    Slashaar and bigmw like this.
  6. Feb 16, 2019 at 1:33 PM
    #26
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

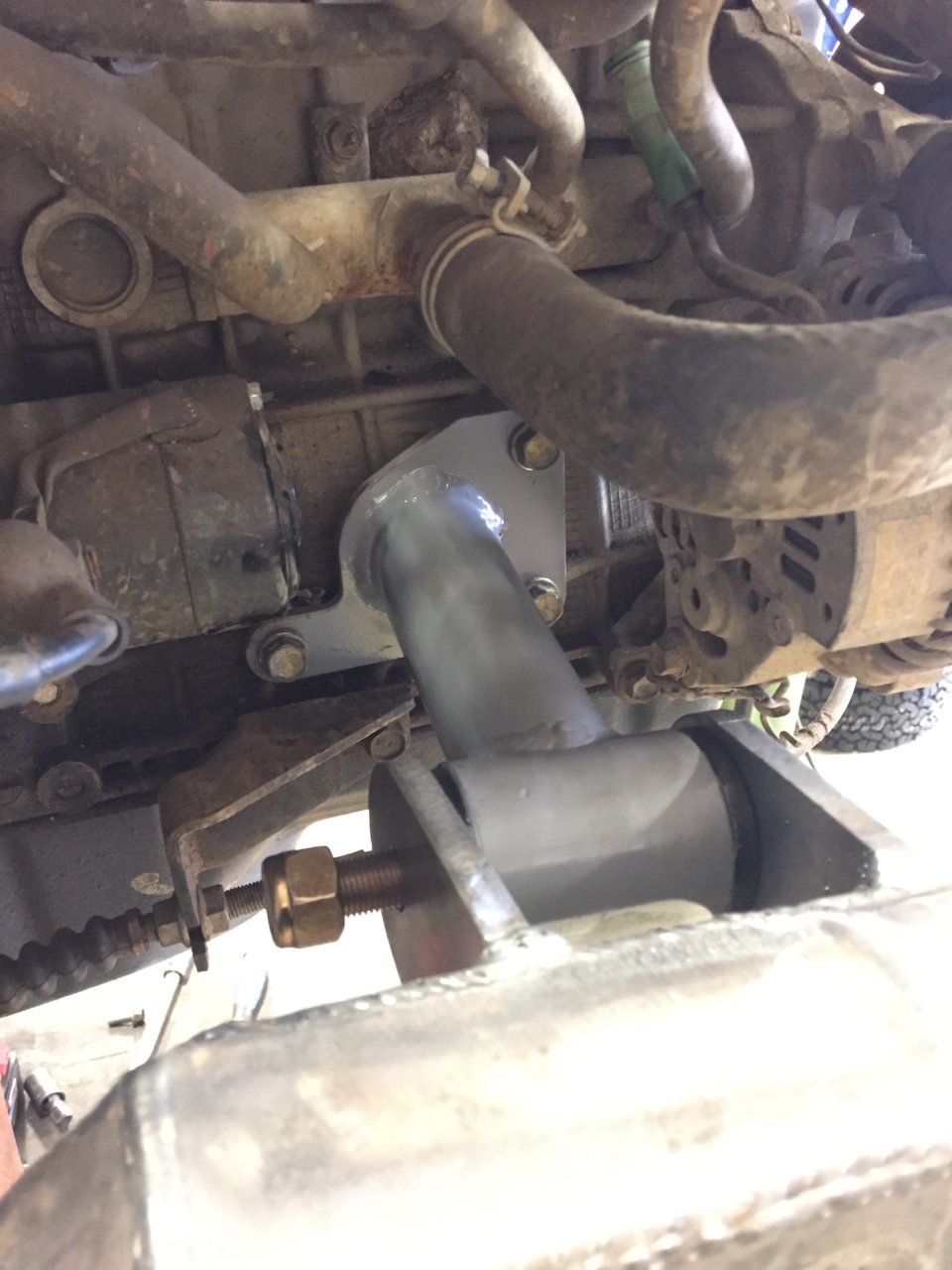

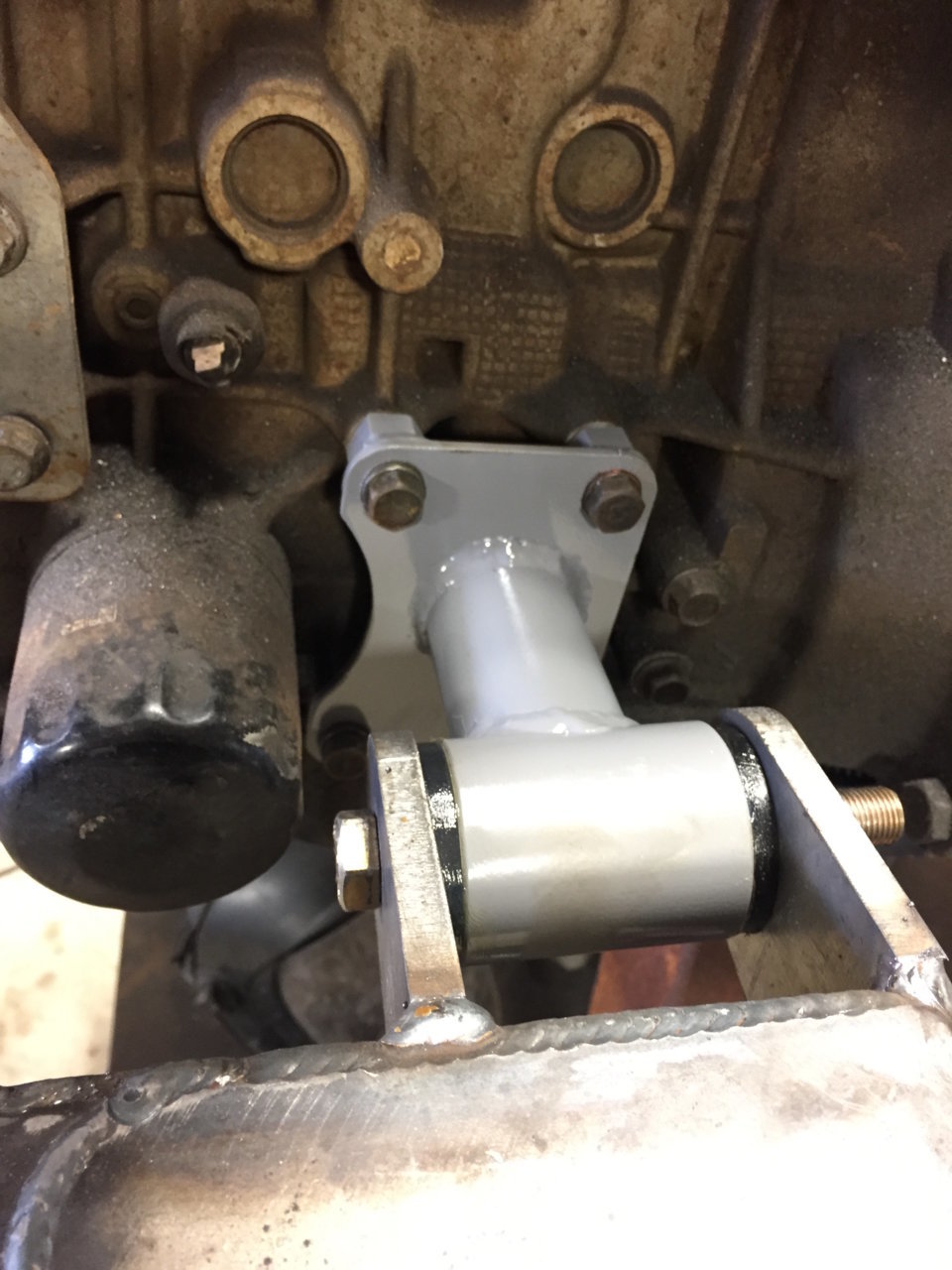

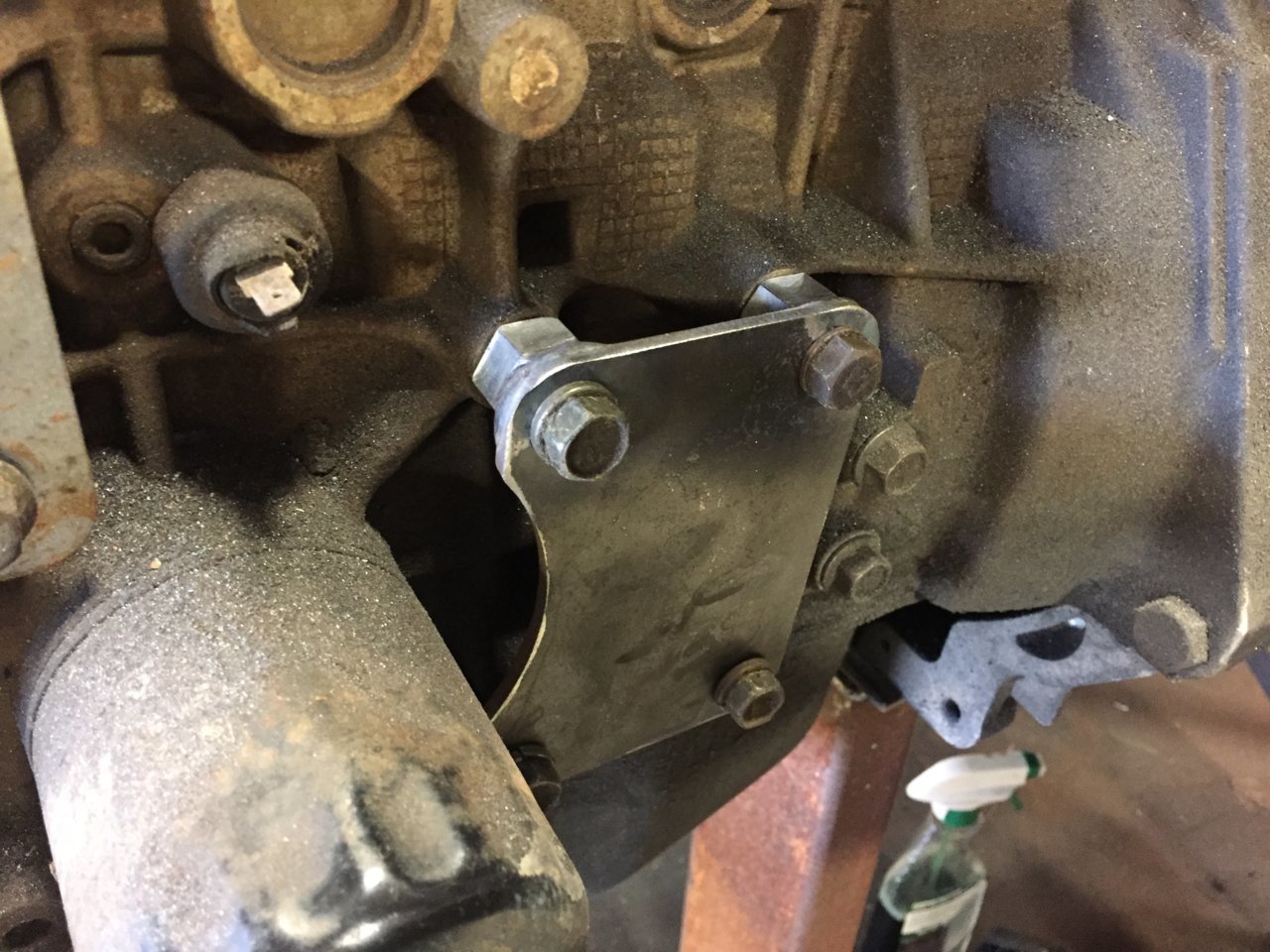

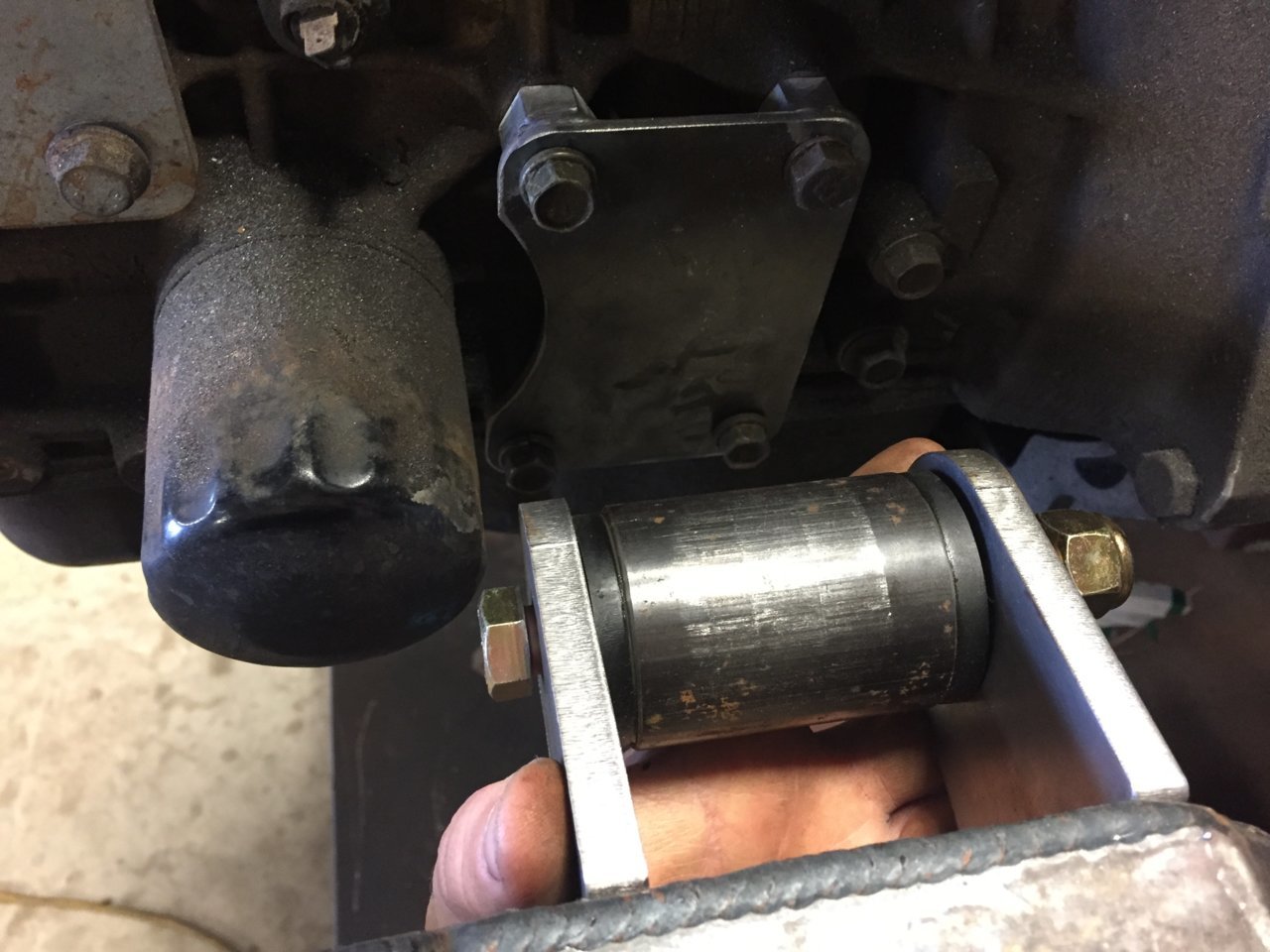

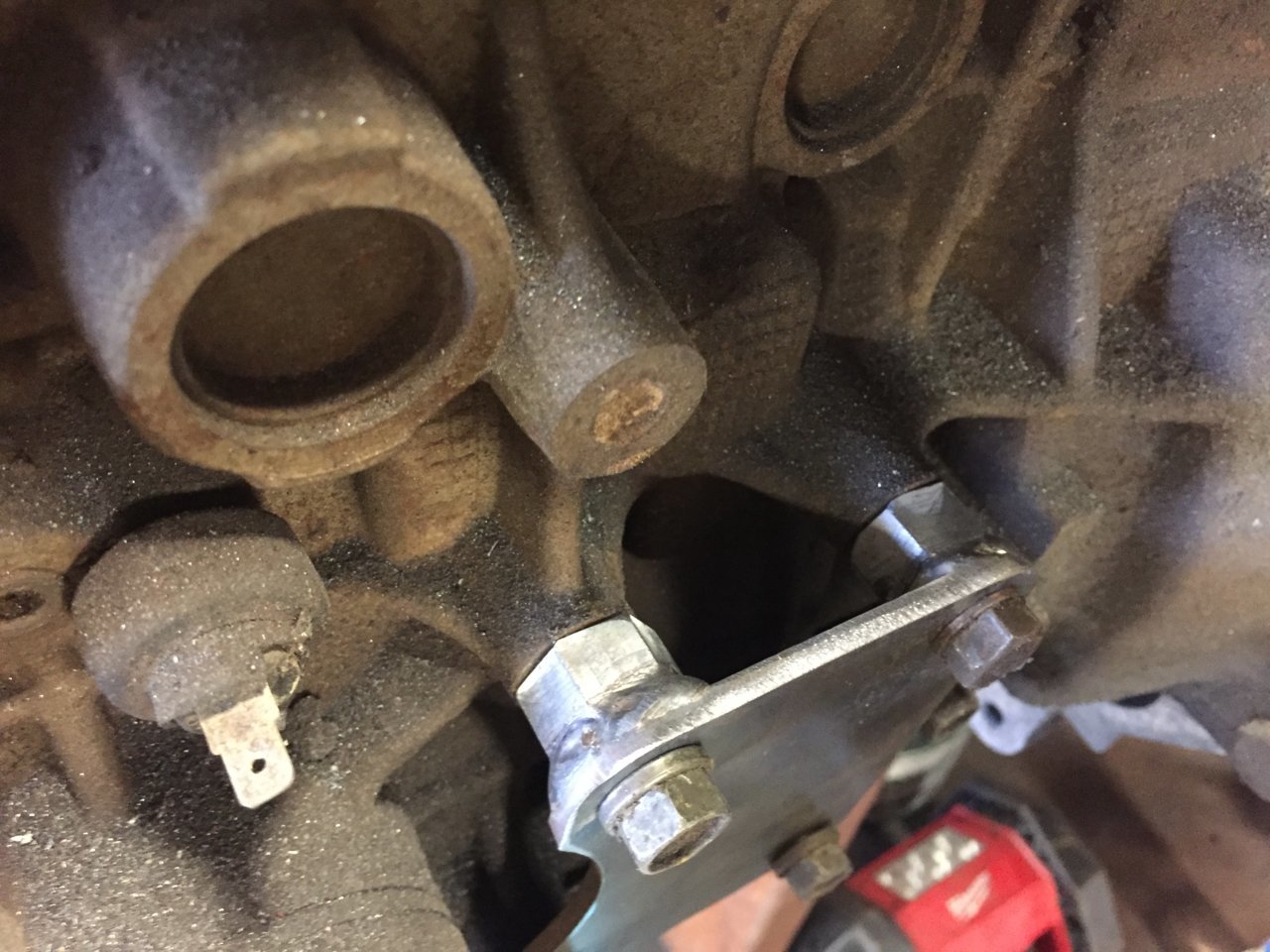

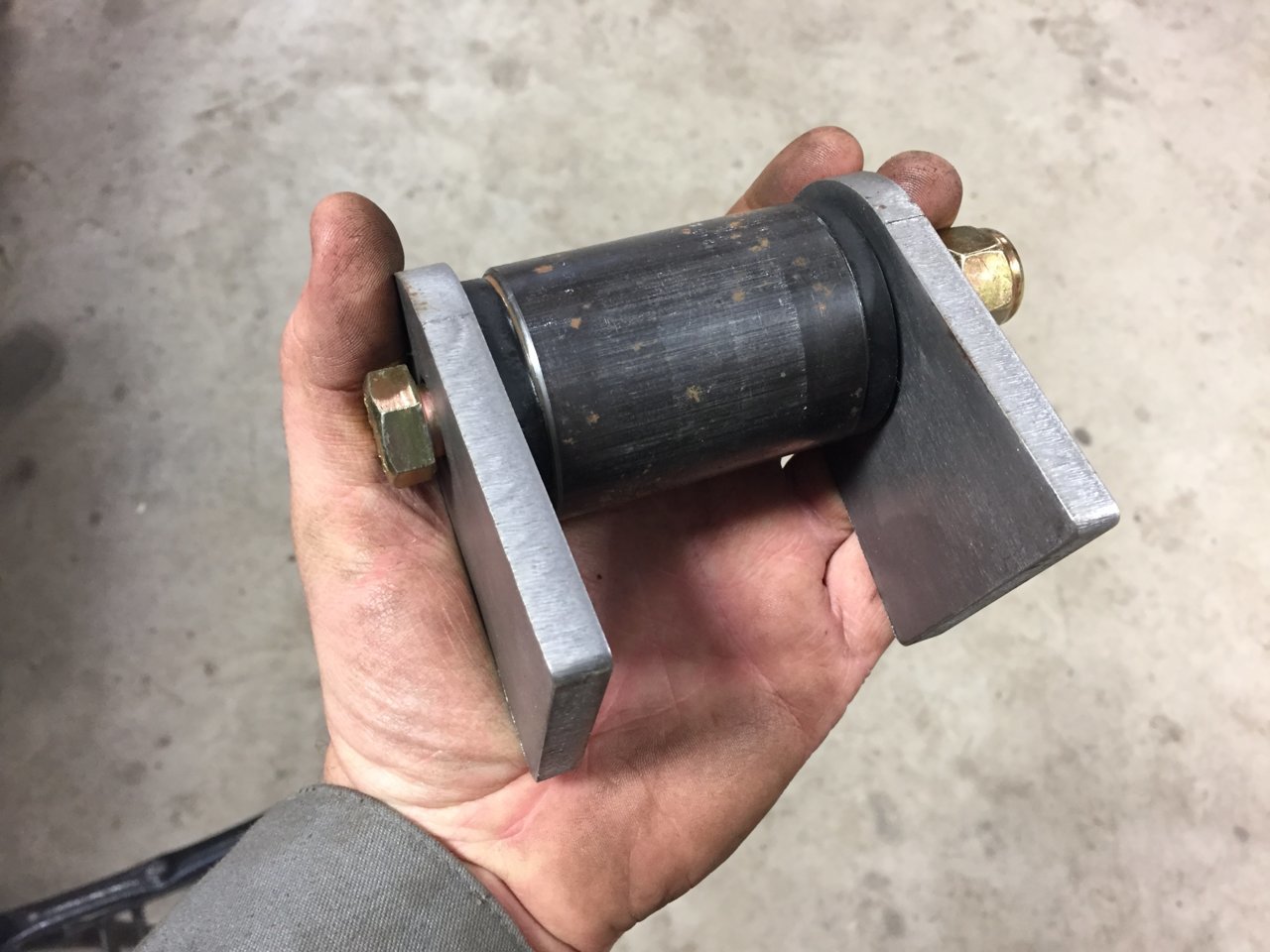

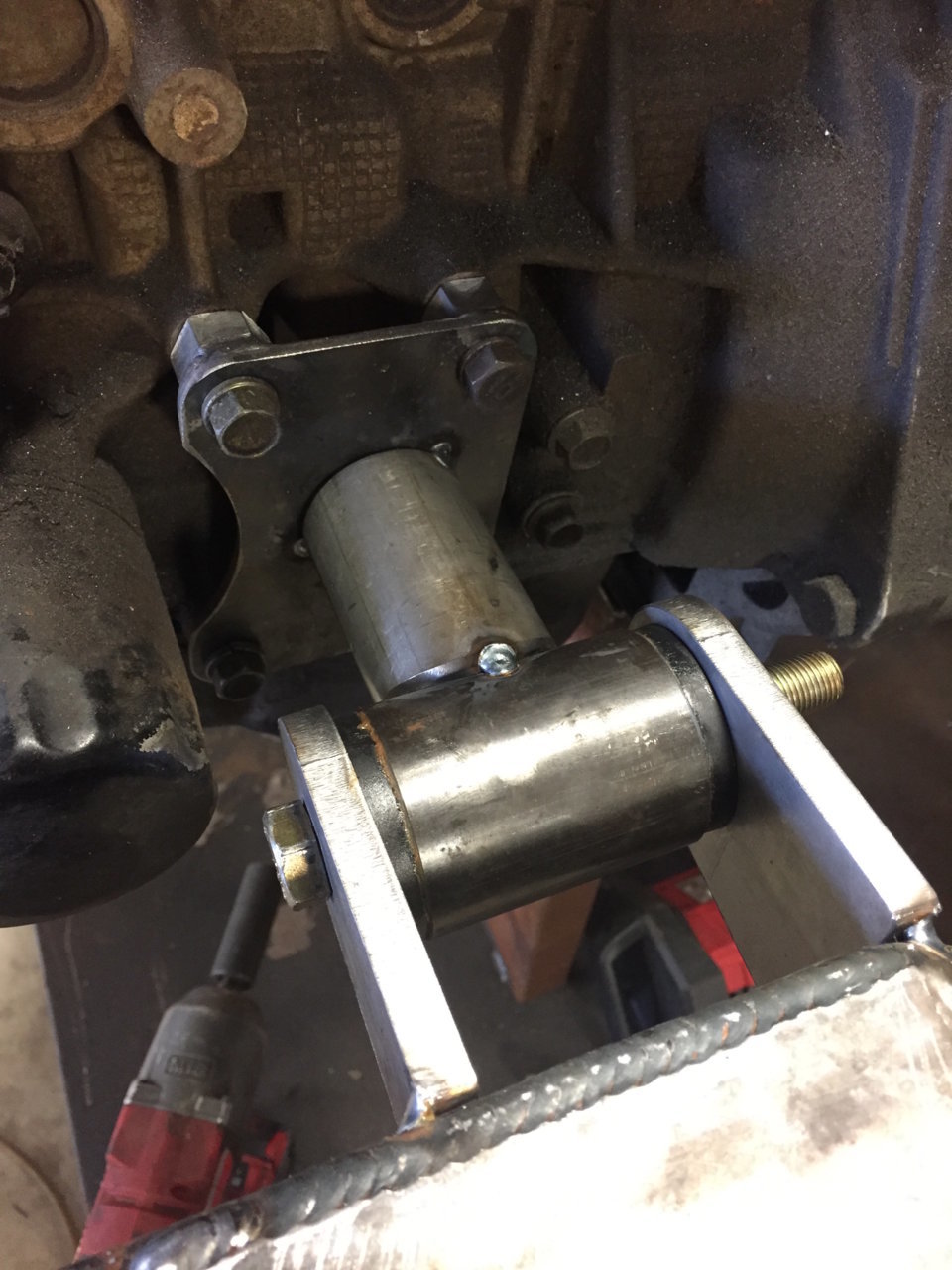

    Now that I have the front frame plates in I can knock out the new motor mounts. I don't know about you, but I like to use what I have laying around the shop. So the cross member mount kit that's been sitting on the shelf got used.

    Yes the oil filter will come out just fine and I can still get an impact on the bolt for the bushing.

    Photo Feb 13, 11 21 10 AM.jpg Photo Feb 13, 11 21 14 AM.jpg Photo Feb 13, 11 26 10 AM.jpg Photo Feb 13, 11 26 23 AM.jpg Photo Feb 13, 12 11 46 PM.jpg Photo Feb 13, 4 22 54 PM.jpg Photo Feb 13, 4 23 19 PM.jpg

    Slashaar and bigmw like this.
  7. Feb 16, 2019 at 1:34 PM
    #27
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

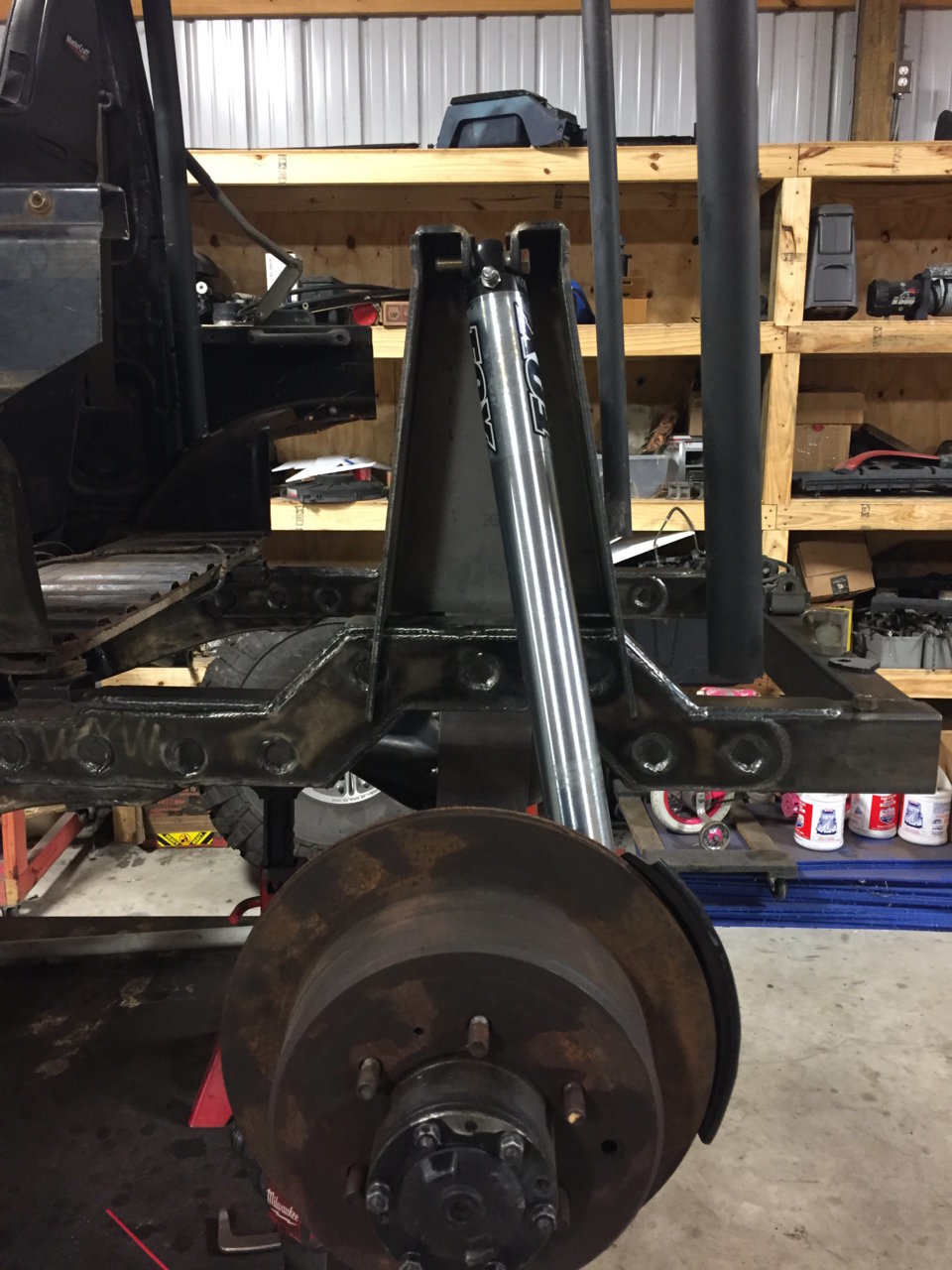

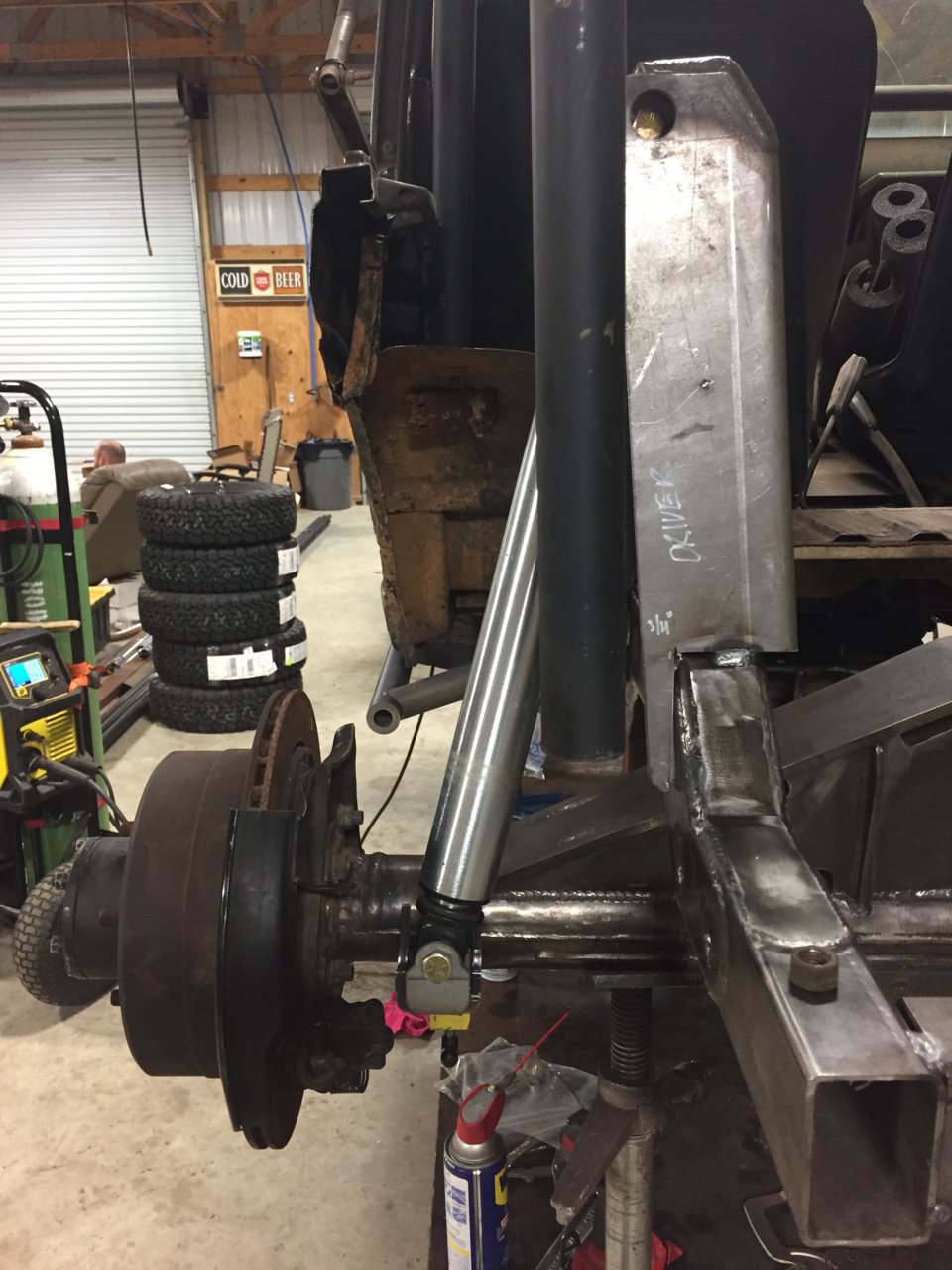

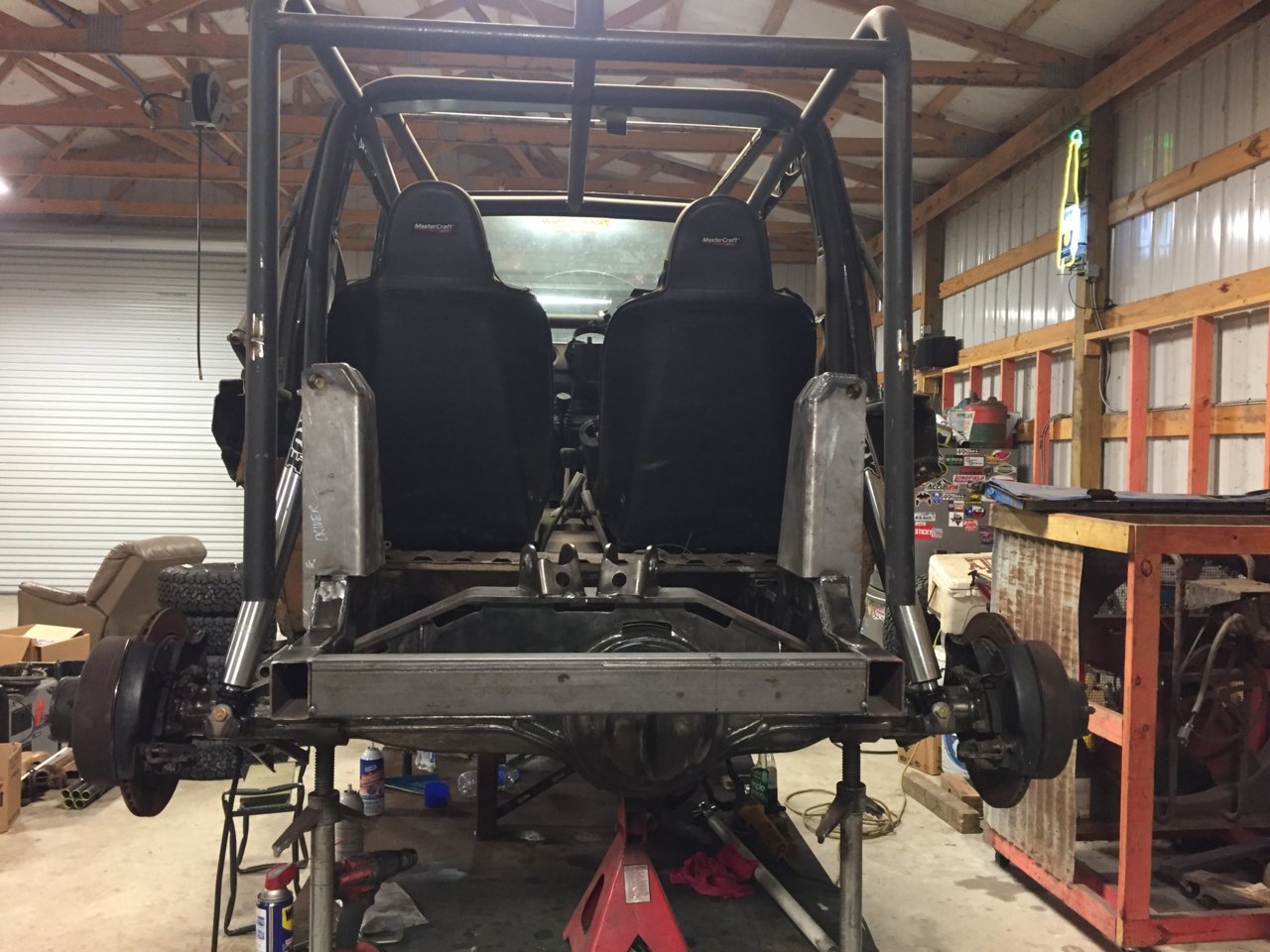

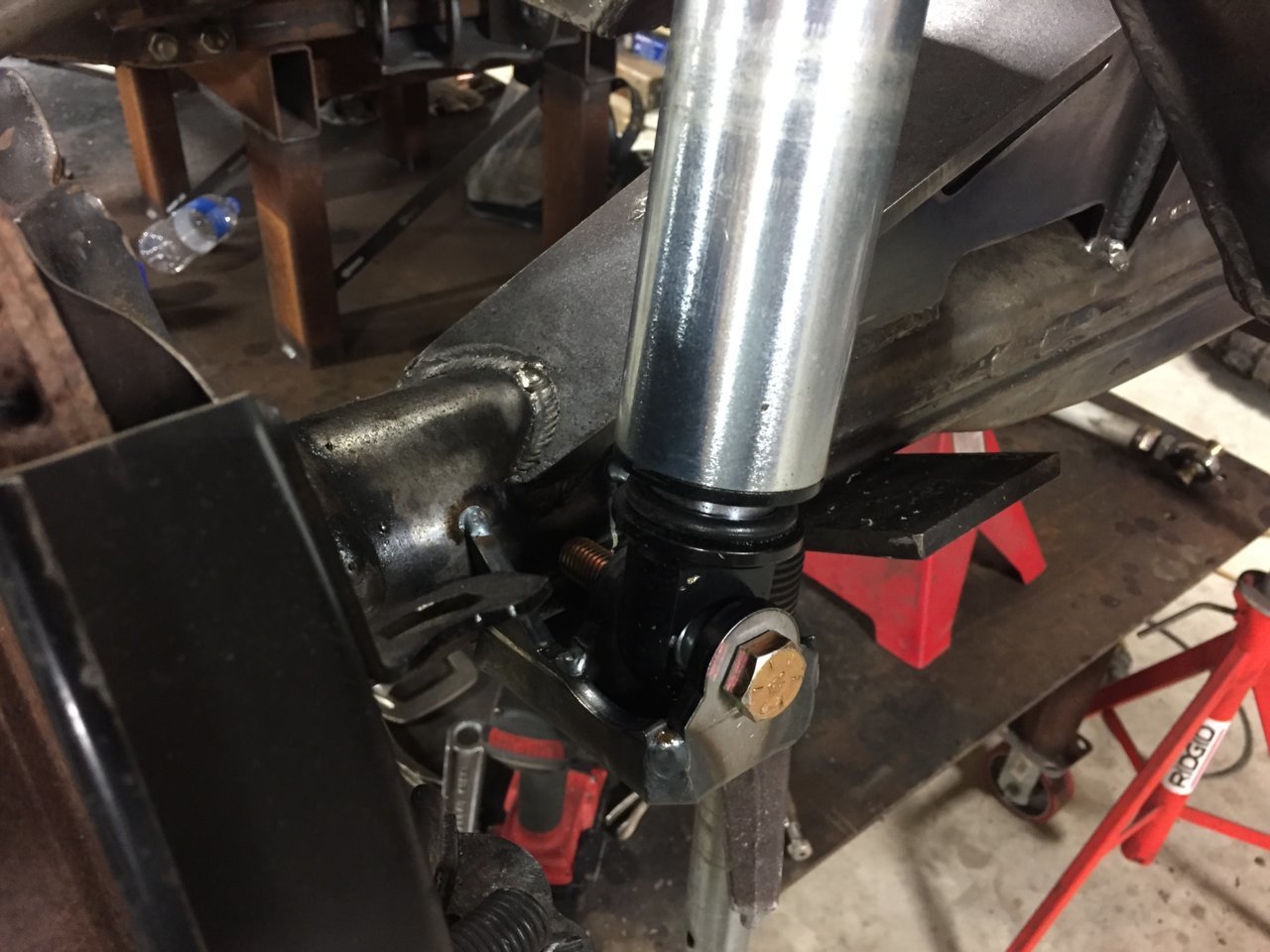

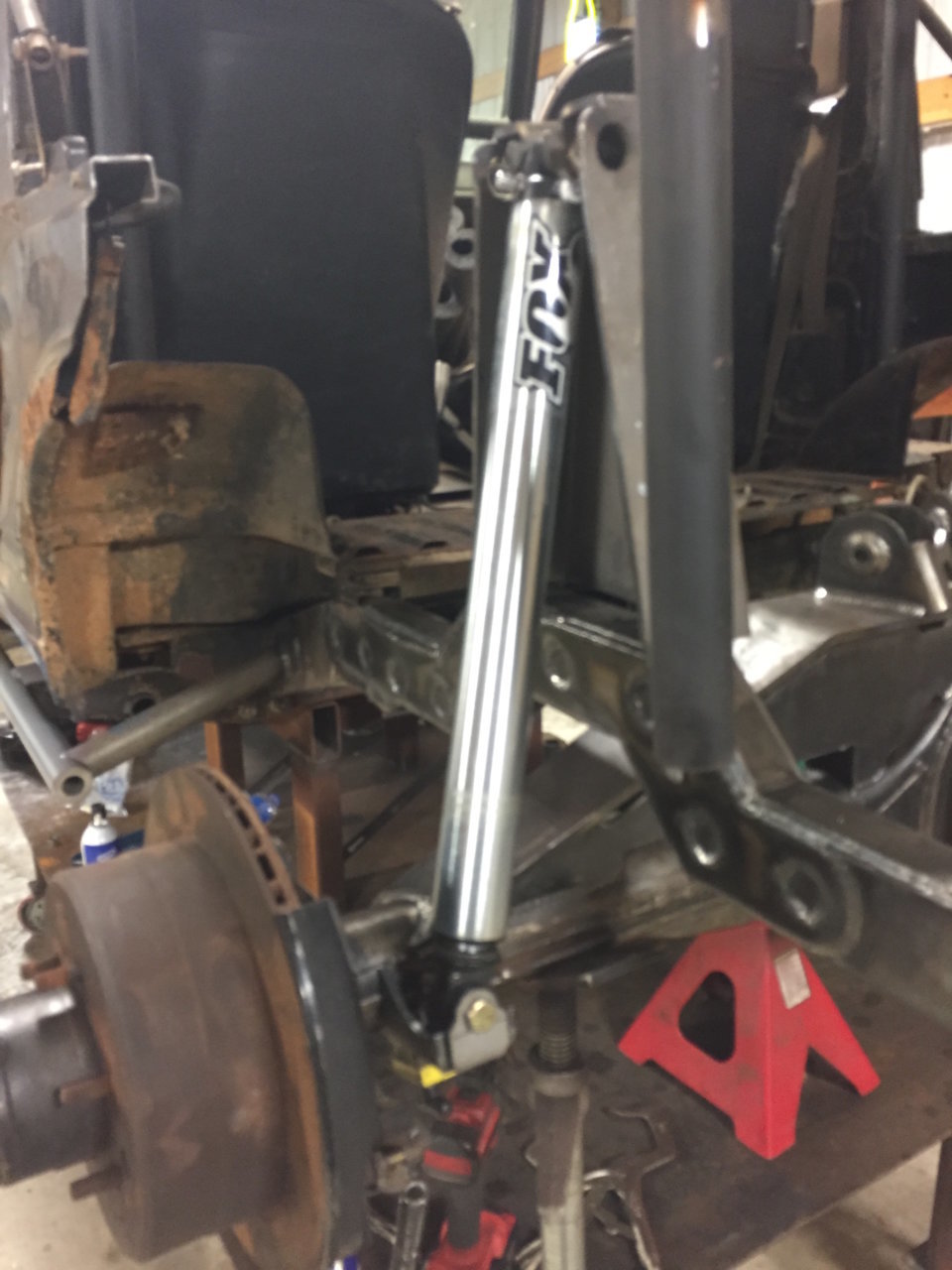

    The shock towers are in and the ruffstuff axle mounts are on. So the back end is pretty much wrapped up at this point, minus some bump stops.

    Photo Feb 13, 7 20 02 PM.jpg Photo Feb 13, 7 20 07 PM.jpg Photo Feb 13, 7 20 13 PM.jpg Photo Feb 13, 8 02 52 PM.jpg Photo Feb 13, 8 03 00 PM.jpg Photo Feb 14, 12 40 50 PM.jpg

    Slashaar and bigmw like this.
  8. Feb 16, 2019 at 1:35 PM
    #28
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

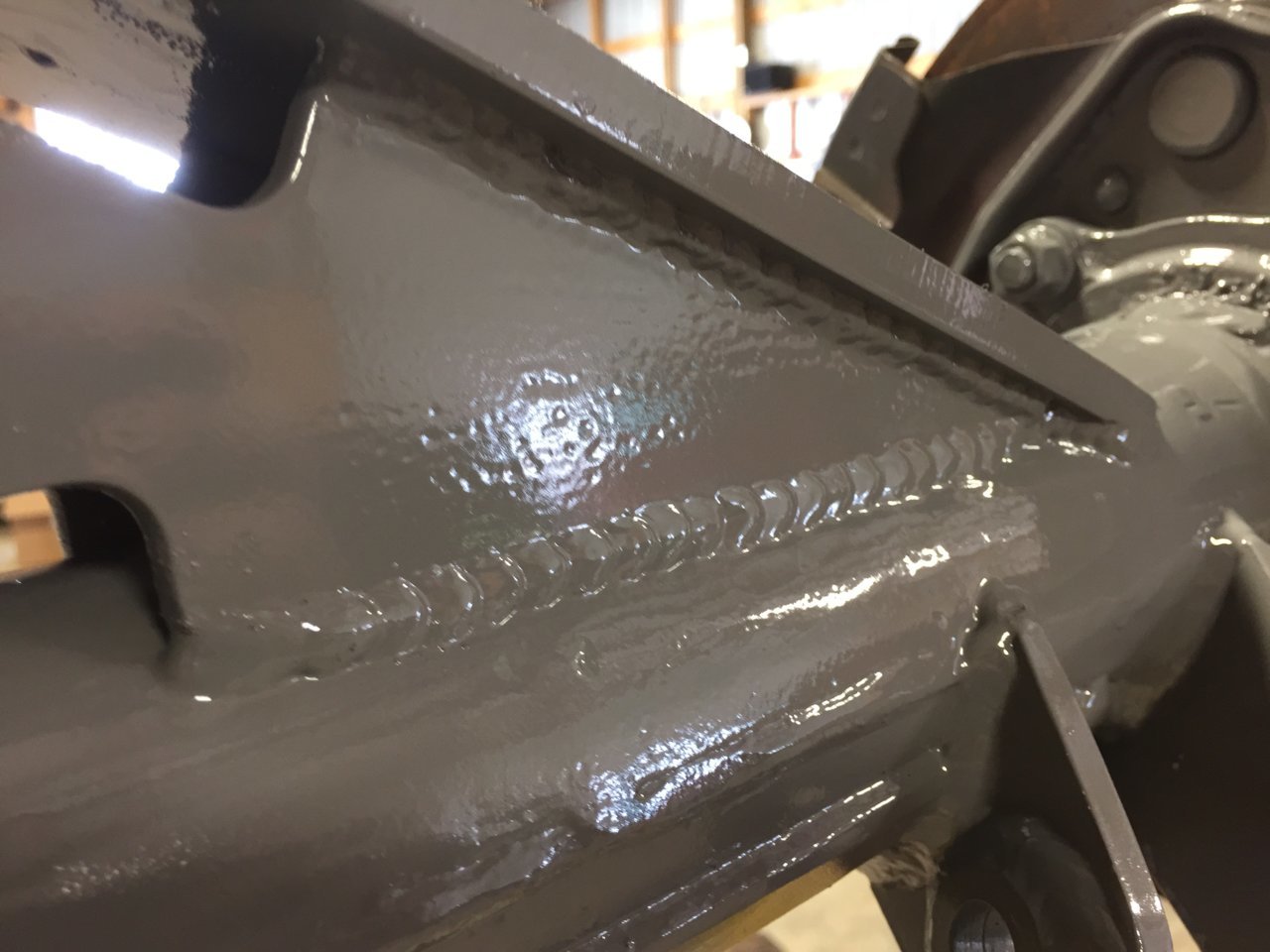

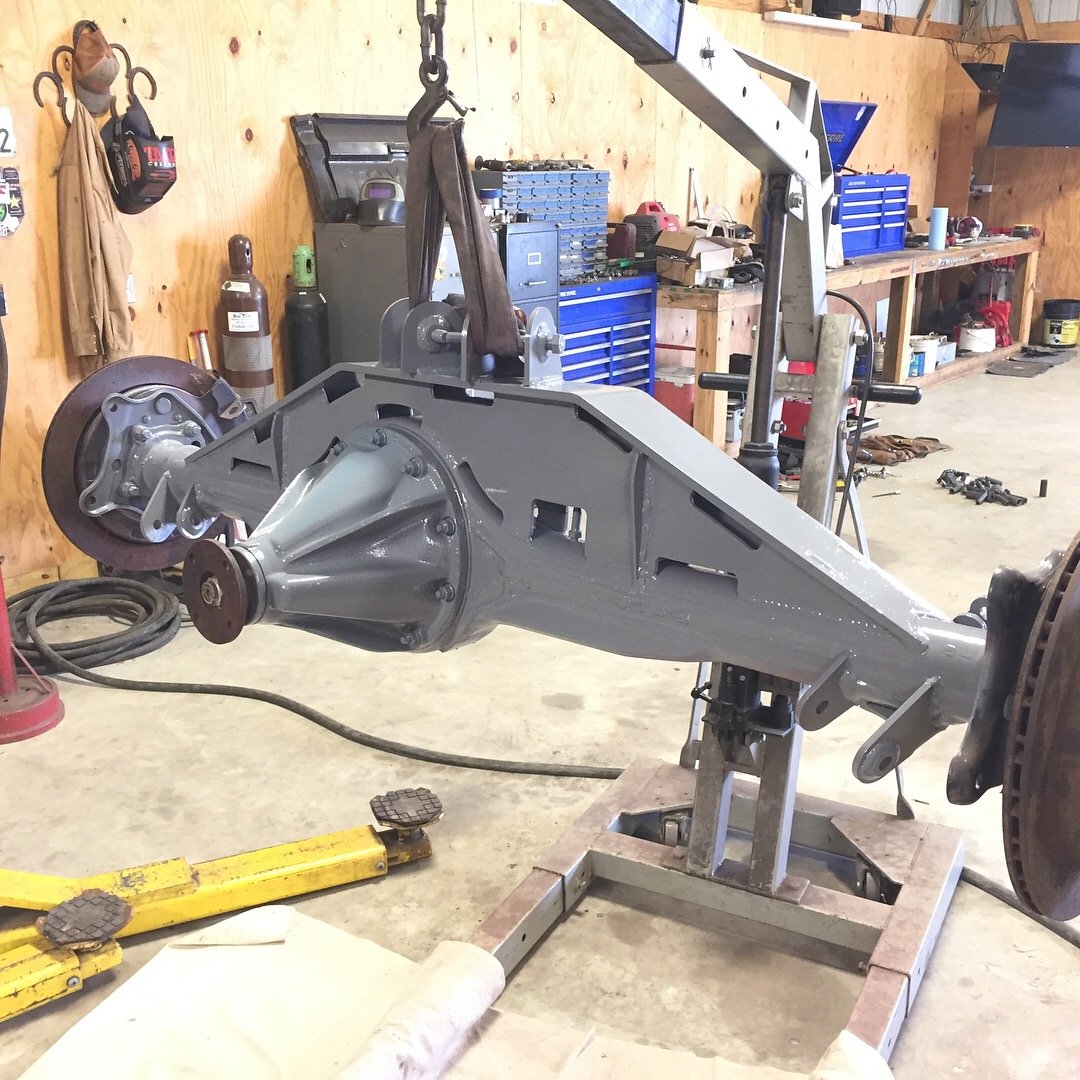

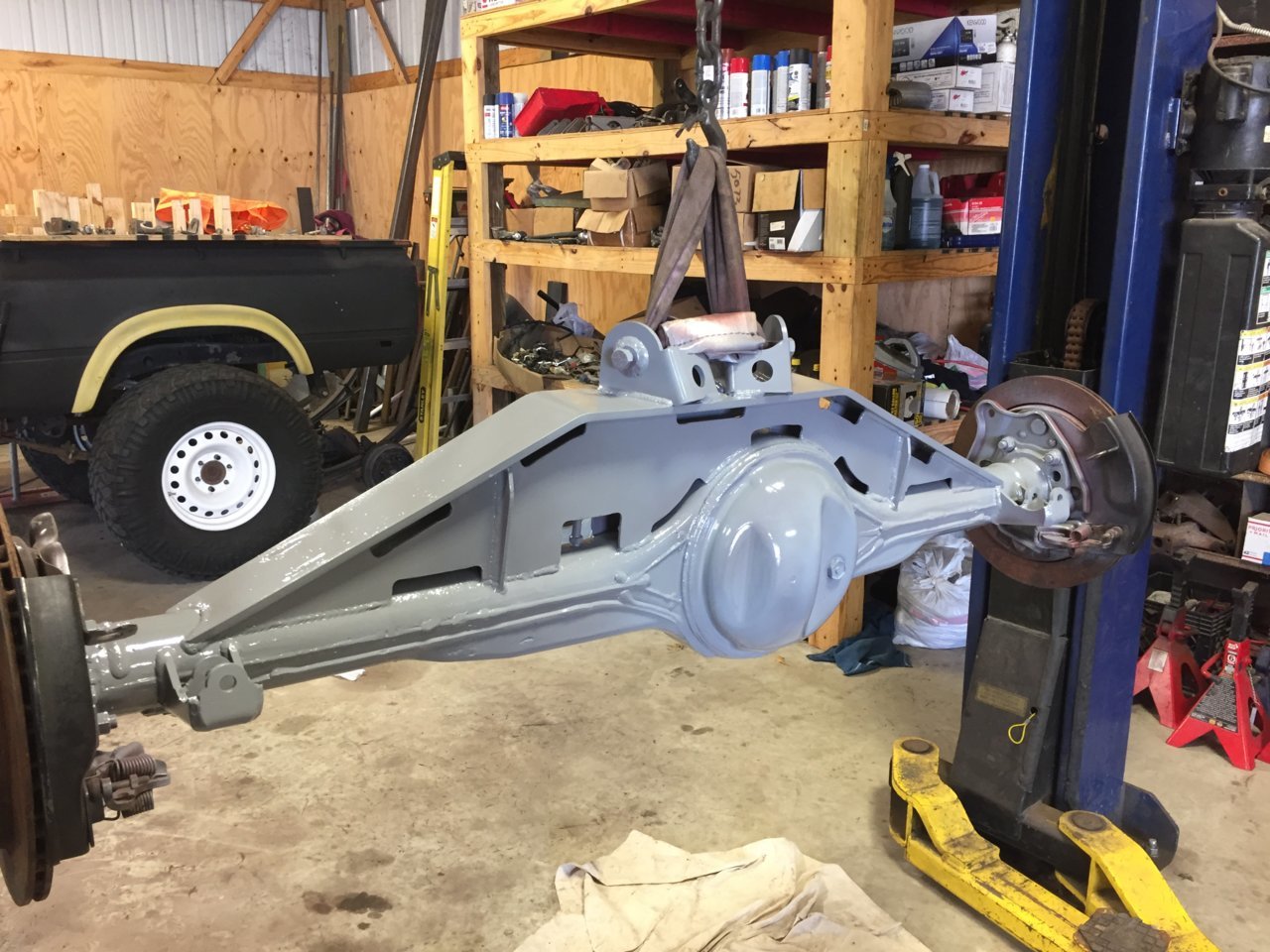

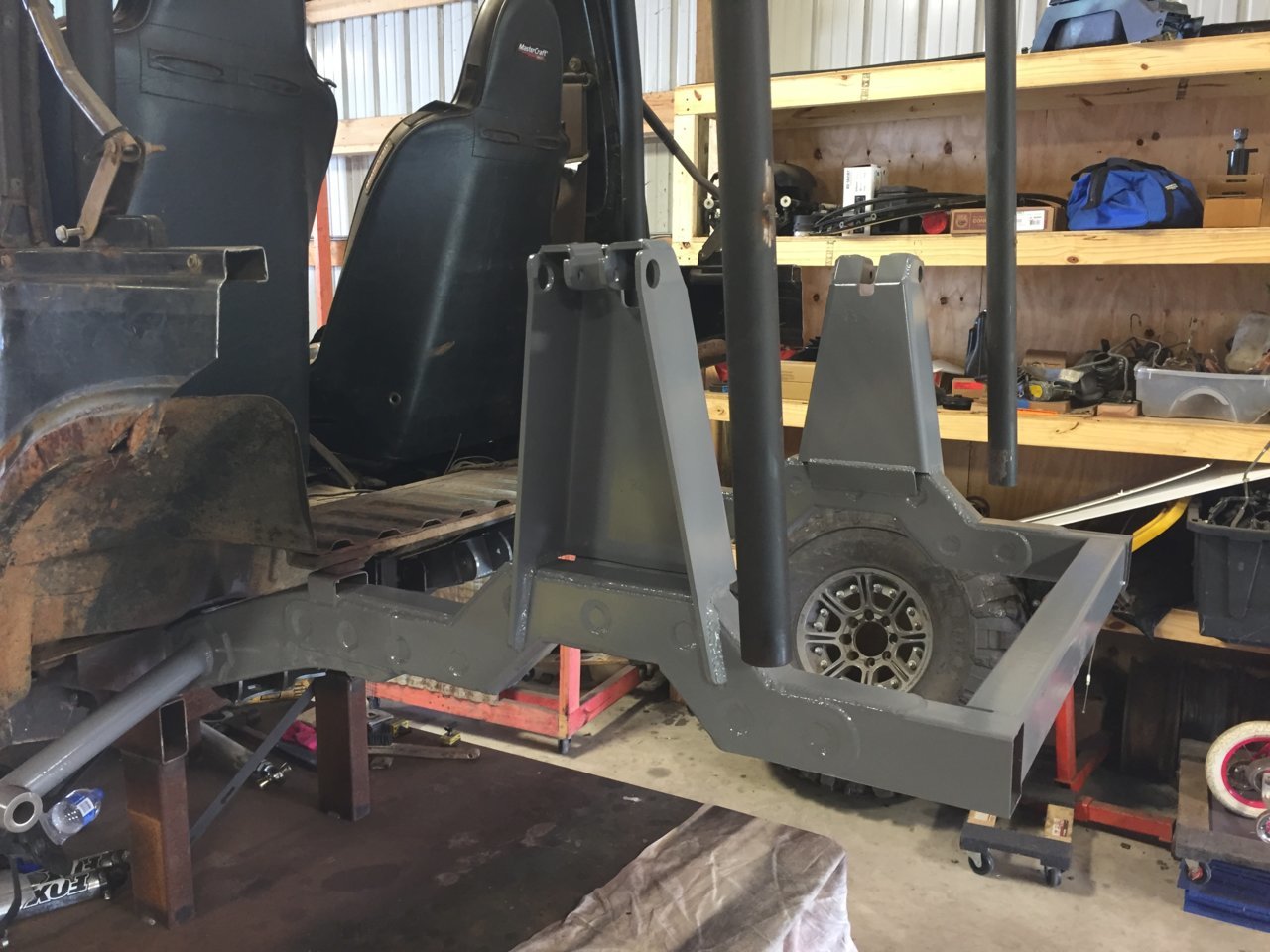

    What do you guys think of the paint color?

    Photo Feb 14, 12 24 35 PM.jpg Photo Feb 14, 12 24 42 PM.jpg Photo Feb 14, 12 40 37 PM.jpg

    Slashaar and bigmw like this.
  9. Feb 26, 2019 at 2:03 PM
    #29
    Slashaar

    Slashaar Trail Limo Supreme & Certified Hole Massager

    Joined:
    Nov 23, 2017
    Member:
    #236717
    Messages:
    14,886
    Gender:
    Male
    First Name:
    Josh
    Kansas City, MO
    Vehicle:
    2015 Tacoma TRD-Sport DC LB
    Coastal HC Front, 6112s+650lb King Coils, JD 62 Swap + 14" Fox 2.0s
    I can dig it! :thumbsup:

    Looking good!:headbang:

    SMKYTXN[QUOTED][OP] likes this.
  10. Feb 28, 2019 at 8:02 AM
    #30
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

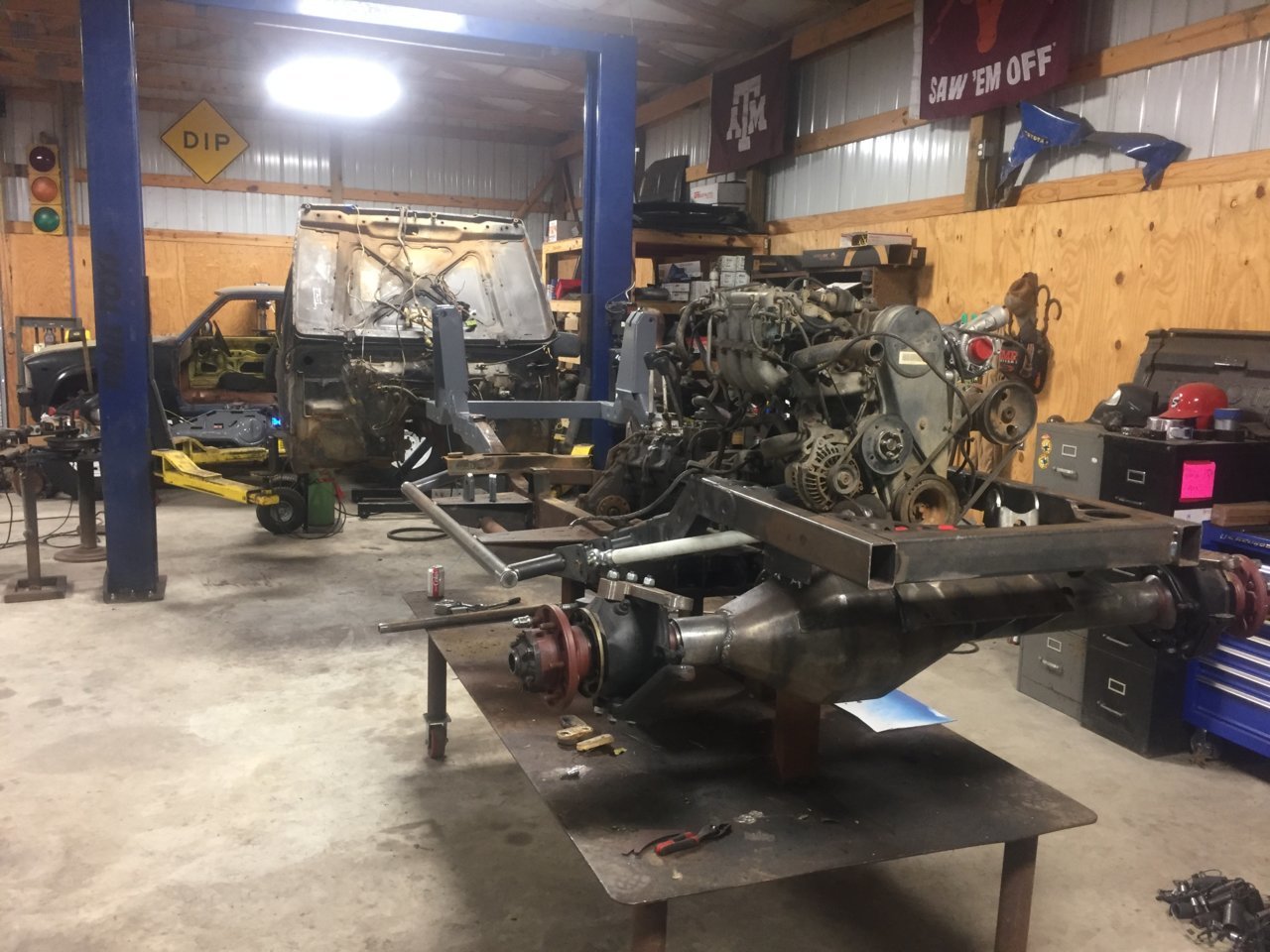

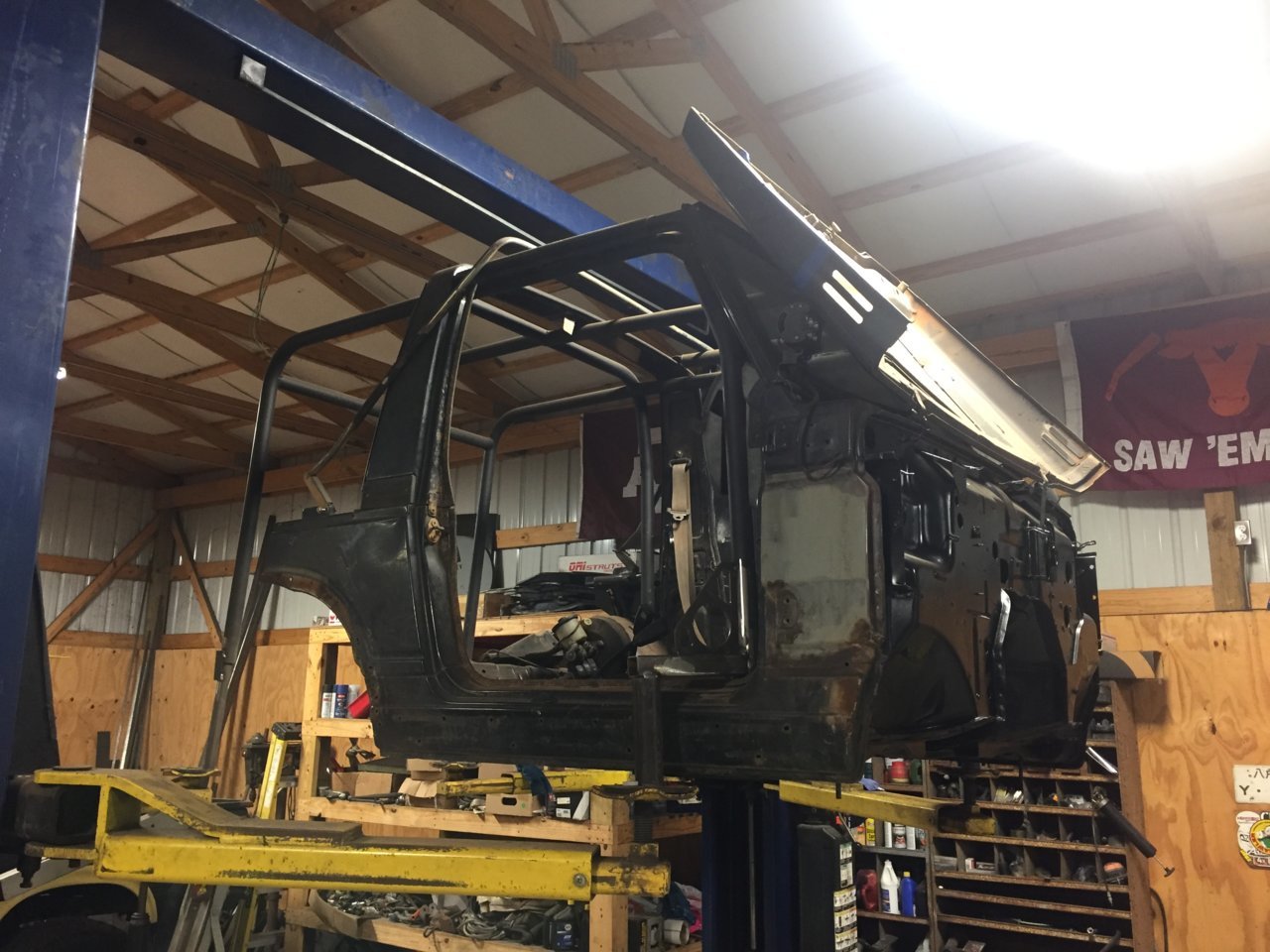

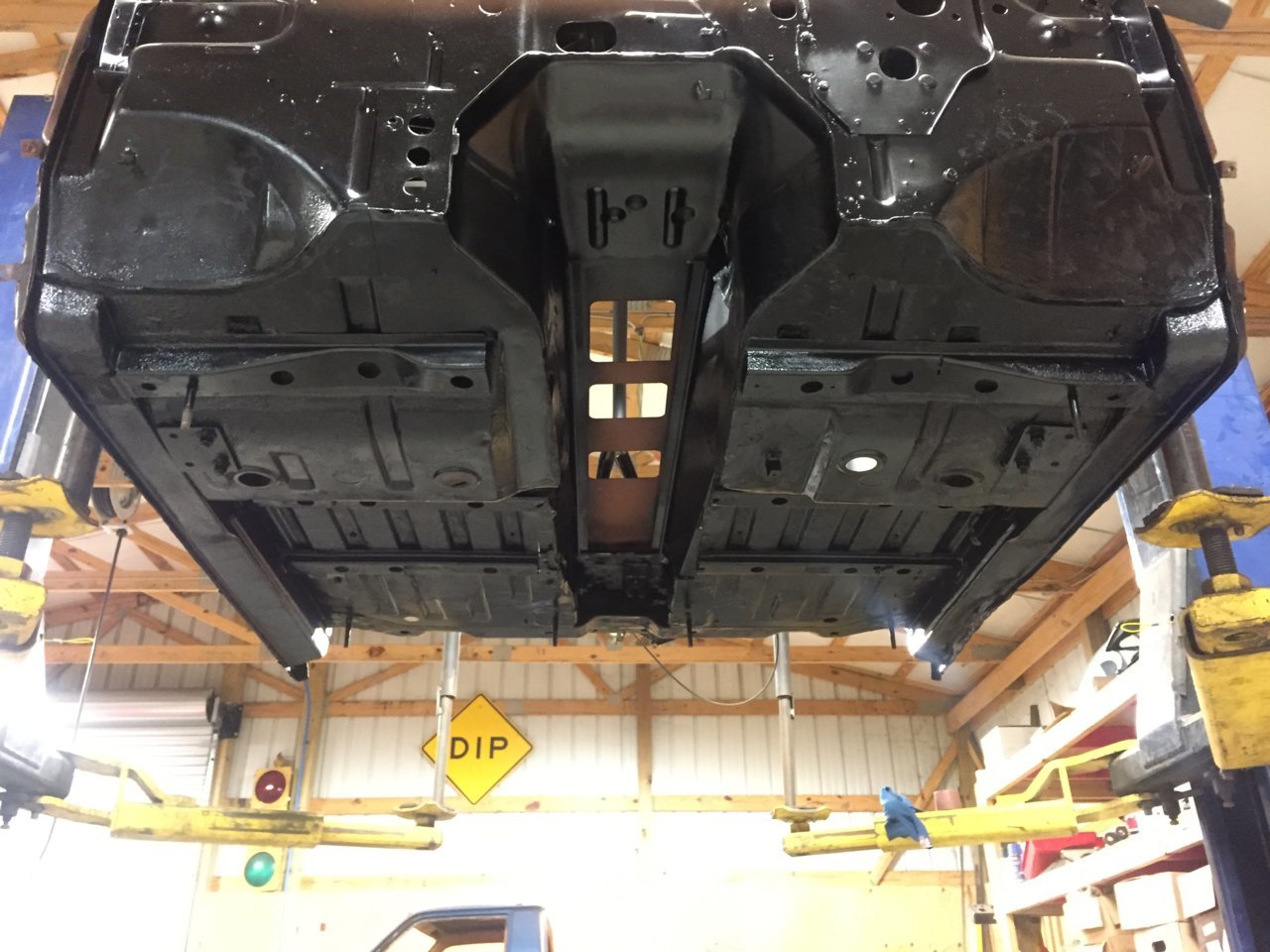

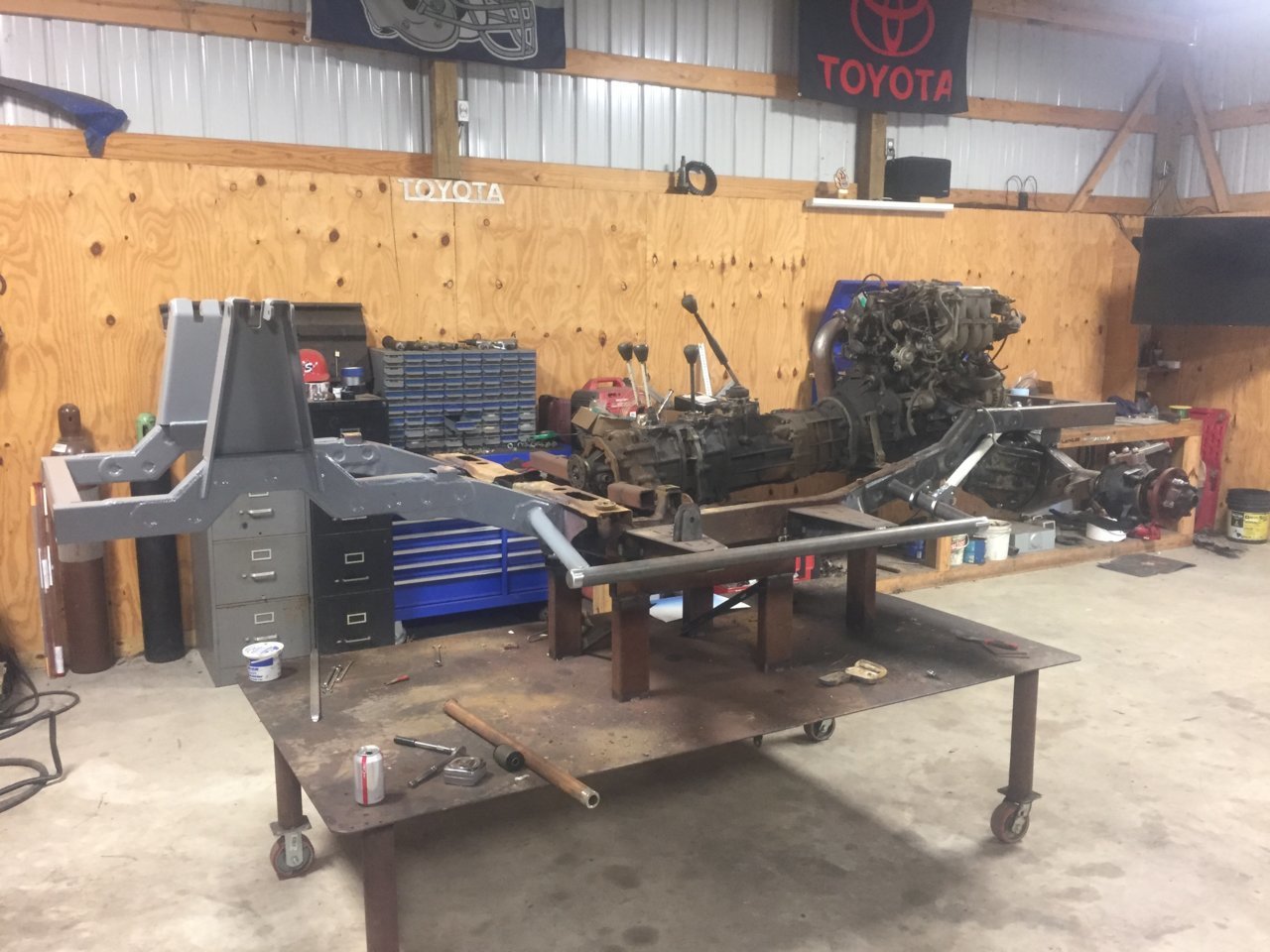

    I wasn't going to pull the tub, but it sure does make welding out the subframe easier.

    Photo Feb 18, 11 52 32 AM.jpg Photo Feb 18, 11 52 42 AM.jpg Photo Feb 18, 9 37 27 PM.jpg Photo Feb 18, 9 37 45 PM.jpg Photo Feb 18, 9 37 20 PM.jpg

    Slashaar likes this.
  11. Feb 28, 2019 at 8:03 AM
    #31
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

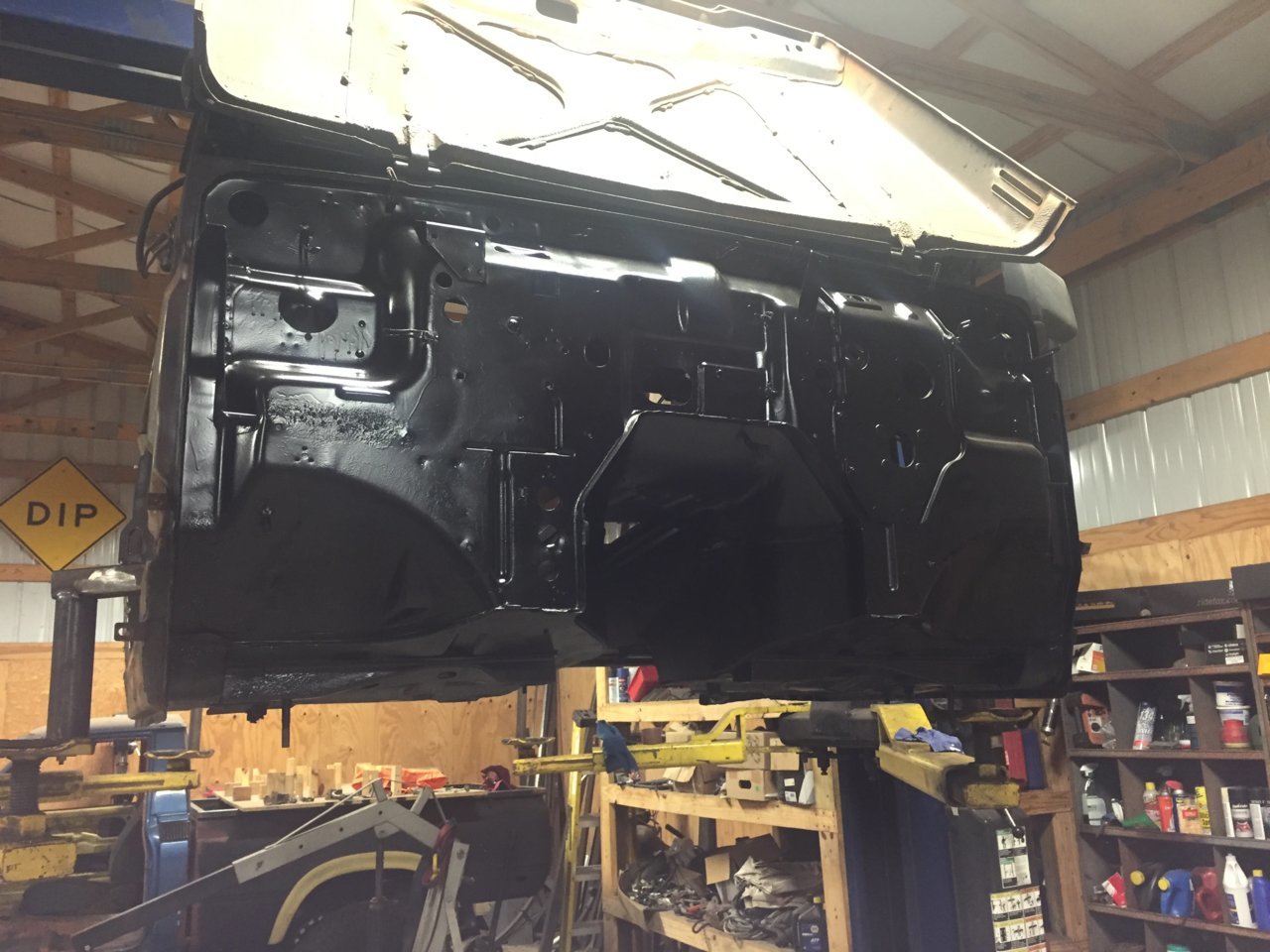

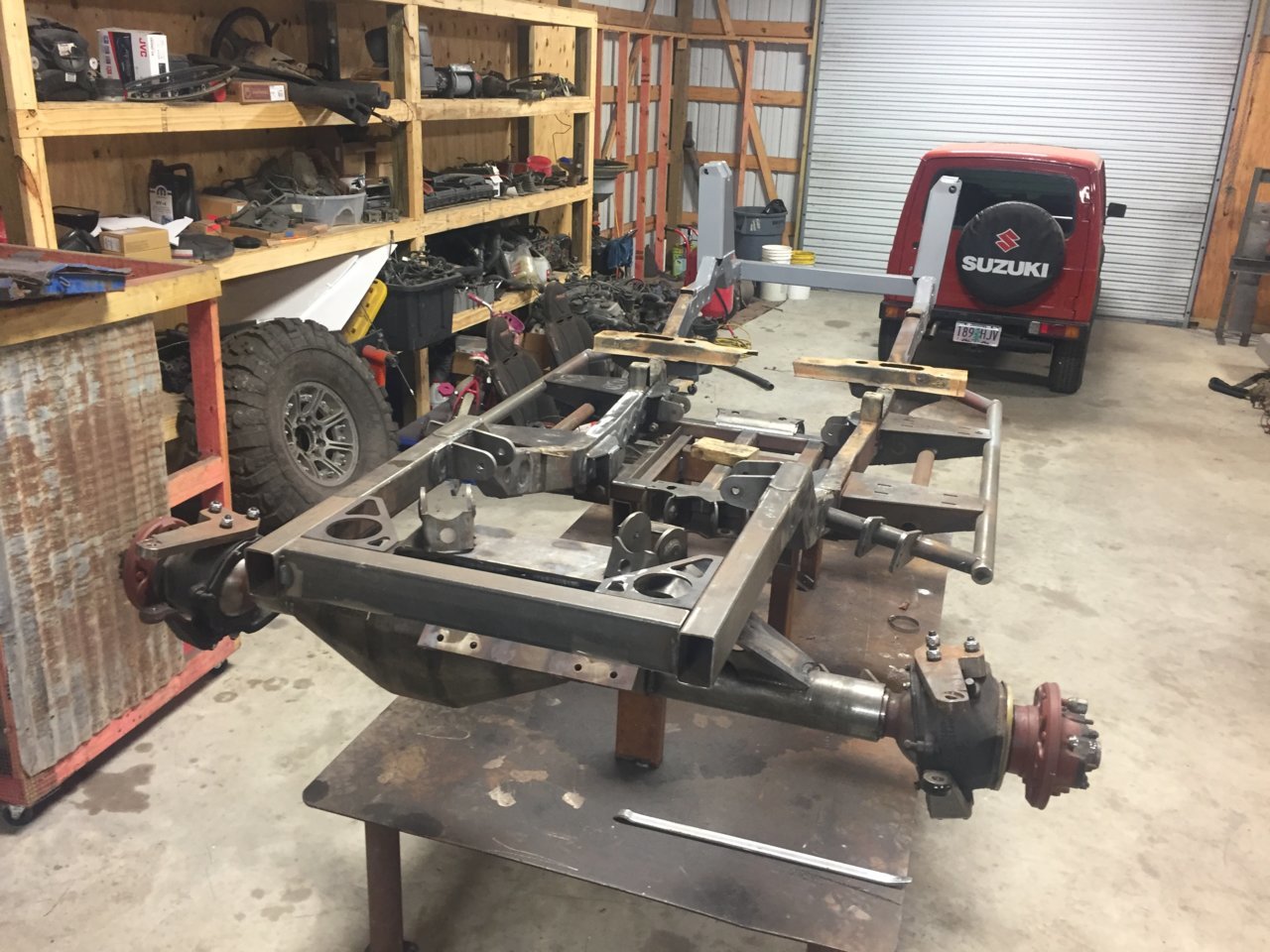

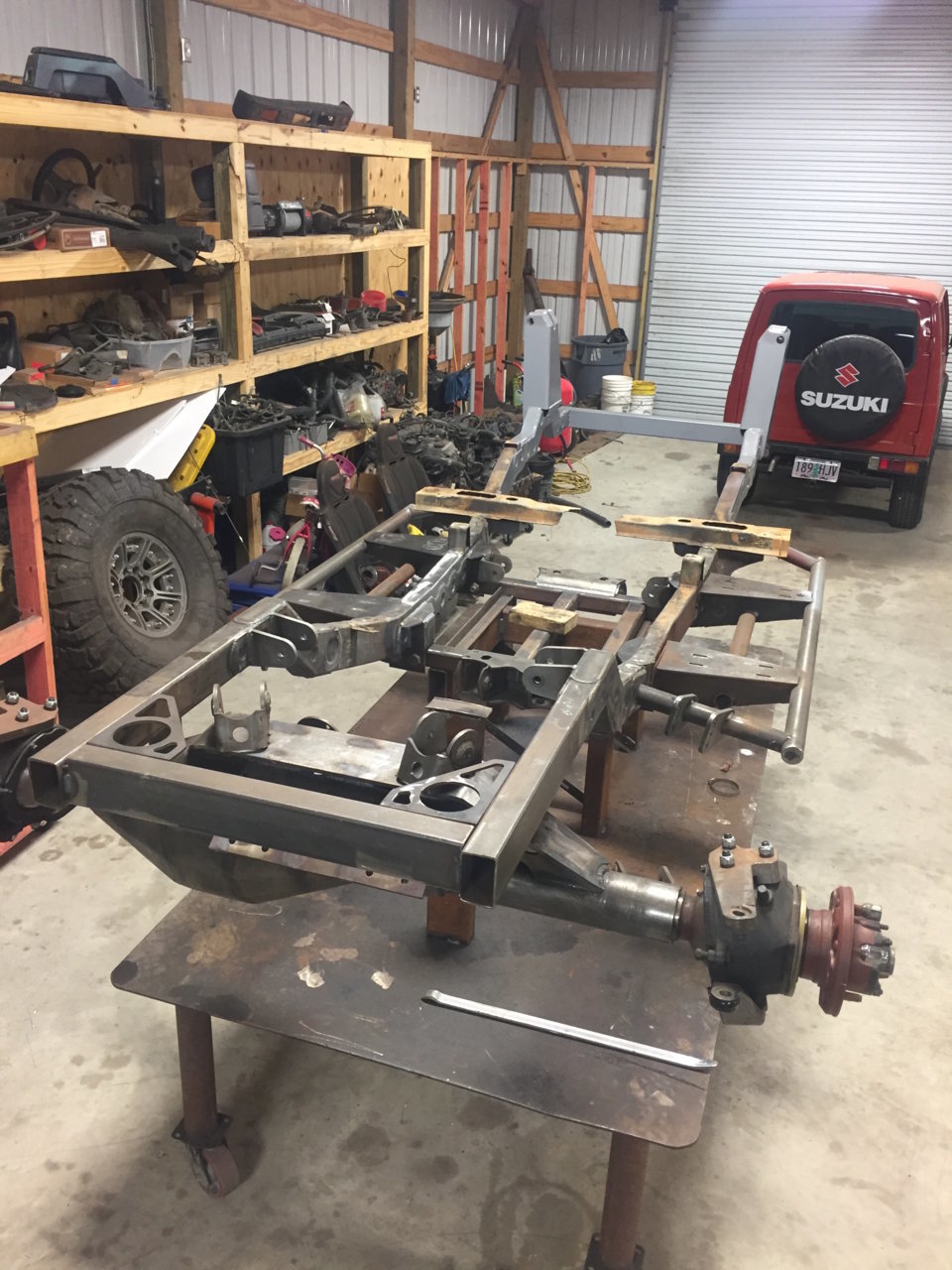

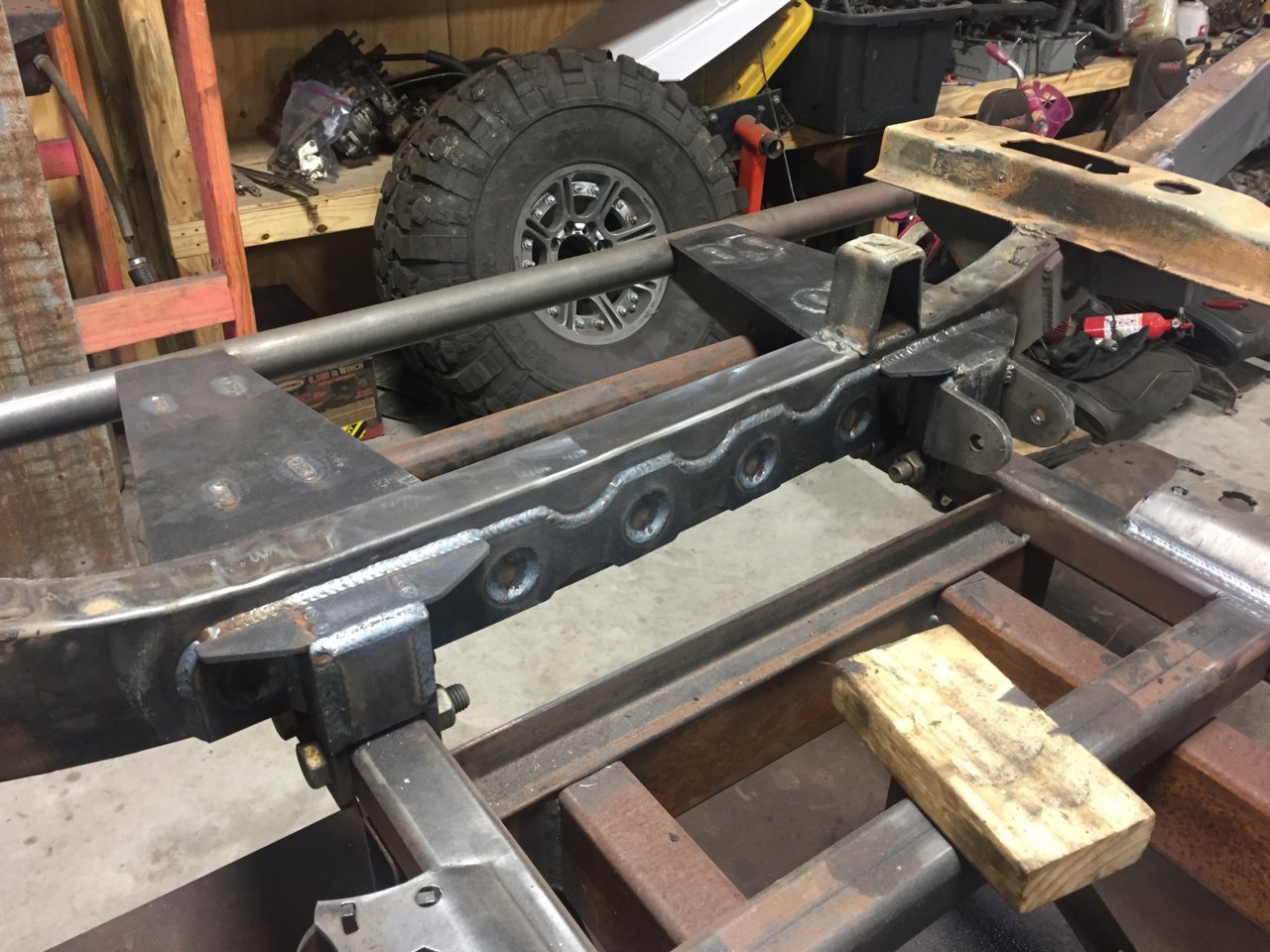

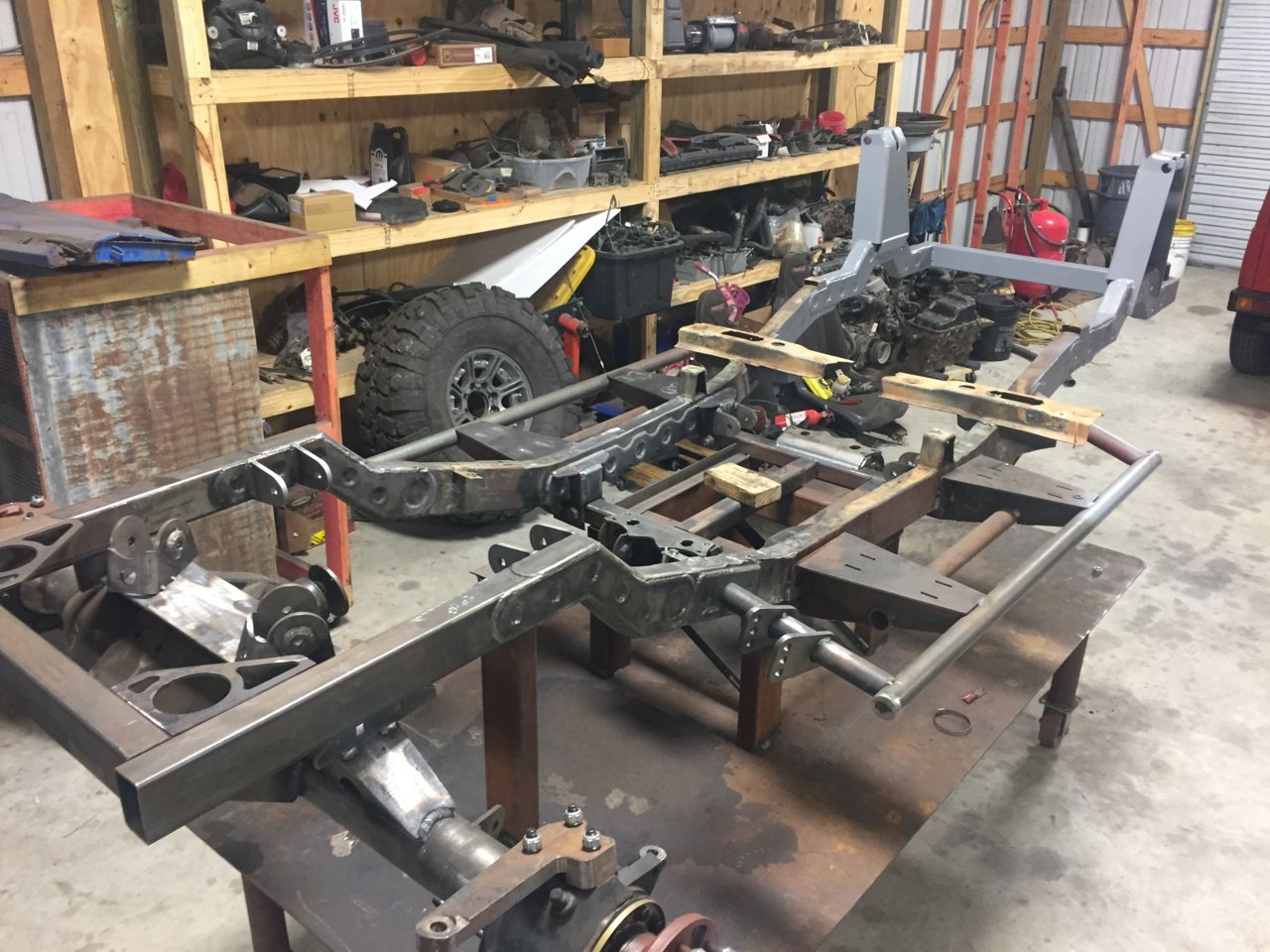

    And to make life even easier the drivetrain came out. I built a new transfercase cross member above the belly before pulling everything out. I'll get some finished pictures of that this week.

    Photo Feb 18, 9 30 41 PM.jpg Photo Feb 18, 9 30 46 PM.jpg Photo Feb 18, 9 37 56 PM.jpg Photo Feb 18, 9 38 02 PM.jpg Photo Feb 18, 9 38 08 PM.jpg

    Bigdaddy4760 and Slashaar like this.
  12. Feb 28, 2019 at 8:04 AM
    #32
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

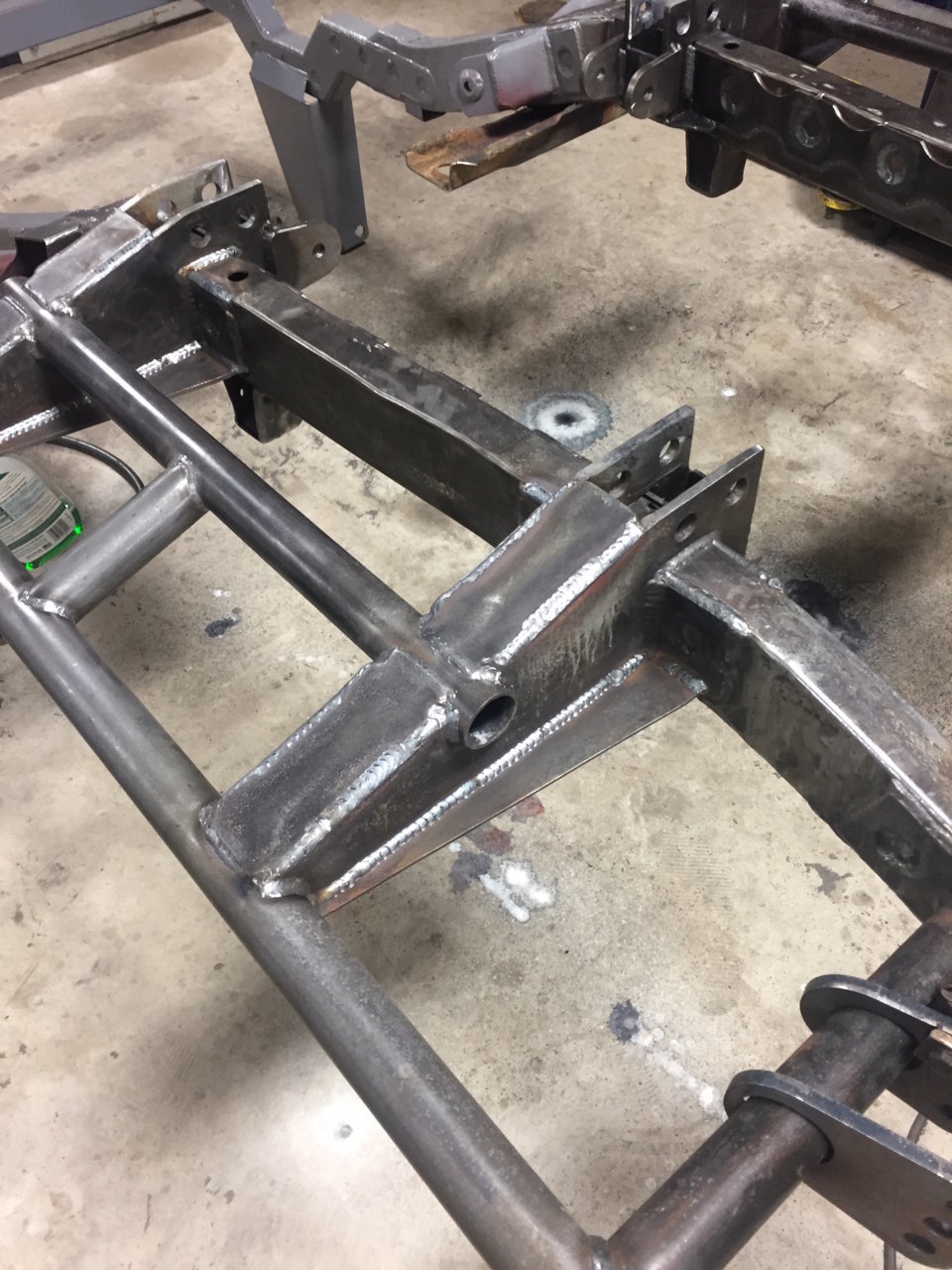

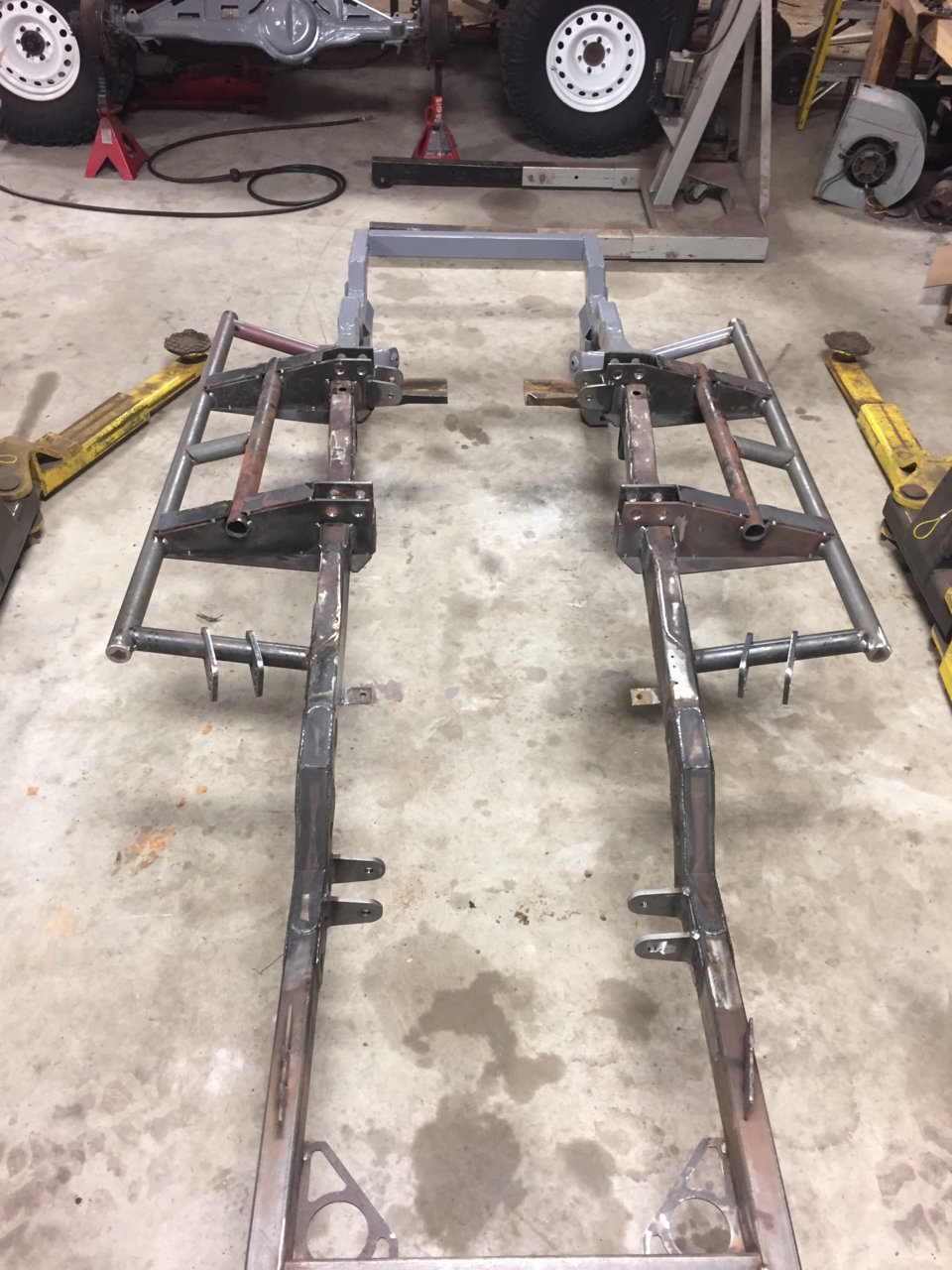

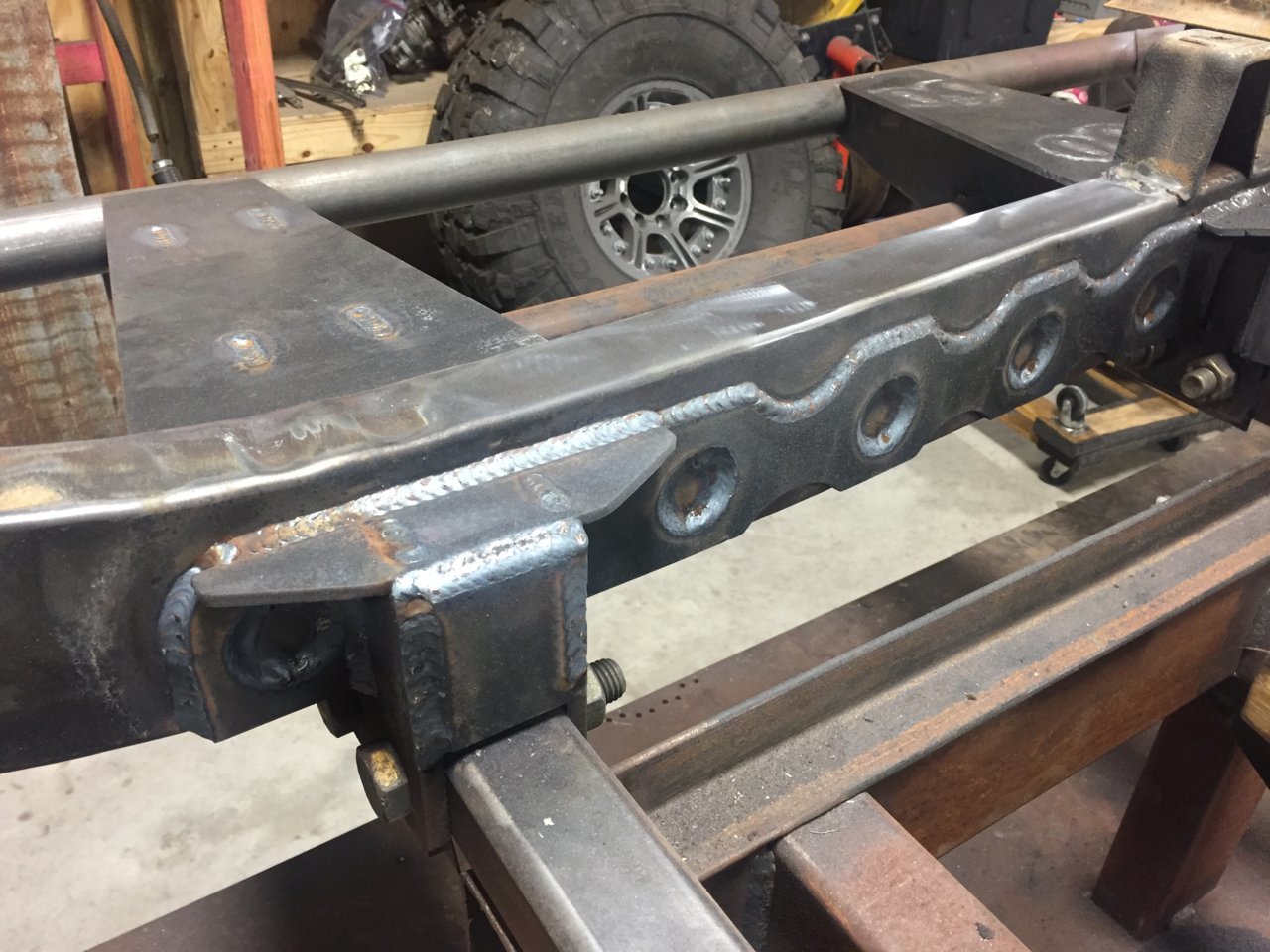

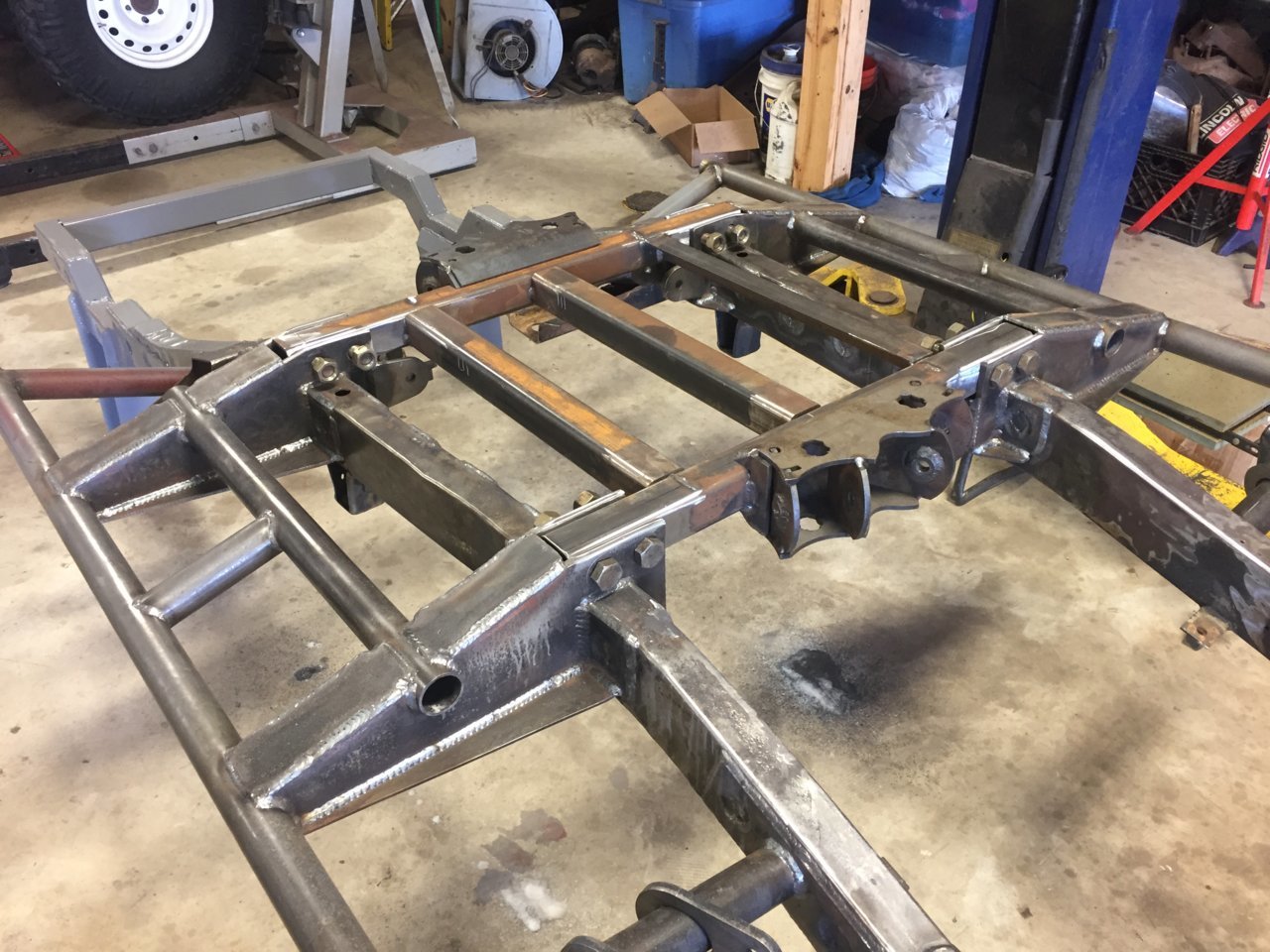

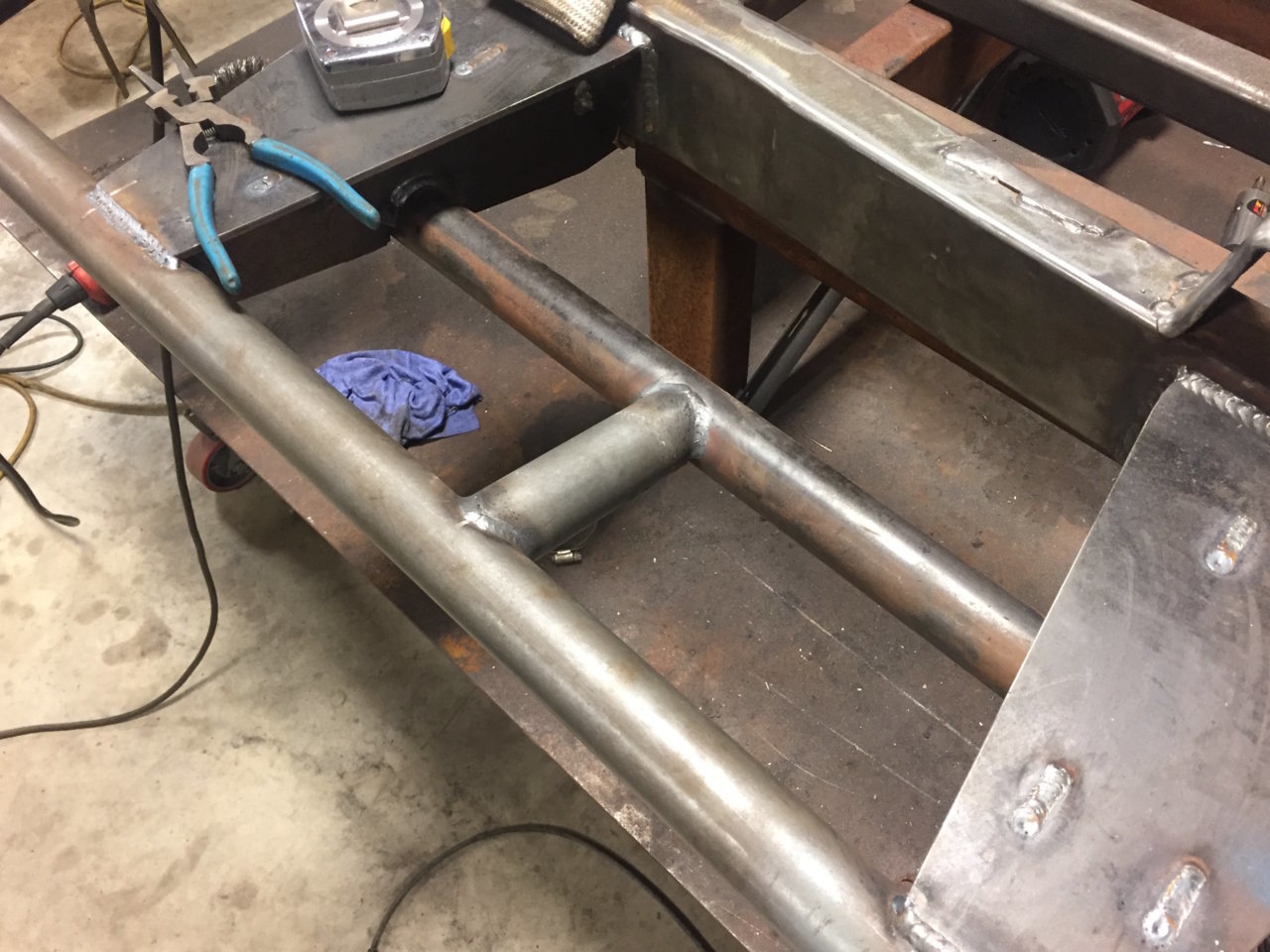

    Flipping the frame to weld the bottom of the subframe sure was nice. I also added an additional brace on the sliders. The front link mounts will be tied into the middle slider tube this week.

    Photo Feb 19, 1 08 53 PM.jpg Photo Feb 19, 5 10 47 PM.jpg Photo Feb 20, 10 10 17 AM.jpg Photo Feb 20, 12 43 06 PM.jpg

    Slashaar likes this.
  13. Feb 28, 2019 at 8:05 AM
    #33
    BamaTaco56

    BamaTaco56 Well-Known Member

    Joined:
    Mar 25, 2017
    Member:
    #214383
    Messages:
    10,283
    Gender:
    Male
    First Name:
    Trey
  14. Feb 28, 2019 at 8:06 AM
    #34
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

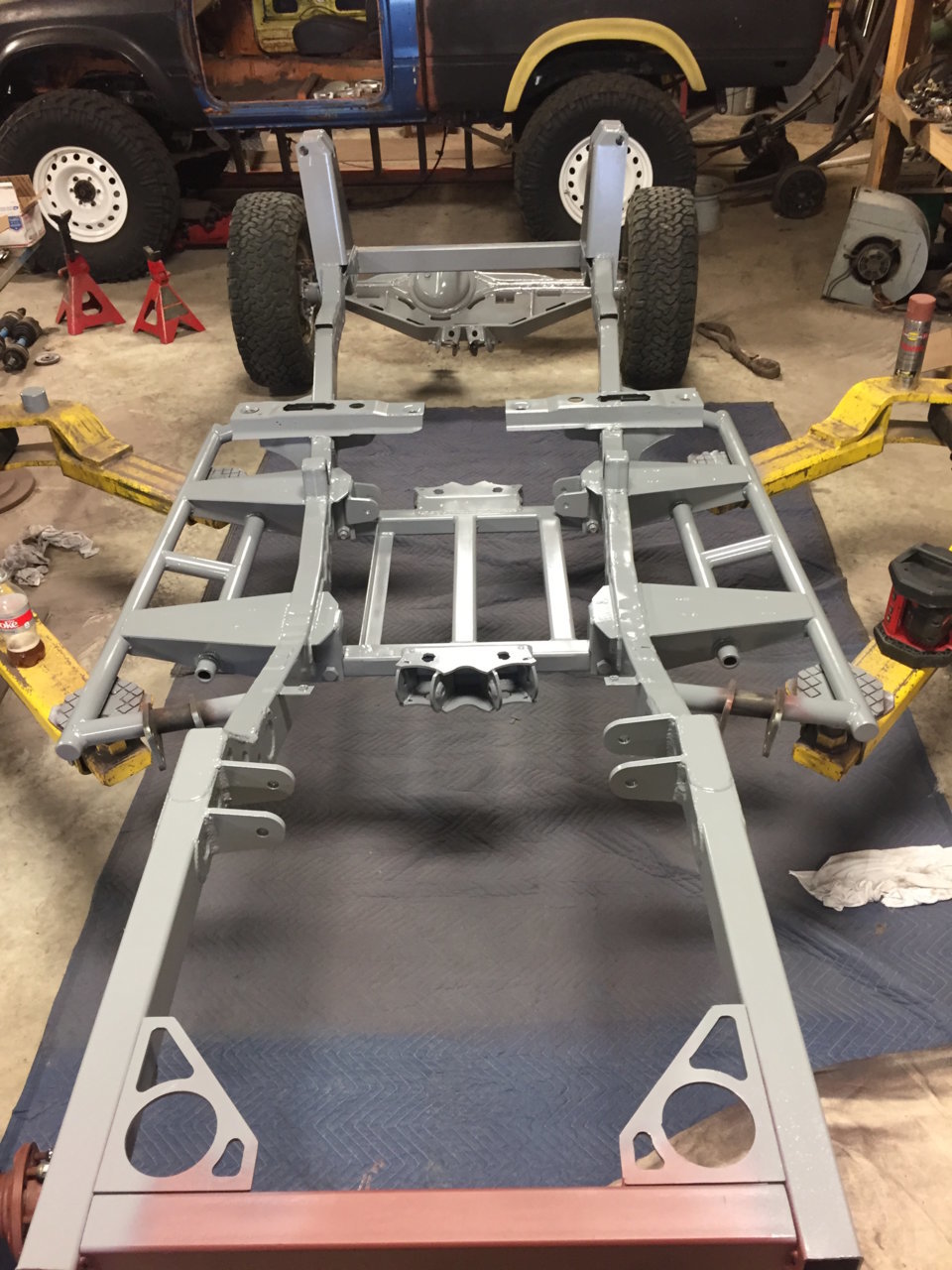

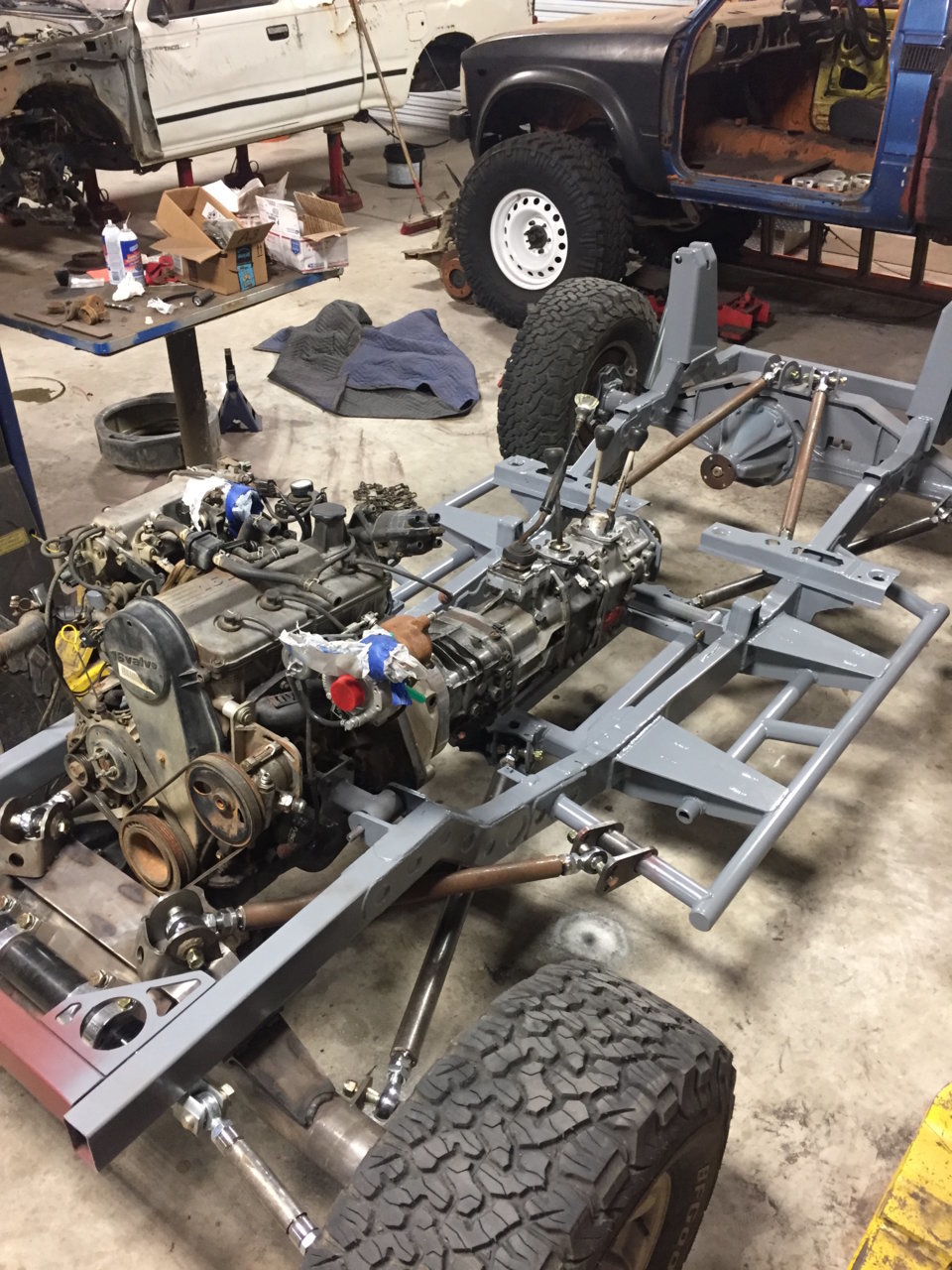

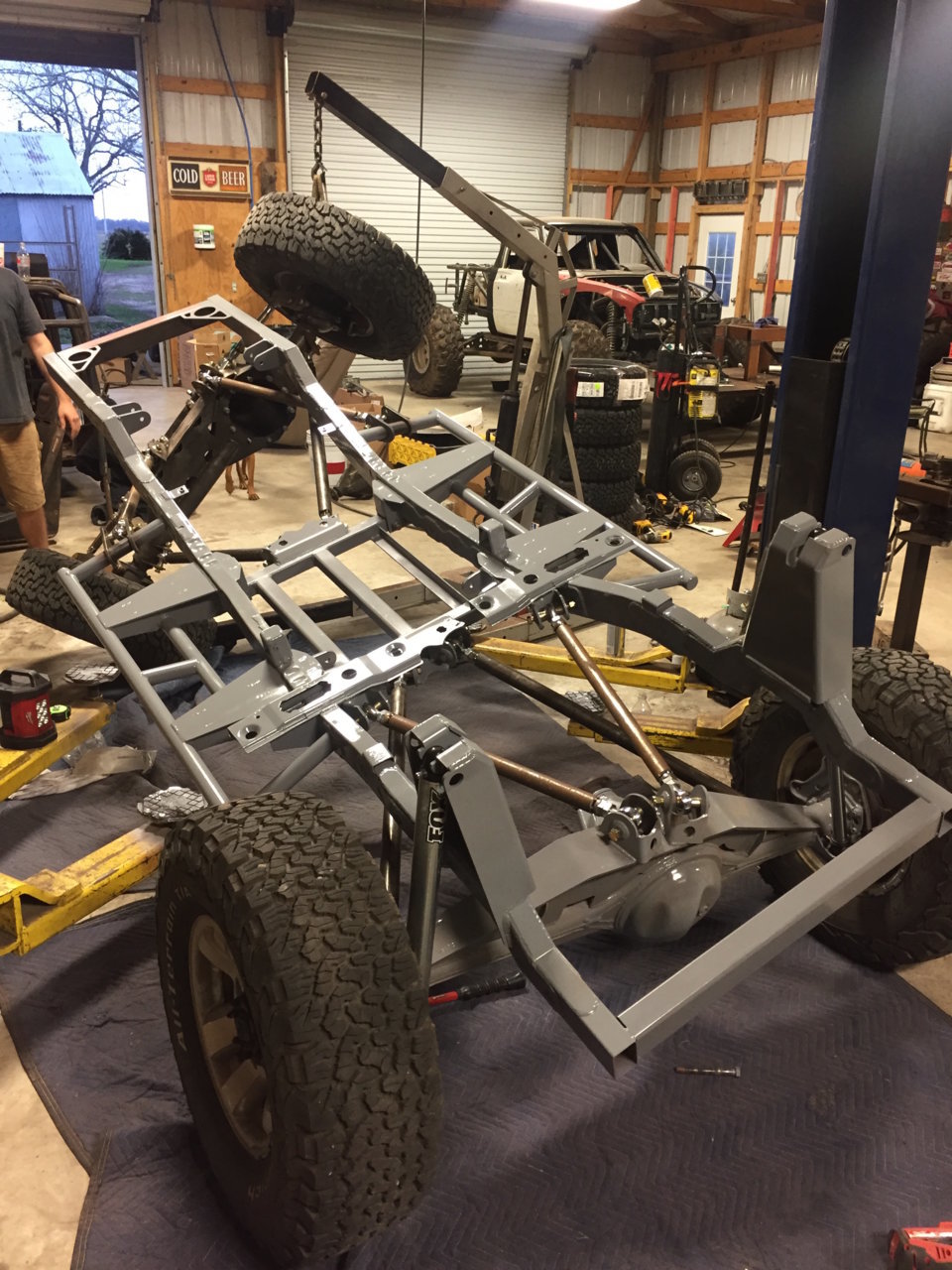

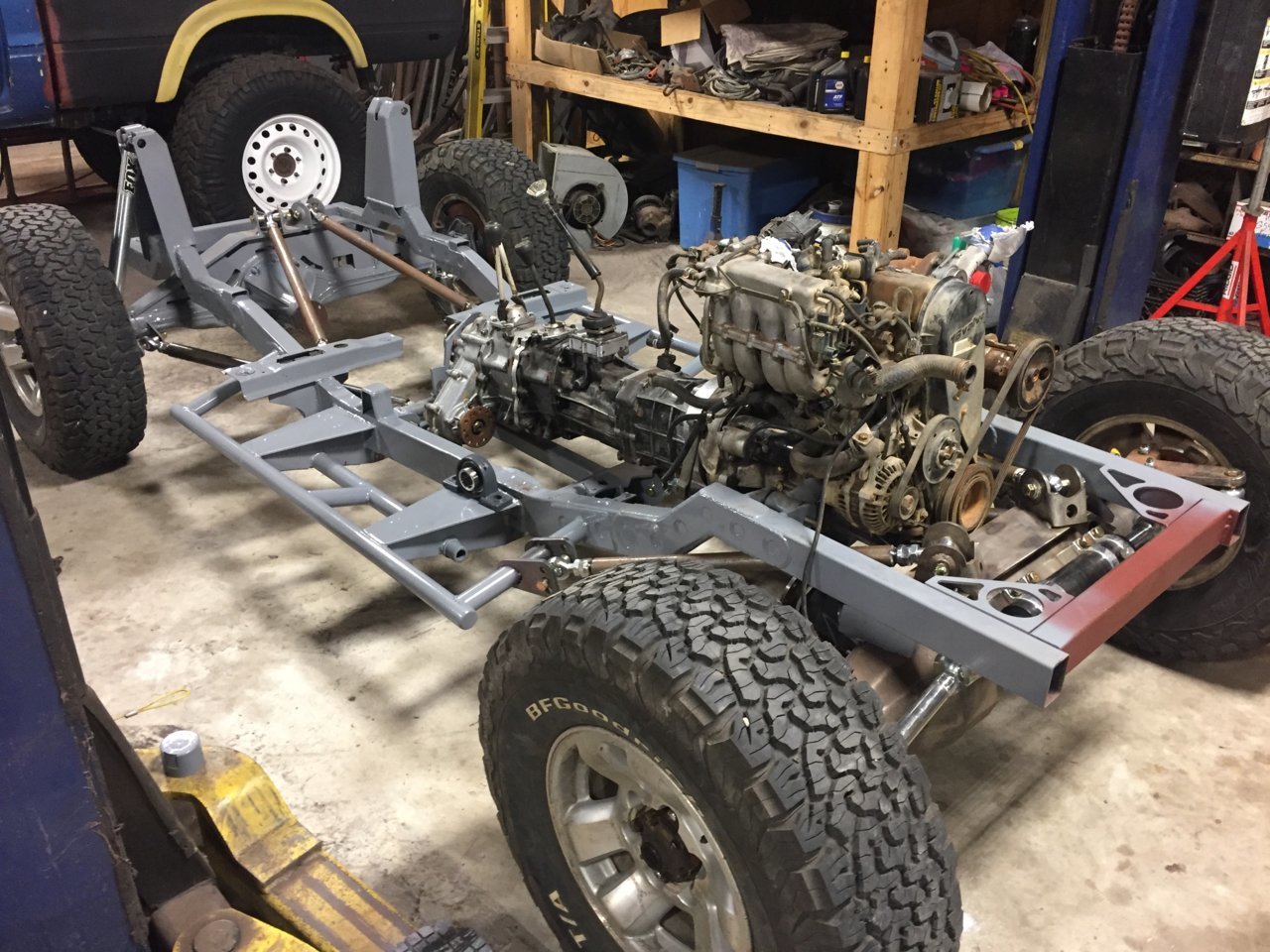

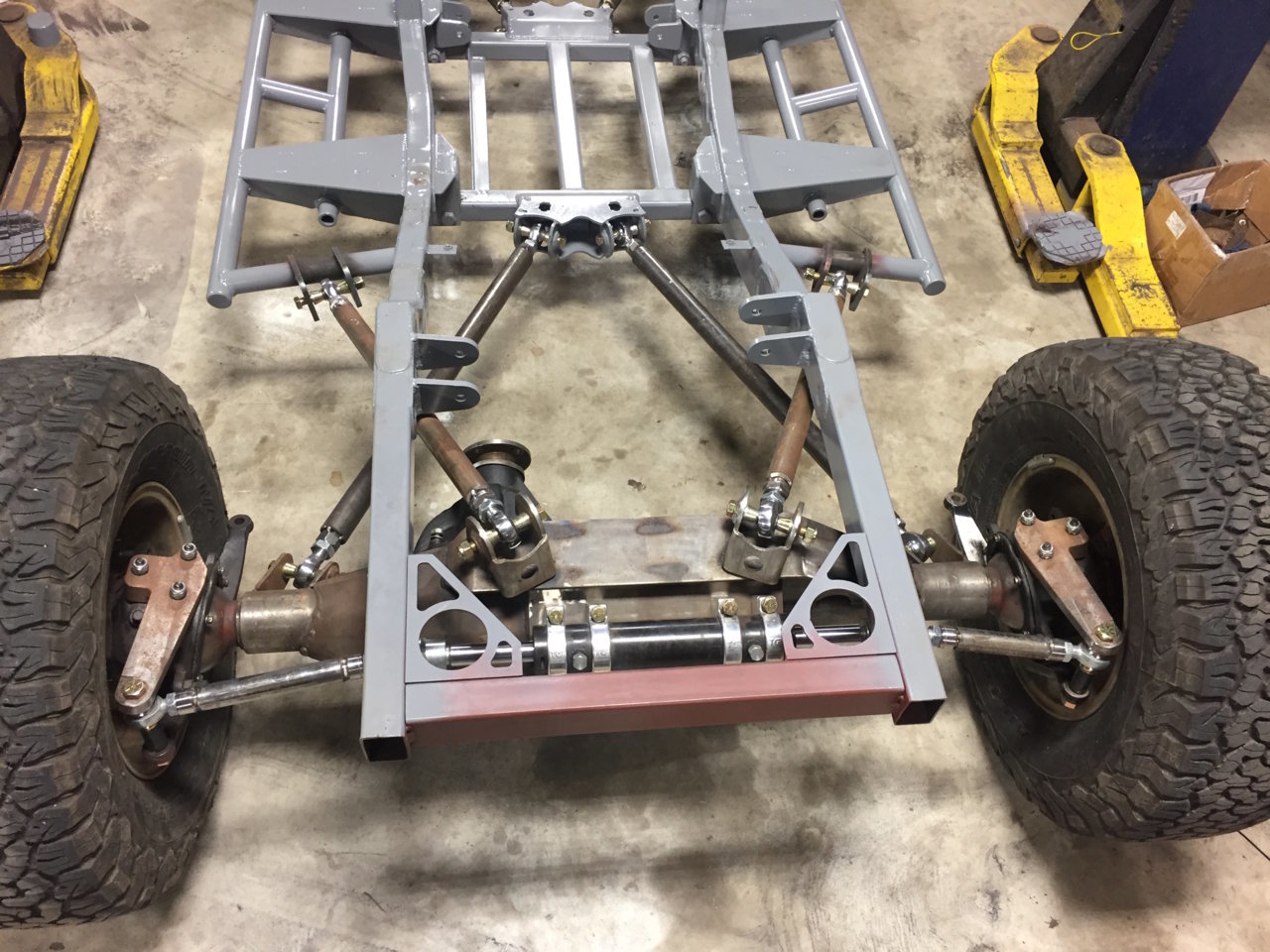

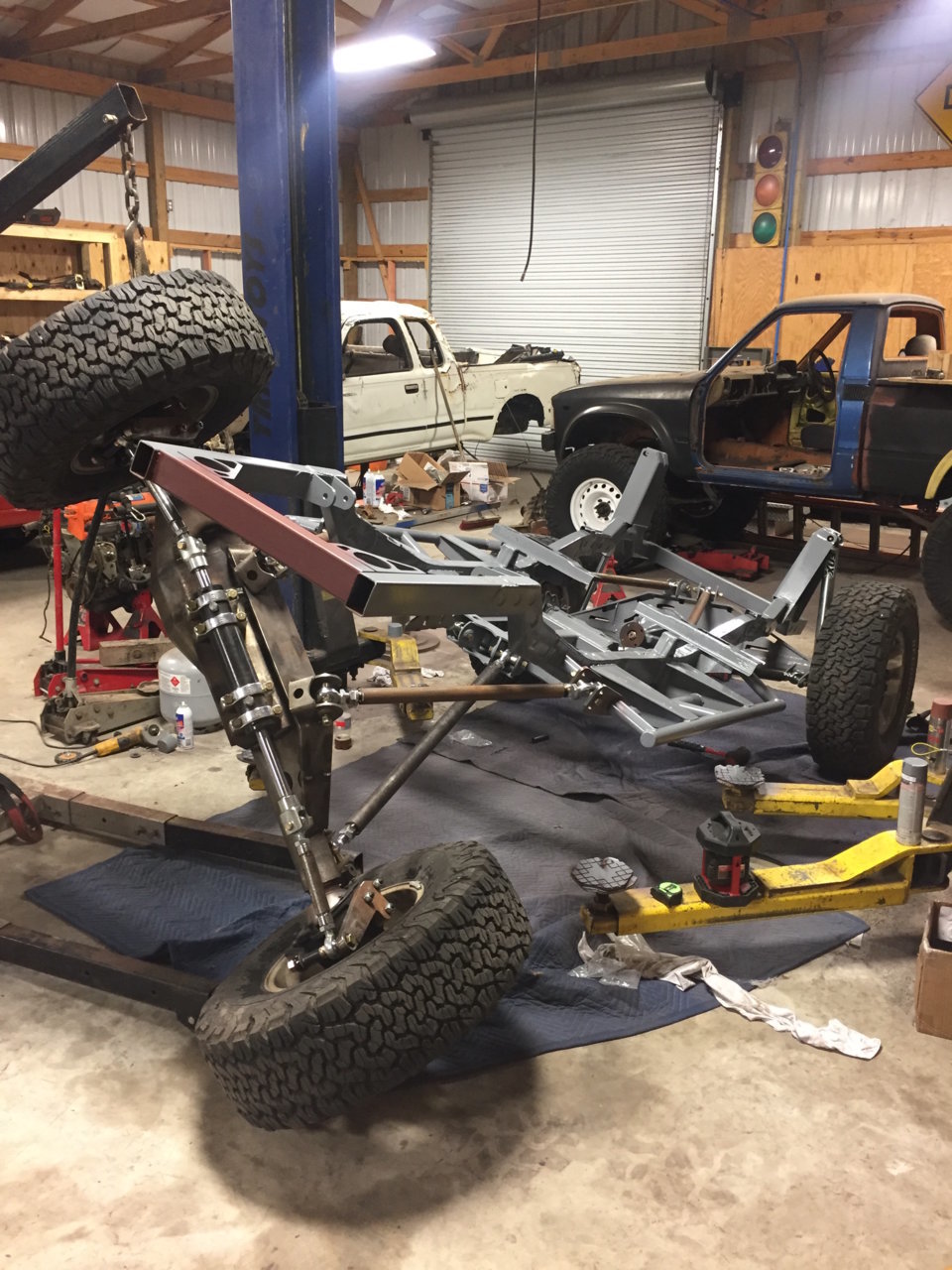

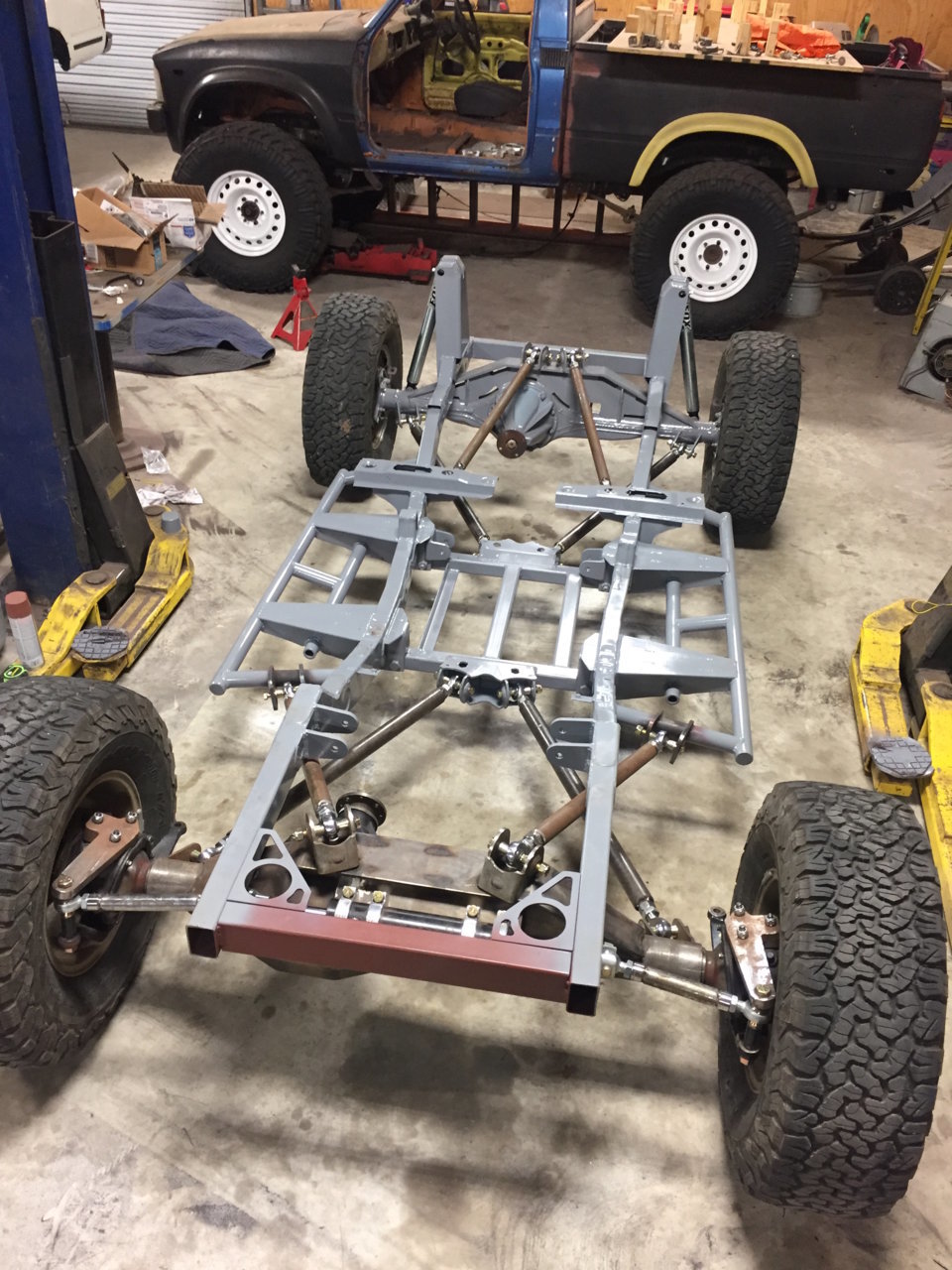

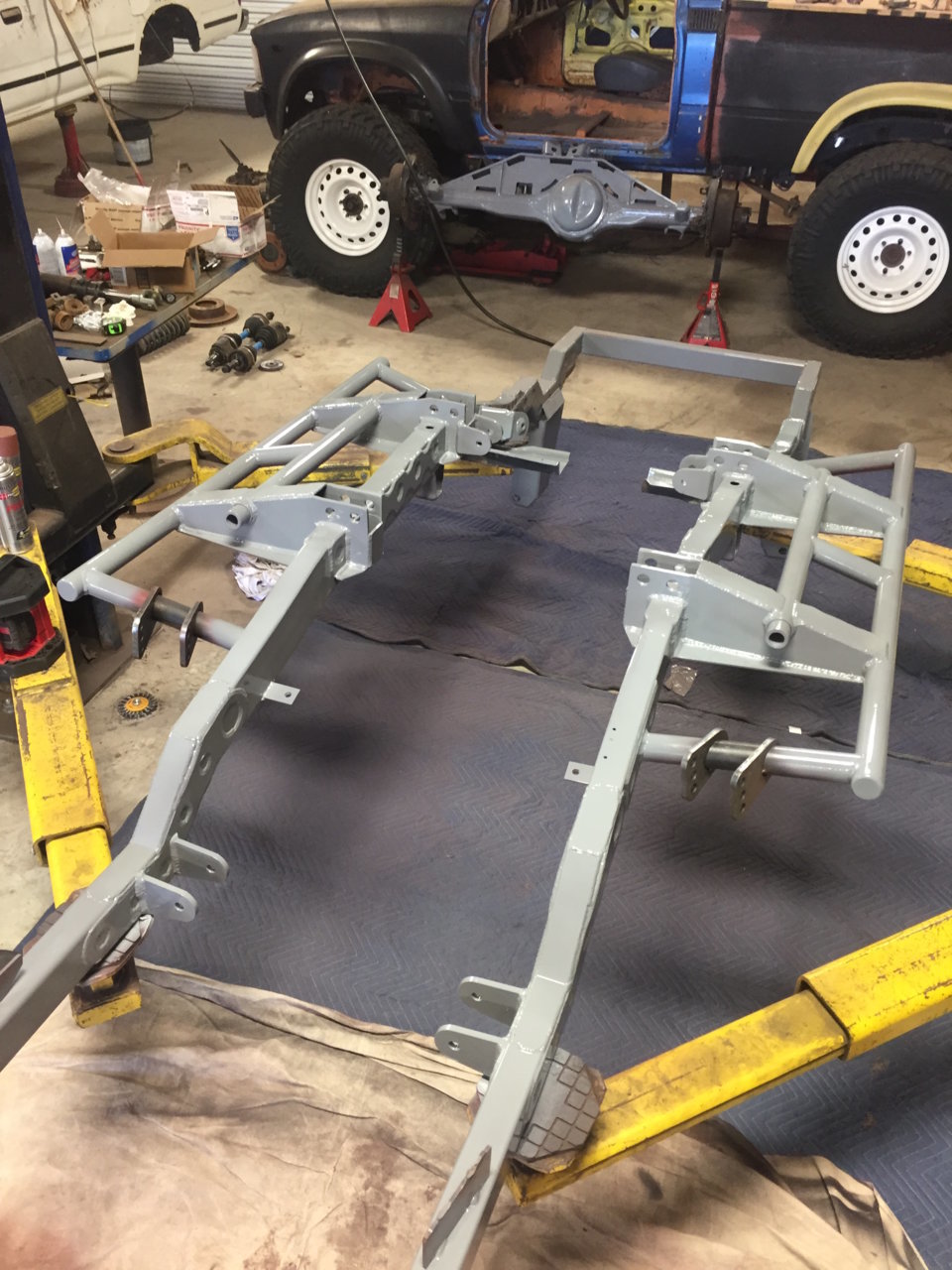

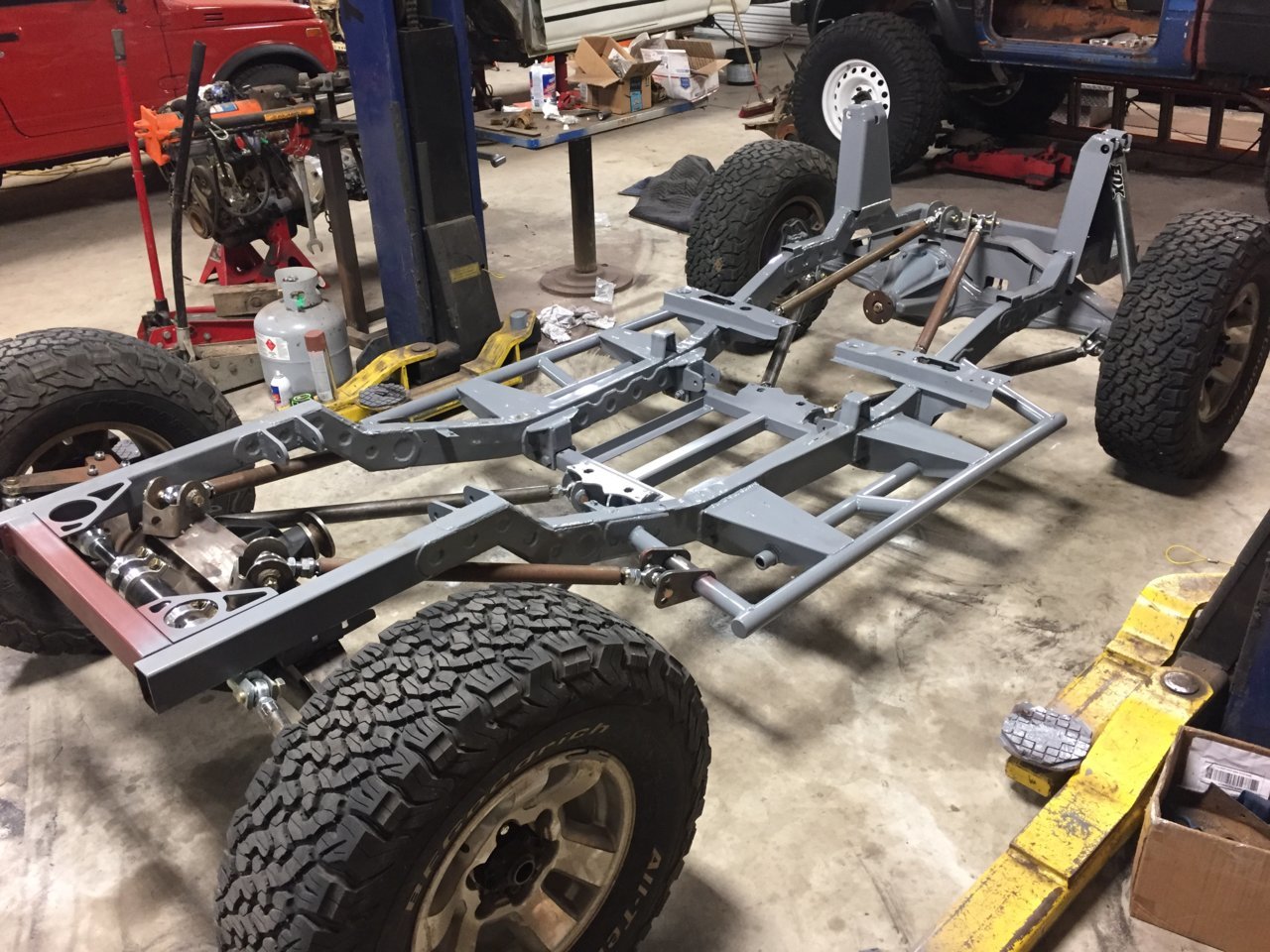

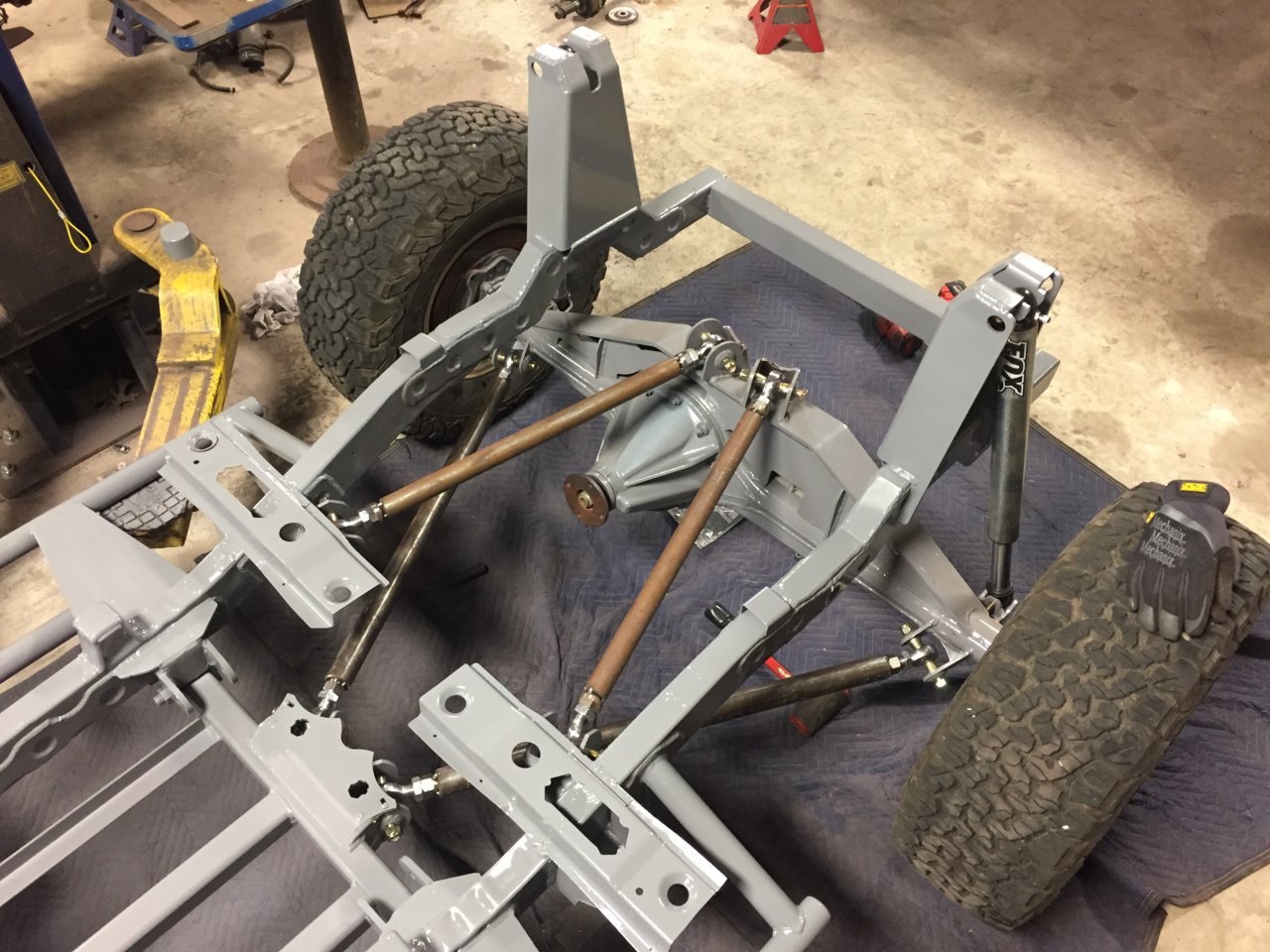

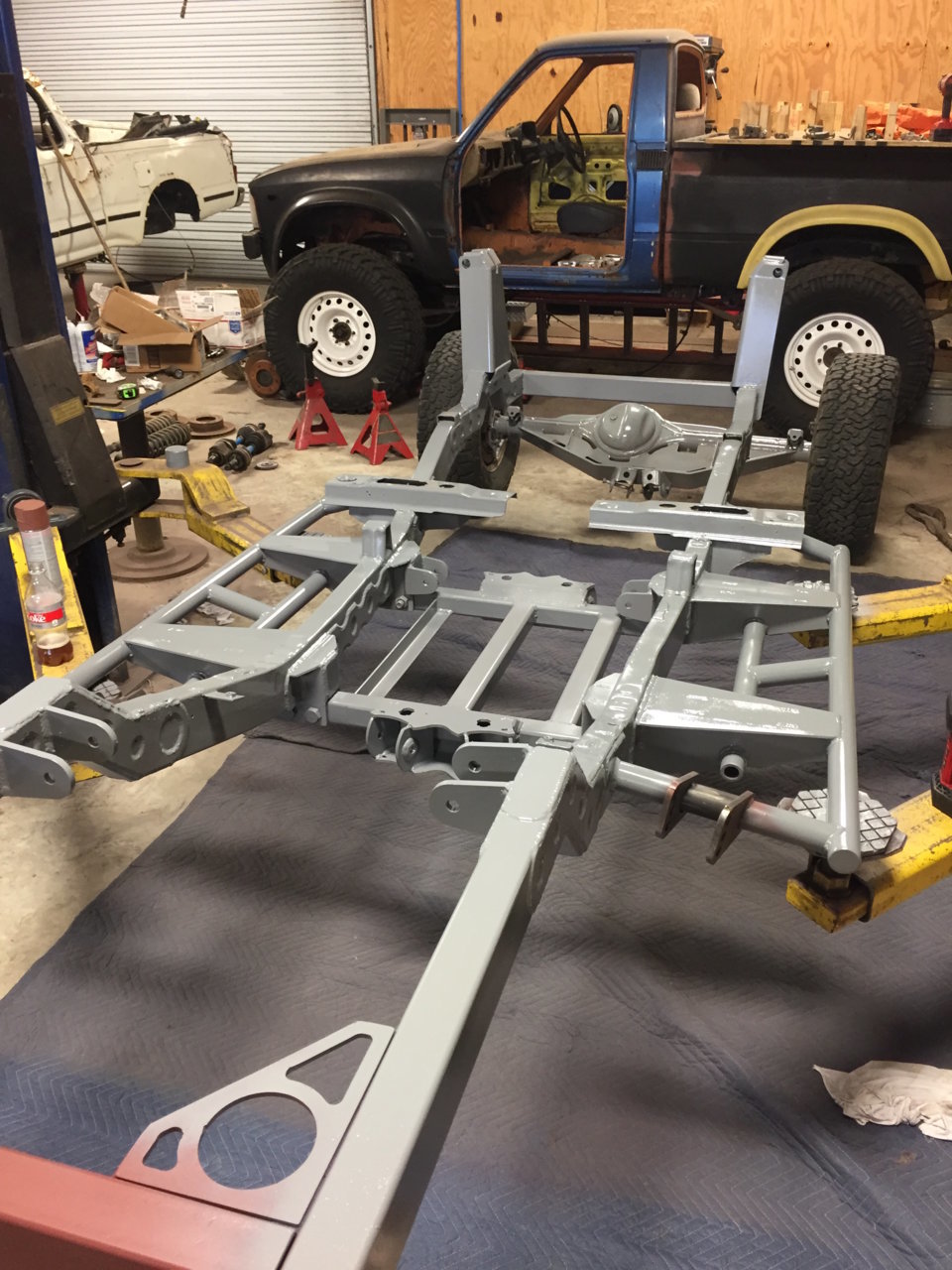

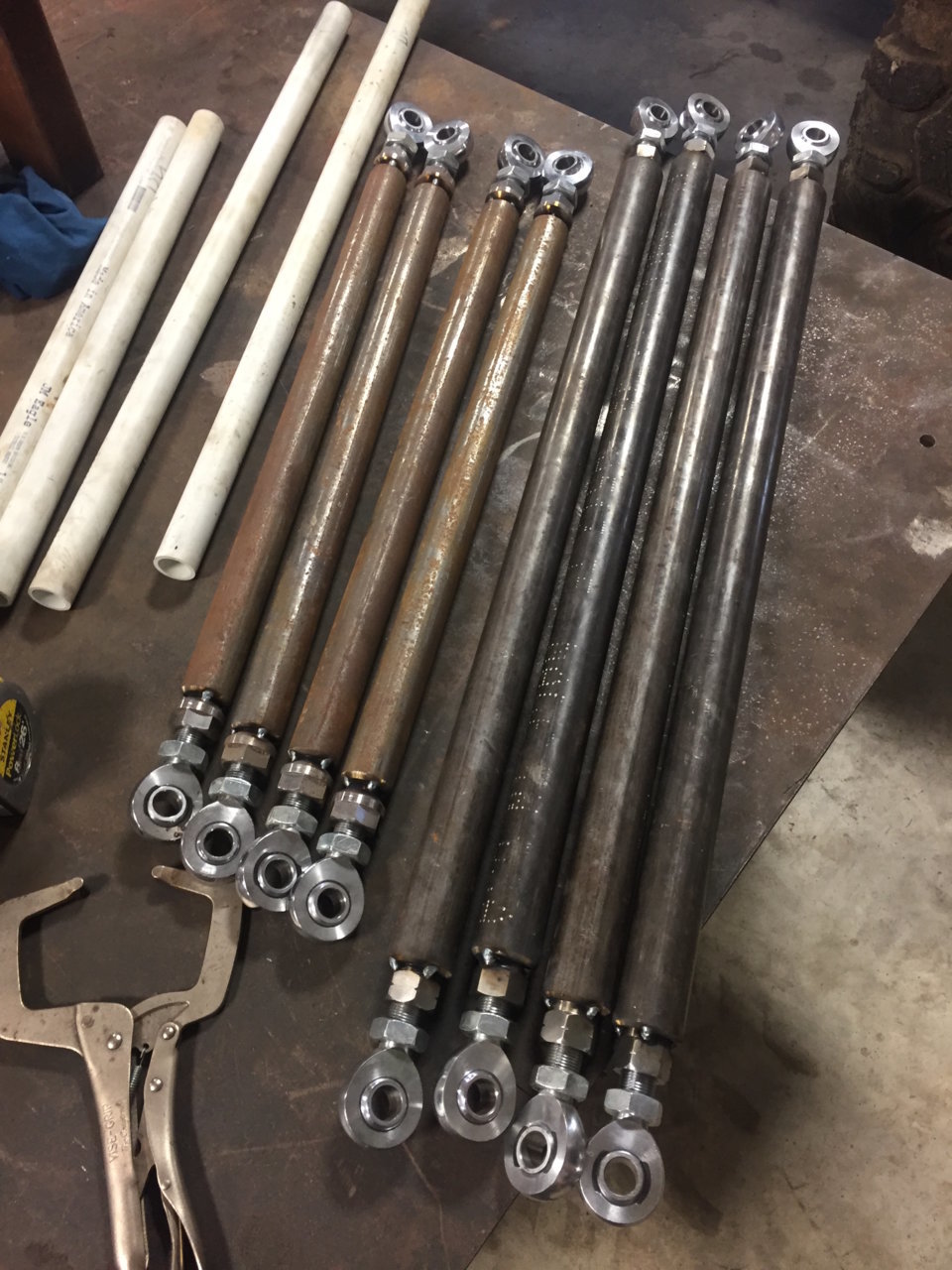

    She's officially a roller. I was able to flex her out a bit and confirm that the links work the way I expected them too. Of course the front end isn't going to droop out as much as the pictures show, but it was fun to do it anyways.

    Photo Feb 25, 1 18 29 PM.jpg
    Photo Feb 25, 1 37 59 PM.jpg
    Photo Feb 25, 4 47 15 PM.jpg
    Photo Feb 25, 4 47 57 PM.jpg
    Photo Feb 25, 5 32 19 PM.jpg
    Photo Feb 25, 6 03 51 PM.jpg
    Photo Feb 25, 6 04 07 PM.jpg
    Photo Feb 25, 7 52 17 PM.jpg
    Photo Feb 25, 7 52 34 PM.jpg
    Photo Feb 25, 7 53 04 PM.jpg
    Photo Feb 25, 8 18 25 PM.jpg
    Photo Feb 25, 8 18 43 PM.jpg

    Bigdaddy4760 and Slashaar like this.
  15. Feb 28, 2019 at 8:19 AM
    #35
    JBTacoma

    JBTacoma Well-Known Member

    Joined:
    Feb 16, 2015
    Member:
    #148844
    Messages:
    11,100
    Gender:
    Male
    First Name:
    Jeff
    Cullman Alabama
    Vehicle:
    2000 SR5, 2003 Double Cab and a Suzuki Samurai
    He is building a tank :eek: :thumbsup:

    SMKYTXN[OP] and Slashaar like this.
  16. Feb 28, 2019 at 8:27 AM
    #36
    Rons01TRD

    Rons01TRD Well-Known Member

    Joined:
    May 30, 2012
    Member:
    #79732
    Messages:
    1,141
    Gender:
    Male
    First Name:
    Ron
    Virginia Beach, VA
    Vehicle:
    2007 4Runner 4WD
    The work looks awesome, just wondering if the motor has enough power to move that tank?o_O

    SMKYTXN[OP] and Slashaar like this.
  17. Feb 28, 2019 at 8:49 AM
    #37
    Rob Daman

    Rob Daman The Taco Formerly Known as Hard Shell Taco

    Joined:
    Mar 3, 2017
    Member:
    #212255
    Messages:
    5,840
    First Name:
    Rob
    So Cal
    Vehicle:
    17 OR 6MT
    a lot
    that's a cool build. I wish I could fabricate.

    SMKYTXN[OP] and Slashaar like this.
  18. Feb 28, 2019 at 8:51 AM
    #38
    JBTacoma

    JBTacoma Well-Known Member

    Joined:
    Feb 16, 2015
    Member:
    #148844
    Messages:
    11,100
    Gender:
    Male
    First Name:
    Jeff
    Cullman Alabama
    Vehicle:
    2000 SR5, 2003 Double Cab and a Suzuki Samurai
    That crawl box will move it

    Slashaar likes this.
  19. Feb 28, 2019 at 7:45 PM
    #39
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB
    There's a hairdryer going on the little 1.6 to help out with that, but the dual cases will move her just fine.

    JBTacoma[QUOTED] and Slashaar like this.
  20. Mar 3, 2019 at 10:38 AM
    #40
    SMKYTXN

    SMKYTXN [OP] If it can't be overdone it's not worth doing Vendor

    Joined:
    Mar 11, 2011
    Member:
    #52810
    Messages:
    14,038
    Gender:
    Male
    First Name:
    Nathan
    Houston
    Vehicle:
    11, 4dr, TRD Sport, 6sp
    DCFB

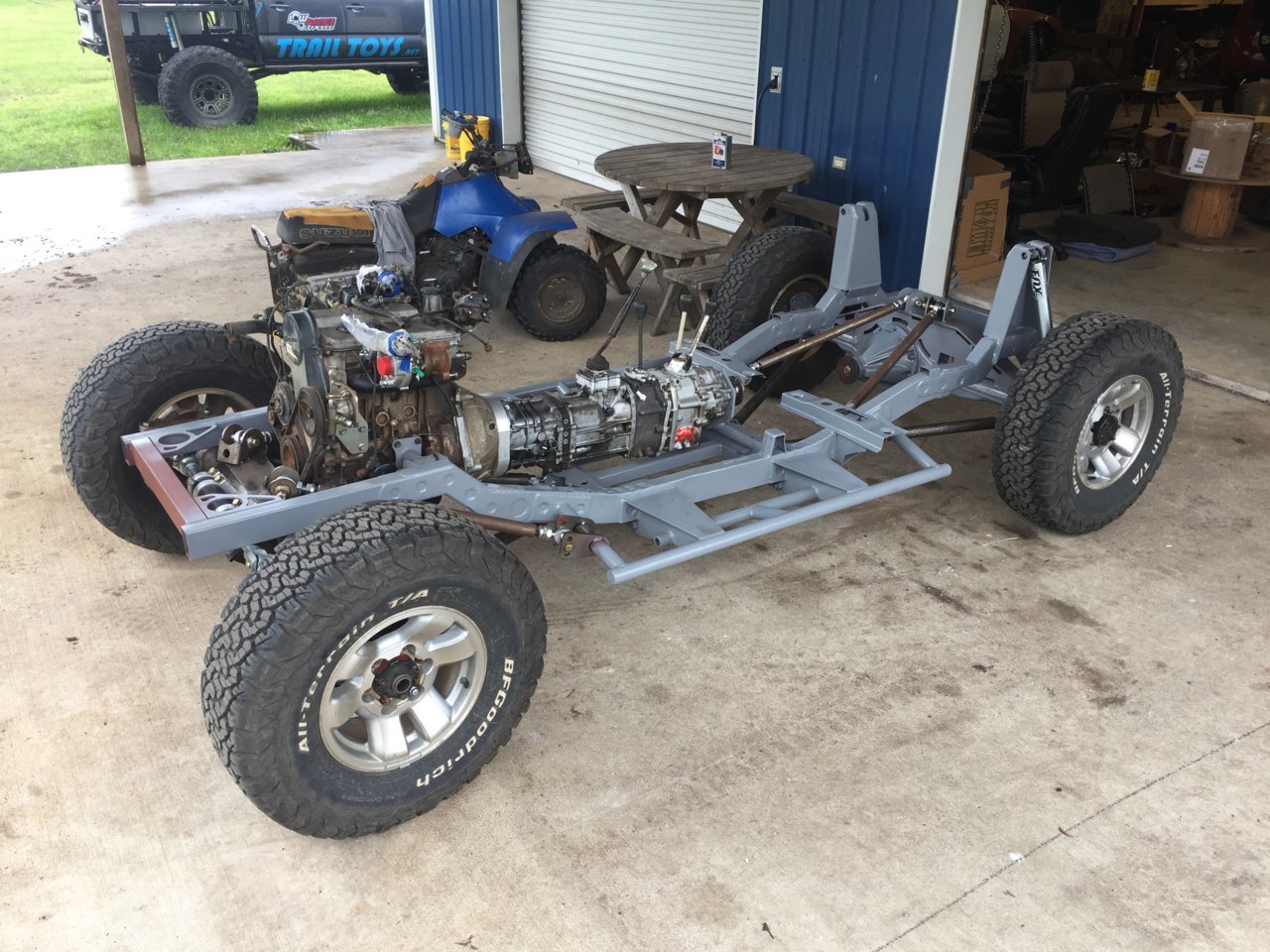

    I rolled her outside to see what the grey really looked like. I'm digging the color.

    Photo Feb 26, 1 02 30 PM.jpg

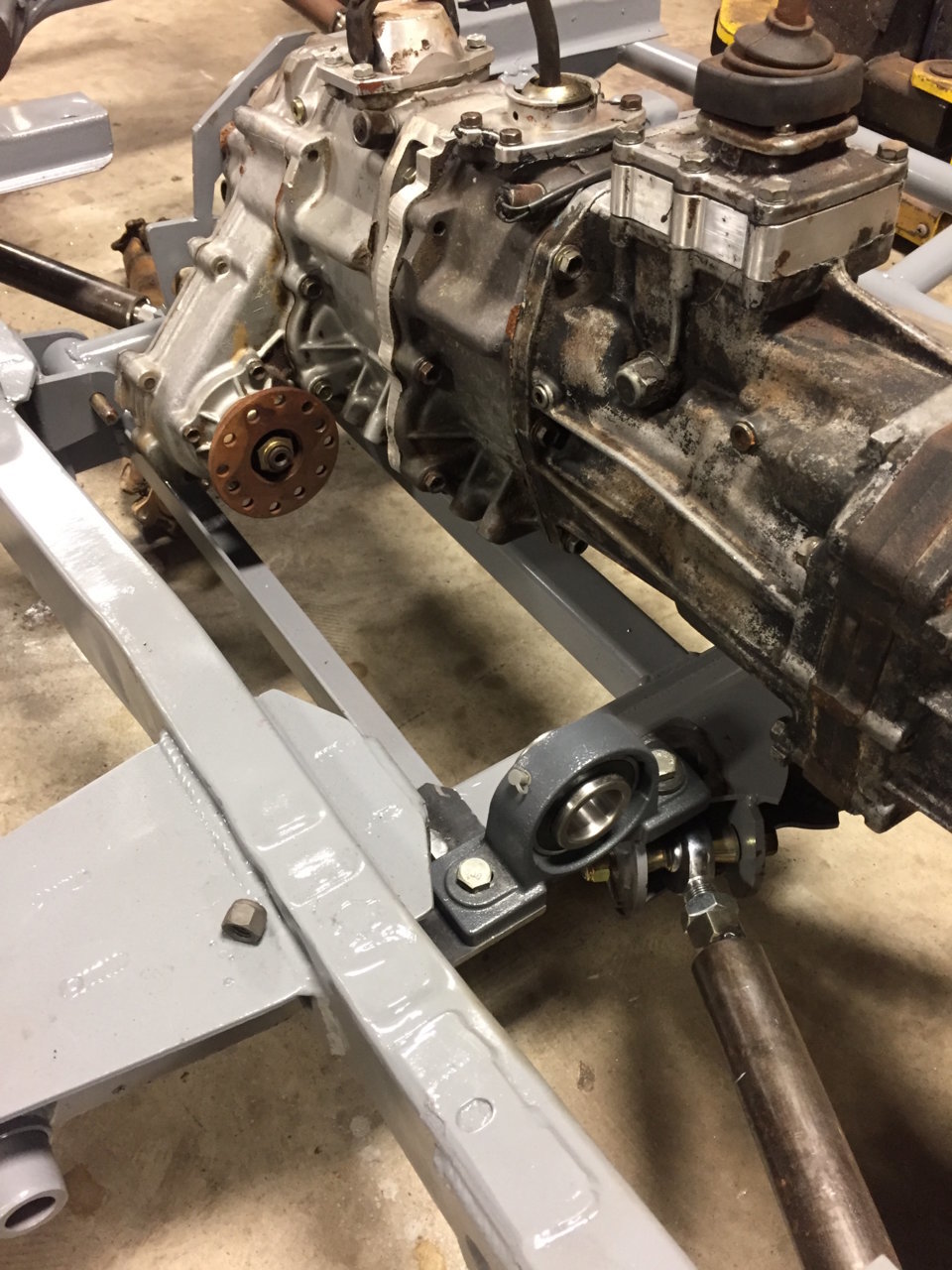

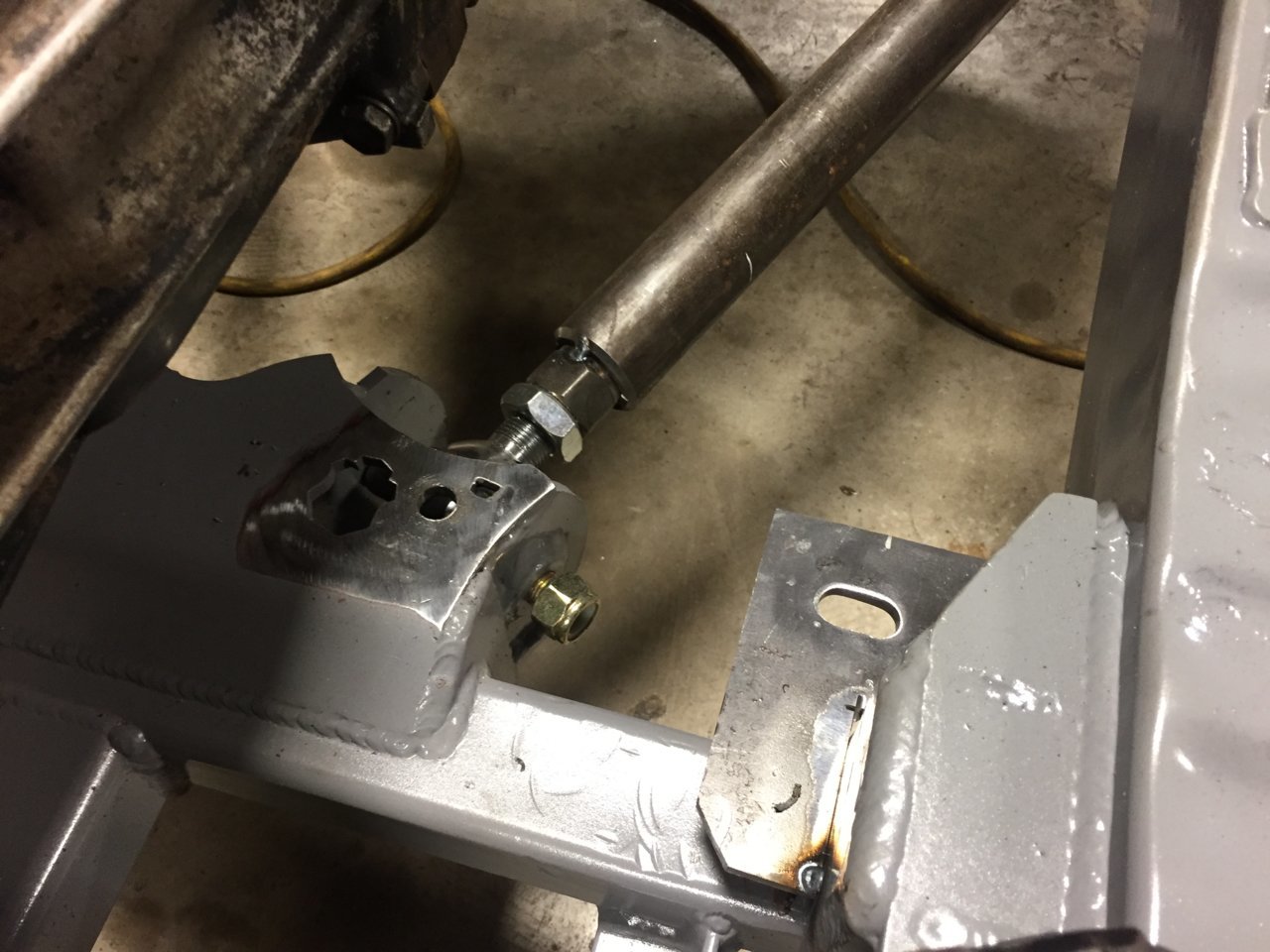

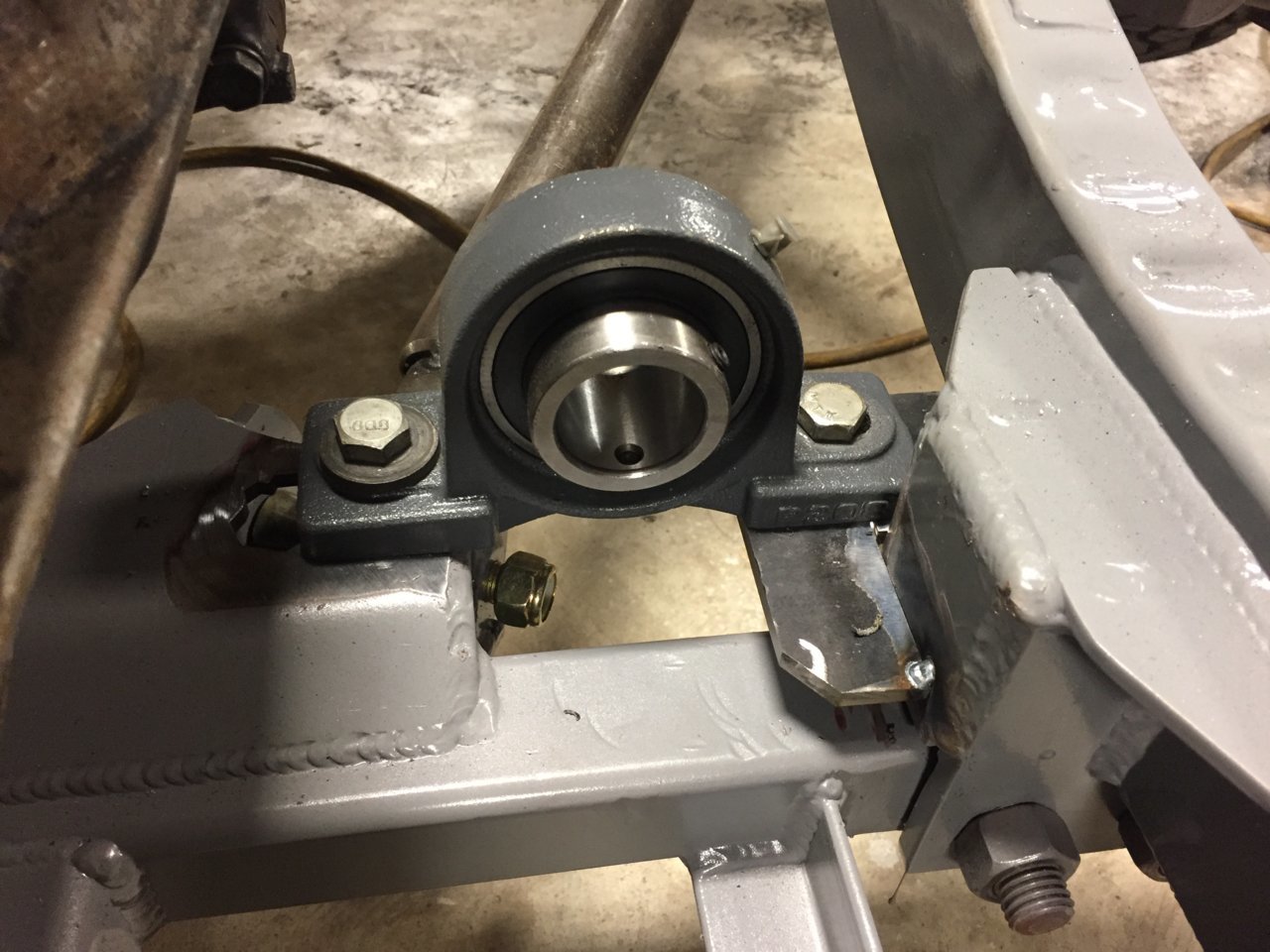

    The front driveshaft will ride on a carrier bearing to clear the new belly. Even without the belly there it would have needed a carrier bearing. That's a long ways from the front output to the axle.

    The driveshaft will just clear the lower at full bump.

    Photo Feb 26, 12 28 51 PM.jpg Photo Feb 26, 12 31 06 PM.jpg Photo Feb 26, 12 34 01 PM.jpg

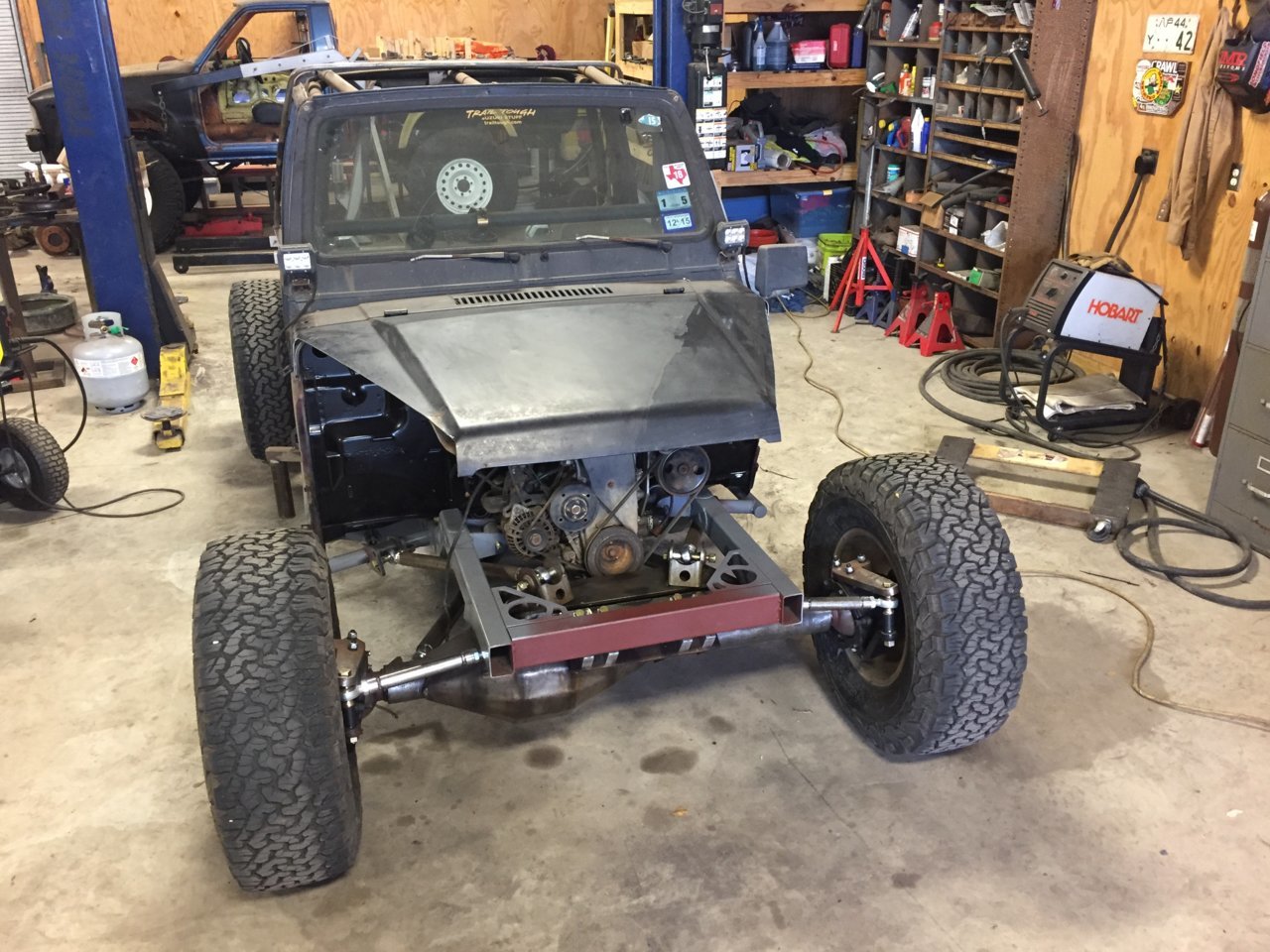

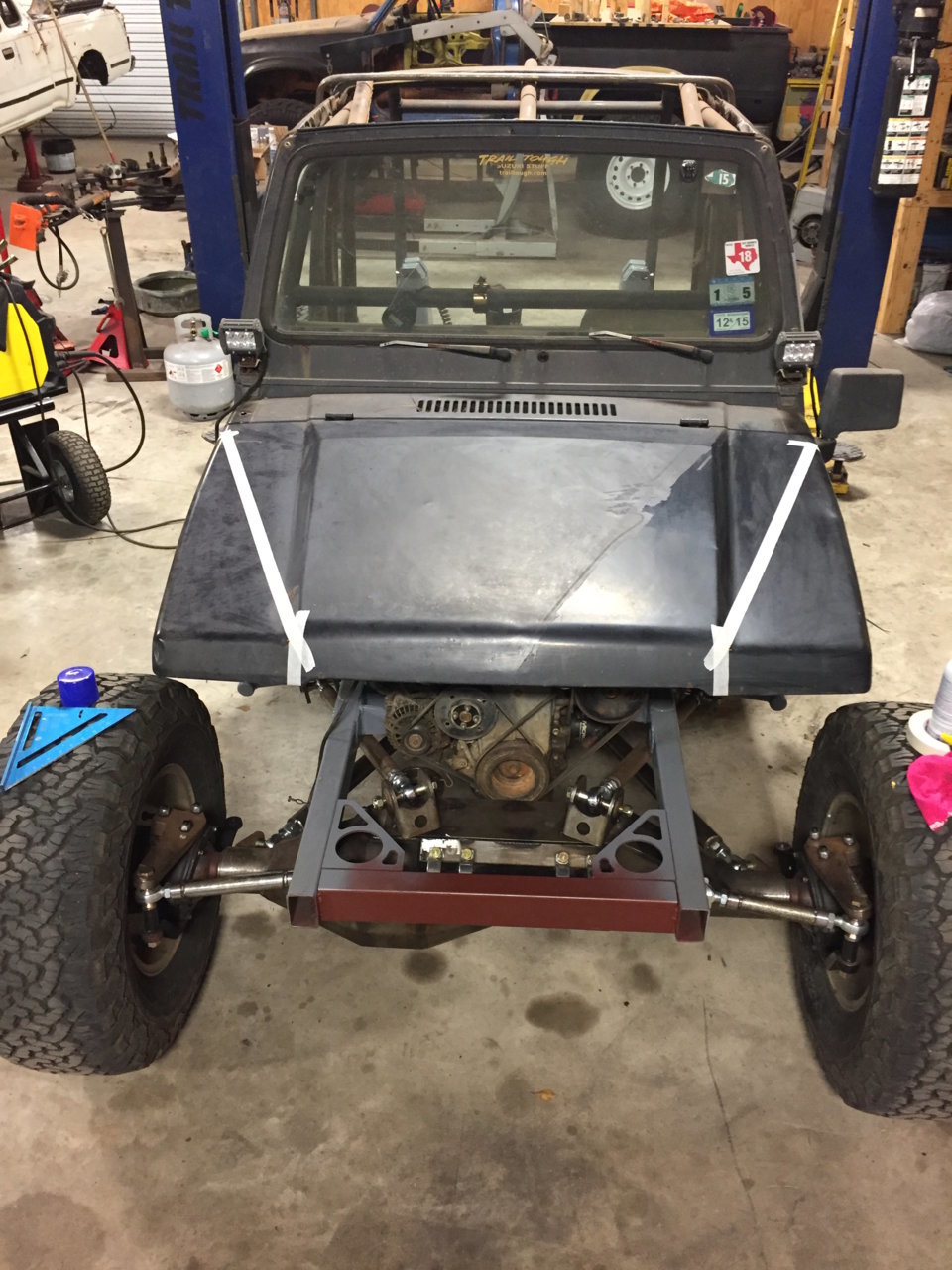

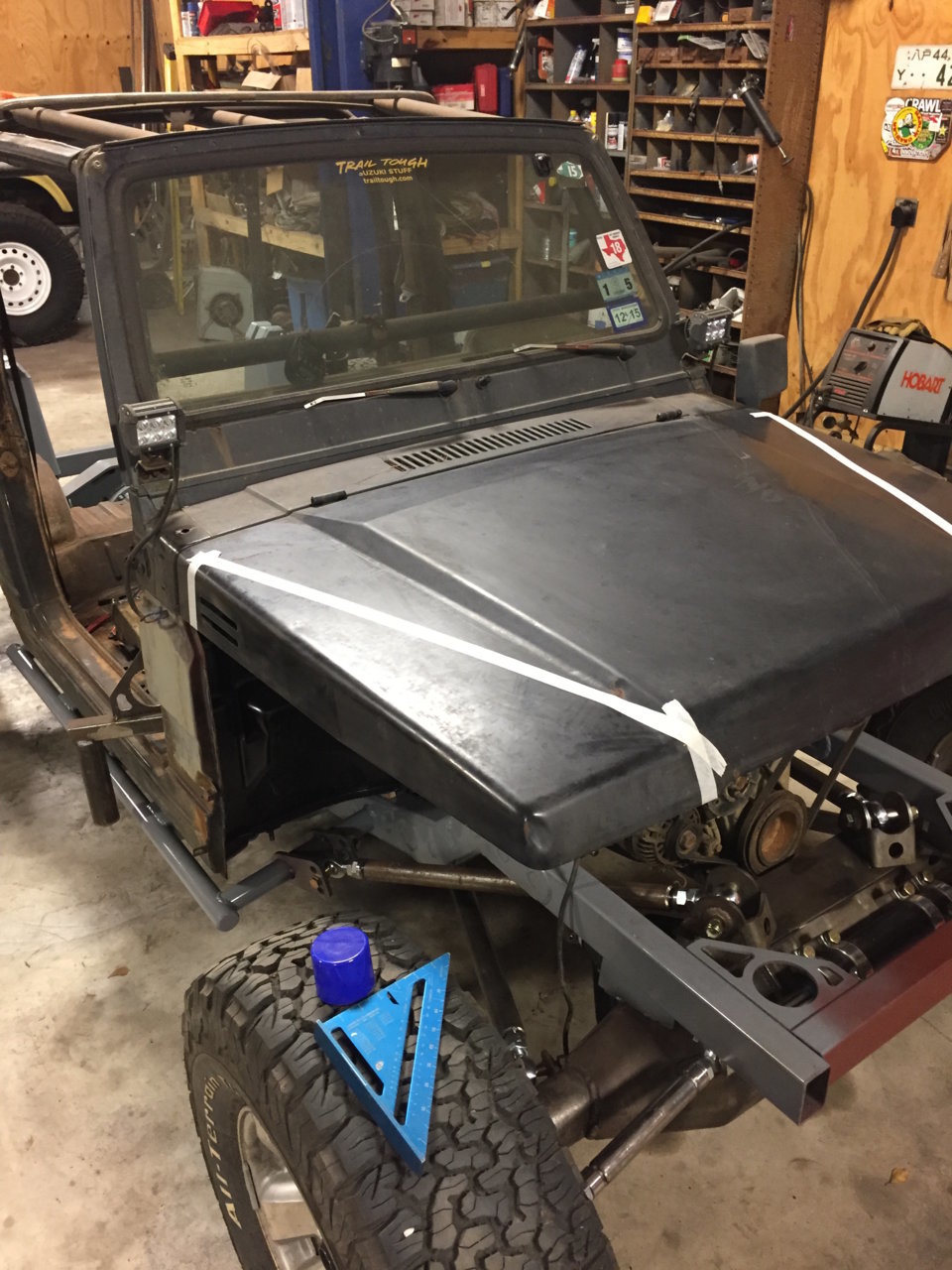

    I put the tub back on so I could start laying out the front clip. First things first though, that hood is way too wide for the tires and travel.

    Photo Feb 27, 10 42 40 AM.jpg Photo Feb 27, 10 42 57 AM.jpg Photo Feb 27, 11 15 06 AM.jpg

    bdbrown and Slashaar like this.
