PDF template for splash guard / fender liner thingies

Discussion in '1st Gen. Tacomas (1995-2004)' started by cazinpa, Feb 26, 2020.

  1. Feb 26, 2020 at 6:17 AM
    #1
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks

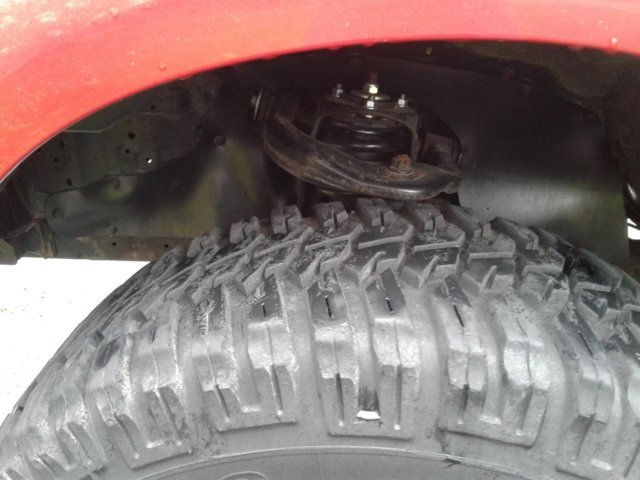

    A while back I made new inner fender liner gasket things because mine were pretty bad.

    I posted a template on my build thread, but no one ever goes there so I figured I should start a post here.

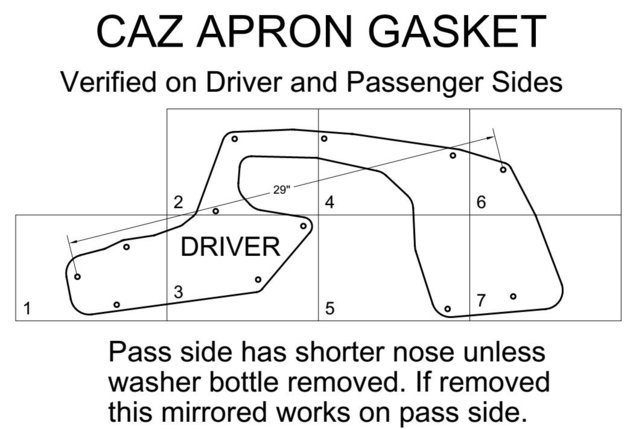

    I drew in CAD, printed out and tested with some foam underlayment stuff I had in the basement. After about 5 revisions, I came up with this design. It tucks in a littlecloser than the factory ones did - also extends to where the washer bottle used to be on the passenger side. If you still have the factory washer bottle you simply trim off the front.

    Attached is a zip file with all of the PDFs. You can print 1:1 on 8-1/2 x 11 sheets of paper and tape together to get a full sized template. CAD drawing also attached if you would like to build on my work.

    I found a sheet of rubber at the hardware store and cut them from that. It's held up fine for a few years now.

    Would love feedback if anyone tries it.





    Attached Files:

  2. Feb 26, 2020 at 7:30 AM
    #2
    billybop90

    billybop90 Well-Known Member

    Joined:
    Jun 5, 2019
    Member:
    #295522
    Messages:
    266
    Gender:
    Male
    First Name:
    Bill
    Black Hills SD
    Vehicle:
    1996 Taco, 2.7, 4WD, 5 spd
    Thats really cool, thank you.
    Just got the green beastie running again this month and this was just another item that needed to be serviced/replaced. Hopefully within the next 2/3 weeks I should have this done and will post results.

    cazinpa [OP] and cruiserguy like this.
  3. Feb 26, 2020 at 7:30 AM
    #3
    Icon_Adrian

    Icon_Adrian Well-Known Member Vendor

    Joined:
    Jan 10, 2018
    Member:
    #240838
    Messages:
    181
    Gender:
    Male
    First Name:
    Adrian
    Riverside CA
    Vehicle:
    2004 Tacoma Pre-Runner
    Icon Bypasses & Coilovers Long Travel Front & Rear Supercharged 3.4L
  4. Feb 26, 2020 at 9:56 AM
    #4
    2004Taco

    2004Taco Well-Known Member

    Joined:
    Sep 28, 2008
    Member:
    #9556
    Messages:
    851
    Gender:
    Male
    First Name:
    Luis
    Lakewood, CA
    Vehicle:
    04 Double Cab PreRunner SR5 Trd
  5. Feb 26, 2020 at 10:29 AM
    #5
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks
    jdmstuff and billybop90 like this.
  6. Feb 26, 2020 at 1:58 PM
    #6
    Actionjackson

    Actionjackson Well-Known Member

    Joined:
    Aug 21, 2014
    Member:
    #136623
    Messages:
    363
    Gender:
    Male
    First Name:
    Jack
    MA
    Vehicle:
    2004 Tacoma
    I got a set from rad rubber. All started ok but about 2 years later, they are all cracked up and falling apart. If you are gonna make these yourself, use some good quality epdm rubber or I once made a set out of PVC roofing membrane and they seemed to last. It is really important to have these in the rust belt......

    GQ7227 and tacoma_ca like this.
  7. Feb 26, 2020 at 3:50 PM
    #7
    wolfgang123

    wolfgang123 Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19369
    Messages:
    1,916
    Gender:
    Male
    First Name:
    Skyler
    Charlotte, NC
    Vehicle:
    1997 TACOMA - 4x4
    s
    same

  8. Feb 26, 2020 at 10:18 PM
    #8
    Tacotimer

    Tacotimer Shade tree mechanic in training

    Joined:
    Oct 21, 2019
    Member:
    #308654
    Messages:
    24
    Gender:
    Male
    First Name:
    Harry
    OR
    Vehicle:
    01 DC SR5 4x4
    Hey Thanks cazinpa! This is great! I wanted to make a template myself but I've got missing chunks in my splash guards. I'm gonna give your template a try. I'm hoping the pattern is the same for an 01 Taco.

    cazinpa [OP] likes this.
  9. Feb 26, 2020 at 11:57 PM
    #9
    CrippledOldMan

    CrippledOldMan Well-Known Member

    Joined:
    Jan 25, 2019
    Member:
    #280651
    Messages:
    1,168
    Gender:
    Male
    First Name:
    David
    Salisbury North Carolina
    Vehicle:
    2003 TRD Crew Cab
    None
    does anyone know the part number for the fastners. I've looked at the usual auto parts stores, and they don't have them.

  10. Feb 27, 2020 at 1:41 AM
    #10
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks
  11. Feb 27, 2020 at 5:35 AM
    #11
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    464
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    I bought a box of generic ones a year and a half ago that have held up perfectly since then. I'm home early next week and will edit this post with details then.

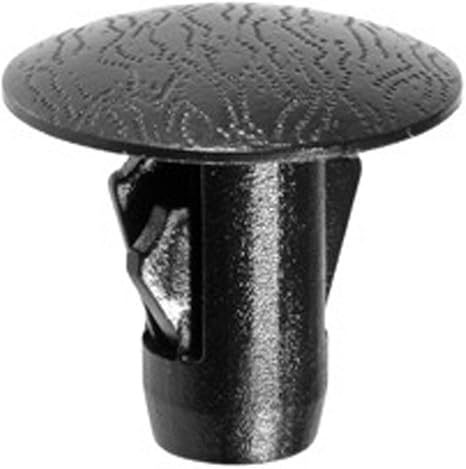

    The original nylon retainers for the fender seals are Toyota 90080-46327, I believe. I got a set of fifty generic ones by Auveco for $9 from Amazon (vendor clipsandfasteners) a couple of years ago and they worked perfectly.

    [​IMG]

    Last edited: Mar 1, 2020
    Hamer95USA and cazinpa [OP] like this.
  12. Feb 27, 2020 at 10:45 AM
    #12
    tacoma_ca

    tacoma_ca Well-Known Member

    Joined:
    Nov 7, 2019
    Member:
    #310111
    Messages:
    404
    Gender:
    Male
    First Name:
    b
    Santa Barbara, CA
    Vehicle:
    04 Taco Xcab SR5 2.7 4WD MT 240k mi

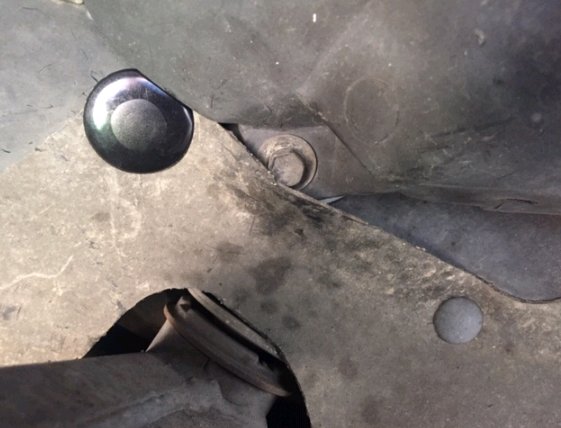

    I like these ones with a larger diameter head, they pop in perfectly



  13. Feb 28, 2020 at 1:55 PM
    #13
    OneWheelPeel

    OneWheelPeel Well-Known Member

    Joined:
    May 19, 2016
    Member:
    #187371
    Messages:
    2,232
    Oh these are money, thank you OP for freely sharing!

    I'll have to find the right type of rubber now.

  14. Mar 1, 2020 at 3:18 PM
    #14
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,142
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Any links for good quality rubber sheets?
    Or stores with makers name.
    Don’t want the thin layer stuff that tears easily.

  15. Mar 1, 2020 at 3:22 PM
    #15
    0xDEADBEEF

    0xDEADBEEF Segmentation Fault (Core Dumped)

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,484
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    I was looking at this, haven't tried it yet.

    https://www.amazon.com/dp/B01CGY40U...olid=1SGVDF9Q296E9&psc=1&ref_=lv_ov_lig_dp_it

    1997tacomav6 likes this.
  16. Mar 1, 2020 at 3:41 PM
    #16
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,142
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner

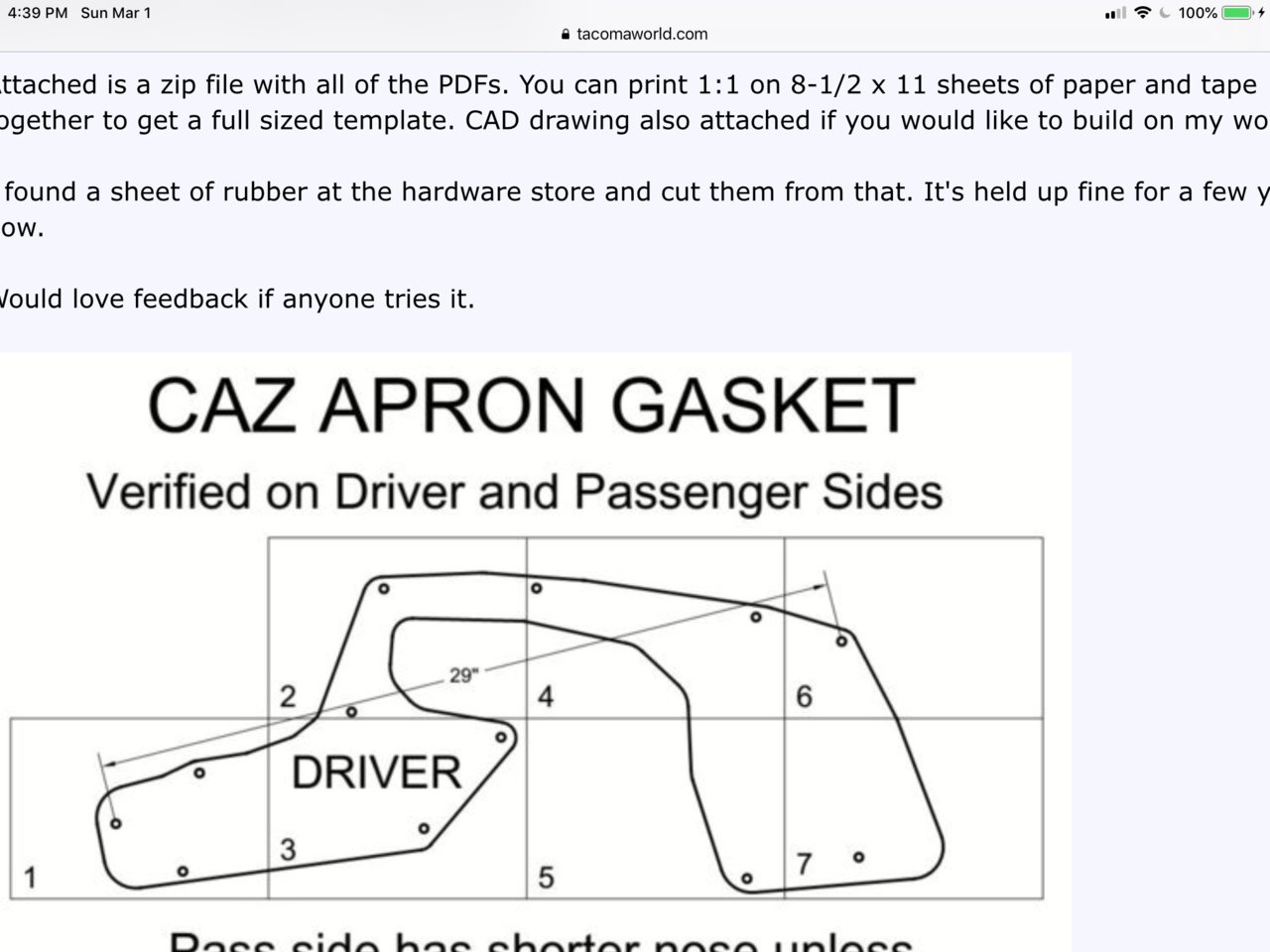

    If the sheets of paper are 8.5” on this diagram and there are two sheets needed, the one size would have to be close to 15” tho?


  17. Mar 1, 2020 at 4:14 PM
    #17
    0xDEADBEEF

    0xDEADBEEF Segmentation Fault (Core Dumped)

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,484
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Ah yeah, good catch. I bet they have bigger ones.

    Seems like something with a durometer in the 60-70 range would be good.

    1997tacomav6 likes this.
  18. Mar 1, 2020 at 5:56 PM
    #18
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    30,891
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    are the OEM sized ones adequate?

  19. Mar 1, 2020 at 6:27 PM
    #19
    tacoma_ca

    tacoma_ca Well-Known Member

    Joined:
    Nov 7, 2019
    Member:
    #310111
    Messages:
    404
    Gender:
    Male
    First Name:
    b
    Santa Barbara, CA
    Vehicle:
    04 Taco Xcab SR5 2.7 4WD MT 240k mi

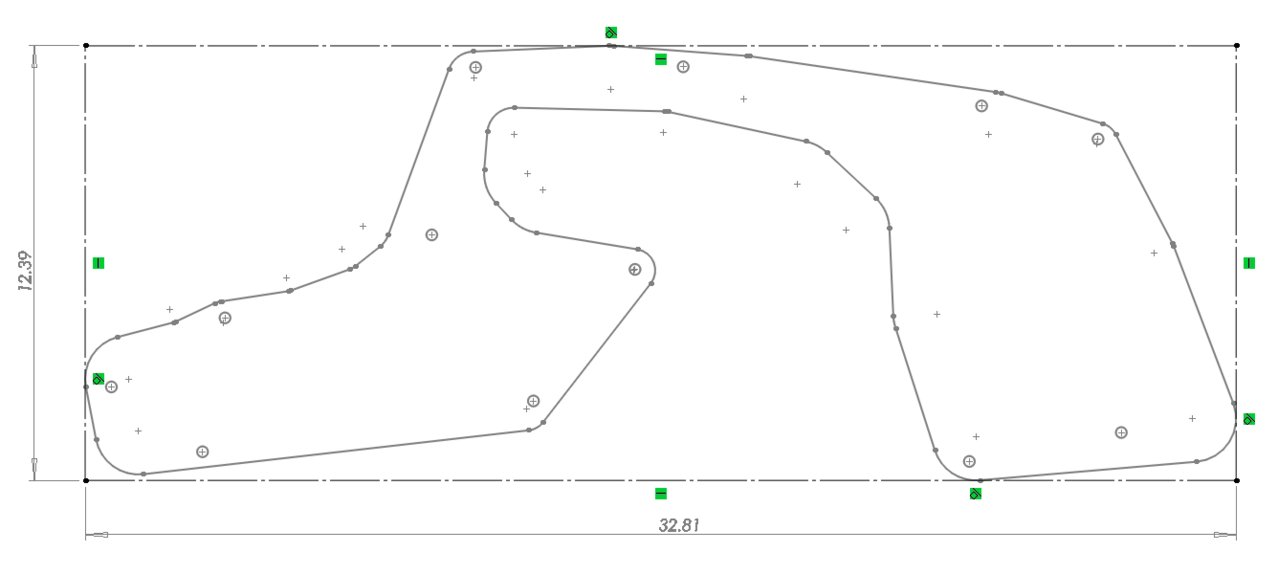

    Since OP was kind enough to post his .dwg file, below is a screenshot which indicates the minimum dimensions required to cut from a single rectangle. The dimension units are in inches.


    cruiserguy and 1997tacomav6 like this.
  20. Mar 1, 2020 at 6:35 PM
    #20
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,142
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    So I have king coils and struts that lift it 1.5” in the front.
    So I guessing I need a taller footprint?
