Discussion in '1st Gen. Tacomas (1995-2004)' started by cazinpa, Feb 26, 2020.

  1. Mar 1, 2020 at 6:37 PM
    #21
    tacoma_ca

    tacoma_ca Well-Known Member

    Joined:
    Nov 7, 2019
    Member:
    #310111
    Messages:
    404
    Gender:
    Male
    First Name:
    b
    Santa Barbara, CA
    Vehicle:
    04 Taco Xcab SR5 2.7 4WD MT 240k mi
    Edit: Don't use EPDM.

    Last edited: Mar 1, 2020
    0xDEADBEEF likes this.
  2. Mar 1, 2020 at 6:38 PM
    #22
    tacoma_ca

    tacoma_ca Well-Known Member

    Joined:
    Nov 7, 2019
    Member:
    #310111
    Messages:
    404
    Gender:
    Male
    First Name:
    b
    Santa Barbara, CA
    Vehicle:
    04 Taco Xcab SR5 2.7 4WD MT 240k mi
    LOL I need to get a set of Kings all around so I can check into that someday.

    cruiserguy and 1997tacomav6 like this.
  3. Mar 1, 2020 at 7:03 PM
    #23
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    464
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    That sounds *seriously* expensive, and EPDM is sensitive to oil and gasoline.

    I've bought a number of 5 x 7 sheets of checkerplate rubber from Costco for $99. I use it for workshop and garage shop flooring and to cut floormats. It's an approx 1/8" thick blend of SBR, nitrile, and natural rubber, which works well for what I've used it for but might not be best for fender seals due to likely oil and fuel sensitivity. But $2.83/ft2 is a lot better than $8.33/ft2 and checkerplate might be a nifty look.

    I also have some 1/8" rubber sheet drawer liner from Menard's that might work well. It seems to be a sheet bonded from grain-of-sand-sized pieces of recycled rubber. It's not available any longer, but there are other 1/8" sheets of drawer liner that might work, and at $0.78/ft2 the price is sure right.

  4. Mar 1, 2020 at 7:06 PM
    #24
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,142
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
  5. Mar 1, 2020 at 7:07 PM
    #25
    tacoma_ca

    tacoma_ca Well-Known Member

    Joined:
    Nov 7, 2019
    Member:
    #310111
    Messages:
    404
    Gender:
    Male
    First Name:
    b
    Santa Barbara, CA
    Vehicle:
    04 Taco Xcab SR5 2.7 4WD MT 240k mi
    Good call about EPDM being sensitive to hydrocarbons. Yep, bad idea, post edited. Thanks.

  6. Mar 1, 2020 at 10:30 PM
    #26
    jonesbt

    jonesbt Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63963
    Messages:
    354
    Gender:
    Male
    First Name:
    Brett
    Monroe, La
    Vehicle:
    01 3.4L DC PreRunner—>4WD
    TRD Headers TRD Supercharger Custom Cavalry Blue Paint
    I have a big roll of mass loaded vinyl. I wonder if it would hold up? Although using it for this application would seem like a waste of some really expensive material.

  7. Mar 2, 2020 at 2:57 AM
    #27
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks
    Looking on eBay it seems a lot of rubber is 12" wide. Maybe I can tweak it to fit a 12" material.

  8. Mar 2, 2020 at 3:00 AM
    #28
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks
    You shouldn't unless you have a body lift.

    If you want to try them without spending for rubber you can cut them from something else to test.

    I had a bunch of foam underlayment from a house flooring project that I used to check my dimensions.

    cruiserguy and 1997tacomav6 like this.
  9. Mar 2, 2020 at 7:22 AM
    #29
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    464
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    @cazinpa, my truck is a few states away this winter which prevents me from confirming the details, but IIRC, my 2003 DC 4WD TRD has three pieces in its fender seals. A big odd-shaped one like your template on the left, and two smaller, separate, pieces on the right.

    Any idea why Toyota used a two-piece seal? A different shape between the two sides doesn't seem needed. I'm assuming your dual-fit template has been tried for both sides on later 4WD Gen 1 trucks, yes?

    Left/driver side:
    [​IMG]

    Right/passenger side:
    [​IMG]

  10. Mar 2, 2020 at 7:28 AM
    #30
    cazinpa

    cazinpa [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204074
    Messages:
    412
    Gender:
    Male
    First Name:
    Andy
    Lancaster, PA
    Vehicle:
    '96 Tacoma
    A few tweaks
    My truck is a 96. I have not tried on anything else! My passenger side was a single piece and a mirror image of the driver's side.

    4xdog likes this.
  11. Mar 2, 2020 at 8:14 AM
    #31
    Gyrkin

    Gyrkin Well-Known Member

    Joined:
    Aug 16, 2017
    Member:
    #227041
    Messages:
    1,888
    Gender:
    Male
    First Name:
    Steve
    Wyoming
    Vehicle:
    2000 Tacoma TRD v6 5-speed
    You could use the rubber from a truck inner tube. It would be a little thin, but probably work fairly well. Less expensive than other options. Might even be able to get a used one from a tire shop for free.

  12. Mar 4, 2020 at 6:13 PM
    #32
    jdmstuff

    jdmstuff Well-Known Member

    Joined:
    May 23, 2018
    Member:
    #254364
    Messages:
    497
    Gender:
    Male
    First Name:
    Derrick
    Torrance, CA and Las Vegas, NV
    Vehicle:
    '18 TRD OR DCSB AT, '08 TRD Sport DCSB AT, '03 TRD 3.4l 4x4 MT Supercharged
    Thanks for this!

  13. Mar 23, 2020 at 5:42 AM
    #33
    mluckey

    mluckey Active Member

    Joined:
    Jan 22, 2014
    Member:
    #121233
    Messages:
    38
    Gender:
    Male
    Arkansas
    Vehicle:
    2004 AND 2003 2.7L Tacoma PreRunner, AT, Ext. Cab
    billybop90 and 1997tacomav6 like this.
  14. Mar 23, 2020 at 3:17 PM
    #34
    trdracing5

    trdracing5 Well-Known Member

    Joined:
    Dec 23, 2007
    Member:
    #3944
    Messages:
    876
    Gender:
    Male
    Elizabeth City, NC
    Vehicle:
    2003 Tacoma SR5
    I used Dorman 963-017D clips to hold my splash shield on.
    IMO they work better than the Toyota ones plus they are readily available at any auto parts store.

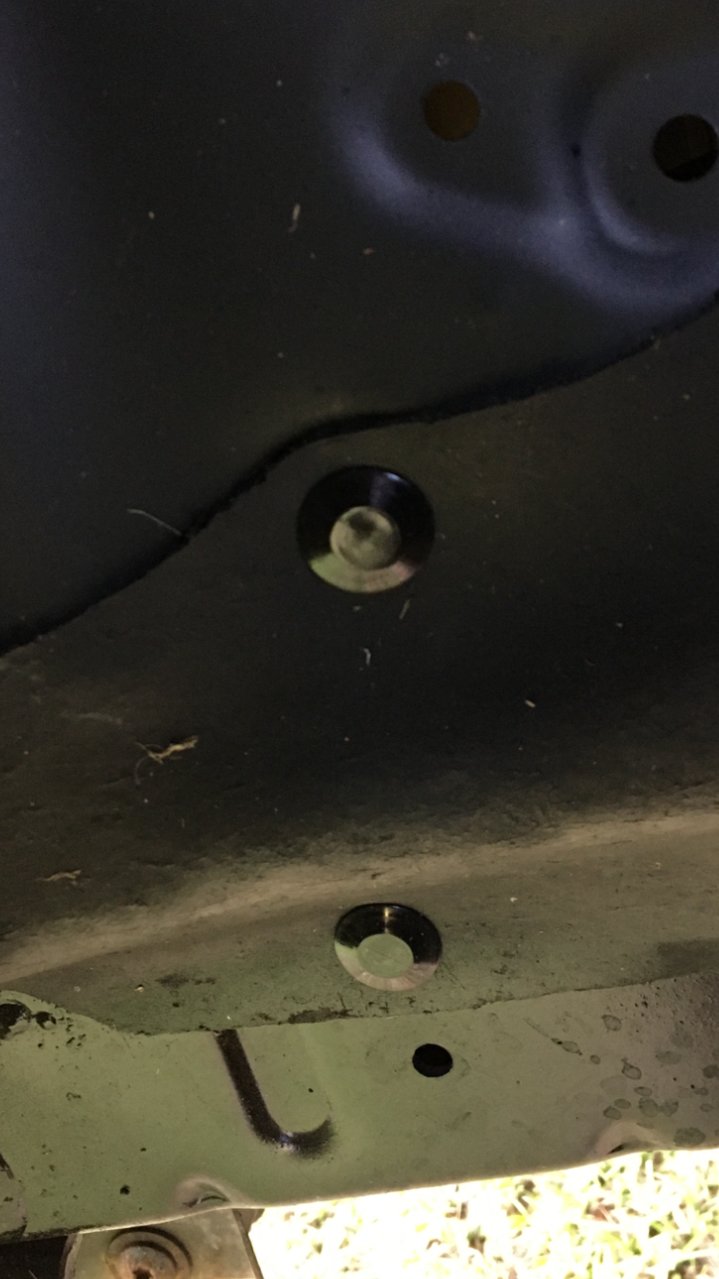

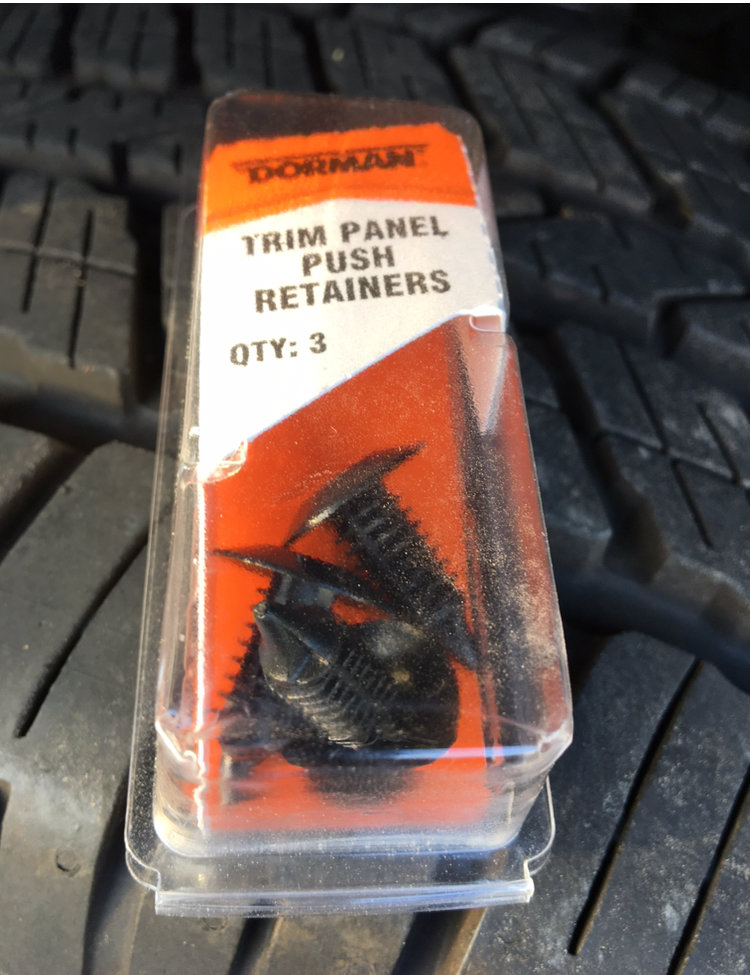

    Dorman.jpg Dorman 2.jpg

    1997tacomav6 and Gyrkin like this.
