Performance upgrades for the 2tr-fe

Discussion in '4 Cylinder' started by Joe Batters, Jun 1, 2014.

  1. Jun 1, 2014 at 11:01 PM
    #1
    Joe Batters

    Joe Batters [OP] Active Member

    Joined:
    May 31, 2014
    Member:
    #130972
    Messages:
    43
    Gender:
    Male
    Hey guys, I was wondering what performance upgrades are available for the 2tr-fe motor?

    I know so far:

    lce header

    Volant CAI (Though I've read a high flow drop in with removing the secondary as good as the volant?)

    Tooter manifold spacer

    various catback exhaust systems (Can anyone recommenced one?) I have a reg cab and have seen Gibson, Jardine, proflow, and magnaflow.

    URD s/c kit

    Are there any more mods available to us 4cyl guys or is that about it?

    Thanks

    JB

    Last edited: Jun 1, 2014
  2. Jun 2, 2014 at 2:54 AM
    #2
    TacoMitch93

    TacoMitch93 Tasty Taco

    Joined:
    May 25, 2014
    Member:
    #130530
    Messages:
    1,852
    Gender:
    Male
    First Name:
    Mitch
    Nova Scotia, Canada eh
    Vehicle:
    09 Tacoma SR5
    Modified aFe exhaust, OME 885 coils, OME Nitrocharger front and rear, Dakar leafs, LR UCA's, diff breather relocate, secondary air filter removed, aFe Pro DRY filter, LCE Pro performance clutch, 48 inch Hi-Lift mounted in bed.
    I've been looking around and I haven't found a whole lot.. I guess the way people see it is if you're looking for power why not just start with the bigger engine? Someone needs to help out the 4cyl guys haha

  3. Jun 2, 2014 at 3:25 AM
    #3
    SVHANC

    SVHANC Kermit

    Joined:
    Aug 8, 2009
    Member:
    #20817
    Messages:
    166
    Gender:
    Male
    First Name:
    Sam
    Knoxville, TN
    Vehicle:
    '10 4x4 5sp 4cyl Access Cab
    Weathertech Floor Liners, Scangauge 2, Tailgate Hose Clamp, Rear Seat Headrests Removed
    The most cost-effective upgrade is a trade-in for a 6cyl.
    Most of the performance upgrades give you more torque/hp lower in the rpm range, but don't change the total much. That means more useable power, but still not 6cyl.

    I am satisfied with the 4cyl as I have it (LCE+AFE), but if a diesel came out I would probably upgrade.

  4. Jun 2, 2014 at 3:54 AM
    #4
    TacoMitch93

    TacoMitch93 Tasty Taco

    Joined:
    May 25, 2014
    Member:
    #130530
    Messages:
    1,852
    Gender:
    Male
    First Name:
    Mitch
    Nova Scotia, Canada eh
    Vehicle:
    09 Tacoma SR5
    Modified aFe exhaust, OME 885 coils, OME Nitrocharger front and rear, Dakar leafs, LR UCA's, diff breather relocate, secondary air filter removed, aFe Pro DRY filter, LCE Pro performance clutch, 48 inch Hi-Lift mounted in bed.
    LCE AFE? do you mind explaining that to me?

  5. Jun 2, 2014 at 8:36 AM
    #5
    GEORGE STRAIT

    GEORGE STRAIT (Not the real George Strait)

    Joined:
    May 21, 2012
    Member:
    #79239
    Messages:
    1,750
    Gender:
    Male
    First Name:
    Mike
    Da Magic City, AL
    Vehicle:
    Smart Fortwo '10 Hybrid
    Lce header & AFE drop-in/CAI whichever he has

  6. Jun 2, 2014 at 8:55 AM
    #6
    TacoMitch93

    TacoMitch93 Tasty Taco

    Joined:
    May 25, 2014
    Member:
    #130530
    Messages:
    1,852
    Gender:
    Male
    First Name:
    Mitch
    Nova Scotia, Canada eh
    Vehicle:
    09 Tacoma SR5
    Modified aFe exhaust, OME 885 coils, OME Nitrocharger front and rear, Dakar leafs, LR UCA's, diff breather relocate, secondary air filter removed, aFe Pro DRY filter, LCE Pro performance clutch, 48 inch Hi-Lift mounted in bed.
    ah, thanks!

  7. Jun 2, 2014 at 9:00 AM
    #7
    GEORGE STRAIT

    GEORGE STRAIT (Not the real George Strait)

    Joined:
    May 21, 2012
    Member:
    #79239
    Messages:
    1,750
    Gender:
    Male
    First Name:
    Mike
    Da Magic City, AL
    Vehicle:
    Smart Fortwo '10 Hybrid
    I've had 2 4cyls. The first one I pretty much had everything possible to try and increase power. In all honesty, I would really only recommend a drop-in filter like AFE or K&N, and the LCE header. The tooter spacer would probably be good too since it drops the torque curve slightly, but I never had it. I wouldn't waste your time with CAI's or exhaust. I had both-- the CAI seemed to make me lose low end power and the exhaust did not add anything other than a headache in the cab from the reverberation.

  8. Jun 2, 2014 at 9:04 AM
    #8
    TacoMitch93

    TacoMitch93 Tasty Taco

    Joined:
    May 25, 2014
    Member:
    #130530
    Messages:
    1,852
    Gender:
    Male
    First Name:
    Mitch
    Nova Scotia, Canada eh
    Vehicle:
    09 Tacoma SR5
    Modified aFe exhaust, OME 885 coils, OME Nitrocharger front and rear, Dakar leafs, LR UCA's, diff breather relocate, secondary air filter removed, aFe Pro DRY filter, LCE Pro performance clutch, 48 inch Hi-Lift mounted in bed.
    I've been looking for something to give it a little more balls. I wasn't planning on adding a buttload of add-ons to it, I still want it to be reliable and not a headache to drive where its my daily driver. I looked up the LCE header and it looks pretty decent, I'll have to invest in one.

  9. Jun 2, 2014 at 9:37 AM
    #9
    tooter

    tooter play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,393
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    You about covered everything as far as parts, except opening up your exhaust with an aftermarket catback will likely decrease low end torque in exchange for a little more top end horsepower. The 2TR is such a slow turning "industrial" engine, that works against it more than in its favor. I had a custom catback exhaust installed, but I had the mandrel bent exhaust pipe sized slightly smaller than the stock diameter to compensate for the more free flowing straight through muffler. It worked great as the engine retained its low end torque while adding a nice mellow sound.

    [​IMG]

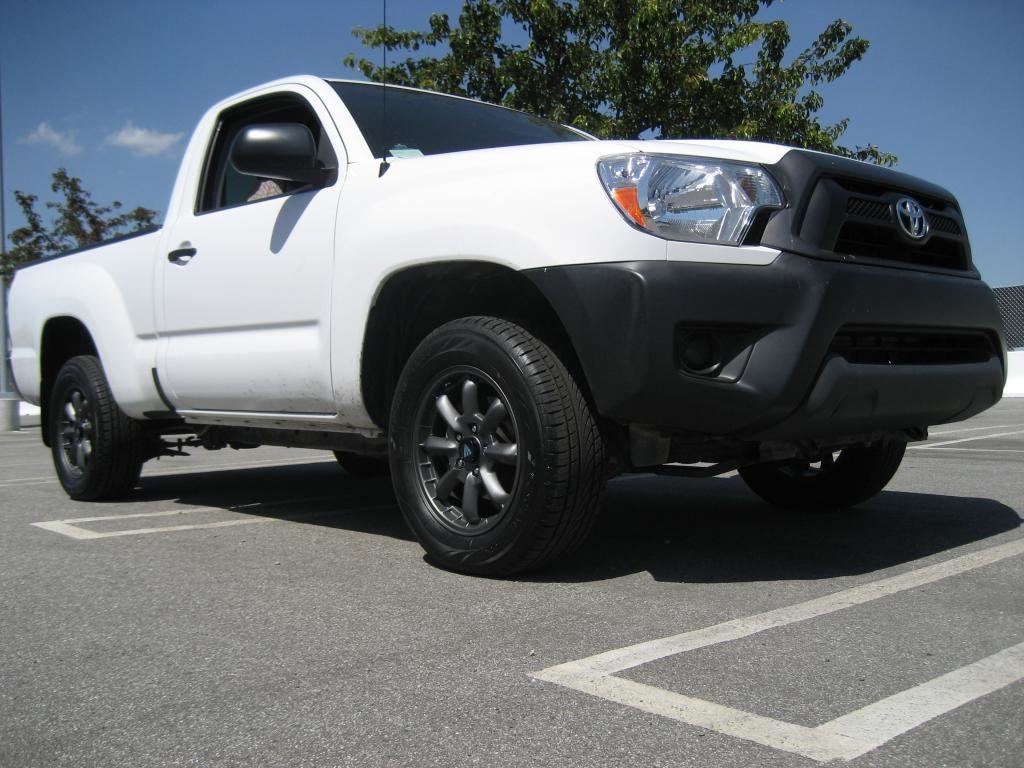

    I found that wheels can help. I run lightweight alloy 16 inch wheels on my 5 lug street taco with wide low profile smooth riding 235/60 passenger car tires that are exactly the same diameter as stock.

    [​IMG]

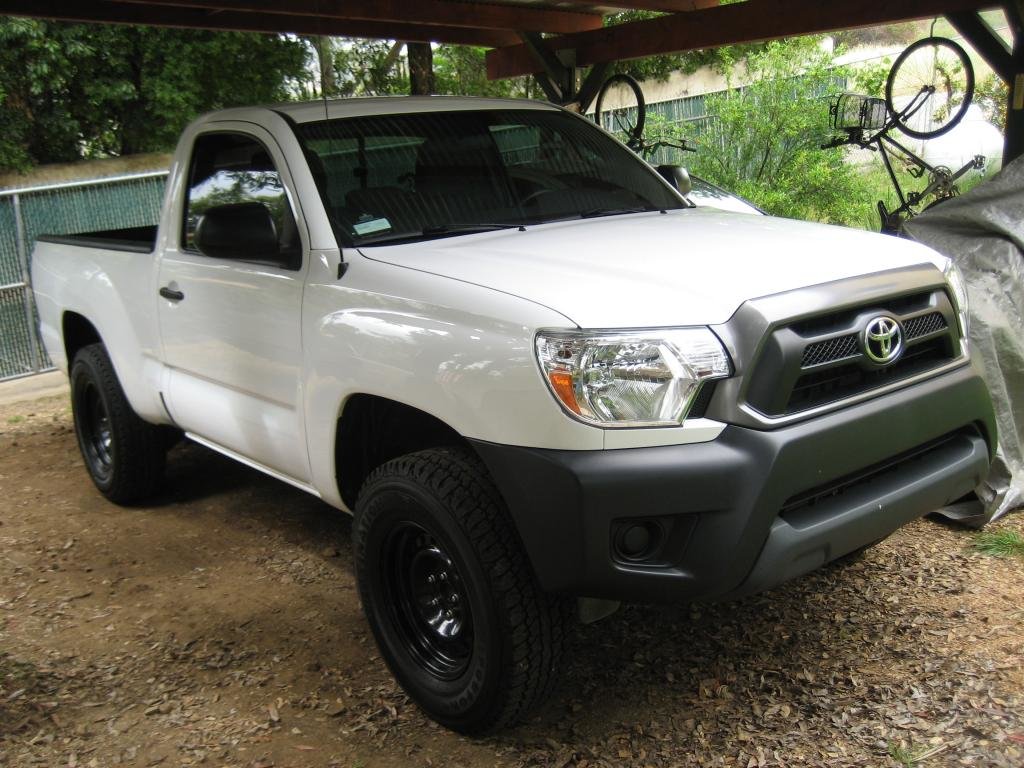

    I had heavy 245/75 off road tires on even heavier 16 inch steel Tundra wheels, and my truck was a DOG. Man, was the engine sluggish.

    [​IMG]

    Putting heavy large diameter aggressive tread off road tires really saps the little engine's power not only with the increased rotating weight, but gears the engine higher making it work harder. A solution to that is to change the final gearing to compensate for the larger diameter tires.

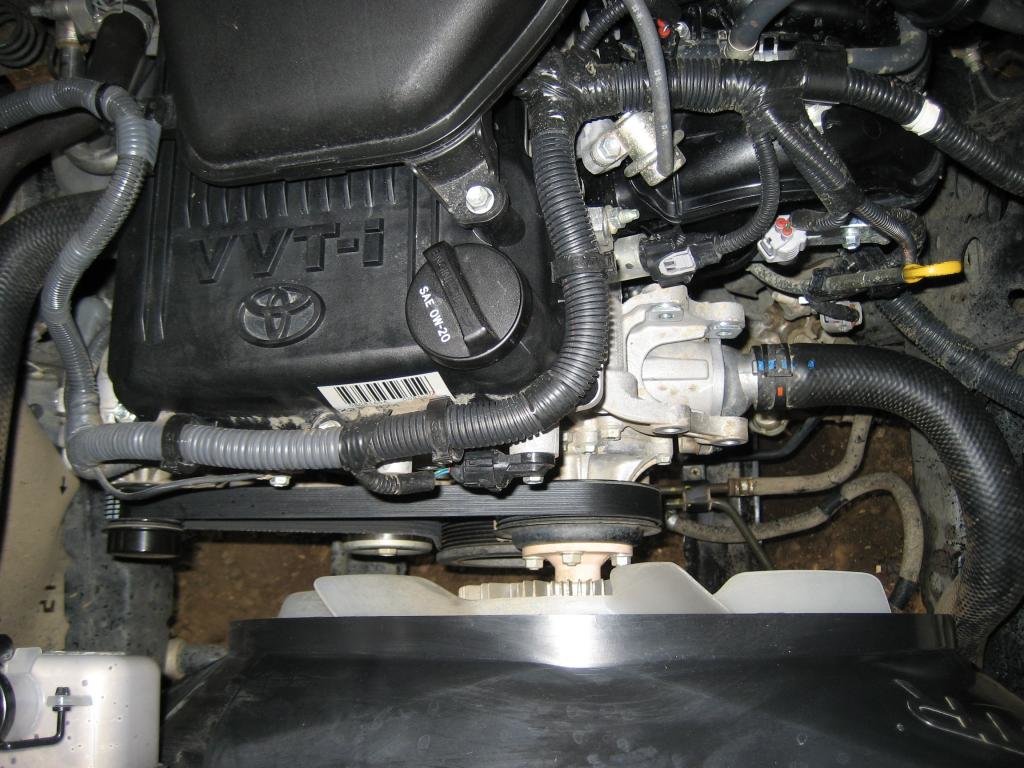

    I also did another very uncommon mod by removing the air conditioning, the power steering, and a bunch of pulleys. Now just a short simple belt only runs the alternator and the water pump.

    [​IMG]

    So these are all of my mods:

    1. Injen warm air intake
    2. LCE long tube header
    3. tooter intake manifold spacer
    4. MagnaFlow muffler with small pipe
    5. alloy wheels and street tires
    6. no air conditioning
    7. no power steering

    I dyno tested the engine exactly as listed above, and it made +18HP and +27FTLB more than bone stock. This is how it runs...

    https://www.youtube.com/watch?v=hvIBURPwtXw

    I'm totally satisfied with the results. The truck is peppy and responsive even though it's always fully loaded with tools and material for work.:)

    Greg

    Last edited: Jun 2, 2014
  10. Jun 2, 2014 at 5:16 PM
    #10
    Joe Batters

    Joe Batters [OP] Active Member

    Joined:
    May 31, 2014
    Member:
    #130972
    Messages:
    43
    Gender:
    Male
    Tooter,

    Since all aftermarket catback systems have a larger than stock diameter piping, would welding a muffler in place with the stock piping yield anything besides sound?

  11. Jun 2, 2014 at 6:18 PM
    #11
    tooter

    tooter play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,393
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    That might depend on the muffler...
    I first tried an 18 inch Magnaflow muffler with the stock exhaust. The straight through muffler reduced the low end torque at low rpms where I want the most pull (idle to 2,000 rpm) where even the stock exhaust is underutilized, so opening it up with just a straight through muffler only made things worse on the low end even if it helped the flow at the top end.

    I tried again with a huge straight through 22 inch long 5x11 inch oval MagnaFlow muffler, with a smaller than stock 2 1/4 inch diameter mandrel bent exhaust pipe (stock tubing is metric 2 3/8 inch diameter), because I wanted a nice deep mellow sound without reducing the backpressure at low rpms, and this combination worked out just fine. This is how it sounds outside the truck.

    https://www.youtube.com/watch?v=e2X9wPQE2Zw

    I'm also considering ditching the mechanical fan altogether and replacing it with an electric Flex A Lite fan to free up a little more engine power.

    [​IMG]

    Last edited: Jun 2, 2014
  12. Jun 3, 2014 at 9:23 AM
    #12
    Mr. Pick

    Mr. Pick Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81609
    Messages:
    129
    Gender:
    Male
    Middle TN
    Vehicle:
    '12 AC, SR5, 2.7L, Auto
    Electric fan will no doubt help. I've always wondered why car manufacturers haven't also gone to electric water pumps. Not only do they save HP, they also can run after you shut the engine off for additional cooling, if needed, and they run the water at the constant, optimal velocity when the t'stat is wide open. I always used electic water pumps when I was drag racing. Maybe there's a concern with reliability?
