Pics of 2nd gen TRD Supercharger intercooler and pump location?

Discussion in 'Performance and Tuning' started by MadToy, Jun 20, 2012.

  1. Jun 20, 2012 at 6:33 AM
    #1
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Been searching for 2 days now to try and find a front end pic of the setup without the grill installed on a 2nd gen. Does anyone have, or know where I can find a pic? I'm wanting to pull the trigger, but don't know if the intercooler and pump will be in the way of my undercover winch or not.

    Thanks for any help!

  2. Jun 20, 2012 at 10:35 AM
    #2
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    I had the same problem. I just did mine last weekend, I went to Pep boys and got some coolant hose, male/male connectors, and hose clamps. Then I mounted it UNDER my winch mount. You want to mount it at the lowest point of the cooling system so that no air bubbles get caught in it.

    It literally took me like 30 minutes. Just clamp off the hoses a few inches from the pump so that you don't have to drain the whole system. Then disconnect the pump and relocate. Attach the new hoses and connect them to the old hoses. DONE.

  3. Jun 20, 2012 at 10:48 AM
    #3
    spithead051

    spithead051 Well-Known Member

    Joined:
    Jun 16, 2011
    Member:
    #58359
    Messages:
    719
    Gender:
    Male
    First Name:
    Patrick
    Fairfax, VA
    Vehicle:
    09 AC 4x4 OR S/C'ed!
    Supercharger, OME Lift Kit, TRD T/X Pro Wheels, 255/85/R16 BFG MT KM2's, APEX three hoop bumper, Allpro IFS skid, All-Pro Sliders, Dynomax exhaust, aFe Stage 2 si, Oil pressure, oil temperature, boost, A/F ratio gauges, Devil horns, WO seat covers
    ^^ What he said

    I'll try to get a picture of my setup tonight but it is a pretty tight fit and you may want to just custom mount the intercooler lower in the bumper.

  4. Jun 20, 2012 at 10:50 AM
    #4
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Thanks! Do you have the tow package with the tranny cooler? I'm also wondering if there is anything to consider with that and the intercooler?

  5. Jun 20, 2012 at 10:55 AM
    #5
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    I do have the tow package but no transmission cooler because I am a 6 spd.

    One thing I have have found with the intercooler is that is clogs very easy with dust and blocks air from the A/C condenser and radiator so I would routinely clean it out. Just a FYI.

  6. Jun 20, 2012 at 10:59 AM
    #6
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Ah - thanks for the heads up. I actually read your entire thread about the cooling yesterday, and bookmarked it for future reference :)

  7. Jun 20, 2012 at 12:30 PM
    #7
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Well - I pulled the trigger. Now to decide if I want to install it myself or not.

    I do have another question though. I see where it states you can install yourself, then drive conservatively to the dealer for the reflash. Would it also be possible to have the reflash done first, then drive home and do the install?

  8. Jun 20, 2012 at 7:45 PM
    #8
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    Not sure about that. I know you can drive it for a while without the supercharger spinning because I have snapped a belt before and limped the truck for about 15 miles. Don't see what the difference is.

    Either which way you do it, be easy and keep it as low RPM's as you can.

  9. Jun 20, 2012 at 11:36 PM
    #9
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    913
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    No reflash has to be done after. The fuel and timing control will be way off with the stock injectors. I did mine myself then drove it to the dealer. It will just run super rich before the reflash is done.

  10. Jun 21, 2012 at 5:32 AM
    #10
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Well - I got screwed on Ebay. Did the buy it now option, went through the process - then the seller emails me and tells me the unit was sold already. So back to looking for a deal.

    Thanks for all the info!

  11. Jun 21, 2012 at 6:43 AM
    #11
    extremachn1

    extremachn1 I am an asshole, deal with it!

    Joined:
    Jun 21, 2010
    Member:
    #39291
    Messages:
    2,536
    Gender:
    Male
    First Name:
    Turd Furgison
    Tucson, AZ
    Vehicle:
    BAD ASS SUPERCHARGED BEAST
    TRD S/C, TRD quick shifter, AFE CAI, Magnaflow cat back exhaust, Fox racing shocks, TC UCA, All-pro expo leafs, Bestop soft top, Wet Okole black seat covers, Scan gauge II.
    I hope you reported them and you get your money back if you paid!!!

  12. Jun 21, 2012 at 6:59 AM
    #12
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Luckily I didn't pay. I sent a message to get the total with shipping, and he responded letting me know it was sold already.

    I really need to find one soon though. Need more towing power.

  13. Jun 21, 2012 at 11:01 AM
    #13
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB

    I was actually about to ask that question myself. Sorry to hear it didn't work out. Keep your eyes open and check frequently. Something will turn up!

  14. Jun 21, 2012 at 11:16 AM
    #14
    SuperTacoma11

    SuperTacoma11 Member

    Joined:
    Mar 2, 2011
    Member:
    #52151
    Messages:
    5
    Gender:
    Male
    First Name:
    Kevin
    Mesa, AZ.
    Vehicle:
    2011 Supercharged DC 4x4
    TRD Supercharger, TRD Exhaust, AFE Pro-Dry Filter, OME 885's, Bilstein 5100's, Fabtech AAL, 17" XD Revolvers, BFGoodrich All Terrain KO's 285/70/17
    Not sure what you were going to pay on EBay. TRDparts4U has them for about 3890. I had my local dealer price match and install it for $400 plus tax. But I went that route to keep it covered under my powertrain warranty.

  15. Jun 21, 2012 at 6:14 PM
    #15
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    $3295 with the fit kit. TRDparts4U is where I'll most likely get it, unless the dealer can match. Seems most dealers are around the $1k mark for the install, so $400 is definitely a bargain. I'd prefer the dealer to do it, but not for $1k, as I know I can do it in a day and save that money. Although it's nice to have the warranty with it. If they can do it for $600 or less, I'd definitely let them do it.

  16. Jun 29, 2012 at 10:29 PM
    #16
    wtbthree

    wtbthree Give 'er

    Joined:
    Apr 17, 2010
    Member:
    #35496
    Messages:
    595
    Gender:
    Male
    First Name:
    Will
    Colorado Springs, CO
    Vehicle:
    SC'ed 2010 DC
    3" Revtek lift, 17" FJ rims, 285 BFG KO's, sunroof, TRD piping, Wickedflow muffler, Avid step rails TRD supercharger,
    Let me know if you still want a pic of the intercooler location - I can snap a pic in the AM

  17. Jun 30, 2012 at 4:29 AM
    #17
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Definitely! Thanks.....

  18. Jun 30, 2012 at 12:08 PM
    #18
    wtbthree

    wtbthree Give 'er

    Joined:
    Apr 17, 2010
    Member:
    #35496
    Messages:
    595
    Gender:
    Male
    First Name:
    Will
    Colorado Springs, CO
    Vehicle:
    SC'ed 2010 DC
    3" Revtek lift, 17" FJ rims, 285 BFG KO's, sunroof, TRD piping, Wickedflow muffler, Avid step rails TRD supercharger,

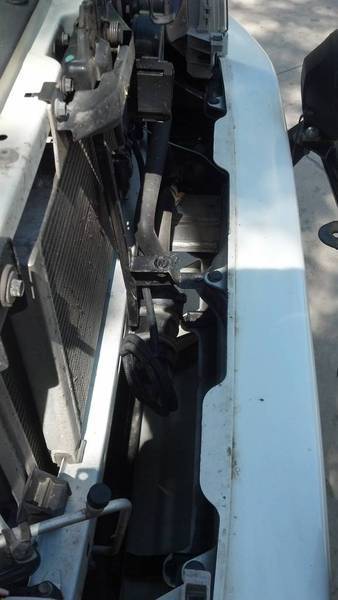

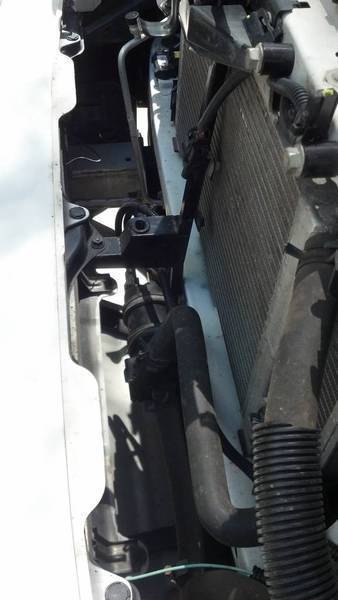

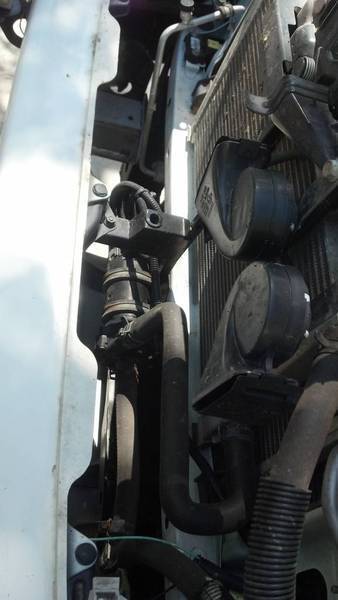

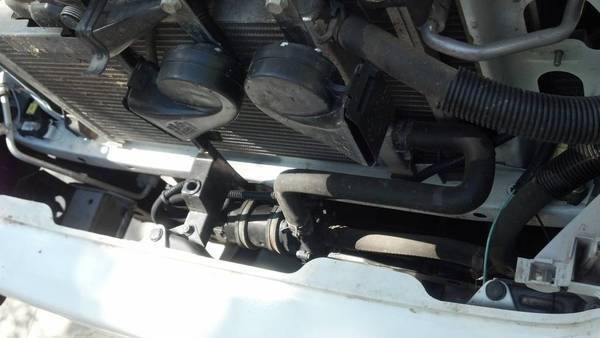

    This should give you a look at how the intercooler and pump are set up. If you want a wider shot, lemme know...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  19. Jun 30, 2012 at 5:35 PM
    #19
    MadToy

    MadToy [OP] Well-Known Member

    Joined:
    Nov 19, 2011
    Member:
    #67334
    Messages:
    822
    Gender:
    Male
    First Name:
    Nick
    Huntersville, NC
    Vehicle:
    07 Midnight Blue TRD
    OME 886, Dakar leafs, LR UCA's, 16x8.5 Level 8 ZX, 315 MTR Kevlar, All-Pro sliders, BudBuilt skids, Undercoverhwms winch mount, Warn M8000 with synthetic rope, ATO Hi-Lift bed mounts, Diff locker override, Hitch harness relocated to bumper, Undercover bed cover, Gromm Aux adapter, Grillcraft grill, DT pipe bombs, Custom Magnaflow exhaust, Brute Force HC bumper, TRD Supercharger
    Thank you very much! Those shots show exactly what I needed to see. Intercooler won't be a problem. I'll have to relocate the pump though, as that's right where my winch is.

  20. Jun 30, 2012 at 9:15 PM
    #20
    wtbthree

    wtbthree Give 'er

    Joined:
    Apr 17, 2010
    Member:
    #35496
    Messages:
    595
    Gender:
    Male
    First Name:
    Will
    Colorado Springs, CO
    Vehicle:
    SC'ed 2010 DC
    3" Revtek lift, 17" FJ rims, 285 BFG KO's, sunroof, TRD piping, Wickedflow muffler, Avid step rails TRD supercharger,
    No prob, man. curious where you'll move it....that's also where people relocate their horns after a satoshi (which I'm trying to do)....
