Pioneer AVH-2300NEX install

Discussion in 'Audio & Video' started by 4x4Taco09, Jun 21, 2018.

  1. Jun 21, 2018 at 11:38 AM
    #1
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    ok im not new to audio. Installed headunits, speakers, amps, subs, and built enclosures too.

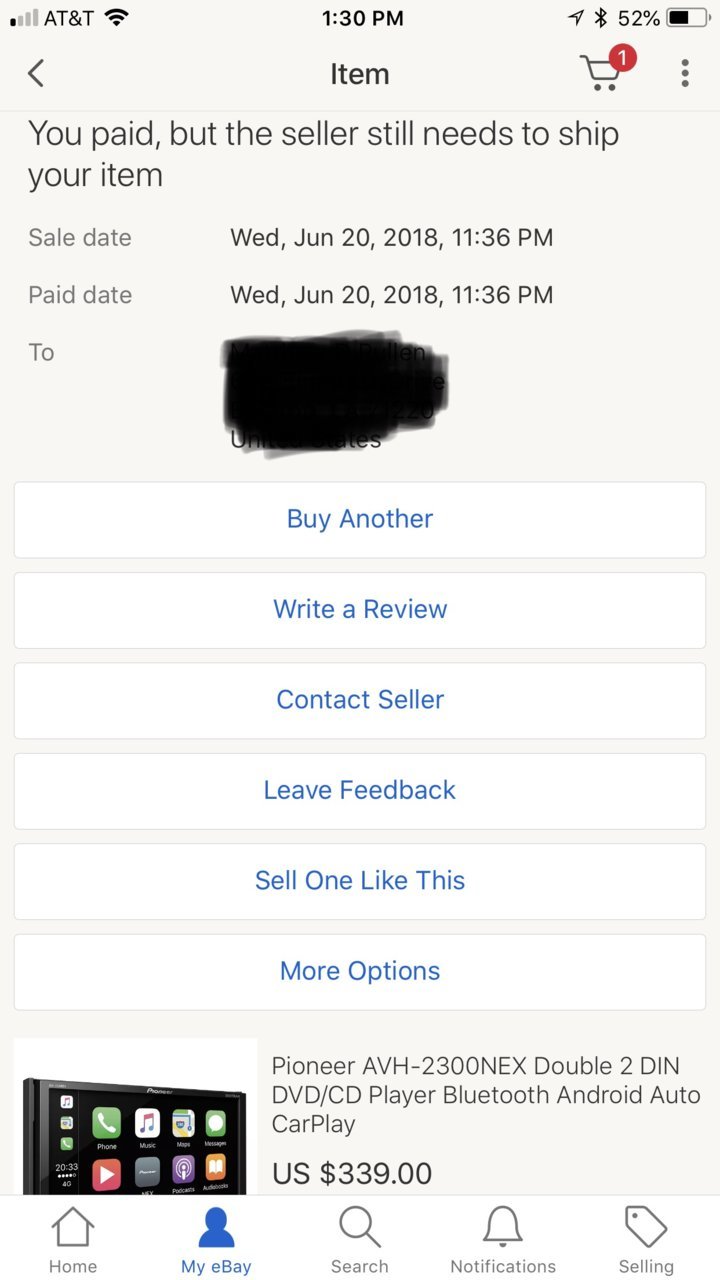

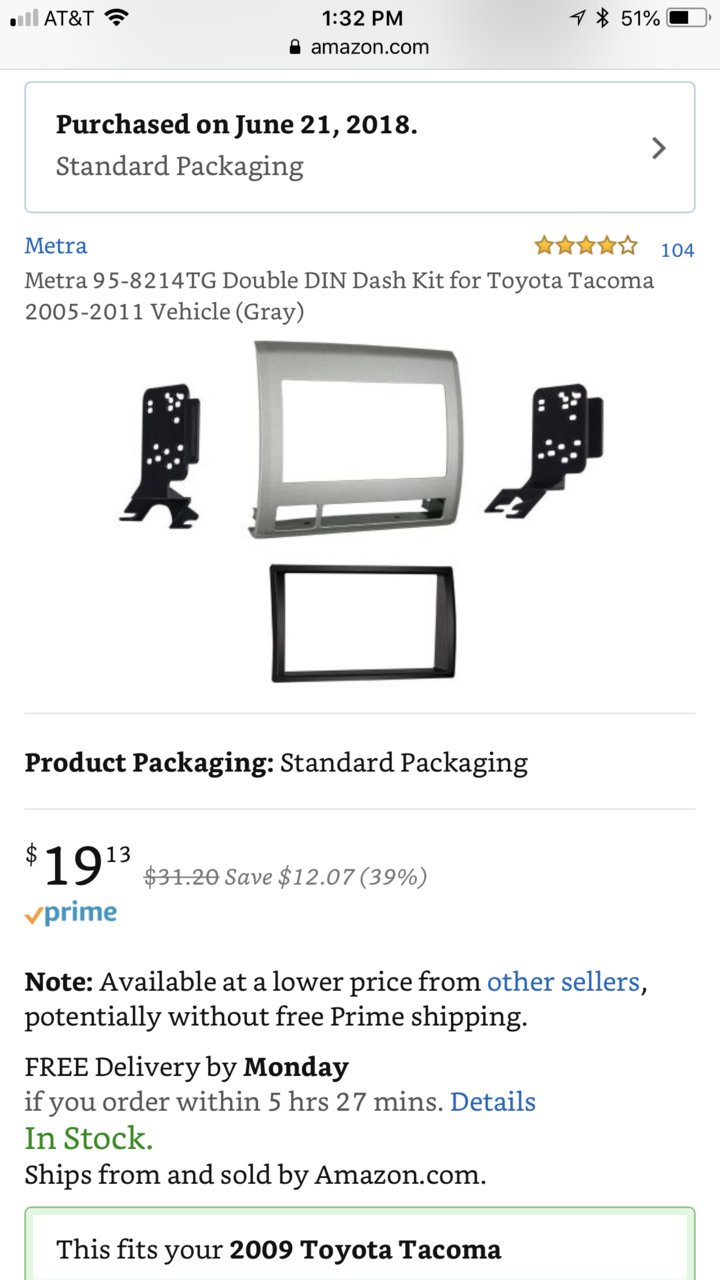

    I ordered a Metra dash kit, Scosche wiring kit, AVH-2300NEX.

    I will eventually track down the steering wheel controls from the right side of the steering wheel in the 4runners because all mine has from the factory are audio controls, nothing for phone.
    So I am wondering which PAC system or steering control module I’ll need and also which bypass I’ll need to Apple CarPlay will work even while in motion

    76203C81-6F7A-4CC4-A97F-80FB1636747A.jpg 9D9EAD12-DB87-48F6-85EC-AEE317E4D4CC.jpg A66A1841-D507-4768-8D60-2CB67E72691D.jpg

  2. Jun 21, 2018 at 2:45 PM
    #2
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    539
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
  3. Jun 23, 2018 at 2:09 AM
    #3
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    Ordered the CRUX like ********* uses. The reviews said works flawlessly on their Tacoma’s. But I ordered the bypass as well
    Thank you!

    Also thinking I may want to run a male/femal USB extension into a switch blank somehow. Don’t want a cord just hanging out of the dash somewhere, would rather take a few extra steps and do it right. At least look nicer
    All of the “USB ports” I see are for charging though

  4. Jun 23, 2018 at 10:55 PM
    #4
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    539
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
  5. Jun 27, 2018 at 12:59 PM
    #5
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff

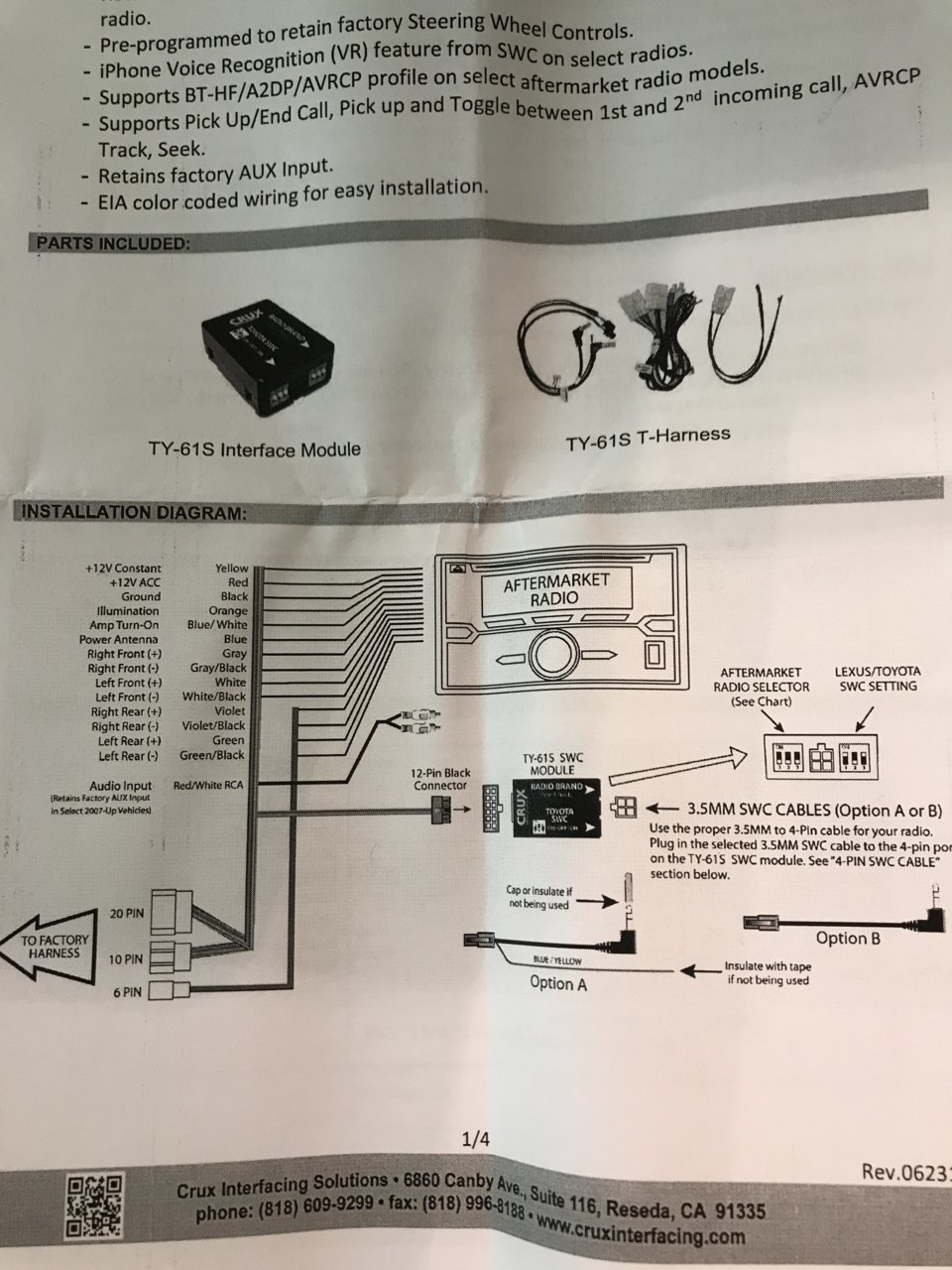

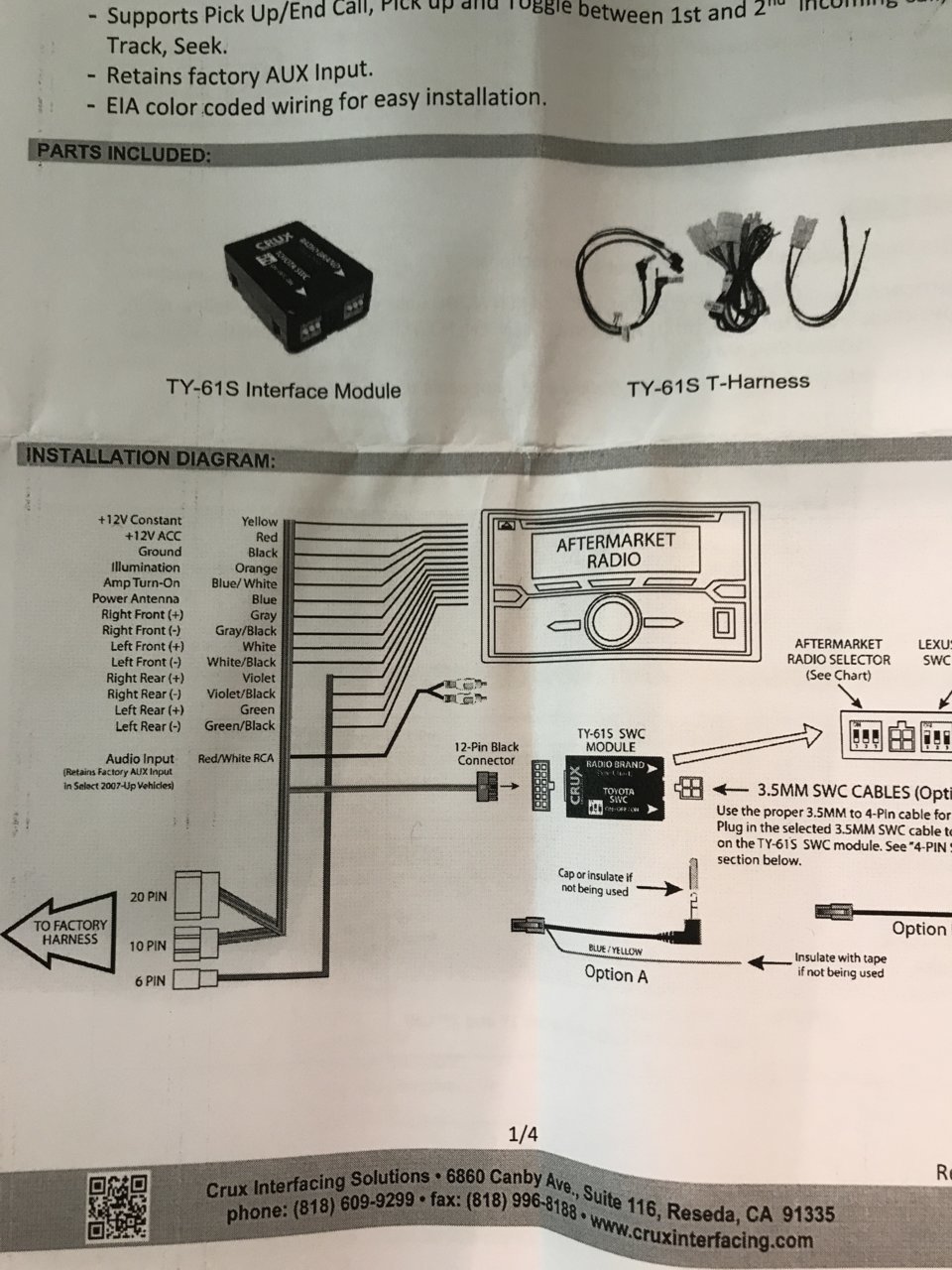

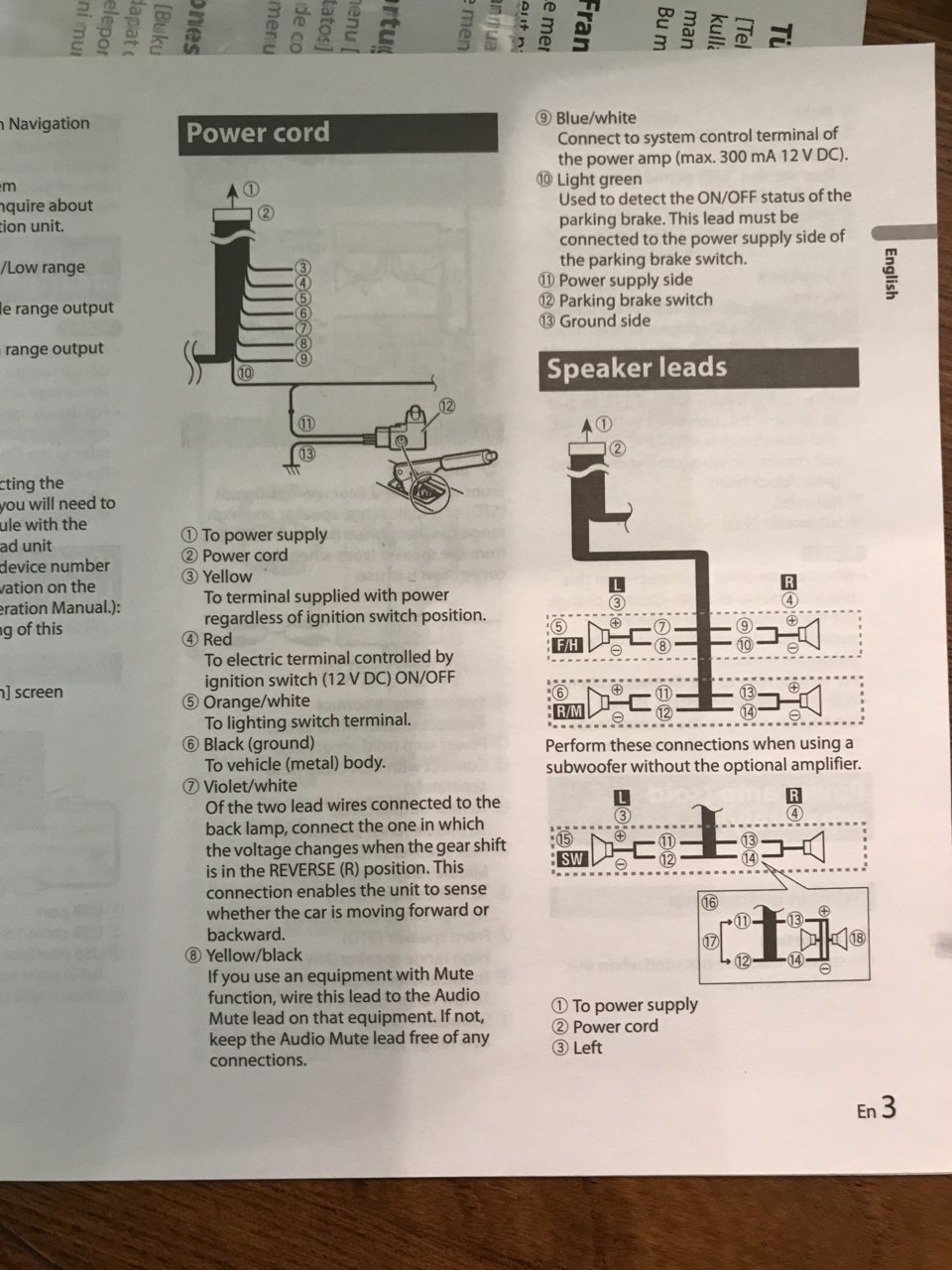

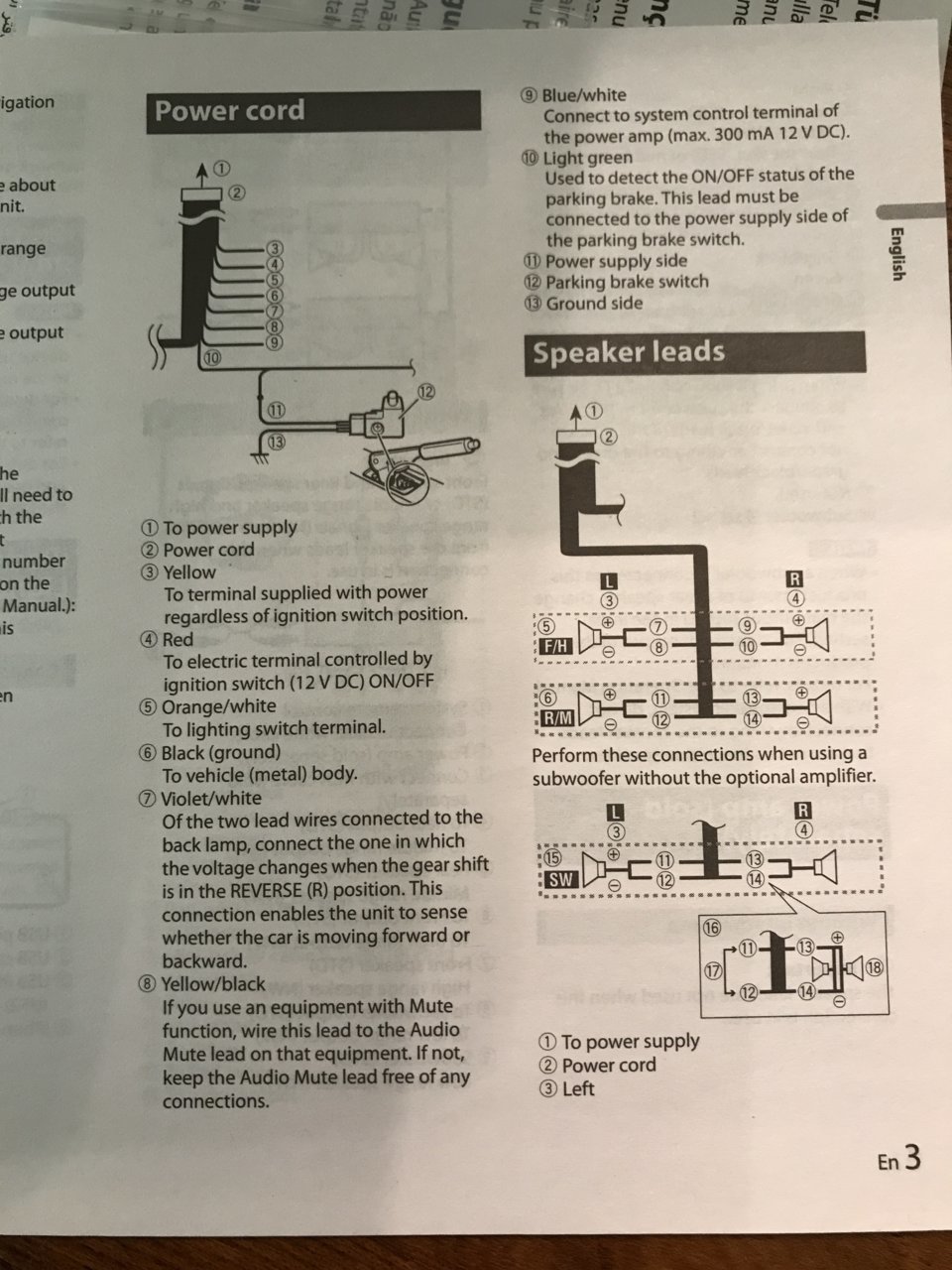

    Ok I have the CRUX unit for steering controls. But help me, make sure I have this right.

    On the CRUX unit
    Yellow is 12v constant
    Red is 12v ACC

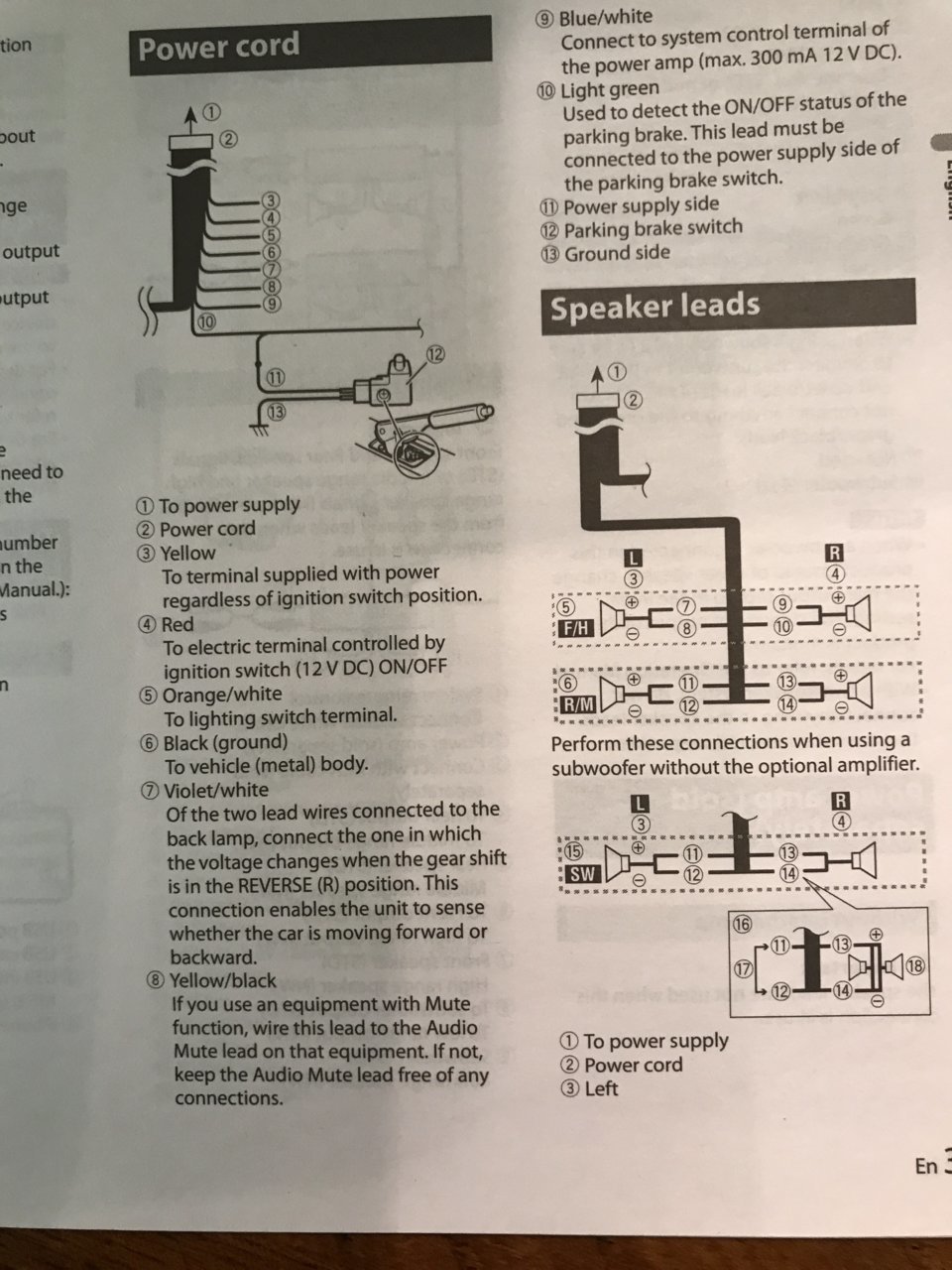

    Pioneer
    Yellow is terminal supplies with power regardless of ignition position (constant)
    Red is 12v controlled by switch (Acc)

    I’m reading this right, right?


    Attached Files:

  6. Jun 27, 2018 at 1:49 PM
    #6
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    Ok I’m an idiot. I was confusing myself. Alright well now about this micro bypass, I got the remote and ground, easy.

    The “reverse” side goes to the light green from the radio only, but on the back of the pioneer there’s a “violet/white” which says “this connection enables the unit to sense wether the car is moving forward or backwards”
    The bypass on the light green wire should do this now right?

  7. Jun 27, 2018 at 6:55 PM
    #7
    Purpleman

    Purpleman Well-Known Member

    Joined:
    Aug 13, 2014
    Member:
    #136093
    Messages:
    539
    Gender:
    Male
    Anaheim
    Vehicle:
    15 PreRunner
    violet/white is for the reverse trigger i.e. tail light +( unit gets a 12volt signal when you put it in reverse and displays your back up cam)

    The bypass' purpose is to let you use all the radio function when the vehicle is in motion.

  8. Jun 27, 2018 at 9:43 PM
    #8
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    I know, but I didn’t know if that violet/white needed to be connected since I was using a bypass anyway.
    You don’t btw

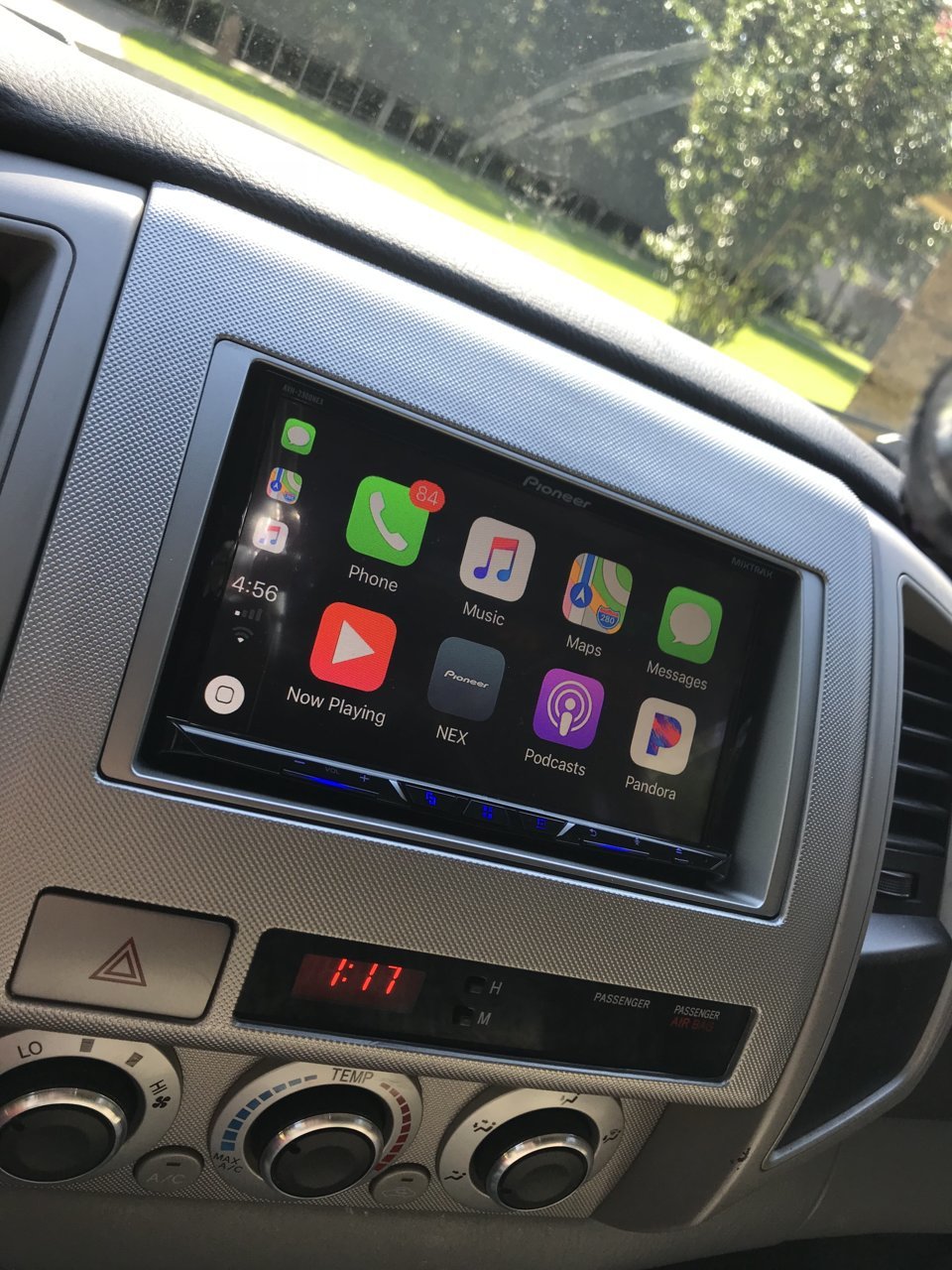

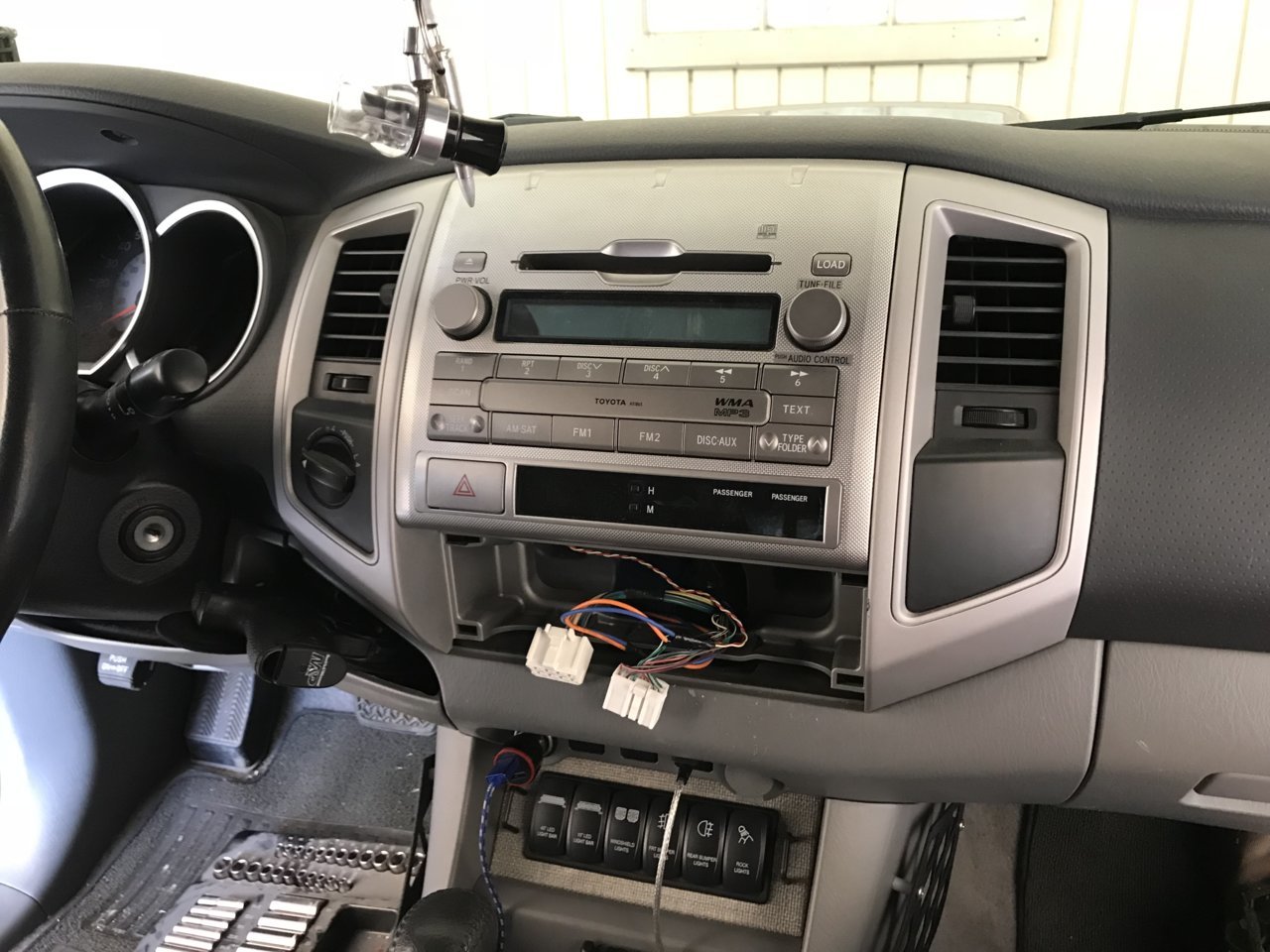

    Everything is hooked up and working great. Need to get a 3.5 to 1/8” audio connector to get the aux port to work.

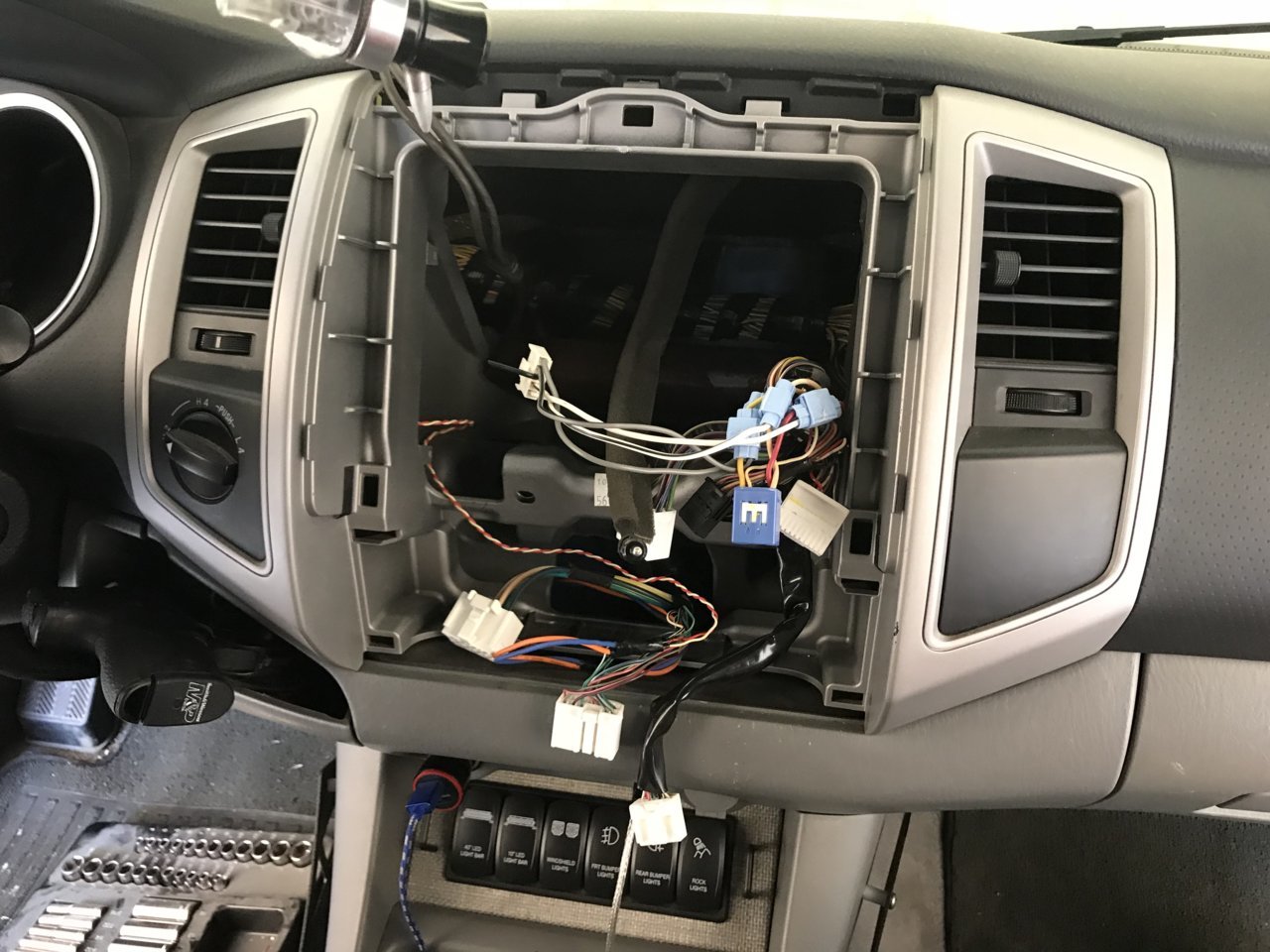

    But besides that, got everything done. It was a PITA getting that mic wire behind and through the dash to get to the driver side floorboard though.

    BTW, these dash kits are garbage. Half ass fits

    3EBF0F1E-1017-49FC-BB03-BE0C1DD90EBF.jpg 4D788690-24A8-44C6-952A-57E83A290BFB.jpg EC524DE2-C1E3-417C-8BD4-2C9507E365B2.jpg

  9. Jan 6, 2019 at 11:12 AM
    #9
    vdbazfj

    vdbazfj Member

    Joined:
    Sep 21, 2014
    Member:
    #138796
    Messages:
    12
    Gender:
    Male
    Arizona
    I know this thread is old but I am wondering how the radio looks when it’s sunny outside. I already have a hard time seeing the stock radio display at times and with the pioneer angled like it is, I am worried I would be impossible to see. I wish it could tilt the other way.
    For what it’s worth, I’m installing this radio in my FJ and I love it. I want one in my Tacoma as well but worried about glare.

    Any feedback from anyone?
    Thanks!

  10. Jan 6, 2019 at 3:43 PM
    #10
    4x4Taco09

    4x4Taco09 [OP] Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63687
    Messages:
    2,421
    Gender:
    Male
    First Name:
    Dane
    Louisiana
    Vehicle:
    09 TRD Sport 4x4 BSP DC LB
    Kings, Deavers, Brute Force, Prinsu, Lights, all the stuff
    I don’t have a problem really. At least not yet. I’m sure if the sun was shining directly onto the screen it’d be hard to see, but I don’t see that happening much at all
