Pioneer AVH-X4500BT Install

Discussion in 'Audio & Video' started by mmmoore8, Feb 19, 2014.

  1. Feb 19, 2014 at 8:02 AM
    #1
    mmmoore8

    #1
    mmmoore8 [OP] Member

    Joined:
    Jun 25, 2011
    Member:
    #58849
    Messages:
    20
    Gender:
    Male
    First Name:
    Matt
    California
    Vehicle:
    09 Tacoma 4WD 4-Banger
    aFe Pro Dry Drop in Filter Bilstein 5100's set at 1.75"
    Just got my Pioneer AVH-X4500BT and steering wheel control adapter in the mail yesterday and was wondering how long you guys think it will take to install? is it something I can finish today after work or should i wait until Saturday. I don't think the actual deck will take that long but i'm not sure about the steering wheel controls adapter.

    Thanks

    mmmoore8, Feb 19, 2014
    #1
  2. Feb 19, 2014 at 9:27 AM
    #2
    2013TacoLTD

    #2
    2013TacoLTD Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116560
    Messages:
    237
    Gender:
    Male
    First Name:
    Dennis
    Mckinney, TX
    Vehicle:
    13 Tacoma Limited V6 4X2
    Radio On Mod, Complete new stereo with 10" subs, Truxedo bed cover, GT-MAT through doors and rear cab.
    Varies by person and how much time you have after work. The steering wheel controls will likely require you to research what wires to use via internet (maybe you can do that at work?). I always want to rush to get a project like this done because I enjoy it, but waiting until you have planty of time is reallly the better answer.

    2013TacoLTD, Feb 19, 2014
    #2
  3. Feb 19, 2014 at 10:46 AM
    #3
    doughboy

    #3
    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    I ordered monday and got all my parts wednesday and was planning on installing on a saturday but ended up installing everything on wednesday :)

    I did have all the parts I needed though, and I mean everything, like steering wheel control harness (
    70-8114 Steering Wheel Control Wire Harness with RCA for 2003-Up Select Toyota/Scion/Lexus Vehicles
    70-8114) for aswc-1, parking brake bypass and iphone cable. If you don't have those parts and plan to install them, you might as well wait till you have all the parts, as it will be a pain to remove the radio again to install parking brake bypass, iphone cable, or reprogram the steering wheel control. You want to make sure you are all done before you put the radio in.

    good luck.

    doughboy, Feb 19, 2014
    #3
  4. Feb 19, 2014 at 9:24 PM
    #4
    mmmoore8

    #4
    mmmoore8 [OP] Member

    Joined:
    Jun 25, 2011
    Member:
    #58849
    Messages:
    20
    Gender:
    Male
    First Name:
    Matt
    California
    Vehicle:
    09 Tacoma 4WD 4-Banger
    aFe Pro Dry Drop in Filter Bilstein 5100's set at 1.75"
    Thanks guys. I think I'm going to wait until the weekend. Doughboy, did you do this exact stereo install? And would you recommend the parking brake bypass?

    mmmoore8, Feb 19, 2014
    #4
  5. Feb 19, 2014 at 9:46 PM
    #5
    doughboy

    #5
    doughboy Well-Known Member

    Joined:
    Dec 8, 2009
    Member:
    #27214
    Messages:
    423
    Gender:
    Male
    norcal
    Vehicle:
    2010 Tacoma TRD 4x4
    hid head lights, hid fog lights, always on fog lights, bed lights
    I installed the avh-x5600. I think it is similar to your model, but with HD Radio. I think the parking brake bypass is useful if you are going to use smartphone apps.

    doughboy, Feb 19, 2014
    #5
  6. Feb 20, 2014 at 4:58 AM
    #6
    2013TacoLTD

    #6
    2013TacoLTD Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116560
    Messages:
    237
    Gender:
    Male
    First Name:
    Dennis
    Mckinney, TX
    Vehicle:
    13 Tacoma Limited V6 4X2
    Radio On Mod, Complete new stereo with 10" subs, Truxedo bed cover, GT-MAT through doors and rear cab.
    I did not care to install the parking brake bypass initially, but found out I could not change to a downloaded background wallpaper without it. Sadly, I have ot buy the one for $20 because the 8500 will no longer work by just grounding the parking wire :(

    2013TacoLTD, Feb 20, 2014
    #6
  7. Feb 20, 2014 at 7:27 AM
    #7
    mmmoore8

    #7
    mmmoore8 [OP] Member

    Joined:
    Jun 25, 2011
    Member:
    #58849
    Messages:
    20
    Gender:
    Male
    First Name:
    Matt
    California
    Vehicle:
    09 Tacoma 4WD 4-Banger
    aFe Pro Dry Drop in Filter Bilstein 5100's set at 1.75"
    you think you could post a link to the hardware needed for the parking break bypass? I have all the other components except that. thanks

    mmmoore8, Feb 20, 2014
    #7
  8. Feb 20, 2014 at 8:31 AM
    #8
    2013TacoLTD

    #8
    2013TacoLTD Well-Known Member

    Joined:
    Nov 14, 2013
    Member:
    #116560
    Messages:
    237
    Gender:
    Male
    First Name:
    Dennis
    Mckinney, TX
    Vehicle:
    13 Tacoma Limited V6 4X2
    Radio On Mod, Complete new stereo with 10" subs, Truxedo bed cover, GT-MAT through doors and rear cab.
    Here is the one I
    $14 MicroBypass Automatic Video in Motion Interface for Pioneer Models AVH-X1500DVD AVH-X1600DVD AVH-X2500BT AVH-X2600BT AVH-X3500BHS AVH-X3600BHS AVH-X4500BT AVH-X4600BT AVH-X5500BHS AVH-X5600BHS AVH-X6500DVD AVH-X7500BT AVH-P8400BH AVH-X8500BHS AppRadio2 App
    use.

    Install note: the directions allow one of the wires to connect to either the power wire to the amp or the power wire to the radio. Mine would only work when connected to the amp wire. No idea why, but if it saves you time... Definitely verify it works before you put it all back together.

    2013TacoLTD, Feb 20, 2014
    #8
  9. Mar 4, 2014 at 6:22 PM
    #9
    mmmoore8

    #9
    mmmoore8 [OP] Member

    Joined:
    Jun 25, 2011
    Member:
    #58849
    Messages:
    20
    Gender:
    Male
    First Name:
    Matt
    California
    Vehicle:
    09 Tacoma 4WD 4-Banger
    aFe Pro Dry Drop in Filter Bilstein 5100's set at 1.75"

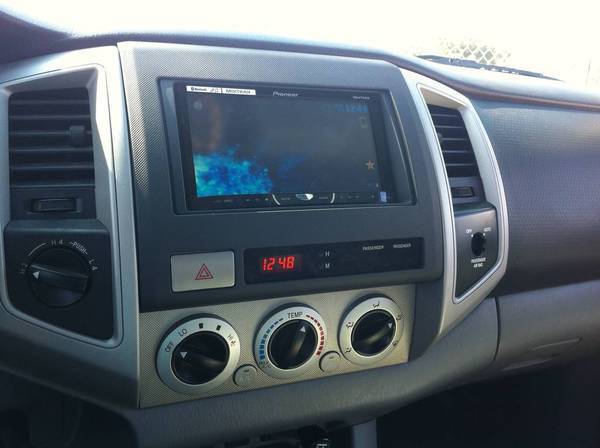

    thanks for all the help guys. got it all installed last weekend. no wonder stereo companies make a lot of money. they charge a lot of money for soemthing that is as simple as connection wires of the same color
    [​IMG]

    mmmoore8, Mar 4, 2014
    #9
  10. Mar 6, 2014 at 9:59 AM
    #10
    trktwo

    #10
    trktwo tagging shit all over the net since 2001

    Joined:
    Feb 21, 2012
    Member:
    #73282
    Messages:
    101
    Gender:
    Male
    First Name:
    tommy
    biloxi
    Vehicle:
    '12 Prerunner TSS stock
    Aero Turbine at2525xl, curt hitch and trailer wiring kit, weathertech vent visors, leer topper 5100s@1.75, 2" AAL, 265/70 r17 michelin at2, bbs 17x8 rd wheel (fj)/ jl stealthbox, 700/5 amp, jl 6.5s x4
    great job! looks awesome! i just installed same radio yesterday after work. do you happen to have the model number of the dash kit you used. looks nicer than the metra kit i got from crutchfield for free.

    trktwo, Mar 6, 2014
    #10
  11. Mar 7, 2014 at 7:22 AM
    #11
    mmmoore8

    #11
    mmmoore8 [OP] Member

    Joined:
    Jun 25, 2011
    Member:
    #58849
    Messages:
    20
    Gender:
    Male
    First Name:
    Matt
    California
    Vehicle:
    09 Tacoma 4WD 4-Banger
    aFe Pro Dry Drop in Filter Bilstein 5100's set at 1.75"
    thanks! and that is the free one I got from crutchfield too. it was just the black textured one.

    mmmoore8, Mar 7, 2014
    #11
