Pioneer AVIC-X920BT (and Adapters) Install Drawing

Discussion in 'Audio & Video' started by wizzard, Sep 6, 2010.

  1. Sep 6, 2010 at 3:16 PM
    #1
    wizzard

    wizzard [OP] fng

    Joined:
    Aug 16, 2010
    Member:
    #41787
    Messages:
    24
    Gender:
    Male
    Central MS
    Vehicle:
    08 PreRunner SR5 V6 Rad Red, AC, TRD/OR
    For those of you looking to install a Pioneer X920BT with harness and SWI adapters, the below drawing might help. I put it together for my install (just completed) and it worked well.

    Also below is a pic of the finished product. I'll have more pics available and if I get the time, a write up of the install.

    [​IMG]

    [​IMG]

  2. Sep 6, 2010 at 4:55 PM
    #2
    cstorer

    cstorer Member

    Joined:
    Aug 26, 2010
    Member:
    #42243
    Messages:
    20
    Gender:
    Male
    First Name:
    Chris
    Edmonds WA
    Vehicle:
    05 Double cab TRD off-road
    How did you get your screen to fit so nicely in the dash kit? I have the metra dash kit and it's not even close using the stock metal harness. The angle of the screen seems off in relation to the dash kit, and it's kinda set back.

  3. Sep 6, 2010 at 4:59 PM
    #3
    HeadTaco

    HeadTaco PIMP

    Joined:
    Jan 14, 2009
    Member:
    #12569
    Messages:
    34
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    06 D-Cab PreRunner
    22" Wheels, Flip out monitor (Jensen VM 9512),
    /\ /\ same question i had. Just instaleed the pioneer 3200dvd and it does not line up well in the metra kit.

  4. Sep 6, 2010 at 5:28 PM
    #4
    Bozack

    Bozack Well-Known Member

    Joined:
    May 23, 2010
    Member:
    #37649
    Messages:
    48
    Gender:
    Male
    First Name:
    Rube
    Dirty South
    Vehicle:
    2010 DC
  5. Sep 6, 2010 at 5:40 PM
    #5
    wizzard

    wizzard [OP] fng

    Joined:
    Aug 16, 2010
    Member:
    #41787
    Messages:
    24
    Gender:
    Male
    Central MS
    Vehicle:
    08 PreRunner SR5 V6 Rad Red, AC, TRD/OR
    I used the Scosche kit but did not use thier plastic mountings. I used the OEM metal mountings though only three of four bolts lined up. Except for the HU trim piece that doesn't want to seat any further, the dash kit is a good fit - albeit not a color match (matches buttons rather than vent trim). Also made sure to transfer the yellow mounting clips from the OEM dash kit.

  6. Oct 4, 2010 at 11:55 AM
    #6
    wizzard

    wizzard [OP] fng

    Joined:
    Aug 16, 2010
    Member:
    #41787
    Messages:
    24
    Gender:
    Male
    Central MS
    Vehicle:
    08 PreRunner SR5 V6 Rad Red, AC, TRD/OR
    bump for a friend

  7. Oct 4, 2010 at 12:03 PM
    #7
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    4,657
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Excellent diagram and certainly a great post. +rep

  8. Oct 4, 2010 at 1:31 PM
    #8
    Bama_TACO

    Bama_TACO ROLL TIDE!!!!!!!

    Joined:
    Aug 3, 2010
    Member:
    #41157
    Messages:
    1,020
    Gender:
    Male
    Winfield, AL
    Vehicle:
    2006 PreRunner Double Cab TRD SPORT
    Nice diagram. I just did this same install myself and I used the Scosche kit and the factory metal brackets. Mine fits just like yours. I got my flip down monitor to mount on the ceiling last week but haven't installed it yet.

  9. Oct 4, 2010 at 2:06 PM
    #9
    TurboGT

    TurboGT Hmmmm

    Joined:
    Sep 25, 2010
    Member:
    #43822
    Messages:
    748
    Gender:
    Male
    First Name:
    Gabe
    Portland
    Vehicle:
    '06 DC LB 4x4
    Anyone know if the PAC SWI-JACK would install using the same wires/resistor?

  10. Oct 4, 2010 at 3:28 PM
    #10
    bookmonke

    bookmonke Well-Known Member

    Joined:
    Nov 28, 2009
    Member:
    #26662
    Messages:
    519
    Gender:
    Male
    First Name:
    Mark
    Jacksonville, FL
    Vehicle:
    2008 DC PreRunner Rugged Trail
    How does your trim ring sit, mine is just laying in there and sometime vibrates, it has nubs but they don't seem to work.

  11. Oct 5, 2010 at 1:12 PM
    #11
    wizzard

    wizzard [OP] fng

    Joined:
    Aug 16, 2010
    Member:
    #41787
    Messages:
    24
    Gender:
    Male
    Central MS
    Vehicle:
    08 PreRunner SR5 V6 Rad Red, AC, TRD/OR
    The trim ring simply sets in mine as well....though I don't have any problems with it bouncing around or making noise. It seems the ring simply won't go far enough back in the dash kit to mate with the correct place on the HU

  12. Oct 5, 2010 at 1:29 PM
    #12
    Bama_TACO

    Bama_TACO ROLL TIDE!!!!!!!

    Joined:
    Aug 3, 2010
    Member:
    #41157
    Messages:
    1,020
    Gender:
    Male
    Winfield, AL
    Vehicle:
    2006 PreRunner Double Cab TRD SPORT
    My trim ring is the same way. I put some 3m double sided tape on the back side and it sticks on the top edge of the ring, but not the bottom. It keeps it from rattling though.

  13. Oct 10, 2010 at 4:32 PM
    #13
    zeuz519

    zeuz519 Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43611
    Messages:
    72
    Gender:
    Male
    First Name:
    Robert
    New Jersey
    Vehicle:
    Speedway Blue SR5 TRD Sport
    Wizzard - this was a great help to me when installing my AVIC-X920BT!

    THANKS!

  14. Oct 10, 2010 at 8:00 PM
    #14
    RX2RIDE

    RX2RIDE Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24876
    Messages:
    108
    Gender:
    Male
    Everett, WA
    Vehicle:
    09 TRD Tacoma (mine), 08 Sport 4 Runner(Wife)
    I am looking to replace my stock stereo. How do you like this one?

  15. Oct 11, 2010 at 6:44 AM
    #15
    Bama_TACO

    Bama_TACO ROLL TIDE!!!!!!!

    Joined:
    Aug 3, 2010
    Member:
    #41157
    Messages:
    1,020
    Gender:
    Male
    Winfield, AL
    Vehicle:
    2006 PreRunner Double Cab TRD SPORT
    I will speak with my experience. I've had mine for 3 weeks now and I absolutely love it. My commute is about 3 hours a day total so I've had a lot of time to enjoy it. Ipod functionality is great. GPS works well, not as good as my Tom Tom, but I really don't care. I work in Birmingham and the built in GPS is a plus. I've already had a Garmin stolen and my window busted out because I had it up in the window (stupid on my part). This weekend I installed an overhead video monitor so my 2 year old can watch movies in the back on long trips. I couldn't be happier, especially since I got mine when it was 30% off.

    Note added: I forgot to mention the Bluetooth. I really didn't care that much about it when I bought it since I used an earpiece bluetooth, but I haven't touched my earpiece BT since I got my head unit. It is really clear on my end and the people on the other end don't have any problem hearing me either.

  16. Oct 17, 2010 at 12:22 PM
    #16
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    27,685
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift

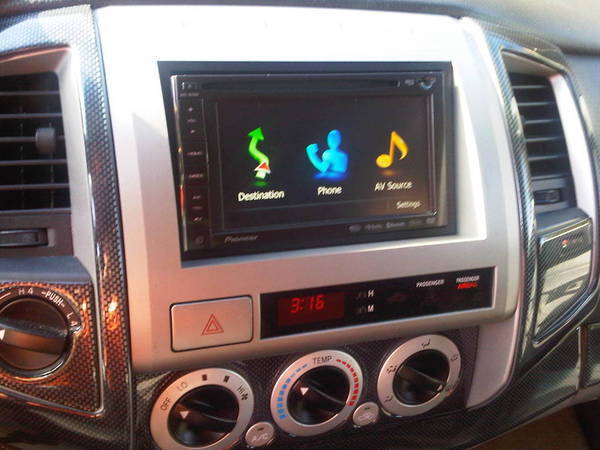

    :cool:Here is mine:
    [​IMG]
    Thanks for all of the valuable information!!!
    +1 to the OP:D

  17. Oct 18, 2010 at 5:54 AM
    #17
    wizzard

    wizzard [OP] fng

    Joined:
    Aug 16, 2010
    Member:
    #41787
    Messages:
    24
    Gender:
    Male
    Central MS
    Vehicle:
    08 PreRunner SR5 V6 Rad Red, AC, TRD/OR
    Yours seems to sit a bit more vertical and forward. Did you use the HU mounting bracket from the dash kit rather than the original?

  18. Oct 18, 2010 at 10:35 AM
    #18
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    27,685
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
    Yeah, I used the plastic HU Mounts that came with the scoshe kit instead of the stock metal mounts.
    The stock mounts worked great with the Metra Kit and my previous HU - which was an Eclipse.
    I know it looks like is is set back a bit but it really fit like a glove. - NO Rattles!:D
    just waiting on my iphone cord & the HD Tuner now.:cool:
    I also found out where to hook up the reverse wire & the speed sensor wire.
    When I take it apart to hook up the rest I'll post some pic's.
    Thank again!:D
