Pioneer P3300BT

Discussion in 'Audio & Video' started by cdb, Mar 13, 2011.

  1. Mar 13, 2011 at 6:27 PM
    #1
    cdb

    cdb [OP] Member

    Joined:
    May 20, 2010
    Member:
    #37518
    Messages:
    10
    Gender:
    Male
    First Name:
    Dean
    Charlotte, NC
    Vehicle:
    '10 2WD DC SB TRD Sport
    Installed the Pioneer P3300BT this past week and thought I'd share some pics for anyone who might be interested in this head unit. Apologies that I did not take any photos during the install.

    Items used in the install...
    Pioneer P3300BT
    Pioneer CD-IU50V USB Cable
    Metra Axxess ASWC Universal Steering Wheel Interface
    Metra 99-8214TG Dash Kit
    Scosche TA02B Wiring Harness

    Parking Brake Bypass items from my local Radio Shack
    30Amp Auto Relay Item # 275-0226
    1/4" Insulated Crimp-On Connectors Item # 64-3133 - Contains male and female connectors, you only need the female connectors.

    Bypass is simple to wire, ground to pins 86 and 87, stereo's blue remote wire to 85, and the stereo's green parking brake wire to 30. This video is all I needed...

    http://www.youtube.com/watch?v=lDGZEZrUdRo

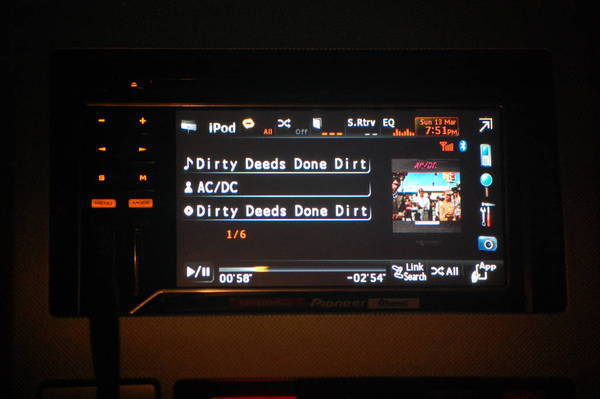

    Pioneer 3300BT Installed - The button and screen color is customizable with 5 or 6 different color choices. There are also various backgrounds to choose from, I have chosen a blank background.

    [​IMG]

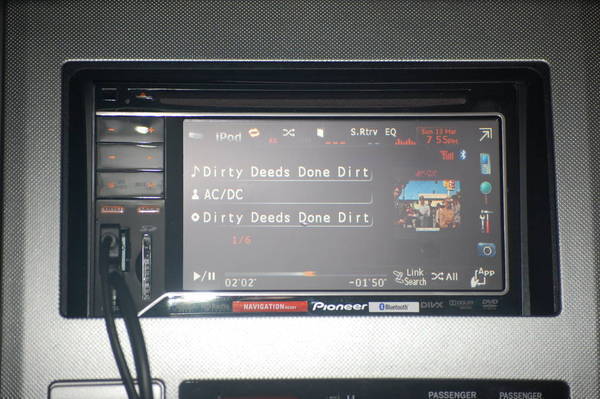

    Close up...

    [​IMG]

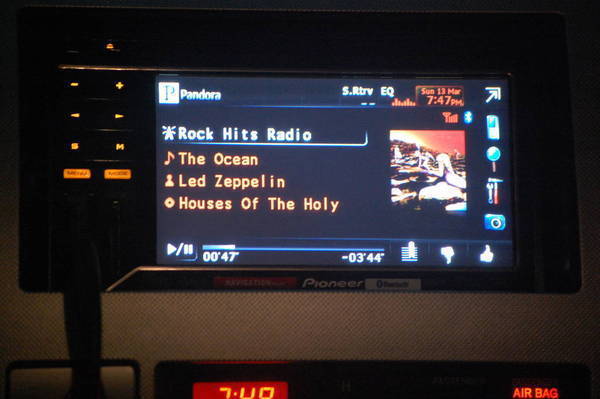

    Pandora... The Thumbs Up/Thumbs Down buttons are present for fine tuning your channels. Album art showing is a nice touch. The Magnifying Glass to the right pulls up your station list for changing Pandora stations.

    [​IMG]

    Ipod... The Magnifying Glass to the right pulls up the Search menu for the Ipod where you can search on Artist, Album, Song, etc. The App button in the bottom right allows you to control the iPod directly and choose other apps such as Netflix, Youtube or Motion X for Navigation. I can stream audio from Slacker radio, but there is no integration like there is for Pandora.

    [​IMG]

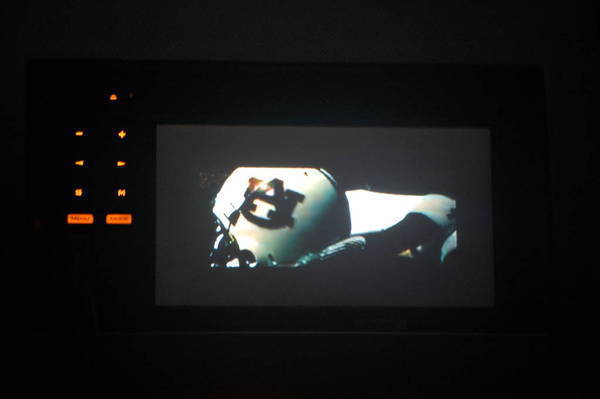

    Video... If I had an iPhone 4 or an iPad I could stream Netflix. Unfortunately, the 3GS doesn't support Netflix video streaming so here's a picture of Youtube streaming...

    [​IMG]


    I was going get the XM Satellite add-on for the stereo, but I've enjoyed the Pandora so much that I may just save that money and use Pandora. I guess the biggest Con of this stereo is that I've tied myself to using an iPhone for the foreseeable future.

    If you have any questions let me know and I'll try my best to answer them.

  2. Mar 26, 2011 at 8:41 PM
    #2
    DocCisco

    DocCisco Well-Known Member

    Joined:
    Feb 11, 2011
    Member:
    #50967
    Messages:
    225
    Gender:
    Male
    First Name:
    David
    Utah County, UT
    Vehicle:
    LB TRD Sport 4x4
    +1 for detail. I'm was ordering this today and thought I'd check TW. Thanks for the info on parts, video and pics! Well done.

  3. Apr 9, 2011 at 10:00 AM
    #3
    K1992f

    K1992f Well-Known Member

    Joined:
    Dec 20, 2010
    Member:
    #47980
    Messages:
    871
    Gender:
    Male
    First Name:
    Kanon
    Dirty Hanover pa ...
    Vehicle:
    2012 tacoma TRD sport fully loaded
    6" fabteck 20" fuel hostage 33" nitto MTs
    I have a something maybe u guys can answer for me. I really don't care about DVD so I was looking at this or the avhp4300 what I care about is the music so is this a better fit for me. And dose the Bluetooth play music with the iPhone3gs thanks

  4. Apr 9, 2011 at 10:07 AM
    #4
    RI Tacoma

    RI Tacoma Well-Known Member

    Joined:
    Feb 24, 2011
    Member:
    #51797
    Messages:
    1,414
    Gender:
    Male
    First Name:
    Tim
    Phx sometime soon
    Vehicle:
    2011 Sport DCLB
    OME 885's, Derped FJ TRD Wheels, Hankook Dynapro's ATM 265/75/16's, Retro's, WeatherTech Liners, Fog Light Mod, Bak Flip F-1, N-Fab Steps, 20% Tint, complete stereo, heated mirrors, Katzkin seats!!
    I could be wrong, but I think you need to get the x920BT in order to stream music. That is one of the things I was looking at and you cant stream with the 3300BT or the 4300.

  5. Apr 9, 2011 at 10:26 AM
    #5
    SocalMan22

    SocalMan22 Founder Socaltacomas.com

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,136
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    i have the x920 and its sweet streaming and all a good deck, as for the op thats a sweet stereo and i considered it good job on pics.

  6. Apr 9, 2011 at 10:34 AM
    #6
    K1992f

    K1992f Well-Known Member

    Joined:
    Dec 20, 2010
    Member:
    #47980
    Messages:
    871
    Gender:
    Male
    First Name:
    Kanon
    Dirty Hanover pa ...
    Vehicle:
    2012 tacoma TRD sport fully loaded
    6" fabteck 20" fuel hostage 33" nitto MTs
    Ok so you the cable for the iphone on both these UH avhp4300 and this one right .. I'm guess the Bluetooth for this is just to have hands free calls ??

  7. Apr 10, 2011 at 7:01 AM
    #7
    cdb

    cdb [OP] Member

    Joined:
    May 20, 2010
    Member:
    #37518
    Messages:
    10
    Gender:
    Male
    First Name:
    Dean
    Charlotte, NC
    Vehicle:
    '10 2WD DC SB TRD Sport
    You can stream music over bluetooth with the p4300dvd and the bluetooth addon, but not with the p3300bt.

    The benefit of having the cable is direct control of the ipod via the radio interface, streaming of video, and better sound as the cable enables the stereo to process the music via the stereo's built in DAC.

  8. Apr 10, 2011 at 7:27 AM
    #8
    gatlin69

    gatlin69 Retired?

    Joined:
    Feb 5, 2011
    Member:
    #50578
    Messages:
    434
    Gender:
    Male
    First Name:
    Scott
    Tampa
    Vehicle:
    4x4
    Nerf bars, bug shield,skid plate, coming soon (hopefully) DVD NAV
    Great detail. Thanks for the info.

  9. May 25, 2011 at 4:45 AM
    #9
    newfie8

    newfie8 Well-Known Member

    Joined:
    Mar 9, 2009
    Member:
    #14512
    Messages:
    246
    Gender:
    Male
    newfoundland
    Vehicle:
    09 tacoma
    Tinted windows all around. Fog lights. Intermittent wiper switch. Skid plate. Extra D rings. Grillcraft. Color matched grill. Hella 500ff HID behind grillcraft. Rcbs204 Lighting. 5100's up front. 265/75/16 Duratracs.Firestone riderites. Bora Wheel spacers. Tinted tails. De badged. Blacked out rims.
    Do a mic come with the stero or do you even need one for the bluetooth?

  10. May 31, 2011 at 7:27 PM
    #10
    Tacorama

    Tacorama New Member

    Joined:
    May 7, 2011
    Member:
    #56244
    Messages:
    4
    Gender:
    Male
    Northern Alabama
    Vehicle:
    2011 TRD Off-Road
    Yeah, a mic comes with the stereo on the 3300BT to use for the phone/blue tooth. However, if you're going to configure your speakers with the head unit, you're going to need an external mic which you buy separately.

  11. Jul 3, 2011 at 2:56 PM
    #11
    adolphe

    adolphe Member

    Joined:
    Jul 3, 2011
    Member:
    #59231
    Messages:
    6
    Gender:
    Male
    Ontario, Canada
    Vehicle:
    06 Access Cab TRD
    Great write up! I'm looking at getting this deck. Do you have any plans to install the NAV option?

  12. Jul 14, 2011 at 8:42 PM
    #12
    BLACKnBLUE

    BLACKnBLUE Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    I just bought the 3300 from crutchfield.com! Looking forward to it coming in the mail! It should be a fun install given that this is my first foray into installing a car stereo!:D

    [​IMG]

  13. Jul 17, 2011 at 8:37 PM
    #13
    ZZBlueComet

    ZZBlueComet Well-Known Member

    Joined:
    Jun 20, 2011
    Member:
    #58592
    Messages:
    97
    Gender:
    Male
    First Name:
    John
    Lexington, Ky.
    Vehicle:
    11 4x4 Double Off Road
    Put the AVHP3300BT this weekend and wow, except I thought it had an USB out on the back to run my Ipod to my glove box or console - guess I can run it off the interface. I got the dash kit that is gray like the air vent surrounds and the ac/heater knobs - fit and looked great, just save your clips from the factory. I had the relay so vids are ready to go......of course I would never watch one in drive ;);)

    I went with 2 Kenwood 6x9's and 2 Kenwood 6.5's - will add a small amp and woof later.

    Beats that sucky stock model - when I saw the stock speakers out of the doors, I couldn't believe it, they're paper with very little metal - ugh.

  14. Jul 18, 2011 at 8:54 PM
    #14
    BLACKnBLUE

    BLACKnBLUE Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Where did you get the relay from and how much $$$?

  15. Jul 19, 2011 at 6:22 PM
    #15
    ZZBlueComet

    ZZBlueComet Well-Known Member

    Joined:
    Jun 20, 2011
    Member:
    #58592
    Messages:
    97
    Gender:
    Male
    First Name:
    John
    Lexington, Ky.
    Vehicle:
    11 4x4 Double Off Road
    Just go to Napa or Autozone and ask for a 4-wire relay, got mine at Napa for $9, hope this helps.

    The relay will have numbers written on the bottom for each pin. The wire from the parking brake from the H/U to 87. Ground to 85 and 30. Remote from the H/U to 86. This will give you an automatic bypass to the DVD lockout. If you want to just put a switch to do this manually you can also. Go to Radio Shack and buy a momentary push button switch, part number 275-1548. Take the green wire coming out of the unit. Strip the wire, and attach it to one of of the pins on the relay switch. It doesn't matter which one. Buy a standard 16 gauge wire from Radio Shack and connect it to the other pin on the switch, then connect the other end of it to a grounded connection on your vehicle. Now, when you play a DVD, the warning screen will come on. Just press the button on the switch and it will go away,

  16. Jul 19, 2011 at 8:16 PM
    #16
    BLACKnBLUE

    BLACKnBLUE Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Hey, thanks! I'll look into that! I like the idea of having a button although I'd have to decide where I'd want to put it. Thanks for the info! I'm still waiting for the HU to come in the mail (went with the free shipping), should be here Friday!

  17. Aug 16, 2011 at 8:21 PM
    #17
    pcledrew

    pcledrew Well-Known Member

    Joined:
    May 21, 2010
    Member:
    #37558
    Messages:
    344
    Gender:
    Male
    BC
    Vehicle:
    2017 MGM TRD Sport DCLB
    I'm trying to following what the video is instructing, but according to the diagram I have attached, which matches the relay I'm using, I don't think I have the same pole layout as the soundman guy. Can someone verify what should be connected where using this style of relay for the bypass?
    [​IMG]

  18. Aug 18, 2011 at 7:22 PM
    #18
    BLACKnBLUE

    BLACKnBLUE Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    I can't remember verbatim what I did to get my bypass to work. I know that I wrote down instruction as to which pins were connected to which, but when it came time to test it, the bypass did not work. I ended up using the YouTube video that is in Post #1. Towards the end of the video, the camera zooms in to the bypass. We ended up just duplicating what we saw in the video and when we tested it and it worked. Have you given that a try?

  19. Aug 18, 2012 at 11:01 PM
    #19
    Fiend13

    Fiend13 Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81853
    Messages:
    3,958
    Gender:
    Male
    First Name:
    Chad
    Sin City
    Vehicle:
    08 TRD O/R DC Prerunner
    +1 for the AU background! Weagle Weagle!

    EDIT: Oops, didn't realize it was an old thread before I posted...my bad, lol

  20. Aug 20, 2012 at 4:36 PM
    #20
    stanbp64

    stanbp64 Well-Known Member

    Joined:
    Jun 9, 2012
    Member:
    #80394
    Messages:
    132
    Gender:
    Male
    Greenville, SC
    Vehicle:
    2011PreRunner Sr5

    I did the parking brake by-pass with my AVH-P2400BT and the dvd works(I don't watch while driving, just wanted the bluetooth phone key pad to be available) but it won't let me do the auto-equallization with the mic. Get a message about not being able to do it while driving. Not sure why it works for dvd but not the other.
