Please check my diagram

Discussion in 'Technical Chat' started by aro, Oct 27, 2019.

  1. Oct 27, 2019 at 1:52 PM
    #1
    aro

    aro [OP] Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296366
    Messages:
    189
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2019 OR DCLB 4X4

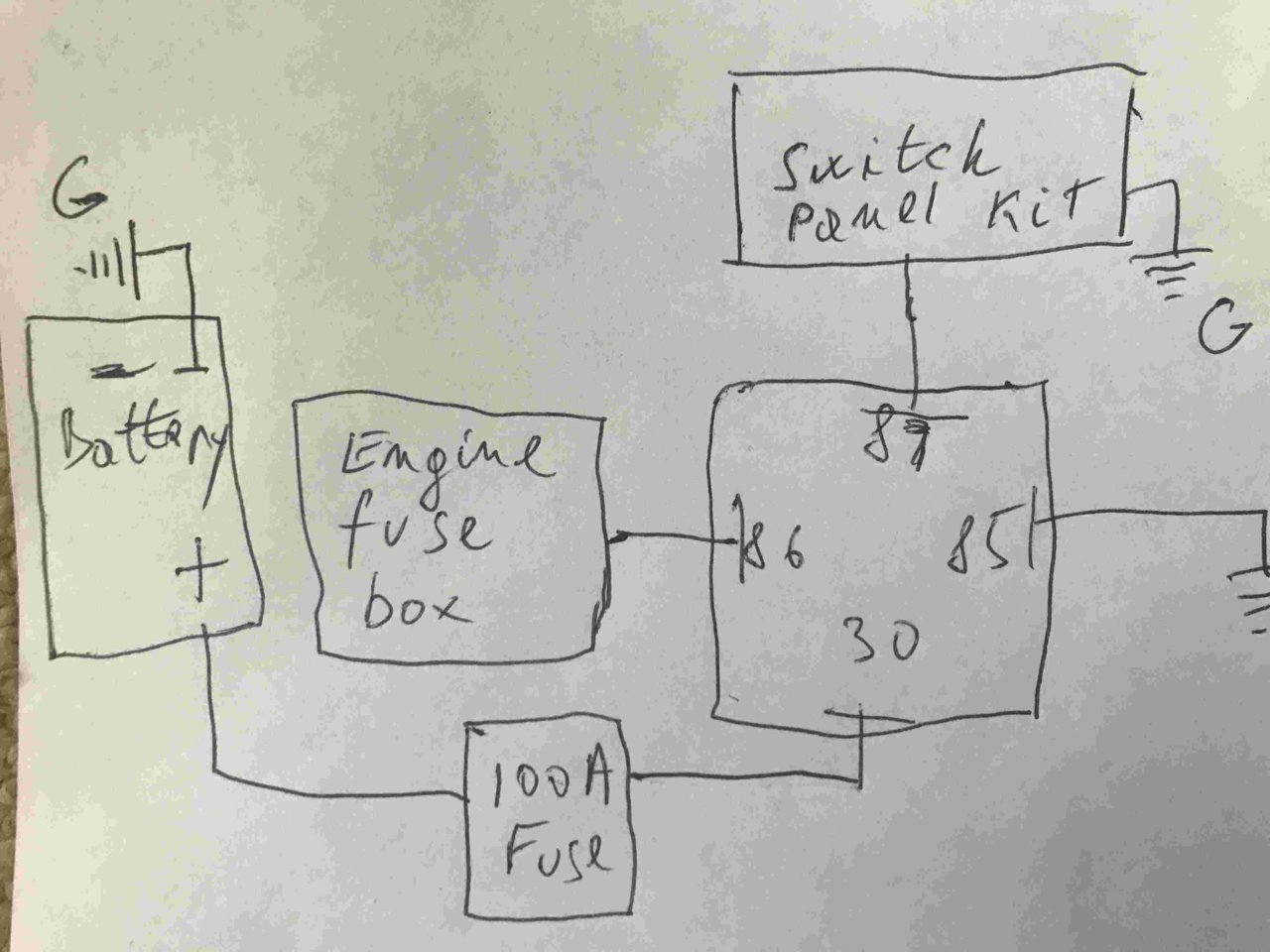

    Does this wiring look good? I want to get one of the many generic aux fuse panels (correction: switch panel kit) for some lights, no big draw. I want to power it from the ignition though, not the battery.

    My next question is, any suggestions what fuse to tap?


    Last edited: Oct 27, 2019
  2. Oct 27, 2019 at 1:58 PM
    #2
    Blue92

    Blue92 Well-Known Member

    Joined:
    Aug 26, 2017
    Member:
    #228071
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Daniel
    North Carolina
    Vehicle:
    2004 4x4 2.7L 2008 DCSB 4.0L
    100 amp fuse? What are you running off of it? Almost zero point of even having a fuse if youre gonna use one that high in a vehicle haha.

    Running Board Man, whatstcp and Hobbs like this.
  3. Oct 27, 2019 at 1:58 PM
    #3
    Hobbs

    Hobbs ============

    Joined:
    Mar 20, 2016
    Member:
    #181838
    Messages:
    10,537
    Basin and Strange.
    Vehicle:
    2016 TRD Off-Road Quicksand, AC, AT, Fun Machine!
    Stay The F*ck At Home.
    Are you planning to run a "generic aux fuse panels" or a "switch panel kit"?

    Your diagram suggests to me that you plan to run up to 100 amps through a Bosch-style relay. Is that your intent?

    Running Board Man and Blue92 like this.
  4. Oct 27, 2019 at 2:00 PM
    #4
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    45,865
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    That looks correct to me. Just wanna make sure you have a relay that can handle the current, which aren't hard to find.

    SR-71A likes this.
  5. Oct 27, 2019 at 3:00 PM
    #5
    aro

    aro [OP] Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296366
    Messages:
    189
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2019 OR DCLB 4X4
  6. Oct 27, 2019 at 3:32 PM
    #6
    Blue92

    Blue92 Well-Known Member

    Joined:
    Aug 26, 2017
    Member:
    #228071
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Daniel
    North Carolina
    Vehicle:
    2004 4x4 2.7L 2008 DCSB 4.0L
    I would figure up what the amperage draw of whatever you wanna run off the circuit is, then find a breaker that suits it better. 100 amps is a lot. The wire will definetly melt at that amperage before the breaker is gonna trip. Unless youre running like 4 awg into the cab.

  7. Oct 27, 2019 at 3:38 PM
    #7
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    4,095
    Gender:
    Male
    I’d consider wiring the relay a constant hot rather than an ignition keyed source. That will give you the flexibility to run the lights whenever you want rather than only by leaving the key turned on in the truck.

  8. Oct 27, 2019 at 5:40 PM
    #8
    aro

    aro [OP] Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296366
    Messages:
    189
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2019 OR DCLB 4X4
    The relay will be about 1 foot from the battery, and the 100 A circuit breaker will be between them. Basically, I would have a 1 foot long 4 awg cable, between the relay and battery. The relay will be on top of the switch panel box. Shouldn't be a problem with such a short run.

    I know... I'm still thinking about this.

  9. Oct 27, 2019 at 5:51 PM
    #9
    Blue92

    Blue92 Well-Known Member

    Joined:
    Aug 26, 2017
    Member:
    #228071
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Daniel
    North Carolina
    Vehicle:
    2004 4x4 2.7L 2008 DCSB 4.0L
    What are you running thats gonna pull anywhere near 100 amps? Thats so overkill that it could be dangerous. Find out how many amps the load is gonna draw and utilize an appropriately sized breaker. If it draws 25 amps, use a 30 amp breaker for example.

  10. Oct 27, 2019 at 5:55 PM
    #10
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    45,865
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    No it’s not. If anything it’s more safe. Once you start adding things up, i.e. fridge, lights, compressors, etc. it’s best to err on the side of overkill and have a wire that’s too thick as opposed to too thin. Plan for worst case scenario of all things running at once and add a little cushion.

    Hobbs likes this.
  11. Oct 27, 2019 at 5:58 PM
    #11
    0xDEADBEEF

    0xDEADBEEF lolcowboy

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    2,961
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles.
    So we're assuming "Engine Fuse Box" is ignition switched, right?

  12. Oct 27, 2019 at 6:06 PM
    #12
    0xDEADBEEF

    0xDEADBEEF lolcowboy

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    2,961
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles.
    I'm not sure how you're getting that a higher current fuse/breaker is safer. I'm all for thicker wire, but the fuse should be sized just a big bigger than the load you want to run, and then upgraded as additional loads are added.

    Blue92 likes this.
  13. Oct 27, 2019 at 6:10 PM
    #13
    Blue92

    Blue92 Well-Known Member

    Joined:
    Aug 26, 2017
    Member:
    #228071
    Messages:
    11,758
    Gender:
    Male
    First Name:
    Daniel
    North Carolina
    Vehicle:
    2004 4x4 2.7L 2008 DCSB 4.0L
    Im not reffering to wire, Im talking about the breaker size. If his load is only gonna draw 50 amps for example, why would he need to utilize a 100 amp breaker? Thats a ton of room for error and stuff to start smoking. ARB fridge doesnt draw anywhere near that per this thread . OP, again, what are you planning to run?

    Running Board Man likes this.
  14. Oct 27, 2019 at 6:11 PM
    #14
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    4,095
    Gender:
    Male
    If the fuse/switch panel he is running has individual fused circuits (like a Blue Sea) I wouldn’t be concerned because the individual outputs are protected at that point. Even if it’s something like a Switch Pro he can wire each output fused independently appropriate to its draw. The 100amp breaker is essentially just protecting the fuse/switch panel from failure.

    Area51Runner likes this.
  15. Oct 27, 2019 at 6:12 PM
    #15
    0xDEADBEEF

    0xDEADBEEF lolcowboy

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    2,961
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles.
    Agreed.

    I think we need more schematic than will fit on the post it note he posted.

  16. Oct 27, 2019 at 10:33 PM
    #16
    aro

    aro [OP] Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296366
    Messages:
    189
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2019 OR DCLB 4X4
  17. Oct 28, 2019 at 1:53 AM
    #17
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    45,865
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Yeah what he said. Each circuit is fused on its own so the large 100A fuse/circuit breaker is for say if you get in a front end collision, and that 4 gauge wire breaks free. Now instead of being able to freely short out on something metal and potentially starting a fire, the fuse should prevent that.

  18. Oct 28, 2019 at 2:14 AM
    #18
    SweetT

    SweetT Mama Tried

    Joined:
    Mar 23, 2019
    Member:
    #287661
    Messages:
    2,023
    Gender:
    Male
    First Name:
    T
    Up the road from Gritto
    Vehicle:
    2017 DCSB TRD Sport
    Please check my diagram. That’s what the blonde said to the gynecologist.

  19. Oct 28, 2019 at 3:12 PM
    #19
    PhenixFord

    PhenixFord Well-Known Member

    Joined:
    Aug 1, 2019
    Member:
    #300917
    Messages:
    880
    Gender:
    Male
    First Name:
    Randy
    Arkansas
    Vehicle:
    2019 MGM SR5 4WD DCSB
    I like your idea to have the power supply switched with the accessory circuit. But isn't the Bosch Relay only rated for 40 amps? Your probably going to need a solenoid for this.

  20. Oct 28, 2019 at 3:32 PM
    #20
    aro

    aro [OP] Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296366
    Messages:
    189
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2019 OR DCLB 4X4
    True... something to keep in mind when calculating the load
