Plug and Play Brake Light taps

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by Puppypunter, Feb 11, 2021.

  1. Jul 20, 2021 at 6:26 PM
    #481
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,512
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Don't Tacoma's use SAE J2863 plugs? So wouldn't the turn and brake be combined? I always thought that was the case. @caribe makaira might know

  2. Jul 20, 2021 at 6:41 PM
    #482
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,252
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes, the Towing Brake & Turn are combined.

  3. Jul 20, 2021 at 7:04 PM
    #483
    907rx7

    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    840
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4

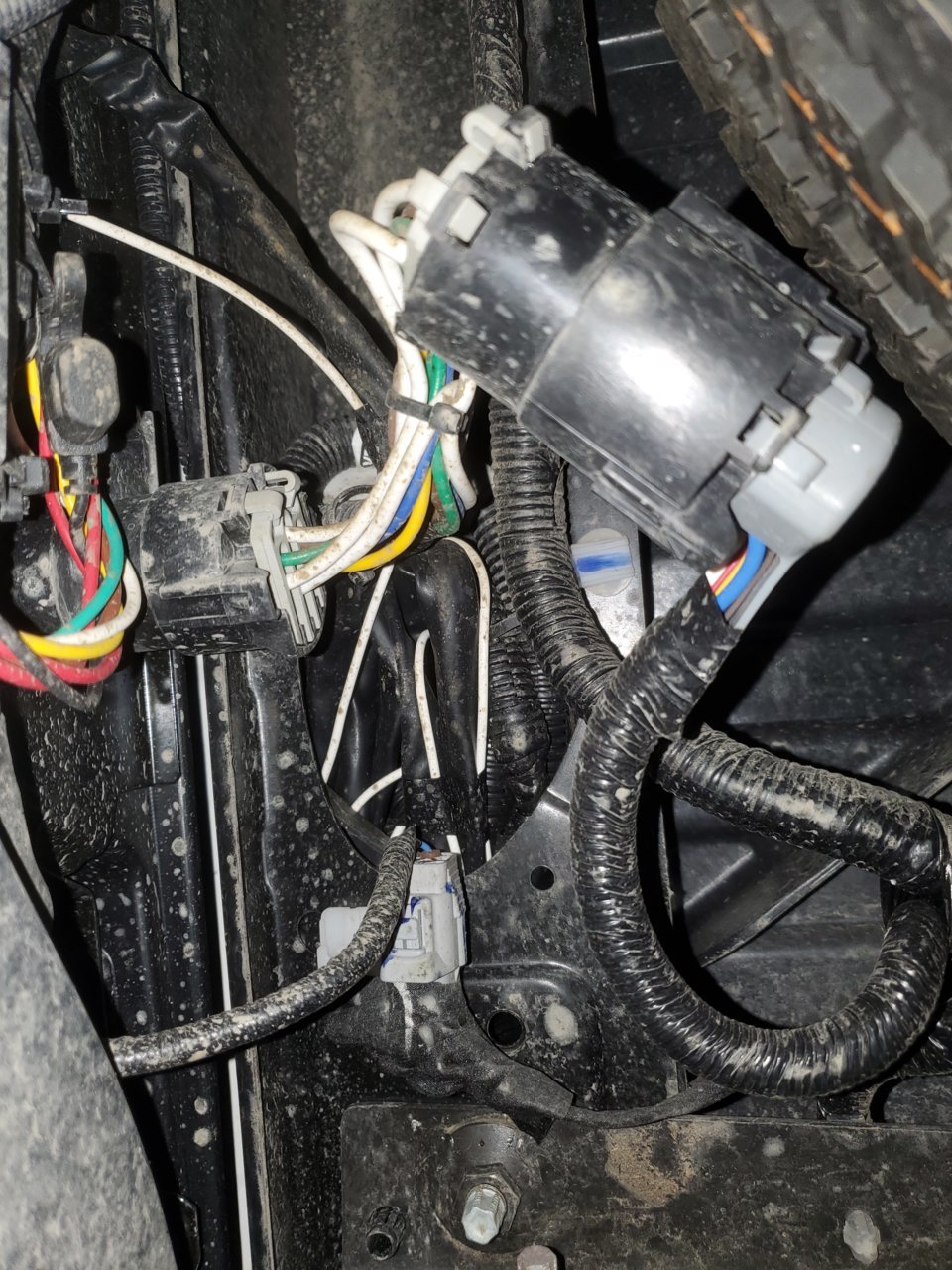

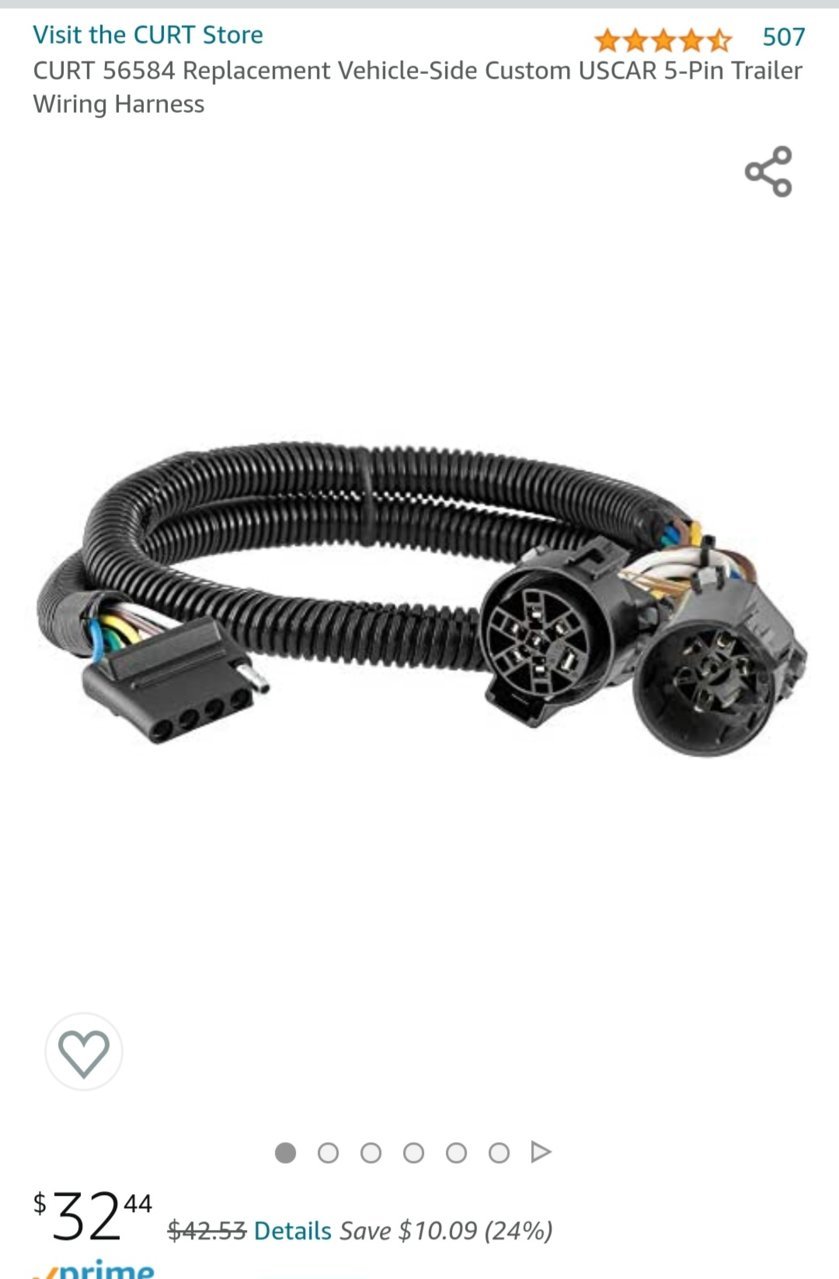

    Hmm, I wonder how my light bar figures that out. Do you think it just detects the flash signal like switchback bulbs do?

  4. Jul 20, 2021 at 8:23 PM
    #484
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,252
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If the light bar is connected to the 4 pin, maybe the stop feature isn't working. Because the same row should be either off, on or flashing. Another row should be on or off ( tails). You should check the function.

  5. Jul 20, 2021 at 8:25 PM
    #485
    907rx7

    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    840
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4
    It's connected to the 5 pin and there are three rows of lights, red, amber white. I'll get pictures, apologies for detailing the thread :anonymous:

  6. Jul 20, 2021 at 8:36 PM
    #486
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,252
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    White - reverse
    Red - Stop //Bright (& maybe Tail//Dim)
    Amber - Turn

    907rx7 likes this.
  7. Jul 20, 2021 at 10:31 PM
    #487
    907rx7

    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    840
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4
    Thanks, I just didn't realize the trailer wiring sends both brake and turn on the same wire. I think the light bar essentially has a vehicle to vehicle converter(2-3 wire conversion) built in that allows it to have all functions.

    Like this

    White - reverse
    Red - Stop //Bright & Tail//Dim
    Amber - Turn & hazard

  8. Jul 21, 2021 at 8:20 AM
    #488
    907rx7

    907rx7 Well-Known Member

    Joined:
    Jul 1, 2019
    Member:
    #298028
    Messages:
    840
    First Name:
    James
    Vehicle:
    '20 Tacoma DCSB SR 4x4
    Aand back on topic :p


  9. Jul 25, 2021 at 3:29 PM
    #489
    gsubioguy

    gsubioguy Well-Known Member

    Joined:
    May 22, 2018
    Member:
    #254259
    Messages:
    838
    Gender:
    Male
    First Name:
    Evan
    Maine
    Vehicle:
    '21 TRD OR
    @Puppypunter Sign me up for one for a 3rd gen in your next batch!

  10. Jul 25, 2021 at 8:18 PM
    #490
    rmac010

    rmac010 Well-Known Member

    Joined:
    Jun 14, 2013
    Member:
    #106297
    Messages:
    264
    Gender:
    Male
    805
    Vehicle:
    2017 DCSB TRD Sport
    Little Review & Install notes on a Tap Harness, hope this helps.

    Installation took around an hour
    I started by removing the drivers side taillight.

    Lock/Unlock (I have an OEM electric tailgate lock)
    The connection point is under the truck not far from where the harness enters the tailgate.
    I unplugged the OEM lock/ unlock connector for the tailgate actuator, installed the in-line harness & re-connected the OEM connector.

    Brake Light
    Unplugged the brake light connector from the taillight, installed the in-line harness & re-connected the brake light connector.

    Ground Wire
    There are a few place under the truck that will work that dont require drilling. I found an existing hole, sanded down to bare metal, installed the ground wire using a marine grade ring terminal, then used a nut & bolt (be sure to use loctite on the threads & also use liquid tape on the ring terminal bolt & wire end to help prevent corrosion / water intrusion)

    Power Wire
    Find the best path that works for you.
    I ran mine in the frame rail, and away from the exhaust manifold and steering.
    An inline fuse & ring terminal were installed at the battery.

    Deutsch flanged connector
    I installed the connector has high as possible because I always have at least 1 ladder in my truck for work, along with boxes of cable & other items.
    I used a step bit & drill bit to make a hole the was close to the shape of the connector. (A hole saw will also work, I just used what I had in my tool bag)

    Inserting the pins into the Deutsch Connector was very simple.

    Tips & Notes:
    Pre-drill the mounting holes.
    Be sure to write down your pin-out & take a picture
    Have someone hold a shop vac while drilling the truck bed, wear a respirator and eye protection.

    If you don't already know; the truck bed is a composite material DO NOT BREATH OR GET IN YOUR EYES OR ON SKIN, it can be like working with fiberglass.

    Use some pull string or wire to drop down the hole for connector, tape on the harness and be gentle when pulling.
    I installed the Deutsch flanged connector thumb tab down.
    Silicone was used on the Deutsch flanged connector & bed of truck to create a seal between the connector and truck bed.

    The pins came pre labeled for both male & female connectors.

    Some thoughts on the harness:
    The blue brake light wire could be a couple of inches longer; same with the lock/unlock harness under the truck. (Not that big of a deal)
    Would be awesome the the connection had a 90 degree plug.


    Very happy with this harness, the LAST thing I wanted was the factory harness butchered.
    This is a well built harness. I am really impressed with Johnny's workmanship; this could pass as OEM.


    Now I am just waiting for my camper shell.
    ARE is running close to 3 weeks behind schedule.












  11. Jul 25, 2021 at 8:48 PM
    #491
    daveeasa

    daveeasa Slowest crimp in the West

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    2,671
    Gender:
    Male
    First Name:
    David
    San Diego
    Vehicle:
    2016 OR 4x4 DCSB MGM 6MT
    That’s a pretty good spot. I was thinking of doing it on the metal myself as I have bedside molle but I might rethink that. Yours looks very nice.

  12. Jul 26, 2021 at 10:54 AM
    #492
    whatjones911

    whatjones911 Well-Known Member

    Joined:
    Feb 13, 2016
    Member:
    #178058
    Messages:
    127
    Gender:
    Male
    Vehicle:
    2018 DCSB OR 4x4 MT
  13. Jul 27, 2021 at 7:34 AM
    #493
    mx355

    mx355 Well-Known Member

    Joined:
    Sep 30, 2010
    Member:
    #44063
    Messages:
    485
    Gender:
    Male
    First Name:
    Trent
    TX
    Vehicle:
    2020 Trd Pro
    Add me to the 3rd gen List please.

    Thanks

  14. Jul 28, 2021 at 3:06 PM
    #494
    Greg.Brakes.Tacos

    Greg.Brakes.Tacos Don't Feed the Animals

    Joined:
    May 24, 2018
    Member:
    #254446
    Messages:
    2,681
    Gender:
    Male
    First Name:
    Greg
    Between Richmond and Virginia Beach
    Vehicle:
    2017 Taco DCSB TRD off road
    wanna be mods
    Add me to the list for 3rd gen

  15. Jul 29, 2021 at 8:38 PM
    #495
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,512
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    A round of PM's incoming!

    Thank you for the feedback and the pictures! I will add a little length to future builds. Always best to have a little more than needed. I looked into a 90 degree option, but they don't do it with the flanged connectors. They do however make a shell for them that does 90, so maybe that will be an option? I think your location is exactly what I have had in mind designing these. Hope to see more when the topper gets here! :thumbsup:

    rmac010 likes this.
  16. Jul 30, 2021 at 12:56 AM
    #496
    gsubioguy

    gsubioguy Well-Known Member

    Joined:
    May 22, 2018
    Member:
    #254259
    Messages:
    838
    Gender:
    Male
    First Name:
    Evan
    Maine
    Vehicle:
    '21 TRD OR
  17. Jul 30, 2021 at 4:01 PM
    #497
    crazyjeys

    crazyjeys Well-Known Member

    Joined:
    Jun 2, 2009
    Member:
    #17928
    Messages:
    289
    Gender:
    Male
    SoCal
    Vehicle:
    2018 TRD Off Road 4x4
    Will this work for a tail light and brake light tap? I’m thinking of adding a chase light bar and it has running lights and brake lights function.

  18. Jul 30, 2021 at 4:03 PM
    #498
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,512
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    I can easily add a parking light tap to it, no extra charge.

  19. Jul 30, 2021 at 4:28 PM
    #499
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,252
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Your Plug & Play's brings all the folks to the thread
    And they're like, it's better than OEM
    Damn right it's better then OEM
    You can build them, but you gotta charge...

    I know they want it
    The things that you make
    What the folks go crazy for
    They lose their cash
    The things you crimp

    Crimp it up
    The folks are waiting...
    :drunk:

    Last edited: Jul 30, 2021
  20. Jul 30, 2021 at 4:45 PM
    #500
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,112
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    :rofl: Must be happy hour in PR :cheers:
