Poly shackle bushing install

Discussion in '3rd Gen. Tacomas (2016+)' started by squarenone, May 4, 2019.

  1. May 4, 2019 at 6:45 PM
    #1
    squarenone

    squarenone [OP] Well-Known Member

    Joined:
    May 20, 2018
    Member:
    #254094
    Messages:
    222
    Gender:
    Male
    SoCal
    Vehicle:
    2018 TRD OR 4x4 6sp-mt
    Step 1: Buy new shackles from the link below, it's worth the $30 to not mess around with the stock bushing and the metal sleeve that gets stuck inside and is a pita to remove.

    https://toyotaparts.mcgeorgetoyota.com/oem-parts/toyota-shackle-kit-spring-0400565104

    Step 2: Buy new bushings from energy, I have Ome Dakar leafs with poly bushings from energy already installed in the eyes so I only needed the bushings for the shackle to hanger.

    The part number for just the bushing is - bulk-02p02843 - You'll need to order 4 of them.
    You'll also need 2 of the sleeves -
    bulk-15.10.197.39
    Cost was $45 shipped from energy.

    If you're installing new leafs, you can just buy the complete kit from energy and it includes bushings for both eyes on the leaf and the shackle.

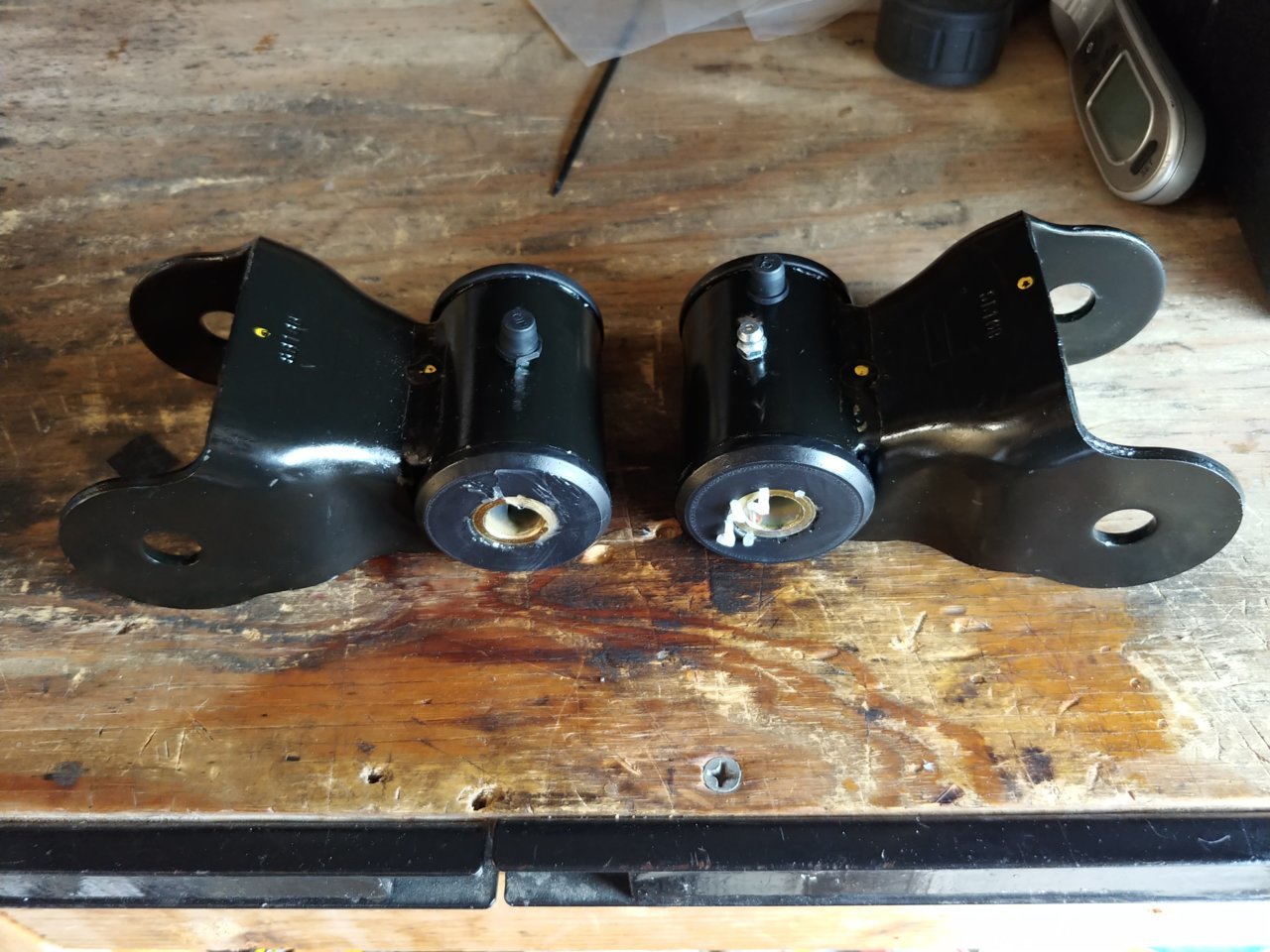

    Once you receive the parts you can begin assembling the bushings into the new shackles and start the install. I decided that it would be a good idea to install some metric m6 zerk fittings so I can easily grease the bushings every oil change. I use the same superlube grease that total chaos recommends for their UCA, that way I only need one type of grease and and one grease gun for all the bushings. I have a separate grease gun with Redline CV-2 for the prop shaft. For the bushings that can't be serviced easily, I use energy suspension lube.
    Zerks fittings - https://www.amazon.com/gp/aw/d/B076DCRJ8Q/ref=ppx_yo_mob_b_track_package_o1_img?ie=UTF8&psc=1

    Step 3: Remove your stock shackles and install the new ones. I pumped them with grease once I had the shackles installed with the bolts hand tight.

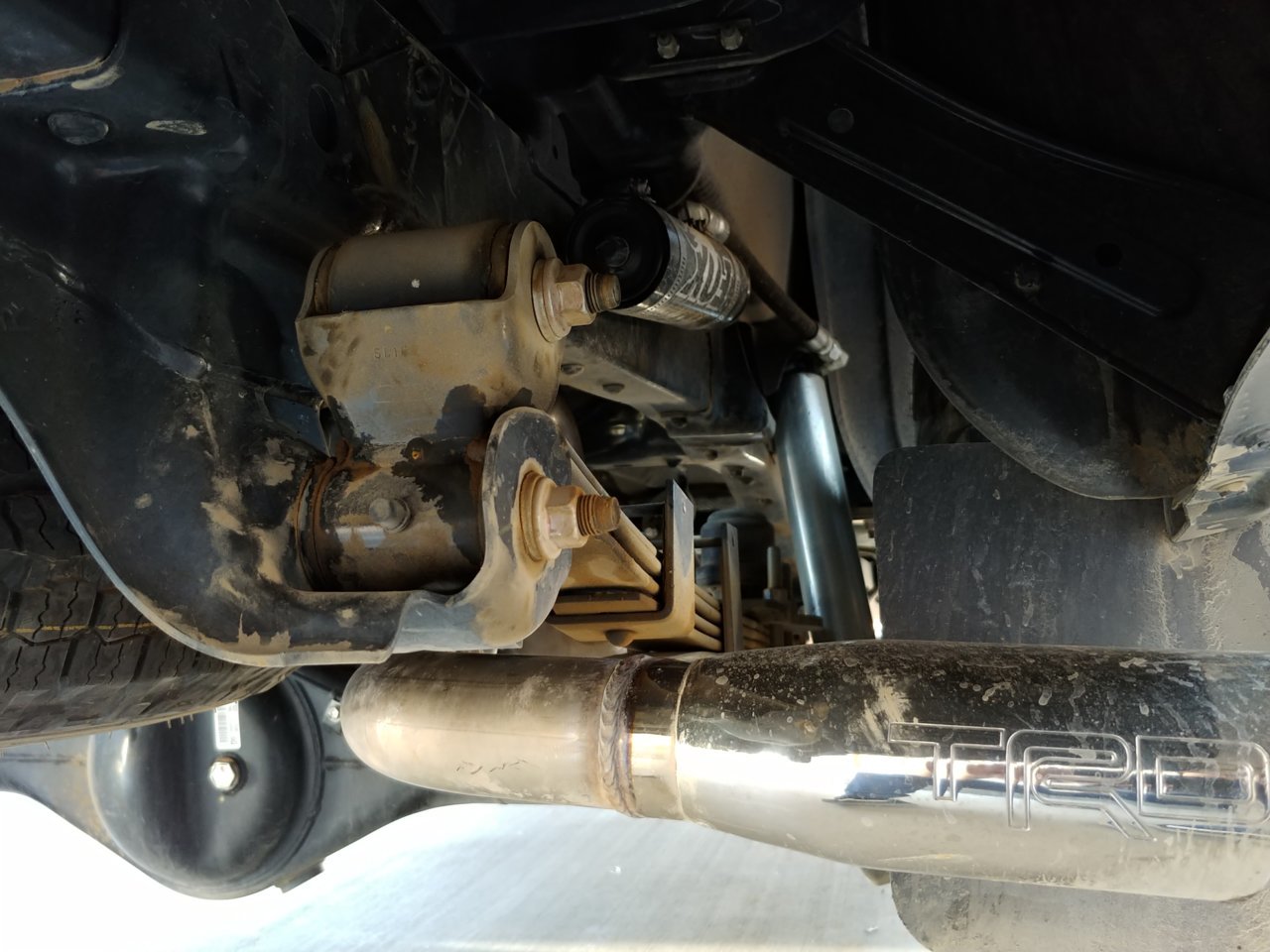

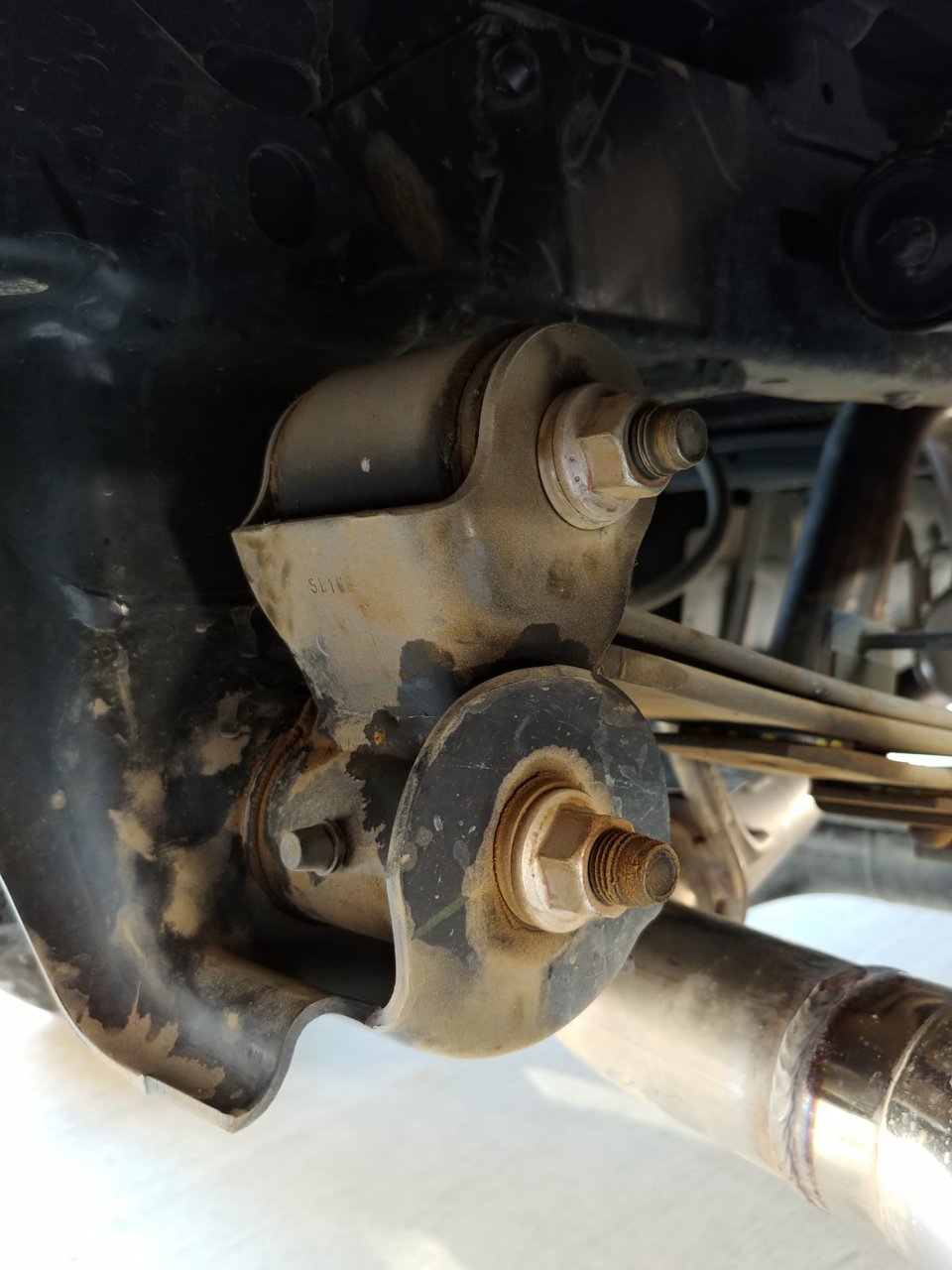

    Step 4: Enjoy! I went wheeling after I installed them so that's why they're dirty. I'm also not worried about the zerk hitting the hanger, the straight zerk doesn't stick out far enough to hit the hanger, 45 and 90 degree zerks are significantly taller so I would advise against those ones. The zerk covers are from Amazon, i put them on every zerk fitting on the truck.
    https://www.amazon.com/gp/aw/d/B077R6Y99S/ref=ppx_yo_mob_b_inactive_ship_o2_img?ie=UTF8&psc=1


    Last edited: May 4, 2019
  2. Nov 25, 2019 at 2:24 PM
    #2
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    6,310
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Adj. Ext ADS, 4.88's, OVTune
    What size zerc did you use? 1/4"-28?
    I assume they are self-tappinig, did you use 3/16" drill bit to start?
    Thanks!

  3. Nov 25, 2019 at 6:05 PM
    #3
    squarenone

    squarenone [OP] Well-Known Member

    Joined:
    May 20, 2018
    Member:
    #254094
    Messages:
    222
    Gender:
    Male
    SoCal
    Vehicle:
    2018 TRD OR 4x4 6sp-mt
    I used an M6 zerk since I only have a metric tap set. You can use 1/4-28 if you want, basically the same size. They are not self tapping, you have to tap the hole after you drill it.

    SpeySquatch likes this.
  4. Nov 25, 2019 at 8:52 PM
    #4
    SpeySquatch

    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    6,310
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Adj. Ext ADS, 4.88's, OVTune
    Thanks sir. I bought some self tapping zercs. I hope they will work. I may end up getting a small 1/4” anyways

    I bought these:
    https://www.amazon.com/Lumax-LX-4801-Silver-Fitting-Assortment/dp/B0059HKXN8?ref_=fsclp_pl_dp_13

    Last edited: Nov 25, 2019
  5. Sep 3, 2020 at 4:33 PM
    #5
    gordi

    gordi Only had a wheel fall off once

    Joined:
    Jul 16, 2013
    Member:
    #108373
    Messages:
    2,916
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2011 DCSB trd sport
    Fox 2.5 extended travel, dakars, rear 5125 255/80/17 cooper maxx ST
    was the shackle spring kit you listed to buy comes as a pair or is that each single side?

  6. Sep 4, 2020 at 7:45 PM
    #6
    squarenone

    squarenone [OP] Well-Known Member

    Joined:
    May 20, 2018
    Member:
    #254094
    Messages:
    222
    Gender:
    Male
    SoCal
    Vehicle:
    2018 TRD OR 4x4 6sp-mt
    They're sold individually so you'll need to purchase 2 of them.

    gordi likes this.
  7. Sep 21, 2020 at 11:36 PM
    #7
    Tkm05

    Tkm05 Active Member

    Joined:
    Sep 7, 2020
    Member:
    #340124
    Messages:
    32
    Gender:
    Male
    Vehicle:
    2005 Silver Tacoma
    How did you insert the bushings into the shackle? I'm having a hell of a time trying to do mine.

    whatstcp likes this.
  8. Sep 21, 2020 at 11:39 PM
    #8
    whatstcp

    whatstcp Professional incoherent spammer

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    8,397
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
    Lube them up, press one side in with palm of hand and shackle against tabletop. Flip and do the same for other side. Then get bushing started with twisting motion. Then support shackle on tabletop and smack it with a dead blow

    Or squeeze it in with a bench vise

  9. Sep 21, 2020 at 11:49 PM
    #9
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,510
    Gender:
    Male
    First Name:
    Nate
    Concrete Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer
    New shackle or old one. My buddy was fighting his and called me. I came over to help and he had drilled out the rubber part but left the metal cup in the shackle. I took a saw-z-all and carefully cut it as best I could and used a cold chisel to get it out.

    whatstcp likes this.
  10. Sep 21, 2020 at 11:56 PM
    #10
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,510
    Gender:
    Male
    First Name:
    Nate
    Concrete Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer

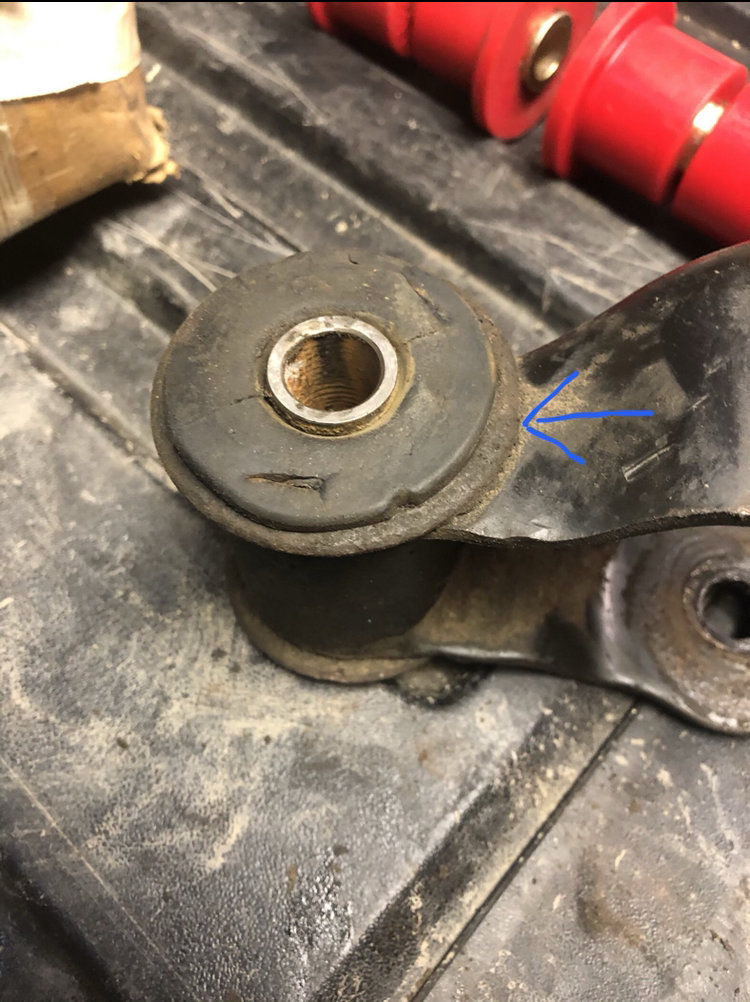

    If this is still in there they aren’t gonna fit. It takes a little bit to get them in but nothing crazy. You can squish them in by hand.CF211FAB-7D11-45A8-AB67-8CE46E07CB44.jpg

    Tkm05 likes this.
  11. Sep 22, 2020 at 7:37 AM
    #11
    Tkm05

    Tkm05 Active Member

    Joined:
    Sep 7, 2020
    Member:
    #340124
    Messages:
    32
    Gender:
    Male
    Vehicle:
    2005 Silver Tacoma
    Crap, I'm sure mine still has that.


  12. Sep 22, 2020 at 7:43 AM
    #12
    whatstcp

    whatstcp Professional incoherent spammer

    Joined:
    Aug 3, 2018
    Member:
    #261584
    Messages:
    8,397
    Gender:
    Male
    First Name:
    Ed
    Fontana, CA
    Vehicle:
    2006 Tacoma Regular Cab 2.7l 4x4
    King + Archive Relocation Wheeler's bumps +hydros
    Yeah it still has the bushing sleeve. You can take it out with some elbow grease

  13. Sep 22, 2020 at 7:44 AM
    #13
    Tkm05

    Tkm05 Active Member

    Joined:
    Sep 7, 2020
    Member:
    #340124
    Messages:
    32
    Gender:
    Male
    Vehicle:
    2005 Silver Tacoma
    Fml thanks

  14. Sep 22, 2020 at 7:49 AM
    #14
    EXTaco

    EXTaco Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247622
    Messages:
    54
    Gender:
    Male
    Forgive my ignorance but what's the point of this?

  15. Sep 22, 2020 at 10:18 AM
    #15
    Citizen Rob

    Citizen Rob Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167050
    Messages:
    230
    Gender:
    Male
    Stockton, CA
    Vehicle:
    2016 Tacoma TRD OR DCSB 4x4 V6 Auto
    To help prevent rear end from squeaking like an old jalopy.

  16. Sep 22, 2020 at 11:12 AM
    #16
    Shadowhunter

    Shadowhunter Well-Known Member

    Joined:
    Mar 24, 2017
    Member:
    #214241
    Messages:
    1,510
    Gender:
    Male
    First Name:
    Nate
    Concrete Washington
    Vehicle:
    13’ DCSB MT Sport
    Whats under the truck? OME 886’s Nitro Chargers 1/4” top plate spacers 1.5” Icon add-a-leaf for a total of 3” front and rear. 275/80/17 MTR’s SCS Ray10’ URD Stage 2 clutch Heavy Flywheel Clutch Masters Hydro Bering What’s on the front? Cbi bumper steel. Smittybilt X20 10k Under the hood? Ultimate headlight and fog light harnesses 100w/90w H4Headlights 9011 60wHir Fogs Anytime fog mod Northstar Group 34 14.7 Voltage booster Red Line hood struts K&N replacement filter on secondary air pump K&N air cleaner Donbison Snorkle In the cab? Wet Okie seat covers Petal Comander Meso Maps and Dome Molle panels on the consol Flyeyze Under the climate controls,glove box and center consol TRD Logo plates over door latches Weather Tech Floor mats with Custom TRD stickers Weather Tech Rain guards Weather Tech bug shield Full Head liner of patches On the bed? Snug-top Rebel Yakima racks Chinese knock off bat wing awning with walls Water Port Quick Fists Mount Bed Mat Anti theft tail gate bracket Trailer plug relocate Coms? Buofeng Navigation Garmin Alpha 100 ( Hound hunting GPS System) ECGS Bushing Cobra Rx75 Cb Home made sleeping platform with drawers. On the bench waiting to go in? 3* Cam Gears. Powder Coated Valve Covers Custom 3/4” intake spacer
    It does, get that out.

  17. Sep 22, 2020 at 3:41 PM
    #17
    rnish

    rnish Well-Known Member

    Joined:
    May 9, 2014
    Member:
    #129450
    Messages:
    4,662
    Gender:
    Male
    Maryland USA
    Vehicle:
    Tacoma 2nd gen
    Pro Suspension (Bilstein), OME Dakar (med), armor
    Buy new shackels, not that expensive and saves a lot of work.

    Dobinson greaseable bolts work for me.


  18. Sep 25, 2020 at 2:16 PM
    #18
    gordi

    gordi Only had a wheel fall off once

    Joined:
    Jul 16, 2013
    Member:
    #108373
    Messages:
    2,916
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2011 DCSB trd sport
    Fox 2.5 extended travel, dakars, rear 5125 255/80/17 cooper maxx ST

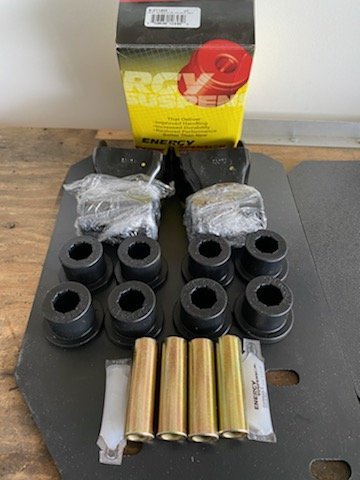

    1606B8BB-9A07-4D73-BA66-394ABC824E3F.jpg Any one looking for a poly set and new shackles with the bushings in. I have a set that’s new in box and never been used. I sold my Tacoma before installing these for the dakars.
    100 bucks shipped or make an offer.

    I paid 80 plus shipping for the bushings and 40 plus shipping for the shackles.
