POS Door Lock Actuator

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ZachPrerunner, Jan 2, 2017.

  1. Jan 2, 2017 at 1:42 PM
    #1
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Okay so my door lock is acting up again at random times. It's a pain considering I have to unlock the door from the back. I know the actuator can be cleaned but I can't seem to get it out of the door shell. What are my options? Will any place besides the dealer take care of this problem?

  2. Jan 2, 2017 at 1:43 PM
    #2
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Wrong place sorry folks

  3. Jan 2, 2017 at 1:47 PM
    #3
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    Order a new door lock actuator motor on eBay (like $10 for two) and wrestle out the actuator assembly from door. It's not a tough job to do and once you do it the first time, it becomes twice as fast.

    You've gotta remove the door panels and plastic weather sheathing and two bolts that hold the assembly in the door in addition to the lock linkage. Then it's just a matter of wrestling it out, opening it up and swapping motors. There's several good guides if you search with pictures thst I used for mine.

    Definitely worth doing it yourself for the fact the motors are so cheap. You're probably gonna pay a small fortune to have a shop do it

    ZachPrerunner [OP] likes this.
  4. Jan 2, 2017 at 1:52 PM
    #4
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    http://m.ebay.com/itm/10mm-D-Flat-S...%3A612ace2d1590a6a8cc0730c8ffc36fae%7Ciid%3A4
    Is this the correct motor? I'm not really sure what I'm looking for

  5. Jan 2, 2017 at 2:08 PM
    #5
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
  6. Jan 2, 2017 at 2:09 PM
    #6
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
  7. Jan 2, 2017 at 2:13 PM
    #7
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    Sure thing. One last thing I'll say as I didn't realize it at the time, there is one bolt (10mm IIRC) that holds the clamshell together in addition to 6-8 plastic clips. Take the screw out first, and it opens up super easy. You'll have a hell of a time separating the sides if you don't remove it first.

    ZachPrerunner [OP] likes this.
  8. Jan 6, 2017 at 3:23 PM
    #8
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Is there a video on this? I just got my motors in today

  9. Jan 6, 2017 at 3:38 PM
    #9
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    Last edited: Jan 6, 2017
    ZachPrerunner [OP] likes this.
  10. Jan 6, 2017 at 4:16 PM
    #10
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Thank you! I'm going to attack it tomorrow and I'll message you if I have any questions, I appreciate the assistance greatly

  11. Jan 8, 2017 at 11:54 AM
    #11
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    How'd it turn out?

  12. Jan 8, 2017 at 11:55 AM
    #12
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Well with the temp being 23 degrees here, I opted out yesterday. I'm hoping to get to it this week sometime when the temp gets back up :annoyed:

  13. Jan 8, 2017 at 11:57 AM
    #13
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    Shit I hear ya there. It was 7° this morning when I left to hunt, act of self torture trying to sit in a stand in this weather.

    ZachPrerunner [OP] likes this.
  14. Jan 8, 2017 at 12:02 PM
    #14
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    I did that a few years back when the temperature dropped to 10 degrees... never again

  15. Jan 13, 2017 at 2:35 PM
    #15
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4

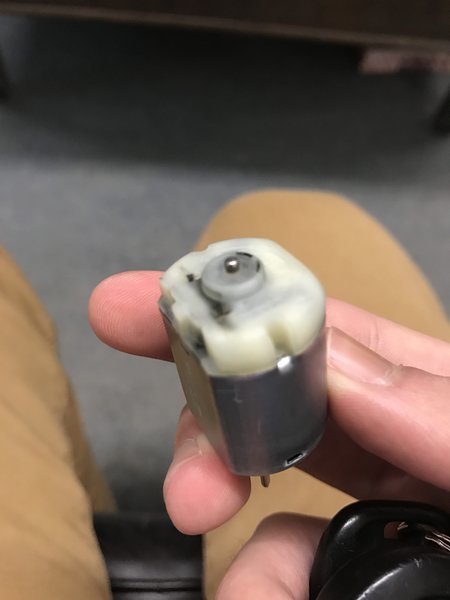

    Replaced both doors just in case. Burnt motor on the driver's side. Thanks for the help guys!


    Cohutta likes this.
  16. Jan 19, 2017 at 6:42 PM
    #16
    ZachPrerunner

    ZachPrerunner [OP] Sometimes she goes, sometimes it doesn’t

    Joined:
    Jul 7, 2015
    Member:
    #158942
    Messages:
    2,801
    Gender:
    Male
    Southeast TN
    Vehicle:
    ‘07 TRD Offroad / ‘19 TRD Offroad 4x4
    Update: front doors have been working flawlessly since the replacement. Now, the back door has gone out. :annoyed:

    Replacement motors are on the way at least!

  17. Jul 22, 2017 at 9:31 AM
    #17
    mjhebert

    mjhebert Member

    Joined:
    Apr 17, 2015
    Member:
    #153400
    Messages:
    19
    Gender:
    Male
    First Name:
    Mike
    Central Louisiana
    Vehicle:
    '06 Tacoma TRD
    Do you think the long D Flat Shaft motor you used would work on my 2006 TRD?

  18. Jul 22, 2017 at 11:42 AM
    #18
    Cohutta

    Cohutta Well-Known Member

    Joined:
    Oct 9, 2012
    Member:
    #88633
    Messages:
    172
    Gender:
    Male
    Georgia
    Vehicle:
    2011 4x4 AC 2.7
    Dog hair
    I'm assuming it's the same, worst case you're out $12.

  19. Jul 22, 2017 at 11:47 AM
    #19
    mjhebert

    mjhebert Member

    Joined:
    Apr 17, 2015
    Member:
    #153400
    Messages:
    19
    Gender:
    Male
    First Name:
    Mike
    Central Louisiana
    Vehicle:
    '06 Tacoma TRD
    Cool. Thanks.

  20. Jul 25, 2017 at 7:54 PM
    #20
    mjhebert

    mjhebert Member

    Joined:
    Apr 17, 2015
    Member:
    #153400
    Messages:
    19
    Gender:
    Male
    First Name:
    Mike
    Central Louisiana
    Vehicle:
    '06 Tacoma TRD
    I just ordered a set of 4 motors for $26 on Ebay. Hoping to install this weekend. My dealership also quoted $1000. What a scam!
