Possible to reset Pre-Collision and ABS messages without dealer visit ????

Discussion in '3rd Gen. Tacomas (2016+)' started by 95tojo, Oct 18, 2019.

  1. Oct 18, 2019 at 2:55 PM
    #1
    95tojo

    95tojo [OP] IG @jkthomp01

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    1,026
    Gender:
    Male
    First Name:
    Jared
    So IL
    Vehicle:
    '19 Cement Grey TRD Sport 4x4 6MT

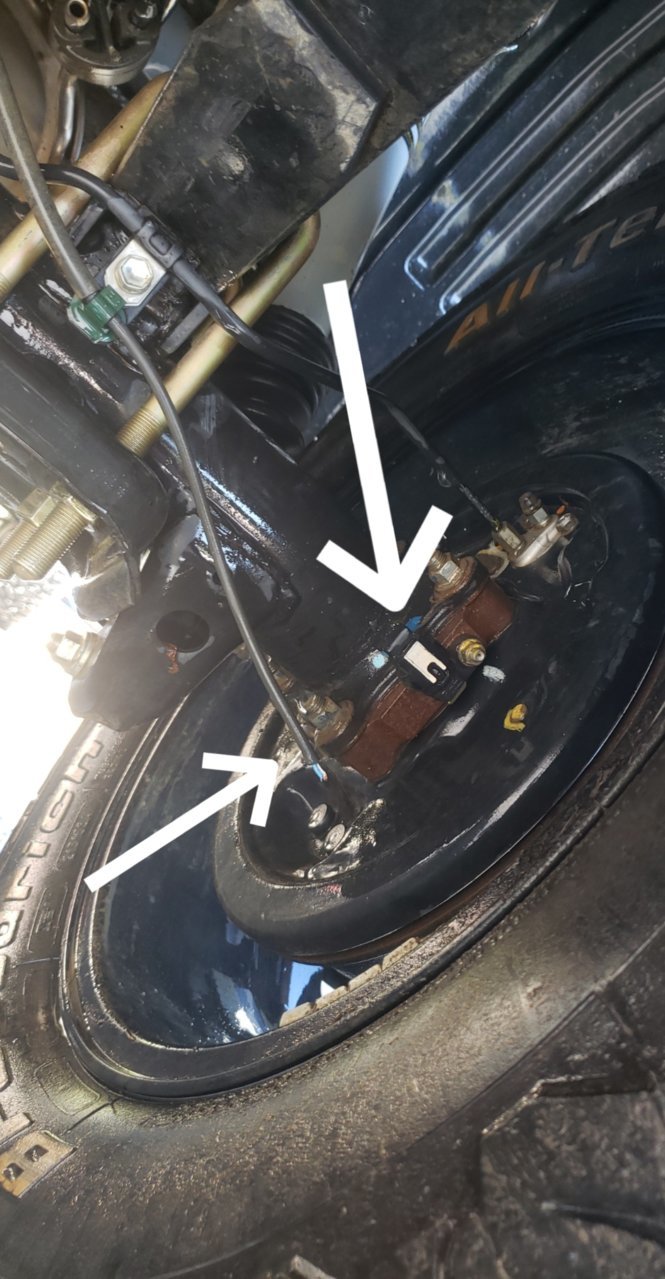

    Long story short, had an ABS sensor wite get cut off inside the plug while out and about (passenger rear).

    Picked up the new complete harness today from the dealer (154 and some change and supposedly only 4 available right now in the US.) so that I can swap it out this weekend.

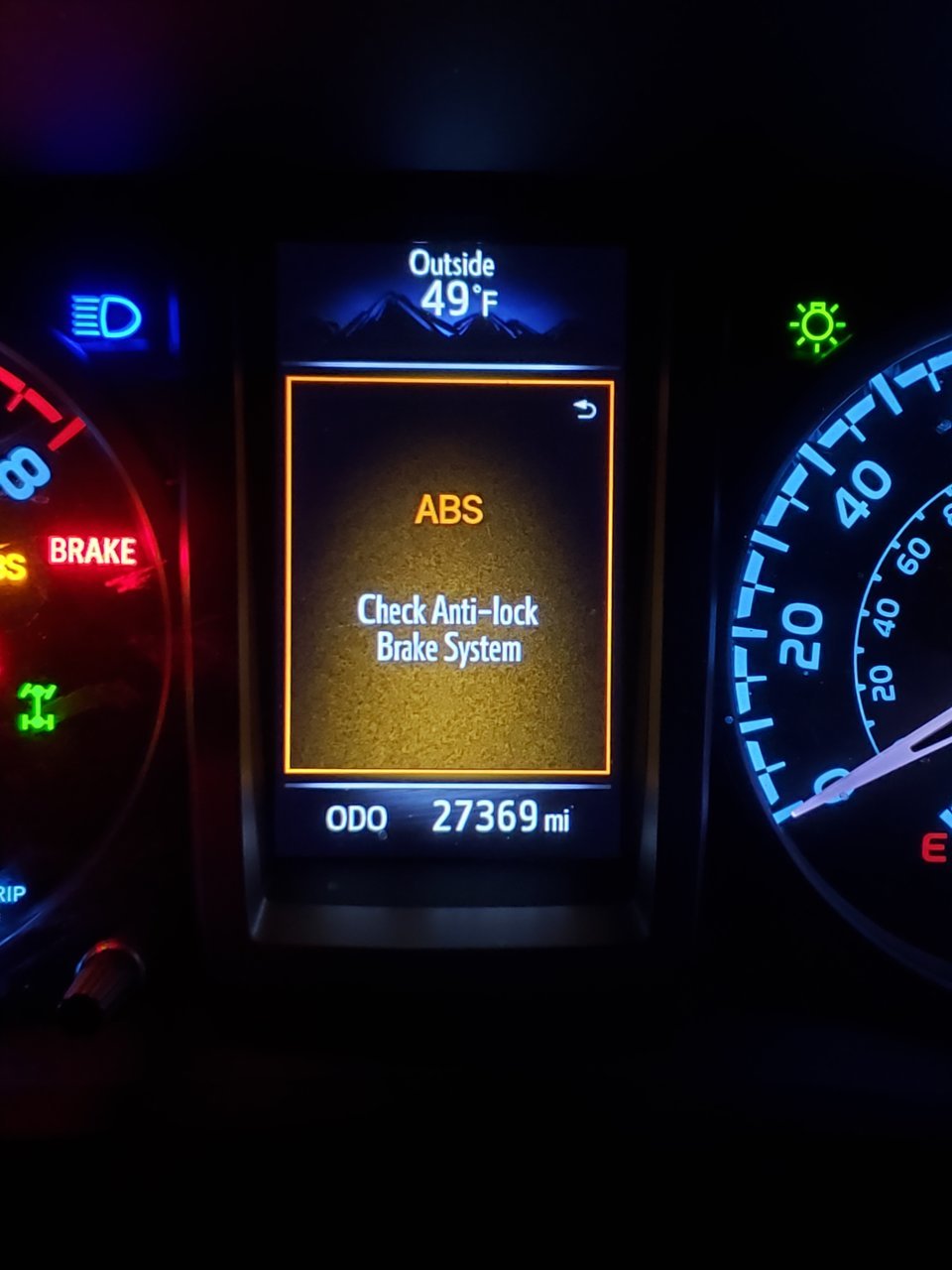

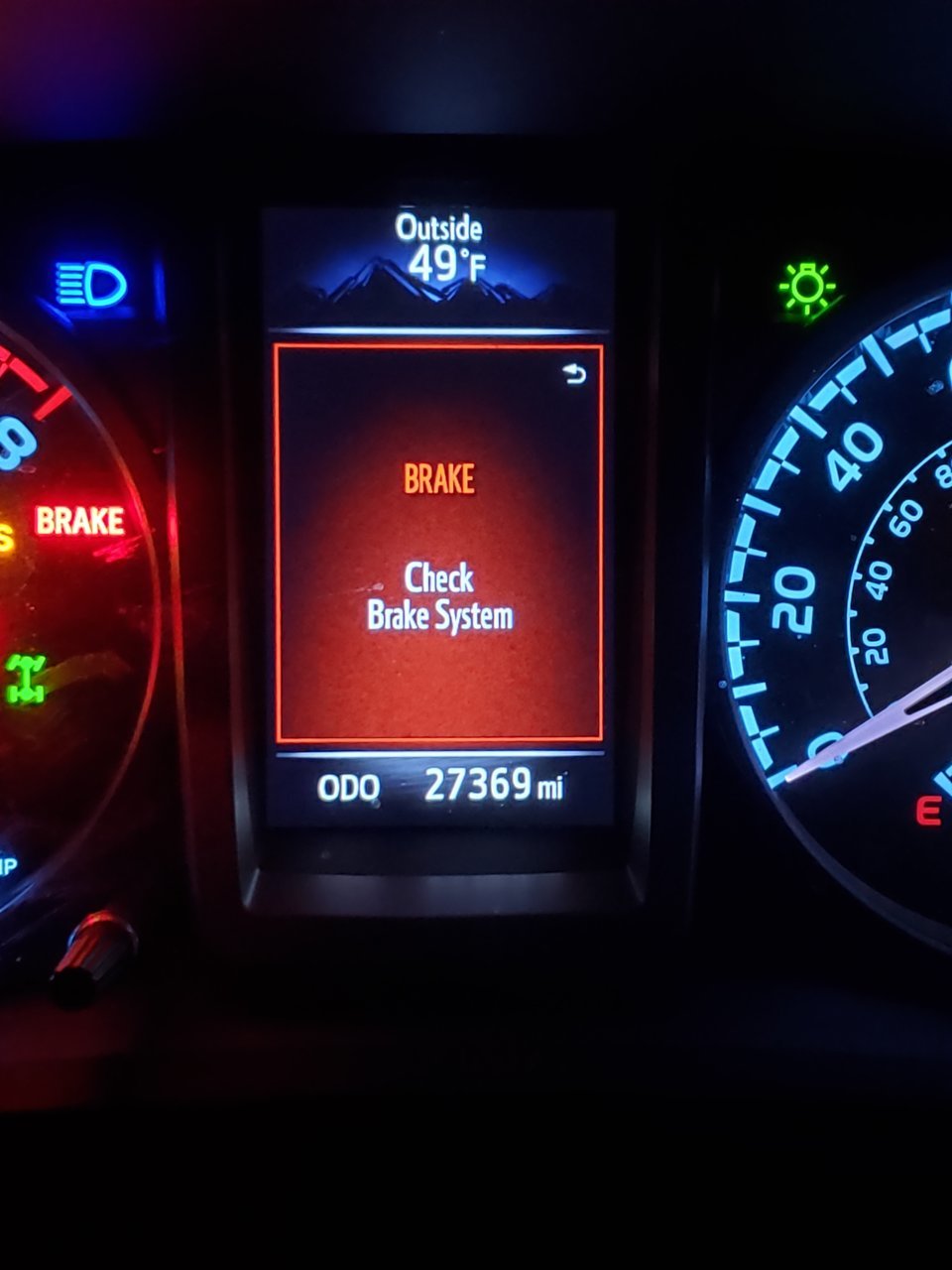

    I'm currently getting the following error messages and dash lights before the fix. Dealer said it would be $120 for them to reset them.

    Anyway to do this myself ? I've reset ABS lights on a 2nd Gen after replacing the sensors with the jumper wire method and I've heard it works on 3rd Gens, but will that same process clear the pre-collision message also ??

    Snapchat-94722031.jpg 20191012_192032.jpg 20191012_192024.jpg 20191012_192016.jpg

  2. Oct 18, 2019 at 4:00 PM
    #2
    AKGSD

    AKGSD Warranty denied

    Joined:
    Apr 1, 2019
    Member:
    #288705
    Messages:
    966
    Gender:
    Male
    First Name:
    Joe
    Alaska
    Vehicle:
    2019 QSDCSBTRDOR4X4V6MT
    Dog hair, metaltech 4x4 rocksliders, KBVooDoo bed risers, Smittybilt RTT, 3” spacer lift (Removed!), caliraised ditch lights, amazon rock lights, OVtune, Skewp
    I know on fords, the code will be stored for historic purposes but the lights go away once the problem is fixed (excluding the MIL)

    95tojo [OP] likes this.
  3. Oct 18, 2019 at 4:20 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,091
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  4. Oct 18, 2019 at 4:33 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,091
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  5. Oct 18, 2019 at 4:36 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,091
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  6. Oct 18, 2019 at 4:37 PM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,091
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  7. Oct 19, 2019 at 11:14 AM
    #7
    95tojo

    95tojo [OP] IG @jkthomp01

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    1,026
    Gender:
    Male
    First Name:
    Jared
    So IL
    Vehicle:
    '19 Cement Grey TRD Sport 4x4 6MT
    @caribe makaira appreciate it. I will give it a shot and see if it works. :thumbsup:

  8. Dec 5, 2019 at 12:53 PM
    #8
    Mountain2018

    Mountain2018 Well-Known Member

    Joined:
    May 13, 2018
    Member:
    #253346
    Messages:
    246
    Gender:
    Male
    Harpers Ferry/Leesburg VA
    Vehicle:
    2018 4x4 SB gray
    old..but did this work for you? I was unable to clear ABS fault (and was pretty it would not work for PCS). From getting hit looks like need to get a new OEM grill and sensor. Havent seen anyone or missed it, where a new PCS was installed vice all the calubration issues.

  9. Dec 5, 2019 at 1:22 PM
    #9
    95tojo

    95tojo [OP] IG @jkthomp01

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    1,026
    Gender:
    Male
    First Name:
    Jared
    So IL
    Vehicle:
    '19 Cement Grey TRD Sport 4x4 6MT
    All of my lights actually shut off after I plugged in the new ABS sensor harness.

  10. Dec 5, 2019 at 8:20 PM
    #10
    Mountain2018

    Mountain2018 Well-Known Member

    Joined:
    May 13, 2018
    Member:
    #253346
    Messages:
    246
    Gender:
    Male
    Harpers Ferry/Leesburg VA
    Vehicle:
    2018 4x4 SB gray
    Good to hear. I was in garage flipping tires rear to front to see if a odd on and off again sound and vibration would go away. Had two alugnments and front still unsettled with the ABS and TSC on. Long story short flipping tires did not make a difference. I just happened to climb under rear and that made me look at the tires in relation to body. The body had clearly shifted o the frame! No wonder wobbles, lights and alignment issues!! Sad estimator, body shop nor an alignment shop even noticed and doubtful even looked. May be intereting when go by body shop tomorrow and insist they request a supplime t to fix the truck and get the estimator back.

  11. Dec 6, 2019 at 11:36 AM
    #11
    95tojo

    95tojo [OP] IG @jkthomp01

    Joined:
    Mar 21, 2008
    Member:
    #5421
    Messages:
    1,026
    Gender:
    Male
    First Name:
    Jared
    So IL
    Vehicle:
    '19 Cement Grey TRD Sport 4x4 6MT
    :eek::eek::eek::eek:

    Hopefully you get it settled !
