Power Sliding Rear Window BRACKET

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by kgarrett11, Jan 27, 2017.

  1. Jan 27, 2017 at 12:15 PM
    #1
    kgarrett11

    kgarrett11 [OP] Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,900
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB
    This bracket will allow you to complete your DIY rear sliding window kit. This is only for the bracket, NOT a kit. Hopefully I can get these to all members that want to complete their DIY sliding rear window kit... Brackets are $49 shipped to your door. $10 more for those in Canada. Pm me to order. I will post updates along the way. Happy modding everyone!

    Here is a very detailed write up from member @Poitrasbh


    EDIT: They are in and have been shipped to several members!

    **If you're reading this then yes i still have some left. Message me**




    Last edited: Sep 20, 2019
    MarX, hwyrun, 05Taco4x4 and 10 others like this.
  2. Jan 27, 2017 at 12:18 PM
    #2
    kgarrett11

    kgarrett11 [OP] Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,900
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB
  3. Jan 27, 2017 at 12:27 PM
    #3
    kgarrett11

    kgarrett11 [OP] Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,900
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB
    Note at the moment. like the OP states they are being made and I wont know the details until I find out how much materials and shipping come out to be. This is just a list to gauge interest to determine volume.

    **EDIT- They are in and have been shipped to several members. $49

    Last edited: May 6, 2019
    seoulja99 likes this.
  4. Jan 27, 2017 at 12:35 PM
    #4
    kgarrett11

    kgarrett11 [OP] Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,900
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB
    My understanding is that the kit is easy to assemble as a motor, cabling and wires are all that is needed. The tough part is attaching it to the window in order to slide. And thats what this bracket will accomplish. The wise and Mighty @nazlax10 can elaborate further as he has successfully completed this mod

    Cmurder likes this.
  5. Jan 27, 2017 at 12:35 PM
    #5
    Bocsy44

    Bocsy44 Well-Known Member

    Joined:
    Mar 30, 2016
    Member:
    #182850
    Messages:
    5,258
    Gender:
    Male
    First Name:
    Erik
    Ottawa, ON, Canada
    Vehicle:
    09 DCLB Sport
    This that and the other thing.
    MarX and Cmurder like this.
  6. Jan 27, 2017 at 12:50 PM
    #6
    Bocsy44

    Bocsy44 Well-Known Member

    Joined:
    Mar 30, 2016
    Member:
    #182850
    Messages:
    5,258
    Gender:
    Male
    First Name:
    Erik
    Ottawa, ON, Canada
    Vehicle:
    09 DCLB Sport
    This that and the other thing.
    Last edited: Jan 27, 2017
  7. Jan 27, 2017 at 2:19 PM
    #7
    nazlax10

    nazlax10 Check out my build thread for any products used!

    Joined:
    Mar 31, 2015
    Member:
    #152198
    Messages:
    2,212
    Gender:
    Male
    First Name:
    David
    Woodstock, GA
    Vehicle:
    18 Toyota Rav4 LE... At least it's a Toyota
    https://www.tacomaworld.com/threads/nazlax10s-build.408318/
    That's pretty much it. Mount a window regulator of your choice. I used one from an 02 trailblazer. Then run the cables up to the window channel. You drill holes to run the cables through. Then connect the cables to the bracket and that's really it. Here's some pictures from my install.

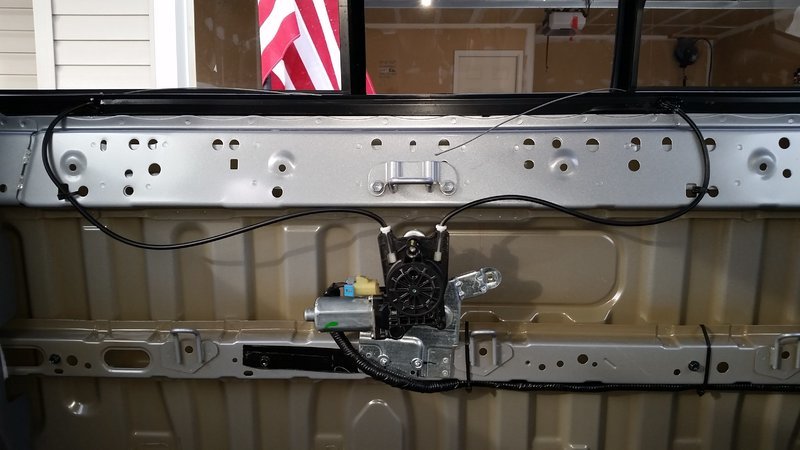

    You can see here my mounted motor, and how the cables run into the channel a little bit.

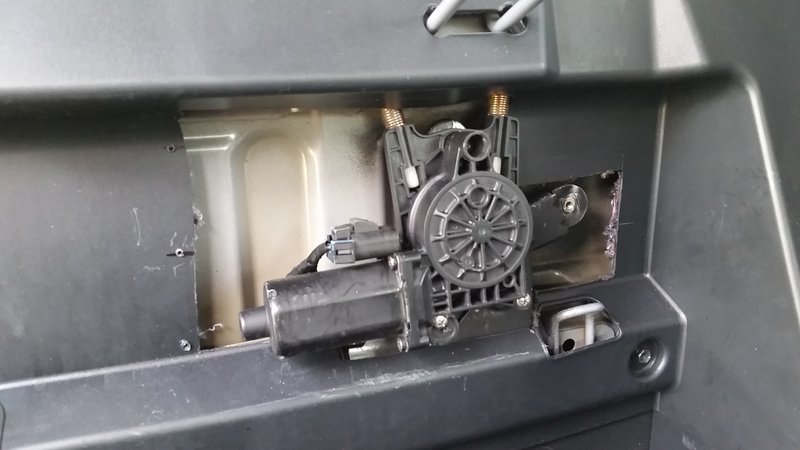

    Here's with my panel back on. I had to cut it to fit.

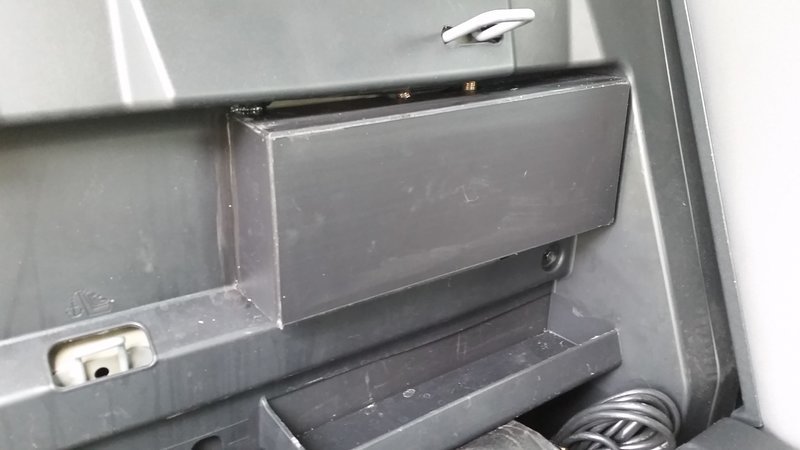

    Then here's with a motor cover I built.

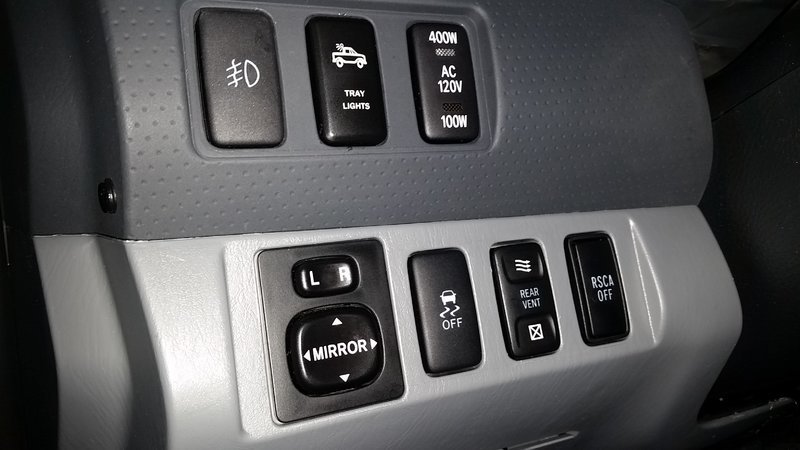

    Here's the switch I used. It's a rear window switch from a Toyota Sienna.


    stvhwrd, KTM753, MarX and 3 others like this.
  8. Jan 27, 2017 at 3:37 PM
    #8
    eccracer104

    eccracer104 O.G. Member

    Joined:
    Apr 9, 2008
    Member:
    #5854
    Messages:
    13,205
    Gender:
    Male
    First Name:
    Mike
    San Diego, CA
    Vehicle:
    2015 4x4 TRD OR AC
    Add me to the list please :popcorn:

    kgarrett11 [OP] likes this.
  9. Jan 27, 2017 at 9:39 PM
    #9
    excorcist

    excorcist Well-Known Member

    Joined:
    Aug 25, 2016
    Member:
    #195492
    Messages:
    1,996
    Gender:
    Male
    Reno, NV
    Vehicle:
    2006 dcsb TRD OR
    The ghost of BenWa is going to haunt you for eternity.

    lol psyche... Glad someone stepped up to the plate and carried this mod on.

    For those just looking into this, there is plenty of information on the necessary steps to complete this here:

    https://www.tacomaworld.com/threads/benwas-2005-power-sliding-rear-window-quick-install-kit.171805/

    (also mentions of intellectual property blah blah... that guy "BenWa" clearly hasn't protected his "property" and has showed no interest in pursuing any type of sales of said "property")

    So again I will say glad you took the initiative to keep things rolling here. Assuming your not looking to make millions like some people seem to think this idea is worth from that thread I am most definitely in. I have a build thread for my rear slider going already and will link this one in there if things move forward.

    Edit: Just want to mention I also fully appreciate BenWa's contribution to this. Definitely the O.G. of this mod.

    toyotacoblur and Sleipnir like this.
  10. Jan 27, 2017 at 10:36 PM
    #10
    kgarrett11

    kgarrett11 [OP] Master Yoda

    Joined:
    Jun 10, 2015
    Member:
    #157122
    Messages:
    2,900
    First Name:
    Garrett
    Ridgecrest, CA desert
    Vehicle:
    2015 DCLB

    This is this is by no means a money making venture, if it was obviously Benwa would still be doin this. I've been wanting to do this mod forevvvvver and I know others wanted to do the same. I am simply giving back to the tw community so ppl can complete their diy kit. This is only for the bracket, no kit. The goal is to break even at best and help as many members as possible complete their sliding rear window kits.

  11. Jan 28, 2017 at 7:09 PM
    #11
    jmaack

    jmaack Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131634
    Messages:
    4,606
    Gender:
    Male
    First Name:
    Justin
    Helena Alabama
    Ome, Sqeak free dakars, arms, skids, sliders.
    In price pending

  12. Jan 28, 2017 at 7:13 PM
    #12
    robupstateny

    robupstateny Well-Known Member

    Joined:
    Dec 25, 2016
    Member:
    #205636
    Messages:
    561
    Gender:
    Male
    First Name:
    Rob
    Upstate NY
    Vehicle:
    2003 Lunar Mist Tacoma DLX
    Gray wire mod, Gentex 177 mirror, cupholder from @bradrn22, custom dog seat., AJT Design shift knob., Cb install
    http://www.aztrucks.com/product.asp?pr=Power_Sliders

    Just found this kit. EXPENSIVE seems to be my thought. My 03 is around 600. Just trying to get an idea of what this whole thing would cost. Not trying to step on toes, just surfing the net and finding ideas.

  13. Jan 28, 2017 at 7:47 PM
    #13
    MNmtb

    MNmtb Well-Known Member

    Joined:
    Oct 31, 2016
    Member:
    #201147
    Messages:
    94
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2015 Tacoma Lifted
    Interested. Pending price and difficulty on sourcing other components and install

  14. Jan 28, 2017 at 9:37 PM
    #14
    PottMatter

    PottMatter Well-Known Member

    Joined:
    Aug 16, 2016
    Member:
    #194786
    Messages:
    499
    Gender:
    Male
    CoLoRfUl CoLoRaDo
    Vehicle:
    2012 Red Baja Taco
    Interested in price

    kgarrett11 [OP] likes this.
  15. Jan 29, 2017 at 4:17 AM
    #15
    Do58

    Do58 Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166373
    Messages:
    577
    Gender:
    Male
    Vehicle:
    2015 white tacoma limited
    Op.... I know your working hard to get this done to help others. I also know that you wouldn't be going through the trouble and HARD work for free, nor should you be. I myself greatly appreciate what your doing and it's a great idea that can impact many people beyond this board. My thing is that you have to have an idea as to what the bracket costs and what you want to sell it for. this is just for the bracket not the motor or anything else. Even if you shot from the hip and said a number I think you would get more people willing to commit. You know.... under promise over deliver and explain that this number CAN go down. It's great to see 5 pages and I'm sure more to come of people that say "interested" vs " commit or in". It's all about the price initially with people because it's not a must have. There is still a lot more involved than what your offering. I am intreagued myself but when I see a new post hoping for a price, it's just more "interest upon price". Your business and world. We are just living in it

  16. Jan 29, 2017 at 5:21 AM
    #16
    adio

    adio Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,644
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO

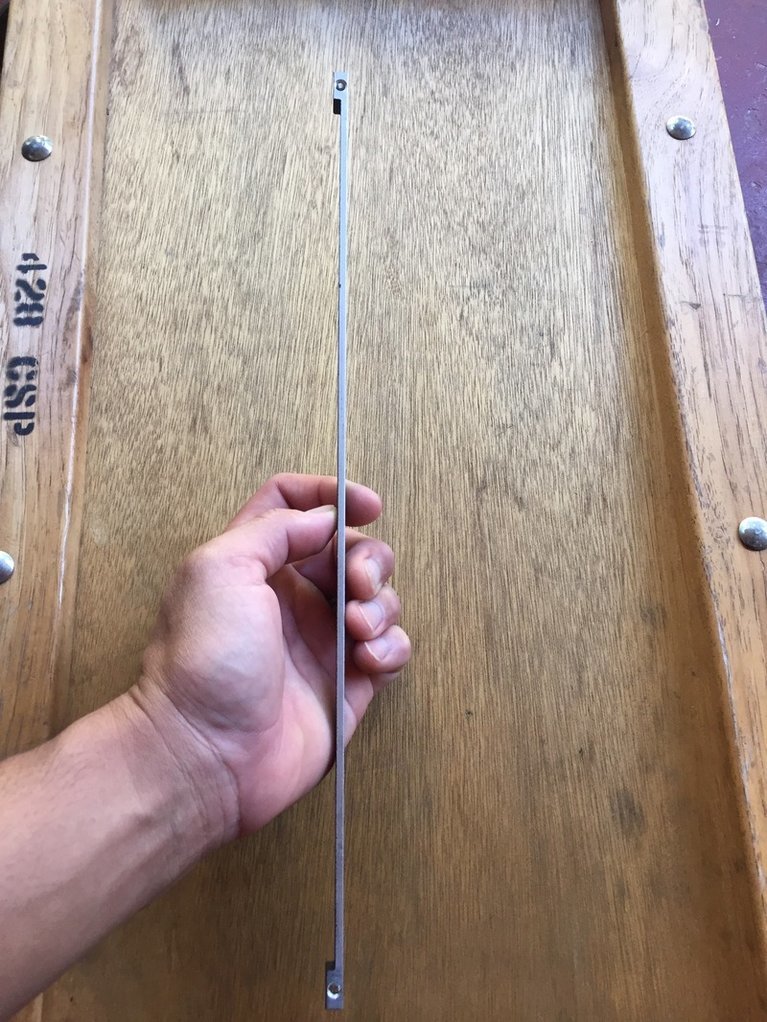

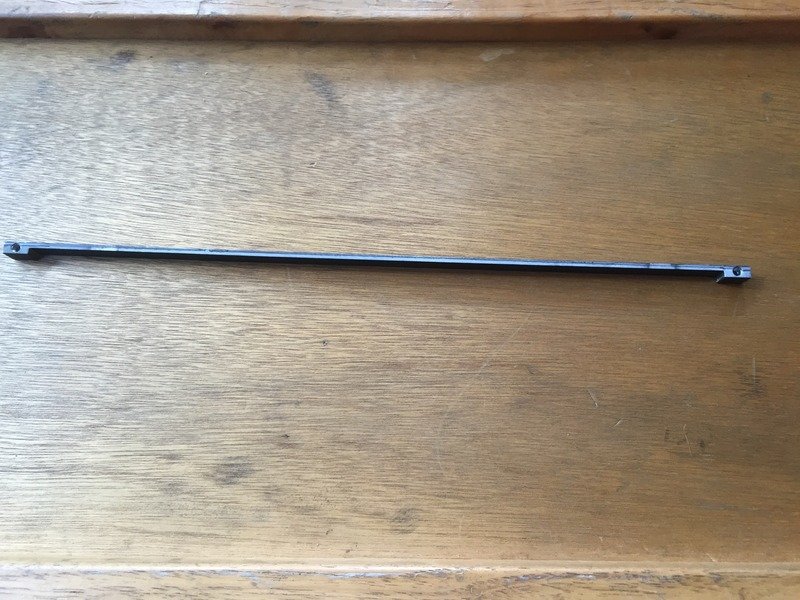

    If anyone is wondering what the braket looks like.

    61E83EB2-EBDC-4197-BC86-CF6CD6BF8FAB_zps_374f5691e207359afb73072e8ff77b82e249976a.jpg
    A94317BC-0F56-4C41-B6F2-655CA7D98B4E_zps_dde34031d3a96356c8f5de328fcb65ea13c388a7.jpg

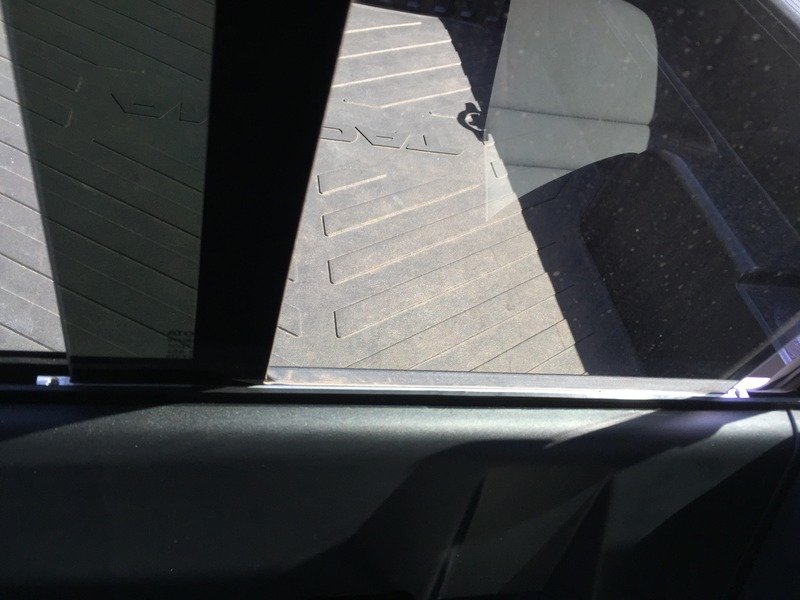

    Sits on the channel between the window and the trim.
    0CA65F81-9A4B-468D-A7E7-847D25234756_zps_19876c6dbdaad933399e72b3a8f944e7834f4170.jpg

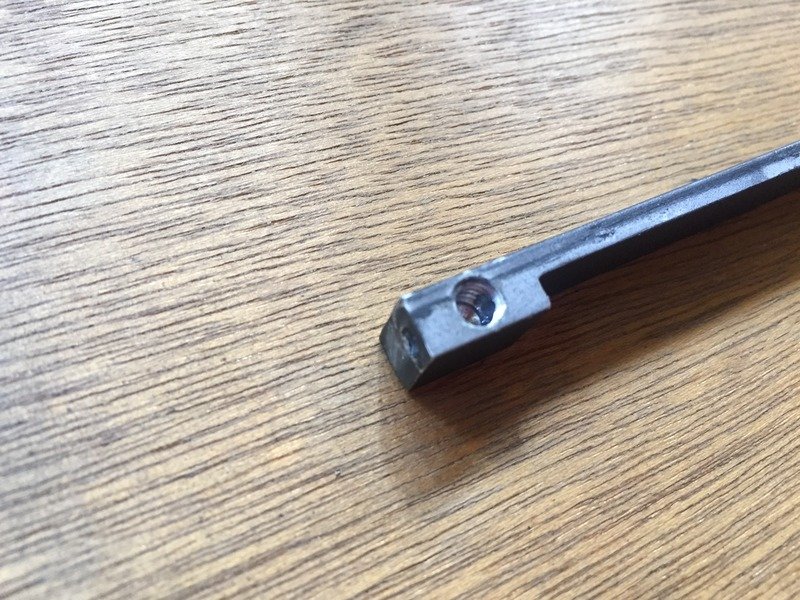

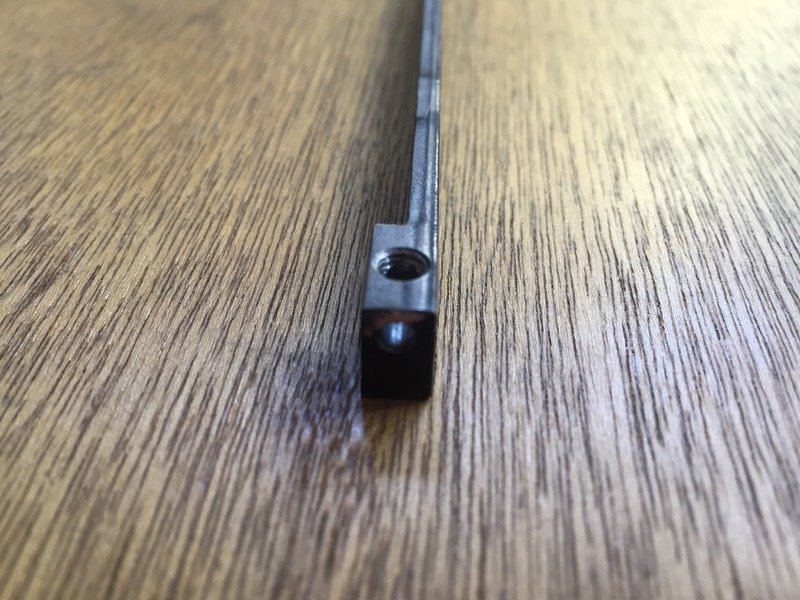

    Uses set screws, 10-32 thread, 3/16" long to secure the cable.
    53128687-B658-4847-921A-6AEF239B2FC4_zps_fcc6a35b939bc125d94c065adbb060418bd3083d.jpg
    2C3E9066-9F96-4DF0-8332-6F5312756081_zps_aa38b5962a2e3ef446c79a16f5f239a7bbb2a054.jpg

    kgarrett11 [OP], Cmurder and docloco like this.
  17. Jan 29, 2017 at 5:23 AM
    #17
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,175
    Gender:
    Male
    First Name:
    Brandon
    Albany, Ny
    Vehicle:
    2010 Speedway Blue TRD Offroad
    so is this just for the bracket? or? i want the whole kit everything needed

  18. Jan 29, 2017 at 5:24 AM
    #18
    adio

    adio Well-Known Member

    Joined:
    Sep 11, 2008
    Member:
    #9165
    Messages:
    2,644
    Gender:
    Male
    HI
    Vehicle:
    2015 INFERNO TRD PRO
    Pretty sure just for the bracket.

    kgarrett11 [OP] likes this.
  19. Jan 29, 2017 at 5:24 AM
    #19
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,175
    Gender:
    Male
    First Name:
    Brandon
    Albany, Ny
    Vehicle:
    2010 Speedway Blue TRD Offroad
    ah if just for the bracket count me out as i dont have anything else

  20. Jan 29, 2017 at 7:37 AM
    #20
    Boomkanani

    Boomkanani Well-Known Member

    Joined:
    Nov 7, 2015
    Member:
    #168939
    Messages:
    928
    Gender:
    Male
    First Name:
    Mike
    Oahu, Hawaii
    Vehicle:
    2009 TRD OffRoad DCSB - 6 Speed
    Some stuffz
    You can buy everything else from Toyota...check out toyotapartsdeal.com

    kgarrett11 [OP] likes this.
