Pre-Wired 2015 Tacoma Fog Light Switch Connector Wiring

Discussion in 'Lighting' started by Trilobyte631, Jan 16, 2017.

Post Reply

Jan 16, 2017 at 5:19 PM

#1

#1
Trilobyte631 [OP] New Member

Joined:

Jan 16, 2017

Member:

#207773

Messages:

1

Gender:

Male

Vehicle:

2015 Tacoma Base

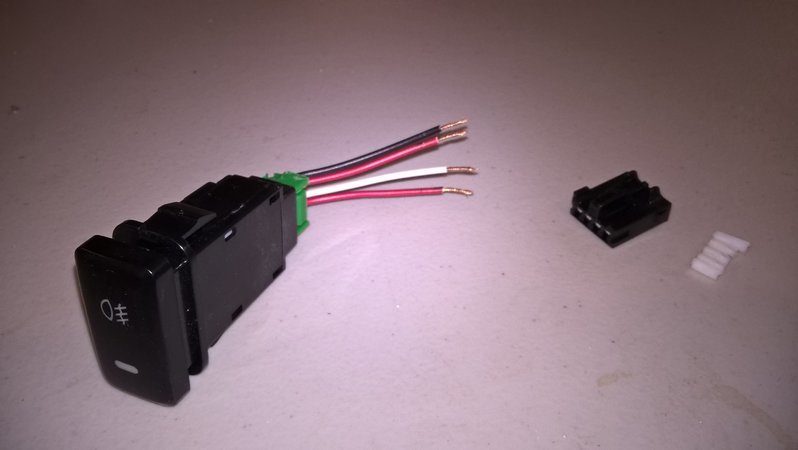

My 2015 Tacoma is pre-wired but the connector - shown on the right in this pic - does not match the switch I purchased.

Can someone tell me which wires I should connect from the switch side to the truck side ?

Note: The switch side has Black / Red / White / Red as seen in the picture.

The truck side has Green / Green with White Stripe / Blue / White.

Thank you for any help !!!

Trilobyte631, Jan 16, 2017
