Pre-Wiring Switches using Carling VCH Switch Housings

Discussion in 'Technical Chat' started by Blackouts, Mar 20, 2016.

  1. Mar 20, 2016 at 7:37 PM
    #1
    Blackouts

    Blackouts [OP] Well-Known Member

    Joined:
    Feb 10, 2016
    Member:
    #177762
    Messages:
    433
    Las Vegas, NV
    Vehicle:
    2014 Tacoma TRD Off Road DCSB
    If you have sufficient room behind your switches, pre-wiring VCH housings for them can be a time saver and makes swapping out switches easier.

    I was asked for pics of this by a member, wasn't planning on doing a full tutorial but I'll do my best.

    This is the finished result:


    Parts needed:

    - Metri-Pack 630 Female Terminals 18-20 GA
    https://www.waytekwire.com/item/30090/Delphi-12015869-Metri-Pack-Female-Loose-Terminal-/
    This size works well for 20-24 awg wire. If you plan on using all 18 awg or larger wire than you may wish to consider the larger size terminals, this is because we'll be doubling up on wire into these in order to chain them together.

    - Carling Technologies VCH-01 8 Position Contura Switch Connector Housing (you may need a different type if you are using different switches, check before ordering)
    https://www.waytekwire.com/item/44386/Carling-Technologies-VCH-01-8-Position-Contura/

    - Wire. I'm using 20 awg and 18 awg wire in the example pics. 22 or 24 awg will also be fine, these switches do not draw much current.

    - Dialectic grease (optional), I'm using Permatex. Apply a small amount of this to the each stripped wire before crimping, helps prevent corrosion.
    http://amazon.com/gp/product/B000AL8VD2/

    - Wire stripper. I'm using an Ideal Industries 45-092 Stripmaster:
    https://www.waytekwire.com/item/444/Ideal-45-092-Stripmaster-Wire-Stripper-/

    - Metri-pack crimper, or soldering iron if you prefer to solder, or both. I'm using a
    Delphi 12155975 Metri-Pack Crimper:
    https://www.waytekwire.com/item/509/Delphi-12155975-Metri-Pack-Crimper-Tool-/

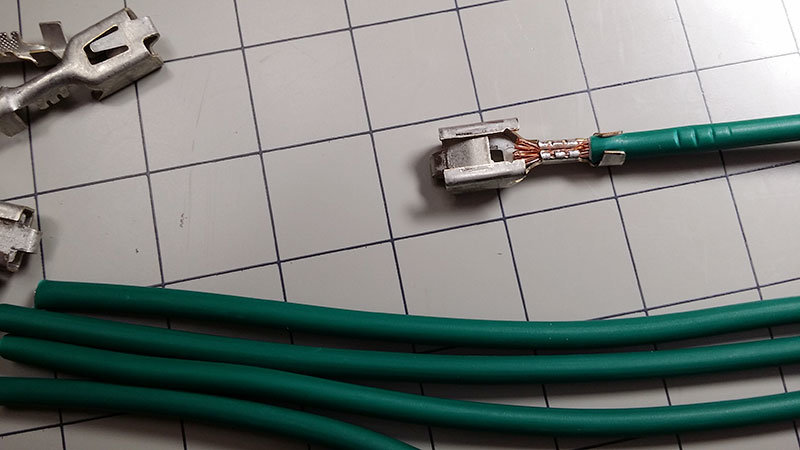

    Pre-wiring these housings is fairly simple. The 18-20 ga Metri-Pack 630 terminals have no problem accepting two 20awg wires, so that's what I'm going to do to chain them together.

    1. Wire all the grounds together. In my case these are ports 7 and 8 on the housings. This will be connected to chassis ground. This is the black wire in my pictures.

    2. Wire all the lower switch LED +12v together. In my case this is port 6 on the housings. I connect this to the dash dimmer circuit so that the lower switch LED text will come on when when interior lighting is on. This is the orange wire in my pictures.

    3. Wire all the +12v in for the switches together. In my case this is port 2 on the housings. This gets connected to any +12v source. You can use your ignition circuit if you want the switches to be available only when ignition is on. I wired them to my Bussmann fuse box +12v with a 5 amp fuse. This is the red wire in my pictures.

    4. The +12v outputs get wired to your relays or directly to your accessories if you're not using relays, this is port 3 on the housings in my case. I just leave a ~6 inch wire hanging off here and connect it to my relay wiring that will go through the firewall later using stinger speedwire. These are the green wire in my pictures.
