prinsu design roofrack and baja s8 40 led bar

Discussion in '3rd Gen. Tacomas (2016+)' started by jaymz25, Jul 8, 2020.

  1. Jul 8, 2020 at 12:24 AM
    #1
    jaymz25

    jaymz25 [OP] Well-Known Member

    Joined:
    Apr 28, 2020
    Member:
    #326128
    Messages:
    314
    Gender:
    Male
    First Name:
    Edward
    Vehicle:
    2020 Midnight Black Metallic Tacoma TRD Pro
    i just got my led bar and mounted it, haven't done the wiring yet. which wiring harness did you use and where did you route your wire? will it fit the gap in a pillar or the windshield perimeter trim? please post some pictures of your install thanks in advance.

    IMG_3239 (1).jpg

    JDSmith and SDRider858 like this.
  2. Aug 11, 2020 at 8:44 PM
    #2
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    sorry can’t help with the harness. But I’m thinking of getting this for my trucks and was curious how you got it mounted?

    jaymz25 [OP] likes this.
  3. Aug 11, 2020 at 9:07 PM
    #3
    jaymz25

    jaymz25 [OP] Well-Known Member

    Joined:
    Apr 28, 2020
    Member:
    #326128
    Messages:
    314
    Gender:
    Male
    First Name:
    Edward
    Vehicle:
    2020 Midnight Black Metallic Tacoma TRD Pro
    I bought the low profile prinsu mount at cali raised and run the 12 gauge wire bu the gap on the windshield and rubber trim. I put black silicon glue the used for windshield put some in that gap tucked in the wire and painters taped it for one day.


  4. Aug 11, 2020 at 9:21 PM
    #4
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    Any pictures of the light and the mount?

  5. Aug 12, 2020 at 8:29 AM
    #5
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    I'll post some pictures here when it stops raining for as I got it wired similarly. I built my own harness, but the pictures will be self exlpanatory

  6. Aug 12, 2020 at 9:27 AM
    #6
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    thanks. Were you still able to utilize the amber running lights with your harness?

  7. Aug 12, 2020 at 10:00 AM
    #7
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    When you say amber running lights, which ones are you referring to?

  8. Aug 12, 2020 at 10:09 AM
    #8
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma


    Like the ones in the picture. I believe the S8 comes with the amber lights in between the main lights. Most people tap into the DRLs for the on and off.


  9. Aug 12, 2020 at 11:50 AM
    #9
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    I built an auxiliary electrical system to control my accessories, now I don't have the baja designs S8, but if you can post a picture of the wire lead that comes out of it, I can definitely help you build a harness, and where to wire it in. I know how I would wire it with my setup. I'll get pictures up shortly.

  10. Aug 12, 2020 at 12:02 PM
    #10
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel

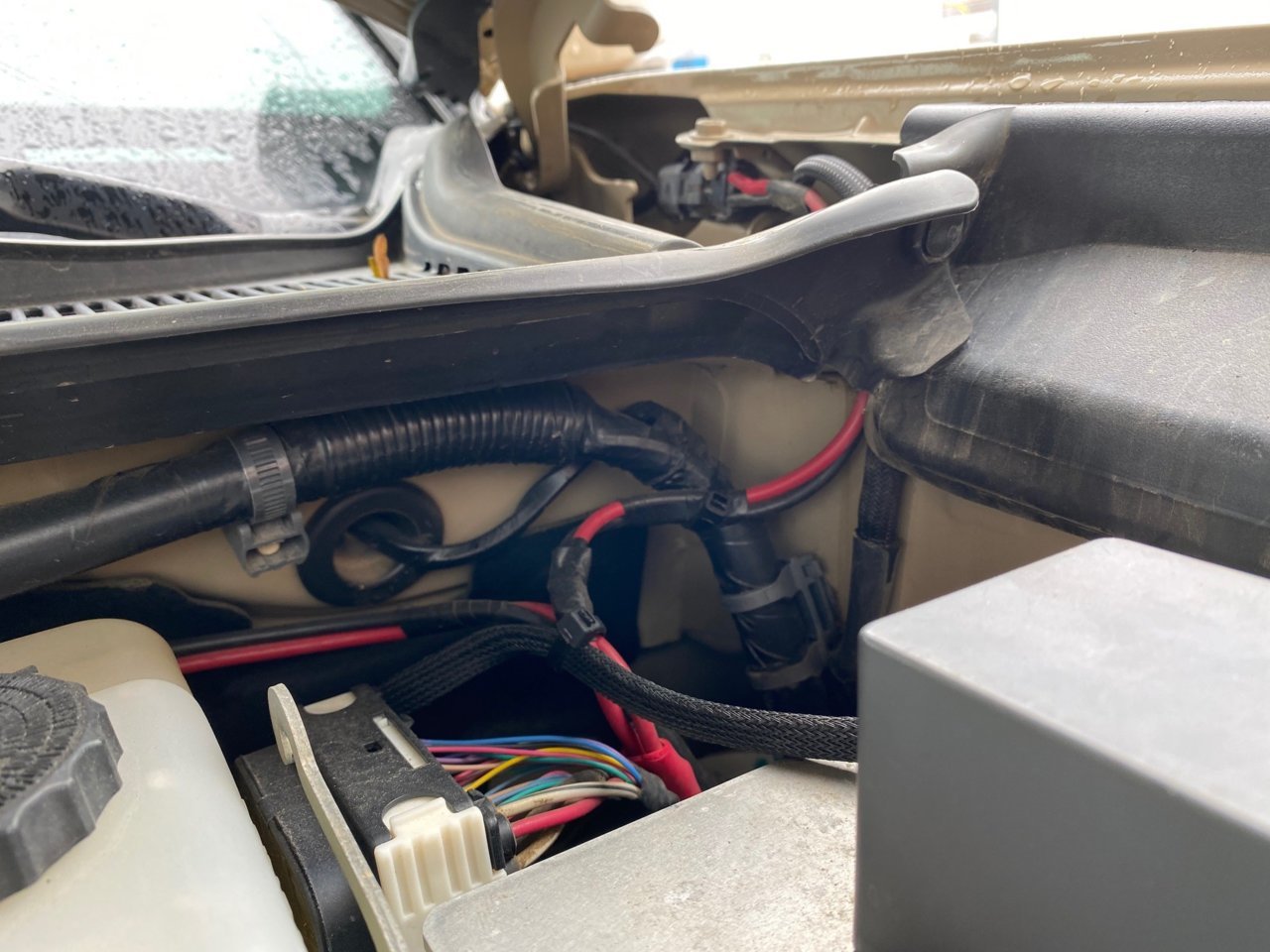

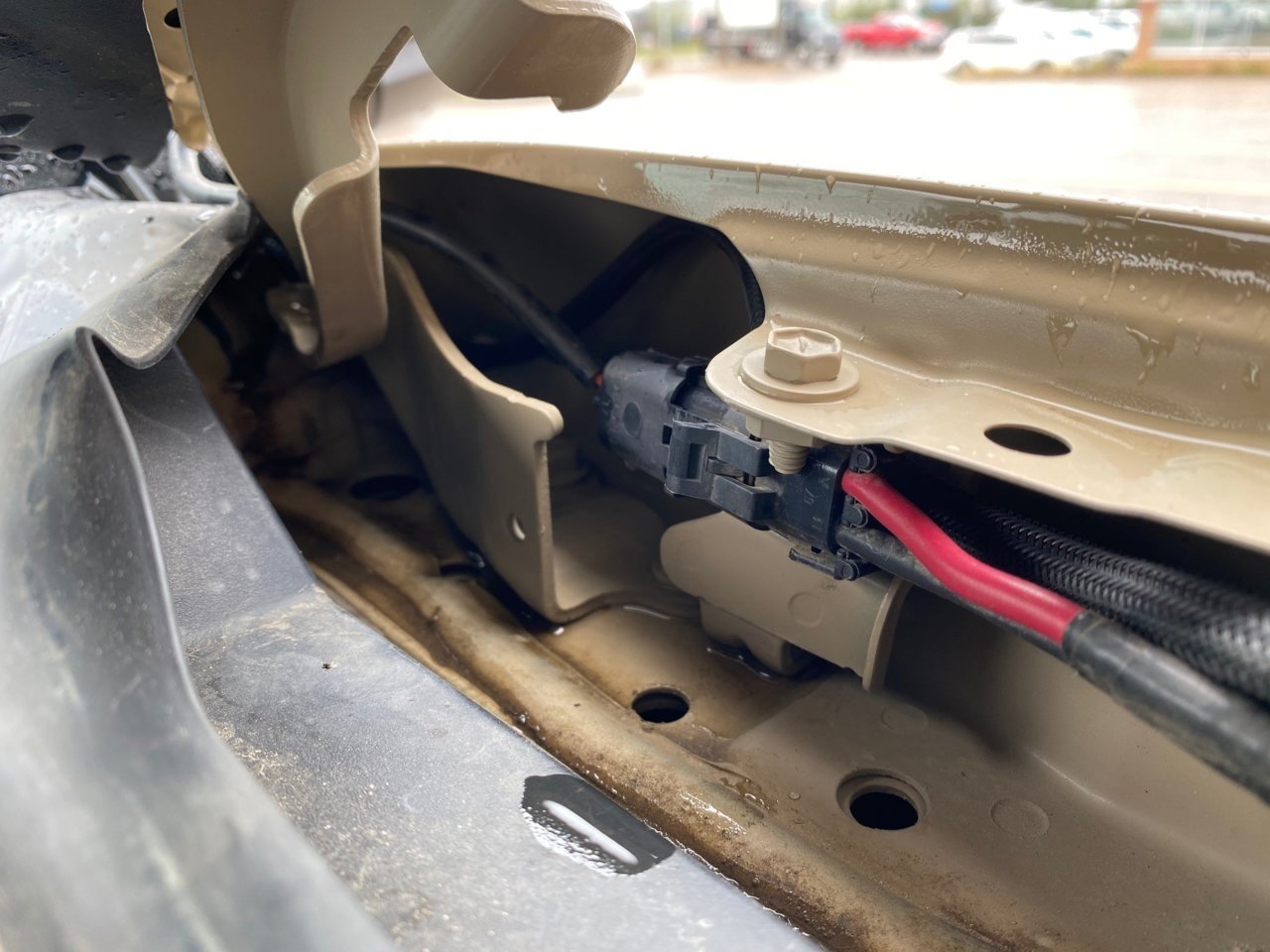

    So here's how I ran the wires. Even if you had to run 3 wires, if they're 12 gauge it might be tough, but anything smaller, no issue there.

    As far as wiring the amber drive lights in, I have the Bussmann RTMR that I built from on of the threads on here. Using that, I can easily add the amber wire. But yes, if you're just running the one wire, you can tap that into your running lights.

    Hope this helps! HARNESS 1.jpg HARNESS 2.jpg HARNESS 3.jpg

  11. Aug 12, 2020 at 8:25 PM
    #11
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    On nice that looks solid.
    I don’t have the light yet but was probably going to order soon, I just like to plan ahead lol. Here is the link to their harness https://www.bajadesigns.com/products/s8-ir-wire-harness-w-mode-2-bar-max-325-watts.asp (sold separately). It kind of looks like a jumbled mess in the picture but maybe someone who knows what they’re looking at will have a better idea. Seems like they have two wires and two switches. I wanted to run the running lights to something that would turn on with the car, like my raptor lights that turn on with the head lights, and run the main cable to a OEM style switch in the cab.

  12. Aug 13, 2020 at 6:38 AM
    #12
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    Yea that's not difficult at all. Plan it out. Building a full auxiliary system is a great idea. Even if you get the 5 relay Bussmann RTMR and only run one or two lights, is actually easy. You can at least add more in the future if that's the case. I tapped mine so when my lights come on, the system comes on. You can easily tap into a wire, such as running light, and then the ambers come on, while the switch is inside to control the light bar itself.

    I'll see if I can find more info on the actual wiring of the SP8 light bar.

  13. Aug 13, 2020 at 6:46 AM
    #13
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    1,806
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    5100s with 888 coils

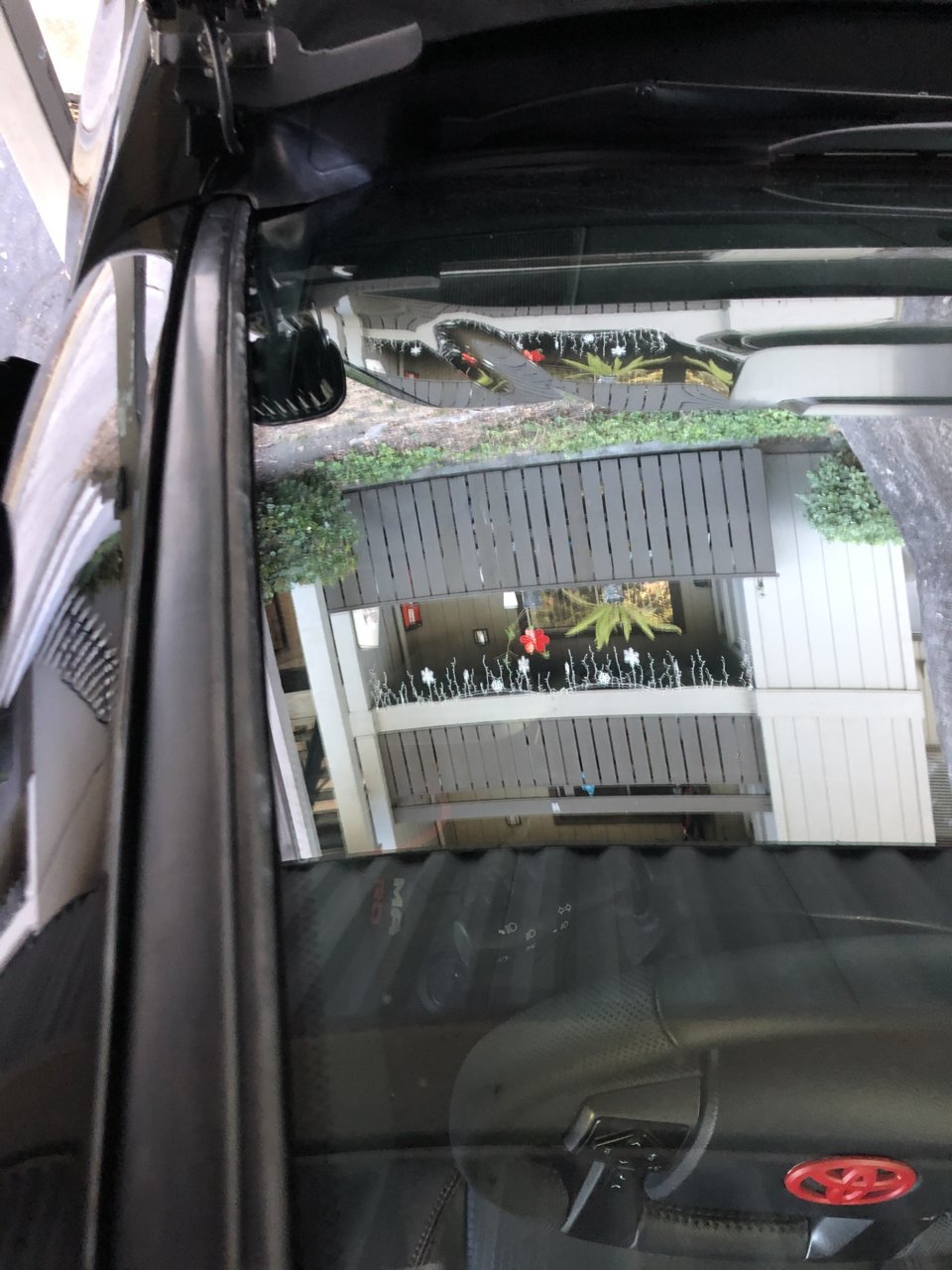

    I ran my harness down the windshield molding. Wires wouldn't fit up near the top, so I used a blade and trimmed the molding a little bit and was able to squish it all in.

    Ralf and doublethebass like this.
  14. Aug 13, 2020 at 6:54 AM
    #14
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    Looks like the S8 light bar is a 3 wire; power for the amber, power for the light itself, and ground. That is super easy to wire in. If you need more details on wiring it in, let me know.

  15. Aug 13, 2020 at 9:49 AM
    #15
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    Yea seems pretty simple. I’m just wondering how I can get the ambers running without the manual switch and without splicing. I ran an add a fuse for my raptors, hoping to do the same with these.

  16. Aug 13, 2020 at 10:15 AM
    #16
    Ralf

    Ralf Summit Expedition Trucks Ltd.

    Joined:
    Feb 16, 2014
    Member:
    #123199
    Messages:
    225
    Gender:
    Male
    First Name:
    Ralf
    Fort McMurray, AB
    Vehicle:
    '17 TRD Off-Road
    ARB Summit Bar Safari Snorkel
    You definitely can. For the ambers, do exactly what you've done for the raptor lights. Cali Raised makes a nice switch panel for left of the steering wheel, that goes in that little cubby. Otherwise, you can get switches that fit the blank switch plugs left of the steering wheel. I'll post a picture of that when I can.

  17. Aug 13, 2020 at 11:37 AM
    #17
    austindg13

    austindg13 Member

    Joined:
    Aug 11, 2020
    Member:
    #337383
    Messages:
    10
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    2020 cement Tacoma
    Just not sure what fuse I could use to achieve this effect of them turning on with my headlights. I’ll have to use the blank switches. I have a 2020 so no cubby on mine

  18. Sep 13, 2020 at 8:55 PM
    #18
    chengitis

    chengitis Well-Known Member

    Joined:
    Mar 17, 2018
    Member:
    #247567
    Messages:
    151
    Gender:
    Male
    Norcal
    Do you think the Cali raised bracket will work for the BD onX6+ light bar? It’s not as slim as the S8.

    Thorian likes this.
  19. Sep 13, 2020 at 8:58 PM
    #19
    Toyota09

    Toyota09 Well-Known Member

    Joined:
    Oct 20, 2017
    Member:
    #233549
    Messages:
    314
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off-Road Inferno
  20. Sep 13, 2020 at 9:32 PM
    #20
    jaymz25

    jaymz25 [OP] Well-Known Member

    Joined:
    Apr 28, 2020
    Member:
    #326128
    Messages:
    314
    Gender:
    Male
    First Name:
    Edward
    Vehicle:
    2020 Midnight Black Metallic Tacoma TRD Pro
