Process to replace rusted rear bumper support with pics.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Benny123, May 19, 2018.

  1. May 19, 2018 at 6:22 AM
    #1
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    DISCLAIMER: Initially this thread started out as a question, but when I didnt get much, I changed the title and just dove in for myself. This explains the progression of the posts.

    Hey all, went to remove my hitch cover and found the support is rusted through. Spent 12 years of its life, before me, in PA. Big chunks of metal fell out and was able to put a finger through it . Apparently this is fairly common. Ordered a new one on eBay for $78. (2018 price) Part #5204304010.

    I see its bolted to the bumper in a few spots and wondering if it could slide out above hitch receiver towards the front.

    Spent several hours removing seized bolts on trailer hitch yesterday. 19mm. Read as:sawzall


    Attached Files:

    Last edited: Jun 13, 2019
    eherlihy likes this.
  2. May 20, 2018 at 1:37 PM
    #2
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.

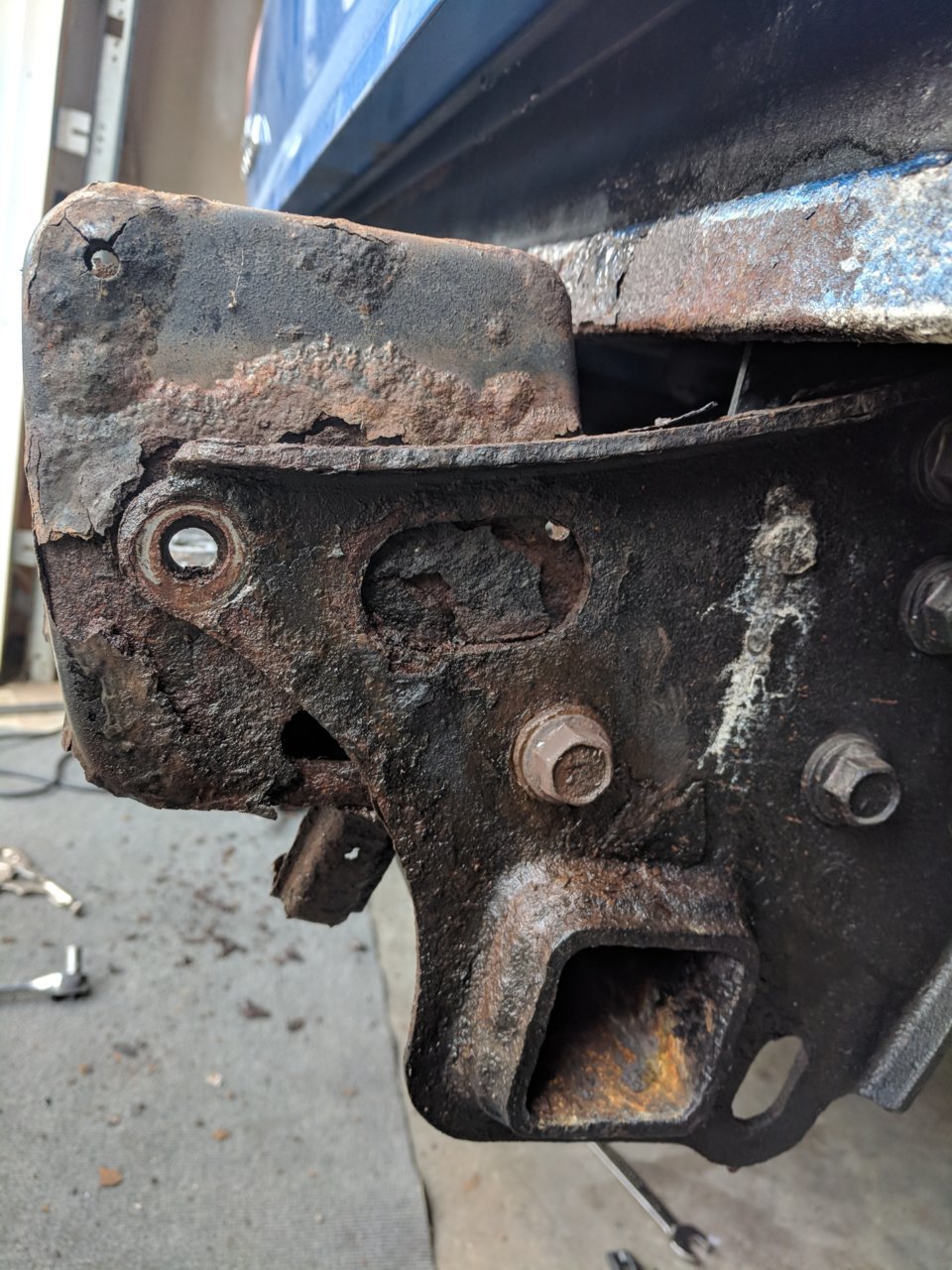

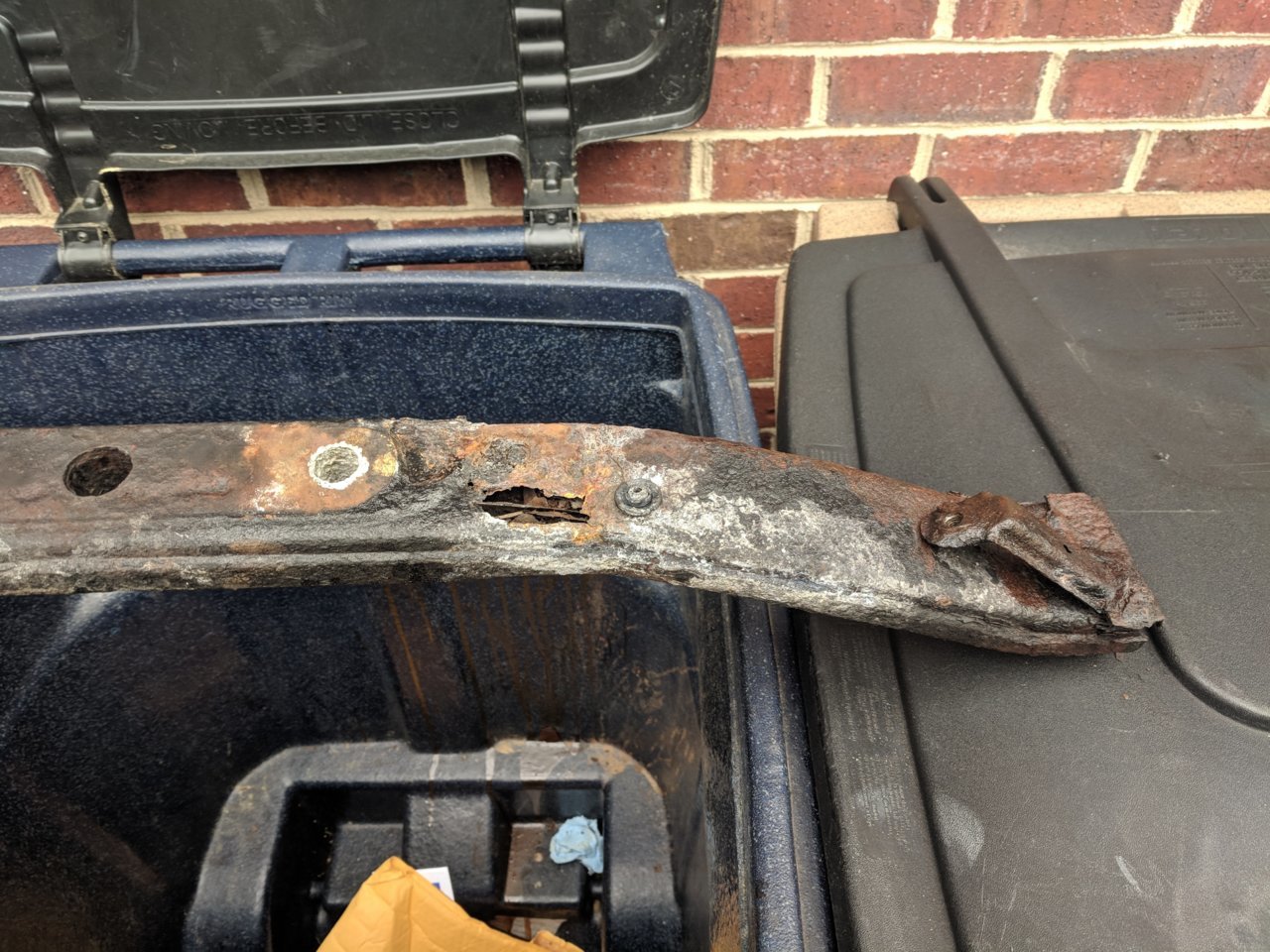

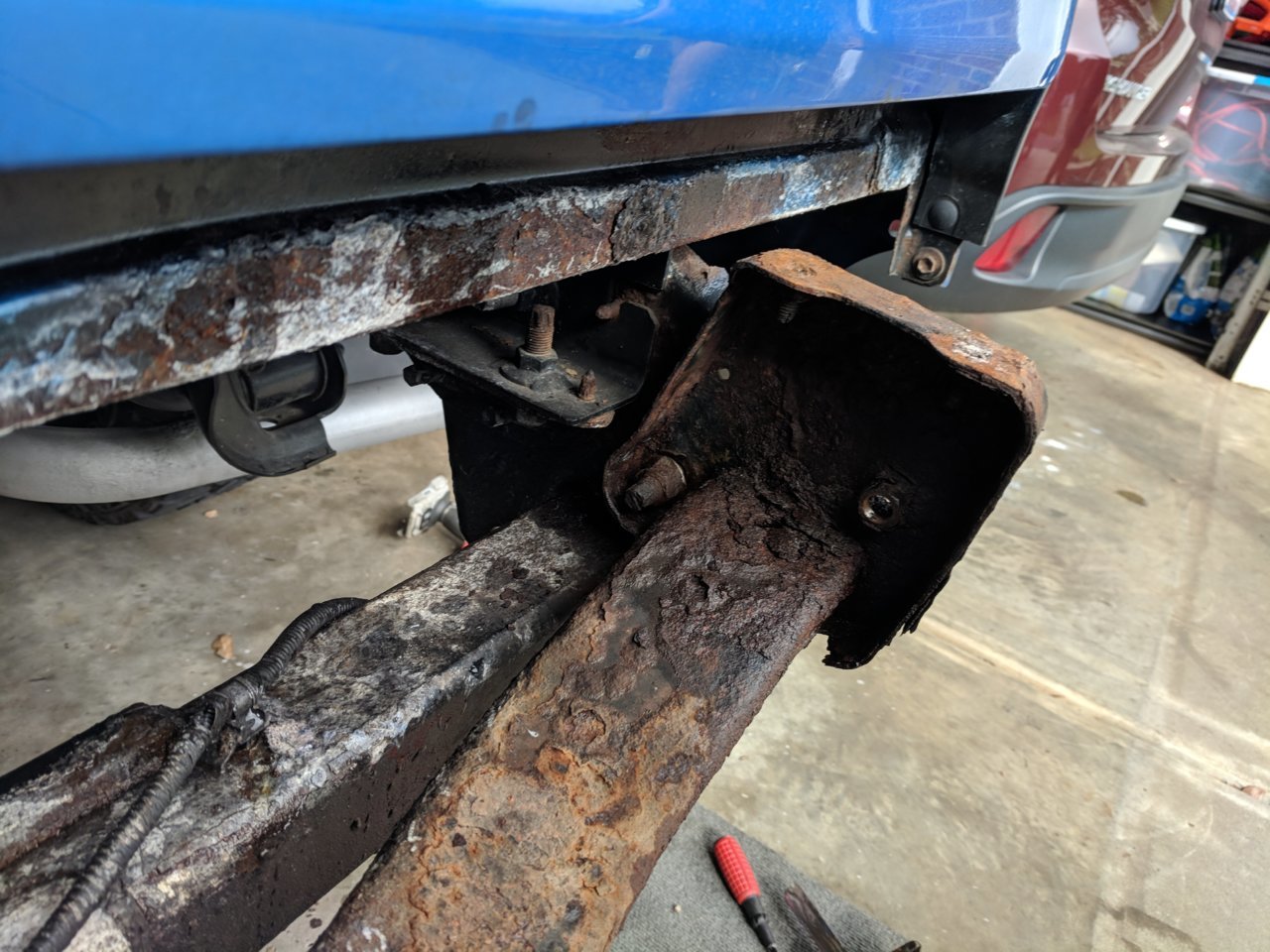

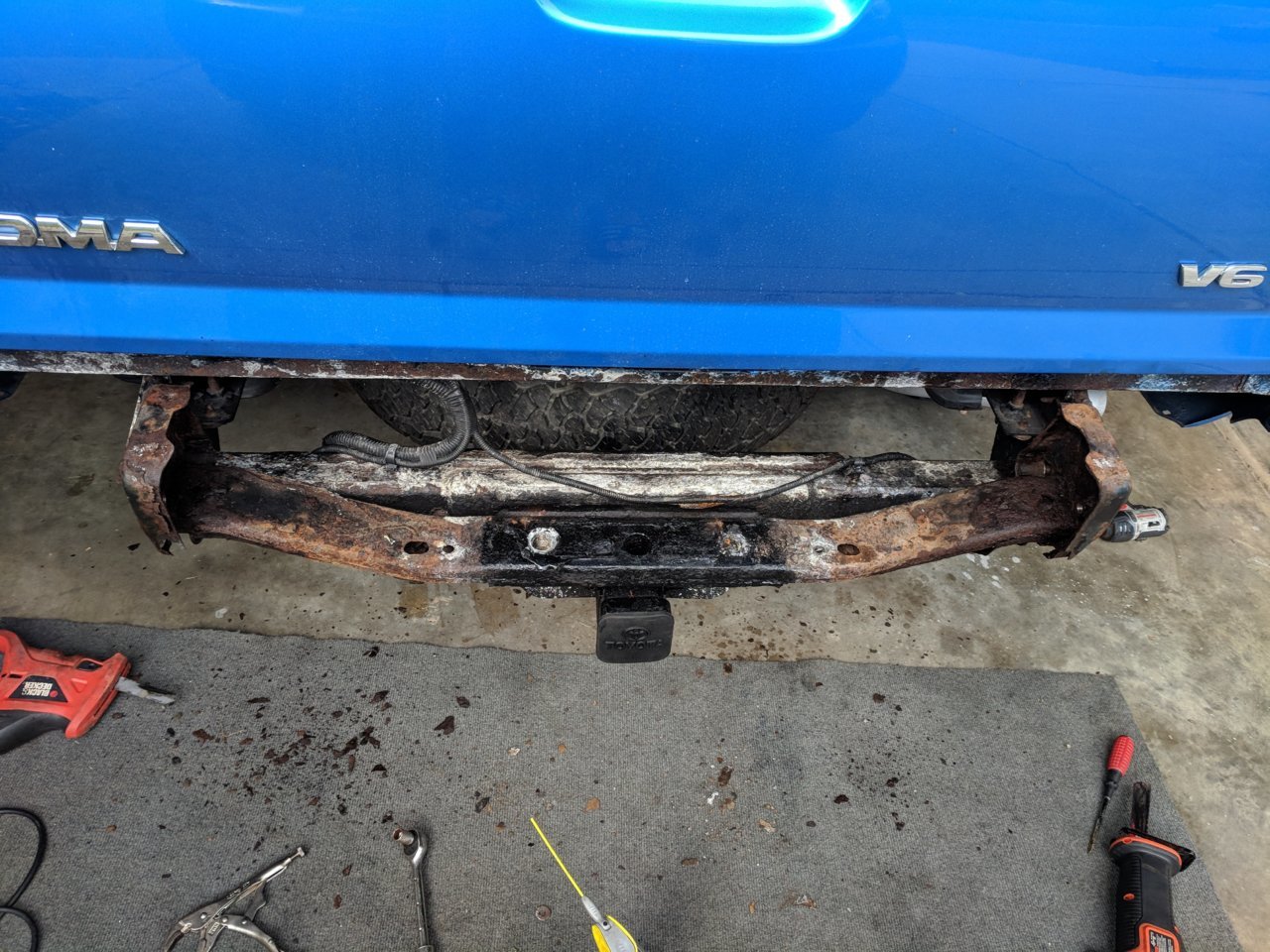

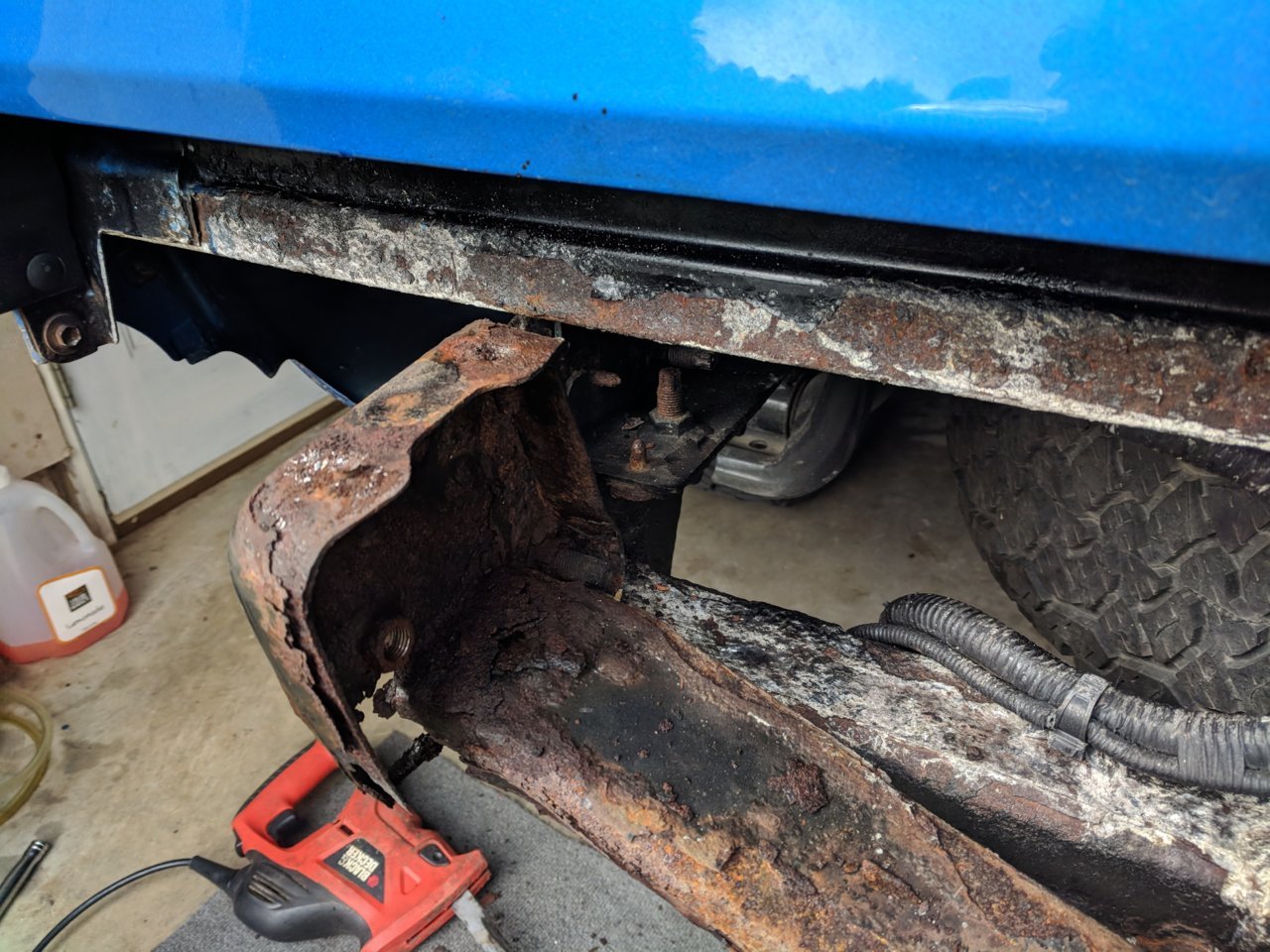

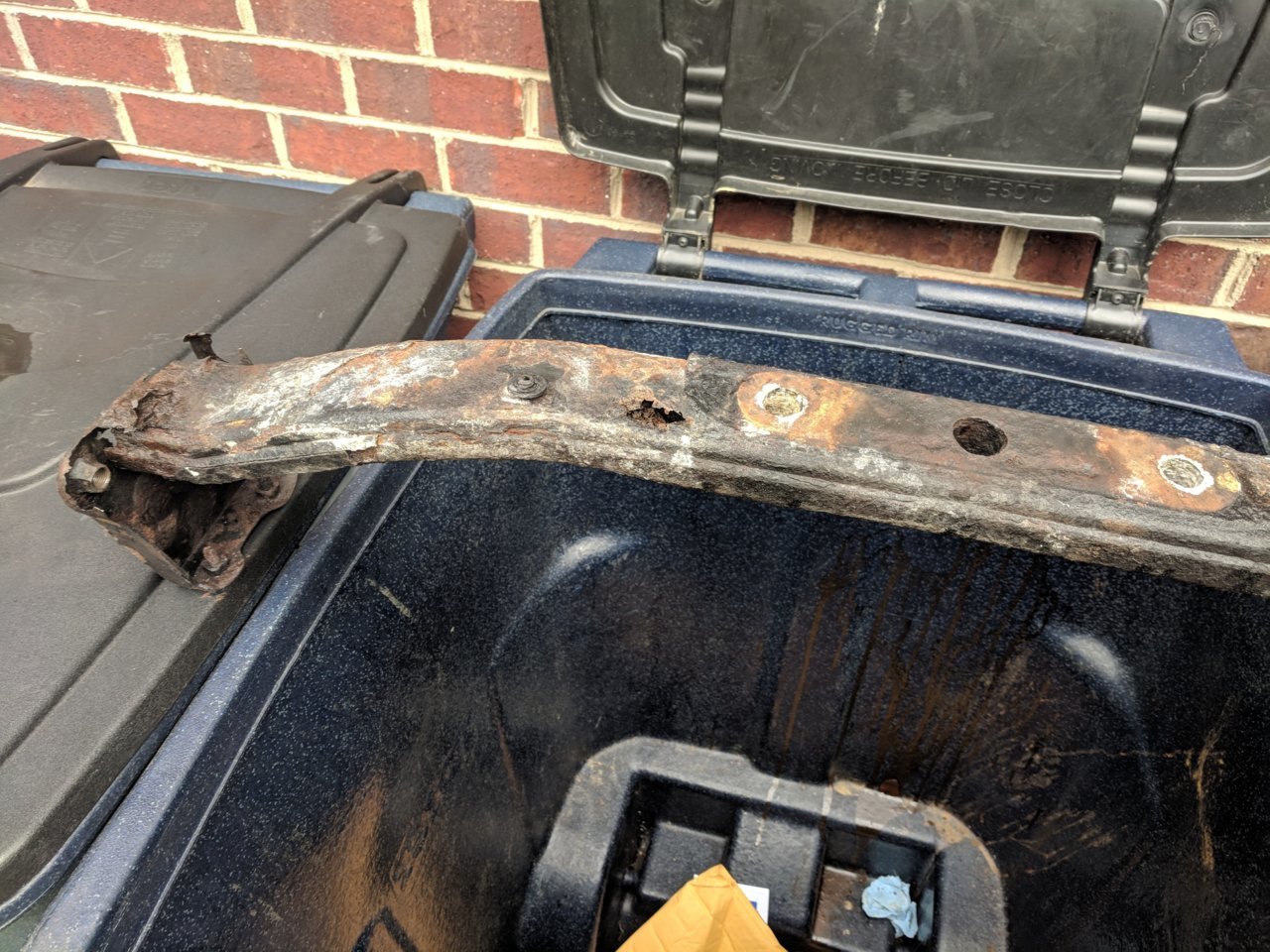

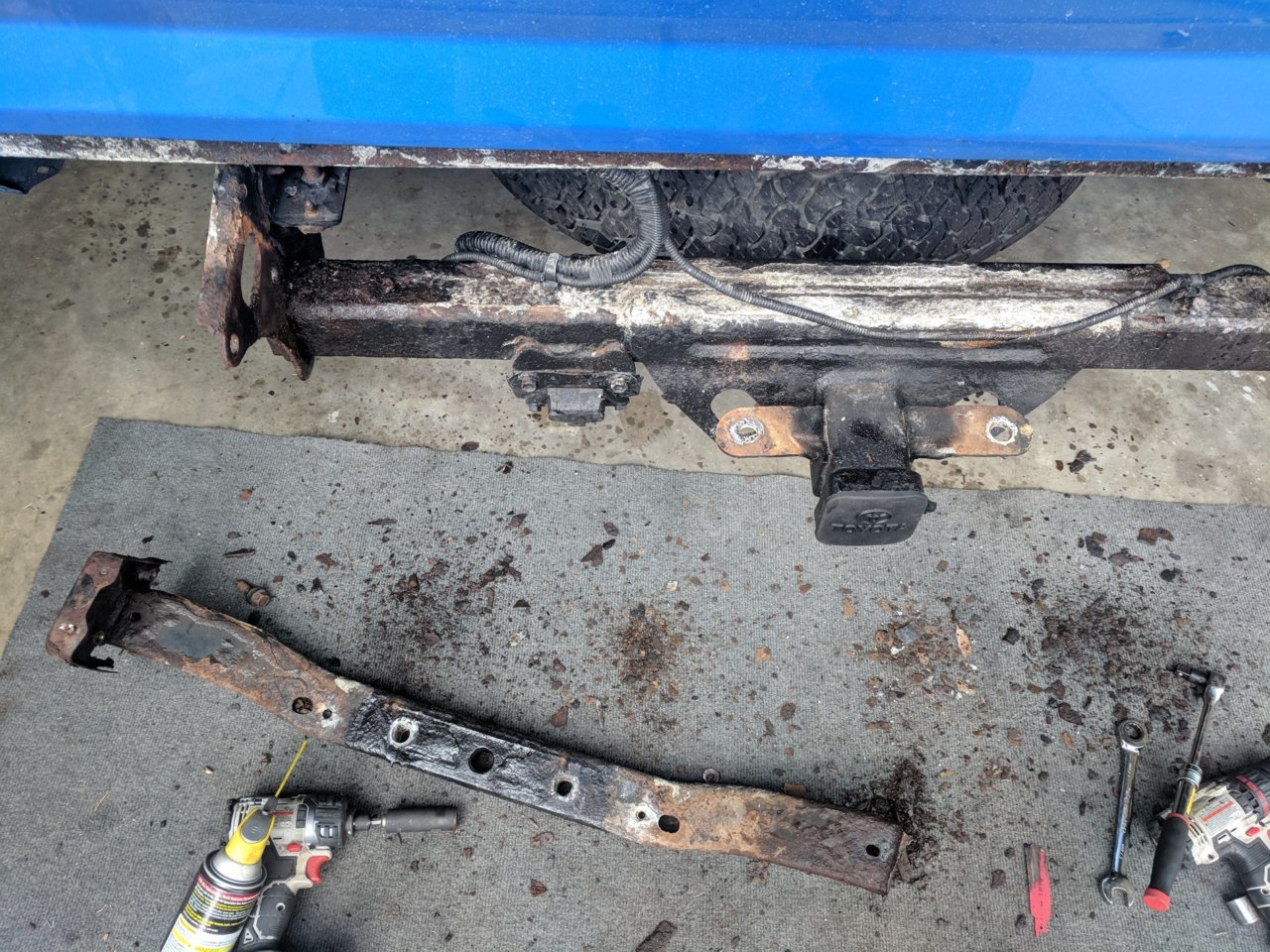

    So I got into this this am. Quite a rusted mess. Most bolts broke except for the 4 that hold near the hitch receiver brackets. They were quite a bit rusted and took alot of force to get out. And they were too deep for the impact wrench. They'll will be replaced as well.

    Fwiw. You must remove the bumper to get to the reinforcement. You can't get the reinforcement out from under the bumper otherwise. The hitch receiver can stay in place.

    BTW did call Toyota and they did not want to replace this for me, even though they did service the frame.

    IMG_20180520_092555.jpg IMG_20180520_092600.jpg IMG_20180520_092602.jpg IMG_20180520_093139.jpg IMG_20180520_093842.jpg IMG_20180520_095357.jpg IMG_20180520_095358.jpg IMG_20180520_095403.jpgIMG_20180524_192049.jpg

    Last edited: May 24, 2018
    whatstcp and eherlihy like this.
  3. May 20, 2018 at 1:38 PM
    #3
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Post pics coming soon. Cut off a few seized bolts from bumper and reinforcement. Wire wheeled, hammer and chiseled, loctite rust jelly, washed, then repainted. Begin reinstall process.

    Last edited: Oct 16, 2019
    whatstcp likes this.
  4. May 24, 2018 at 4:36 PM
    #4
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.

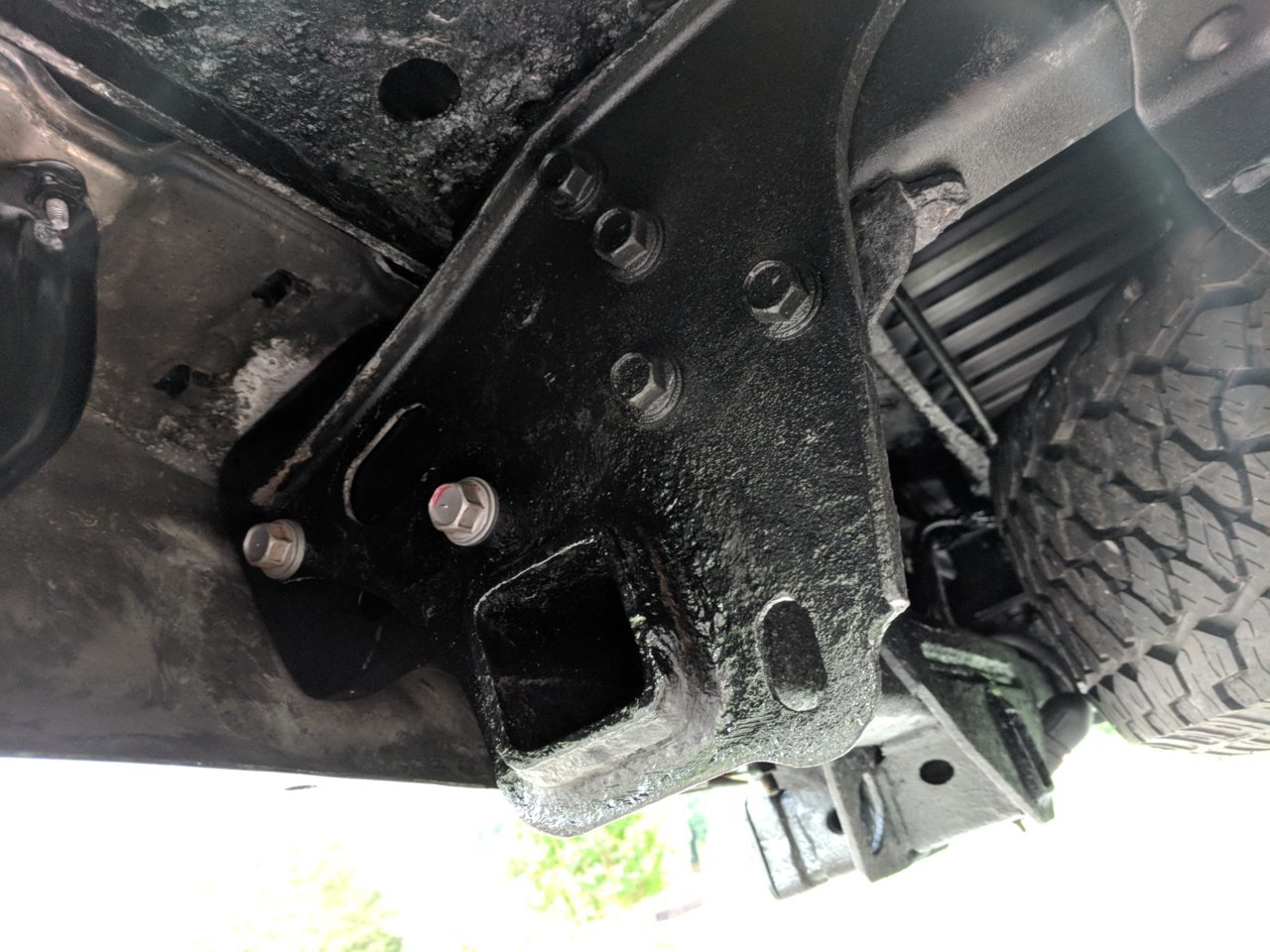

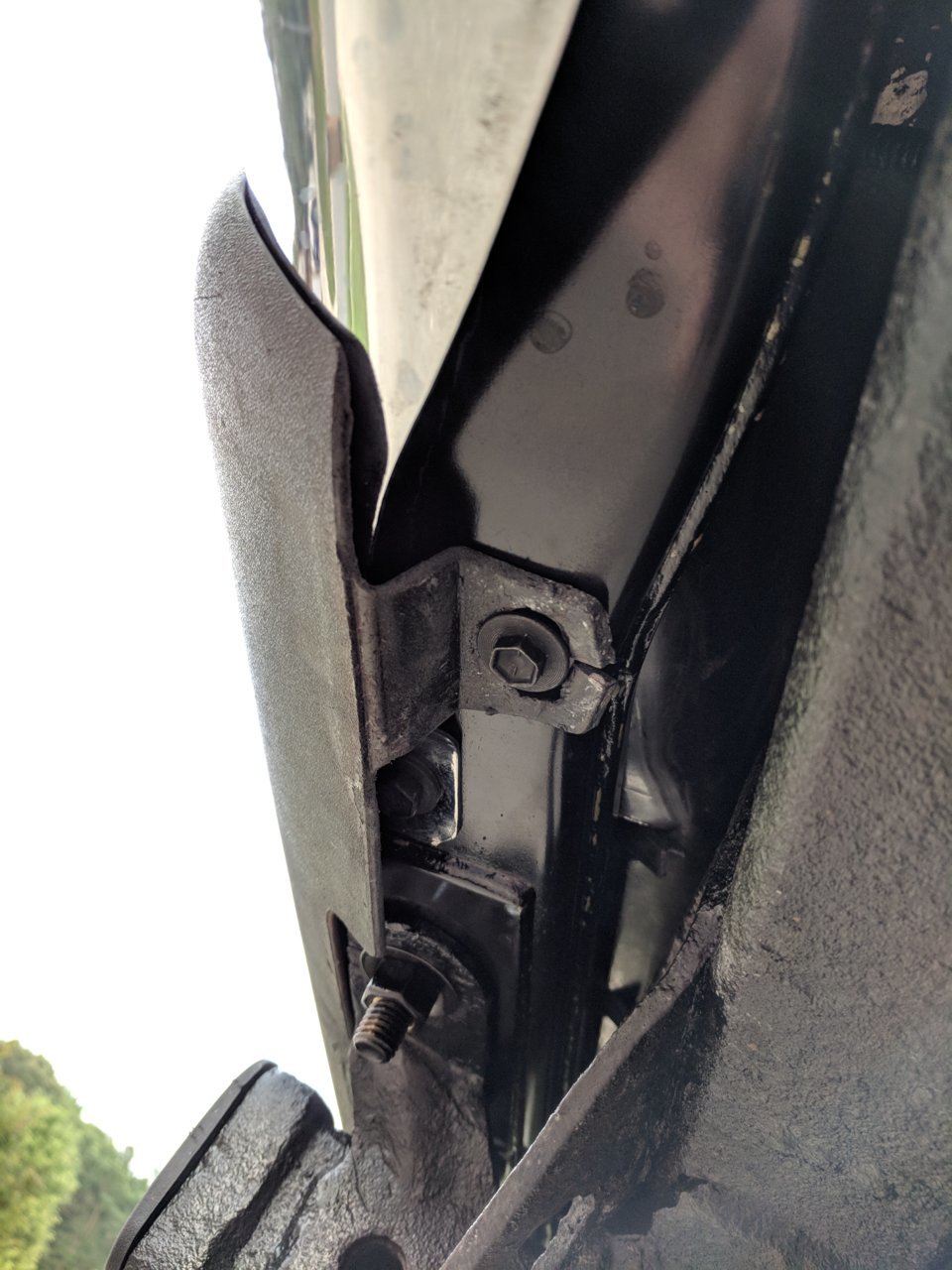

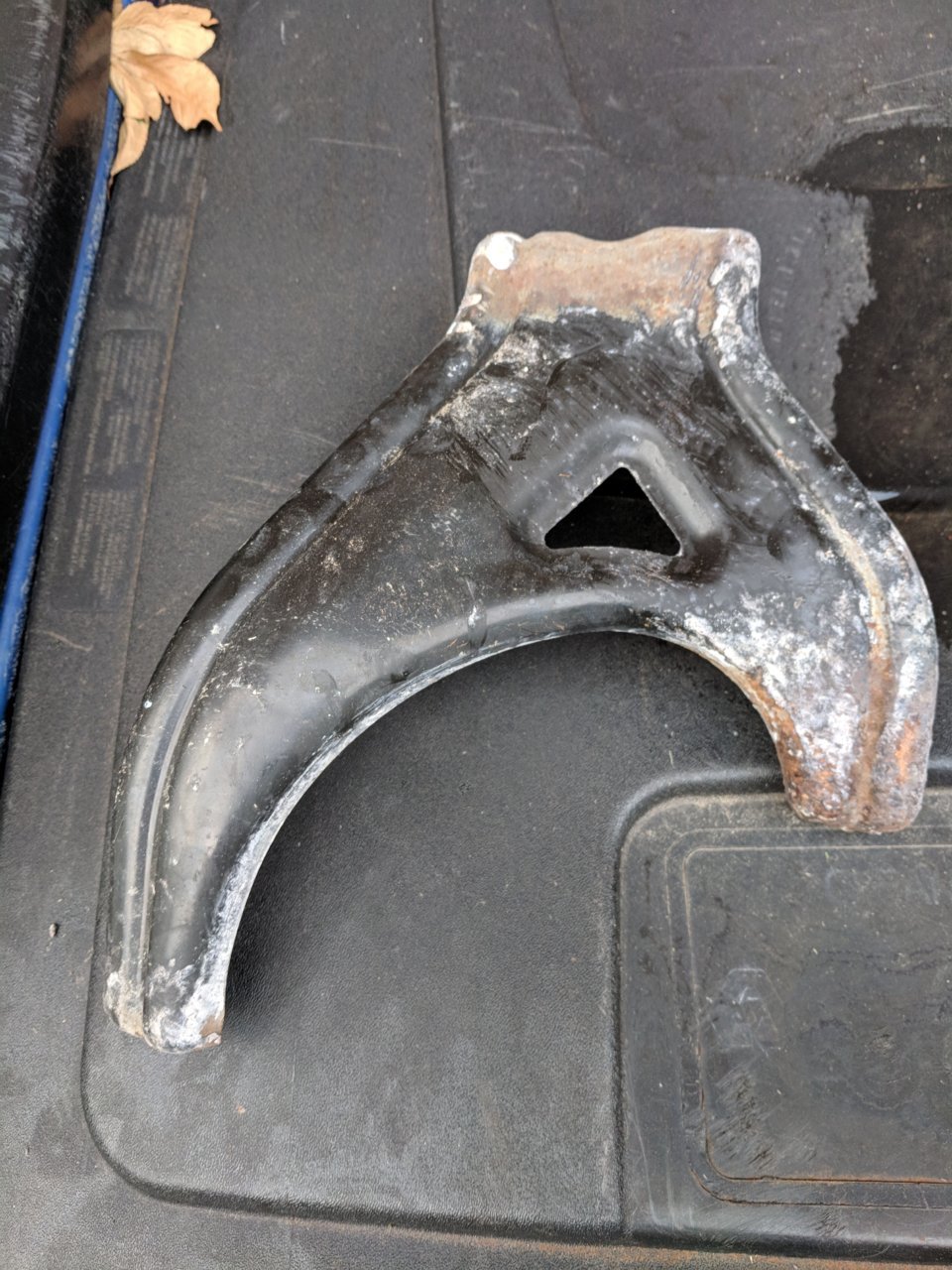

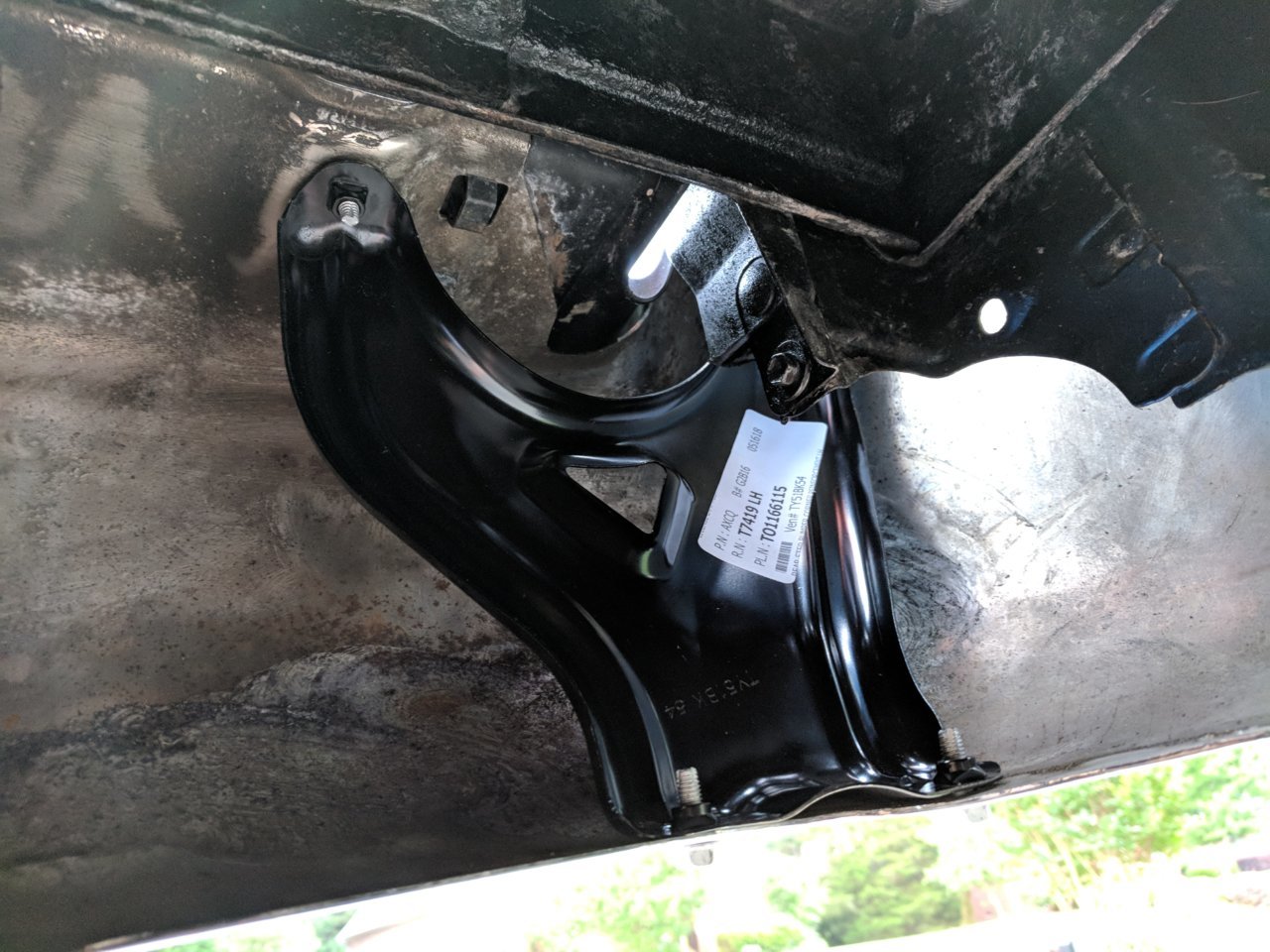

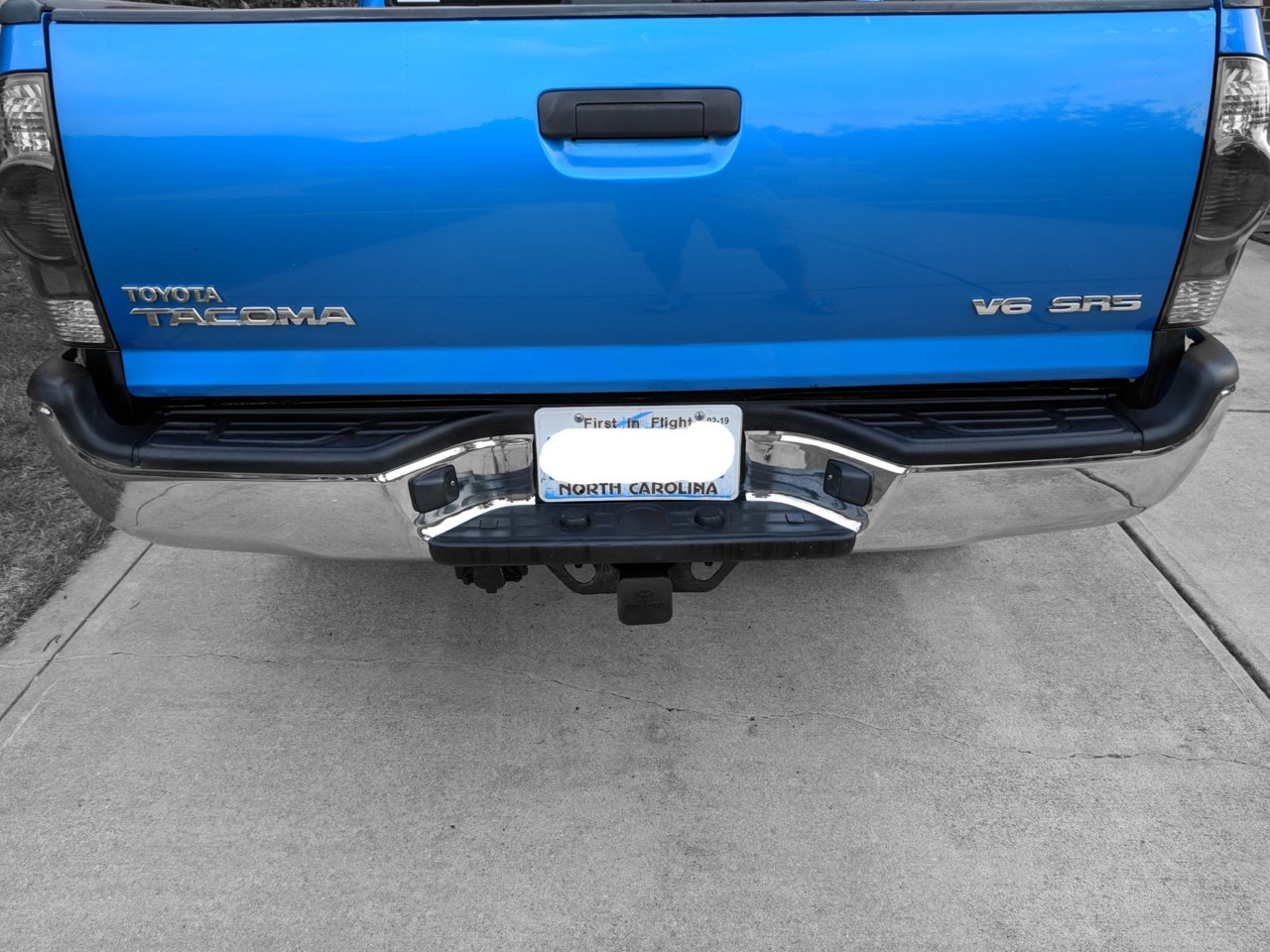

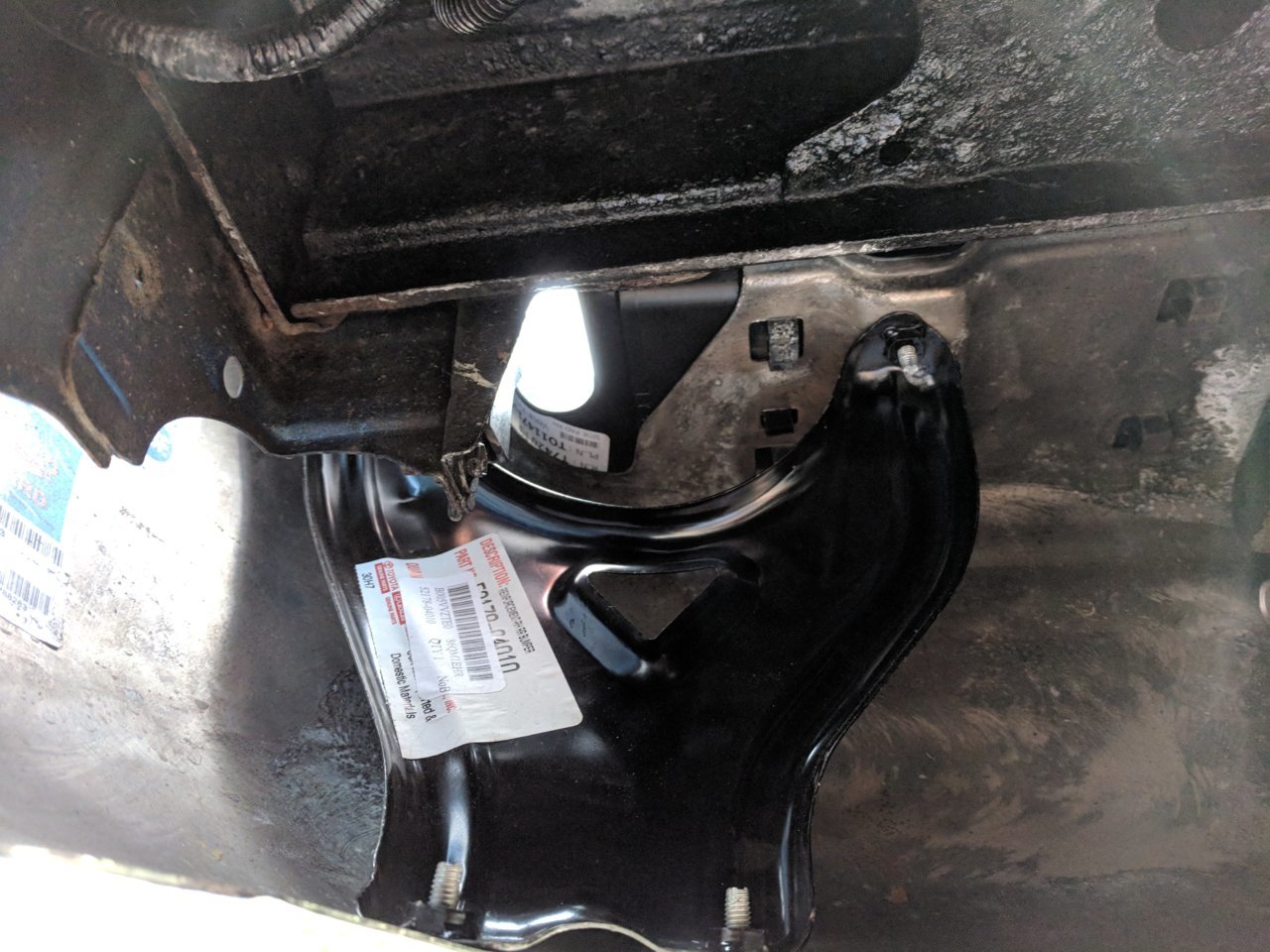

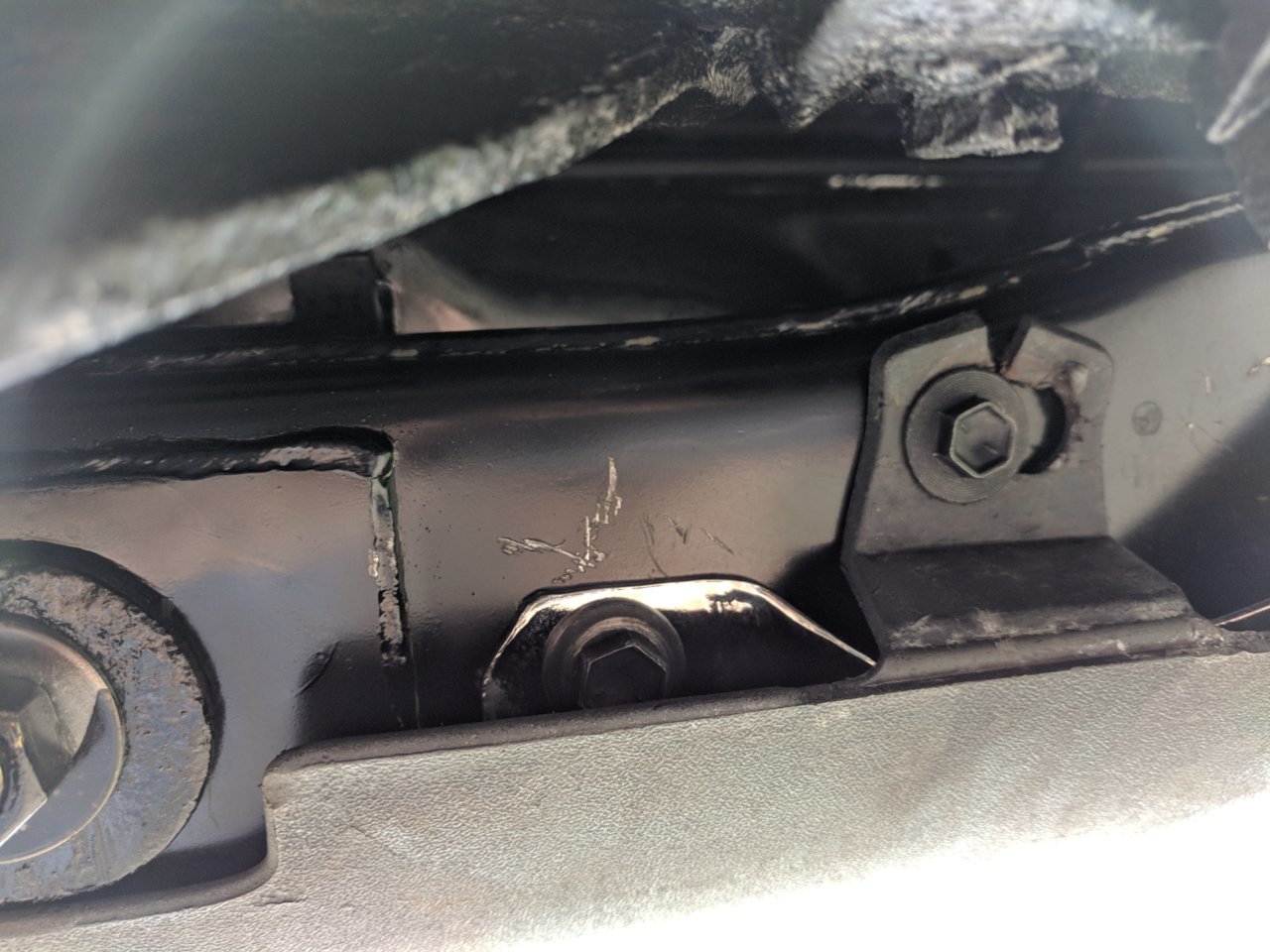

    Ended up buying new bumper supports and fasteners all around in addition to the reinforcement.

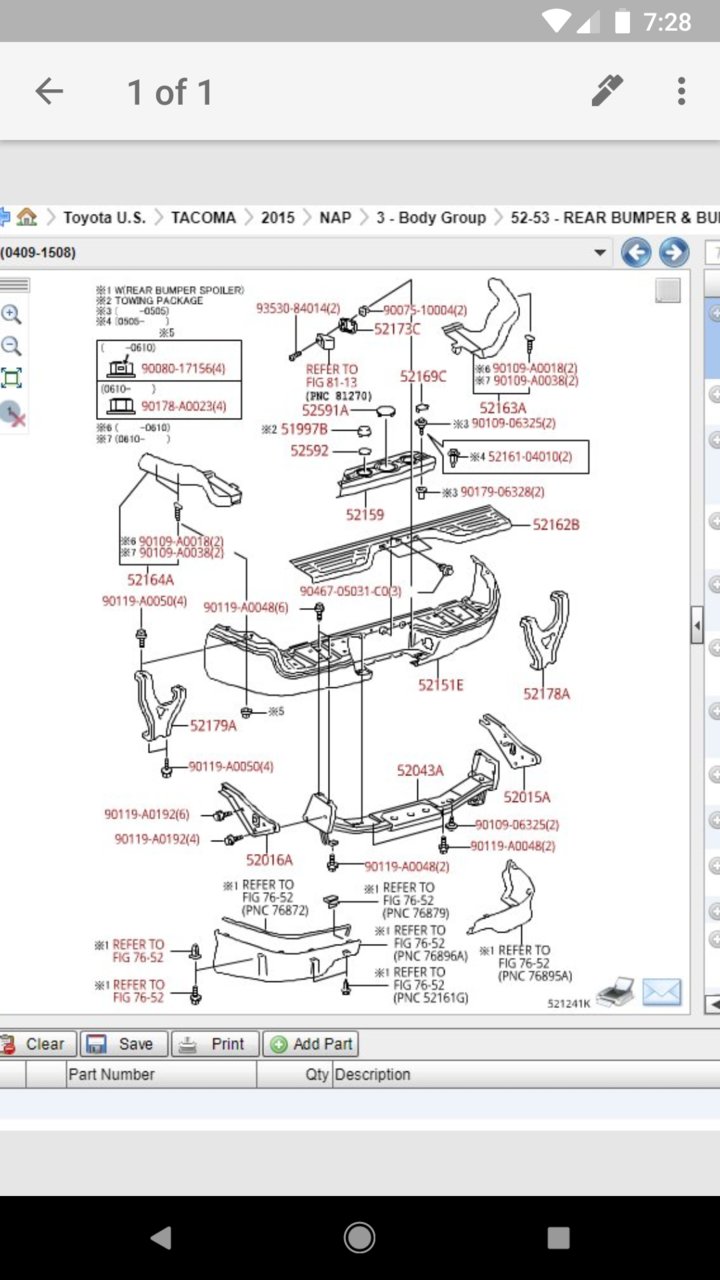

    Diagram below helps considerably. New bolts went in considerably faster that rusted ones came out. Most small ones broke off. Complete reassembly was about 30 mins. Most time was spent waiting on parts to arrive.


    IMG_20180524_191848.jpg IMG_20180524_191857.jpg IMG_20180524_191909.jpg IMG_20180524_191918.jpg IMG_20180524_191932.jpg Screenshot_20180524-192813.jpg

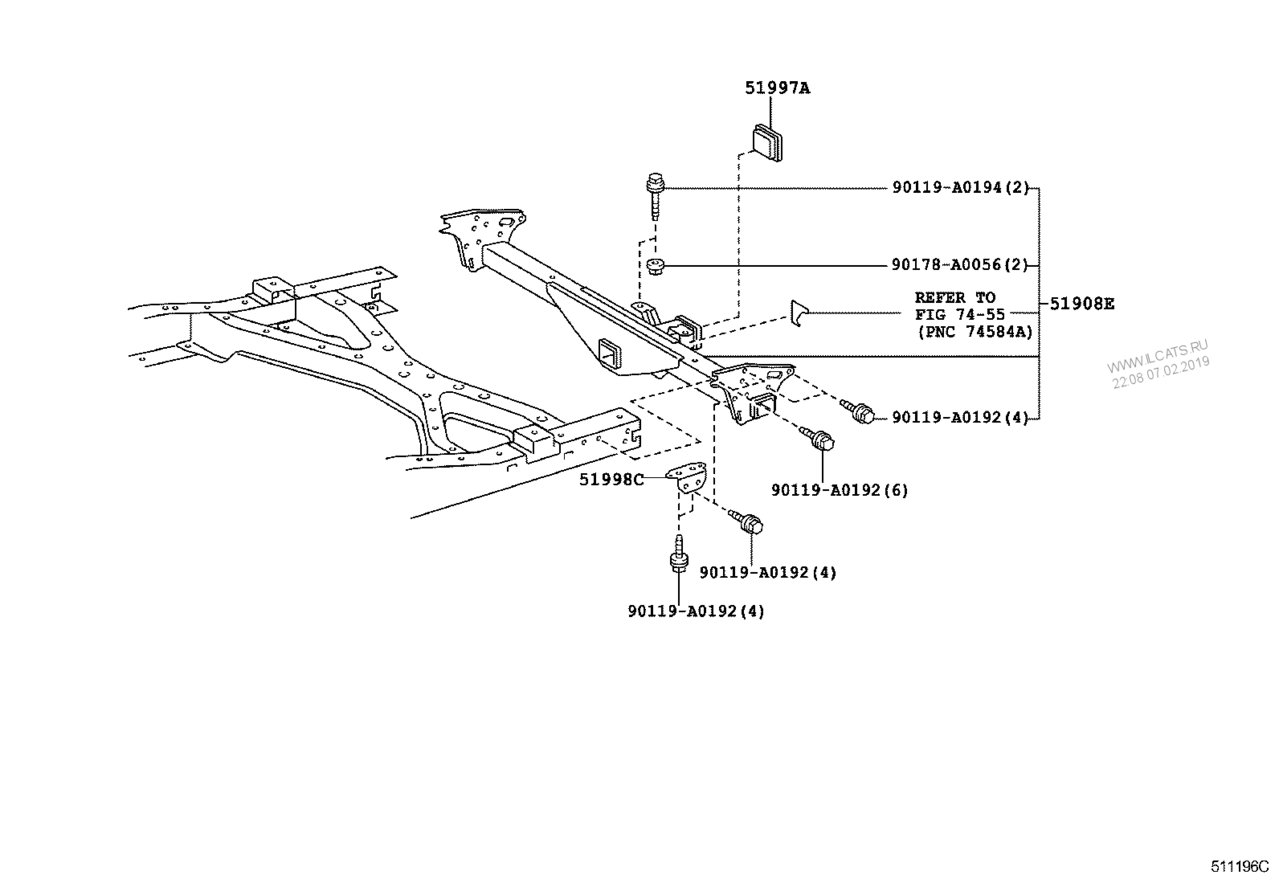

    Here is an image with part numbers outside of the bumper support. @netmagi (thank you!)




    Total cost
    $38 new bumper supports Amazon
    $78 new bumper reinforcement ebay
    $31 new bolts stealership. Yeah that wasnt expected
    $147 + time.
    Probably looking at $500 at the stealership.

    Last edited: Feb 7, 2019
  5. Jun 2, 2018 at 11:27 PM
    #5
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,042
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Thanks for posting this!

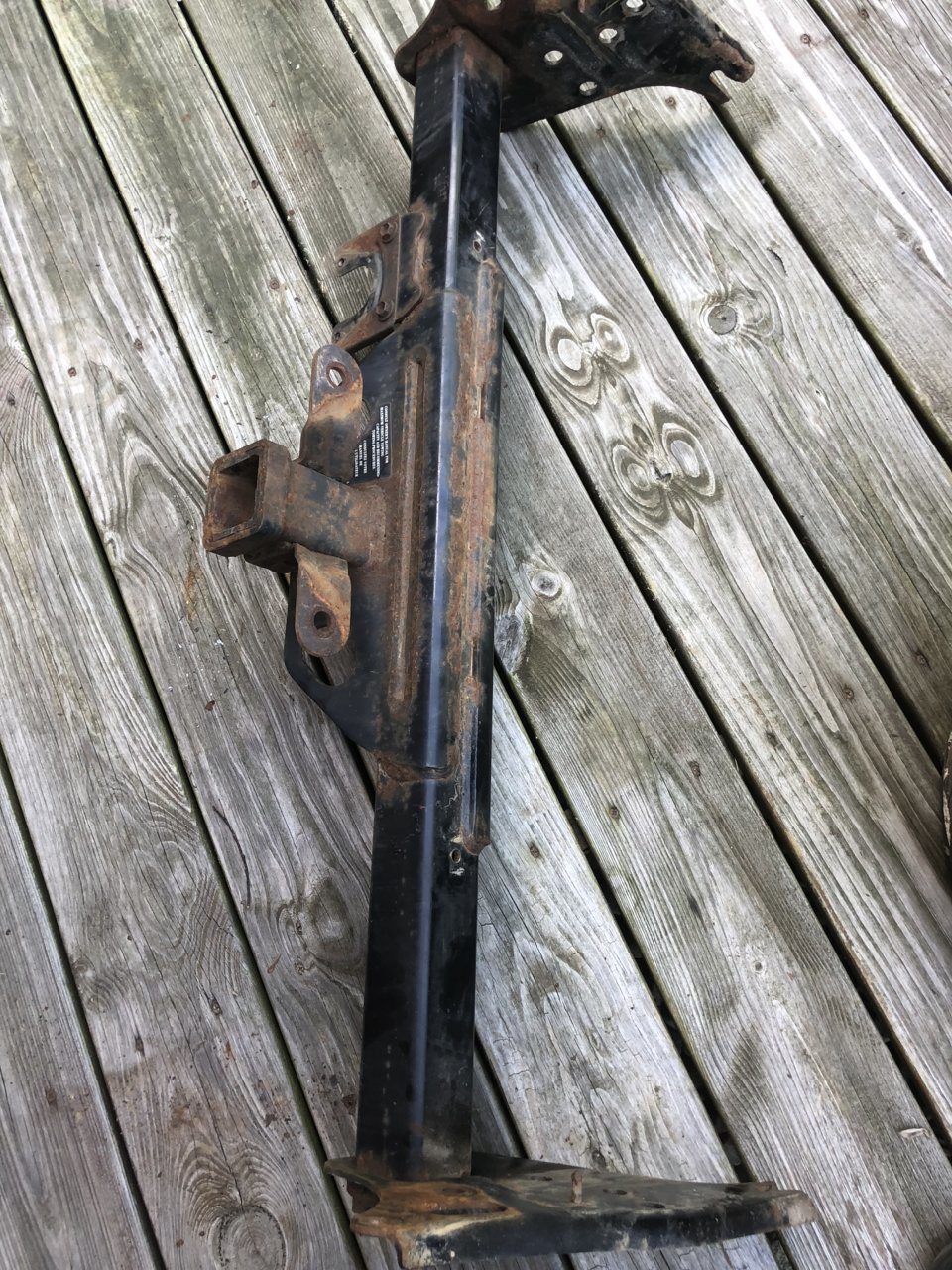

    I just took my hitch off today to hit it with a wire wheel and repaint it and come to find out the trailer hitch wouldn’t come off without the bumper support because they were basically rusted together. After I finally got everything out I realized my rear bumper support was in worse shape than the trailer hitch... but thankfully neither of them have any rust perforations and it’s mostly surface rust. I decided to tackle cleaning up and restoring the bumper support today and I’ll have to get to the hitch next weekend. I didn’t take any before pictures of the bumper support but here is my trailer hitch. I might have time tomorrow to start grinding away at the chipping paint but I don’t think I’ll have enough time to paint it. I’ll take some pictures of the refinished bumper support tomorrow, once it is dry and ready to be reinstalled.


  6. Jun 3, 2018 at 12:14 AM
    #6
    maxamillion2345

    maxamillion2345 Leaves the bay but brings all its problems

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    8,268
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    80 series Land Cruiser
    Cummins, tons, 40s
    Damn son! Gotta keep that area sprayed off, in the winter especially.

  7. Jun 3, 2018 at 1:56 AM
    #7
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Yeah this area is severely rust prone. Takes the brunt of salt damage. I actually had the same thing happen. Thought the hitch was bad then when I got into it found out the bumper support was worse!

    As you can see the rear cross sill is is also pretty bad. (Sits below bed). Found one from at a salvage yard, restored it and replacing it this week. Don't forget naval jelly rust remover if you need it. Lowe's has it. Works great after wire wheel.

  8. Jun 3, 2018 at 5:29 AM
    #8
    StuckinOhio

    StuckinOhio Well-Known Member

    Joined:
    Oct 30, 2011
    Member:
    #66154
    Messages:
    385
    Gender:
    Male
    First Name:
    Mark
    Ohio
    Vehicle:
    12' v6 AC 4x4 SR5
    I just replaced my bumper support last fall. 2012 truck and bumper support was shot. Didn't last 5 years.
    From my observation, the design was poor.
    Since the bumper support is U shaped with openings in the top side it catches and holds water until it evaporates out on a hot day. There are no drain holes.
    I drilled 2 drain holes on the bottom side and poured POR15 in and slooshed it around to cover. Just dont submerge the weld nut threads. Would make for a tough time to install bumper bolts

    Last edited: Mar 2, 2019
    09TRDSport4x4 and Benny123 [OP] like this.
  9. Jun 3, 2018 at 10:03 AM
    #9
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Funny you should say that. An older gentleman I showed this repair to used to work at Studebaker. Within 60 seconds he said the same thing. "Drill 2 holes or it will rust again."

    StuckinOhio likes this.
  10. Jun 8, 2018 at 9:37 PM
    #10
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,042
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Ugh... I just broke two of the bolt heads off trying to reinstall my rear bumper. The hitch and bumper bar restoration turned out pretty good but I knew I should have bought new bolts...

  11. Jun 9, 2018 at 2:19 AM
    #11
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Yeah the smaller bumper ones nearly all broke on me. Got some replacements from Lowe's. It was a common thread and pitch.

  12. Jun 9, 2018 at 2:54 AM
    #12
    4wheelslacker

    4wheelslacker Slacker by trade

    Joined:
    Sep 18, 2016
    Member:
    #197556
    Messages:
    349
    Gender:
    Male
    East Tenn
    Vehicle:
    2010 Taco crew shortbed
    2017 Trd struts,2018 Trd wheels,bakflip2 bed cover,ungraded sound system
    Wish l would have taken pics of mine when l was doing it.l knew mine was bad but not to the point when l took it off and saw it.lt all started with wanting a color matched bumper. l found a slightly dented one off a wrecked taco.Had it fixed and painted white to match my 2010.l ended up taking the bumper assembly off and soaking (bolts) it daily with Blaster for a few days.l got everything apart with no broken bolts and reassembled everything on the new bumper.Every bolt got a dose of Red n' Tacky before reinstalling.

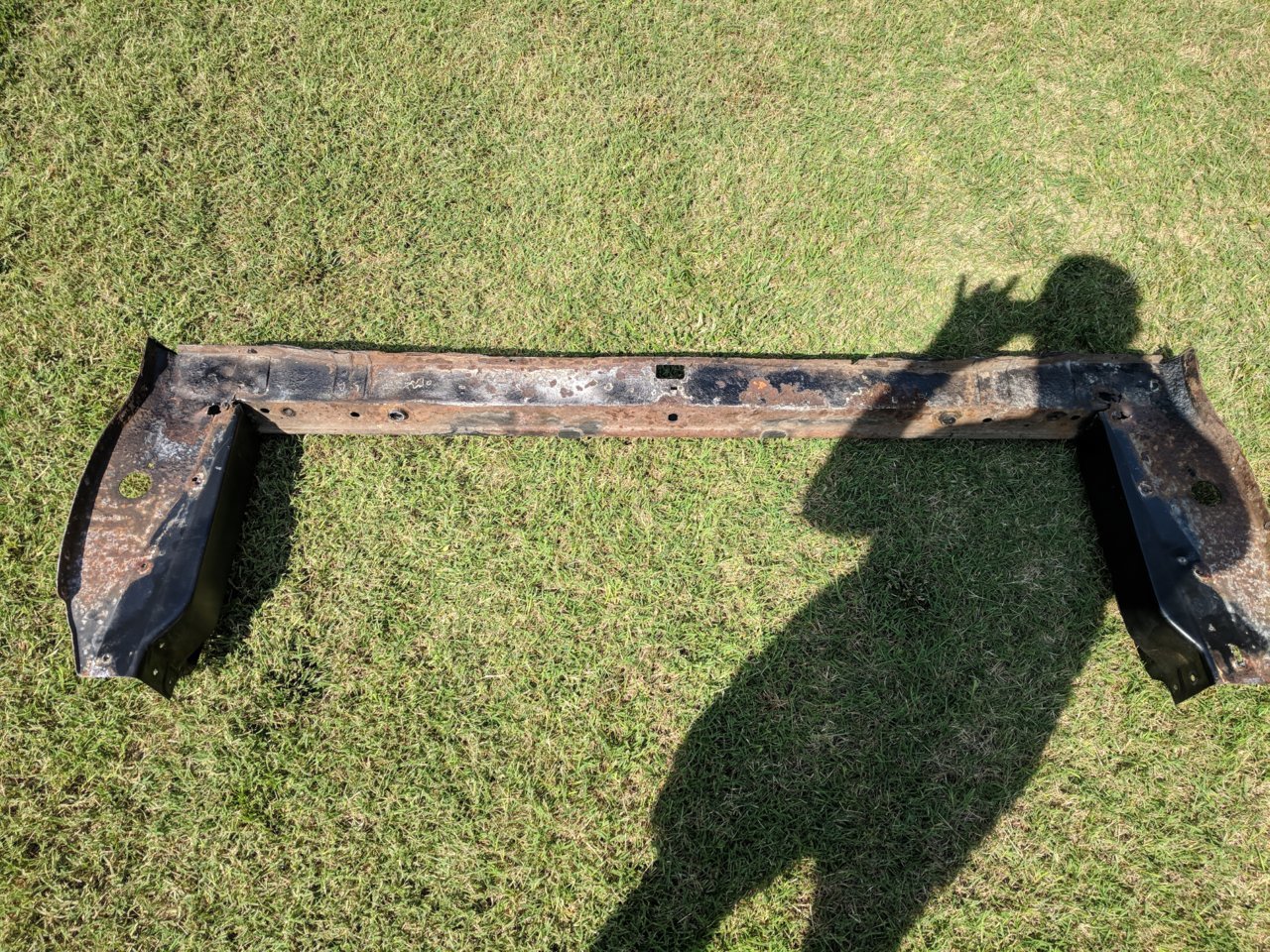

    Turned out great except for the inner assembly is still rusty junk.About a week later l found a hitch (same body shop) that was in good shape.lts getting powder coated and should have it back in a week.Glad l greased all those bolts.Shouldn't be too hard to come apart this time!

    *thanks for the heads up on the eBay part @Benny123

    Benny123 [OP] likes this.
  13. Jun 9, 2018 at 10:32 AM
    #13
    Freeheelbillie

    Freeheelbillie Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247669
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Billie
    Saint Clair, MI
    Vehicle:
    2019 Tacoma SR, DCSB
    FRONT END King Stage 3 3” RR Coil Overs SPC UCA’s REAR END King Stage 3 BAMF Shock Relocation Rear AAL Heavy ARB Universal Diff Breather Kit TIRES & RIMS 16” Method Bronze BFG K02 (315/75/R16) ARMOR Demello Off Road Baja Hoop Front Bumper Main Line Overland Rock Sliders w/ Top Plate ¼” Aluminum RCI Fuel Tank Skid RCI Fuel Tank Straps RCI Rear Diff Skid RCI A-Arm Skids RCI – Front, Transmission, and rear Transfer Case Skid DRIVE LINE Re Geared w/ Nitro 4.56 Package Front ARB Air Locker Rear ARB Air Locker 8” Reverse Clamshell 3.73 & Down Carrier RECOVERY ComeUp Seal Gen2 9.5RS Winch, Synthetic Line ComeUp Seal Hawse Fairlead ARB On Board Twin Air Compressor LIGHTING Squadron-R Pro Amber Fogs (Wide Cornering) Baja Designs Rock Lights Squadron Sport Fogs (qty 4) Baja Designs Bed Light Kit SPODS, HD 8 Circuit Switch Panel
    As a Michigan resident, I'll be adding this to the list of To Do's at some point...

  14. Jun 9, 2018 at 7:06 PM
    #14
    Jsquared

    Jsquared Active Member

    Joined:
    May 2, 2018
    Member:
    #252354
    Messages:
    27
    Gender:
    Male
    First Name:
    Jeff
    Vehicle:
    2013 Tacoma TRD OR DCSB
    Bull Bar, KC Lights
    Looks really good, and I am sure it feels good to know you added more years to it.

    Thank for the tread. Another thing that I should look in to this summer.

    Benny123 [OP] likes this.
  15. Jun 11, 2018 at 7:10 PM
    #15
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,042
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Well, I just ordered the new bumper support. Broke two more bolts off trying to remove the bumper cover so I could extract the two bolts I broke the other night. At this point the original bumper support can rot in a junk yard with four broken bumper bolts in it. I also ordered all new bolts that hold the cover on so as soon as I get the new support and the bolts I can finally reassemble everything and drive my truck again...

    And at least the hitch restoration went well and it went back on with no probalems. It looks good and should be ready for another few years of salt abuse. I’m definitely going to drill two holes in the bottom of the new bumper support before it goes on the truck and I’ll be spraying off the underside of the rear often every winter in an attempt to keep the salt from building up. I don’t ever want to have to do this again!

    StuckinOhio likes this.
  16. Jun 12, 2018 at 5:56 AM
    #16
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Glad to have helped everyone. Tacos up north need a little more tlc to keep them going. I didn't want rust to extend into the frame and painted panels. I ended up replacing my rear cross sill this weekend. Got the part from a salvage yard and refinished it. My original was nearly as rusted.

    I was quoted over $1000 for labor alone so I said f it. I'll do it.

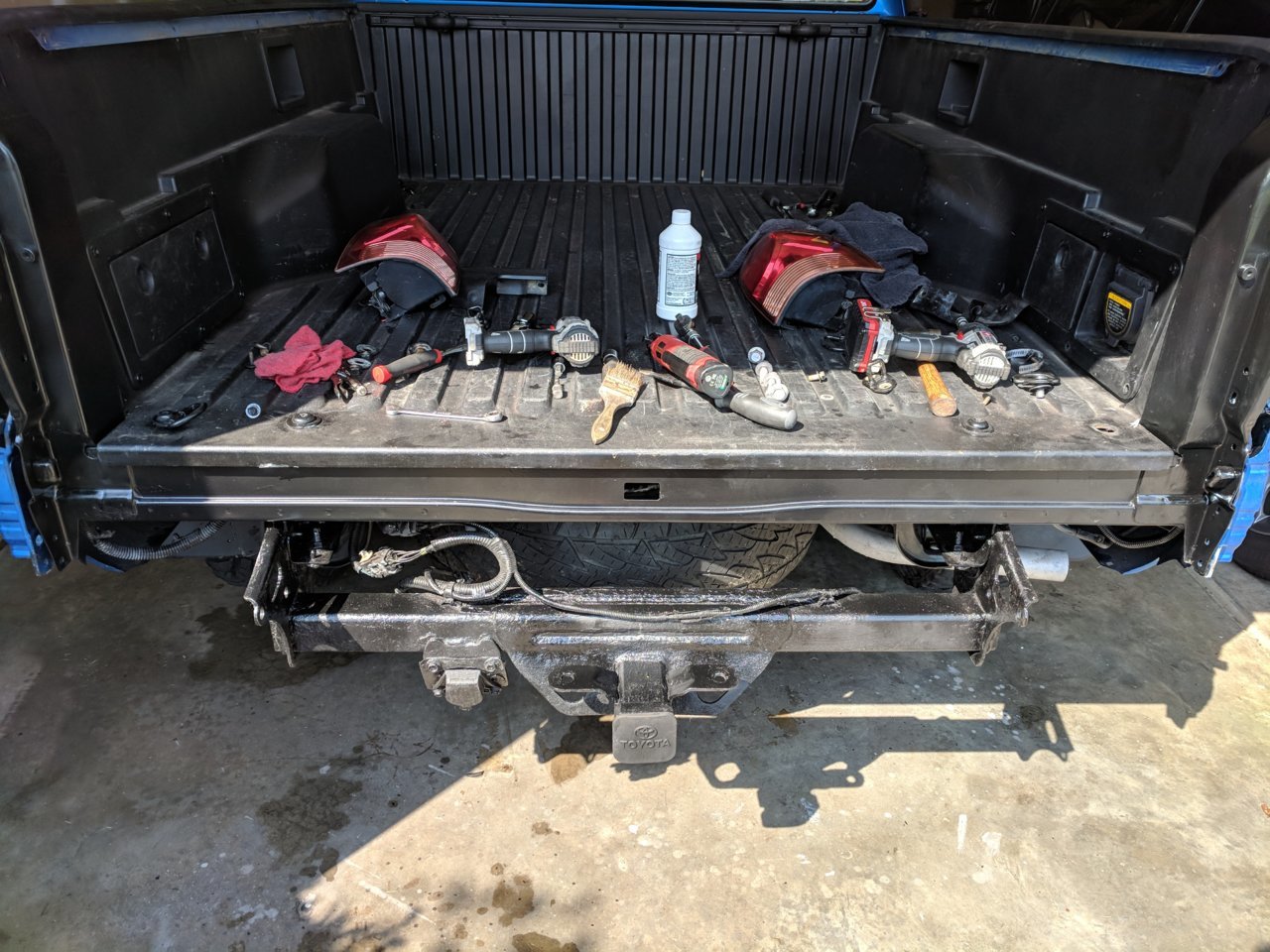

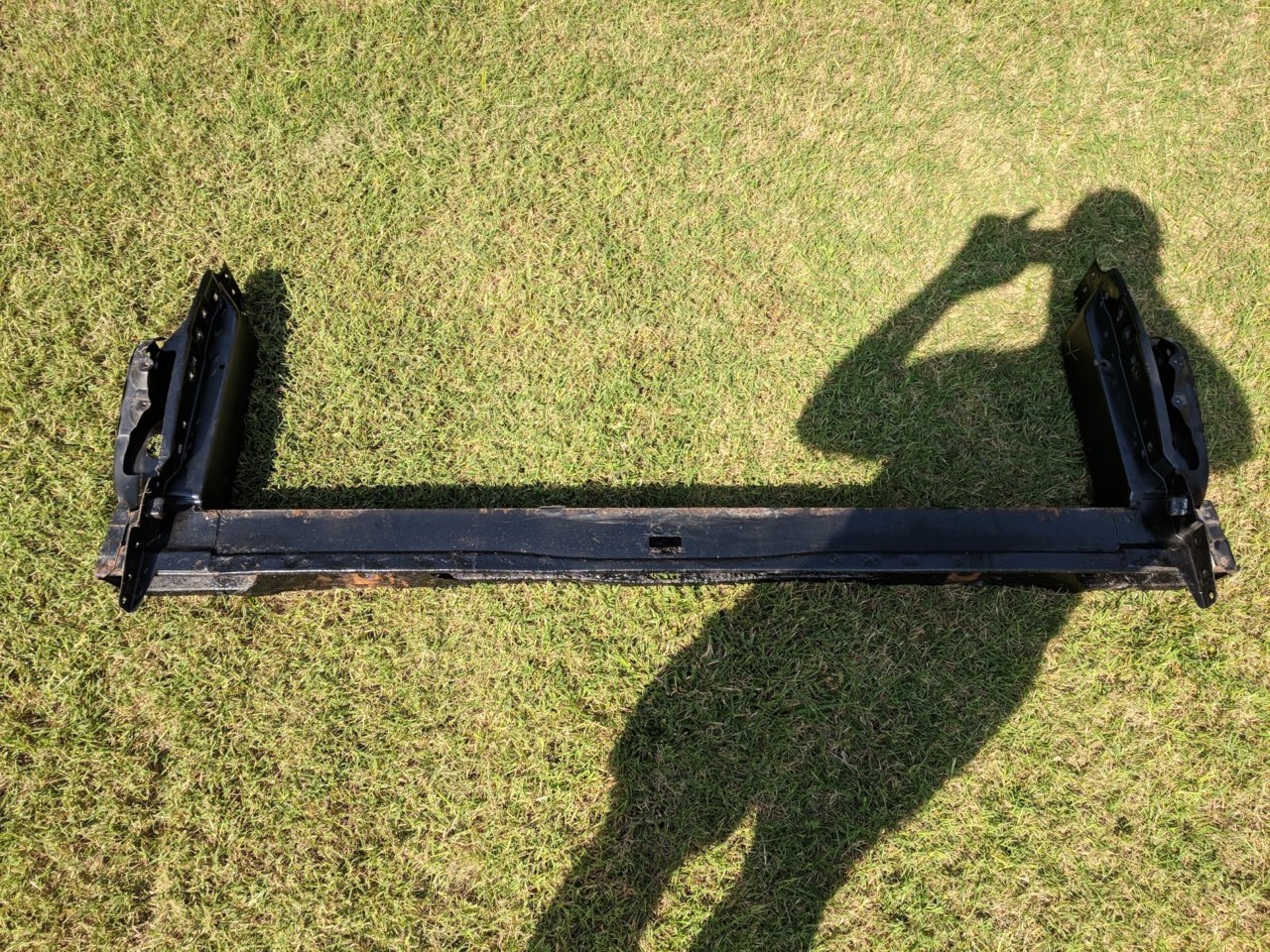

    Heres the link to replace the cross sill. Truck is now 99% rust free. Last pic is with new sill installed.IMG_20180609_101552.jpg IMG_20180609_101558.jpg IMG_20180609_101537.jpg

    Last edited: Jun 12, 2018
    whatstcp and 09TRDSport4x4 like this.
  17. Jun 12, 2018 at 11:16 AM
    #17
    09TRDSport4x4

    09TRDSport4x4 OCD Approved!

    Joined:
    Oct 13, 2014
    Member:
    #140292
    Messages:
    1,042
    Gender:
    Male
    First Name:
    Nick
    Southwest Ohio
    Vehicle:
    2009 TRD Sport 4x4
    285/70/17 Nitto | SCS F5s | Elka 2.5 | Elka 2.0 | ICON AAL
    Looks good man! :thumbsup:

    And I was lucky in that my rear sill plate didn’t have a spec of rust on it. And neither did the side bumper brackets either. My biggest issue by far was that stupid bumper support beam and all the bolts that screwed into it. The hitch was a bit rusty but after a good grind and some rust inhibiting paint it looks better than ever. I’m just really hoping to have all the new bolts and my new rear bumper support bar by Friday so I can finally put this thing back together and drive it again.

  18. Jul 29, 2018 at 6:37 PM
    #18
    RHHousehold

    RHHousehold Well-Known Member

    Joined:
    Jun 11, 2018
    Member:
    #256075
    Messages:
    139
    CA
    Vehicle:
    2008 Access Cab TRD Offroad 4x4
    Working on this project as well, thanks for the posts and help. I broke only 2 of the m8 bolts luckily.

    I noticed the back side of the square hole for the hitch has no cover, seems like water will go directly through the hitch from the back (the side most forward on the truck). Anyone plug this up? Would a plastic cover the same as the cover for the hitch on the rear work?

  19. Jul 29, 2018 at 7:01 PM
    #19
    Benny123

    Benny123 [OP] Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    I got an OEM square Toyota plug. I felt like it was an entry point for salt. There are 2 different sizes, measure first. The RAV4 one does not fit.

  20. Mar 2, 2019 at 2:57 PM
    #20
    Dirt

    Dirt Well-Known Member

    Joined:
    Sep 6, 2011
    Member:
    #63003
    Messages:
    82
    Gender:
    Male
    First Name:
    Ross
    Brentwood
    Vehicle:
    rosscmuirhead@gmail.com
    What paint are you using?!
