Project DIY: Truck-bed Pullout Kitchen (and BS)

Discussion in '3rd Gen. Tacomas (2016+)' started by Arlaghan, Aug 22, 2017.

  1. Dec 24, 2017 at 10:45 PM
    #141
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    Hmm, hadn't considered that. I'll have a look around. The coil would need to be pretty tight - around 2" or so. If that doesn't work, I have a couple ideas I'm playing with: A simple loop with the tubing, enough to stretch out as needed, held underneath with a metal bar or something... kind of like how those folding TV-dinner tables work.

  2. Dec 25, 2017 at 5:20 PM
    #142
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road

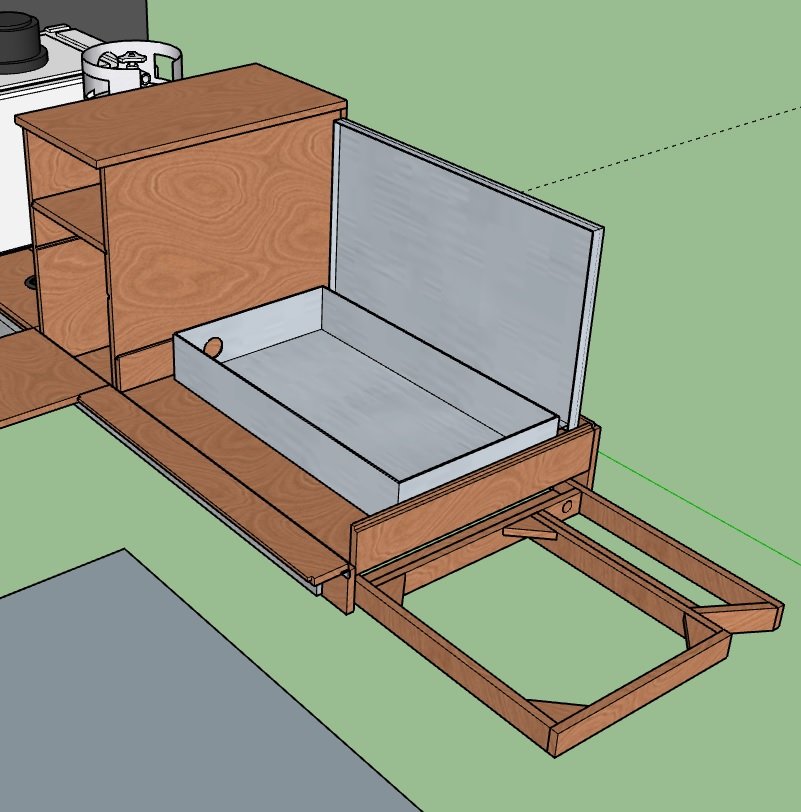

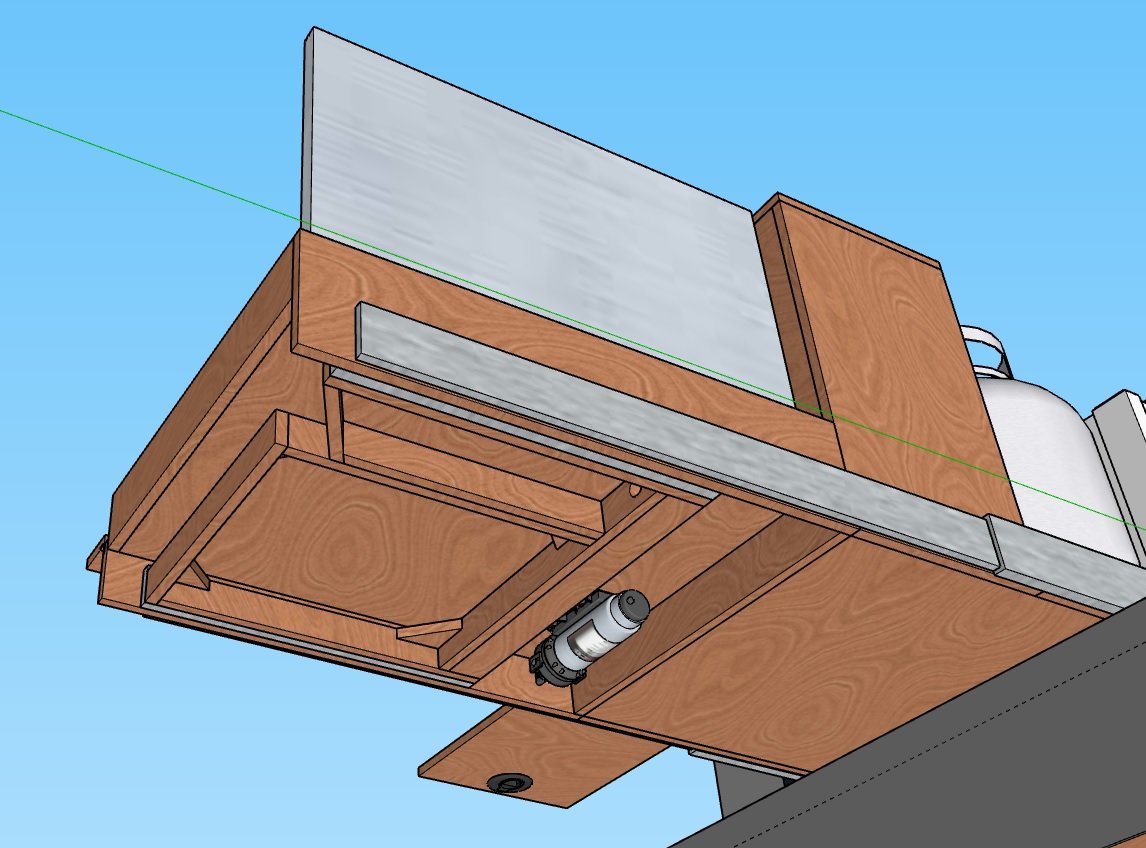

    Alright, here's a design that's cheap to try: I can use some long strips of scraps I had left over. The angled bit is where I'll mount the faucet. The hose will run along the channel (mounted firm) and pass through the hole in the back. I'll then figure out a way to "fold" the hose so it can expand as its pulled out. There is enough clearance from the top of the platform and the bottom of the cook-top cabinet for the drag chain to fit. This will contain wiring for the switch. If I can pull this off, I'll be able to access the water without having to open up the kitchen at all: Just pullout the sink, flip a switch to power the pump, then grab a glass of water or something. :)

    A (much) better design would have mounted the faucet in a fixed position on the edge of the cook-top cabinet and the only part that would move in and out is the sink. But, this is what I have to work with without re-doing everything else I've already done. Just some food for thought for anyone considering building something like this.


  3. Dec 26, 2017 at 4:41 AM
    #143
    War_B0n3r

    War_B0n3r Well-Known Member

    Joined:
    Mar 13, 2017
    Member:
    #213210
    Messages:
    127
    Gender:
    Male
    Augusta, Ga
    Vehicle:
    2017 Super White Tac-Bro TRD Off Road
    Woah I don't know how I'm just now seeing this, but this is honestly pretty cool.

    PS OP: Your kitchen may pullout, but I don't ;)

    gman36, Chipskip and Arlaghan [OP] like this.
  4. Dec 26, 2017 at 7:36 AM
    #144
    RushT

    RushT Well-Known Member

    Joined:
    Dec 10, 2017
    Member:
    #238171
    Messages:
    846
    Gender:
    Male
    North Texas
    Vehicle:
    Inferno DCSB OffRoad
    Hah! That belongs in the 50+ thread.

    Arlaghan [OP] likes this.
  5. Jan 10, 2018 at 2:08 PM
    #145
    NV_Spencer

    NV_Spencer Well-Known Member

    Joined:
    Aug 14, 2017
    Member:
    #226806
    Messages:
    81
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB
    hey @Arlaghan this is a little off topic but I'm in the market for a new stove so I returned to this thread after watching your project. You like your 22" Cook Partner? Man, they are pricey...

  6. Jan 10, 2018 at 2:11 PM
    #146
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    It's funny you should ask. As far as quality, there is no question, the Cook Partner is top notch. My only regret is that sometimes I feel the 22" is a little too big. We almost never use the second burner. Definitely something you'll want to consider. But if you're on the fence about quality... No need to be.

  7. Jan 10, 2018 at 2:46 PM
    #147
    NV_Spencer

    NV_Spencer Well-Known Member

    Joined:
    Aug 14, 2017
    Member:
    #226806
    Messages:
    81
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB
    Thanks but size can't scare me off. I'm coming off the world's beefiest camp stove ever that was an unfortunate victim of my flooded basement (RIP 1995 water heater). My insurance is buying so I want to make sure I get something as nice as what I had, the Coleman worked great.

    EDIT: How do you cook bacon & pancakes at the same time if you don't use both burners?!? ;)

    Arlaghan [OP] likes this.
  8. Jan 10, 2018 at 3:34 PM
    #148
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    One at a time LOL. Otherwise we burn stuff. :bananadead:

    What's nice (or not) about Cook Partner is that it is incredibly simple. No piezo ignition to break, very few moving parts. Easy to clean. Can take a beating. Plus they apparently last forever. I'll let you now the day after forever if that's true or not. :rofl:

  9. May 28, 2018 at 7:16 PM
    #149
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road

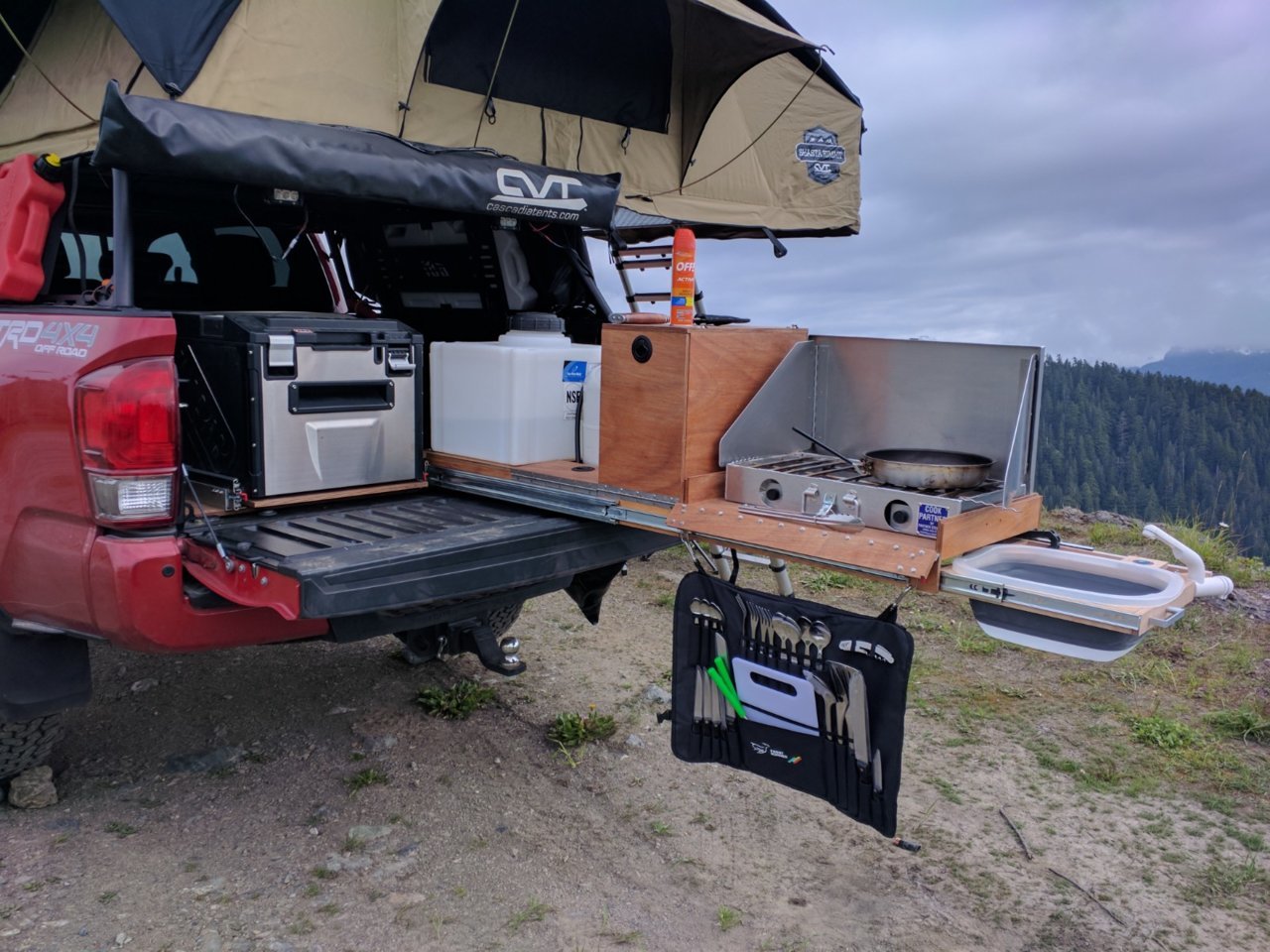

    Well, it's been quite a while since I've worked on this project. But with the season for camping opened up, I need to get this ready. I ended up building it pretty much as planned. I didn't really feel like tweaking the design anymore since I know I'm only going to get one season's use out of it. (I'm planning on getting a Four Wheel Camper shell this Fall.) The design seems to fit the space - super tightly. I still need to run the water tube and connect the electrical (and mount the switch somewhere), but you can get the general idea here:


    And all tucked away:

    Doozy4212, Quadabaum and Chipskip like this.
  10. Jun 4, 2018 at 11:27 AM
    #150
    mrjoshyman

    mrjoshyman Well-Known Member

    Joined:
    Dec 26, 2016
    Member:
    #205750
    Messages:
    125
    Gender:
    Male
    First Name:
    Josh
    i'm really envious of your sketchup skills. i've just starting toying with this software for version 2.0 of my truck drawer/sleeping build. do you have animations for expanded and closed versions or do you have two separate models in sketch up?

    Arlaghan [OP] likes this.
  11. Jun 4, 2018 at 11:45 AM
    #151
    rlx02

    rlx02 Well-Known Member

    Joined:
    Sep 3, 2016
    Member:
    #196329
    Messages:
    2,875
    Gender:
    Male
    Western WA
    Vehicle:
    2017 Inferno DCSB TRD OR 4x4
    Tires Wheels Icons UCAs Lights Sliders
    I just noticed you're local. If you're only going to use it for 1 season I'm sure someone in the local forum will scoop that up from you!

    https://www.tacomaworld.com/threads/nw-wa-meet-bs-thread.224544/page-2075

    Arlaghan [OP] and Chipskip like this.
  12. Jun 4, 2018 at 5:41 PM
    #152
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    Nope, I literally just use the move/rotate tool to see how things line up and operate. The trick to Sketchup is components. I make everything components, then make groups of components into components, and so on. Makes it easier to move things around. Then I make a copy of my model and explode all the grouped components into single components and use these to layout my cut diagram - it's like playing Tetris - saves wasted plywood, considering how much this stuff costs.

    If you really want to go nuts with Sketchup, the Pro version allows for configurable components - where you can Edit Component details and enter say... a dimension (width for example) and it auto calculates other dimensions based off of that. I started getting comfortable with it then my pro free trial expired. :D

  13. Jun 4, 2018 at 5:44 PM
    #153
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    Totally thought about this. Lot of work went into it and I'd love to have someone else enjoy it. Of course, I'm likely going to cannibalize parts out of it, so whoever ends up with it would have to replace those bits. ;)

    rlx02 likes this.
  14. Jun 26, 2018 at 5:56 PM
    #154
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road

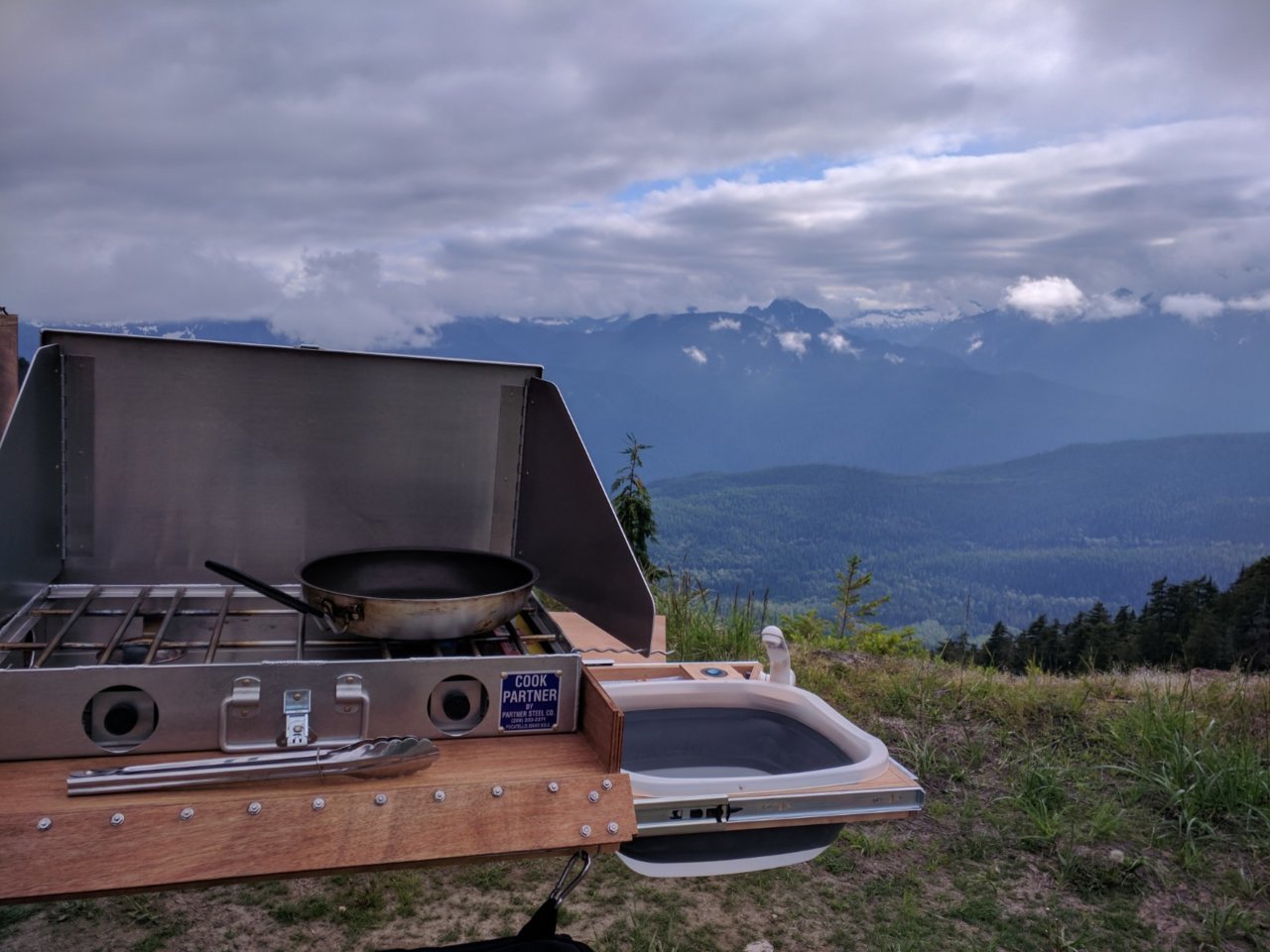

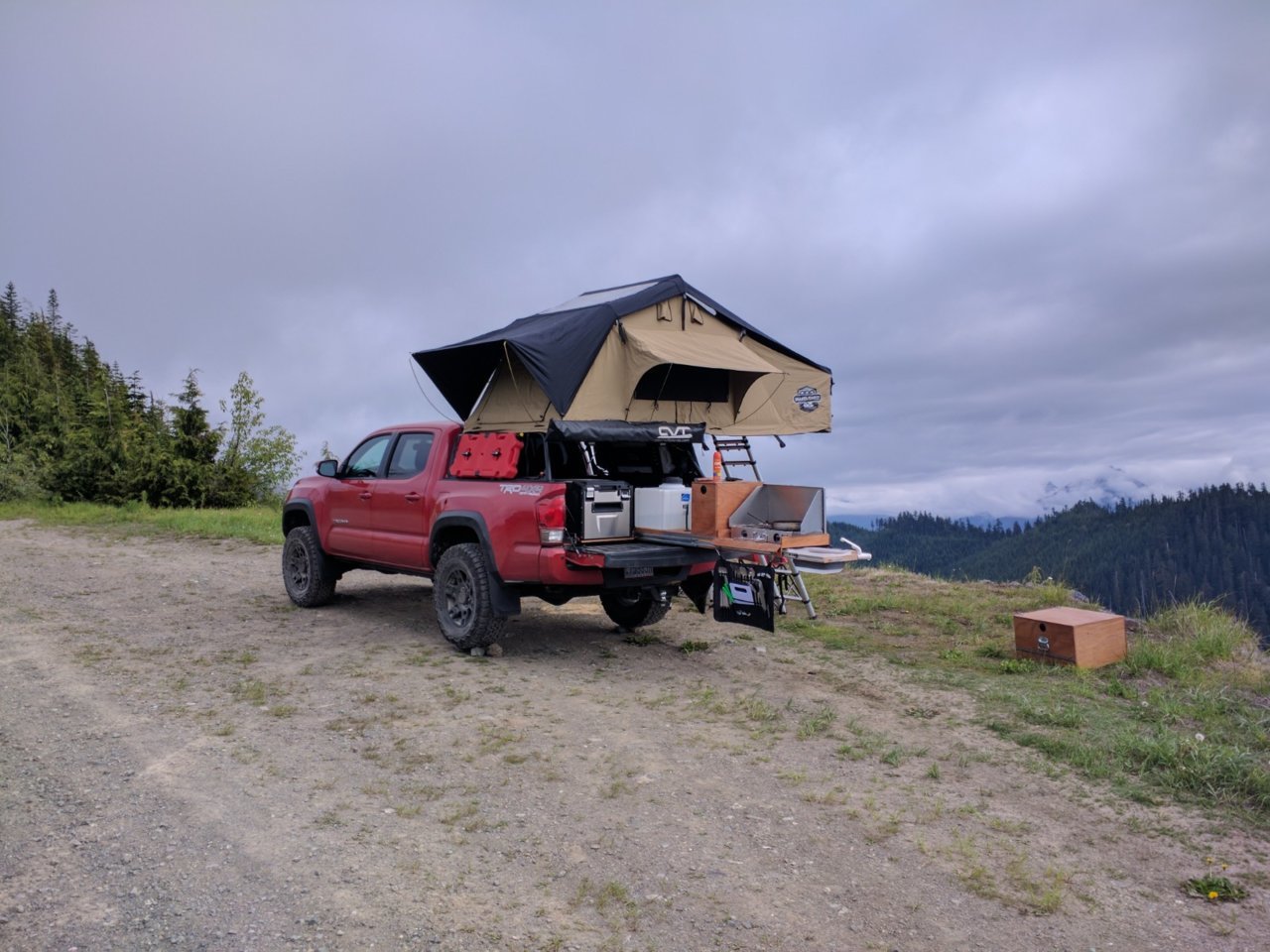

    Ok, long overdue update: The kitchen "sink" is done and tested/used. There are a couple of minor leaks where the tubing joins the barbed connectors, but is usually only a problem when it's under pressure. (We're talking drops here - not a major concern.) At some point I'll tighten the ring clamps, but for now it's fine. The 12 gallon tank is pretty dang awesome. Huge cap for filling, has a spring-loaded opening for letting air in and the outlet is on the bottom. I have a three-way valve (on, off, drain) plumbed in and an Anderson Powerpole for the 12volt pump. Everything is NSF certified except for one small piece (a reducer from the bottom opening to a barbed elbow). All in all, I'd call it a success. (Though I still would design it differently if I were to start completely from scratch). In any case, here are some action shots. :D


    And here are some scenic shots unrelated to the kitchen, but from the same trip.

    IMG_20180623_174303.jpg IMG_20180623_211849.jpg

  15. Dec 3, 2018 at 9:55 PM
    #155
    Scott17818

    Scott17818 Well-Known Member

    Joined:
    Oct 29, 2018
    Member:
    #271032
    Messages:
    48
    Gender:
    Male
    stock TRD offroad, yokohama geolanders
    looks awesome, just wondering if you tried a sealer like helmsman poly... for water intrusion/damage

  16. Dec 3, 2018 at 11:04 PM
    #156
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    I ended up just using spar varnish. Towards the end (where I made the sink pullout) I got lazy and didn't use anything. This marine plywood really holds up well to water. A bigger problem is sealing up the areas where the doors meet the cabinet. Small amounts of water do make it inside after a while.

  17. Dec 7, 2018 at 12:48 AM
    #157
    Sauzacoma

    Sauzacoma IG: @Stancaban

    Joined:
    Apr 18, 2017
    Member:
    #216580
    Messages:
    89
    Gender:
    Male
    First Name:
    Chris
    Southern California
    Vehicle:
    2017 TRD Off-Road (DCLB)
    This is just too awesome, such nice craftsmanship!
    A couple questions regarding gear though. What are the brands/sources of the water tank, hanging utensil organizer, and camp table? Those are 3 things I'm trying to locate for my setup.
    Thanks!

  18. Dec 7, 2018 at 11:08 AM
    #158
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    487
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    Thanks! It's definitely a comfortable kitchen to use out in the field.

    The water tank is "Ace Roto Mold 12 Gallon Rectangle Tank SP0012-RT". It looks like the place I bought it from doesn't carry it anymore. I'm not sure why, it was drop-shipped from the manufacturer.

    The utensil set is the Front-Runner Camp Kitchen Utensil Set. It's overall pretty good, but I do have some complaints about the spatula (handle falls off). I added a 99 cents set of tongs from wal-mart and some marshmallow roasting sticks.
    https://www.frontrunneroutfitters.com/en/us/win62310-ss-24-pce-cutlery-set-with-nylon-bag.html

    The table is from REI, and I have nothing but good things to say about it: It's light weight, packs small, and is a decent size.
    https://www.rei.com/product/765280/rei-co-op-camp-roll-table
