Projector Retrofit

Discussion in 'Lighting' started by G-Sak, Mar 20, 2009.

  1. Mar 20, 2009 at 1:16 AM
    #1
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    255
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    Some of you may remember the post by Jason from Luminous Solutions about a projector retrofit project. He also offered a group buy at the beginning of the year. I have been wanting to convert my truck lights to HIDs for a while, but wanted to use projectors instead of the stock housing. That way I could prevent excess glare and blinding other drivers. I was not impressed by some of the projector headlights that can be found on ebay and such because I don't really like the way they look and I was not sure if HIDs would work very well in them due to the mixed reviews I have heard and read.

    I began to look into projector retrofit kits and found this post http://www.tacomaworld.com/forum/luminous-solutions/20620-projector-group-buy-x-mas-sale.html. After some more research and a few emails I decided to give it a shot. I must give credit to Jason and the crew of Luminous Solutions as they were very helpful and knowledgeable. I asked Luminous to track down a set of OEM headlights and install the projector retrofit kit for me that they offer. I was not sure exactly how to do it so it was worth the extra time and money to me for them to do the install. I had them do the BHLM as well while the lights were disassembled for the projector install. All I had to do when I received the shipment of my lights was take the headlights off my truck and install the new ones, then wire the plug-n'-play HID kit. I am using 6000K bulbs which has a little hint of blue, but is mostly white. The install was straight forward and the directions clear. I did make one connection incorrectly which caused one side high beam not to work, but that was sorted out through some trouble shooting with Luminous and it turned out to be my own stupidity because I didn't double check my work. Oops!:eek: Lesson learned....Now everything is working great!:)

    Well, I completed the install yesterday and have a few pictures to show. The pictures don't really do this project justice, but at least you can get an idea of what the improvements are.

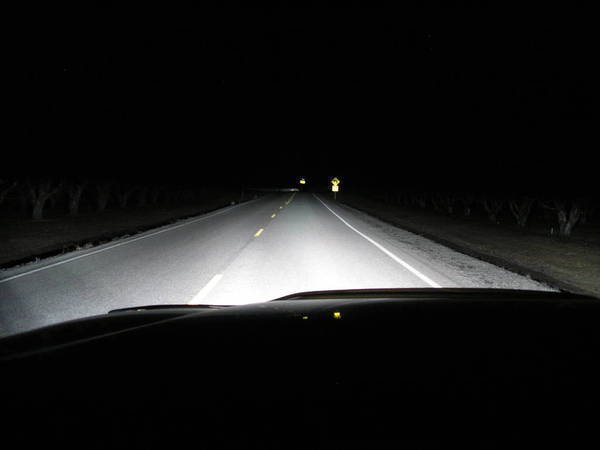

    Low Beam (driver view)
    [​IMG]


    High Beam Pattern

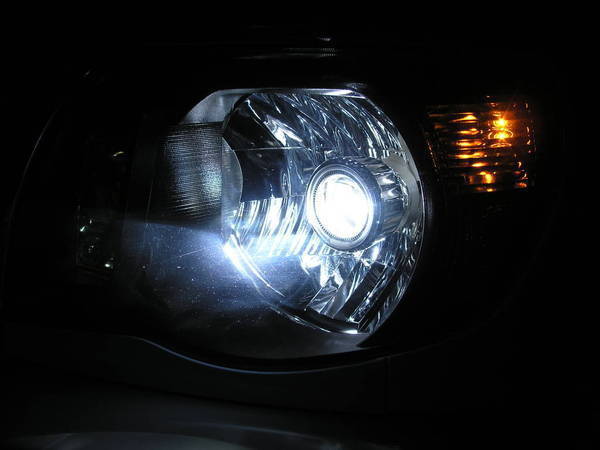

    What the projector looks like on the truck
    [​IMG]

    Low beam pattern

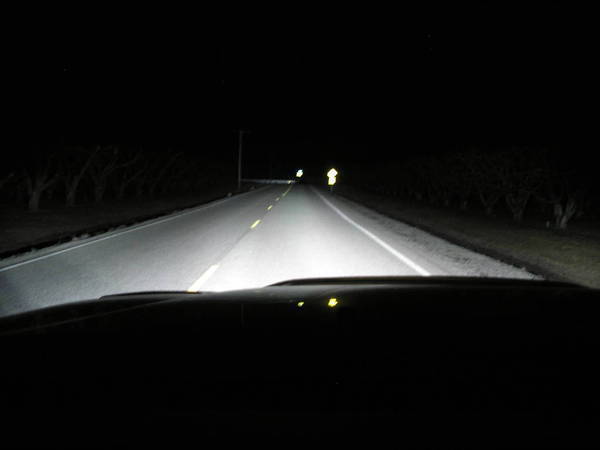

    High beam (driver view) - pic does not really show the difference between the low and high beam driver view. There is, my camera isn't really fancy so I can't capture the true difference.
    [​IMG]

    Before mounting the lights
    [​IMG]

    Driver side Ballast


    Driver side Relay


    Passenger side Ballast


    Passenger side Relay


    Close up at night
    [​IMG]

    Head on view at night
    [​IMG]

    [​IMG]

  2. Mar 20, 2009 at 2:19 AM
    #2
    it's in coma

    it's in coma Well-Known Member

    Joined:
    Apr 18, 2008
    Member:
    #6047
    Messages:
    630
    in the desert
    Vehicle:
    06 trd off road
    intake and exhaust
    how lond did they take and how much was it. could they do that on my already projector lights? i like that cutoff way better than mine, and i also have the 6k hid on them on low beams only though. thanks.

  3. Mar 20, 2009 at 5:49 AM
    #3
    Veccster

    Veccster bass turds

    Joined:
    Aug 8, 2008
    Member:
    #8407
    Messages:
    2,096
    Gender:
    Male
    First Name:
    Eric
    Pittsburgh - The City of Champions
    Vehicle:
    2009 DC V6 TRDsport
    5100's all around - fronts at 1.75", 265/70/17 Bridgestone Revo 2, HID headlights and fog lights, factory skid plate, ss exhaust tip, tube steps, Access roll-up tonneau cover, Redline hood struts, 6 D-rings, seat MagLite, LED dome, fumoto oil drain, DTRL, fog light anytime, Kenwood/Clarion speakers, Pop-N-Lock 5300, LED bed lights and a few other things...
    Looks good! That great service they gave you. Any pricing details?

  4. Mar 20, 2009 at 9:46 AM
    #4
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    255
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    I am still in college and could not install the lights until this week, my spring break. I started emailing Jason at Luminous Solutions in the beginning of January. He received the product at the end of January and then I had him track down a crisp set of OEM headlights and had him install the projectors for me. That took some time, but I was not in a hurry.

    As far as the install for me, it took about two or three hours to get my existing headlights removed, run the new plug-n-play wiring, and then install the new headlights. I tried to do a really clean wiring job so that took most of my time.

    I don't know if you could do this to your existing projectors because of the way the new projectors would mount. Also, this kit uses DS-2 bulbs so you might have to get a new kit if you have different bulbs.

    Cost were $355 for the projector kit which includes the projectors, bulbs, ballast, relays, and other wiring. The install fee for them to to the projectors for me was an additional $75 + the cost of another set of OEM headlights, well worth it IMO because I would have had to do this in about 3 feet of snow in the parking lot of my apartment at school. This way I have an extra set of headlights for the future if something goes wrong or the cops hassle me.

  5. Mar 20, 2009 at 9:55 AM
    #5
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    255
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.
    The customer service was great!:) I received emails updating me whenever they received parts and when Jason was tracking down OEM headlights for example. The updates were great for me.

    The price was considerable more than a regular HID conversion, but keep in mind this is a projector retrofit. It is a fine balance between the HID conversion in the stock housings and what you would get when buying a high end luxury vehicle with HID projectors.

    Kit was $355 plus a $75 install fee and the cost of another set of OEM headlights, which Jason got me a really good deal.

  6. Mar 29, 2009 at 11:44 PM
    #6
    G-Sak

    G-Sak [OP] Well-Known Member

    Joined:
    Dec 8, 2008
    Member:
    #11372
    Messages:
    255
    Gender:
    Male
    PNW
    Vehicle:
    2005 TRD Offroad SR5 DC 6 speed
    FX-R Projector Retrofit with Apollo Shrouds, Digital HID 55 watt ballasts, D2S Philips 85122+ bulbs in the Winter and Digital HID 55w 5k bulbs in the summer, Bakflip G2, Pop N Lock, Tint, Grillcraft with PIAAs behind it, ScanguageII and a few audio/video upgrades.

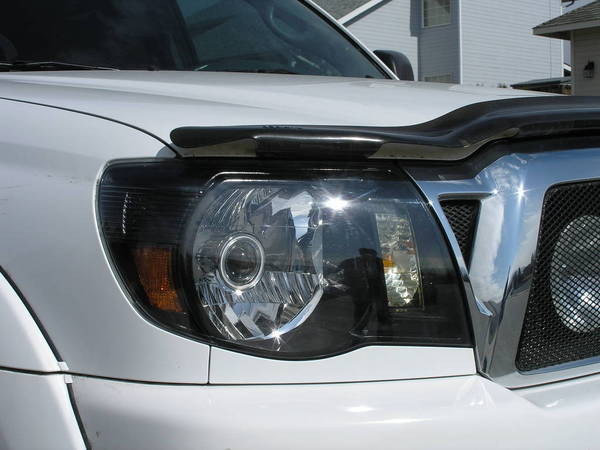

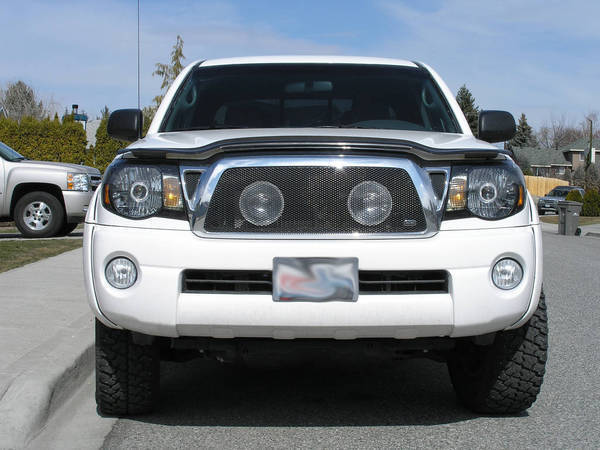

    Here is a daytime picture of the retrofit. Unless you know what you are looking for it would be tough to recognize the change to the headlights. I like the stealth of it.

    [​IMG]
