Put a new set of LED strobes on my Taco

Discussion in 'Lighting' started by BenWA, Jan 24, 2012.

  1. Jan 24, 2012 at 12:16 PM
    #1
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    I used to have some Whelen hideaway strobe bulbs hidden inside my tail lights and fog lights, but the power supply crapped out and I wanted to go with LED's this time. I bought some cheapo LED strobes on eBay for $18, and I got what I paid for (i.e., not bright at all). :rolleyes:

    So I finally got around to doing it right with some Maxxima LED strobes hidden below the tailgate. :cool:

    First, here's a vid to show the finished product:

    http://www.youtube.com/watch?v=MehQ2yNIN7g


    Part # for the Maxxima strobe units that I used is M20373YCL

    [​IMG]

    The light units are nice and compact, but still over an inch deep in dimension, so I had to scratch my head a bit to figure out where to mount them to the rear of my truck. I wanted them to be as stealthy as possible when not in use. Didn't want them haning too low under my bumper, for fear of them getting torn off if I bottom out over an off road obstacle.

    So I decided to recess them into a spot underneath my tailgate, which required cutting some holes in the metal that is in the gap between the bottom of my tailgate and the top of my rear bumper, such that the bodies of the light units are concealed inside the frame with just the lenses poking thru the holes that I cut.

    I posted this thread to ask about cutting holes into my truck:
    http://www.tacomaworld.com/forum/technical-chat/198086-cutting-large-holes-through-steel-how-do-you-do.html

    Here's the general location of where I put them (tailgate is removed in pic). The LEDs in this pic are the cheapo eBay ones that are being replaced:

    [​IMG]


    Note: the metal that I cut through is part of an upside down U-channel frame cross-member, but from what I can tell it is non-structural, so I didn't have too much problem with cutting holes in it. A lot of folks on here will probably scoff at the idea of cutting holes into a frame member for lights. But I did it. If you are worried about comprimising the strength of the frame, you could always beef it up with some reinforcement if you were so inclined.

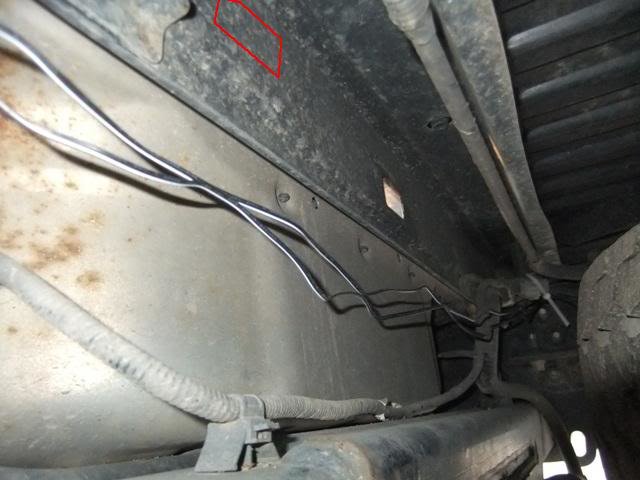

    Here's the inside of that frame member where i cut the holes so you can see what it looks like under there:

    [​IMG]

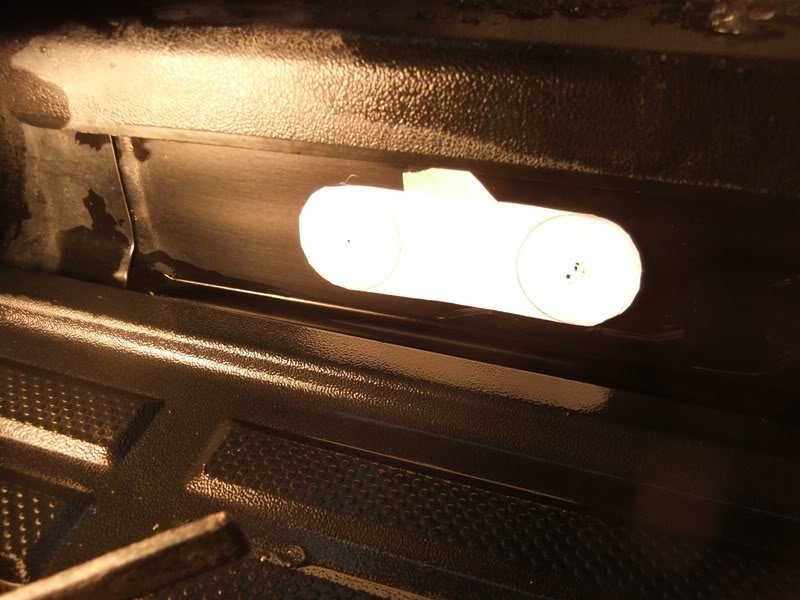

    Back on the outside, I started by making a paper template to mark where the holes get bored. I bored the adjacent holes with a bi-metal hole saw and then cut out the straight parts in between with a cutting wheel:

    [​IMG]


    I used a center punch to mark the centers of the two holes, the metal was so thin that the punch went straight thru!

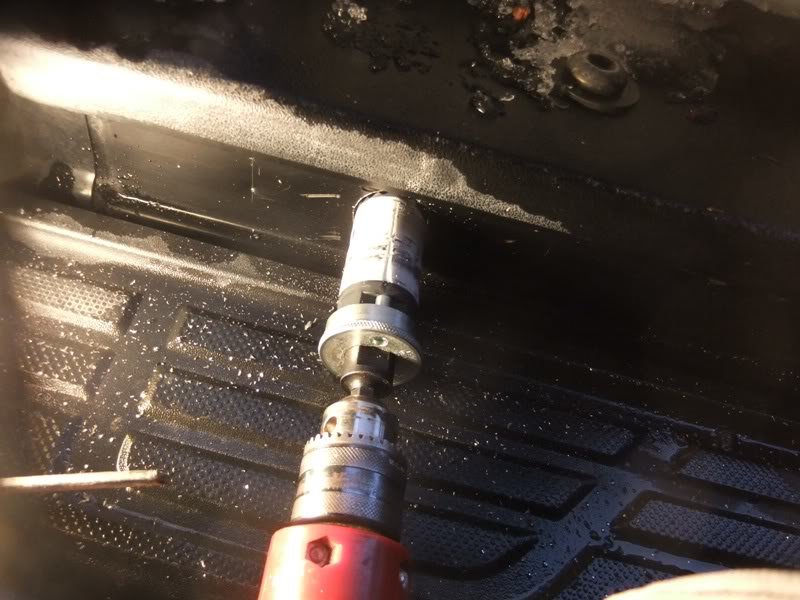

    Drilled the twin holes with the hole saw. Not as smooth as I had hoped, as the hole saw "walked" around a bit before it punched thru, but I held it steady and it got the job done rather barbarically:

    [​IMG]

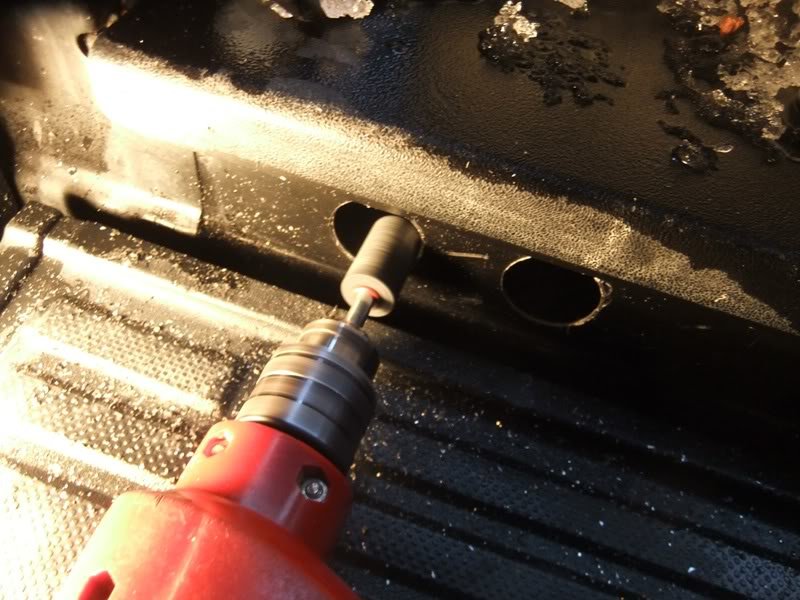

    Cleaned up the burred edges with a drum grinder:

    [​IMG]

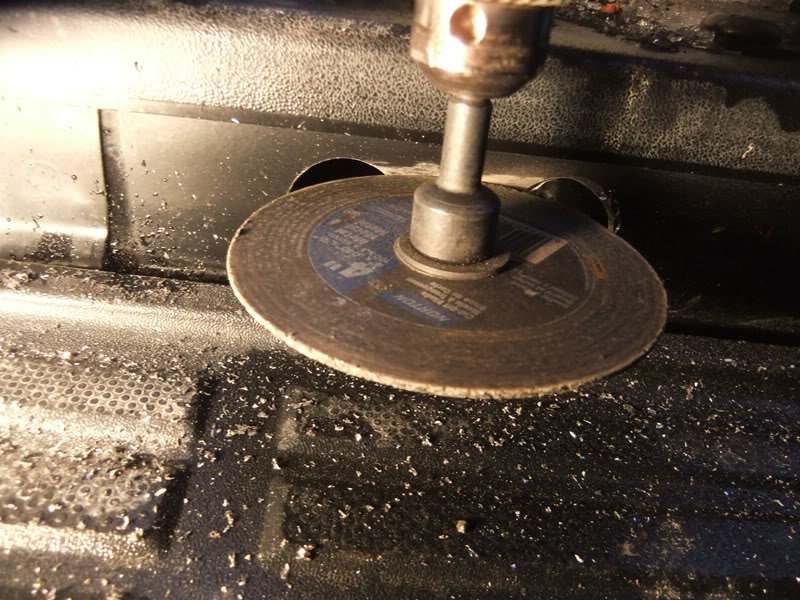

    Now time to cut the straight parts between the adjacent holes with a cutting wheel:

    [​IMG]

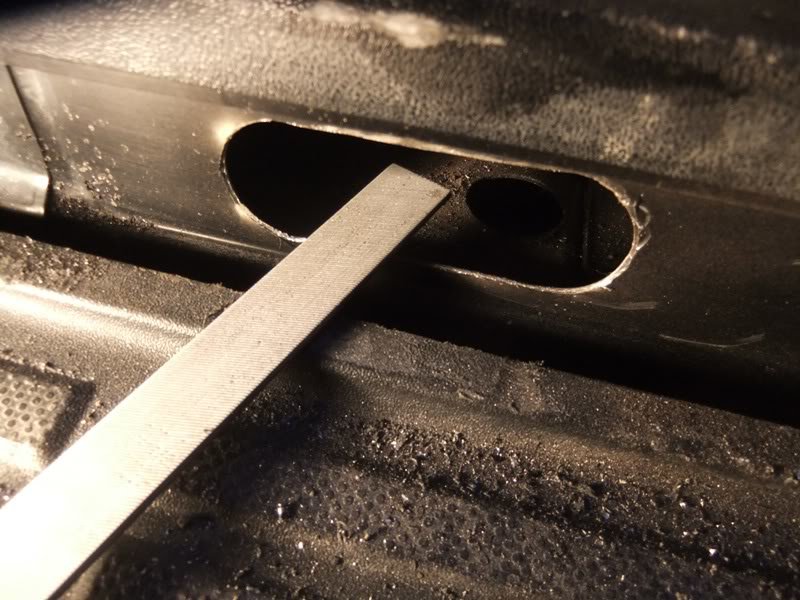

    Took a lot of cleaning up with a rasp and a file:

    [​IMG]


    Painted the cut edges with black Rustoleum to keep things rust proof, don't want my frame to rust. :rolleyes:

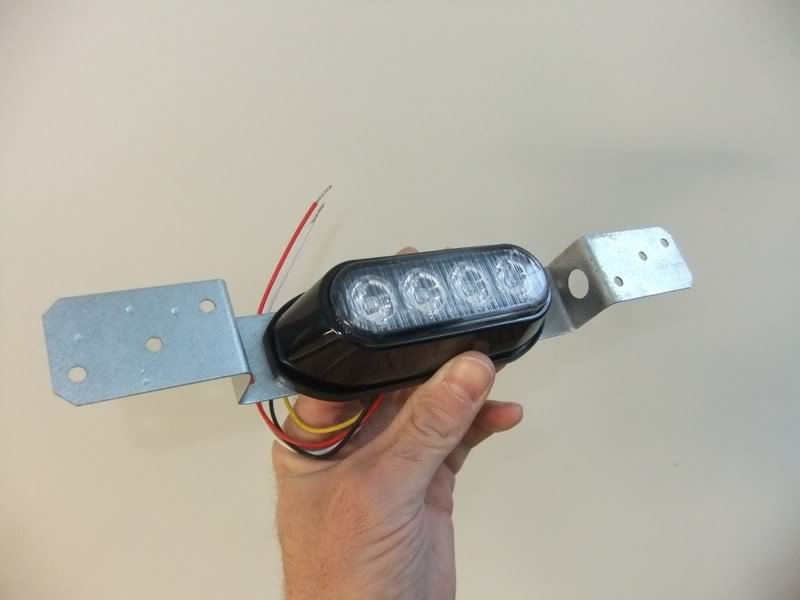

    To mount the lights, I made mounting brackets by folding some steel pieces that I got at Home Depot using a bench vise. The brackets allowed me to mount the lights from the inside of the frame member:

    [​IMG]

    I mounted them to the inside of the frame member using industrial strength velcro (don't laugh, it works great!). That way they are easily removable should they ever need servicing or replacing.

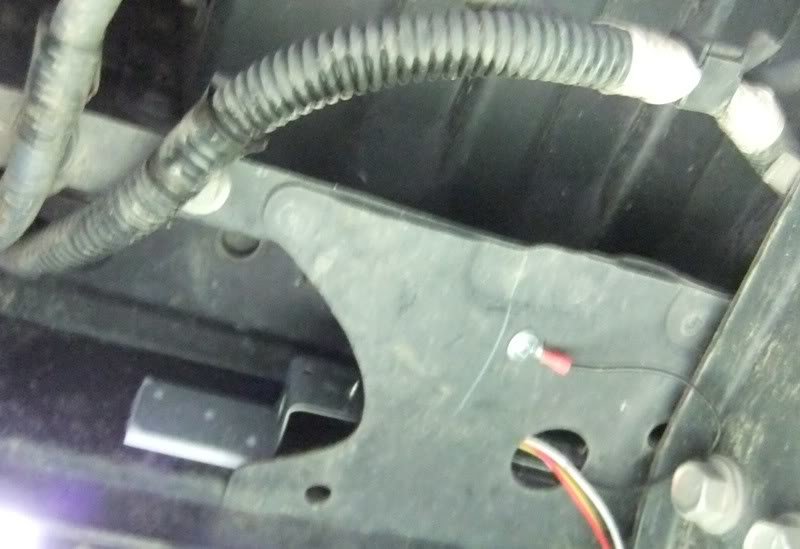

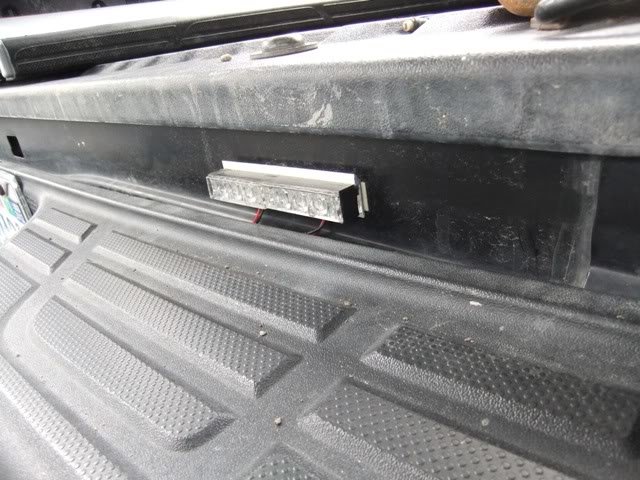

    Here's a nice blurry pic of what the bracket/light looks like when mounted from the inside. Note that I grounded each light head individually to a screw drilled into a flange on that same frame member:

    [​IMG]

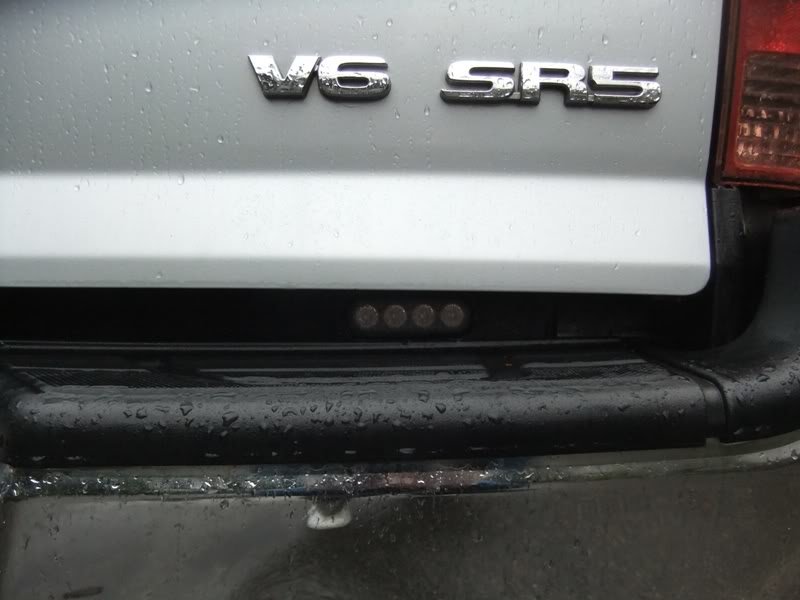

    Once mounted, you can barely see them:

    [​IMG]

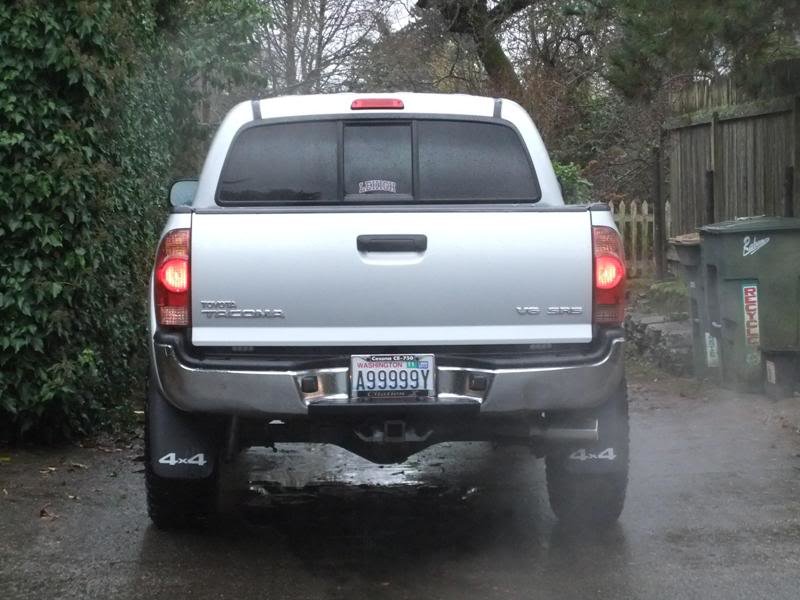

    You probably would never know they were there if you didn't know where to look:

    [​IMG]


    Here's a video to give an idea of what they look like... the camera doesn't capture the rapid strobe effect of this particular flash pattern, but at least you get an idea of brightness:

    http://www.youtube.com/watch?v=kGgWzR0dEG4&feature=g-upl&context=G2610f0eAUAAAAAAAAAA

    In person, they are VERY bright.

    I wired them to an FJ Cruiser foglight on-off button that is similar to the Taco's stock fog button, except it has a built in LED so you know when the strobes are on. Part # is PT297-35070-AS

    [​IMG]

    I also wired in a separate momentary push button that I got at Radio Shack that is used to "scroll through" the flash pattern choices, of which there are 20+ to choose from.

    I plan on using these strobes mainly to supplement a Wheelen magnet mount rotator that I have for the roof for highway work.


    So there you have it. I'm very happy with how they turned out.

  2. Jan 24, 2012 at 3:32 PM
    #2
    iroc409

    iroc409 Well-Known Member

    Joined:
    Jul 8, 2009
    Member:
    #19444
    Messages:
    446
    Gender:
    Male
    Washington
    Vehicle:
    A red one
    Looks nice. I've actually really wanted to do this with auxiliary reverse lights and a rear fog light. Haven't really had the time or money to complete it, though.

  3. Jan 24, 2012 at 3:43 PM
    #3
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Man I like these, these are smaller than I thought they would be. I'm betting they will be brighter once you get them wired to your battery.

  4. Jan 24, 2012 at 4:15 PM
    #4
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    They actually look brighter in person than in the video, even in daylight. I hope the 12V still makes them a little brighter though.

  5. Jan 24, 2012 at 4:19 PM
    #5
    NorthernTaco

    NorthernTaco Member

    Joined:
    Jan 3, 2012
    Member:
    #69868
    Messages:
    10
    Gender:
    Male
    Quebec Canada
    Vehicle:
    SR5 4x4
    Nice job! Looks like a really clean install!

  6. Jan 24, 2012 at 10:30 PM
    #6
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    Thanks! I'm really happy with how they turned out. :)

  7. Jan 24, 2012 at 10:35 PM
    #7
    707tothe907

    707tothe907 Superior Member

    Joined:
    Oct 28, 2010
    Member:
    #45372
    Messages:
    2,694
    Gender:
    Male
    First Name:
    Jake
    Chico NorCal
    Vehicle:
    05 DCSB Off Road
    Awesome mod and write up, rep to you. Maybe look at some hideaway strobes for the front as well?

    But seriously, great write up.

  8. Jan 24, 2012 at 11:16 PM
    #8
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    Thanks! :)

    Yeap, I am saving up for a pair for the front. They will be very easy to mount to my grille and patch in to the wiring that I have already done for the rears.

  9. Jan 24, 2012 at 11:17 PM
    #9
    SocalMan22

    SocalMan22 Founder Socaltacomas.com

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,136
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    I like this setup good job

  10. Jan 24, 2012 at 11:19 PM
    #10
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    are these easy to wire up? looks like something i might want to do at a later time. looks great!

  11. Jan 24, 2012 at 11:26 PM
    #11
    yota new.o

    yota new.o Well-Known Member

    Joined:
    May 19, 2011
    Member:
    #56939
    Messages:
    357
    Gender:
    Male
    First Name:
    joe
    klamath falls oregon
    Vehicle:
    96 tacoma 2.7 sr5
    fabtech dirtlogic coilovers with all-pro a-arms chevy 63" leaf springs billi 5125 12" extended bore shockins in rear headache rack duplicolor bed armor bumpers kc daylighters front fenders corbeau racing seats custom bed rack
    do you have a link from where you ordered them from

  12. Jan 24, 2012 at 11:43 PM
    #12
    yota new.o

    yota new.o Well-Known Member

    Joined:
    May 19, 2011
    Member:
    #56939
    Messages:
    357
    Gender:
    Male
    First Name:
    joe
    klamath falls oregon
    Vehicle:
    96 tacoma 2.7 sr5
    fabtech dirtlogic coilovers with all-pro a-arms chevy 63" leaf springs billi 5125 12" extended bore shockins in rear headache rack duplicolor bed armor bumpers kc daylighters front fenders corbeau racing seats custom bed rack
    thanks for the pm

  13. Jan 25, 2012 at 5:32 AM
    #13
    REDTRD

    REDTRD Woods & Water Edition

    Joined:
    Jan 19, 2012
    Member:
    #70958
    Messages:
    1,407
    Gender:
    Male
    First Name:
    Anthony
    Western NC
    Vehicle:
    07 DCSB SR5 4x4
    Click my build thread!
    Looks sick I like it!

  14. Jan 25, 2012 at 11:16 AM
    #14
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
    I bought them at a local shop in Seattle but I googled them and saw that you can get em online. I will find a link for you.

    Edit here's the link to manufacturer website:
    http://www.maxxima.com/products/7/Warning+&+Emergency.html#

    They were very straightforward to wire up. The instructions give an easy to follow wiring diagram. I did it right with a soldering iron and heat shrink.

  15. Jan 25, 2012 at 5:33 PM
    #15
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4
  16. Jan 25, 2012 at 5:58 PM
    #16
    Boerseun

    Boerseun Well-Known Member

    Joined:
    Jul 25, 2011
    Member:
    #60538
    Messages:
    3,093
    Gender:
    Male
    First Name:
    Ferdie
    Sarasota, Florida
    Vehicle:
    02 PreRunner DoubleCab TRD
    Bull bar, nerf bars, bed extender, tonneu cover, bug deflector, wish list,....
  17. Jan 26, 2012 at 10:24 PM
    #17
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Where did you get your rotator?

  18. Jan 27, 2012 at 7:24 AM
    #18
    BenWA

    BenWA [OP] Well-Known Member

    Joined:
    Feb 23, 2009
    Member:
    #13977
    Messages:
    1,589
    Gender:
    Male
    Seattle @ 0.9 Mach
    Vehicle:
    '06 Double Cab TRD Off Road 4X4

    I don't remember to be honest. It's a Whelen Guardian magnet mount, and I got it online about 5-6 years ago wherever the least expensive option was at the time. I paid about $150 for it.

    Here's one current dealer, but it's more than I paid:

    http://www.public-safety.com/product_info.php?products_id=4340

  19. Jan 29, 2012 at 11:00 PM
    #19
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Interesting... Well I have a friend who owns a towing company so I will ask him about it. He's also the assistant chief at my fire department. Maybe he can get me a good deal on one somewhere.

  20. Jan 29, 2012 at 11:04 PM
    #20
    TnRedNeck721

    TnRedNeck721 GO VOLS!

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    19,142
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    nice man! i thought about doing something. not that i NEED to. but just to do it.
